AXIAL SKELETON SKULL TUTORIAL frontal bone glabella Supraorbital

AXIAL SKELETON SKULL TUTORIAL

frontal bone glabella Supraorbital ridge supraorbital foramen infraorbital foramen zygomatic bone mandibular symphysis mental foramen maxillary bone alveolar fossa mandible ANTERIOR SKULL

perpendicular plate nasal bone orbital fissure middle nasal concha inferior nasal concha vomer bone Anterior Skull

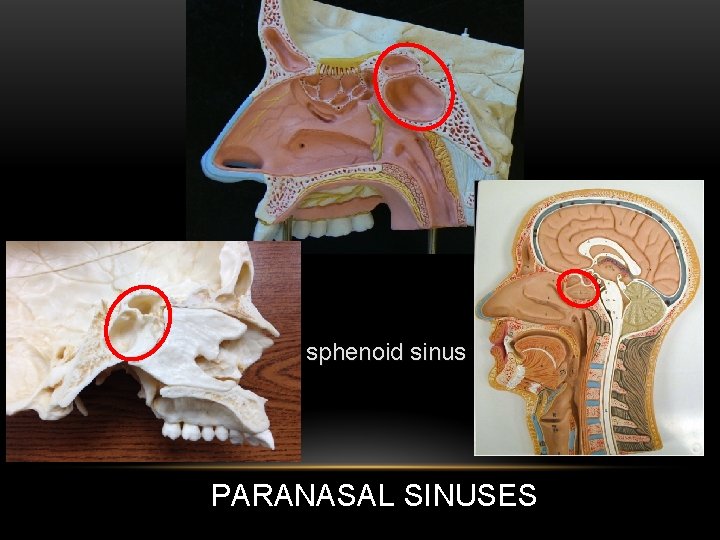

sphenoid sinus PARANASAL SINUSES

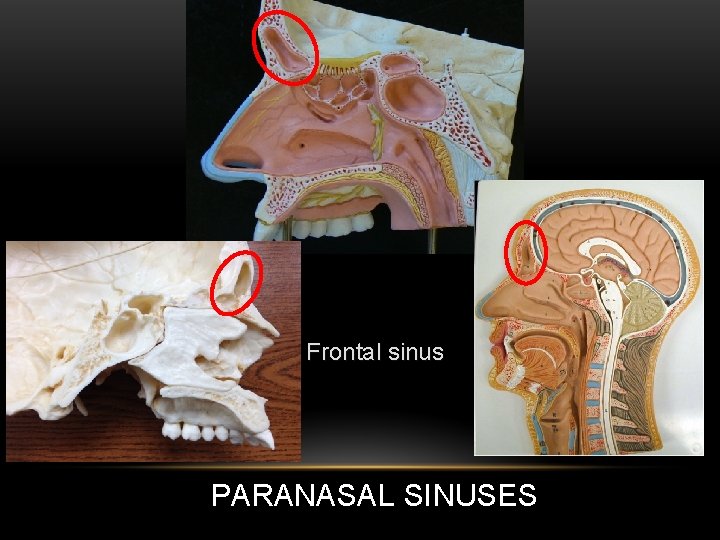

Frontal sinus PARANASAL SINUSES

Ethmoid sinus PARANASAL SINUSES

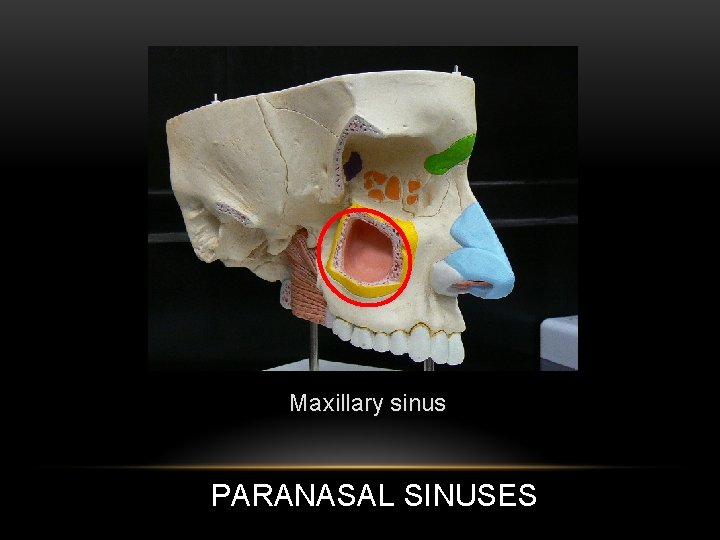

Maxillary sinus PARANASAL SINUSES

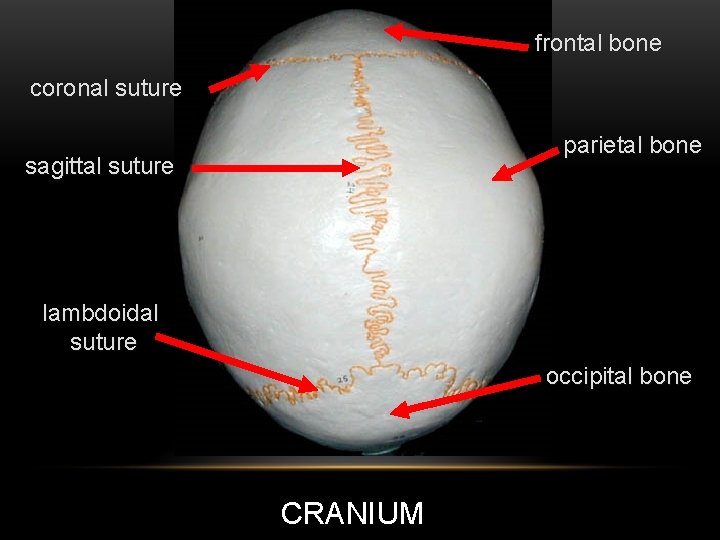

frontal bone coronal suture parietal bone sagittal suture lambdoidal suture occipital bone CRANIUM

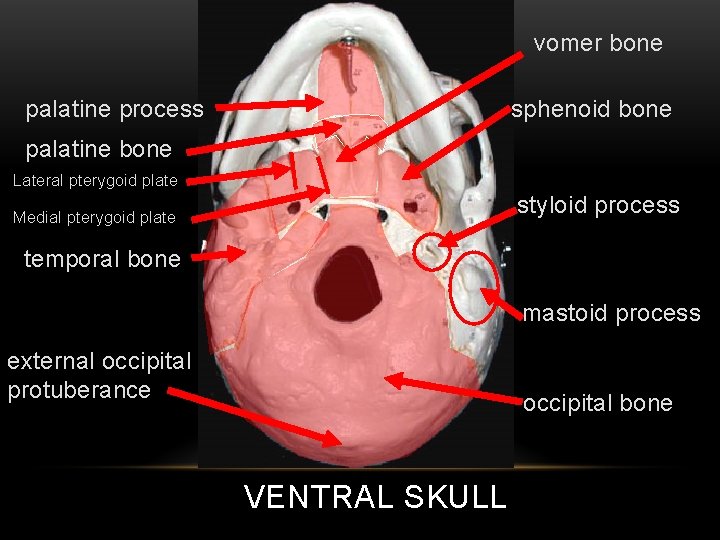

vomer bone palatine process sphenoid bone palatine bone Lateral pterygoid plate styloid process Medial pterygoid plate temporal bone mastoid process external occipital protuberance occipital bone VENTRAL SKULL

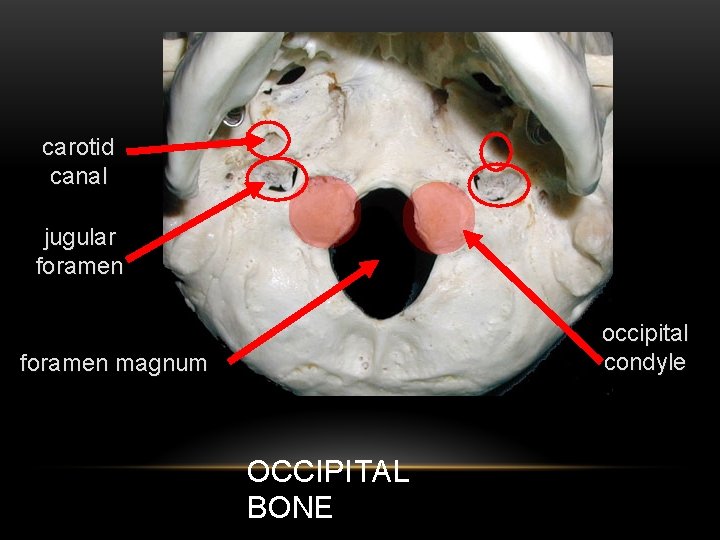

carotid canal jugular foramen occipital condyle foramen magnum OCCIPITAL BONE

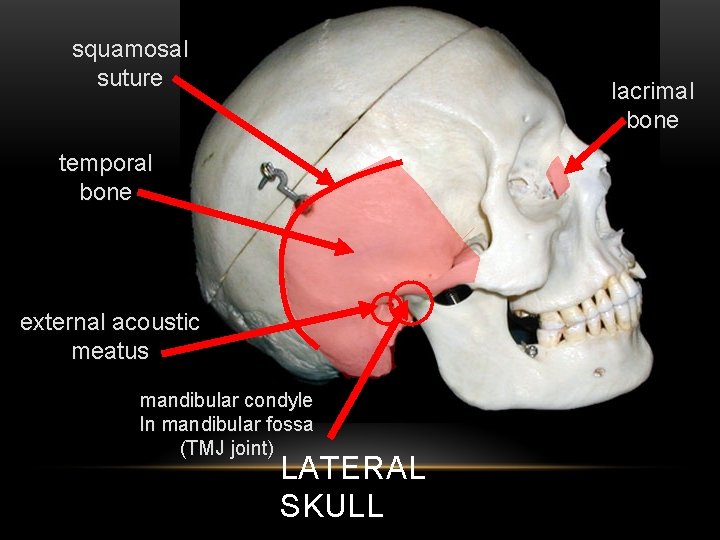

squamosal suture lacrimal bone temporal bone external acoustic meatus mandibular condyle In mandibular fossa (TMJ joint) LATERAL SKULL

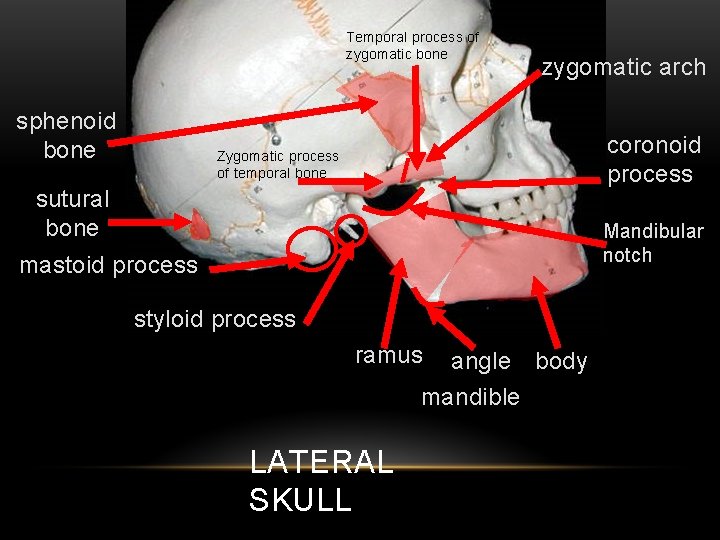

Temporal process of zygomatic bone sphenoid bone zygomatic arch coronoid process Zygomatic process of temporal bone sutural bone Mandibular notch mastoid process styloid process ramus angle body mandible LATERAL SKULL

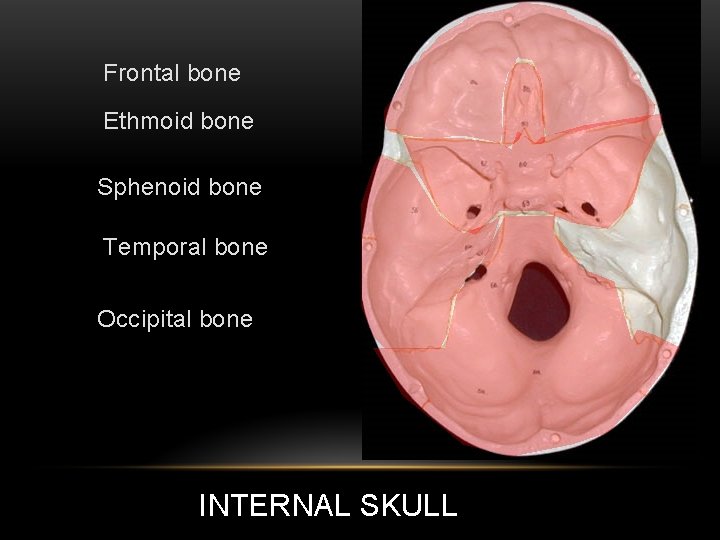

Frontal bone Ethmoid bone Sphenoid bone Temporal bone Occipital bone INTERNAL SKULL

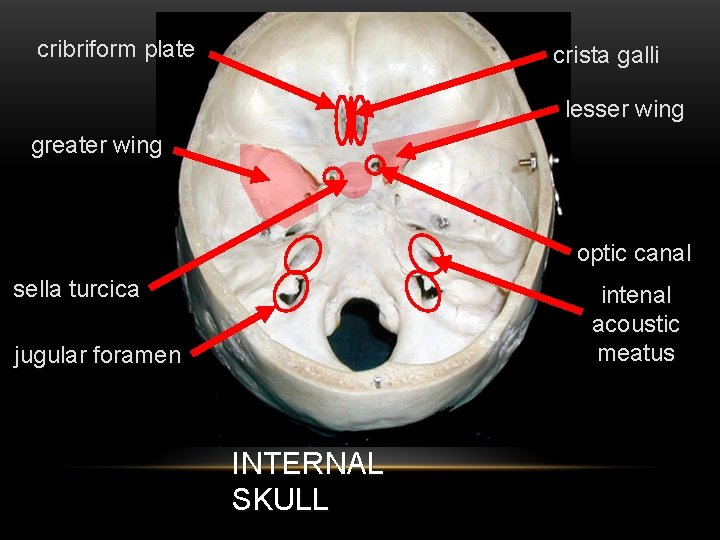

cribriform plate crista galli lesser wing greater wing optic canal sella turcica intenal acoustic meatus jugular foramen INTERNAL SKULL

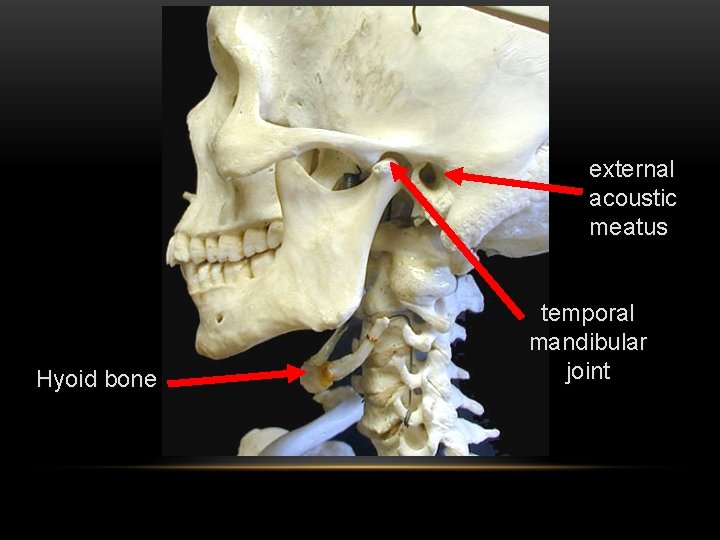

external acoustic meatus Hyoid bone temporal mandibular joint
