doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Coexistence Analysis of ED Threshold Levels - Overview of Discussion in PDED Adhoc Date: 2017 -03 -13 Authors: Name Affiliation Address Kosuke Aio Email Kosuke. Aio@sony. com Ryuichi Hirata Yusuke Tanaka Sony Yuichi Morioka Submission Slide 1 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Introduction • IEEE 802. 11 WG established the “PDED adhoc” to consider potential response to 3 GPP RAN 1’s request to change WLAN’s ED threshold from -62 d. Bm to -72 d. Bm • IEEE 802. 11 -16/1291 r 0 [1] suggests three experiments (by simulation and/or testing) to provide the basis to respond to the 3 GPP RAN 1 request; (1) What happens if all Wi-Fi uses ED of -72 d. Bm (2) What happens if some Wi-Fi uses ED of -72 d. Bm (3) What happens if both LAA and Wi-Fi operate at ED of -72 d. Bm but with no PD communication • So far, we provided some simulation data to analyze the impact of the change in ED threshold − In case of (2) at the November 2016 meeting − In case of (3) at the January 2017 meeting Submission Slide 2 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Recap • Summary of our contribution at the November 2016 meeting − IEEE 802. 11 -16/1451 r 0 : Simulation Analysis of ED Threshold Levels [2] − Difference of ED thresholds makes performance of Ax WLAN worse in case of coexistence of Ax WLAN with ED threshold of -72 d. Bm and legacy WLAN with ED threshold of -62 d. Bm • Summary of our contribution at the January 2017 meeting − IEEE 802. 11 -17/0062 r 0 : Simulation Analysis of ED Threshold Levels in WLAN and LAA coexistence scenario [3] − Some advantages in LAA medium access protocol makes performance of Ax WLAN worse in case of coexistence of LAA and Ax WLAN with ED threshold of 72 d. Bm (but this was not sufficient and additional analyses are shown in this contribution) • Both simulation results showed that changing the ED threshold of future WLAN will degrade its performance Submission Slide 3 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Feedback Summary • We received some feedback during and after the meetings as follows; (A) Why do the results show unequal performance of inner/outer BSSs? − It may be caused by the initialization process of the simulation − It may be caused by the too few Monte Carlo drops. 20 is not sufficient − It may be caused by the asymmetric position of the BSSs (B) Why are throughput of WLAN and LAA different in spite of same ED? − The value of 802. 11 APs CWmax should be 63 (same as LAA) − Are there differences in the channel access mechanism that cause difference? − Are there differences in PD mechanism that cause difference? • In this presentation, we provide updated simulation results incorporating these feedback, and summarize technical analysis of ED threshold Submission Slide 4 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Simulation 1 Confirmation of Feedback Submission Slide 5 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Default Simulation Scenario • Simulation scenario is based on 3 GPP TR 36. 889 [3] • Indoor scenario for LAA coexistence evaluations within unlicensed band • From next slide, we reviewed the parameters in red Active Nodes Traffic Model Channel Access Parameter (Appendix. 2) LAA Ax WLAN BS x 4, MS x 20 120 m DL : FTP model 1 UDP (Appendix. 1) / UL : No Traffic CWmin=15, CWmax=63, m=3 CWmin=15, CWmax=[63, 1023] AIFSN=3 MCS 4 (Fixed) Freq. /BW [MHz] 5, 180 / 20 5 m 30 m 50 m Max TX Power [d. Bm] BS: +18, MS: +18 Antenna Gain [d. Bi] BS: +5, MS: 0 (PD, ED) = (NA, -72) (1) Default Setup (PD, ED) = (-82, -62) (2) 3 GPP Requested Setup (PD, ED) = (-82, -72) Detect Th [d. Bm] <Layout of Nodes> • • • Blue is LAA BS (e. NB). Green is Ax WLAN BS (AP). WLAN and LAA Mobile Stations (MS) are dropped randomly in this area. ([20, 100] drops) Note : 11 ax and LAA features such as OFDMA /Multi-user /HARQ are not enabled in this simulation to see the pure performance of channel access. Submission Slide 6 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 (A) Review of the Simulation Scenario • We reviewed the simulation scenario to get equal performance of the inner/outer • BSSs Considering some feedback, we compared simulation results in these two scenarios (Other parameters are as described in Slide 6) Scenario Traffic Start Time Num. of Drops Layout (A 1) fixed 20 Asymmetric (A 2) random 100 Symmetric Note Same scenario as Jan. meeting (Symmetric) (Asymmetric) • • Submission Slide 7 Blue is LAA BS (e. NB). Green is Ax WLAN BS (AP). Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 (A) Review of the Simulation Scenario • Each BS Ave. DL Throughput per flow [Mbps] • By incorporating all feedback, throughputs of the inner/outer BSSs became almost comparable • Therefore, we use “Scenario (A 2)” for the following simulation Submission Slide 8 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 (B) Analysis of difference between LAA & WLAN • We analyze the reason why throughput of WLAN and LAA are different when WLAN • changes ED to -72 d. Bm same as LAA Considering some feedback, we compared simulation results in these four setups Setup WLAN AP CWmax value LAA Channel Access Model (*1) WLAN PD [d. Bm] WLAN ED [d. Bm] (B 1) 63 LAA -82 -72 3 GPP Requested setup (B 2) 1023 LAA -82 -72 For identifying the effect of different CW max value (same as Jan. meeting) (B 3) 63 WLAN -82 -72 For identifying the effect of different channel access model -72 For identifying the effect of different detection rule for the same system signal (PD) (B 4) 63 LAA -72 Note (*1) In this column, ・“LAA” means LAA Channel Access Model described in 3 GPP TS 36. 213 V 14. 0. 0 [7] (Appendix. 2) ・“WLAN” means that LAA Channel Access Model is the same as WLAN Submission Slide 9 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 (B) Analysis of difference between LAA & WLAN • Ave. DL Throughput per flow [Mbps] (B 1) 3 GPP Requested (B 2) CWmax (B 3) Channel Access (B 4) WLAN PD • Only “Setup (B 4)” showed throughput of LAA & WLAN to be comparable • The different detection rule for the same system signal (i. e. how LAA detects other LAA signals) causes this different performance between LAA & WLAN, not the channel access model Submission Slide 10 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Simulation 2 Updated simulation results on “What happens if some Wi-Fi uses ED of -72 d. Bm ” Submission Slide 11 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Simulation Scenario • In this simulation, we set 802. 11 devices : Legacy WLAN and Ax WLAN − Simulation scenario is based on 3 GPP TR 36. 889 [4] : Indoor scenario for LAA coexistence evaluations within unlicensed band Legacy WLAN 120 m Active Nodes BS x 4, MS x 20 Traffic Model DL : FTP model 1 UDP (Appendix. 1) / UL : No Traffic Channel Access Parameter CWmin=15, CWmax=63, AIFSN=3 MCS 4 (Fixed) Freq. /BW [MHz] 5, 180 / 20 Max TX Power [d. Bm] BS: +18, MS: +18 Antenna Gain [d. Bi] BS: +5, MS: 0 Detect Th [d. Bm] <Layout of nodes> Ax WLAN (PD, ED) = (-82, -62) 30 m 50 m (1) Default Setup (PD, ED) = (-82, -62) (2) 3 GPP Requested Setup (PD, ED) = (-82, -72) • • • 5 m Orange is Legacy WLAN BS (AP). Green is Ax WLAN BS (AP). Each WLAN Mobile Stations (MS) are dropped randomly in this area. (100 drops) Note : 11 ax features such as OFDMA /Multi-user are not enabled in this simulation to see the pure performance of channel access. Submission Slide 12 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Simulation Result • Ave. DL Throughput per flow [Mbps] Setup Legacy WLAN Ax WLAN (1) 1. 21 Mbps 1. 23 Mbps (2) 1. 45 Mbps 0. 98 Mbps (1)Default Setup Ax WLAN : (PD, ED) = (-82, -62) (2) 3 GPP Requested Setup Ax WLAN : (PD, ED) = (-82, -72) • If Ax WLAN changes ED to -72 d. Bm, Ax WLAN performance degrades and becomes worse than that of legacy WLAN due to different ED threshold Submission Slide 13 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Simulation Result • Each BS Ave. DL Throughput per flow [Mbps] • If Ax WLAN changes ED to -72 d. Bm, performance of inner Ax WLAN BSSs degrades due to improving performance of outer legacy WLAN BSSs • Ave. DL throughput of the inner/outer BSSs are almost equal Submission Slide 14 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Simulation 3 Updated Simulation results on “What happens if both LAA and Wi-Fi operate at ED of -72 d. Bm but with no PD communication” Submission Slide 15 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Simulation Scenario • In this simulation, we set LAA and Ax WLAN − Simulation scenario is based on 3 GPP TR 36. 889 [4] : Indoor scenario for LAA coexistence evaluations within unlicensed band. (Same as previous) Active Nodes Traffic Model Channel Access Parameter (Appendix. 2) LAA Ax WLAN <Layout of nodes> BS x 4, MS x 20 120 m DL : FTP model 1 UDP (Appendix. 1) / UL : No Traffic CWmin=15, CWmax=63, m=3 CWmin=15, CWmax=63, AIFSN=3 MCS 4 (Fixed) Freq. /BW [MHz] 5, 180 / 20 Max TX Power [d. Bm] BS: +18, MS: +18 Antenna Gain [d. Bi] BS: +5, MS: 0 (PD, ED) = (NA, -72) (1) Default Setup (PD, ED) = (-82, -62) (2) 3 GPP Requested Setup (PD, ED) = (-82, -72) Detect Th [d. Bm] 30 m 50 m • • • 5 m Blue is LAA BS (e. NB). Green is Ax WLAN BS (AP). WLAN and LAA Mobile Stations (MS) are dropped randomly in this area. (100 drops) Note : 11 ax and LAA features such as OFDMA /Multi-user /HARQ are not enabled in this simulation to see the pure performance of channel access. Submission Slide 16 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Simulation Result • Ave. DL Throughput per flow [Mbps] Setup LAA Ax WLAN (1) 1. 12 Mbps 1. 76 Mbps (2) 1. 70 Mbps 1. 16 Mbps (1)Default Setup Ax WLAN : (PD, ED) = (-82, -62) (2) 3 GPP Requested Setup Ax WLAN : (PD, ED) = (-82, -72) • If Ax WLAN changes ED to -72 d. Bm, Ax WLAN performance degrades and becomes lower than that of LAA due to different detection rule for the same system signal (PD) as I mentioned in Slide 10 Submission Slide 17 Kosuke Aio, Sony

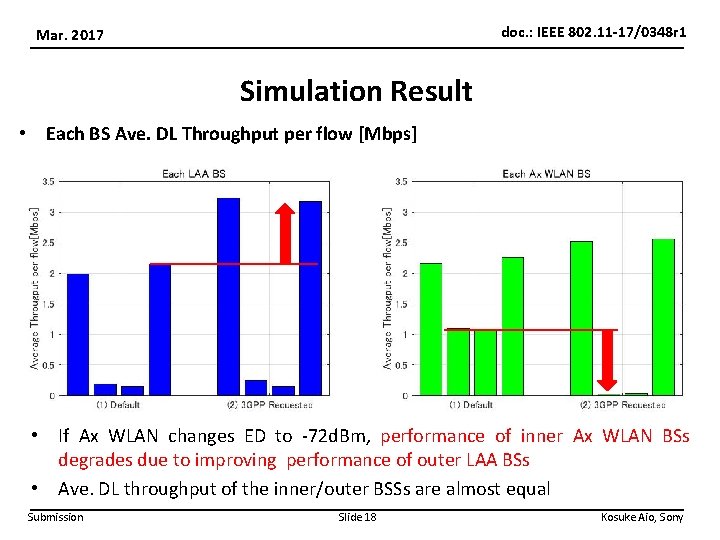

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Simulation Result • Each BS Ave. DL Throughput per flow [Mbps] • If Ax WLAN changes ED to -72 d. Bm, performance of inner Ax WLAN BSs degrades due to improving performance of outer LAA BSs • Ave. DL throughput of the inner/outer BSSs are almost equal Submission Slide 18 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Conclusion • We confirmed the simulation results incorporating feedbacks and updated simulation scenario and parameters – By reviewing initial parameters, number of drops and layout of nodes, we observed equal performance of the inner/outer BSSs – We identified that the different detection rule for the same system signal (i. e. how LAA detects other LAA signals) causes different performance between LAA and WLAN • We updated simulation results that confirm that changing the ED threshold to -72 d. Bm makes Ax WLAN performance worse – Different ED threshold makes Ax WLAN performance worse in the case of coexistence of Ax WLAN and Legacy WLAN – Different detection rule for the same system signal makes Ax WLAN performance worse in the case of coexistence of Ax WLAN and LAA Submission Slide 19 Kosuke Aio, Sony

doc. : IEEE 802. 11 -17/0348 r 1 Mar. 2017 Future Work • We concluded that if future WLAN changes the ED threshold to -72 d. Bm it could have detrimental effect on its performance • However, we should consider the possibility for future WLAN be excluded from the exceptional treatment in EN 301 893, where the ED threshold of 62 d. Bm may not be maintained – If LAA adopts WLAN Preamble Detection as IEEE requested, it may balance out the performance of the two systems, but we should also consider the case if 3 GPP does not accept our request • We should continue our investigation on the effects of intersystem coexistence and develop techniques to mitigate any negative impact Submission Slide 20 Kosuke Aio, Sony
