CSCE 715 Network Systems Security ChinTser Huang huangctcse
![CSCE 715: Network Systems Security Chin-Tser Huang huangct@cse. sc. edu University of South Carolina CSCE 715: Network Systems Security Chin-Tser Huang huangct@cse. sc. edu University of South Carolina](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-1.jpg)
![After DES… n More symmetric encryption algorithms n n Triple-DES Advanced Encryption Standards 01/28/2009 After DES… n More symmetric encryption algorithms n n Triple-DES Advanced Encryption Standards 01/28/2009](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-2.jpg)
![Triple DES n Clearly a replacement for DES was needed n n theoretical attacks Triple DES n Clearly a replacement for DES was needed n n theoretical attacks](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-3.jpg)
![Why Triple-DES? n Double-DES may suffer from meet-in-themiddle attack n n n works whenever Why Triple-DES? n Double-DES may suffer from meet-in-themiddle attack n n n works whenever](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-4.jpg)
![Triple-DES with Two Keys n Must use 3 encryptions n n But can use Triple-DES with Two Keys n Must use 3 encryptions n n But can use](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-5.jpg)
![Triple-DES with Three Keys n n Some proposed attacks on two-key Triple-DES, although none Triple-DES with Three Keys n n Some proposed attacks on two-key Triple-DES, although none](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-6.jpg)
![Origins of Advanced Encryption Standard n n n Triple-DES is slow with small blocks Origins of Advanced Encryption Standard n n n Triple-DES is slow with small blocks](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-7.jpg)
![AES Requirements n n n n Private key symmetric block cipher 128 -bit data, AES Requirements n n n n Private key symmetric block cipher 128 -bit data,](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-8.jpg)
![AES Evaluation Criteria n Initial criteria n n security – effort to practically cryptanalyze AES Evaluation Criteria n Initial criteria n n security – effort to practically cryptanalyze](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-9.jpg)
![AES Shortlist n Shortlist in Aug 99 after testing and evaluation n n n AES Shortlist n Shortlist in Aug 99 after testing and evaluation n n n](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-10.jpg)
![The Winner - Rijndael n n n Designed by Rijmen-Daemen in Belgium Has 128/192/256 The Winner - Rijndael n n n Designed by Rijmen-Daemen in Belgium Has 128/192/256](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-11.jpg)
![Abstract Algebra Background n n n Group Ring Field 01/28/2009 12 Abstract Algebra Background n n n Group Ring Field 01/28/2009 12](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-12.jpg)
![Group n n n A set of elements or “numbers” With a binary operation Group n n n A set of elements or “numbers” With a binary operation](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-13.jpg)
![Ring n n n A set of elements with two operations (addition and multiplication) Ring n n n A set of elements with two operations (addition and multiplication)](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-14.jpg)
![Field n n n A set of numbers with two operations n integral domain Field n n n A set of numbers with two operations n integral domain](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-15.jpg)
![Modular Arithmetic n n Define modulo operator a mod n to be remainder when Modular Arithmetic n n Define modulo operator a mod n to be remainder when](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-16.jpg)
![Divisor n A non-zero number b is a divisor of a if for some Divisor n A non-zero number b is a divisor of a if for some](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-17.jpg)
![Modular Arithmetic n n Can do modular arithmetic with any group of integers Zn Modular Arithmetic n n Can do modular arithmetic with any group of integers Zn](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-18.jpg)
![Modulo 8 Example 01/28/2009 19 Modulo 8 Example 01/28/2009 19](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-19.jpg)
![Greatest Common Divisor (GCD) n GCD (a, b) of a and b is the Greatest Common Divisor (GCD) n GCD (a, b) of a and b is the](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-20.jpg)
![Euclid's GCD Algorithm n Use following theorem n n GCD(a, b) = GCD(b, a Euclid's GCD Algorithm n Use following theorem n n GCD(a, b) = GCD(b, a](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-21.jpg)
![Galois Fields n n n Finite fields play a key role in cryptography Number Galois Fields n n n Finite fields play a key role in cryptography Number](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-22.jpg)
![Galois Fields GF(p) n n GF(p) is set of integers {0, 1, … , Galois Fields GF(p) n n GF(p) is set of integers {0, 1, … ,](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-23.jpg)
![Arithmetic in GF(7) 01/28/2009 24 Arithmetic in GF(7) 01/28/2009 24](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-24.jpg)
![Finding Multiplicative Inverses n By extending Euclid’s algorithm 1. (A 1, A 2, A Finding Multiplicative Inverses n By extending Euclid’s algorithm 1. (A 1, A 2, A](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-25.jpg)
![Polynomial Arithmetic n Can compute using polynomials n Several alternatives available n n n Polynomial Arithmetic n Can compute using polynomials n Several alternatives available n n n](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-26.jpg)
![Ordinary Polynomial Arithmetic n n n Add or subtract corresponding coefficients Multiply all terms Ordinary Polynomial Arithmetic n n n Add or subtract corresponding coefficients Multiply all terms](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-27.jpg)
![Polynomial Arithmetic with Modulo Coefficients n n n Compute value of each coefficient as Polynomial Arithmetic with Modulo Coefficients n n n Compute value of each coefficient as](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-28.jpg)
![Modular Polynomial Arithmetic n Can write any polynomial in the form n n n Modular Polynomial Arithmetic n Can write any polynomial in the form n n n](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-29.jpg)
![Polynomial GCD n Can find greatest common divisor for polys n c(x) = GCD(a(x), Polynomial GCD n Can find greatest common divisor for polys n c(x) = GCD(a(x),](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-30.jpg)
![Modular Polynomial Arithmetic n Can compute in field GF(2 n) n n n polynomials Modular Polynomial Arithmetic n Can compute in field GF(2 n) n n n polynomials](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-31.jpg)
![Arithmetic in GF(23) 01/28/2009 32 Arithmetic in GF(23) 01/28/2009 32](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-32.jpg)
![AES Cipher – Rijndael n n Process data as 4 groups of 4 bytes AES Cipher – Rijndael n n Process data as 4 groups of 4 bytes](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-33.jpg)
![AES Encryption and Decryption 01/28/2009 34 AES Encryption and Decryption 01/28/2009 34](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-34.jpg)
![AES Data Structure 01/28/2009 35 AES Data Structure 01/28/2009 35](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-35.jpg)
![AES Encryption Round 01/28/2009 36 AES Encryption Round 01/28/2009 36](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-36.jpg)
![Byte Substitution n A simple substitution of each byte Uses one table of 16 Byte Substitution n A simple substitution of each byte Uses one table of 16](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-37.jpg)
![Shift Rows n Circular byte shift in each row n n n 1 st Shift Rows n Circular byte shift in each row n n n 1 st](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-38.jpg)
![Mix Columns n n n Each column is processed separately Each byte is replaced Mix Columns n n n Each column is processed separately Each byte is replaced](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-39.jpg)
![Add Round Key n n XOR state with 128 bits of the round key Add Round Key n n XOR state with 128 bits of the round key](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-40.jpg)
![AES Key Expansion n Take 128/192/256 -bit key and expand into array of 44/52/60 AES Key Expansion n Take 128/192/256 -bit key and expand into array of 44/52/60](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-41.jpg)
![AES Decryption n n AES decryption is not identical to encryption because steps are AES Decryption n n AES decryption is not identical to encryption because steps are](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-42.jpg)
![Implementation Aspects n Can efficiently implement on 8 -bit CPU n n byte substitution Implementation Aspects n Can efficiently implement on 8 -bit CPU n n byte substitution](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-43.jpg)
![Implementation Aspects n Can efficiently implement on 32 -bit CPU n n n redefine Implementation Aspects n Can efficiently implement on 32 -bit CPU n n n redefine](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-44.jpg)
![Next Class n n Confidentiality of symmetric encryption Read Chapters 7, 8, 9 01/28/2009 Next Class n n Confidentiality of symmetric encryption Read Chapters 7, 8, 9 01/28/2009](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-45.jpg)
- Slides: 45
![CSCE 715 Network Systems Security ChinTser Huang huangctcse sc edu University of South Carolina CSCE 715: Network Systems Security Chin-Tser Huang huangct@cse. sc. edu University of South Carolina](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-1.jpg)
CSCE 715: Network Systems Security Chin-Tser Huang huangct@cse. sc. edu University of South Carolina 01/28/2009
![After DES n More symmetric encryption algorithms n n TripleDES Advanced Encryption Standards 01282009 After DES… n More symmetric encryption algorithms n n Triple-DES Advanced Encryption Standards 01/28/2009](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-2.jpg)

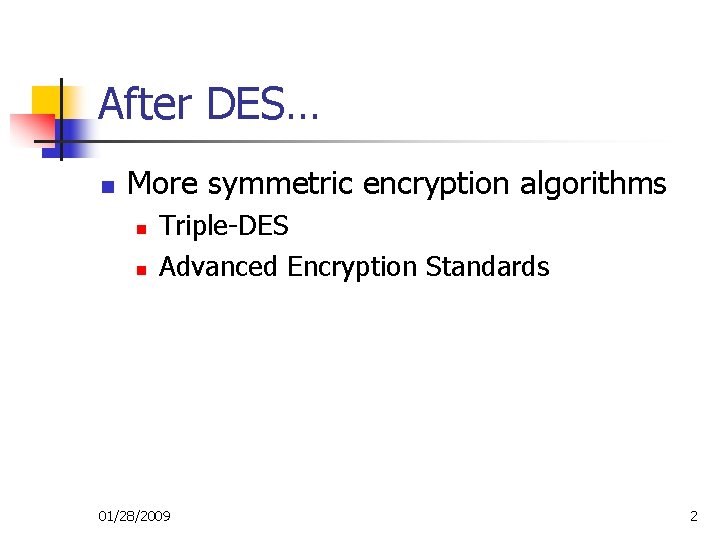

After DES… n More symmetric encryption algorithms n n Triple-DES Advanced Encryption Standards 01/28/2009 2
![Triple DES n Clearly a replacement for DES was needed n n theoretical attacks Triple DES n Clearly a replacement for DES was needed n n theoretical attacks](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-3.jpg)
Triple DES n Clearly a replacement for DES was needed n n theoretical attacks that can break it demonstrated exhaustive key search attacks Use multiple encryptions with DES implementations Triple-DES is the chosen form 01/28/2009 3

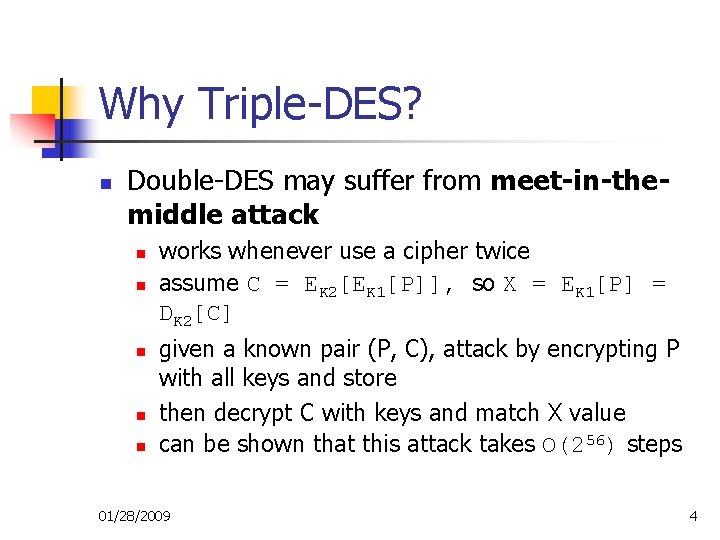

![Why TripleDES n DoubleDES may suffer from meetinthemiddle attack n n n works whenever Why Triple-DES? n Double-DES may suffer from meet-in-themiddle attack n n n works whenever](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-4.jpg)
Why Triple-DES? n Double-DES may suffer from meet-in-themiddle attack n n n works whenever use a cipher twice assume C = EK 2[EK 1[P]], so X = EK 1[P] = DK 2[C] given a known pair (P, C), attack by encrypting P with all keys and store then decrypt C with keys and match X value can be shown that this attack takes O(256) steps 01/28/2009 4

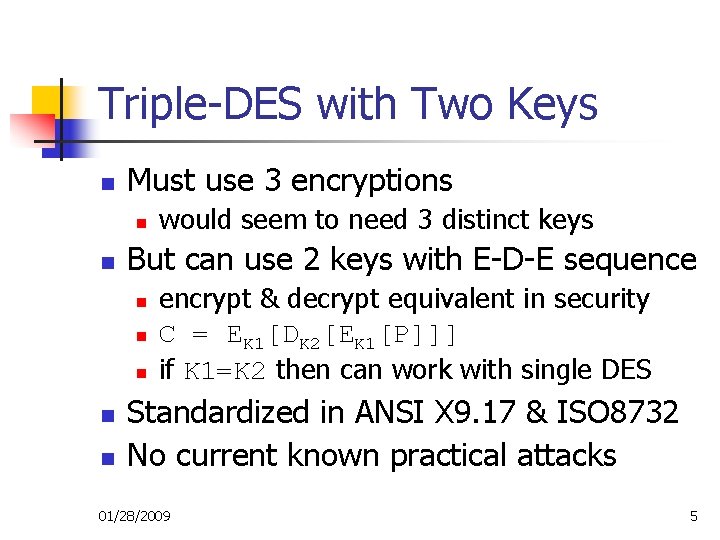

![TripleDES with Two Keys n Must use 3 encryptions n n But can use Triple-DES with Two Keys n Must use 3 encryptions n n But can use](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-5.jpg)
Triple-DES with Two Keys n Must use 3 encryptions n n But can use 2 keys with E-D-E sequence n n n would seem to need 3 distinct keys encrypt & decrypt equivalent in security C = EK 1[DK 2[EK 1[P]]] if K 1=K 2 then can work with single DES Standardized in ANSI X 9. 17 & ISO 8732 No current known practical attacks 01/28/2009 5
![TripleDES with Three Keys n n Some proposed attacks on twokey TripleDES although none Triple-DES with Three Keys n n Some proposed attacks on two-key Triple-DES, although none](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-6.jpg)

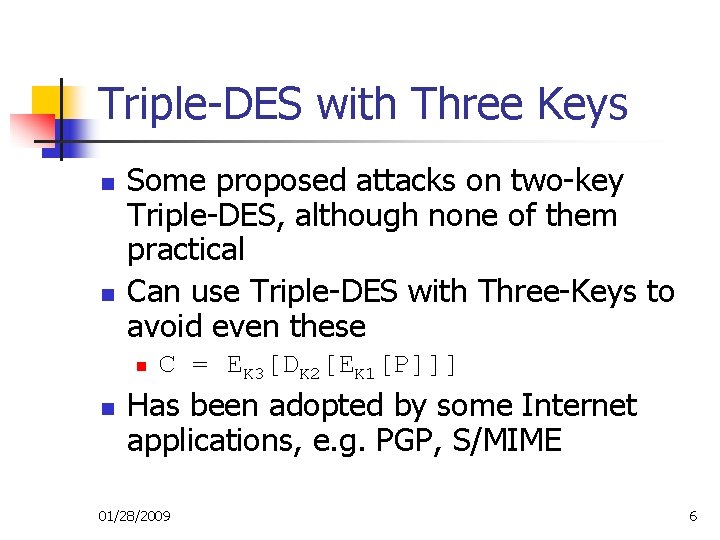

Triple-DES with Three Keys n n Some proposed attacks on two-key Triple-DES, although none of them practical Can use Triple-DES with Three-Keys to avoid even these n n C = EK 3[DK 2[EK 1[P]]] Has been adopted by some Internet applications, e. g. PGP, S/MIME 01/28/2009 6
![Origins of Advanced Encryption Standard n n n TripleDES is slow with small blocks Origins of Advanced Encryption Standard n n n Triple-DES is slow with small blocks](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-7.jpg)
Origins of Advanced Encryption Standard n n n Triple-DES is slow with small blocks US NIST issued call for ciphers in 1997 15 candidates accepted in Jun 1998 5 were shortlisted in Aug 1999 Rijndael was selected as the AES in Oct 2000 Issued as FIPS PUB 197 standard in Nov 2001 01/28/2009 7
![AES Requirements n n n n Private key symmetric block cipher 128 bit data AES Requirements n n n n Private key symmetric block cipher 128 -bit data,](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-8.jpg)

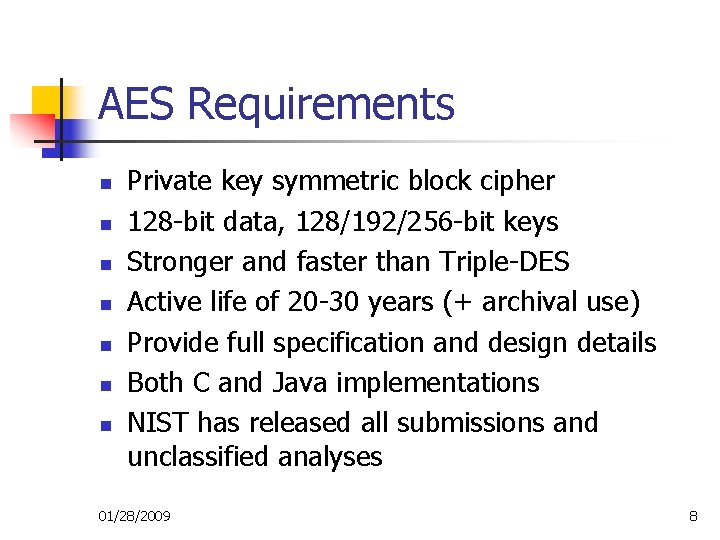

AES Requirements n n n n Private key symmetric block cipher 128 -bit data, 128/192/256 -bit keys Stronger and faster than Triple-DES Active life of 20 -30 years (+ archival use) Provide full specification and design details Both C and Java implementations NIST has released all submissions and unclassified analyses 01/28/2009 8
![AES Evaluation Criteria n Initial criteria n n security effort to practically cryptanalyze AES Evaluation Criteria n Initial criteria n n security – effort to practically cryptanalyze](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-9.jpg)

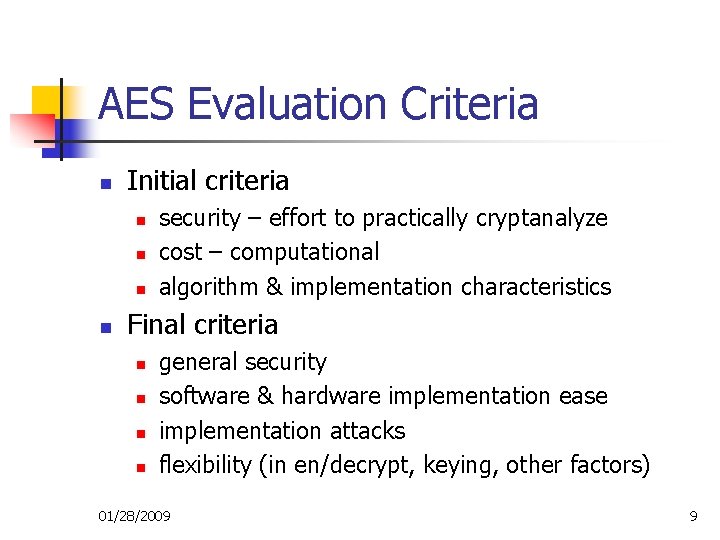

AES Evaluation Criteria n Initial criteria n n security – effort to practically cryptanalyze cost – computational algorithm & implementation characteristics Final criteria n n general security software & hardware implementation ease implementation attacks flexibility (in en/decrypt, keying, other factors) 01/28/2009 9
![AES Shortlist n Shortlist in Aug 99 after testing and evaluation n n n AES Shortlist n Shortlist in Aug 99 after testing and evaluation n n n](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-10.jpg)

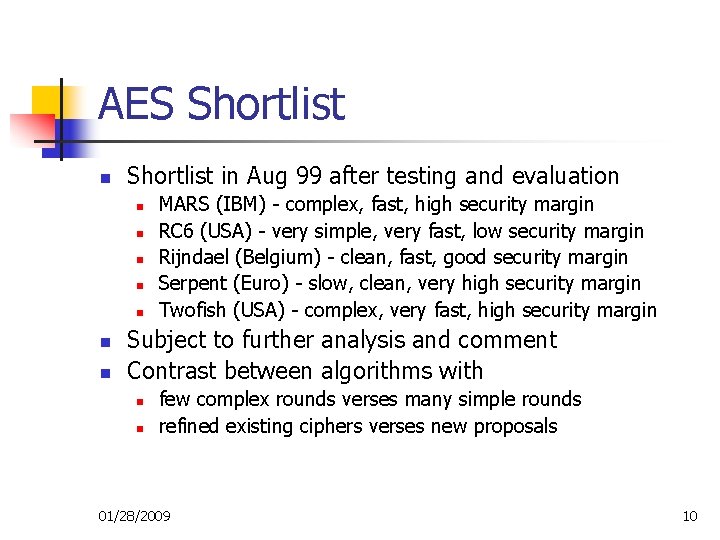

AES Shortlist n Shortlist in Aug 99 after testing and evaluation n n n MARS (IBM) - complex, fast, high security margin RC 6 (USA) - very simple, very fast, low security margin Rijndael (Belgium) - clean, fast, good security margin Serpent (Euro) - slow, clean, very high security margin Twofish (USA) - complex, very fast, high security margin Subject to further analysis and comment Contrast between algorithms with n n few complex rounds verses many simple rounds refined existing ciphers verses new proposals 01/28/2009 10
![The Winner Rijndael n n n Designed by RijmenDaemen in Belgium Has 128192256 The Winner - Rijndael n n n Designed by Rijmen-Daemen in Belgium Has 128/192/256](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-11.jpg)
The Winner - Rijndael n n n Designed by Rijmen-Daemen in Belgium Has 128/192/256 bit keys, 128 bit data An iterative rather than feistel cipher n n n Designed to be n n treats data in 4 groups of 4 bytes operates an entire block in every round resistant against known attacks speed and code compactness on many CPUs design simplicity Use finite field 01/28/2009 11
![Abstract Algebra Background n n n Group Ring Field 01282009 12 Abstract Algebra Background n n n Group Ring Field 01/28/2009 12](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-12.jpg)
Abstract Algebra Background n n n Group Ring Field 01/28/2009 12
![Group n n n A set of elements or numbers With a binary operation Group n n n A set of elements or “numbers” With a binary operation](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-13.jpg)

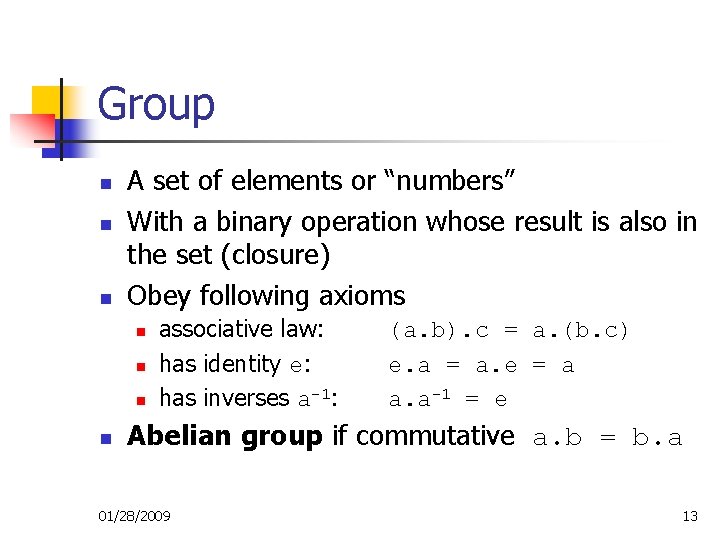

Group n n n A set of elements or “numbers” With a binary operation whose result is also in the set (closure) Obey following axioms n n associative law: has identity e: has inverses a-1: (a. b). c = a. (b. c) e. a = a. e = a a. a-1 = e Abelian group if commutative a. b = b. a 01/28/2009 13
![Ring n n n A set of elements with two operations addition and multiplication Ring n n n A set of elements with two operations (addition and multiplication)](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-14.jpg)

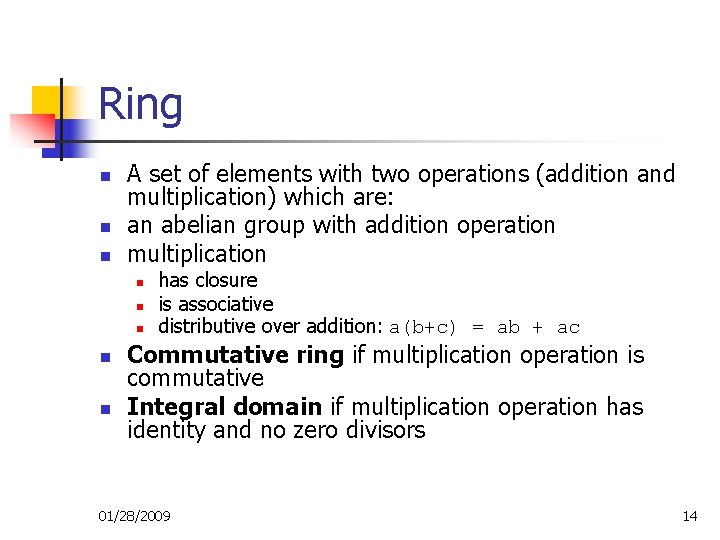

Ring n n n A set of elements with two operations (addition and multiplication) which are: an abelian group with addition operation multiplication n n has closure is associative distributive over addition: a(b+c) = ab + ac Commutative ring if multiplication operation is commutative Integral domain if multiplication operation has identity and no zero divisors 01/28/2009 14

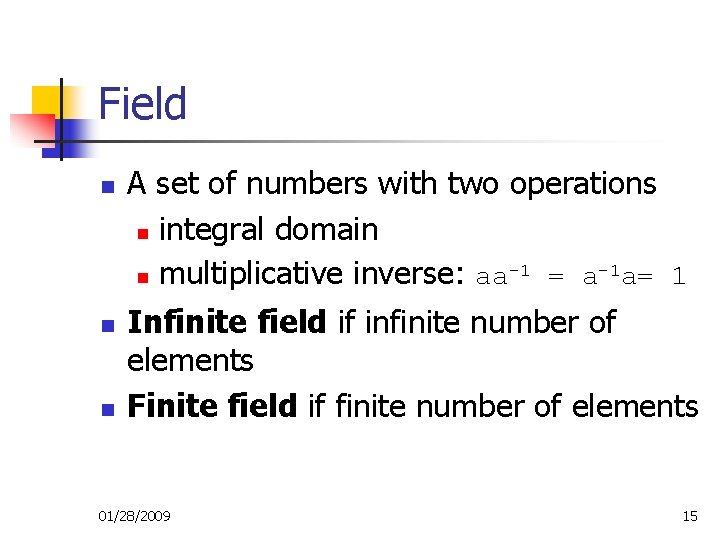

![Field n n n A set of numbers with two operations n integral domain Field n n n A set of numbers with two operations n integral domain](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-15.jpg)
Field n n n A set of numbers with two operations n integral domain n multiplicative inverse: aa-1 = a-1 a= 1 Infinite field if infinite number of elements Finite field if finite number of elements 01/28/2009 15
![Modular Arithmetic n n Define modulo operator a mod n to be remainder when Modular Arithmetic n n Define modulo operator a mod n to be remainder when](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-16.jpg)

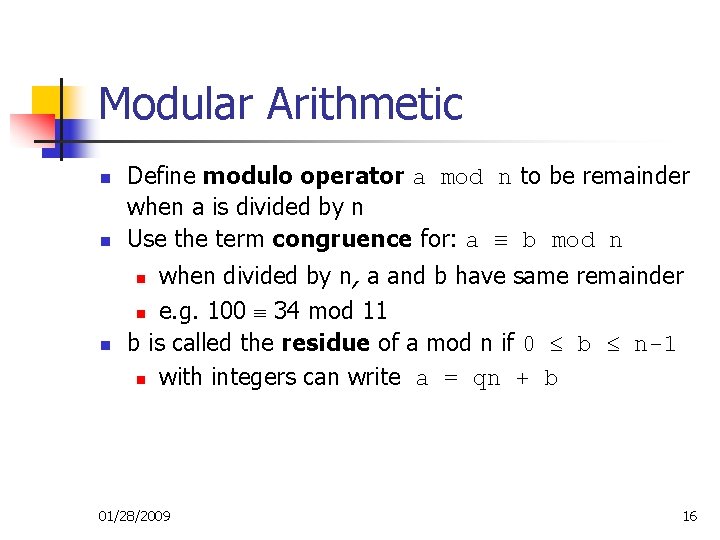

Modular Arithmetic n n Define modulo operator a mod n to be remainder when a is divided by n Use the term congruence for: a ≡ b mod n when divided by n, a and b have same remainder n e. g. 100 34 mod 11 b is called the residue of a mod n if 0 b n-1 n with integers can write a = qn + b n n 01/28/2009 16
![Divisor n A nonzero number b is a divisor of a if for some Divisor n A non-zero number b is a divisor of a if for some](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-17.jpg)

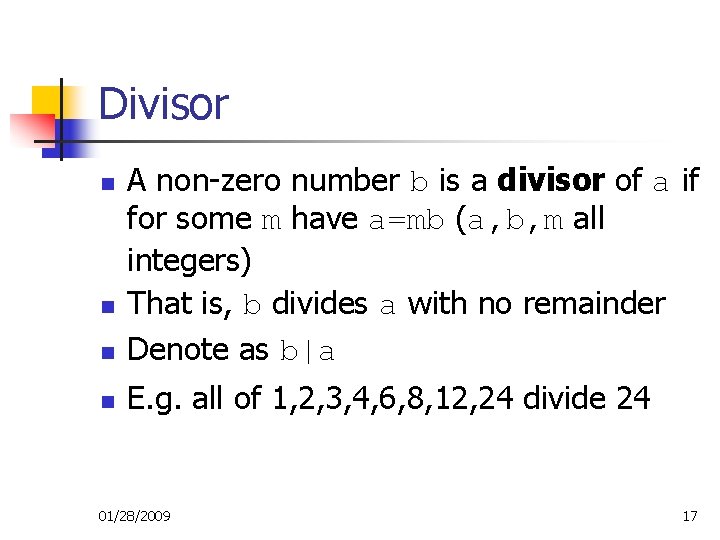

Divisor n A non-zero number b is a divisor of a if for some m have a=mb (a, b, m all integers) That is, b divides a with no remainder Denote as b|a n E. g. all of 1, 2, 3, 4, 6, 8, 12, 24 divide 24 n n 01/28/2009 17
![Modular Arithmetic n n Can do modular arithmetic with any group of integers Zn Modular Arithmetic n n Can do modular arithmetic with any group of integers Zn](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-18.jpg)
Modular Arithmetic n n Can do modular arithmetic with any group of integers Zn = {0, 1, … , n-1} Form a commutative ring for addition With a multiplicative identity Some peculiarities n n if (a+b)≡(a+c) mod n then b≡c mod n but (ab)≡(ac) mod n then b≡c mod n only if a is relatively prime to n 01/28/2009 18

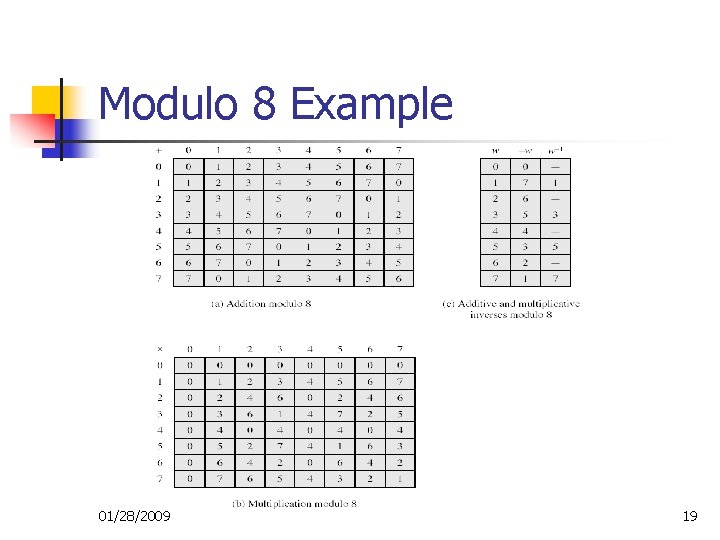

![Modulo 8 Example 01282009 19 Modulo 8 Example 01/28/2009 19](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-19.jpg)
Modulo 8 Example 01/28/2009 19
![Greatest Common Divisor GCD n GCD a b of a and b is the Greatest Common Divisor (GCD) n GCD (a, b) of a and b is the](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-20.jpg)
Greatest Common Divisor (GCD) n GCD (a, b) of a and b is the largest number that divides evenly into both a and b n n e. g. GCD(60, 24) = 12 Two numbers are called relatively prime if they have no common factors (except 1) n e. g. 8 and 15 relatively prime as GCD(8, 15) = 1 01/28/2009 20
![Euclids GCD Algorithm n Use following theorem n n GCDa b GCDb a Euclid's GCD Algorithm n Use following theorem n n GCD(a, b) = GCD(b, a](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-21.jpg)

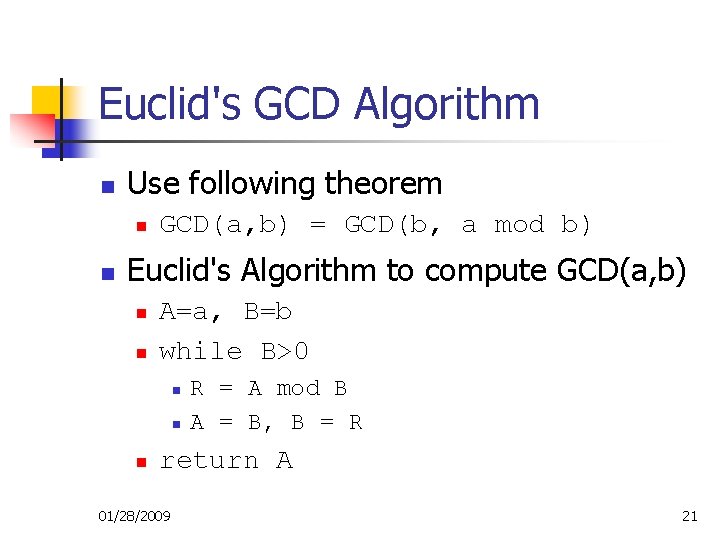

Euclid's GCD Algorithm n Use following theorem n n GCD(a, b) = GCD(b, a mod b) Euclid's Algorithm to compute GCD(a, b) n n A=a, B=b while B>0 n n n R = A mod B A = B, B = R return A 01/28/2009 21
![Galois Fields n n n Finite fields play a key role in cryptography Number Galois Fields n n n Finite fields play a key role in cryptography Number](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-22.jpg)

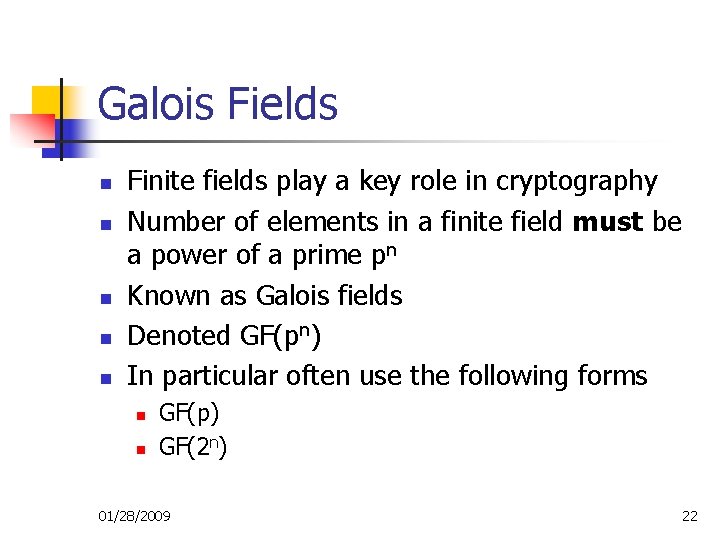

Galois Fields n n n Finite fields play a key role in cryptography Number of elements in a finite field must be a power of a prime pn Known as Galois fields Denoted GF(pn) In particular often use the following forms n n GF(p) GF(2 n) 01/28/2009 22
![Galois Fields GFp n n GFp is set of integers 0 1 Galois Fields GF(p) n n GF(p) is set of integers {0, 1, … ,](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-23.jpg)

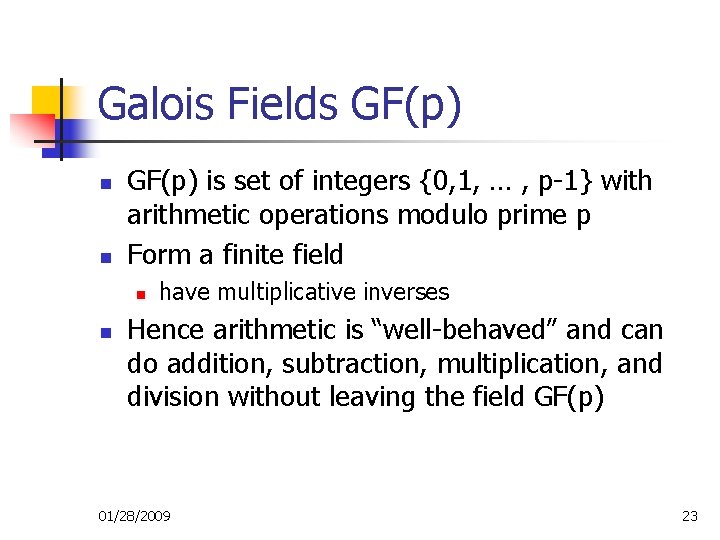

Galois Fields GF(p) n n GF(p) is set of integers {0, 1, … , p-1} with arithmetic operations modulo prime p Form a finite field n n have multiplicative inverses Hence arithmetic is “well-behaved” and can do addition, subtraction, multiplication, and division without leaving the field GF(p) 01/28/2009 23
![Arithmetic in GF7 01282009 24 Arithmetic in GF(7) 01/28/2009 24](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-24.jpg)
Arithmetic in GF(7) 01/28/2009 24
![Finding Multiplicative Inverses n By extending Euclids algorithm 1 A 1 A 2 A Finding Multiplicative Inverses n By extending Euclid’s algorithm 1. (A 1, A 2, A](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-25.jpg)

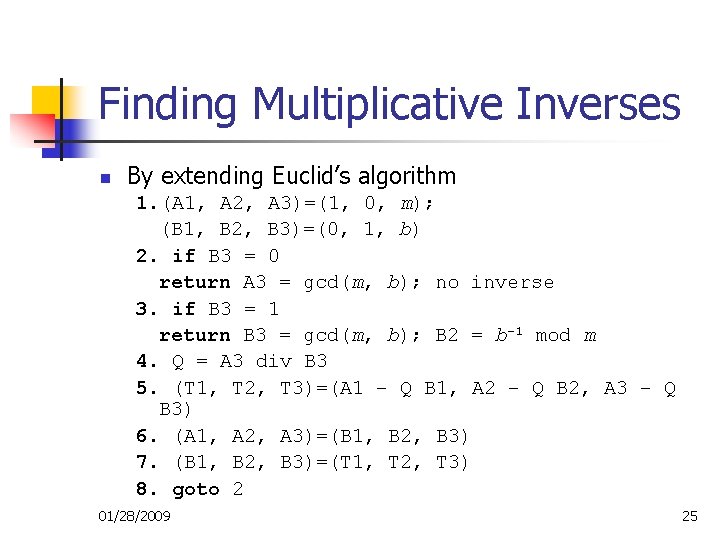

Finding Multiplicative Inverses n By extending Euclid’s algorithm 1. (A 1, A 2, A 3)=(1, 0, m); (B 1, B 2, B 3)=(0, 1, b) 2. if B 3 = 0 return A 3 = gcd(m, b); no inverse 3. if B 3 = 1 return B 3 = gcd(m, b); B 2 = b– 1 mod m 4. Q = A 3 div B 3 5. (T 1, T 2, T 3)=(A 1 – Q B 1, A 2 – Q B 2, A 3 – Q B 3) 6. (A 1, A 2, A 3)=(B 1, B 2, B 3) 7. (B 1, B 2, B 3)=(T 1, T 2, T 3) 8. goto 2 01/28/2009 25

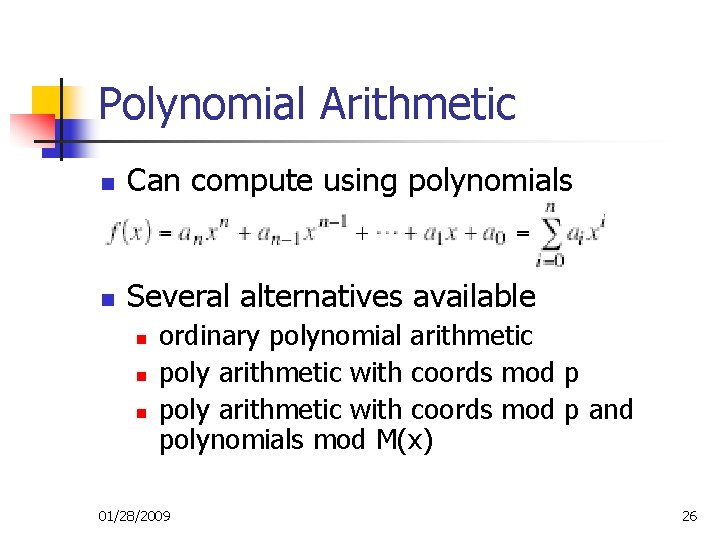

![Polynomial Arithmetic n Can compute using polynomials n Several alternatives available n n n Polynomial Arithmetic n Can compute using polynomials n Several alternatives available n n n](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-26.jpg)
Polynomial Arithmetic n Can compute using polynomials n Several alternatives available n n n ordinary polynomial arithmetic poly arithmetic with coords mod p and polynomials mod M(x) 01/28/2009 26
![Ordinary Polynomial Arithmetic n n n Add or subtract corresponding coefficients Multiply all terms Ordinary Polynomial Arithmetic n n n Add or subtract corresponding coefficients Multiply all terms](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-27.jpg)

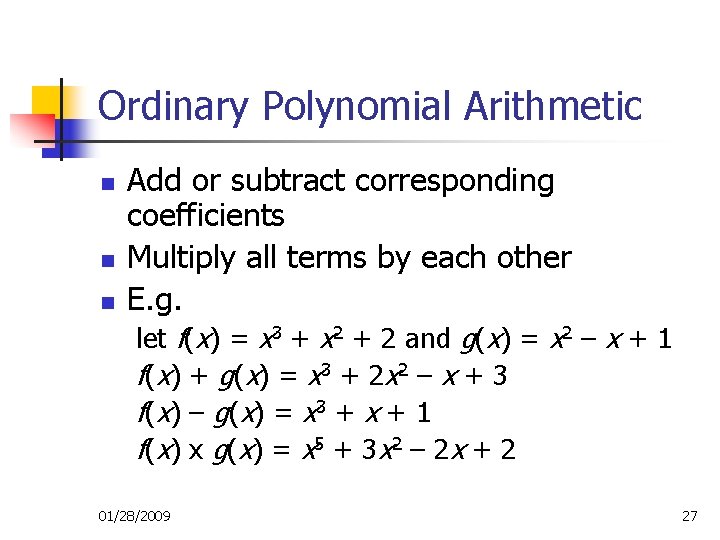

Ordinary Polynomial Arithmetic n n n Add or subtract corresponding coefficients Multiply all terms by each other E. g. let f(x) = x 3 + x 2 + 2 and g(x) = x 2 – x + 1 f ( x) + g ( x) = x 3 + 2 x 2 – x + 3 f ( x) – g ( x) = x 3 + x + 1 f ( x) x g ( x) = x 5 + 3 x 2 – 2 x + 2 01/28/2009 27

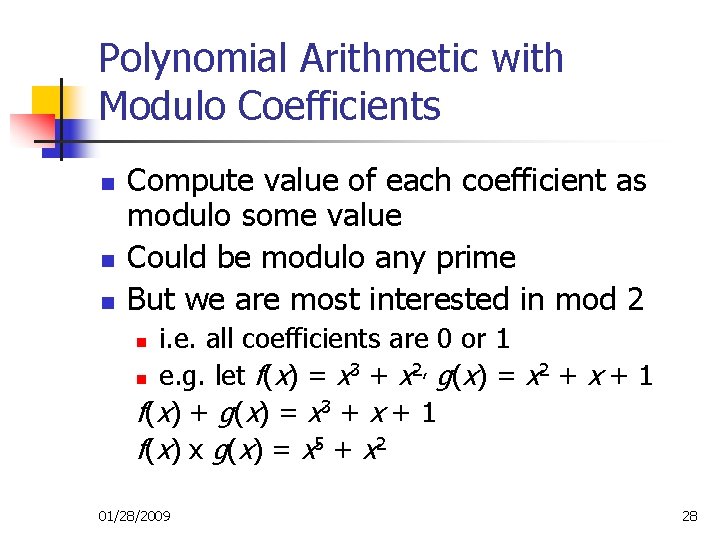

![Polynomial Arithmetic with Modulo Coefficients n n n Compute value of each coefficient as Polynomial Arithmetic with Modulo Coefficients n n n Compute value of each coefficient as](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-28.jpg)
Polynomial Arithmetic with Modulo Coefficients n n n Compute value of each coefficient as modulo some value Could be modulo any prime But we are most interested in mod 2 i. e. all coefficients are 0 or 1 3 2, g(x) = x 2 + x + 1 n e. g. let f(x) = x + x f ( x) + g ( x) = x 3 + x + 1 f ( x) x g ( x) = x 5 + x 2 n 01/28/2009 28
![Modular Polynomial Arithmetic n Can write any polynomial in the form n n n Modular Polynomial Arithmetic n Can write any polynomial in the form n n n](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-29.jpg)

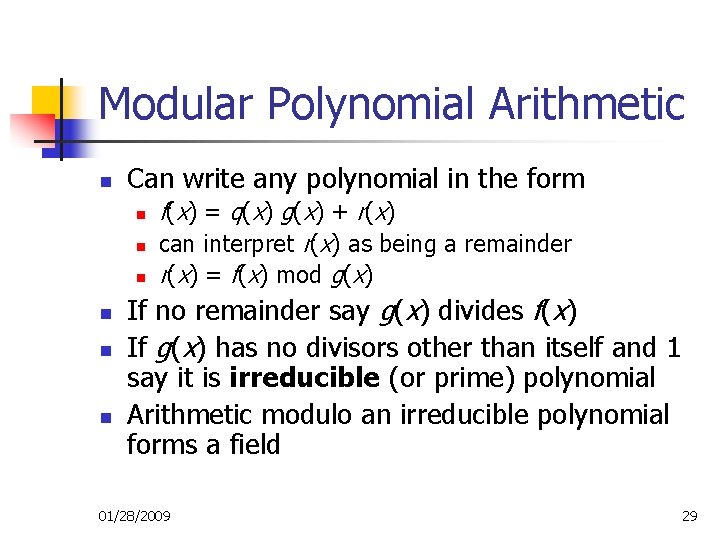

Modular Polynomial Arithmetic n Can write any polynomial in the form n n n f ( x) = q ( x) g ( x) + r ( x) can interpret r(x) as being a remainder r(x) = f(x) mod g(x) If no remainder say g(x) divides f(x) If g(x) has no divisors other than itself and 1 say it is irreducible (or prime) polynomial Arithmetic modulo an irreducible polynomial forms a field 01/28/2009 29
![Polynomial GCD n Can find greatest common divisor for polys n cx GCDax Polynomial GCD n Can find greatest common divisor for polys n c(x) = GCD(a(x),](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-30.jpg)
Polynomial GCD n Can find greatest common divisor for polys n c(x) = GCD(a(x), b(x)) if c(x) is the poly of greatest degree which divides both a(x), b(x) n can adapt Euclid’s Algorithm to find it: n EUCLID[a(x), b(x)] 1. A(x) = a(x); B(x) = b(x) 2. if B(x) = 0 return A(x) = gcd[a(x), b(x)] 3. R(x) = A(x) mod B(x) 4. A(x) B(x) 5. B(x) R(x) 6. goto 2 01/28/2009 30
![Modular Polynomial Arithmetic n Can compute in field GF2 n n n n polynomials Modular Polynomial Arithmetic n Can compute in field GF(2 n) n n n polynomials](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-31.jpg)
Modular Polynomial Arithmetic n Can compute in field GF(2 n) n n n polynomials with coefficients modulo 2 whose degree is less than n hence must reduce modulo an irreducible poly of degree n (for multiplication only) Form a finite field Can always find an inverse n can extend Euclid’s Inverse algorithm to find 01/28/2009 31
![Arithmetic in GF23 01282009 32 Arithmetic in GF(23) 01/28/2009 32](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-32.jpg)

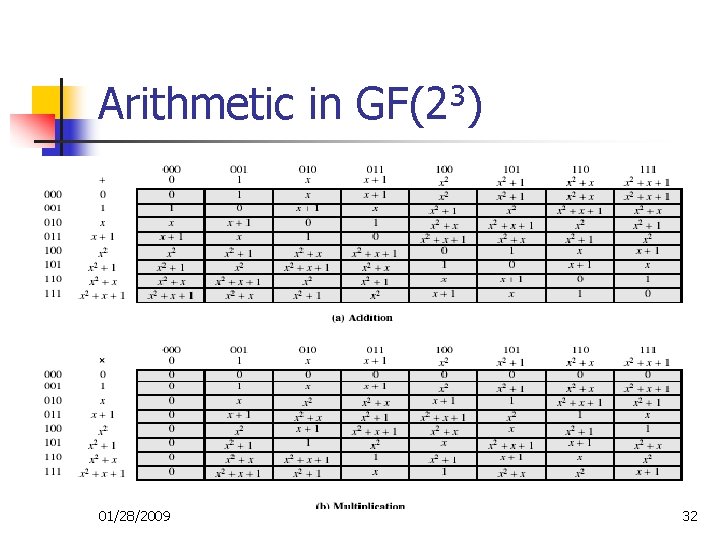

Arithmetic in GF(23) 01/28/2009 32

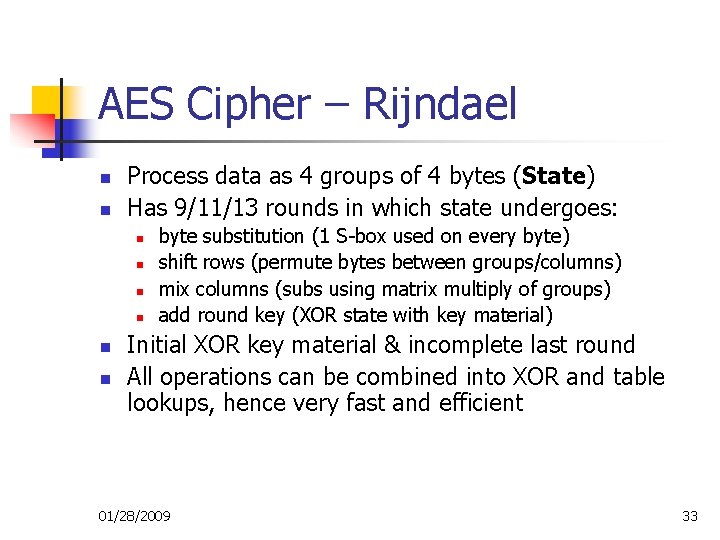

![AES Cipher Rijndael n n Process data as 4 groups of 4 bytes AES Cipher – Rijndael n n Process data as 4 groups of 4 bytes](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-33.jpg)
AES Cipher – Rijndael n n Process data as 4 groups of 4 bytes (State) Has 9/11/13 rounds in which state undergoes: n n n byte substitution (1 S-box used on every byte) shift rows (permute bytes between groups/columns) mix columns (subs using matrix multiply of groups) add round key (XOR state with key material) Initial XOR key material & incomplete last round All operations can be combined into XOR and table lookups, hence very fast and efficient 01/28/2009 33
![AES Encryption and Decryption 01282009 34 AES Encryption and Decryption 01/28/2009 34](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-34.jpg)

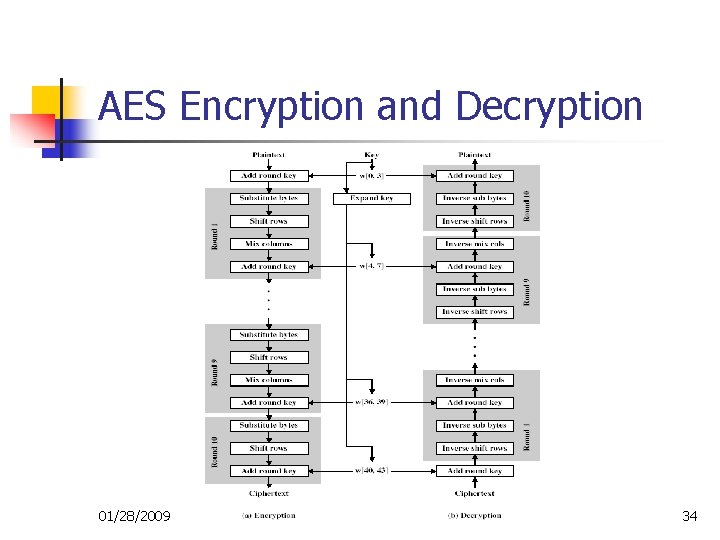

AES Encryption and Decryption 01/28/2009 34
![AES Data Structure 01282009 35 AES Data Structure 01/28/2009 35](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-35.jpg)

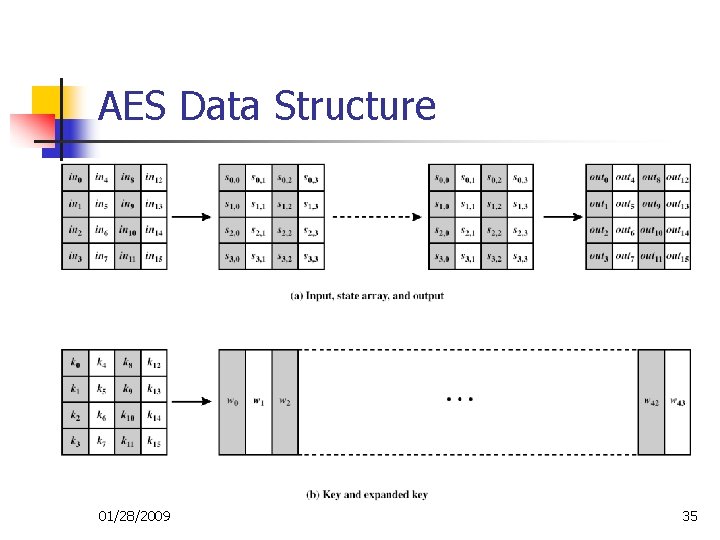

AES Data Structure 01/28/2009 35

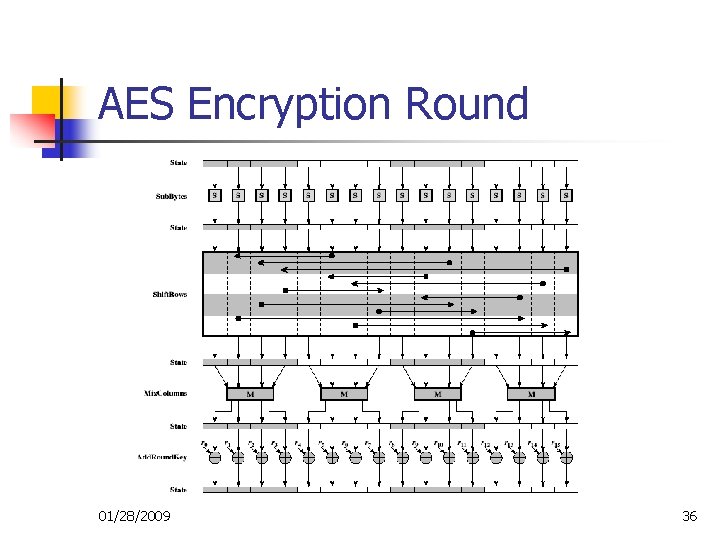

![AES Encryption Round 01282009 36 AES Encryption Round 01/28/2009 36](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-36.jpg)
AES Encryption Round 01/28/2009 36
![Byte Substitution n A simple substitution of each byte Uses one table of 16 Byte Substitution n A simple substitution of each byte Uses one table of 16](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-37.jpg)

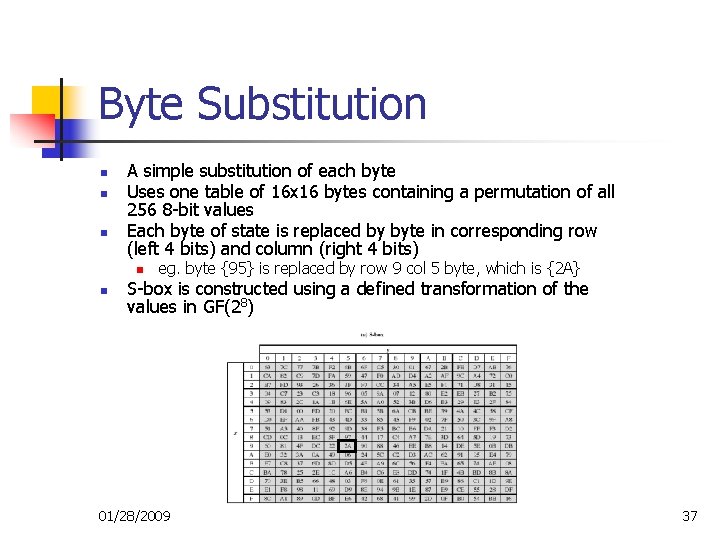

Byte Substitution n A simple substitution of each byte Uses one table of 16 x 16 bytes containing a permutation of all 256 8 -bit values Each byte of state is replaced by byte in corresponding row (left 4 bits) and column (right 4 bits) n n eg. byte {95} is replaced by row 9 col 5 byte, which is {2 A} S-box is constructed using a defined transformation of the values in GF(28) 01/28/2009 37
![Shift Rows n Circular byte shift in each row n n n 1 st Shift Rows n Circular byte shift in each row n n n 1 st](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-38.jpg)

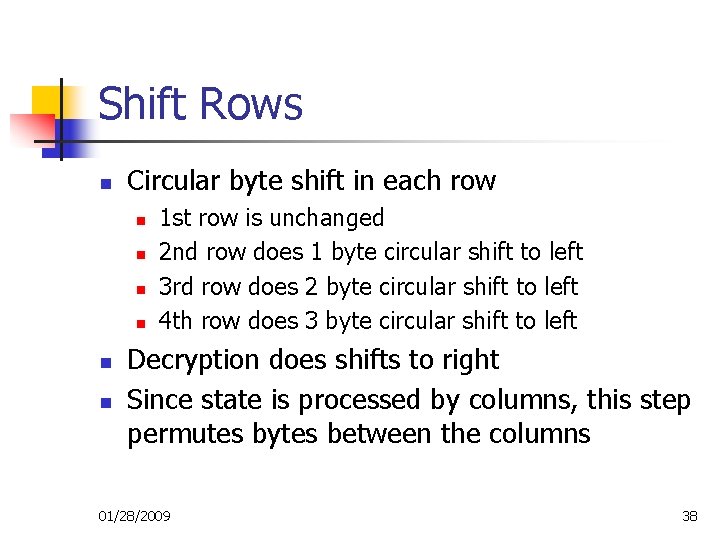

Shift Rows n Circular byte shift in each row n n n 1 st row is unchanged 2 nd row does 1 byte circular shift to left 3 rd row does 2 byte circular shift to left 4 th row does 3 byte circular shift to left Decryption does shifts to right Since state is processed by columns, this step permutes bytes between the columns 01/28/2009 38
![Mix Columns n n n Each column is processed separately Each byte is replaced Mix Columns n n n Each column is processed separately Each byte is replaced](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-39.jpg)

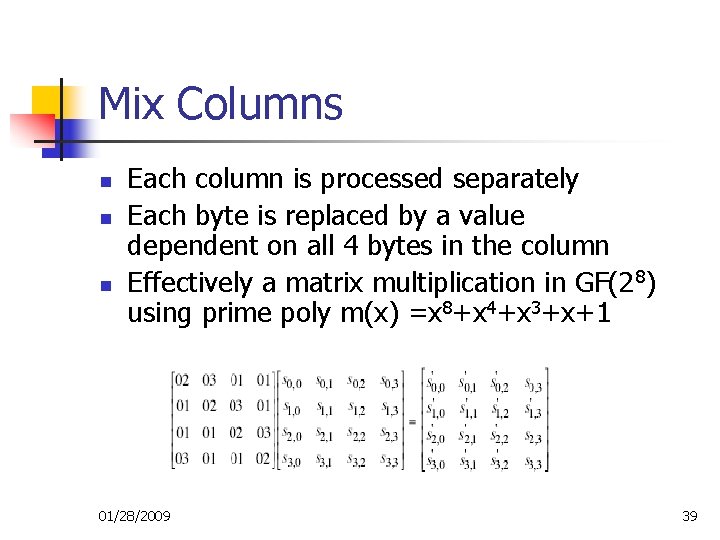

Mix Columns n n n Each column is processed separately Each byte is replaced by a value dependent on all 4 bytes in the column Effectively a matrix multiplication in GF(28) using prime poly m(x) =x 8+x 4+x 3+x+1 01/28/2009 39
![Add Round Key n n XOR state with 128 bits of the round key Add Round Key n n XOR state with 128 bits of the round key](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-40.jpg)
Add Round Key n n XOR state with 128 bits of the round key Again processed by column (though effectively a series of byte operations) Inverse for decryption is identical since XOR is own inverse, just with correct round key Designed to be as simple as possible 01/28/2009 40
![AES Key Expansion n Take 128192256 bit key and expand into array of 445260 AES Key Expansion n Take 128/192/256 -bit key and expand into array of 44/52/60](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-41.jpg)

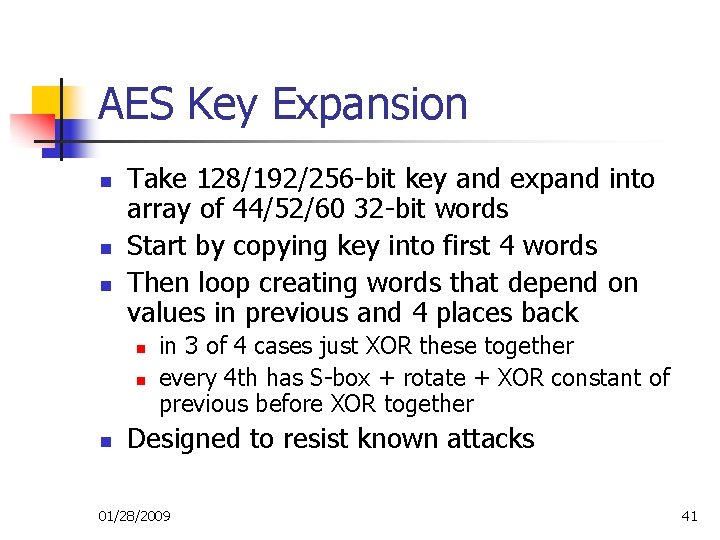

AES Key Expansion n Take 128/192/256 -bit key and expand into array of 44/52/60 32 -bit words Start by copying key into first 4 words Then loop creating words that depend on values in previous and 4 places back n n n in 3 of 4 cases just XOR these together every 4 th has S-box + rotate + XOR constant of previous before XOR together Designed to resist known attacks 01/28/2009 41
![AES Decryption n n AES decryption is not identical to encryption because steps are AES Decryption n n AES decryption is not identical to encryption because steps are](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-42.jpg)

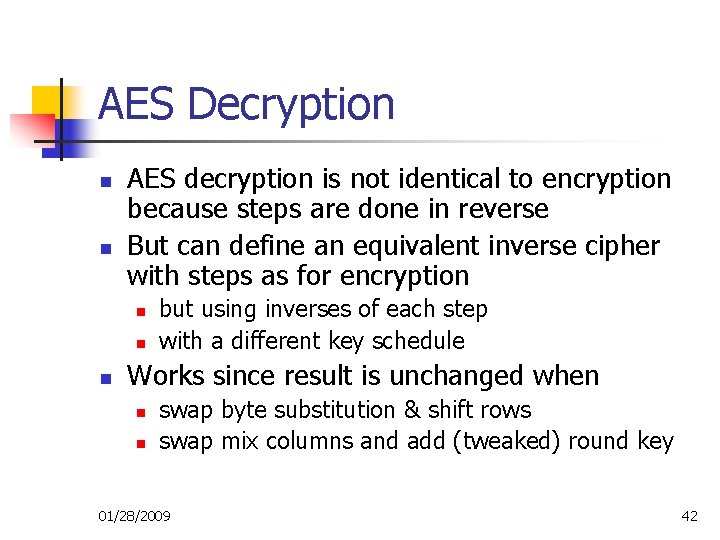

AES Decryption n n AES decryption is not identical to encryption because steps are done in reverse But can define an equivalent inverse cipher with steps as for encryption n but using inverses of each step with a different key schedule Works since result is unchanged when n n swap byte substitution & shift rows swap mix columns and add (tweaked) round key 01/28/2009 42
![Implementation Aspects n Can efficiently implement on 8 bit CPU n n byte substitution Implementation Aspects n Can efficiently implement on 8 -bit CPU n n byte substitution](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-43.jpg)

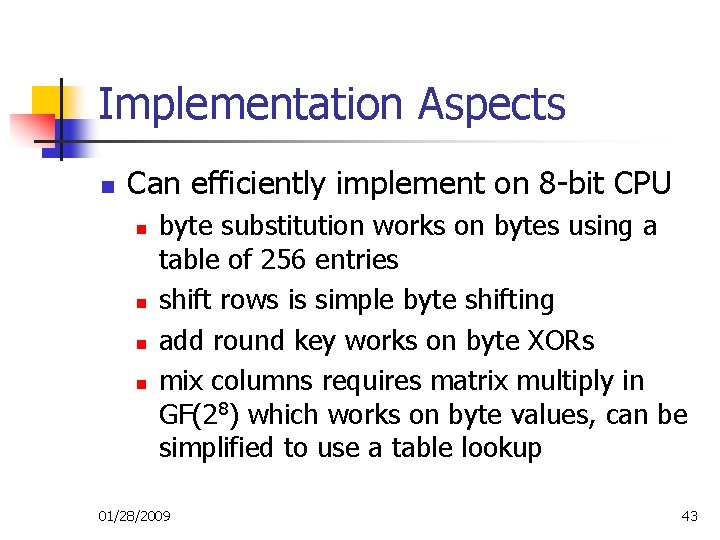

Implementation Aspects n Can efficiently implement on 8 -bit CPU n n byte substitution works on bytes using a table of 256 entries shift rows is simple byte shifting add round key works on byte XORs mix columns requires matrix multiply in GF(28) which works on byte values, can be simplified to use a table lookup 01/28/2009 43

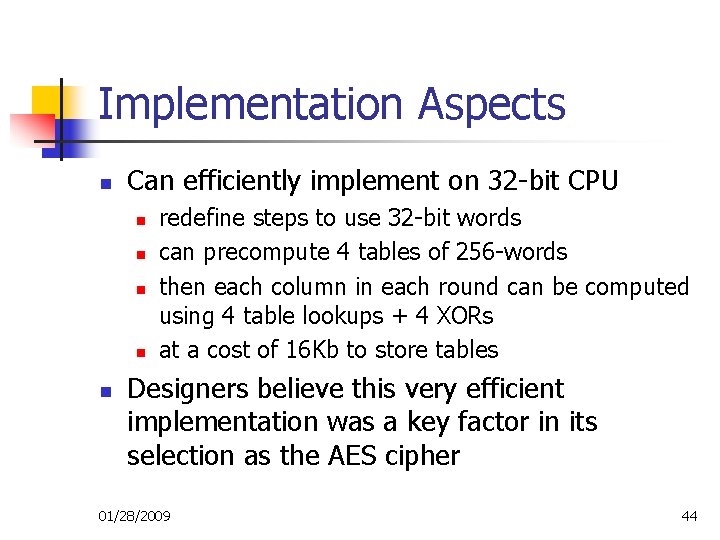

![Implementation Aspects n Can efficiently implement on 32 bit CPU n n n redefine Implementation Aspects n Can efficiently implement on 32 -bit CPU n n n redefine](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-44.jpg)
Implementation Aspects n Can efficiently implement on 32 -bit CPU n n n redefine steps to use 32 -bit words can precompute 4 tables of 256 -words then each column in each round can be computed using 4 table lookups + 4 XORs at a cost of 16 Kb to store tables Designers believe this very efficient implementation was a key factor in its selection as the AES cipher 01/28/2009 44
![Next Class n n Confidentiality of symmetric encryption Read Chapters 7 8 9 01282009 Next Class n n Confidentiality of symmetric encryption Read Chapters 7, 8, 9 01/28/2009](https://slidetodoc.com/presentation_image/7d1b0e4f737f89928d400b114deee99d/image-45.jpg)
Next Class n n Confidentiality of symmetric encryption Read Chapters 7, 8, 9 01/28/2009 45
