CS 7810 Lecture 23 Maximizing CMP Throughput with Mediocre Cores J. Davis, J. Laudon, K. Olukotun Proceedings of PACT-14 September 2005

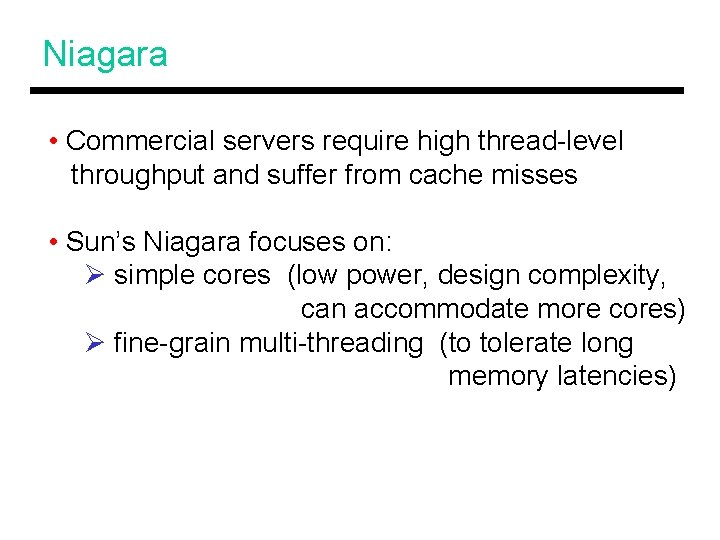

Niagara • Commercial servers require high thread-level throughput and suffer from cache misses • Sun’s Niagara focuses on: Ø simple cores (low power, design complexity, can accommodate more cores) Ø fine-grain multi-threading (to tolerate long memory latencies)
Niagara Overview
SPARC Pipe No branch predictor Low clock speed (1. 2 GHz) One FP unit shared by all cores
Thread Selection • Round-Robin • Threads that are speculating on a load-hit receive lower priority • Threads are unavailable if they suffer from cache misses, long-latency ops
Register File • Each procedure has eight local and eight in registers (and eight out registers that serve as in registers for the callee) – each thread has eight such windows • Total register file size: 640! 3 read and 2 write ports (1 write/cycle for long and short latency ops) • Implemented as a 2 -level structure: 1 st level contains the current register windows
Cache Hierarchy • 16 KB L 1 I and 8 KB L 1 D, write-thru, read-allocate, write-no-allocate • Invalidate-based directory protocol – the shared L 2 cache (3 MB, 4 banks) identifies sharers and sends out the invalidates • Rather than store sharers per L 2 line, the L 1 tags are replicated – such a structure is more efficient to search through
Next Generation: Rock • 4 cores; each core has 4 pipelines; each pipeline can execute two threads: 32 threads
Design Space Exploration: Methodology • Workloads: SPEC-JBB (Java middleware), TPC-C (OLTP), TPC-W (transactional web), XML-Test (XML parsing) – all are thread-oriented • Sun’s chip design databases were examined to derive area overheads of various features (primarily to evaluate the overhead of threading and ooo execution)
Pipelines 8 -stage pipelines Scalar proc is fine-grain multi-threaded Superscalar proc is SMT Frequency not more than ½ of the max ITRS-projected frequency 400 mm 2 die 25% devoted to off-chip interfaces: mem controllers, I/O, clocking 11% devoted to the inter-core xbar Of the remaining area, 25 -75% are allocated to cores/L 2 -cache
Area Effect of Multi-Threading • The curve is linear for a while – study is restricted to such designs • Multi-threading adds a 5 -8% area overhead per thread (primary caches are included in the baseline) • A thread is statically assigned to an IDP – multiple threads can share an IDP
Design Space Exploration
Single Core IPC 4 bars correspond to 4 different L 2 sizes IPC range for different L 1 sizes
Aggregate IPC C 1: 2 p 4 t with 64 KB L 1 caches C 2: 2 p 4 t with 32 KB L 1 caches *L 1 latencies are always constant
Maximal Aggregate IPCs
Maximal Aggregate IPCs
Observations • Scalar cores are better than ooo superscalars • Too many threads (> 8) can saturate the caches and memory buses • Processor-centric design is often better (medium sized L 2 s are good enough)
PACT 2001 Paper on CMP Designs • Different workload: SPEC 2 k (multi-programmed) • Private L 2 caches (no cache coherence)
Effect of L 2 Size
Effect of Memory Bandwidth

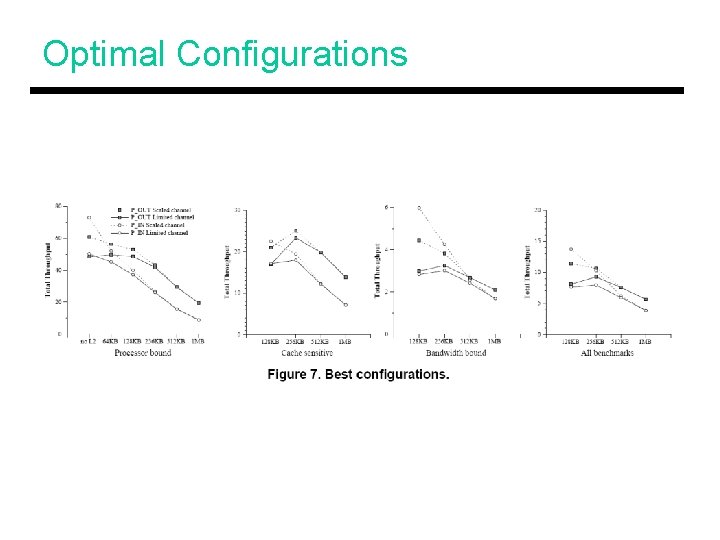

Optimal Configurations
Title • Bullet
