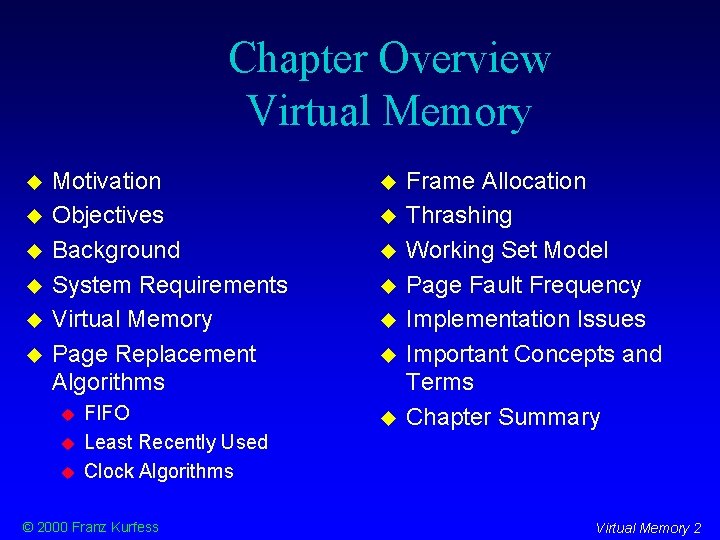

Chapter Overview Virtual Memory Motivation Objectives Background System Requirements Virtual Memory Page Replacement Algorithms FIFO Least Recently Used Clock Algorithms © 2000 Franz Kurfess Frame Allocation Thrashing Working Set Model Page Fault Frequency Implementation Issues Important Concepts and Terms Chapter Summary Virtual Memory 2

Motivation not all parts of a process image are needed at all times during the execution every time the program is run unnecessary parts can be kept on secondary storage (hard disk) they need to be brought into main memory when needed improves the utilization of main memory fewer infrequently used sections of main memory more processes can be accommodated must be managed carefully to avoid substantial decrease in performance © 2000 Franz Kurfess Virtual Memory 3

Objectives realize the limitations of memory management without virtual memory understand the basic techniques of virtual memory fetch methods for requested pages page replacement methods allocation of frames to processes be aware of the tradeoffs and limitations locality of reference predicting future page references evaluate the performance impact of virtual memory on the overall system effective © 2000 Franz Kurfess access time Virtual Memory 4

Background limitations memory degree of multiprogramming there is not enough physical memory to accommodate all processes program size the size of programs (process images) is limited by the available physical memory level is not fully utilized sometimes overlays are used by programmers to time-share parts of main memory lower of systems without virtual memory of abstraction the programmer must be aware of hardware details like the size of physical memory © 2000 Franz Kurfess Virtual Memory 5

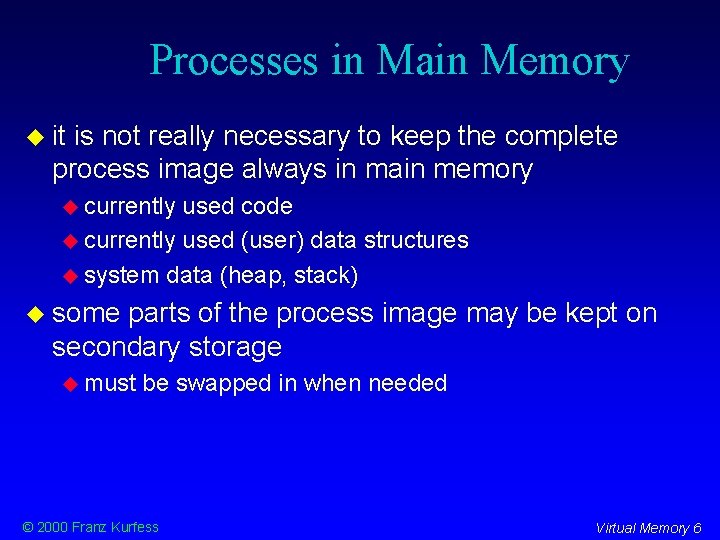

Processes in Main Memory it is not really necessary to keep the complete process image always in main memory currently used code currently used (user) data structures system data (heap, stack) some parts of the process image may be kept on secondary storage must be swapped in when needed © 2000 Franz Kurfess Virtual Memory 6

Virtual Memory principle hardware requirements software components data structures advantages and problems © 2000 Franz Kurfess Virtual Memory 7

Virtual Memory Principle a technique that allows the execution of processes that are not completely in main memory separates logical memory (as viewed by the process) from physical memory © 2000 Franz Kurfess Virtual Memory 8

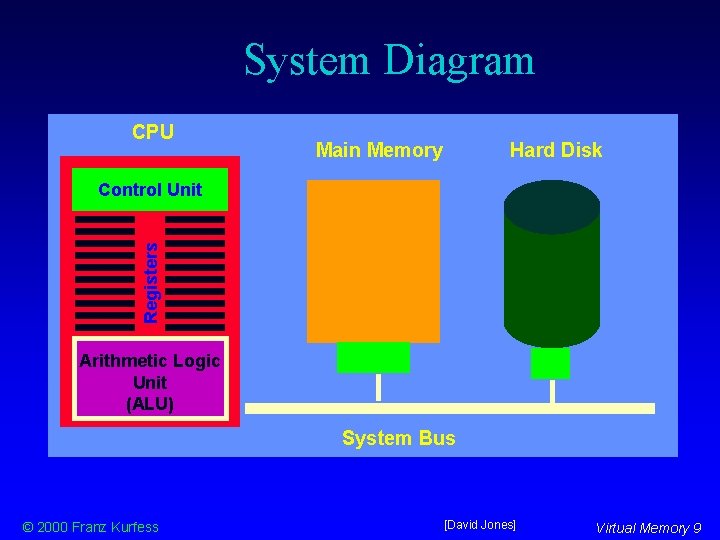

System Diagram CPU Main Memory Hard Disk Registers Control Unit Arithmetic Logic Unit (ALU) System Bus © 2000 Franz Kurfess [David Jones] Virtual Memory 9

Virtual Memory Diagram Process Control Block Program Data User Stack Shared Address Space © 2000 Franz Kurfess Main Memory Hard Disk Page Table 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 34 58 122 68 99 38 55 43 131 102 171 76 123 144 93 Reference Bit Virtual Memory 10

Hardware Requirements virtual memory usually is supported by a memory management unit (MMU) minimum requirements address conversion support as in paging or segmentation additional entry in page tables present bit (valid/invalid bit) © 2000 Franz Kurfess Virtual Memory 11

Software Components paging to or segmentation keep track of the parts of processes and their locations swapper loads and unloads parts of processes between main memory and hard disk fetch algorithm determines which parts of the process should be brought into main memory demand paging is the most frequently used one page replacement algorithm determines which parts are swapped out when memory needs to be freed up © 2000 Franz Kurfess Virtual Memory 12

Data Structures pages parts of the process image handled by virtual memory page tables keep track of the allocation of pages to frames free frames sections of physical memory that hold pages page or segments page frame list of all frames currently not in use replacement algorithm tables contain data about pages and frames used to decide which pages to replace swap area secondary memory area for pages not currently in main memory a complete image of every process is kept here © 2000 Franz Kurfess Virtual Memory 13

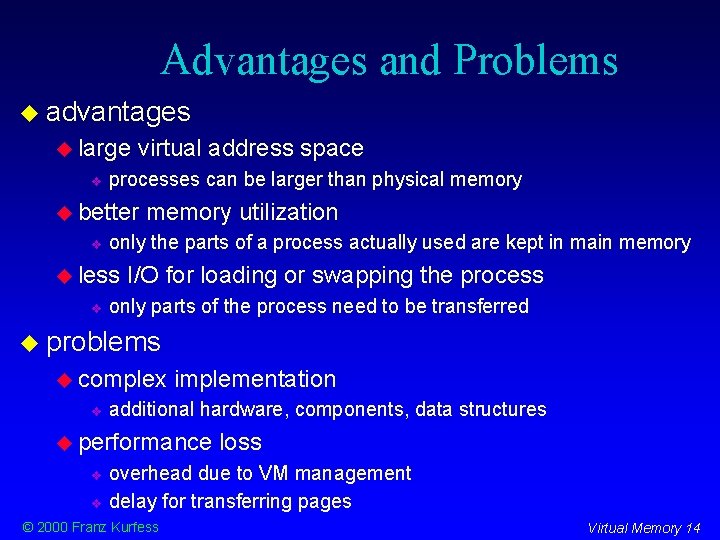

Advantages and Problems advantages large virtual address space processes can be larger than physical memory better only the parts of a process actually used are kept in main memory less memory utilization I/O for loading or swapping the process only parts of the process need to be transferred problems complex implementation additional hardware, components, data structures performance loss overhead due to VM management delay for transferring pages © 2000 Franz Kurfess Virtual Memory 14

Page Faults an interrupt/trap is generated if a memory reference leads to a page that is currently not in main memory may be caused by any memory access (instructions, user data, system data) additional information must be kept in the page table to indicate if a process is currently in main memory present bit valid/invalid bit may be used the page needs to be loaded before execution can continue © 2000 Franz Kurfess Virtual Memory 15

Page Fault Handling a page fault trap is generated if the present bit is not set a page frame is allocated if there are no free frames left, the page replacement algorithm must be invoked a page is read into the page frame the page table is updated the instruction is restarted © 2000 Franz Kurfess Virtual Memory 16

Page Fault Times assumptions: 100 MHz CPU clock cycle, 20 ms average access and transfer time per page © 2000 Franz Kurfess Virtual Memory 17

Page Fault Rate an instruction that takes normally tens of nanoseconds will take tens of milliseconds if a page fault occurs a factor of 100, 000 longer this is an intolerable slowdown the frequency of page faults is very important for the performance of the system the page fault rate must be kept very low © 2000 Franz Kurfess Virtual Memory 18

Page Faults and EAT effective EAT access time (p = page fault rate) = p * access with page fault + (1 -p) access without page fault © 2000 Franz Kurfess Virtual Memory 19

Page Faults and Performance what is the performance loss for a page fault rate of 1 in 100, 000? access time without page fault: 100 ns memory access time including page table and TLB effects access time with page fault 0. 5 * 20 ms + 0. 5 * 40 ms = 30 ms page replacement for 50% of page faults EAT = 0. 00001 * 30 ms + (1 - 0. 00001) * 100 ns = 300 ns + 99. 999999 ns ≈ 400 ns this is a 300% performance loss © 2000 Franz Kurfess Virtual Memory 20

Page Faults and Performance what page fault rate is needed for a 10% performance loss? same conditions as previous example a 10% performance loss corresponds to a 110 ns EAT 110 ns > p * 30 ms + (1 - p) * 100 ns > p * 30, 000 ns + 100 ns 10 ns > p * 30, 000 ns p < 10/30, 000 < 1/3, 000 = 1 in 3 million only one out of 3 million memory accesses may cause a page fault © 2000 Franz Kurfess Virtual Memory 21

Locality of Reference locality of reference indicates that the next memory access will be in the vicinity of the current one spatial successive memory accesses will be in the same neighborhood temporal the same memory location(s) will be accessed repeatedly locality of reference is the main reason why the number of page faults can be low © 2000 Franz Kurfess Virtual Memory 22

Reasons for Locality of Reference instruction the execution of a program proceeds largely in sequence except for branch and call instructions iterative constructs repeat a rather small number of instructions several times data access many data structures are accessed in sequence list, array, tree may depend on programming style and the code generated by the compiler © 2000 Franz Kurfess Virtual Memory 23

Data Structures and Locality good locality stack, queue, array, record medium linked bad locality list, tree locality graph, pointer © 2000 Franz Kurfess Virtual Memory 24

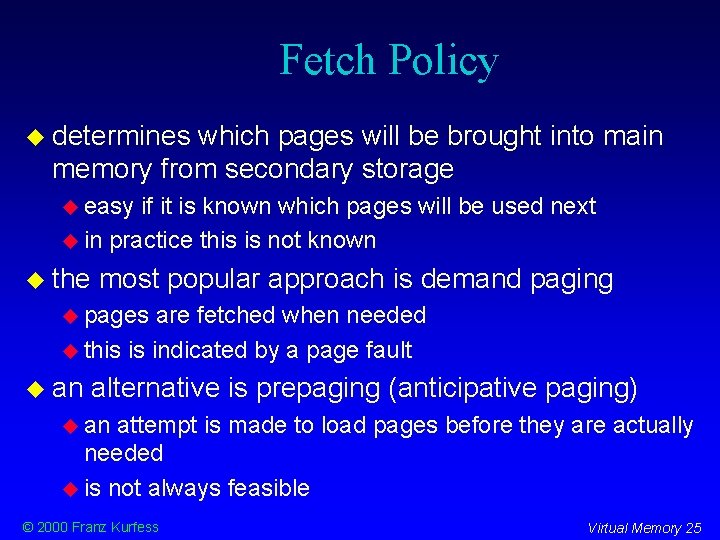

Fetch Policy determines which pages will be brought into main memory from secondary storage easy if it is known which pages will be used next in practice this is not known the most popular approach is demand paging pages are fetched when needed this is indicated by a page fault an alternative is prepaging (anticipative paging) an attempt is made to load pages before they are actually needed is not always feasible © 2000 Franz Kurfess Virtual Memory 25

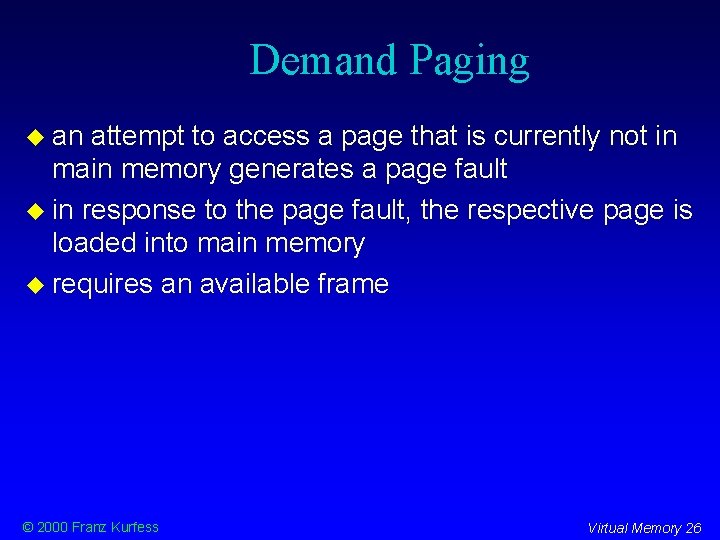

Demand Paging an attempt to access a page that is currently not in main memory generates a page fault in response to the page fault, the respective page is loaded into main memory requires an available frame © 2000 Franz Kurfess Virtual Memory 26

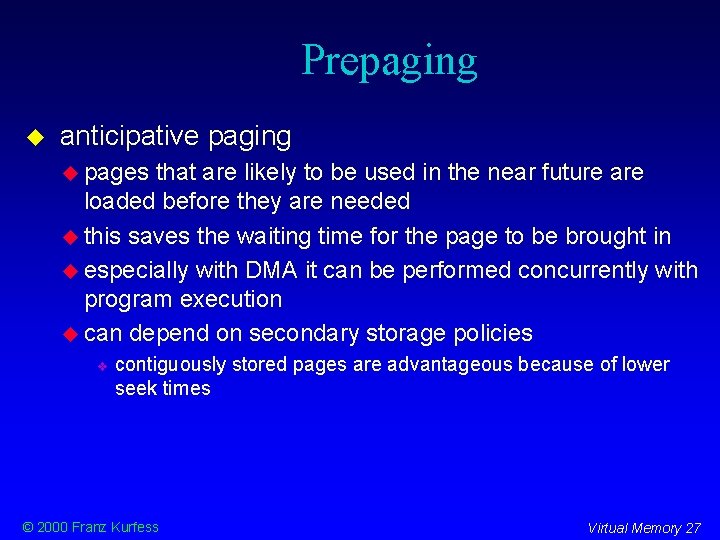

Prepaging anticipative paging pages that are likely to be used in the near future are loaded before they are needed this saves the waiting time for the page to be brought in especially with DMA it can be performed concurrently with program execution can depend on secondary storage policies contiguously stored pages are advantageous because of lower seek times © 2000 Franz Kurfess Virtual Memory 27

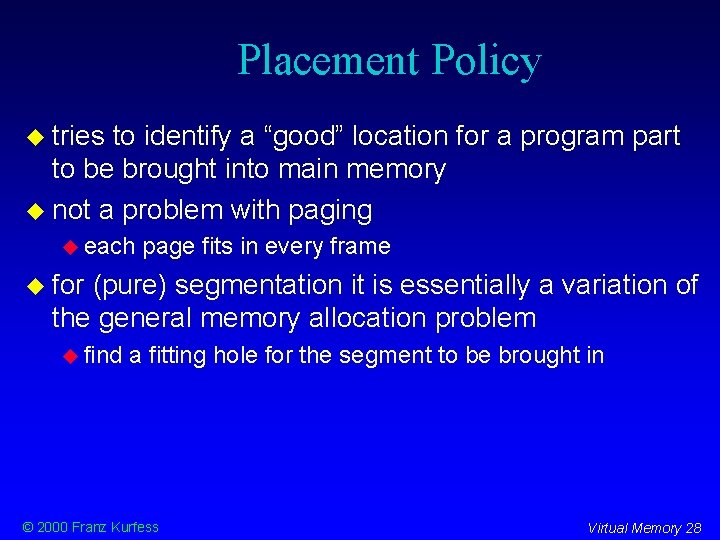

Placement Policy tries to identify a “good” location for a program part to be brought into main memory not a problem with paging each page fits in every frame for (pure) segmentation it is essentially a variation of the general memory allocation problem find a fitting hole for the segment to be brought in © 2000 Franz Kurfess Virtual Memory 28

Replacement Policy identifies a frame to be freed when a page fault occurs, but no free frame is available the page occupying that frame must be swapped out to secondary storage can be based on a number of algorithms FIFO, least recently used, clock-based, etc. © 2000 Franz Kurfess Virtual Memory 29

Replacement Algorithm Objective ideally, the page being replaced should be the page least likely to be referenced in the near future in practice, this is not possible because future page references are unknown many algorithms try to predict the future by looking into the past assuming that the past behavior of a process is similar to its future behavior locality of reference enables the connection between the past history and the future © 2000 Franz Kurfess Virtual Memory 30

Page Replacement Algorithms first-in, first-out (FIFO) algorithm optimal algorithm least recently used (LRU) algorithm LRU approximation algorithms © 2000 Franz Kurfess Virtual Memory 31

Evaluation of Algorithms keep the number of page faults as low as possible the performance of page replacement algorithms is often compared on the basis of a reference string the reference string indicates the sequence in which pages are used it is derived from a trace of the addresses accessed in a system if several addresses point to the same page, only one entry for the reference string is generated depends on the number of available frames with more frames, the number of page faults decreases until all pages can be accommodated © 2000 Franz Kurfess Virtual Memory 32

First-In, First-Out the page that was brought in first will be replaced first must keep track of the time when a page is loaded this can also be done in a FIFO queue very simple, but not very good the oldest page may have been used very recently there is a good chance that the replaced page will be needed again shortly © 2000 Franz Kurfess Virtual Memory 33

FIFO Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 6 1 5 7 2 6 7 5 4 2 6 7 4 2 2 6 7 4 F F F 5 5 6 7 4 F 6 5 6 7 4 1 5 1 7 4 3 5 1 3 4 F F 4 5 3 3 4 7 5 3 3 7 F Page Faults: 12 © 2000 Franz Kurfess Virtual Memory 34

seven pages five frames FIFO Example Reference String 4 3 1 5 1 2 3 6 7 4 2 5 6 1 3 4 7 4 4 3 3 3 1 1 5 F F 4 3 1 5 2 6 7 1 5 2 6 7 4 5 2 F F F 6 7 4 5 2 6 7 4 1 3 6 7 4 1 3 F F Page Faults: 10 © 2000 Franz Kurfess Virtual Memory 35

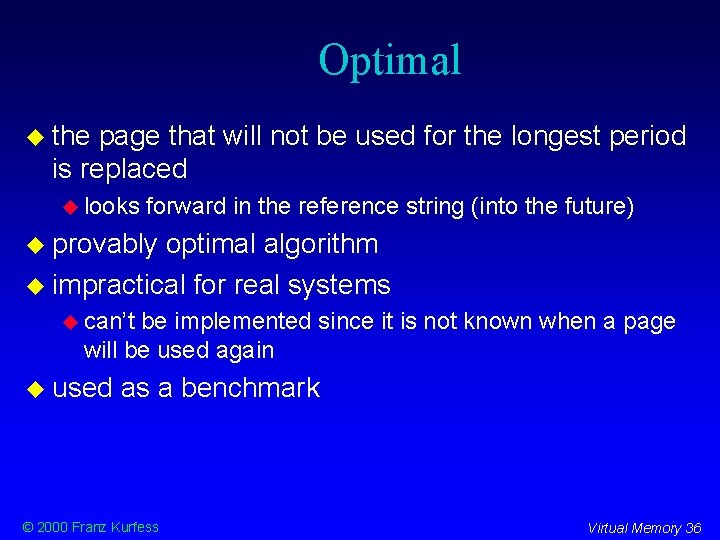

Optimal the page that will not be used for the longest period is replaced looks forward in the reference string (into the future) provably optimal algorithm impractical for real systems can’t be implemented since it is not known when a page will be used again used as a benchmark © 2000 Franz Kurfess Virtual Memory 36

Optimal Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 3 6 7 4 2 5 6 1 3 4 7 4 3 1 5 F Replacement Candidates: 4, 3, 1, 5 Selected: 1 © 2000 Franz Kurfess Virtual Memory 37

Optimal Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 4 3 2 5 3 4 3 2 5 6 7 4 2 5 6 1 3 4 7 4 3 2 5 F Replacement Candidates: 4, 3, 2, 5 Selected: 3 © 2000 Franz Kurfess Virtual Memory 38

Optimal Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 4 3 2 5 F 3 4 3 2 5 6 4 6 2 5 7 4 2 5 6 1 3 4 7 4 6 2 5 F F Replacement Candidates: 4, 6, 2, 5 Selected: 3 © 2000 Franz Kurfess Virtual Memory 39

Optimal Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 4 3 2 5 F 3 4 3 2 5 6 4 6 2 5 7 4 7 2 5 F F 4 4 7 2 5 2 4 7 2 5 5 4 7 2 5 6 1 3 4 7 2 5 F Replacement Candidates: 4, 7, 2, 5 Selected: 2 or 5 (both pages won’t be used anymore) © 2000 Franz Kurfess Virtual Memory 40

Optimal Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 4 3 2 5 F 3 4 3 2 5 6 4 6 2 5 7 4 7 2 5 F F 4 4 7 2 5 2 4 7 2 5 5 4 7 2 5 6 4 7 6 5 1 3 4 7 6 5 F F Replacement Candidates: 4, 7, 6, 5 Selected: 6 or 5 (pages won’t be used anymore) © 2000 Franz Kurfess Virtual Memory 41

Optimal Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 4 3 2 5 F 3 4 3 2 5 6 4 6 2 5 7 4 7 2 5 F F 4 4 7 2 5 2 4 7 2 5 5 4 7 2 5 6 4 7 6 5 1 4 7 6 1 3 4 7 6 1 F F Replacement Candidates: 4, 7, 6, 1 Selected: 6 or 1 (pages won’t be used anymore) © 2000 Franz Kurfess Virtual Memory 42

Optimal Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 4 3 2 5 F 3 4 3 2 5 6 4 6 2 5 7 4 7 2 5 F F 4 4 7 2 5 2 4 7 2 5 5 4 7 2 5 6 4 7 6 5 1 4 7 6 1 3 4 7 3 1 4 4 7 3 1 7 4 7 3 1 F F F Page Faults: 10 © 2000 Franz Kurfess Virtual Memory 43

Least Recently Used (LRU) the page that has not been used for the longest period is replaced looks backward in the reference string (into the past) similar to the optimal algorithm, but practical requires additional information about the pages last usage (time stamp, ordering of the pages) © 2000 Franz Kurfess Virtual Memory 44

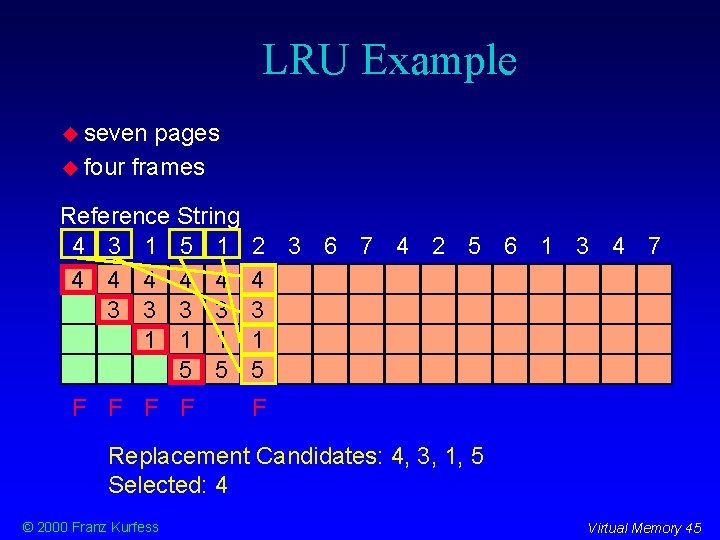

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 3 6 7 4 2 5 6 1 3 4 7 4 3 1 5 F Replacement Candidates: 4, 3, 1, 5 Selected: 4 © 2000 Franz Kurfess Virtual Memory 45

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 7 4 2 5 6 1 3 4 7 2 3 1 5 F Replacement Candidates: 2, 3, 1, 5 Selected: 5 © 2000 Franz Kurfess Virtual Memory 46

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 3 1 6 7 4 2 5 6 1 3 4 7 2 3 1 6 F F Replacement Candidates: 2, 3, 1, 6 Selected: 1 © 2000 Franz Kurfess Virtual Memory 47

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 3 1 6 7 2 3 7 6 4 2 5 6 1 3 4 7 2 3 7 6 F F F Replacement Candidates: 2, 3, 7, 6 Selected: 2 © 2000 Franz Kurfess Virtual Memory 48

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 3 1 6 7 2 3 7 6 4 4 3 7 6 2 5 6 1 3 4 7 4 3 7 6 F F Replacement Candidates: 4, 3, 7, 6 Selected: 3 © 2000 Franz Kurfess Virtual Memory 49

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 3 1 6 7 2 3 7 6 4 4 3 7 6 2 4 2 7 6 5 6 1 3 4 7 4 2 7 6 F F F Replacement Candidates: 4, 2, 7, 6 Selected: 6 © 2000 Franz Kurfess Virtual Memory 50

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 3 1 6 7 2 3 7 6 4 4 3 7 6 2 4 2 7 6 5 4 2 7 5 6 1 3 4 7 4 2 7 5 F F F Replacement Candidates: 4, 2, 7, 5 Selected: 7 © 2000 Franz Kurfess Virtual Memory 51

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 3 1 6 7 2 3 7 6 4 4 3 7 6 2 4 2 7 6 5 4 2 7 5 6 4 2 6 5 1 3 4 7 4 2 6 5 F F F F Replacement Candidates: 4, 2, 6, 5 Selected: 4 © 2000 Franz Kurfess Virtual Memory 52

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 3 1 6 7 2 3 7 6 4 4 3 7 6 2 4 2 7 6 5 4 2 7 5 6 4 2 6 5 1 1 2 6 5 3 4 7 1 2 6 5 F F F F Replacement Candidates: 1, 2, 6, 5 Selected: 2 © 2000 Franz Kurfess Virtual Memory 53

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 3 1 6 7 2 3 7 6 4 4 3 7 6 2 4 2 7 6 5 4 2 7 5 6 4 2 6 5 1 1 2 6 5 3 1 3 6 5 4 7 1 3 6 5 F F F F F Replacement Candidates: 1, 3, 6, 5 Selected: 5 © 2000 Franz Kurfess Virtual Memory 54

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 3 1 6 7 2 3 7 6 4 4 3 7 6 2 4 2 7 6 5 4 2 7 5 6 4 2 6 5 1 1 2 6 5 3 1 3 6 5 4 1 3 6 4 7 1 3 6 4 F F F F F Replacement Candidates: 1, 3, 6, 4 Selected: 6 © 2000 Franz Kurfess Virtual Memory 55

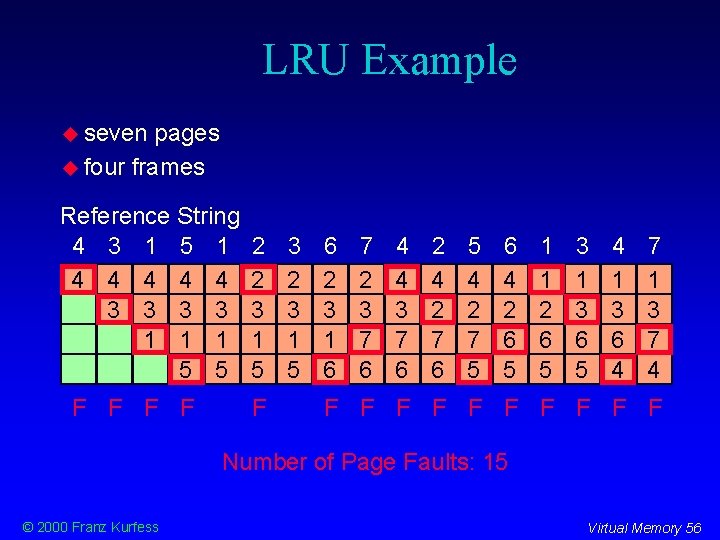

LRU Example seven pages four frames Reference String 4 3 1 5 1 4 4 4 3 3 1 1 1 5 5 F F 2 2 3 1 5 F 3 2 3 1 5 6 2 3 1 6 7 2 3 7 6 4 4 3 7 6 2 4 2 7 6 5 4 2 7 5 6 4 2 6 5 1 1 2 6 5 3 1 3 6 5 4 1 3 6 4 7 1 3 7 4 F F F F F Number of Page Faults: 15 © 2000 Franz Kurfess Virtual Memory 56

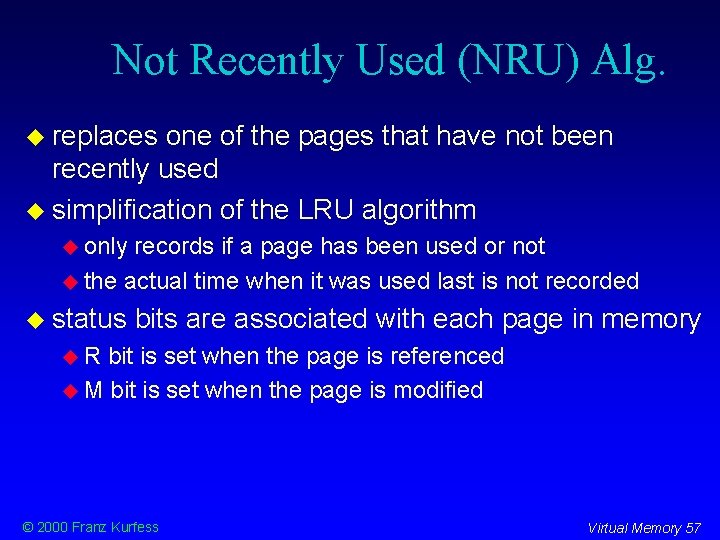

Not Recently Used (NRU) Alg. replaces one of the pages that have not been recently used simplification of the LRU algorithm only records if a page has been used or not the actual time when it was used last is not recorded status bits are associated with each page in memory R bit is set when the page is referenced M bit is set when the page is modified © 2000 Franz Kurfess Virtual Memory 57

NRU Usage pages can be divided into 4 categories not referenced, not modified not referenced, modified referenced, not modified referenced, modified not referenced/modified pages are replaced before referenced/modified pages have to be written to secondary storage before their frames can be reused © 2000 Franz Kurfess Virtual Memory 58

Simulating the LRU Algorithm aging associate a byte with each page in memory periodically, shift all the bits to the right and inserts the reference bit into the high-order bit the page with the lowest number is the least recently used page © 2000 Franz Kurfess Virtual Memory 59

Clock Replacement Algorithms pages each are arranged in a circular buffer page table entry has at least a reference bit the reference bit is sometimes also called use bit sometimes an additional modified bit is used the reference bit is set to 1 every time the page is accessed the algorithm looks for a page whose reference bit is 0 the bit of every page checked by the algorithm is set to 0 approximation of LRU tolerable overhead variations are used in many real systems © 2000 Franz Kurfess Virtual Memory 60

Clock Replacement Algorithm reference bit R = 0 evict page R = 1 clear R and advance hand © 2000 Franz Kurfess Virtual Memory 61

Second Chance Algorithm example of a clock replacement algorithm after the first visit, the page gets another chance to be referenced until the clock algorithm visits again modification will of a FIFO replacement strategy evict the oldest page only if its reference bit is set to 0 avoids evicting a heavily used page that happens to be the oldest in memory © 2000 Franz Kurfess Virtual Memory 62

Frame Allocation determines how many frames a process may use fixed number of frames flexible number of frames allocation methods equal share for each process proportional allocation factors for determining the number of frames process image size priority accumulated CPU time to finish CPU-bound vs. I/O bound-process © 2000 Franz Kurfess Virtual Memory 63

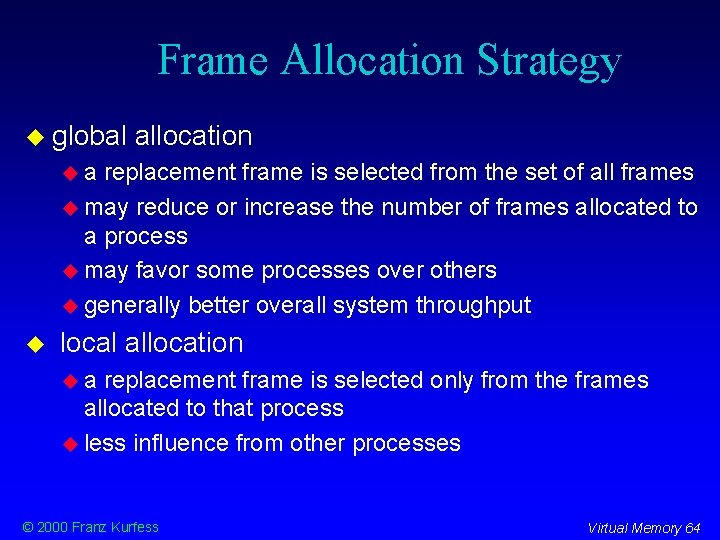

Frame Allocation Strategy global allocation a replacement frame is selected from the set of all frames may reduce or increase the number of frames allocated to a process may favor some processes over others generally better overall system throughput local allocation a replacement frame is selected only from the frames allocated to that process less influence from other processes © 2000 Franz Kurfess Virtual Memory 64

Replacement and Allocation © 2000 Franz Kurfess Virtual Memory 65

Fixed Allocation, Local Scope the number of frames per process is decided when the process is loaded, and can’t be changed replacements must be done within the frames of the process too small large number of page faults many active processes too large small number of active processes low CPU utilization few page faults © 2000 Franz Kurfess Virtual Memory 66

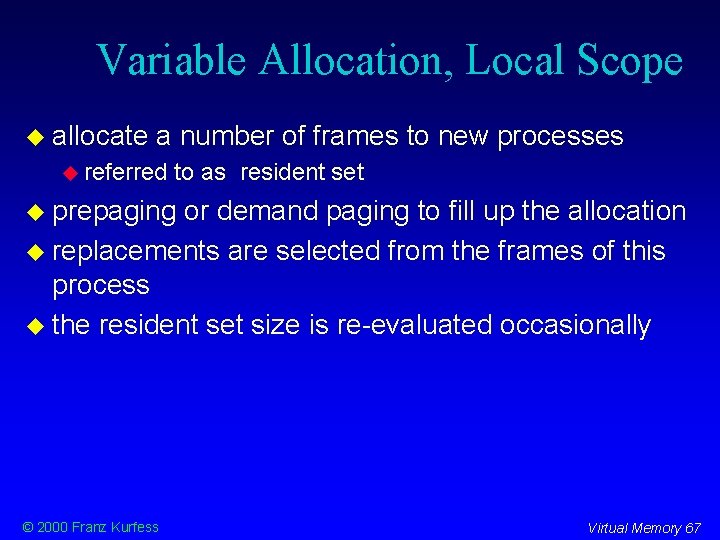

Variable Allocation, Local Scope allocate a number of frames to new processes referred to as resident set prepaging or demand paging to fill up the allocation replacements are selected from the frames of this process the resident set size is re-evaluated occasionally © 2000 Franz Kurfess Virtual Memory 67

Variable Allocation, Global Scope similar to above, but replacements may be selected from frames of other processes relatively easy to implement processes with high page fault rates grow even may if they don’t really need more frames be unfair towards some processes © 2000 Franz Kurfess Virtual Memory 68

Thrashing if a process doesn’t have enough pages, it will generate lots of page faults the replaced page may be needed again soon as a consequence, CPU utilization may go down some older operating systems compensated for this by bringing in more processes this leads to each process having even fewer pages, and more page faults; CPU utilization goes down, and more processes are brought in, etc. leads to severe performance problems © 2000 Franz Kurfess Virtual Memory 69

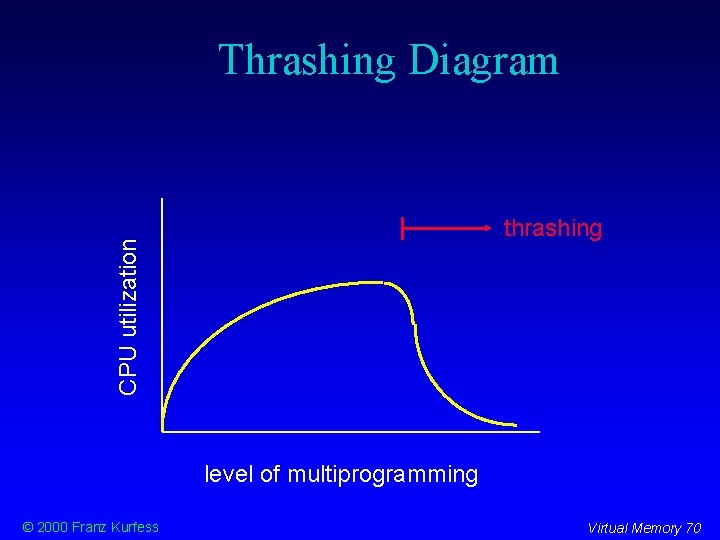

Thrashing Diagram CPU utilization thrashing level of multiprogramming © 2000 Franz Kurfess Virtual Memory 70

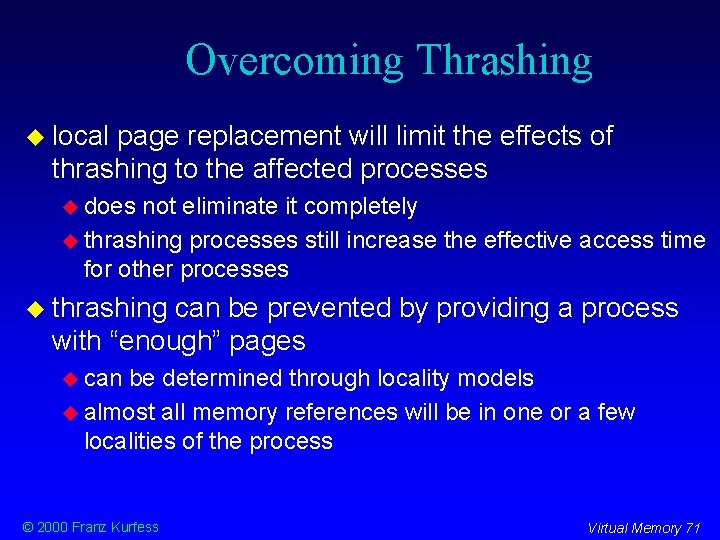

Overcoming Thrashing local page replacement will limit the effects of thrashing to the affected processes does not eliminate it completely thrashing processes still increase the effective access time for other processes thrashing can be prevented by providing a process with “enough” pages can be determined through locality models almost all memory references will be in one or a few localities of the process © 2000 Franz Kurfess Virtual Memory 71

Working Set Model is derived from the locality model the working set comprises all pages that have been used during the last n page references n defines the size of the working set window the working set is an approximation of the localities of a process if the sum of all working sets for active processes is greater than the total number of available frames there is a danger of thrashing the working set of a process changes size as the process moves between localities © 2000 Franz Kurfess Virtual Memory 72

Working Set Model Usage the operating system monitors the working set of each process is allocated enough frames to accommodate its working set if enough frames are free, more processes are brought in if the sum of the working set sizes exceeds the total number of available frames, a process must be suspended optimizes CPU utilization keeps the degree of multiprogramming high prevents thrashing © 2000 Franz Kurfess Virtual Memory 73

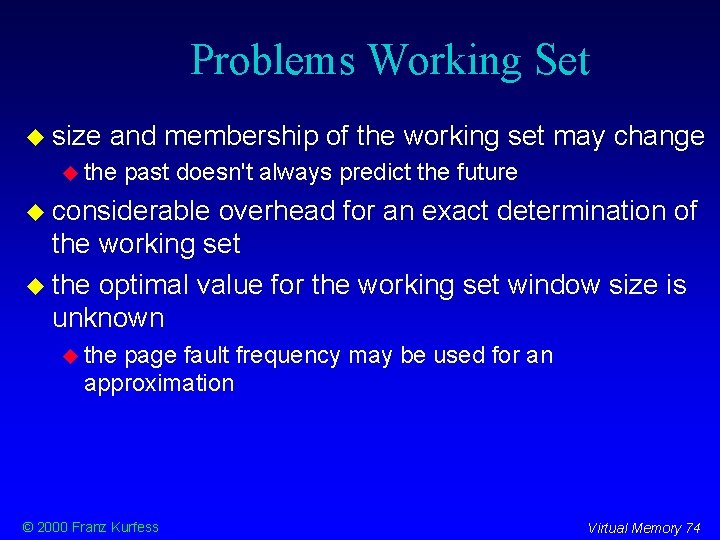

Problems Working Set size and membership of the working set may change the past doesn't always predict the future considerable overhead for an exact determination of the working set the optimal value for the working set window size is unknown the page fault frequency may be used for an approximation © 2000 Franz Kurfess Virtual Memory 74

Page Fault Frequency Model the operating system monitors the page fault frequency (PFF) of each process if it gets too high, the process needs more frames if it gets too low, the process can do with fewer frames if the PFFs of too many processes are too high, some processes have to be suspended © 2000 Franz Kurfess Virtual Memory 75

Page Fault Frequency Diagram page fault rate process needs more frames upper bound lower bound process needs fewer frames allocated page frames © 2000 Franz Kurfess Virtual Memory 76

Paging Demons background process that periodically inspects memory looking for pages to evict based on the page replacement algorithm contents of the page may be kept in a page pool in case the page is needed again before it gets overwritten © 2000 Franz Kurfess Virtual Memory 77

Locking Pages a page is locked in memory to prevent its replacement page locks can be used to prevent problems with I/O operations allows I/O to complete before the page involved in the I/O operation is replaced an alternative is to use system buffers for I/O better control of the operating system over the use of pages © 2000 Franz Kurfess Virtual Memory 78

Cleaning Policy determines when modified pages should be written out to secondary memory demand cleaning a page is written out only when it has been selected for replacement one page fault involves writing one page and reading in another page precleaning pages are written before frames are needed may involve unnecessary write operations for pages that change frequently compromise: © 2000 Franz Kurfess page buffering Virtual Memory 79

Page Buffering a number of page frames are not allocated to processes, but used by the operating system as cache or buffer keeps some recently swapped out pages in main memory so they don’t need to be swapped in in case they are needed again soon the processes may not be aware of that © 2000 Franz Kurfess Virtual Memory 80

Load Control determines the number of processes in main memory (degree of multiprogramming) too few processes not enough processes in the ready queue may lead to new processes being swapped in too many processes high page fault frequency danger of thrashing © 2000 Franz Kurfess Virtual Memory 81

Process Suspension determines the process(es) that will be swapped out of main memory to the secondary storage low priority processes process causing many page faults last process activated least likely to have working set resident smallest will process be easy to swap in again largest frees process up the largest number of frames process with the largest remaining execution time © 2000 Franz Kurfess Virtual Memory 82

Virtual Memory Implementation page replacement and frame allocation are not the only considerations for a virtual memory system prepaging page size program structure I/O and virtual memory file mapping (memory-mapped files) © 2000 Franz Kurfess Virtual Memory 83

Direct Memory Access DMA unit is capable of transferring data directly between memory and I/O device CPU doesn’t have to be involved cycle stealing the DMA unit “steals” bus access cycles from the CPU has to wait because it would be too costly to restart the DMA transfer the execution of instructions is suspended, not interrupted © 2000 Franz Kurfess Virtual Memory 84

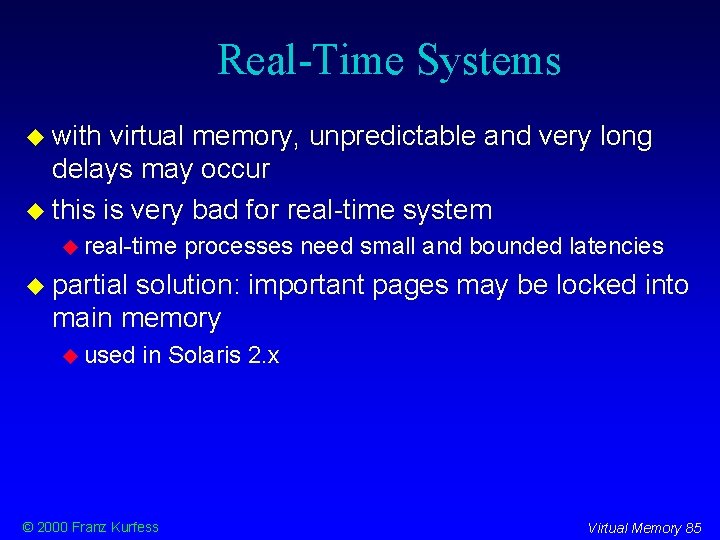

Real-Time Systems with virtual memory, unpredictable and very long delays may occur this is very bad for real-time system real-time processes need small and bounded latencies partial solution: important pages may be locked into main memory used in Solaris 2. x © 2000 Franz Kurfess Virtual Memory 85

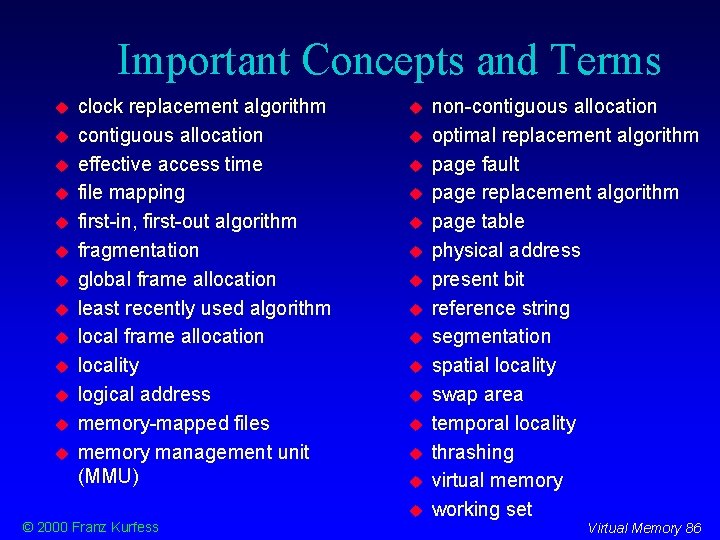

Important Concepts and Terms clock replacement algorithm contiguous allocation effective access time file mapping first-in, first-out algorithm fragmentation global frame allocation least recently used algorithm local frame allocation locality logical address memory-mapped files memory management unit (MMU) © 2000 Franz Kurfess non-contiguous allocation optimal replacement algorithm page fault page replacement algorithm page table physical address present bit reference string segmentation spatial locality swap area temporal locality thrashing virtual memory working set Virtual Memory 86

Chapter Summary virtual memory keeps only parts of processes in main memory the rest is stored on secondary storage virtual memory separates the logical address space from physical memory allows the execution of processes larger than physical memory the programmer does not have to know the size of physical memory leads to better resource utilization performance loss due to page faults © 2000 Franz Kurfess Virtual Memory 87
