Chapter 2 Application Layer Computer Networking: A Top Down Approach 6 th edition Jim Kurose, Keith Ross Addison-Wesley March 2012 All material copyright 1996 -2012 J. F Kurose and K. W. Ross, All Rights Reserved Application Layer 2 -1

Chapter 2: outline 2. 1 Intrudction to Application Layer 2. 2 Web and HTTP 2. 3 FTP 2. 4 electronic mail § SMTP, POP 3, IMAP 2. 5 DNS Application Layer 2 -2

Chapter 2: application layer Lecture Objectives: v conceptual, implementation aspects of network application protocols § transport-layer service models § client-server paradigm § peer-to-peer paradigm v learn about protocols by examining popular application-level protocols § § HTTP FTP SMTP / POP 3 / IMAP DNS Application Layer 2 -3

Some network apps v v v v e-mail web text messaging remote login P 2 P file sharing multi-user network games streaming stored video (You. Tube, Hulu, Netflix) v v v voice over IP (e. g. , Skype) real-time video conferencing social networking search … … Application Layer 2 -4

Creating a network app write programs that: v run on (different) end systems v communicate over network v e. g. , web server software communicates with browser software no need to write software for network-core devices v network-core devices do not run user applications v applications on end systems allows for rapid app development, propagation application transport network data link physical Application Layer 2 -5

Application architectures possible structure of applications: v client-server v peer-to-peer (P 2 P) Application Layer 2 -6

Client-server architecture server: v v v always-on host permanent IP address data centers for scaling clients: v client/server v v v communicate with server may be intermittently connected may have dynamic IP addresses do not communicate directly with each other Application Layer 2 -7

P 2 P architecture v v no always-on server arbitrary end systems directly communicate peers request service from other peers, provide service in return to other peers § self scalability – new peers bring new service capacity, as well as new service demands peers are intermittently connected and change IP addresses § complex management peer-peer Application Layer 2 -8

App-layer protocol defines v v types of messages exchanged, § e. g. , request, response message syntax: § what fields in messages & how fields are delineated message semantics § meaning of information in fields rules for when and how processes send & respond to messages open protocols: v defined in RFCs v allows for interoperability v e. g. , HTTP, SMTP proprietary protocols: v e. g. , Skype Application Layer 2 -9

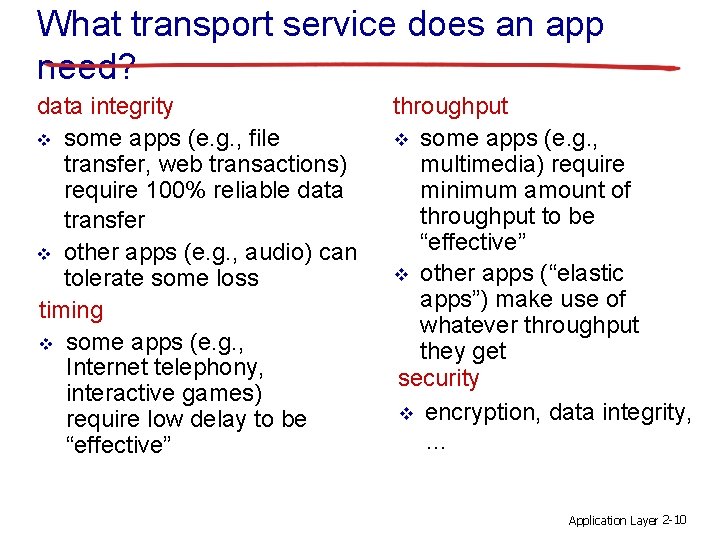

What transport service does an app need? data integrity v some apps (e. g. , file transfer, web transactions) require 100% reliable data transfer v other apps (e. g. , audio) can tolerate some loss timing v some apps (e. g. , Internet telephony, interactive games) require low delay to be “effective” throughput v some apps (e. g. , multimedia) require minimum amount of throughput to be “effective” v other apps (“elastic apps”) make use of whatever throughput they get security v encryption, data integrity, … Application Layer 2 -10

Web and HTTP First, a review… v v web page consists of objects object can be HTML file, JPEG image, Java applet, audio file, … web page consists of base HTML-file which includes several referenced objects each object is addressable by a URL, e. g. , www. someschool. edu/some. Dept/pic. gif host name path name Application Layer 2 -11

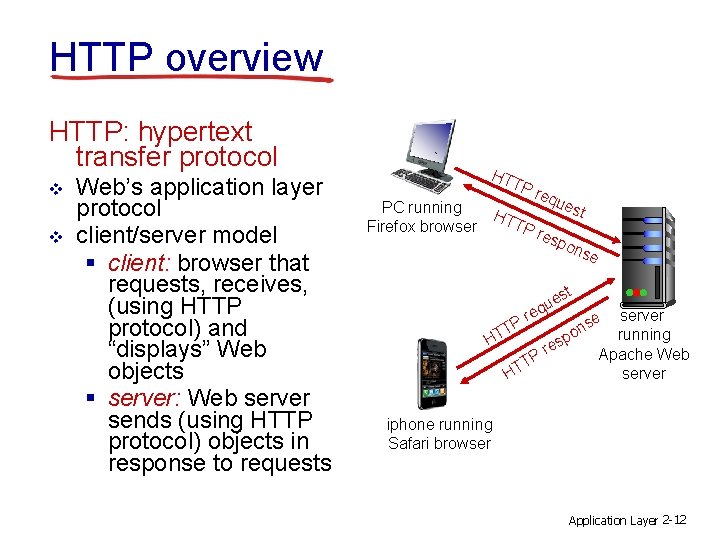

HTTP overview HTTP: hypertext transfer protocol v v Web’s application layer protocol client/server model § client: browser that requests, receives, (using HTTP protocol) and “displays” Web objects § server: Web server sends (using HTTP protocol) objects in response to requests HT PC running Firefox browser TP HT TP req u est res p ons e st P TT ue q e r H T HT server running Apache Web server e s on p es r P iphone running Safari browser Application Layer 2 -12

HTTP overview (continued) uses TCP: v v client initiates TCP connection (creates socket) to server, port 80 server accepts TCP connection from client HTTP messages (application-layer protocol messages) exchanged between browser (HTTP client) and Web server (HTTP server) TCP connection closed HTTP is “stateless” v server maintains no information about past client requests aside protocols that maintain “state” are complex! v v past history (state) must be maintained if server/client crashes, their views of “state” may be inconsistent, must be reconciled Application Layer 2 -13

HTTP request message v v two types of HTTP messages: request, response HTTP request message: § ASCII (human-readable format) request line (GET, POST, HEAD commands) header lines carriage return, line feed at start of line indicates end of header lines carriage return character line-feed character GET /index. html HTTP/1. 1rn Host: www-net. cs. umass. edurn User-Agent: Firefox/3. 6. 10rn Accept: text/html, application/xhtml+xmlrn Accept-Language: en-us, en; q=0. 5rn Accept-Encoding: gzip, deflatern Accept-Charset: ISO-8859 -1, utf-8; q=0. 7rn Keep-Alive: 115rn Connection: keep-alivern Application Layer 2 -14

HTTP request message: general format method sp URL header field name sp value version cr lf header field name cr value cr lf request line header lines ~ ~ ~ cr lf lf entity body ~ ~ body Application Layer 2 -15

Uploading form input POST method: v v web page often includes form input is uploaded to server in entity body URL method: v v uses GET method input is uploaded in URL field of request line: www. somesite. com/animalsearch? monkeys&banana Application Layer 2 -16

Method types HTTP/1. 0: v v v GET POST HEAD § asks server to leave requested object out of response HTTP/1. 1: v v v GET, POST, HEAD PUT § uploads file in entity body to path specified in URL field DELETE § deletes file specified in the URL field Application Layer 2 -17

HTTP response message status line (protocol status code status phrase) header lines data, e. g. , requested HTML file HTTP/1. 1 200 OKrn Date: Sun, 26 Sep 2010 20: 09: 20 GMTrn Server: Apache/2. 0. 52 (Cent. OS)rn Last-Modified: Tue, 30 Oct 2007 17: 00: 02 GMTrn ETag: "17 dc 6 -a 5 c-bf 716880"rn Accept-Ranges: bytesrn Content-Length: 2652rn Keep-Alive: timeout=10, max=100rn Connection: Keep-Alivern Content-Type: text/html; charset=ISO-88591rn data data. . . Application Layer 2 -18

HTTP response status codes status code appears in 1 st line in server-toclient response message. v some sample codes: v 200 OK § request succeeded, requested object later in this msg 301 Moved Permanently § requested object moved, new location specified later in this msg (Location: ) 400 Bad Request § request msg not understood by server 404 Not Found § requested document not found on this server 505 HTTP Version Not Supported Application Layer 2 -19

FTP: the file transfer protocol FTP user interface file transfer FTP client user at host v v local file system FTP server remote file system transfer file to/from remote host client/server model § client: side that initiates transfer (either to/from remote) § server: remote host v v ftp: RFC 959 ftp server: port 21 Application Layer 2 -20

FTP: separate control, data connections v v v FTP client contacts FTP server at port 21, using TCP client authorized over control connection client browses remote directory, sends commands over control connection when server receives file transfer command, server opens 2 nd TCP data connection (for file) to client after transferring one file, server closes data connection TCP control connection, server port 21 FTP client v v v TCP data connection, server port 20 FTP server opens another TCP data connection to transfer another file control connection: “out of band” FTP server maintains “state”: current directory, earlier authentication Application Layer 2 -21

FTP commands, responses sample commands: v v v sent as ASCII text over control channel USER username PASS password LIST return list of file in current directory RETR filename retrieves (gets) file STOR filename stores (puts) file onto remote host sample return codes v v v status code and phrase (as in HTTP) 331 Username OK, password required 125 data connection already open; transfer starting 425 Can’t open data connection 452 Error writing file Application Layer 2 -22

Electronic mail outgoing message queue Three major components: v v v user agents mail servers simple mail transfer protocol: SMTP user agent mail server v v v a. k. a. “mail reader” composing, editing, reading mail messages e. g. , Outlook, Thunderbird, i. Phone mail client outgoing, incoming user agent SMTP mail server user agent SMTP User Agent v user mailbox SMTP mail server user agent Application Layer 2 -23

Electronic mail: mail servers: v v v mailbox contains incoming messages for user message queue of outgoing (to be sent) mail messages SMTP protocol between mail servers to send email messages § client: sending mail server § “server”: receiving mail server user agent SMTP mail server user agent Application Layer 2 -24

Electronic Mail: SMTP [RFC 2821] v v v uses TCP to reliably transfer email message from client to server, port 25 direct transfer: sending server to receiving server three phases of transfer § handshaking (greeting) § transfer of messages § closure v command/response interaction (like HTTP, FTP) § commands: ASCII text § response: status code and phrase v messages must be in 7 -bit ASCI Application Layer 2 -25

Scenario: Alice sends message to Bob 1) Alice uses UA to compose message “to” bob@someschool. edu 2) Alice’s UA sends message to her mail server; message placed in message queue 3) client side of SMTP opens TCP connection with Bob’s mail server 1 user agent 2 mail server 3 Alice’s mail server 4) SMTP client sends Alice’s message over the TCP connection 5) Bob’s mail server places the message in Bob’s mailbox 6) Bob invokes his user agent to read message user agent mail server 6 4 5 Bob’s mail server Application Layer 2 -26

Sample SMTP interaction S: C: S: C: C: C: S: 220 hamburger. edu HELO crepes. fr 250 Hello crepes. fr, pleased to meet you MAIL FROM: <alice@crepes. fr> 250 alice@crepes. fr. . . Sender ok RCPT TO: <bob@hamburger. edu> 250 bob@hamburger. edu. . . Recipient ok DATA 354 Enter mail, end with ". " on a line by itself Do you like ketchup? How about pickles? . 250 Message accepted for delivery QUIT 221 hamburger. edu closing connection Application Layer 2 -27

Try SMTP interaction for yourself: v v v telnet servername 25 see 220 reply from server enter HELO, MAIL FROM, RCPT TO, DATA, QUIT commands above lets you send email without using email client (reader) Application Layer 2 -28

SMTP: final words v v v SMTP uses persistent connections SMTP requires message (header & body) to be in 7 -bit ASCII SMTP server uses CRLF to determine end of message comparison with HTTP: v v HTTP: pull SMTP: push v both have ASCII command/response interaction, status codes v HTTP: each object encapsulated in its own response msg SMTP: multiple objects sent in multipart msg v Application Layer 2 -29

Mail message format SMTP: protocol for exchanging email msgs RFC 822: standard for text message format: v header lines, e. g. , § To: § From: § Subject: header blank line body different from SMTP MAIL FROM, RCPT TO: commands! v Body: the “message” § ASCII characters only Application Layer 2 -30

Mail access protocols user agent SMTP mail access protocol user agent (e. g. , POP, IMAP) sender’s mail server v v receiver’s mail server SMTP: delivery/storage to receiver’s server mail access protocol: retrieval from server § POP: Post Office Protocol [RFC 1939]: authorization, download § IMAP: Internet Mail Access Protocol [RFC 1730]: more features, including manipulation of stored msgs on server § HTTP: gmail, Hotmail, Yahoo! Mail, etc. Application Layer 2 -31

DNS: domain name system people: many identifiers: § SSN, name, passport # Internet hosts, routers: § IP address (32 bit) used for addressing datagrams § “name”, e. g. , www. yahoo. com used by humans Domain Name System: v v distributed database implemented in hierarchy of many name servers application-layer protocol: hosts, name servers communicate to resolve names (address/name translation) § note: core Internet function, implemented as application-layer protocol § complexity at network’s “edge” Application Layer 2 -32

DNS: services, structure DNS services v v hostname to IP address translation host aliasing why not centralize DNS? v v v § canonical, alias names v v mail server aliasing load distribution § replicated Web servers: many IP addresses correspond to one name v single point of failure traffic volume distant centralized database maintenance Application Layer 2 -33

DNS: a distributed, hierarchical database Root DNS Servers … com DNS servers yahoo. com amazon. com DNS servers … org DNS servers pbs. org DNS servers edu DNS servers poly. edu umass. edu DNS servers client wants IP for www. amazon. com; 1 st approx: v v v client queries root server to find com DNS server client queries. com DNS server to get amazon. com DNS server client queries amazon. com DNS server to get IP address for www. amazon. com Application Layer 2 -34

DNS: root name servers v v contacted by local name server that can not resolve name root name server: § contacts authoritative name server if name mapping not known § gets mapping § returns mapping to local name server c. Cogent, Herndon, VA (5 other sites) d. U Maryland College Park, MD h. ARL Aberdeen, MD j. Verisign, Dulles VA (69 other sites ) e. NASA Mt View, CA f. Internet Software C. Palo Alto, CA (and 48 other sites) a. Verisign, Los Angeles CA (5 other sites) b. USC-ISI Marina del Rey, CA l. ICANN Los Angeles, CA (41 other sites) g. US Do. D Columbus, OH (5 other sites) k. RIPE London (17 other sites) i. Netnod, Stockholm (37 other sites) m. WIDE Tokyo (5 other sites) 13 root name “servers” worldwide Application Layer 2 -35

DNS name resolution example v root DNS server 2 host at cis. poly. edu wants IP address for gaia. cs. umass. edu iterated query: v v contacted server replies with name of server to contact “I don’t know this name, but ask this server” 3 4 TLD DNS server 5 local DNS server dns. poly. edu 1 8 requesting host 7 6 authoritative DNS server dns. cs. umass. edu cis. poly. edu gaia. cs. umass. edu Application Layer 2 -36

DNS name resolution example root DNS server 2 recursive query: v v puts burden of name resolution on contacted name server heavy load at upper levels of hierarchy? 3 7 6 TLD DNS server local DNS server dns. poly. edu 1 5 4 8 requesting host authoritative DNS server dns. cs. umass. edu cis. poly. edu gaia. cs. umass. edu Application Layer 2 -37

DNS protocol, messages v query and reply messages, both with same message format 2 bytes msg header v v identification: 16 bit # for query, reply to query uses same # flags: § query or reply § recursion desired § recursion available § reply is authoritative identification flags # questions # answer RRs # authority RRs # additional RRs questions (variable # of questions) answers (variable # of RRs) authority (variable # of RRs) additional info (variable # of RRs) Application Layer 2 -38

DNS protocol, messages 2 bytes identification flags # questions # answer RRs # authority RRs # additional RRs name, type fields for a query questions (variable # of questions) RRs in response to query answers (variable # of RRs) records for authoritative servers authority (variable # of RRs) additional “helpful” info that may be used additional info (variable # of RRs) Application Layer 2 -39

Chapter 2: summary our study of network apps now complete! v v v application architectures § client-server § P 2 P application service requirements: § reliability, bandwidth, delay Internet transport service model § connection-oriented, reliable: TCP § unreliable, datagrams: UDP v v specific protocols: § HTTP § FTP § SMTP, POP, IMAP § DNS § P 2 P: Bit. Torrent, DHT socket programming: TCP, UDP sockets Application Layer 2 -40

Chapter 2: summary most importantly: learned about protocols! v v typical request/reply message exchange: § client requests info or service § server responds with data, status code message formats: § headers: fields giving info about data § data: info being communicated important themes: v v v control vs. data msgs § in-band, out-of-band centralized vs. decentralized stateless vs. stateful reliable vs. unreliable msg transfer “complexity at network edge” Application Layer 2 -41
