Advanced SQL Zachary G Ives University of Pennsylvania

Advanced SQL Zachary G. Ives University of Pennsylvania CIS 550 – Database & Information Systems September 18, 2003 Some slide content courtesy of Susan Davidson & Raghu Ramakrishnan

Administrivia § Please turn in your answers to HW 1 now § Please take a copy of HW 2 § Sign up for Oracle account at: http: //www. seas. upenn. edu/ora/ § (Those who don’t have eniac accounts: please email me) § Remember, decisions about groups and projects due by end of Friday in email 2

We’re Studying SQL: A Friendly Face Over the. Tuple. Relational Calculus SELECT [DISTINCT] {T 1. attrib , …, T 2. attrib } FROM {relation } T 1, {relation } T 2, … select-list WHERE {predicates } from-list qualification § Queries can have set operators (UNION, EXCEPT, …) § Queries can be nested § Often multiple ways of expressing the same query 3

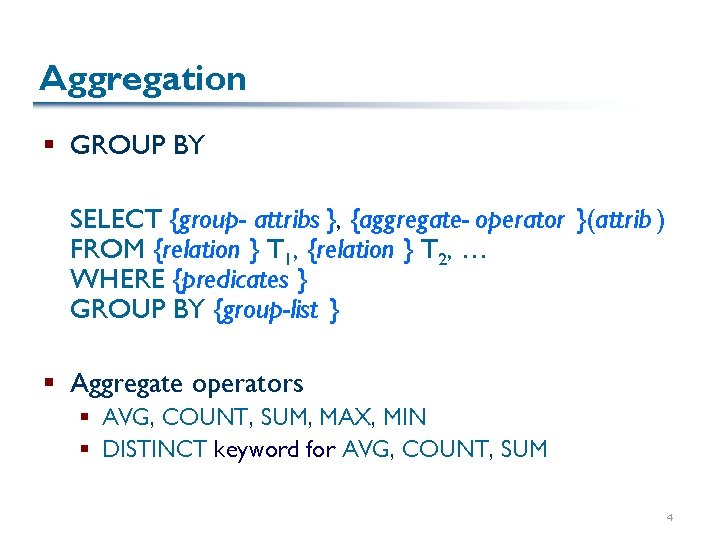

Aggregation § GROUP BY SELECT {group- attribs }, {aggregate- operator }(attrib ) FROM {relation } T 1, {relation } T 2, … WHERE {predicates } GROUP BY {group-list } § Aggregate operators § AVG, COUNT, SUM, MAX, MIN § DISTINCT keyword for AVG, COUNT, SUM 4

Some Examples § Number of students in each course offering § Number of different grades expected for each course offering § Number of (distinct) students taking AI courses 5

Example Data Instance STUDENT Takes sid exp-grade name COURSE cid subj sem 1 Jill 1 A 550 -0103 DB F 03 2 Qun 1 A 700 -1003 AI S 03 3 Nitin 3 A 700 -1003 501 -0103 Arch F 03 4 Marty 3 C 501 -0103 4 C 501 -0103 PROFESSOR Teaches fid name fid cid 1 Ives 1 550 -0103 2 Saul 2 700 -1003 8 Roth 8 501 -0103 6

What If You Want to Only Show Some Groups? § The HAVING clause lets you do a selection based on an aggregate (there must be 1 value per group): SELECT C. subj, COUNT(S. sid) FROM STUDENT S, Takes T, COURSE C WHERE S. sid = T. sid AND T. cid = C. cid GROUP BY subj HAVING COUNT(S. sid) > 5 § Exercise: For each subject taught by at least two professors, list the minimum expected grade 7

Aggregation and Table Expressions (aka Derived Relations) § Sometimes need to compute results over the results of a previous aggregation: SELECT subj, AVG(size) FROM ( SELECT C. cid AS id, C. subj AS subj, COUNT(S. sid) AS size FROM STUDENT S, Takes T, COURSE C WHERE S. sid = T. sid AND T. cid = C. cid GROUP BY cid, subj) GROUP BY subj 8

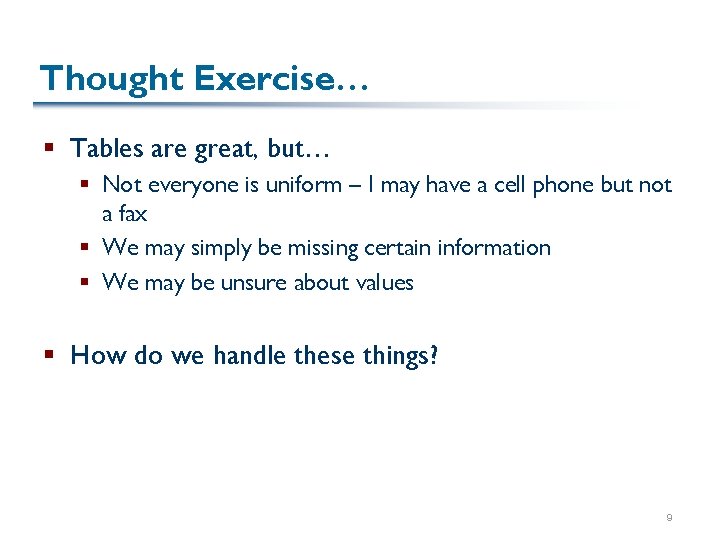

Thought Exercise… § Tables are great, but… § Not everyone is uniform – I may have a cell phone but not a fax § We may simply be missing certain information § We may be unsure about values § How do we handle these things? 9

One Answer: Null Values § We designate a special “null” value to represent “unknown” or “N/A” Name Home Fax Sam 123 -4567 NULL Li 234 -8972 234 -8766 Maria 789 -2312 789 -2121 § But a question: what does: SELECT * FROM CONTACT WHERE Fax < “ 789 -1111” do? 10

Three-State Logic § Need ways to evaluate boolean expressions and have the result be “unknown” (or T/F) § Need ways of composing these three-state expressions using AND, OR, NOT: T AND U = U F AND U = F U AND U = U T OR U = T F OR U = U U OR U = U NOT U = U § Can also test for null-ness: attr IS NULL, attr IS NOT NULL § Finally: need rules for arithmetic, aggregation 11

Nulls and Joins § Sometimes need special variations of joins: § I want to see all courses and their students § … But what if there’s a course with no students? § Outer join: § Most common is left outer join : SELECT C. subj, C. cid, T. sid FROM COURSE C LEFT OUTER JOIN Takes T ON C. cid = T. cid WHERE … 12

Revised Example Data Instance STUDENT Takes sid exp-grade name COURSE cid subj sem 1 Jill 1 A 550 -0103 DB F 03 2 Qun 1 A 700 -1003 AI S 03 3 Nitin 3 A 700 -1003 501 -0103 Arch F 03 4 Marty 3 C 501 -0103 555 -0103 Food F 03 4 C 501 -0103 PROFESSOR Teaches fid name fid cid 1 Ives 1 550 -0103 2 Saul 2 700 -1003 8 Roth 8 501 -0103 13

Warning on Outer Join § Oracle doesn’t support standard SQL syntax here: SELECT C. subj, C. cid, T. sid FROM COURSE C , Takes T WHERE C. cid =(+) T. cid 14

Beyond Null § Can have much more complex ideas of incomplete or approximate information § Probabilistic models (tuple 80% likely to be an answer) § Naïve tables (can have variables instead of NULLs) § Conditional tables (tuple IF some condition holds) § … And what if you want “ 0 or more”? § In relational databases, create a new table and foreign key § But can have semistructured data (like XML) 15

Modifying the Database: Inserting Data § Inserting a new literal tuple is easy, if wordy: INSERT INTO FACULTY(fid, name) VALUES (4, ‘Simpson’) § But we can also insert the results of a query! INSERT INTO FACULTY(fid, name) SELECT sid AS fid, name FROM STUDENT WHERE sid < 20 16

Deleting. Tuples § Deletion is a fairly simple operation: DELETE FROM STUDENT S WHERE S. sid < 25 17

Updating. Tuples § What kinds of updates might you want to do? UPDATE STUDENT S SET S. sid = 1 + S. sid, S. name = ‘Janet’ WHERE S. name = ‘Jane’ 18

Now, How Do I Talk to the DB? § Generally, apps are in a different (“host”) language with embedded SQL statements § Static: SQLJ, embedded SQL in C § Runtime: ODBC, JDBC, ADO, OLE DB, … § Typically, predefined mappings between host language types and SQL types (e. g. , VARCHAR string or char[]) 19

Embedded SQL in C EXEC SQL BEGIN DECLARE SECTION int sid; char name[20]; EXEC SQL END DECLARE SECTION … EXEC SQL INSERT INTO STUDENT VALUES (: sid, : name); EXEC SQL SELECT name, age INTO : sid, : name FROM STUDENT WHERE sid < 20 20

The Impedance Mismatch and Cursors § SQL is set-oriented – it returns relations § There’s no relation type in most languages! § Solution: cursor that’s opened, read DECLARE sinfo CURSOR FOR SELECT sid, name FROM STUDENT … OPEN sinfo; while (…) { FETCH sinfo INTO : sid, : name … } CLOSE sinfo; 21

JDBC: Dynamic SQL § Roughly speaking, a Java version of ODBC § See Chapter 6 of the text for more info import java. sql. *; Connection conn = Driver. Manager. get. Connection(…); Prepared. Statement stmt = conn. prepare. Statement(“SELECT * FROM STUDENT”); … Result. Set rs = stmt. execute. Query(); while (rs. next()) { sid = rs. get. Integer(1); … } 22

Database-Backed Web Sites § We all know traditional static HTML web sites: Web-Browser HTTP-Request GET. . . Web-Server HTML-File Load File HTML-File-System 23

Common Gateway Interface (CGI) Can have the web server invoke code (with parameters) to generate HTML Web Server HTTP-Request Web Server HTML-File Output HTML? Load File-System File Program? Execute Program I/O, Network, DB 24

CGI: Discussion § Advantages: § Standardized: works for every web-server, browser § Flexible: Any language (C++, Perl, Java, …) can be used § Disadvantages: § § Statelessness: query-by-query approach Inefficient: new process forked for every request Security: CGI programmer is responsible for security Updates: To update layout, one has to be a programmer 25

DB Access in Java Browser JVM Java Applet TCP/UDP IP Java-Server-Process JDBC Driver manager JDBCDriver Sybase Oracle . . . 26

Java Applets: Discussion § Advantages: § Can take advantage of client processing § Platform independent – assuming standard java § Disadvantages: § § Requires JVM on client; self-contained Inefficient: loading can take a long time. . . Resource intensive: Client needs to be state of the art Restrictive: can only connect to server where applet was loaded from (for security … can be configured) 27

*SP Server pages (IIS, Tomcat, …) Web Server HTTP Request Load File HTML? HTML File Output File-System File Script? Server Extension I/O, Network, DB 28

One Step Beyond: DB-Driven Web Sites (Strudel, Cocoon, …) Web Server DB-Driven Web Server HTTP Request Styles Cache HTML File HTML Local Database Script? Dynamic HTML Generation Data Other data sources 29

Wrapping Up § We’ve seen how to query in SQL (DML) § § Basic foundation is TRC-based Subqueries and aggregation add extra power Nulls and outer joins add flexibility of representation We can update tables § We’ve seen that SQL doesn’t precisely match standard host language semantics § Embedded SQL § Dynamic SQL § Data-driven web sites 30

Remember… § Groups and project choices due by email by end of day tomorrow – send to zives@cis, dinkar@gradient. cis § Sign up for your Oracle account ASAP 31
