Aastra 6700 i SIP Phones with MXONE Communication

Aastra 6700 i SIP Phones with MX-ONE Communication Server © Aastra - 2012

Aastra SIP Phones - Introduction Comprehensive portfolio with a global industrial design Standards based • Fully compliant with SIP (RFC 3261) and associated RFCs High level of standard features, including • Wideband audio support • XML browser and server > Available Software Development Kit Integrated with MX-ONE • Manager TS and Manager Provisioning • MX-ONE Extension features • CMG Directory services © Aastra - 2012 2

6700 i - Overview Choice of 9 models, ranging from entry level to executive with full colour touch screen. General features • Support for a minimum of 6 lines with call appearances • Full-duplex speakerphones for hands free operation • Dedicated keys for frequently used features • Programmable keys for “ease of use” customization • Headset support • Po. E support (*) • Dual switched Ethernet ports for ease of installation (*) * - Not supported in the entry level phone, Aastra 6730 i © Aastra - 2012 3

Aastra 6700 i Series 6739 i Budget 6757 i M 675 i Expansion Module (3 x 20 progr. keys) 6755 i 6753 i M 670 i Expansion Module (36 programmable keys) 6731 i 6730 i Functionality 6739 i SIP Phone © Aastra - 2012 4

Aastra 6730 i Lines and Keys • Up to 6 lines with call appearances • 2 dedicated line keys with LEDs • 8 programmable keys with LEDs (4 pre-programmed) > Save, Delete, Directory, Services • Dedicated keys for all care functions > Transfer, Conf, Hold, Redial, Mute, others Display • 3 line LCD display Audio • Full-duplex speakerphone for hands free operation • Headset mode support (via handset jack) Entry level phone with compact footprint Network • Single 10/100 switched Ethernet ports Power • Includes AC Adapter (No Po. E support) © Aastra - 2012 5

Aastra 6731 i Lines and Keys • Up to 6 lines with call appearances • 2 dedicated line keys with LEDs • 8 programmable keys with LEDs (4 pre-programmed) > Save, Delete, Directory, Services • Dedicated keys for all core functions > Transfer, Conf, Hold, Redial, Mute, others Display • 3 line LCD display Audio • Full-duplex speakerphone for hands free operation • Headset mode support (via handset jack) • Aastra Hi-Q™ Audio Technology Enhanced version of 6730 i Network • Dual 10/100 switched Ethernet ports Power • Integrated Po. E (IEEE 802. 3 af) support © Aastra - 2012 6

Aastra 6730 i / 6731 i - Physical Attributes 8 programmable keys with LED Navigational keys HAC Handset Full duplex Speakerphone Pre-programmed functions: Save, Delete, Directory and Services Message Waiting Lamp 3 Lines LCD Options Hold Callers List Redial Hang up/ Goodbye Volume control Mute Conference Transfer Line 1 & Line 2 keys with LEDs Speakerphone/Headset key with LED © Aastra - 2012 7

Aastra 6753 i Lines and Keys • Up to 9 lines with call appearances • 3 dedicated line keys with LEDs • 6 programmable keys with LEDs (2 pre-programmed) Display • 3 line LCD display with backlight Audio • Full-duplex speakerphone for hands free operation • Dedicated headset jack. > Electronic Hook Switch (DHSG) support for wireless headsets Network Expandable IP Phone • Dual 10/100 switched Ethernet ports Power • Integrated Po. E (IEEE 802. 3 af) support • AC adapter included Expandability • Expandable by up to 3 M 670 i modules © Aastra - 2012 8

Aastra 6753 i - Physical Attributes Navigational keys HAC Handset 6 programmable keys with LEDs (pre-programmed SAVE and DELETE functions) Message Waiting Lamp Full duplex Speakerphone 3 Lines LCD Goodbye 3 call appearance lines Service Speakerphone / headset toggle Hold Redial Mute Volume Control © Aastra - 2012 9

Aastra 6755 i Lines and Keys • Up to 9 lines with call appearances • 4 dedicated line keys with LEDs • 26 programmable keys > 6 Paper labeled keys programmable with up to 6 features > 6 LCD labeled keys programmable with up to 20 features Display • Backlit graphical LCD screen -144 x 75 pixels Audio • Full-duplex speakerphone for hands free operation • Dedicated headset jack. > Electronic Hook Switch (DHSG) support for wireless headsets Popular Mid-market Phone Network • Dual 10/100 switched Ethernet ports Power • Integrated Po. E (IEEE 802. 3 af) support • AC adapter included Expandability • Expandable by up to 3 M 670 i or M 675 i modules © Aastra - 2012 10

Aastra 6755 i - Physical Attributes Navigational keys HAC Handset Full duplex Speakerphone Goodbye Service Hold Redial 6 programmable keys with LEDs Message Waiting Lamp Large 8 lines backlit LCD screen 6 dynamic contextsensitive softkeys 4 Call appearances lines Speakerphone / headset toggle Mute Volume Control © Aastra - 2012 11

Aastra 6757 i Lines and Keys • Up to 9 lines with call appearances • 4 dedicated line keys with LEDs • 30 programmable keys > 6 LCD labeled soft keys, programmable with up to 10 features > 6 LCD labeled soft keys, programmable with up to 20 features Display • Backlit graphical LCD screen -144 x 128 pixels Audio • Full-duplex speakerphone for hands free operation • Dedicated headset jack. > Electronic Hook Switch (DHSG) support for wireless headsets Network Large Screen Executive Phone • Dual 10/100 switched Ethernet ports Power • Integrated Po. E (IEEE 802. 3 af) support • AC adapter included Expandability • Expandable by up to 3 M 670 i or M 675 i modules © Aastra - 2012 12

Aastra 6757 i - Physical Attributes Navigational keys 6 static softkeys with LEDs Message Waiting Lamp HAC Handset Full duplex Speakerphone Large 11 lines backlit LCD screen 6 dynamic context -sensitive softkeys Goodbye Service Hold Redial 4 Call appearances lines Speakerphone / headset toggle Mute Volume Control © Aastra - 2012 13

Aastra 6739 i Lines and Keys • Up to 9 lines with call appearances • Up to 55 programmable softkeys • Dedicated hard keys for freqently used features > Voice Messages, Transfer, Conference, etc. Display • Large 5. 7” full VGA (640 x 480) color touch screen display Audio • HD audio, with full wideband frequency response hardware > Handset, speaker and headset port • • Large Color Touch-screen Executive Phone Voice Quality Metrics Bluetooth headset support Dedicated headset port Built-in EHS/DHSG port Network • Dual 10/1000 switched Ethernet ports • Type A USB port (future use) Power • Integrated Po. E (IEEE 802. 3 af) support (AC adapter optional) Expandability • Expandable by up to 3 M 670 i or M 675 i modules > Optional AC adapter required © Aastra - 2012 14

Aastra 6739 i - Feature Highlights User Interface • 5. 7” Full VGA (640 x 480) color Touch Screen LCD • Intuitive graphical user interface and navigation menus • Color based icons/Translucent buttons • Adjustable screen contrast and brightness settings for user comfort in different lighting environment • Multi-lingual support • Downloadable language packs • Caller and Calling Line information • Distinctive ringing, priority alerting • Callers list, Missed Call Notification • On screen QWERTY keyboard to add or edit information on the phone © Aastra - 2012 15

Aastra 6739 i - Feature Highlights Picture ID – See who is calling • Available for incoming and outgoing calls • Callers List • Redial List and directory On screen QWERTY keyboard • Useful Display keyboard can be invoked to add or edit information on the phone • Simply tap on the entry field and enter letters and, configuration parameters etc. • Add or edit directory entries © Aastra - 2012 16

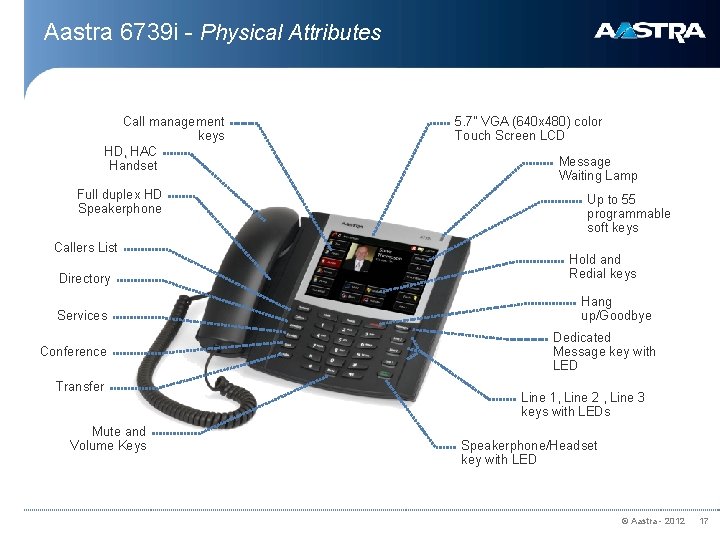

Aastra 6739 i - Physical Attributes Call management keys HD, HAC Handset Full duplex HD Speakerphone Callers List Directory Services Conference Transfer Mute and Volume Keys 5. 7” VGA (640 x 480) color Touch Screen LCD Message Waiting Lamp Up to 55 programmable soft keys Hold and Redial keys Hang up/Goodbye Dedicated Message key with LED Line 1, Line 2 , Line 3 keys with LEDs Speakerphone/Headset key with LED © Aastra - 2012 17

Aastra 6739 i - Physical Attributes Power jack (48 VDC, 0. 31 A) Only required if Po. E is not available USB port for applications and storage (future release) 4 position Stands for desk installation Dual Gig-Ethernet Ports with Po. E support © Aastra - 2012 18

Aastra 6739 i - Physical Attributes Wall Mount holes Handset port High density port for future use Expansion module port Hands-free Microphone Modular Headset port AUX port for EHS/DHSG headset Built-in Bluetooth headset support © Aastra - 2012 19

Accessories © Aastra - 2012 20

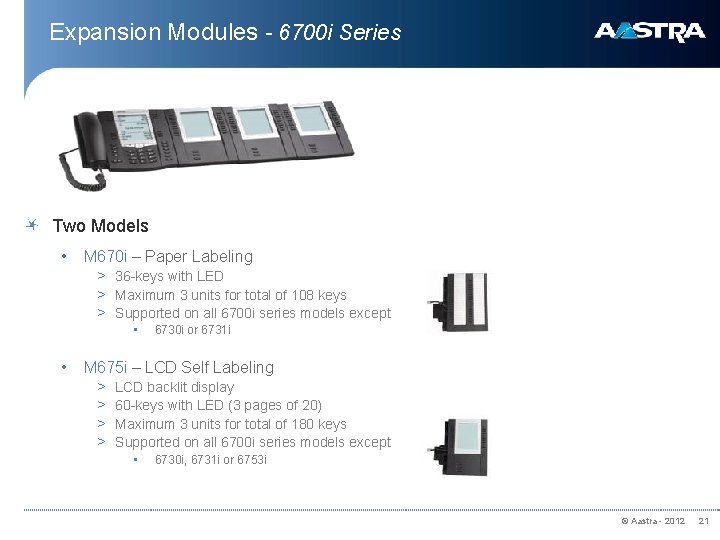

Expansion Modules - 6700 i Series Two Models • M 670 i – Paper Labeling > 36 -keys with LED > Maximum 3 units for total of 108 keys > Supported on all 6700 i series models except • 6730 i or 6731 i • M 675 i – LCD Self Labeling > > LCD backlit display 60 -keys with LED (3 pages of 20) Maximum 3 units for total of 180 keys Supported on all 6700 i series models except • 6730 i, 6731 i or 6753 i © Aastra - 2012 21

Expansion Modules (cont) - 6700 i Series Powered directly from phone • No external power adapter required • Note: 6739 i model phones, must be powered by optional AC adapter to support expansion modules Programmable features • Line, speed dial, BLF, BLA, SCA, DND • Up to 50 BLF per phone © Aastra - 2012 22

High Angle Stand - 6700 i Series Viewing angles up to 60 degrees • Adjustable to 4 angles (30, 40, 50 and 60 degree) Slip resistant rubber feet • Provides a secure grip on most desktop surfaces Works will all 6700 i series models Except 6730 i and 6731 i © Aastra - 2012 23

Software © Aastra - 2012 24

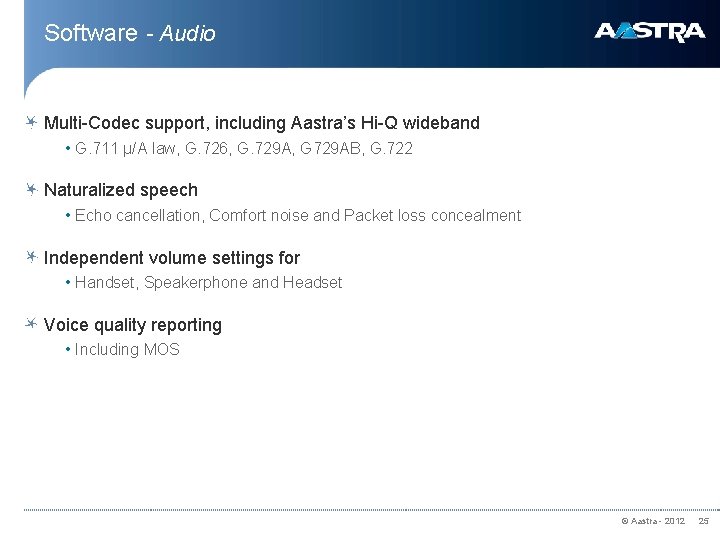

Software - Audio Multi-Codec support, including Aastra’s Hi-Q wideband • G. 711 μ/A law, G. 726, G. 729 A, G 729 AB, G. 722 Naturalized speech • Echo cancellation, Comfort noise and Packet loss concealment Independent volume settings for • Handset, Speakerphone and Headset Voice quality reporting • Including MOS © Aastra - 2012 25

Software - Networking Static or DHCP set-up • Support for DHCP options > 66, 60, 43, 77, 159, 160 Per port VLAN tagging and Qo. S configuration NAT Traversal • STUN, TURN and ICE NTP Support • Time and date synchronization RTP streaming • Paging and Intercom applications © Aastra - 2012 26

Software - Security Separate User and Administrator accounts • Secured by password and user-id • Web configuration access can be disabled Encrypted configuration files Secured web and download configuration • HTTPS Signaling and Media encryption • TLS and SRTP Restricted device use • Phone PIN lock © Aastra - 2012 27

XML © Aastra - 2012 28

Introduction to XML API Basics • • • Aastra SIP Phones have an inbuilt XML-Browser Phone also have a built-in web server for pushing XML commands XML applications can be hosted on any HTTP server What it can do • • • Control the display via an external application Dynamically configure any phone parameters and settings Dial the phone Control phone beep tones and status text Control streaming > Both RTP and Wav files June 2010 © Aastra - 2012 29

Introduction to XML API Telephony applications • Directory services • Visual Park Pickup, Visual Voicemail • Conference manager • Call Center info… Media and Information • Stock quotes, Horoscope • RSS feed from Google, CNN, ESPN, etc Vertical applications • Carriers and Service Providers, • Human Resources, • Travel and Hospitality • Education and Law Enforcement Alerting • Emergency broadcast June 2010 © Aastra - 2012 30

XML – Data Exchange HTTP(s) GET Empty Body SIP Phone Client requesting on TCP port 80 (or any port) 200 OK XML Document in Body HTTP(s) POST XML Document in Body SIP Phone Server listening on TCP port 80 31 HTTP Servers 200 OK Confirmation HTML in Body © Aastra - 2012 31

XML - Demo Applications The following applications are freely available on the internet for demonstration purposes 32 World Clock http: //65. 205. 71. 13/xml/clock. php Horoscope http: //65. 205. 71. 13/xml/horoscope. php ESPN http: //65. 205. 71. 13/xml/rss. php? feed=espn Google http: //65. 205. 71. 13/xml/google. php CNN Top stories, http: //65. 205. 71. 13/xml/rss. php? feed=cnn New Releases Movies http: //65. 205. 71. 13/xml/rss. php? feed=movies Quote of the day http: //65. 205. 71. 13/xml/rss. php? feed=day Yahoo Stock Quote http: //65. 205. 71. 13/xml/stock. php North America Weather http: //65. 205. 71. 13/xml/weather. php Area Code Look-up http: //65. 205. 71. 13/xml/area. php © Aastra - 2012 32

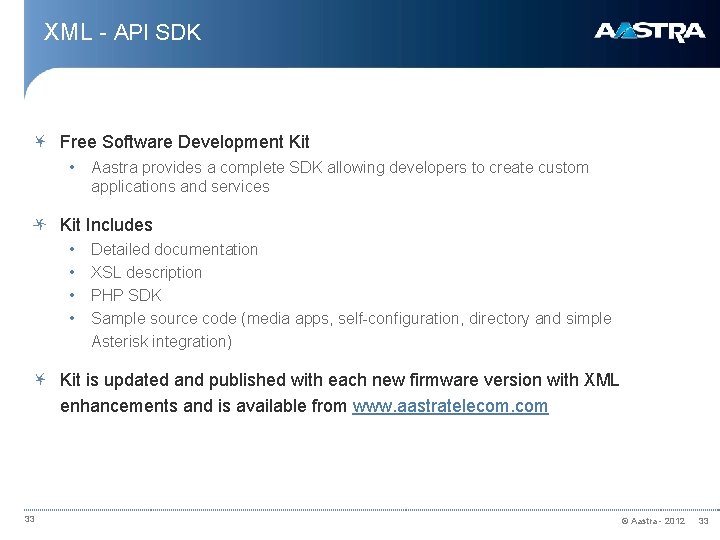

XML - API SDK Free Software Development Kit • Aastra provides a complete SDK allowing developers to create custom applications and services Kit Includes • • Detailed documentation XSL description PHP SDK Sample source code (media apps, self-configuration, directory and simple Asterisk integration) Kit is updated and published with each new firmware version with XML enhancements and is available from www. aastratelecom. com 33 © Aastra - 2012 33

SIP Phone Administration for Aastra 6700 i MX-ONE Manager Telephony System and Manager Provisioning are tools for the installer/system administrator to use for easy installation and operation of the Aastra 6700 i phones. © Aastra - 2012 34

Environmental Performances for Aastra 6700 i The phones comply with ROHS and WEEE directives Aastra terminals are lead-free and high-quality polyurethane cords, free from PVC The terminals follow EU and international proposed directives and standards regarding restricted substances Material and chemical content of components and articles are continuously being monitored and declared into the Aastra environmental material database Low energy and low waste process in production Ultrasonic welding reduces screws and glue and at the same time provide a more solid and well protected structure of handsets and phones. © Aastra - 2012 35

Documentation User Guides and Quick Reference Guides for Aastra 6700 i phones with MX-ONE are available on-line • www. aastra. com Installation Instructions for Aastra 6700 i in MX-ONE as well as the general Administrators Guide are provided with the MX-ONE system documentation. © Aastra - 2012 36
