Enhanced mobile services in Java enabled phones Björn Hjelt Sonera zed ltd Supervisor: Professor Jormakka
Table of Contents • • • Background Java 2 Micro Edition Mobile Information Device Profile Technology limitations Project implementation Conclusions
Background • Java enabled handsets • Nokia: 50 milj. in 2002 100 milj. in 2003 • Enhancing currently available services should be possible using Java technology available in clients! – How? • Gartner: Java will enhance or replace WAP in 90% of mobile services with complex user interfaces.

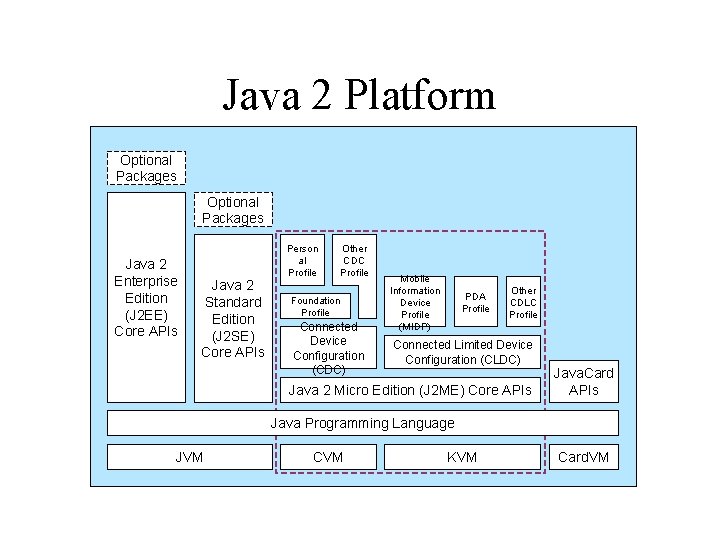

Java 2 Platform Optional Packages Java 2 Enterprise Edition (J 2 EE) Core APIs Java 2 Standard Edition (J 2 SE) Core APIs Person al Profile Other CDC Profile Foundation Profile Connected Device Configuration (CDC) Mobile Information Device Profile (MIDP) PDA Profile Other CDLC Profile Connected Limited Device Configuration (CLDC) Java 2 Micro Edition (J 2 ME) Core APIs Java. Card APIs Java Programming Language JVM CVM KVM Card. VM
Java 2 Micro Edition • Configurations – Core runtime environment for a broad device category. – APIs and a specialized Java Virtual Machine • Profiles – Additional APIs for a particular family of consumer devices Applications Profile APIs Configuration APIs Java Virtual Machine Host Operating System
Mobile Information Device Profile (MIDP) • Profile for mobile phones and other small wireless devices. • Based on the J 2 ME Connected Limited Device Configuration • Persistent storage • Two-way, wireless networking MIDP environment Java Applicati on Manager JVM – Required protocol: HTTP • Minimum screen size 96 x 54 (B/W) • Minimum memory capacity 168 KB – 128 KB of ROM/flash – 8 KB persistent storage – 32 KB for Java runtime MIDlet Resources RMS JAR & app-desc. Network IO
MIDP Limitations • Device limitations – – Memory Processor Display and input Implementation bugs(? ) • MIDP security related limitations – Applications can share resources only within same application package (“MIDlet suite”) – Only restricted access to resources available – Device specific resources may be accessible through OEM libraries.
Application distribution Java Application Manager Browser (Discovery Application) 1 2 3 4 WAP GW (optional) Origin Server

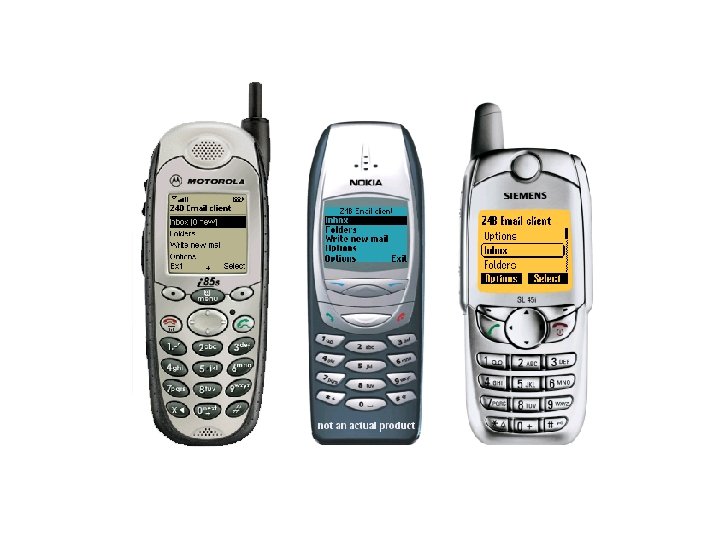

Proof of concept: Email client Folder list 1 Inbox [2 new] Sent Unsent Back Select 4 2 Back Select Email menu 5 Inbox [2 new] Folders Write new mail Options Email Client Offline Inbox #121 Testing client #120 Another test mess… #119 This is a subject line : : Online Options 7 Connection: Always ask When needed Offline Exit Select Communicating 8 Sending message. . Mail view 3 From: bh@iki. fi To: bjorn. hjelt@iki. fi Subject: Testing client This is a message to test the MIDP mail client and Back Reply Mail entry 6 To: < > Cc: < > Message: <text entry> Back Send Communicating 9 Network not available… Send later? Timeout [sec]: 60 Back Select Communicating. A Connect to network? Abort OK Abort Communicating B Unsent message found. Send now? Abort OK Communicating. C Message(s) sent successfully! Continue
Conclusions (1) • Services can be improved using Java – Off-line operation – Improved network utilization – More interactive user interface • MIDP brings mobile phones nearer to PDA functionality. • Wireless distribution of applications easy. – Methods still heterogeneous.
Conclusions (2) • Important to keep limitations in mind while developing. – Devices are limited: Optimization required. – Device implementations are not ready yet. • Platform independence promising – Even OEM features can be implemented without breaking platform independence – Look and feel device implementation dependent
Thank you! Bjorn. Hjelt@sonera. com
