![XLIV International Symposium on multiparticle dynamics 8 12 September 2014 Bologna Cosmicray world with XLIV International Symposium on multiparticle dynamics 8 -12 September 2014, Bologna Cosmic-ray world with](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-1.jpg)
XLIV International Symposium on multiparticle dynamics 8 -12 September 2014, Bologna Cosmic-ray world with gamma-ray astronomy: a wealth of information, an ever more open issue Martina Cardillo INAF-Osservatorio Astrofisico di Arcetri September 9, 2014
![Index ² SNRCR context and gammarays ² Main Issue can we resolve the problem Index ² SNR/CR context and gamma-rays ² Main Issue: can we resolve the problem](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-2.jpg)

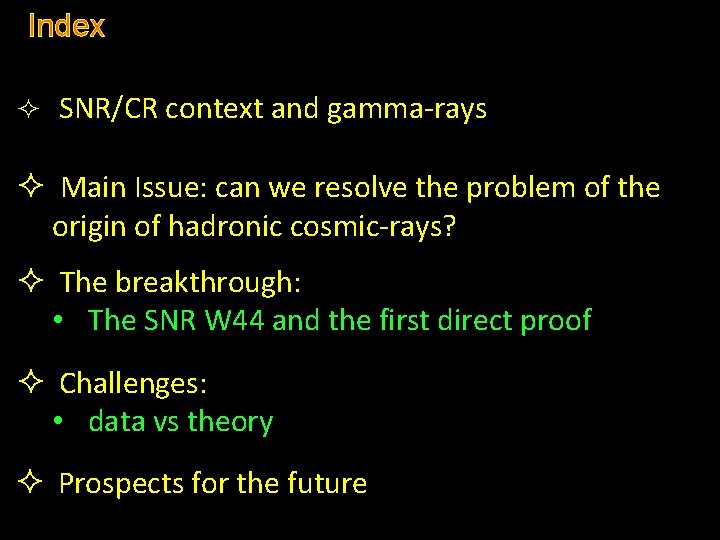

Index ² SNR/CR context and gamma-rays ² Main Issue: can we resolve the problem of the origin of hadronic cosmic-rays? ² The breakthrough: • The SNR W 44 and the first direct proof ² Challenges: • data vs theory ² Prospects for the future
![Context 1949 E Fermi Fermi acceleration ic t ac n l a i G Context 1949 E. Fermi (Fermi acceleration) ic t ac n l a i G](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-3.jpg)

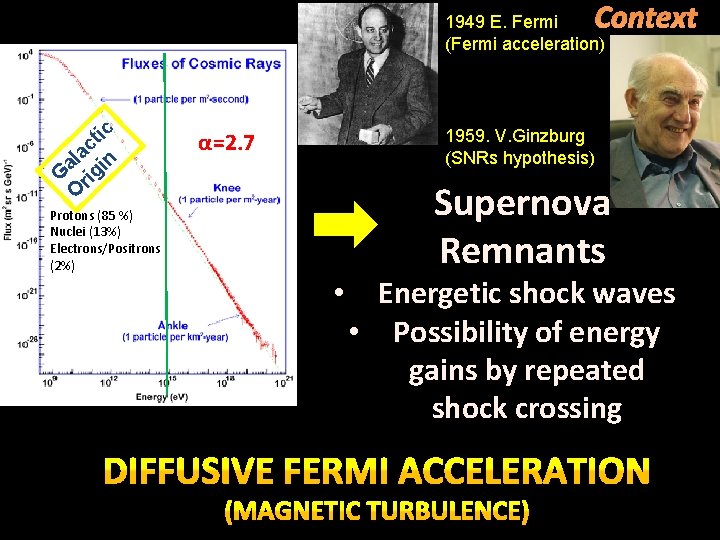

Context 1949 E. Fermi (Fermi acceleration) ic t ac n l a i G rig O Protons (85 %) Nuclei (13%) Electrons/Positrons (2%) α=2. 7 1959. V. Ginzburg (SNRs hypothesis) Supernova Remnants • Energetic shock waves • Possibility of energy gains by repeated shock crossing
![Context Linear DSA Concavity STRONG SHOCK r4 Non Linear DSA Context Linear DSA Concavity STRONG SHOCK r=4 Non Linear DSA](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-4.jpg)
Context Linear DSA Concavity STRONG SHOCK r=4 Non Linear DSA
![Context Balmer line emission by chargeexchange INDIRECT UPSTREAM DOWNSTREAM Accelerated protons Pevatrons Gammaray from Context Balmer line emission by charge-exchange INDIRECT UPSTREAM DOWNSTREAM Accelerated protons Pevatrons Gamma-ray from](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-5.jpg)

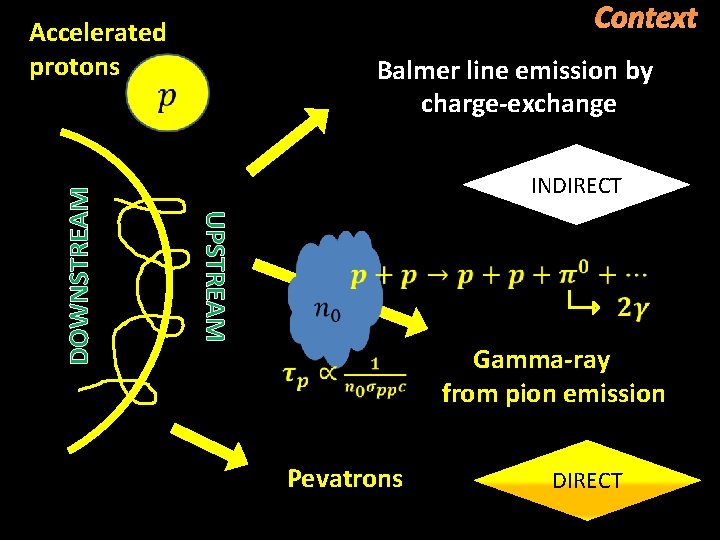

Context Balmer line emission by charge-exchange INDIRECT UPSTREAM DOWNSTREAM Accelerated protons Pevatrons Gamma-ray from pion emission DIRECT

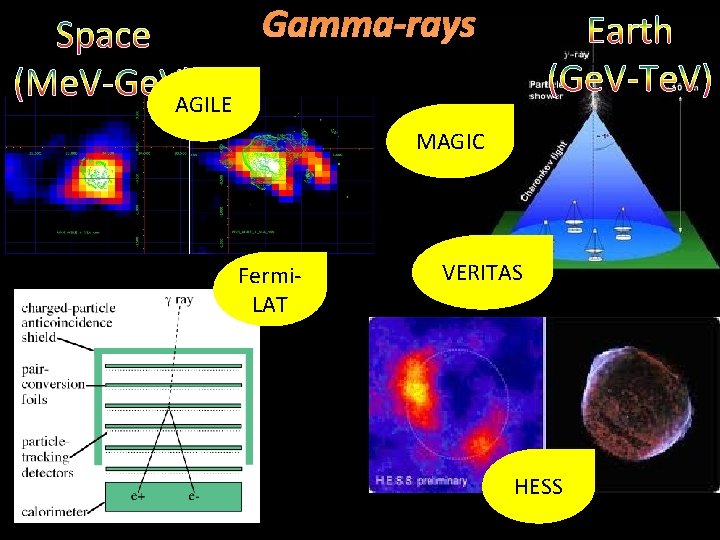

![Gammarays Space Me VGe V AGILE Earth Ge VTe V MAGIC Fermi LAT VERITAS Gamma-rays Space (Me. V-Ge. V) AGILE Earth (Ge. V-Te. V) MAGIC Fermi. LAT VERITAS](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-6.jpg)
Gamma-rays Space (Me. V-Ge. V) AGILE Earth (Ge. V-Te. V) MAGIC Fermi. LAT VERITAS HESS

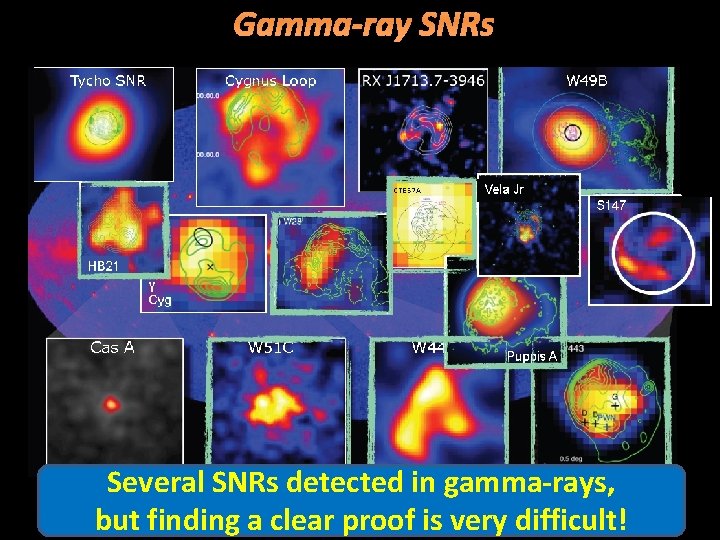

![Gammaray SNRs Several SNRs detected in gammarays but finding a clear proof is very Gamma-ray SNRs Several SNRs detected in gamma-rays, but finding a clear proof is very](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-7.jpg)
Gamma-ray SNRs Several SNRs detected in gamma-rays, but finding a clear proof is very difficult! 7
![Gammaray detection problem unique signature M E BL O R P Gamma-ray detection: problem unique signature! M E BL O R P](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-8.jpg)

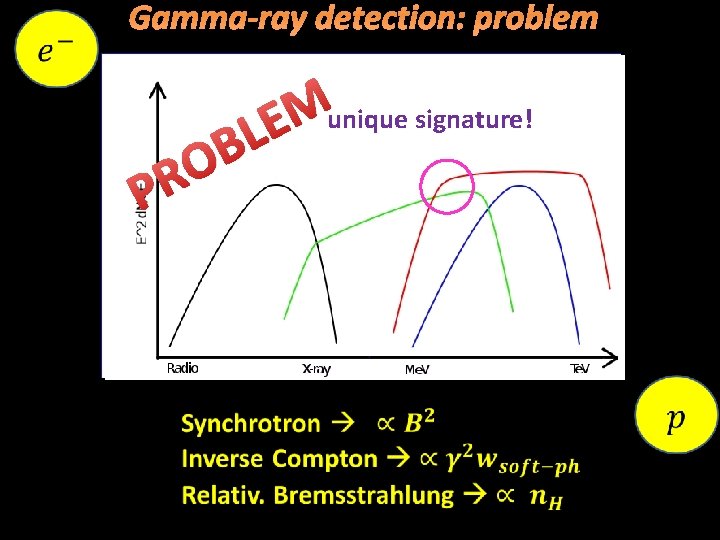

Gamma-ray detection: problem unique signature! M E BL O R P
![Gammaray detection problem Abdo et al 2010 CAS A Tycho CAS A Giordano et Gamma-ray detection: problem Abdo et al. 2010 CAS A Tycho CAS A Giordano et](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-9.jpg)

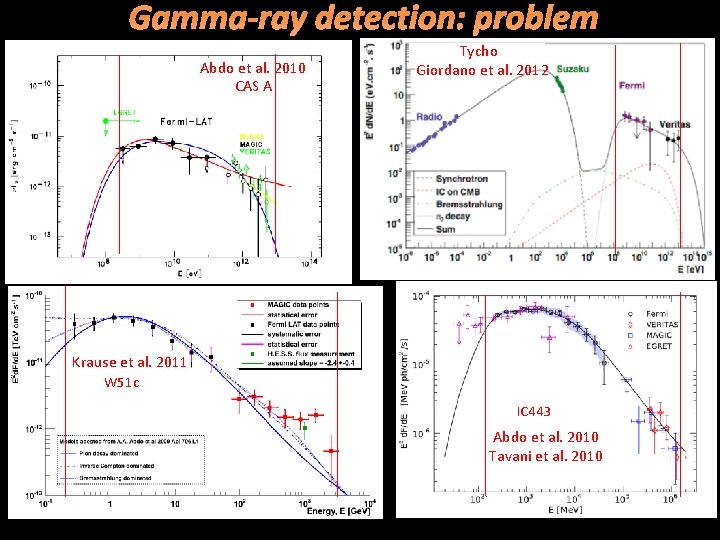

Gamma-ray detection: problem Abdo et al. 2010 CAS A Tycho CAS A Giordano et al. 2012 Abdo et al. 2010 Krause et al. 2011 W 51 c IC 443 Abdo et al. 2010 Tavani et al. 2010

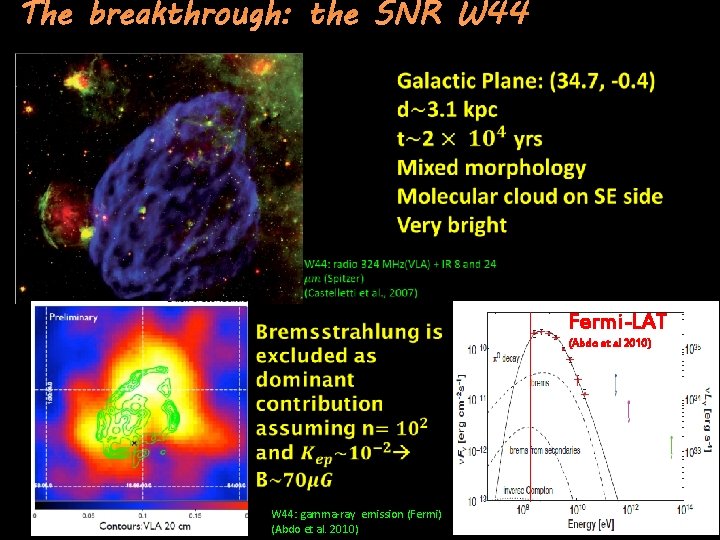

![The breakthrough the SNR W 44 FermiLAT Abdo et al 2010 W 44 gammaray The breakthrough: the SNR W 44 Fermi-LAT (Abdo et al 2010) W 44: gamma-ray](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-10.jpg)
The breakthrough: the SNR W 44 Fermi-LAT (Abdo et al 2010) W 44: gamma-ray emission (Fermi) (Abdo et al. 2010)
![The breakthrough the SNR W 44 Giuliani Cardillo Tavani et al 2011 Pion bump The breakthrough: the SNR W 44 Giuliani, Cardillo, Tavani et al. (2011) Pion bump:](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-11.jpg)

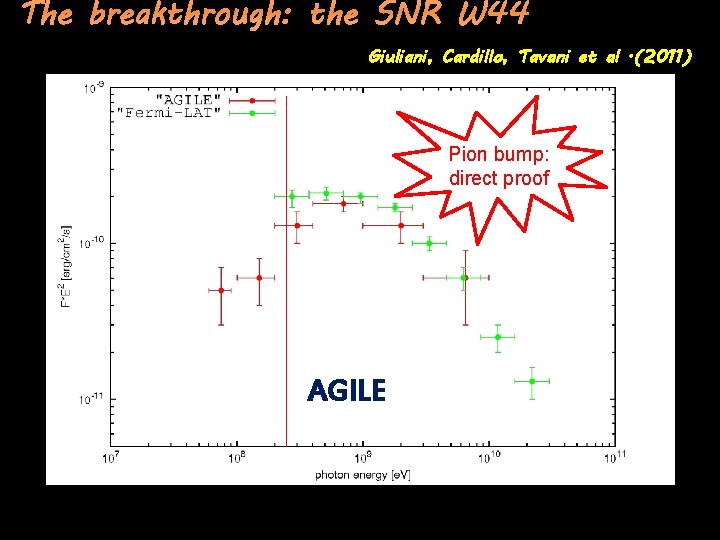

The breakthrough: the SNR W 44 Giuliani, Cardillo, Tavani et al. (2011) Pion bump: direct proof AGILE
![The breakthrough the SNR W 44 Fermi confirms AGILE data Ackermann et al 2013 The breakthrough: the SNR W 44 Fermi confirms AGILE data Ackermann et al. (2013)](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-12.jpg)

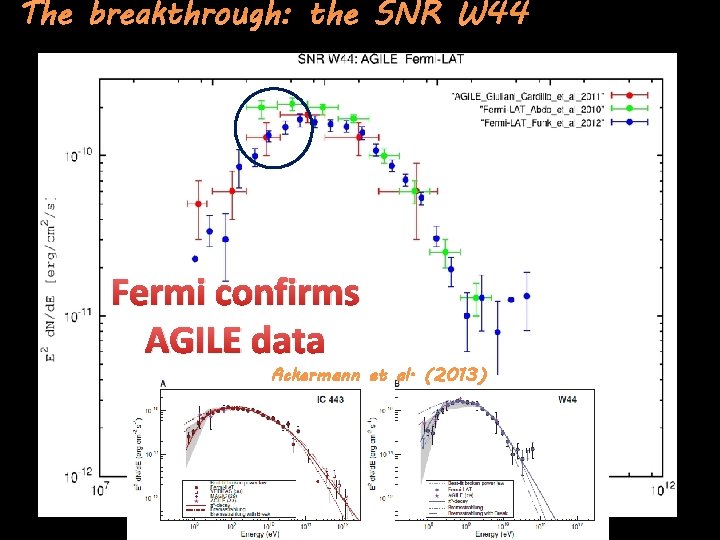

The breakthrough: the SNR W 44 Fermi confirms AGILE data Ackermann et al. (2013)

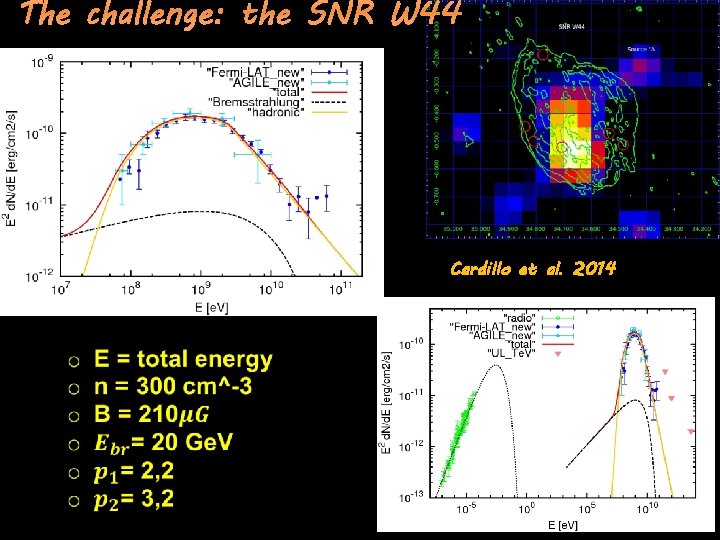

![The challenge the SNR W 44 Cardillo et al 2014 The challenge: the SNR W 44 Cardillo et al. 2014](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-13.jpg)
The challenge: the SNR W 44 Cardillo et al. 2014
![The challenge from W 44 to all the others Ø First pion bump signature The challenge: from W 44 to all the others Ø First pion bump signature:](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-14.jpg)

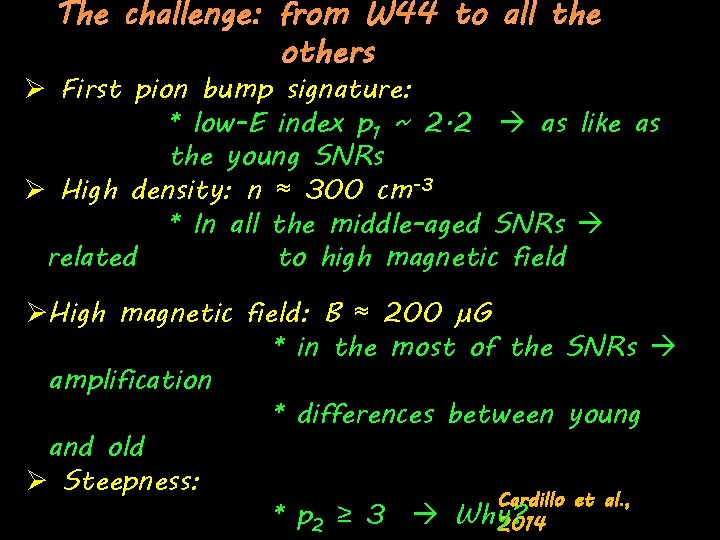

The challenge: from W 44 to all the others Ø First pion bump signature: * low-E index p 1 ~ 2. 2 as like as the young SNRs Ø High density: n ≈ 300 cm-3 * In all the middle-aged SNRs related to high magnetic field ØHigh magnetic field: B ≈ 200 μG * in the most of the SNRs amplification * differences between young and old Ø Steepness: Cardillo et al. , * p 2 ≥ 3 Why? 2014

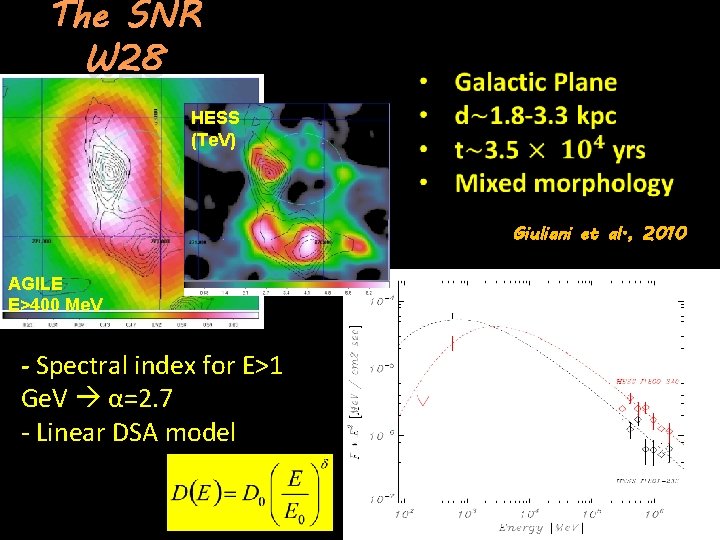

![The SNR W 28 HESS Te V Giuliani et al 2010 AGILE E400 The SNR W 28 HESS (Te. V) Giuliani et al. , 2010 AGILE E>400](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-15.jpg)
The SNR W 28 HESS (Te. V) Giuliani et al. , 2010 AGILE E>400 Me. V - Spectral index for E>1 Ge. V α=2. 7 - Linear DSA model
![W 28 and W 44 AGILE E400 Me V bin0 1 Cardillo et al W 28 and W 44 AGILE E>400 Me. V (bin=0. 1) Cardillo et al.](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-16.jpg)
W 28 and W 44 AGILE E>400 Me. V (bin=0. 1) Cardillo et al. 2014 b VLA radio contours (324 MHz) VLA radio contours (30 cm) GRS CO contours (4043 Km/s) NANTEN CO contours 017/18 -27 km/s
![Young SNRs t 1000 2000 yrs Cas A Primary spectrum 1006 Tycho W Young SNRs t < 1000 -2000 yrs Cas A Primary spectrum 1006 Tycho W](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-17.jpg)
Young SNRs t < 1000 -2000 yrs Cas A Primary spectrum 1006 Tycho W 44 Environment (ISM, molecular clouds)) Middle-aged SNRs t > 1000 -2000 yrs Secondary spectrum IC 443 W 28

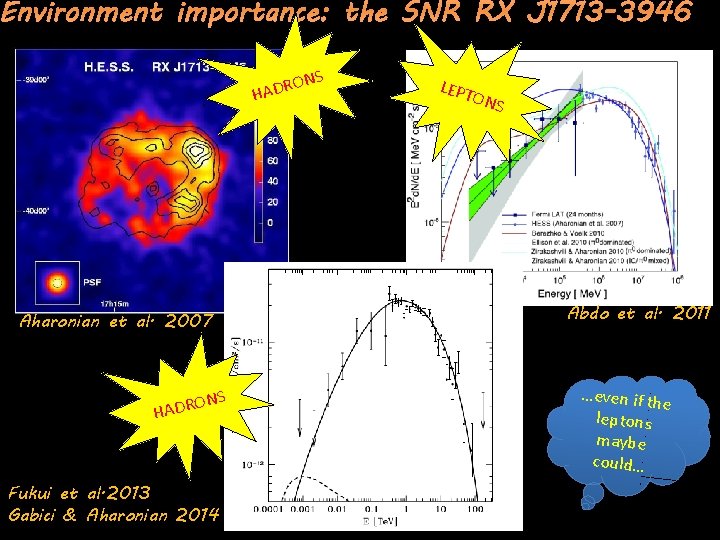

![Environment importance the SNR RX J 1713 3946 NS O R D HA Aharonian Environment importance: the SNR RX J 1713 -3946 NS O R D HA Aharonian](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-18.jpg)
Environment importance: the SNR RX J 1713 -3946 NS O R D HA Aharonian et al. 2007 ONS R D A H Fukui et al. 2013 Gabici & Aharonian 2014 LEPT ONS Abdo et al. 2011 …even if th e leptons maybe could…
![Summary a great confusion Cardillo et al 2014 b Middleage Giordano et al 2012 Summary: a great confusion Cardillo et al. 2014 b Middle-age Giordano et al. 2012](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-19.jpg)
Summary: a great confusion Cardillo et al. 2014 b Middle-age Giordano et al. 2012 Acciari et al. 2009 Abdo et al. 2010 Albert et al 2007 Acciari et al. 2010 Young SNRs Young: • Low-density medium • p= 2, 2 -2, 4 No concavity!! • No obvious Pevatrons Abdo et al. 2009 Hewitt et al. 2012 Giuliani et al. 2011 Aleksic et al 2012 Aleksic et al. 2012 Abdo et al. 2010 Middle-aged: • High-density medium • 2, 6 < p < 3 • No hope for Pevatrons !
![p x e n a r o f g n i k o o p x e n a r o f g n i k o o](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-20.jpg)

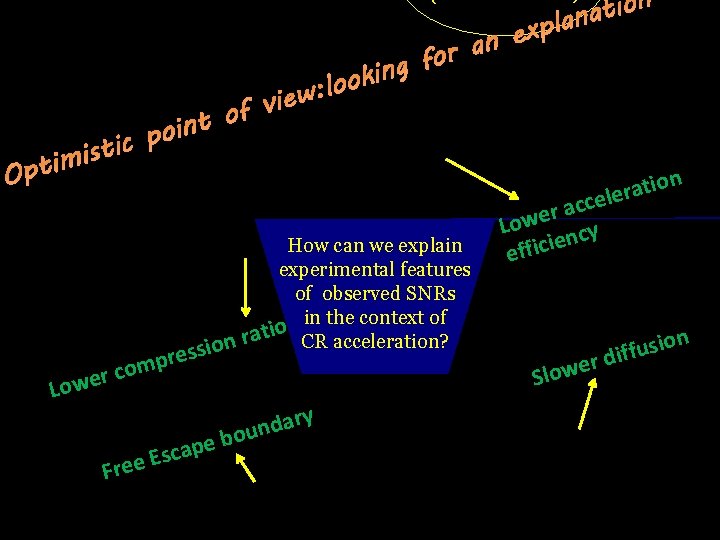

p x e n a r o f g n i k o o l w: e i v f o t in o p ic t s i m i t p O pres m co r e w Lo How can we explain experimental features of observed SNRs in the context of o ti CR acceleration? a r n sio F ap c s E ree ary d n u e bo n o i t lana n io t a r e cel c a r e Low ncy e effici n Slow sio u f f i er d

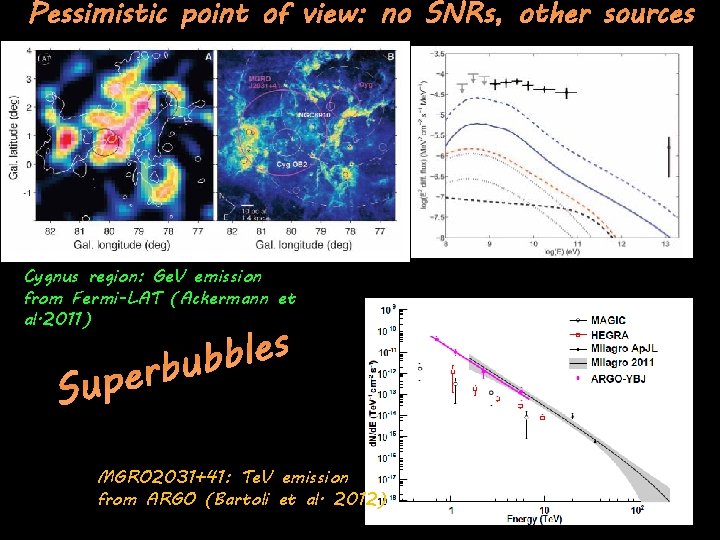

![Pessimistic point of view no SNRs other sources Cygnus region Ge V emission from Pessimistic point of view: no SNRs, other sources Cygnus region: Ge. V emission from](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-21.jpg)
Pessimistic point of view: no SNRs, other sources Cygnus region: Ge. V emission from Fermi-LAT (Ackermann et al. 2011) Su s e l b b u b r pe MGRO 2031+41: Te. V emission from ARGO (Bartoli et al. 2012)
![And particle spectrum Cardillo Amato Blasi in preparation Non resonant instability and CR current And particle spectrum? Cardillo, Amato, Blasi, in preparation Non resonant instability and CR current](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-22.jpg)
And particle spectrum? Cardillo, Amato, Blasi, in preparation Non resonant instability and CR current (Bell 2004) y r a in P m i l re k=9 ESN= 4 x 1051 erg R= 1/60 yrs Uncertainty on the data? EM ≅ 1. 2 x 1015 e. V ξCR ≅ 4. 5 % Additional component? t 0 ≅ 42 yrs v 0 ≅23. 700 km/s
![Future for gammaray astronomy Future for gamma-ray astronomy](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-23.jpg)
Future for gamma-ray astronomy
![Future for gammaray astronomy G400 and CTA sensitivity extragal pointing FermiLAT blue G400 red Future for gamma-ray astronomy G-400 and CTA sensitivity (extragal. pointing) Fermi-LAT (blue), G-400 (red),](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-24.jpg)

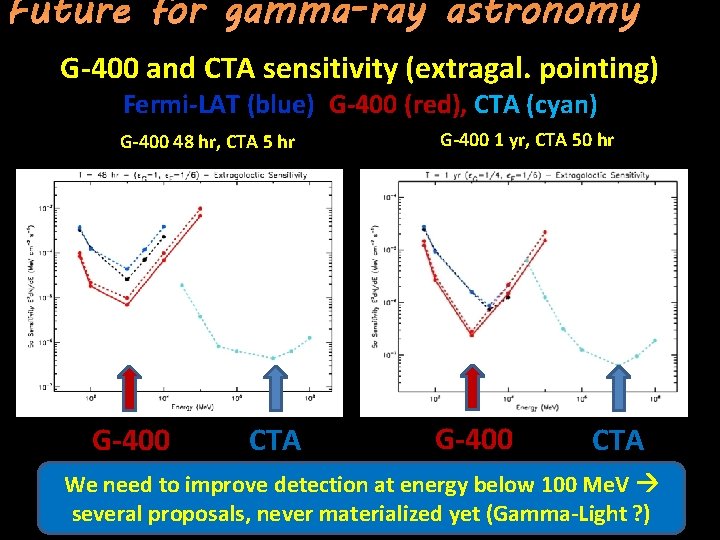

Future for gamma-ray astronomy G-400 and CTA sensitivity (extragal. pointing) Fermi-LAT (blue), G-400 (red), CTA (cyan) G-400 48 hr, CTA 5 hr G-400 CTA G-400 1 yr, CTA 50 hr G-400 CTA We need to improve detection at energy below 100 Me. V several proposals, never materialized yet (Gamma-Light ? ) 24
![Conclusions ² Gammaray astronomy is fundamental for the understanding of Galactic CR origin we Conclusions ² Gamma-ray astronomy is fundamental for the understanding of Galactic CR origin we](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-25.jpg)
Conclusions ² Gamma-ray astronomy is fundamental for the understanding of Galactic CR origin we need to enhance the number of SNRs detected in the critical energy range, after the breakthrough of W 44 and IC 443 ² Evidence a power-law index steeper than the one provided by theoretical models in the most of gamma-ray detected SNRs inconsistency between data and theories ² In spite of the amount of data, CR origin is still an opening issue new generation of gamma-ray instruments multiwavelength analysis deeper understanding of acceleration and transport mechanisms
![u o y k n a h h c T u m y u o y k n ! a h h c T u m y](https://slidetodoc.com/presentation_image_h/1fd850d287237c22435b547da15efb53/image-26.jpg)
u o y k n ! a h h c T u m y r ve
