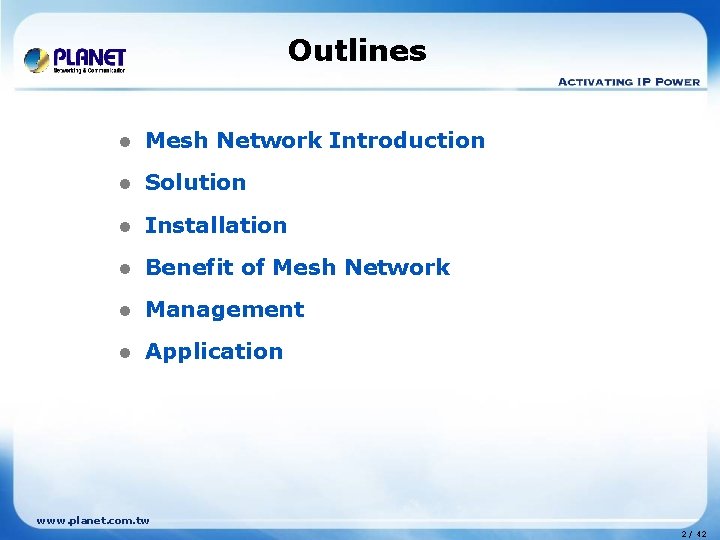

Outlines l Mesh Network Introduction l Solution l Installation l Benefit of Mesh Network l Management l Application www. planet. com. tw 2 / 42

Mesh Network Introduction www. planet. com. tw

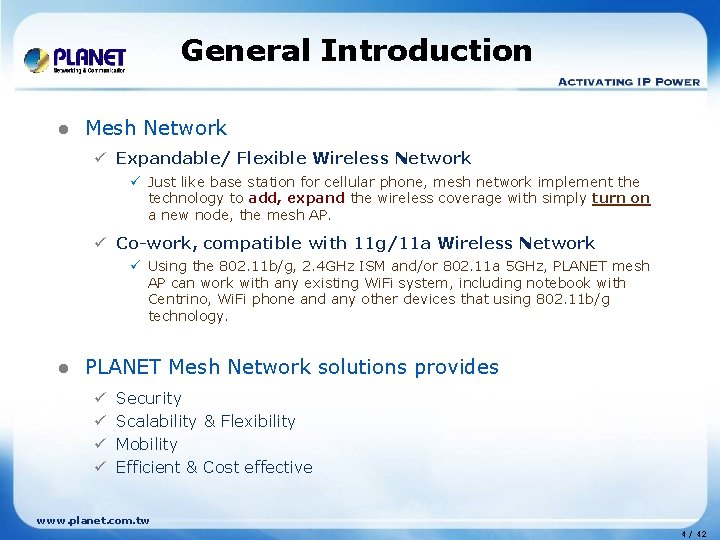

General Introduction l Mesh Network ü Expandable/ Flexible Wireless Network ü Just like base station for cellular phone, mesh network implement the technology to add, expand the wireless coverage with simply turn on a new node, the mesh AP. ü Co-work, compatible with 11 g/11 a Wireless Network ü Using the 802. 11 b/g, 2. 4 GHz ISM and/or 802. 11 a 5 GHz, PLANET mesh AP can work with any existing Wi. Fi system, including notebook with Centrino, Wi. Fi phone and any other devices that using 802. 11 b/g technology. l PLANET Mesh Network solutions provides ü ü Security Scalability & Flexibility Mobility Efficient & Cost effective www. planet. com. tw 4 / 42

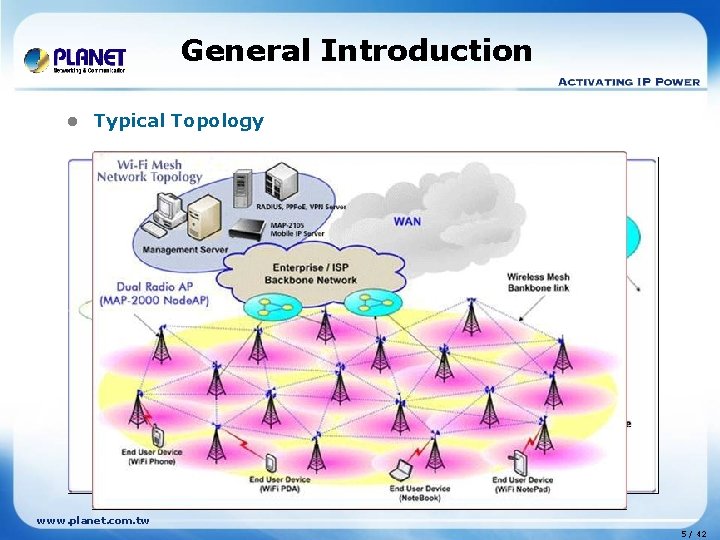

General Introduction l Typical Topology www. planet. com. tw 5 / 42

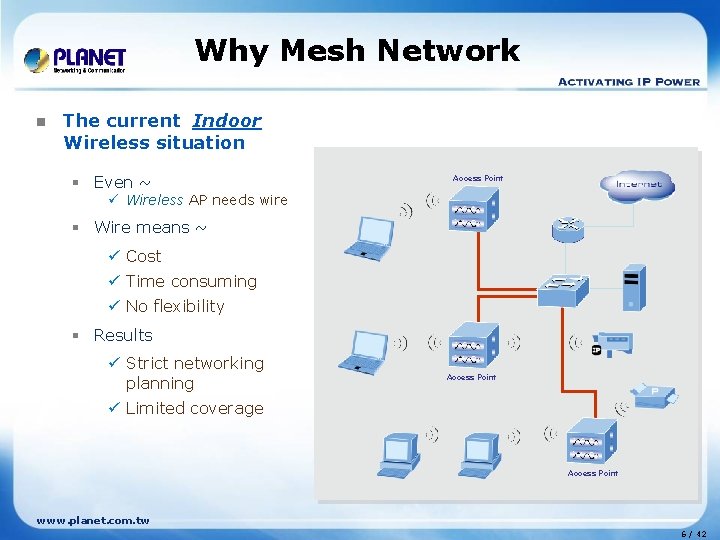

Why Mesh Network n The current Indoor Wireless situation § Even ~ Access Point ü Wireless AP needs wire § Wire means ~ ü Cost ü Time consuming ü No flexibility § Results ü Strict networking planning Access Point ü Limited coverage Access Point www. planet. com. tw 6 / 42

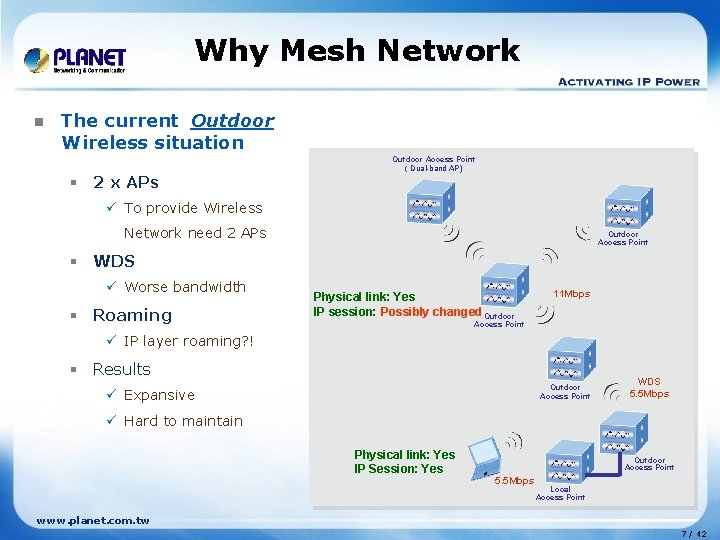

Why Mesh Network n The current Outdoor Wireless situation § 2 x APs Outdoor Access Point ( Dual-band AP) ü To provide Wireless Network need 2 APs Outdoor Access Point § WDS ü Worse bandwidth § Roaming Physical link: Yes IP session: Possibly changed Outdoor 11 Mbps Access Point ü IP layer roaming? ! § Results Outdoor Access Point ü Expansive WDS 5. 5 Mbps ü Hard to maintain Physical link: Yes IP Session: Yes Outdoor Access Point 5. 5 Mbps Local Access Point www. planet. com. tw 7 / 42

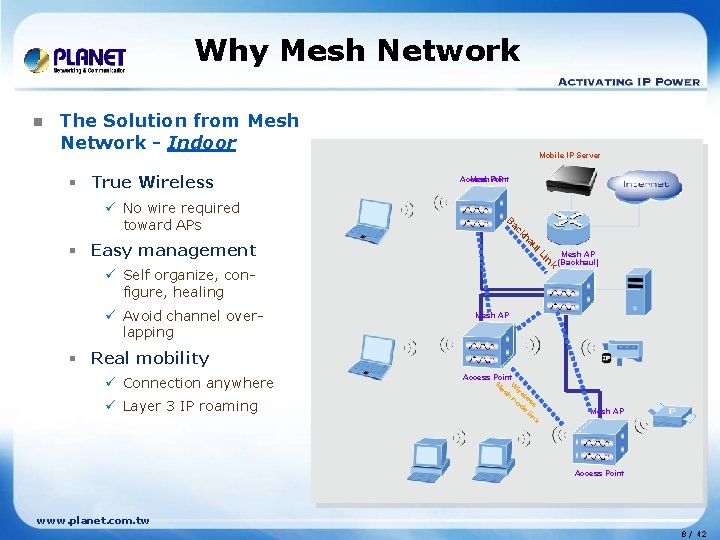

Why Mesh Network n The Solution from Mesh Network - Indoor § True Wireless l au kh ac ü Self organize, configure, healing ü Avoid channel overlapping Mesh AP (Backhaul) nk Li § Easy management Access Mesh. Point AP B ü No wire required toward APs Mobile IP Server Mesh AP § Real mobility ü Connection anywhere ü Layer 3 IP roaming Access Point M W es ir h ele no s de s lin k Mesh AP Access Point www. planet. com. tw 8 / 42

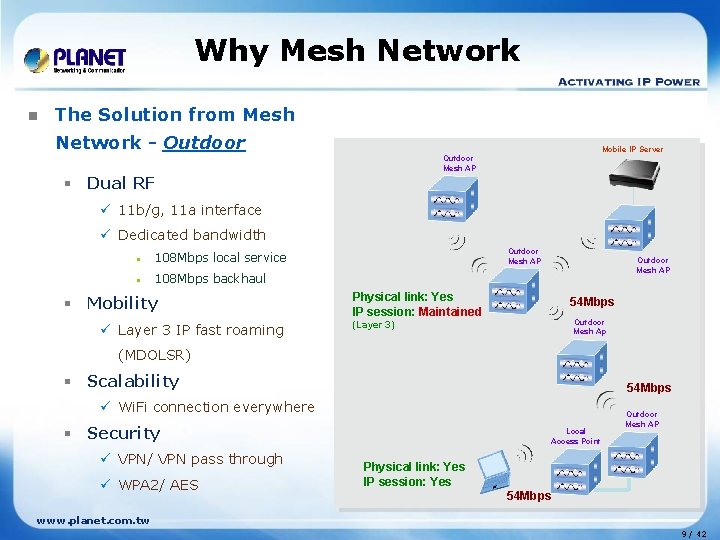

Why Mesh Network n The Solution from Mesh Network - Outdoor Mobile IP Server Outdoor Mesh AP § Dual RF ü 11 b/g, 11 a interface ü Dedicated bandwidth • 108 Mbps local service • 108 Mbps backhaul § Mobility ü Layer 3 IP fast roaming Outdoor Mesh AP Physical link: Yes IP session: Maintained 54 Mbps Outdoor Mesh Ap (Layer 3) (MDOLSR) § Scalability 54 Mbps ü Wi. Fi connection everywhere § Security ü VPN/ VPN pass through ü WPA 2/ AES Local Access Point Outdoor Mesh AP Physical link: Yes IP session: Yes 54 Mbps www. planet. com. tw 9 / 42

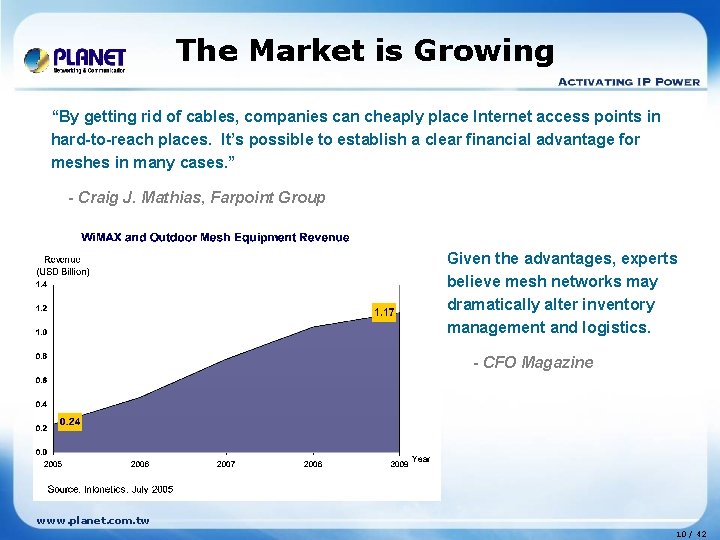

The Market is Growing “By getting rid of cables, companies can cheaply place Internet access points in hard-to-reach places. It’s possible to establish a clear financial advantage for meshes in many cases. ” - Craig J. Mathias, Farpoint Group Given the advantages, experts believe mesh networks may dramatically alter inventory management and logistics. - CFO Magazine www. planet. com. tw 10 / 42

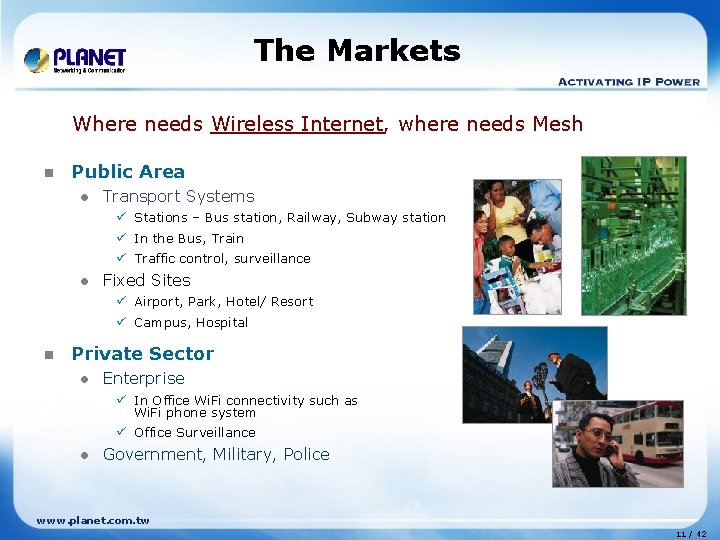

The Markets Where needs Wireless Internet, where needs Mesh n Public Area l Transport Systems ü Stations – Bus station, Railway, Subway station ü In the Bus, Train ü Traffic control, surveillance l Fixed Sites ü Airport, Park, Hotel/ Resort ü Campus, Hospital n Private Sector l Enterprise ü In Office Wi. Fi connectivity such as Wi. Fi phone system ü Office Surveillance l Government, Military, Police www. planet. com. tw 11 / 42

Solution www. planet. com. tw

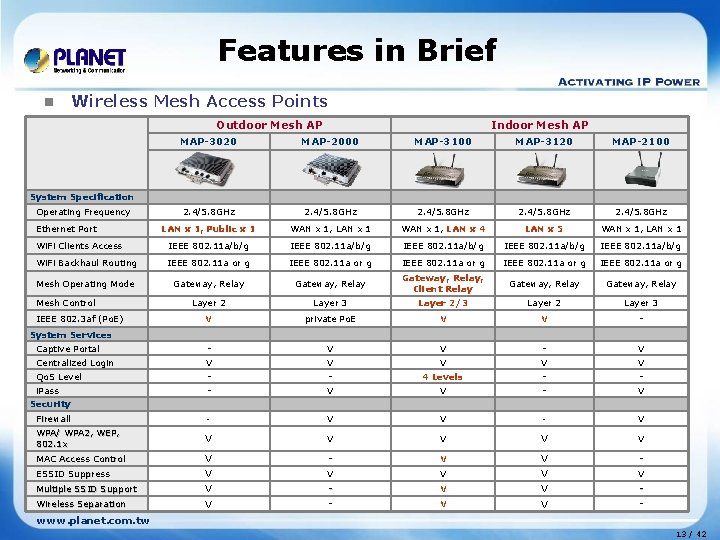

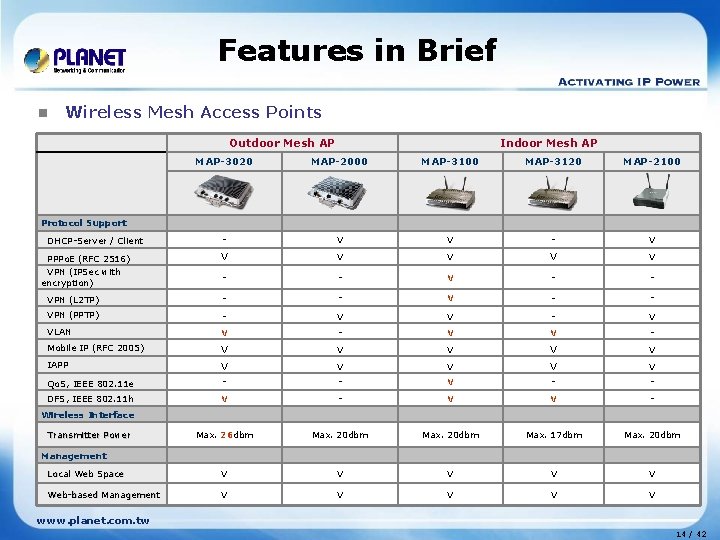

Features in Brief n Wireless Mesh Access Points Outdoor Mesh AP Indoor Mesh AP MAP-3020 MAP-2000 MAP-3120 MAP-2100 2. 4/5. 8 GHz LAN x 1, Public x 1 WAN x 1, LAN x 4 LAN x 5 WAN x 1, LAN x 1 Wi. Fi Clients Access IEEE 802. 11 a/b/g Wi. Fi Backhaul Routing IEEE 802. 11 a or g Mesh Operating Mode Gateway, Relay, Client Relay Gateway, Relay Layer 2 Layer 3 Layer 2/3 Layer 2 Layer 3 V private Po. E V V - System Specification Operating Frequency Ethernet Port Mesh Control IEEE 802. 3 af (Po. E) System Services 　 　 Captive Portal - V V - 　 V Centralized Login V V V Qo. S Level - - 4 Levels - - i. Pass - V V - V Firewall - V V - V WPA/ WPA 2, WEP, 802. 1 x V V V MAC Access Control V - V V - ESSID Suppress V V V Multiple SSID Support V - V V - Wireless Separation V - V V - Security www. planet. com. tw 13 / 42

Features in Brief n Wireless Mesh Access Points Outdoor Mesh AP Indoor Mesh AP MAP-3020 MAP-2000 MAP-3120 MAP-2100 DHCP-Server / Client - V V - V PPPo. E (RFC 2516) V V V - - VPN (L 2 TP) - - VPN (PPTP) - V VLAN V - V V - Mobile IP (RFC 2005) V V V IAPP V V V Qo. S, IEEE 802. 11 e - - V - - DFS, IEEE 802. 11 h V - V V - Max. 26 dbm Max. 20 dbm Max. 17 dbm Max. 20 dbm Local Web Space V V V Web-based Management V V V Protocol Support VPN (IPSec with encryption) Wireless Interface Transmitter Power Management www. planet. com. tw 14 / 42

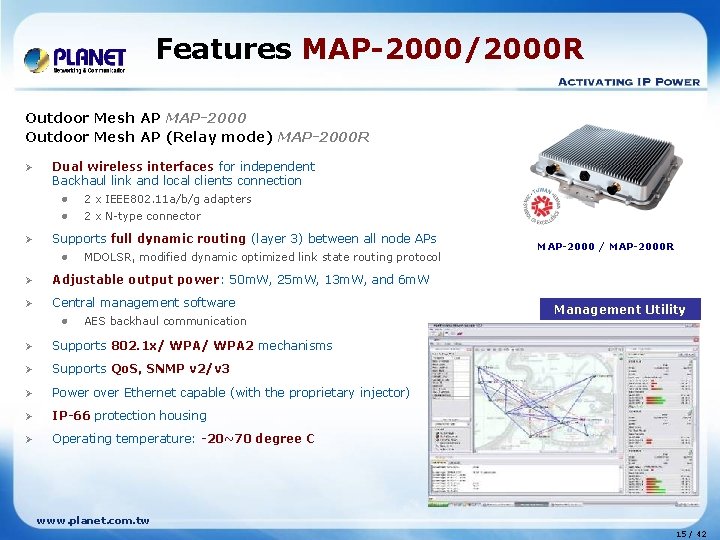

Features MAP-2000/2000 R Outdoor Mesh AP MAP-2000 Outdoor Mesh AP (Relay mode) MAP-2000 R Ø Ø Dual wireless interfaces for independent Backhaul link and local clients connection l 2 x IEEE 802. 11 a/b/g adapters l 2 x N-type connector Supports full dynamic routing (layer 3) between all node APs l MDOLSR, modified dynamic optimized link state routing protocol Ø Adjustable output power: 50 m. W, 25 m. W, 13 m. W, and 6 m. W Ø Central management software l AES backhaul communication Ø Supports 802. 1 x/ WPA 2 mechanisms Ø Supports Qo. S, SNMP v 2/v 3 Ø Power over Ethernet capable (with the proprietary injector) Ø IP-66 protection housing Ø Operating temperature: -20~70 degree C MAP-2000 / MAP-2000 R Management Utility www. planet. com. tw 15 / 42

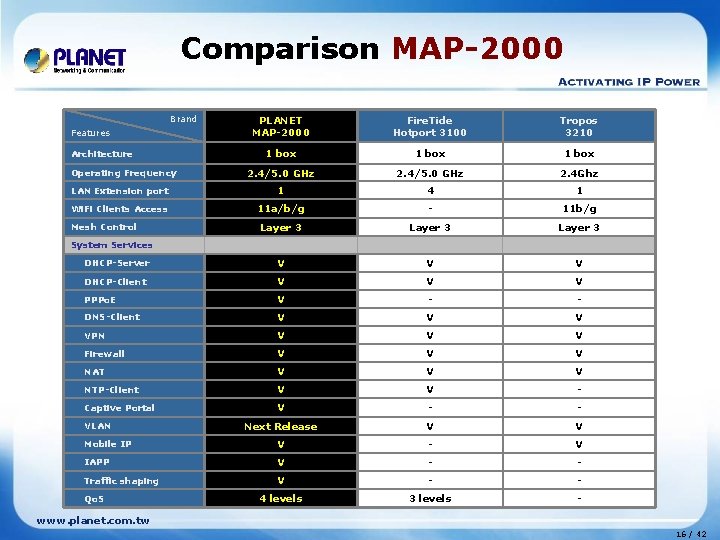

Comparison MAP-2000 Brand PLANET MAP-2000 Fire. Tide Hotport 3100 Tropos 3210 1 box 2. 4/5. 0 GHz 2. 4 Ghz LAN Extension port 1 4 1 Wi. Fi Clients Access 11 a/b/g - 11 b/g Layer 3 DHCP-Server V V V DHCP-Client V V V PPPo. E V - - DNS-Client V VPN V V V Firewall V V V NAT V V V NTP-Client V V - Captive Portal V - - Next Release V V Mobile IP V - V IAPP V - - Traffic shaping V - - 4 levels 3 levels - Features Architecture Operating Frequency Mesh Control System Services VLAN Qo. S www. planet. com. tw 16 / 42

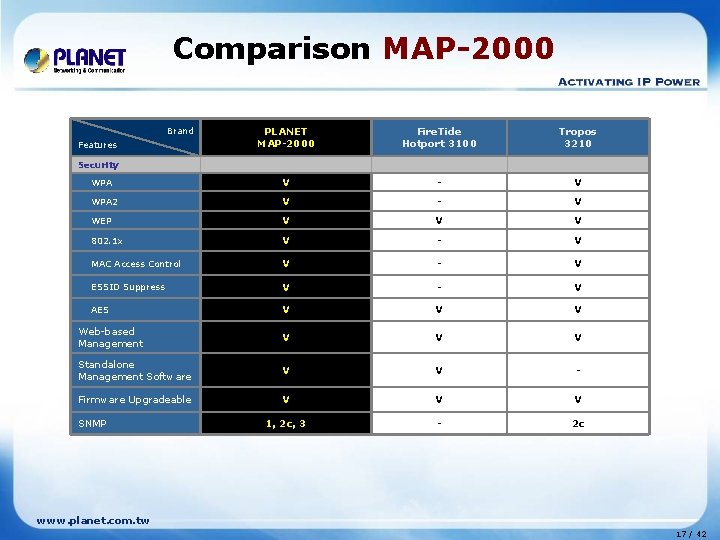

Comparison MAP-2000 Brand PLANET MAP-2000 Fire. Tide Hotport 3100 Tropos 3210 WPA V - V WPA 2 V - V WEP V V V 802. 1 x V - V MAC Access Control V - V ESSID Suppress V - V AES V V V Web-based Management V V V Standalone Management Software V V - Firmware Upgradeable V V V 1, 2 c, 3 - 2 c Features Security SNMP www. planet. com. tw 17 / 42

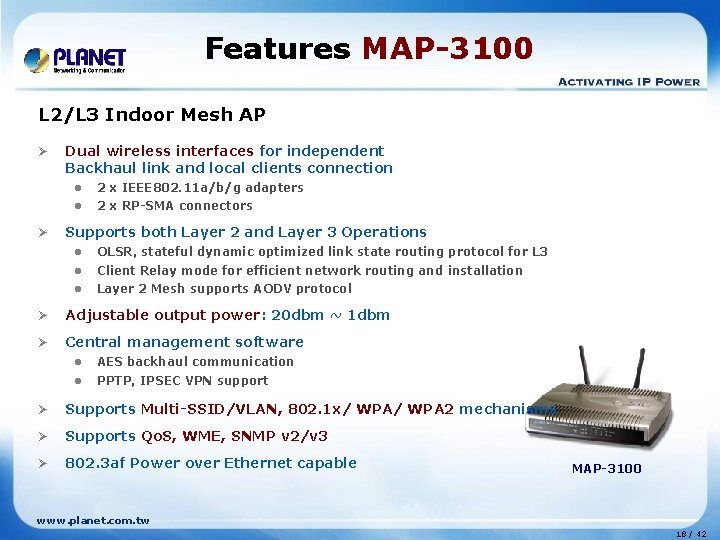

Features MAP-3100 L 2/L 3 Indoor Mesh AP Ø Ø Dual wireless interfaces for independent Backhaul link and local clients connection l 2 x IEEE 802. 11 a/b/g adapters l 2 x RP-SMA connectors Supports both Layer 2 and Layer 3 Operations l OLSR, stateful dynamic optimized link state routing protocol for L 3 l Client Relay mode for efficient network routing and installation l Layer 2 Mesh supports AODV protocol Ø Adjustable output power: 20 dbm ~ 1 dbm Ø Central management software l AES backhaul communication l PPTP, IPSEC VPN support Ø Supports Multi-SSID/VLAN, 802. 1 x/ WPA 2 mechanisms Ø Supports Qo. S, WME, SNMP v 2/v 3 Ø 802. 3 af Power over Ethernet capable MAP-3100 www. planet. com. tw 18 / 42

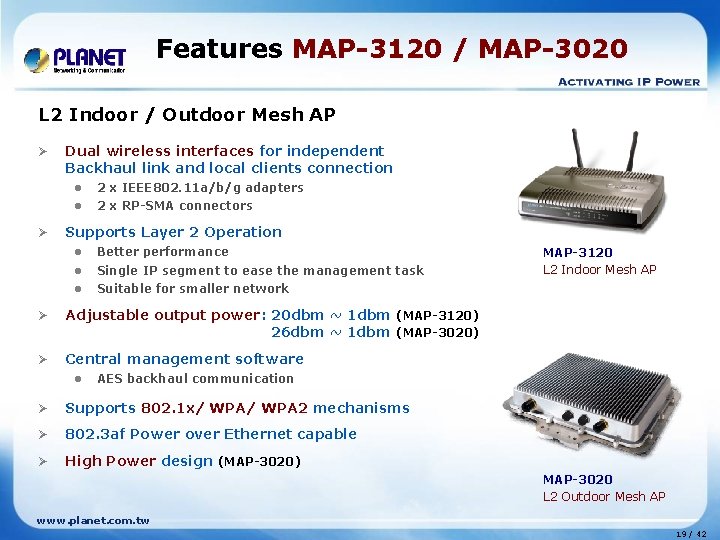

Features MAP-3120 / MAP-3020 L 2 Indoor / Outdoor Mesh AP Ø Ø Dual wireless interfaces for independent Backhaul link and local clients connection l 2 x IEEE 802. 11 a/b/g adapters l 2 x RP-SMA connectors Supports Layer 2 Operation l Better performance l Single IP segment to ease the management task l Suitable for smaller network Ø Adjustable output power: 20 dbm ~ 1 dbm (MAP-3120) 26 dbm ~ 1 dbm (MAP-3020) Ø Central management software l MAP-3120 L 2 Indoor Mesh AP AES backhaul communication Ø Supports 802. 1 x/ WPA 2 mechanisms Ø 802. 3 af Power over Ethernet capable Ø High Power design (MAP-3020) MAP-3020 L 2 Outdoor Mesh AP www. planet. com. tw 19 / 42

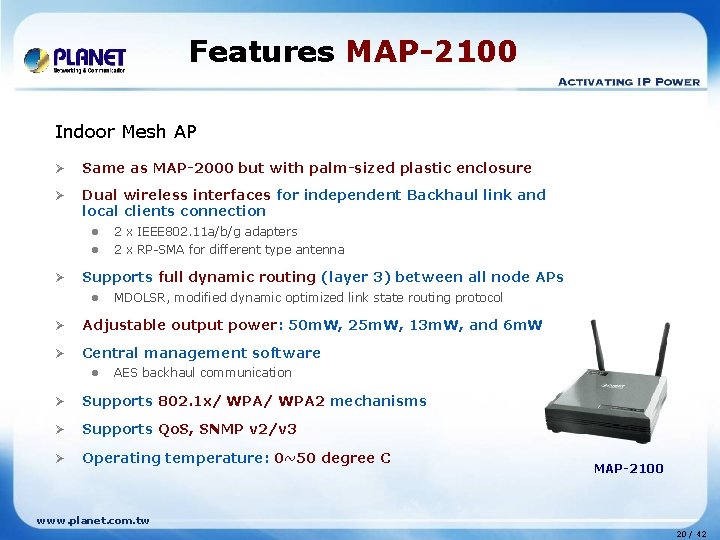

Features MAP-2100 Indoor Mesh AP Ø Same as MAP-2000 but with palm-sized plastic enclosure Ø Dual wireless interfaces for independent Backhaul link and local clients connection Ø l 2 x IEEE 802. 11 a/b/g adapters l 2 x RP-SMA for different type antenna Supports full dynamic routing (layer 3) between all node APs l MDOLSR, modified dynamic optimized link state routing protocol Ø Adjustable output power: 50 m. W, 25 m. W, 13 m. W, and 6 m. W Ø Central management software l AES backhaul communication Ø Supports 802. 1 x/ WPA 2 mechanisms Ø Supports Qo. S, SNMP v 2/v 3 Ø Operating temperature: 0~50 degree C MAP-2100 www. planet. com. tw 20 / 42

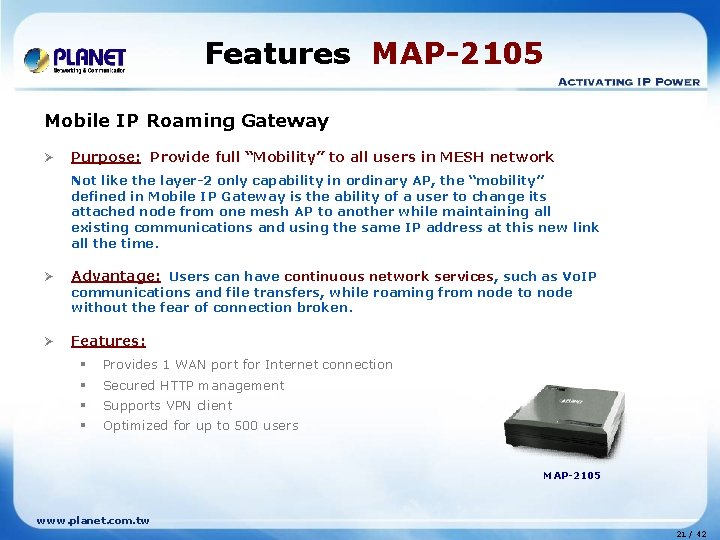

Features MAP-2105 Mobile IP Roaming Gateway Ø Purpose: Provide full “Mobility” to all users in MESH network Not like the layer-2 only capability in ordinary AP, the “mobility” defined in Mobile IP Gateway is the ability of a user to change its attached node from one mesh AP to another while maintaining all existing communications and using the same IP address at this new link all the time. Ø Advantage: Users can have continuous network services, such as Vo. IP communications and file transfers, while roaming from node to node without the fear of connection broken. Ø Features: § Provides 1 WAN port for Internet connection § Secured HTTP management § Supports VPN client § Optimized for up to 500 users MAP-2105 www. planet. com. tw 21 / 42

Installation www. planet. com. tw

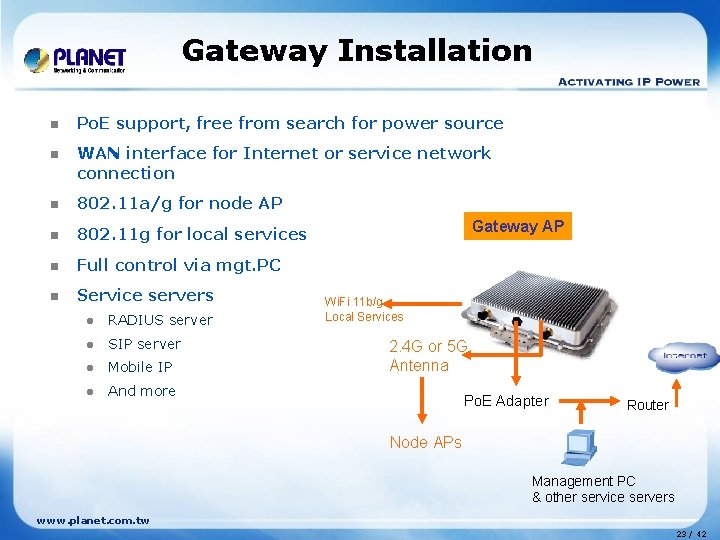

Gateway Installation n Po. E support, free from search for power source n WAN interface for Internet or service network connection n 802. 11 a/g for node AP n 802. 11 g for local services n Full control via mgt. PC n Service servers l RADIUS server l SIP server l Mobile IP l And more Gateway AP Wi. Fi 11 b/g Local Services 2. 4 G or 5 G Antenna Po. E Adapter Router Node APs Management PC & other service servers www. planet. com. tw 23 / 42

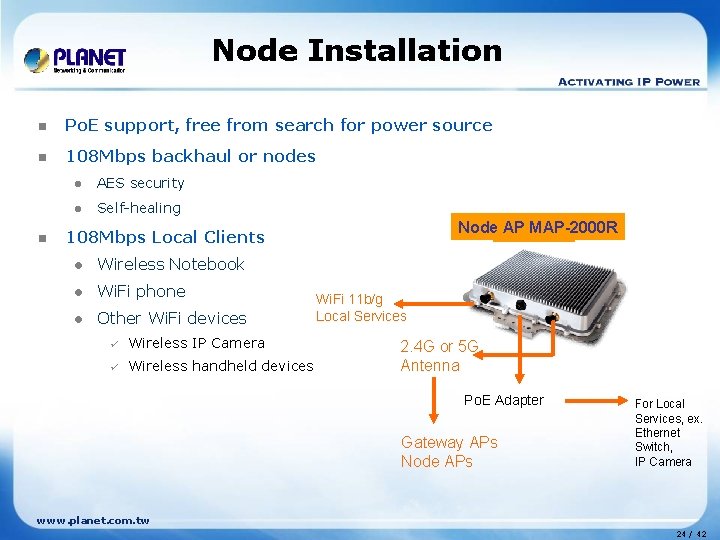

Node Installation n Po. E support, free from search for power source n 108 Mbps backhaul or nodes n l AES security l Self-healing Node AP MAP-2000 R AP 108 Mbps Local Clients l Wireless Notebook l Wi. Fi phone l Other Wi. Fi devices ü Wireless IP Camera ü Wireless handheld devices Wi. Fi 11 b/g Local Services 2. 4 G or 5 G Antenna Po. E Adapter Gateway APs Node APs 48 VDC For Local Power Services, ex. (100 m) Ethernet Switch, IP Camera www. planet. com. tw 24 / 42

Benefit of Mesh Network www. planet. com. tw

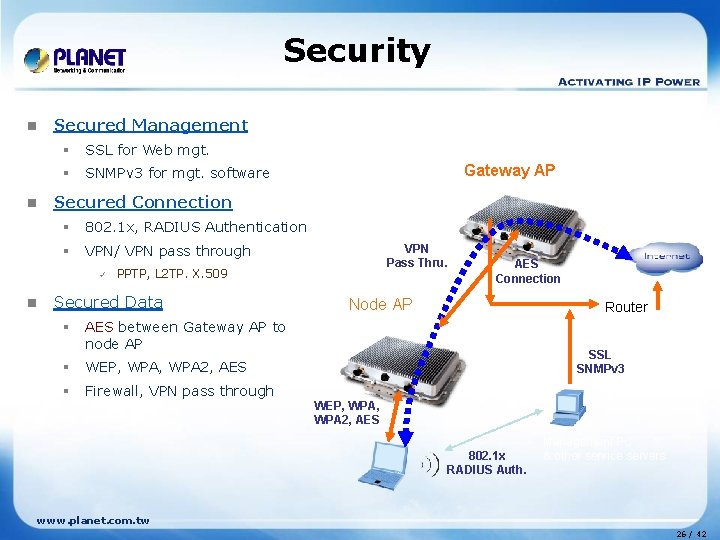

Security n n Secured Management § SSL for Web mgt. § SNMPv 3 for mgt. software Secured Connection § 802. 1 x, RADIUS Authentication § VPN/ VPN pass through ü n Gateway AP PPTP, L 2 TP. X. 509 Secured Data § VPN Pass Thru. AES Connection Node AP Router AES between Gateway AP to node AP § WEP, WPA 2, AES § Firewall, VPN pass through SSL SNMPv 3 WEP, WPA 2, AES 802. 1 x RADIUS Auth. Management PC & other service servers www. planet. com. tw 26 / 42

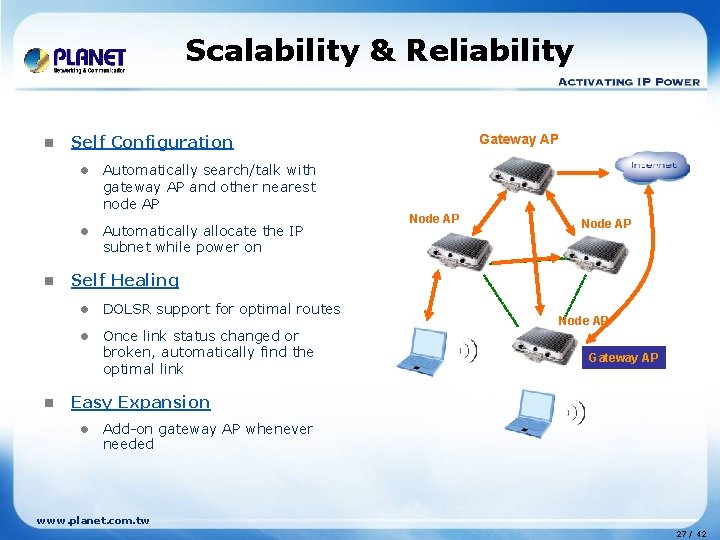

Scalability & Reliability n n n Gateway AP Self Configuration l Automatically search/talk with gateway AP and other nearest node AP l Automatically allocate the IP subnet while power on Node AP Self Healing l DOLSR support for optimal routes l Once link status changed or broken, automatically find the optimal link Node AP Gateway AP Easy Expansion l Add-on gateway AP whenever needed www. planet. com. tw 27 / 42

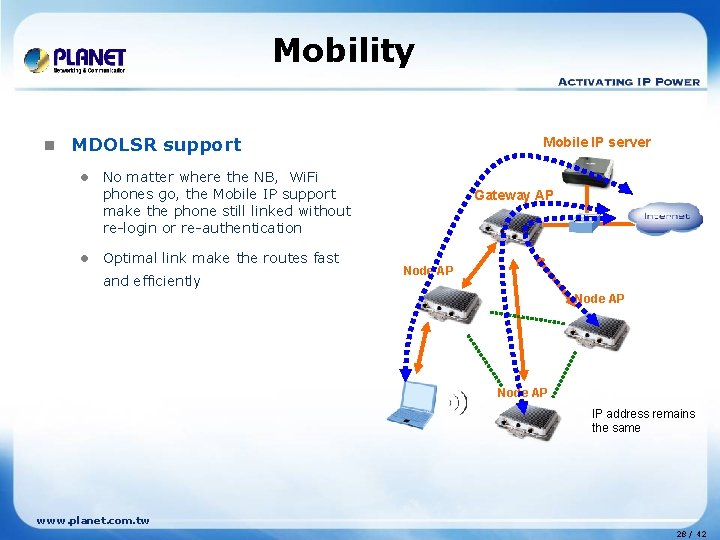

Mobility n MDOLSR support l l Mobile IP server No matter where the NB, Wi. Fi phones go, the Mobile IP support make the phone still linked without re-login or re-authentication Optimal link make the routes fast and efficiently Gateway AP Node AP IP address remains the same www. planet. com. tw 28 / 42

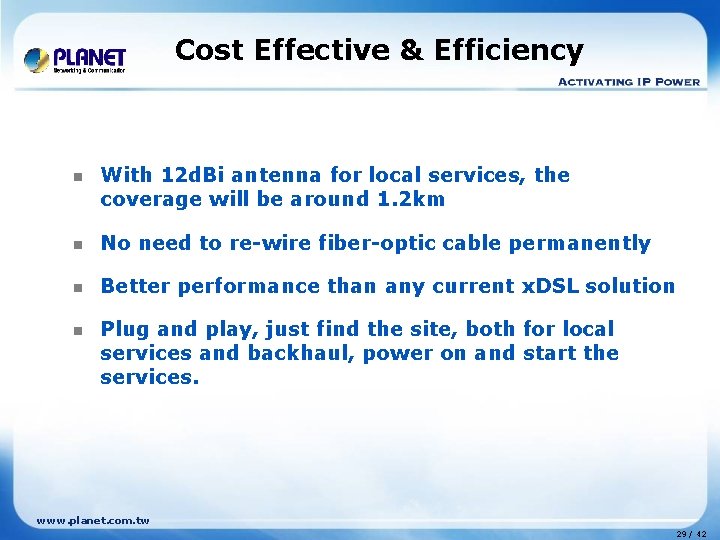

Cost Effective & Efficiency n With 12 d. Bi antenna for local services, the coverage will be around 1. 2 km n No need to re-wire fiber-optic cable permanently n Better performance than any current x. DSL solution n Plug and play, just find the site, both for local services and backhaul, power on and start the services. www. planet. com. tw 29 / 42

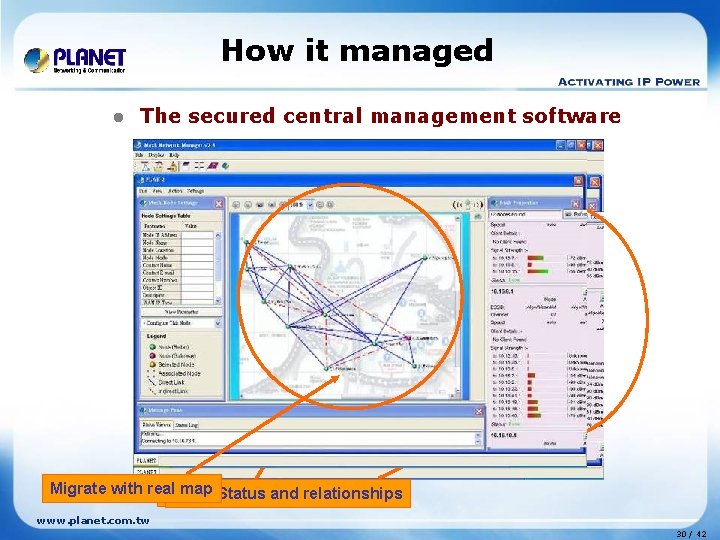

How it managed l The secured central management software Migrate with real map Status Installed Nodes Node and relationships www. planet. com. tw 30 / 42

Application www. planet. com. tw

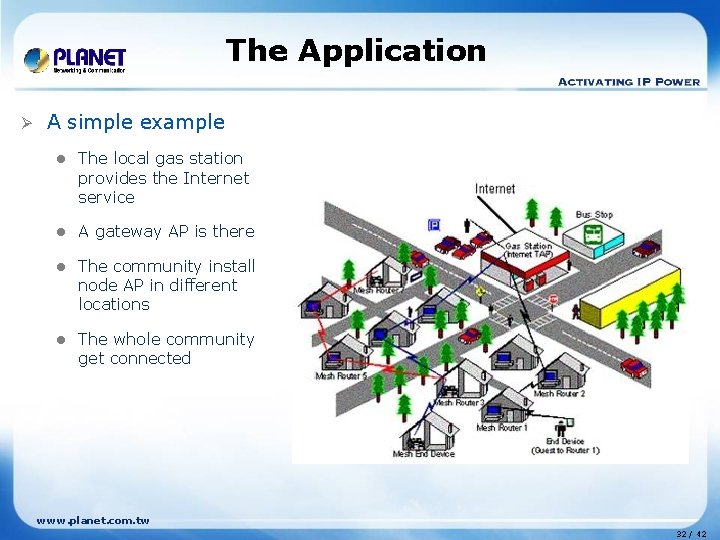

The Application Ø A simple example l The local gas station provides the Internet service l A gateway AP is there l The community install node AP in different locations l The whole community get connected www. planet. com. tw 32 / 42

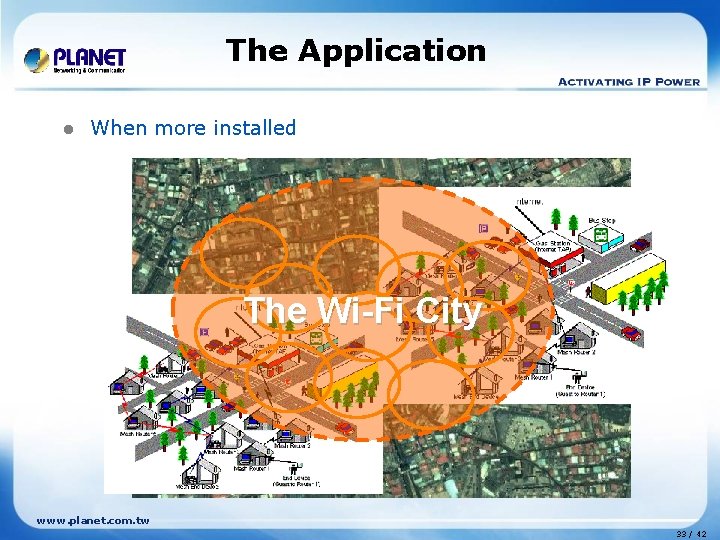

The Application l When more installed The Wi-Fi City www. planet. com. tw 33 / 42

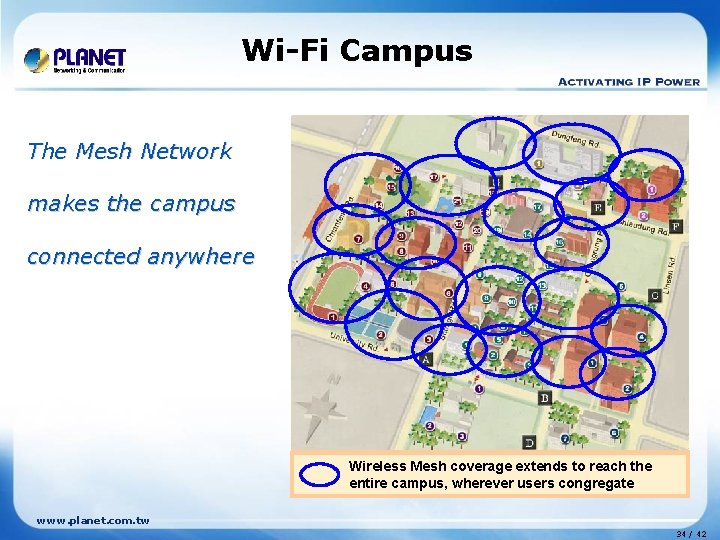

Wi-Fi Campus The Mesh Network makes the campus connected anywhere Wireless Mesh coverage extends to reach the Wired LAN coverage in buildings entire campus, wherever users congregate www. planet. com. tw 34 / 42

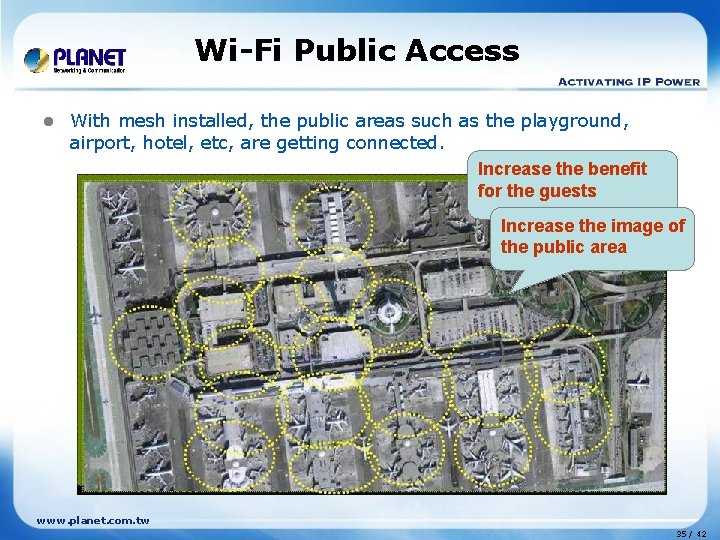

Wi-Fi Public Access l With mesh installed, the public areas such as the playground, airport, hotel, etc, are getting connected. Increase the benefit for the guests Increase the image of the public area www. planet. com. tw 35 / 42

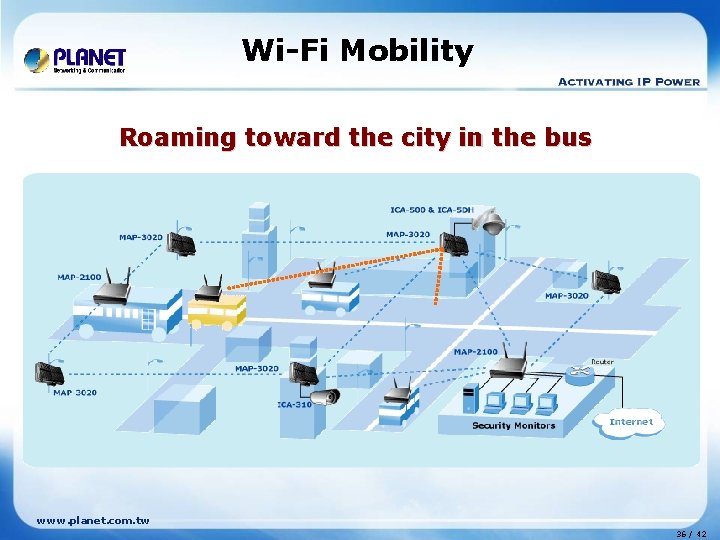

Wi-Fi Mobility Roaming toward the city in the bus www. planet. com. tw 36 / 42

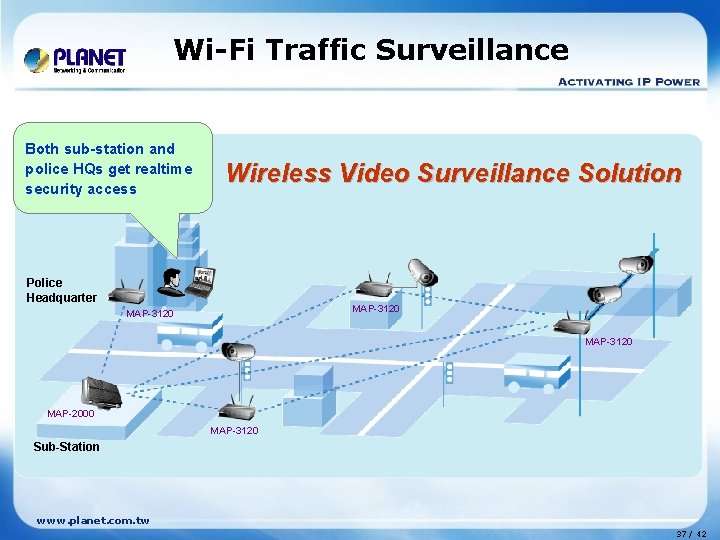

Wi-Fi Traffic Surveillance Both sub-station and police HQs get realtime security access Wireless Video Surveillance Solution Police Headquarter MAP-3120 MAP-2000 MAP-3120 Sub-Station www. planet. com. tw 37 / 42

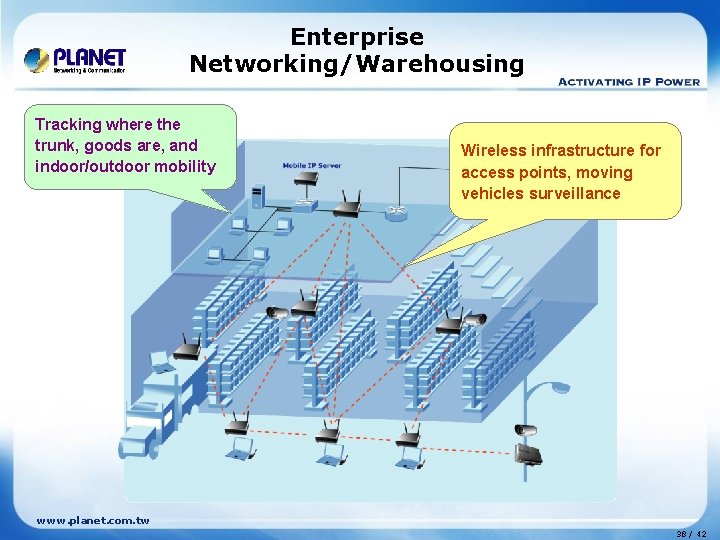

Enterprise Networking/Warehousing Tracking where the trunk, goods are, and indoor/outdoor mobility Wireless infrastructure for access points, moving vehicles surveillance www. planet. com. tw 38 / 42

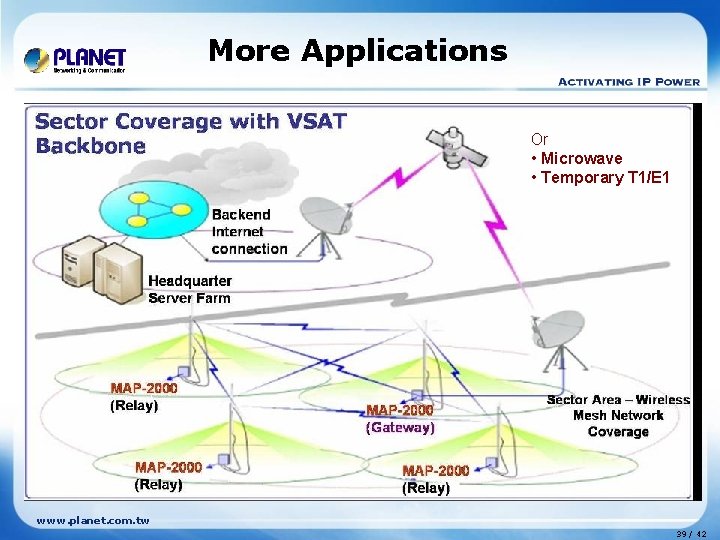

More Applications Ø Military l Ø That needs mobility, security Or • Microwave • Temporary T 1/E 1 Locations where x. DSL/ fiber can not be reached properly l Distance too long l Expansive to install l Temporary site www. planet. com. tw 39 / 42

The Future A seamless Wireless Experience • Single Unified Device • One Phone, One number, One mailbox • Integrated Multimedia services • Network based services • Connected anywhere, home, office or on the road! Defaults to Wi. Fi where available - Residence, Enterprise, Hotspots Wireless Mesh Network www. planet. com. tw 40 / 42

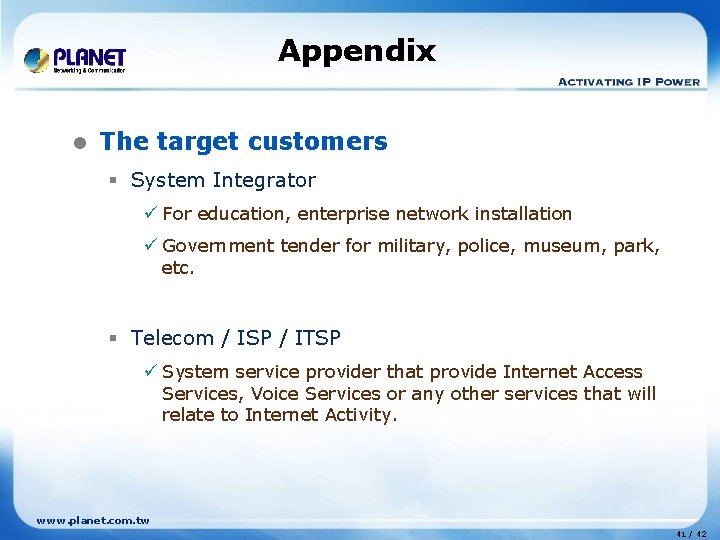

Appendix l The target customers § System Integrator ü For education, enterprise network installation ü Government tender for military, police, museum, park, etc. § Telecom / ISP / ITSP ü System service provider that provide Internet Access Services, Voice Services or any other services that will relate to Internet Activity. www. planet. com. tw 41 / 42
