Welding Fumes v What Are Welding Fumes v
- Slides: 41

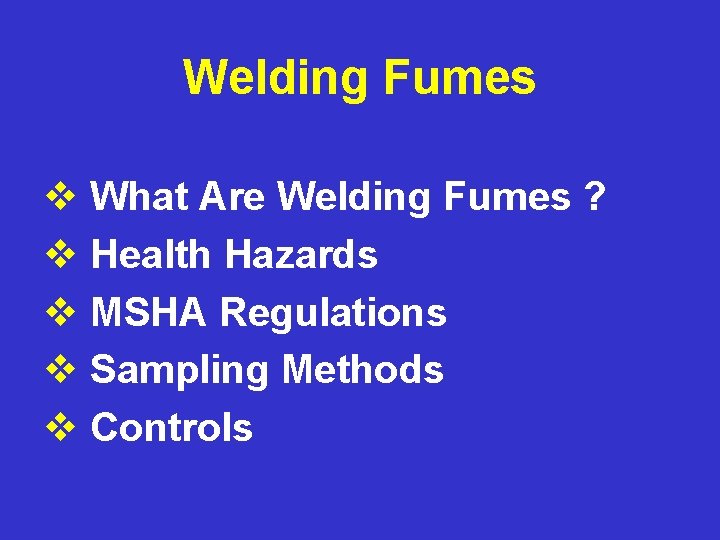

Welding Fumes v What Are Welding Fumes ? v Health Hazards v MSHA Regulations v Sampling Methods v Controls
Welding Fumes v What Are Welding Fumes ? v Health Hazards v MSHA Regulations v Sampling Methods v Controls

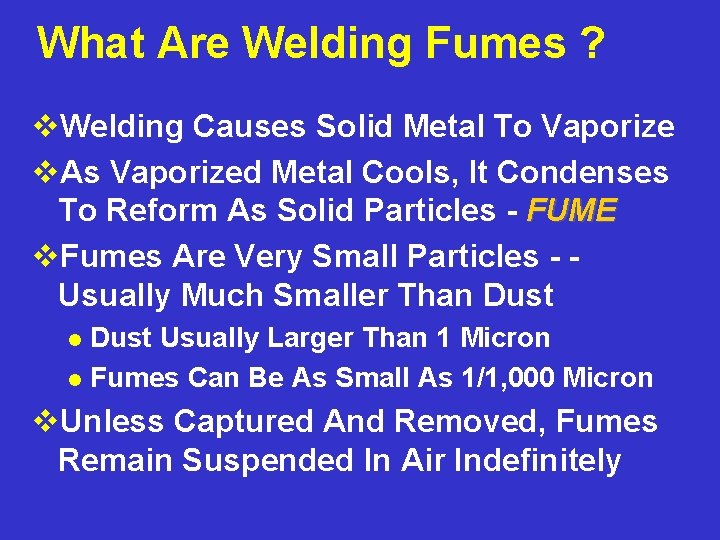

What Are Welding Fumes ? v. Welding Causes Solid Metal To Vaporize v. As Vaporized Metal Cools, It Condenses To Reform As Solid Particles - FUME v. Fumes Are Very Small Particles - Usually Much Smaller Than Dust Usually Larger Than 1 Micron l Fumes Can Be As Small As 1/1, 000 Micron l v. Unless Captured And Removed, Fumes Remain Suspended In Air Indefinitely

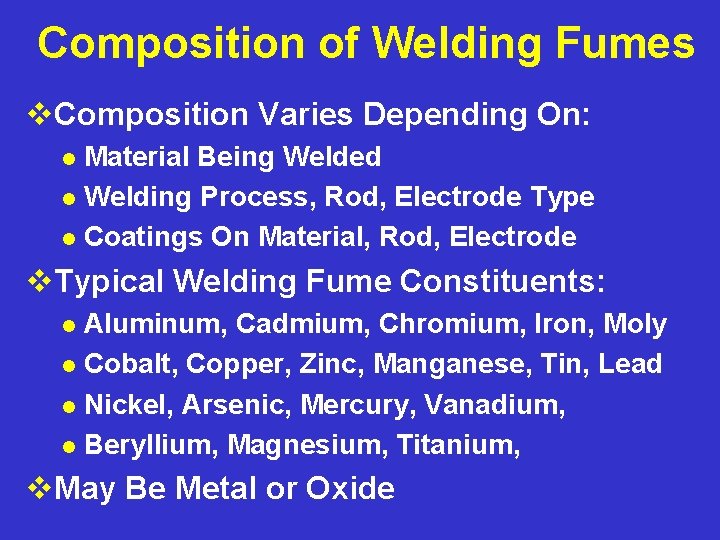

Composition of Welding Fumes v. Composition Varies Depending On: Material Being Welded l Welding Process, Rod, Electrode Type l Coatings On Material, Rod, Electrode l v. Typical Welding Fume Constituents: Aluminum, Cadmium, Chromium, Iron, Moly l Cobalt, Copper, Zinc, Manganese, Tin, Lead l Nickel, Arsenic, Mercury, Vanadium, l Beryllium, Magnesium, Titanium, l v. May Be Metal or Oxide

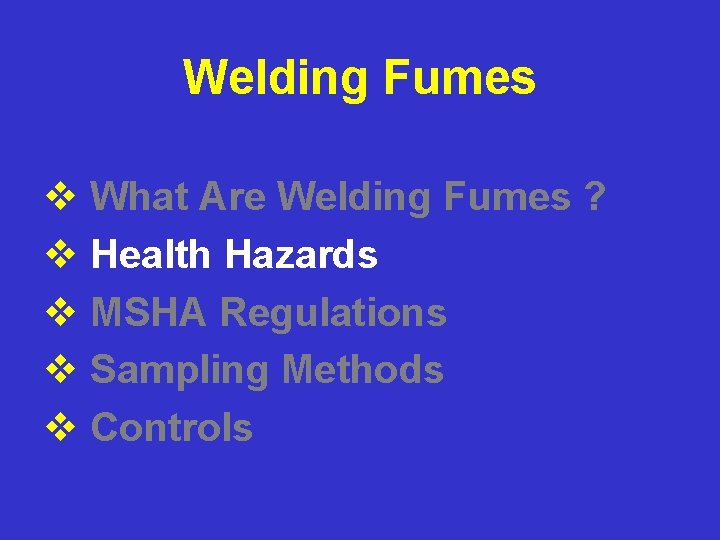

Welding Fumes v What Are Welding Fumes ? v Health Hazards v MSHA Regulations v Sampling Methods v Controls
Exposure Primarily By Inhalation
Exposure Primarily By Inhalation Fumes Are 100% Respirable
Exposure Primarily By Inhalation Fumes Are 100% Respirable What Does “Respirable” Mean ?
Exposure Primarily By Inhalation Fumes Are 100% Respirable What Does “Respirable” Mean ?
How Do You Know What You Are Being Exposed To ? Hazards ? v. Supplier Or Equipment Manufacturer v. Material Safety Data Sheet (MSDS) v. Assume Paint Contains Lead v. Assume Corrosion Resistant Coatings Contain Zinc Or Cadmium v. Assume Wear Materials Contain Manganese v. Assume High Strength Steel Contains Chrome, Manganese, Moly, Nickel

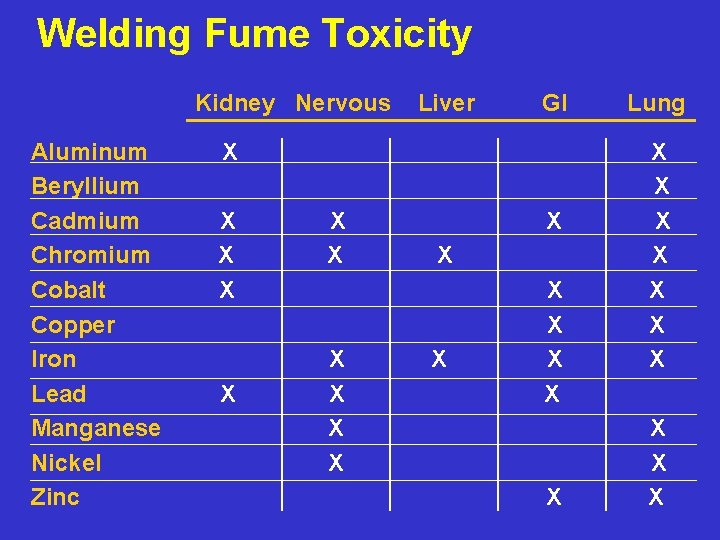

Welding Fume Toxicity Kidney Nervous Aluminum Beryllium Cadmium Chromium Cobalt Copper Iron Lead Manganese Nickel Zinc Liver GI X X X X X Lung X X X X X
Welding Fume Toxicity v. Acute Toxicity l Exposure To High Concentration Over Relatively Short Time l Symptoms Appear Relatively Quickly After Exposure v. Chronic Toxicity l Exposure To Lower Concentration Over Long Time (Months, Years) l Symptoms Appear Long After Initial Exposure
Welding Fume Toxicity v. Exposure Usually Involves More Than One Metal l Toxic Effects May Be Additive v. Examples l Blood - Manganese and Lead l CNS - Manganese and Lead l Kidney - Lead and Cadmium l Respiratory System - Magnesium, Manganese, Copper, and Zinc
Welding Fume Toxicity v. Metal Fume Fever l Symptoms Are Fever, Chills, Shaking l Symptoms Appear 4 -12 Hrs After Exp. l Recovery Usually Within 1 Day l Usually Associated With Brief High Inhalation Exposure To Zinc, But Magnesium & Copper Also May Cause l Daily Exposure May Confer Immunity l Symptoms May Return If Exposure Interrupted (3 -Day Weekend)
Welding Fume Toxicity v. Welding Fumes Can Cause Cancer Arsenic (Lung, Lymphatic) l Beryllium (Lung) l Cadmium (Prostatic and Lung) l Chromium (Lung) l Nickel (Lung) l v. Welders May Also Be Exposed To: Silica, Asbestos, Ozone l Thermal Decomposition of Paint, Flux, Electrode Coatings (CO, CO 2, NO 2, HCN, COCl 2, Fluoride Gases, Smoke, Etc. ) l
Welding Fumes v What Are Welding Fumes ? v Health Hazards v MSHA Regulations v Sampling Methods v Controls
MSHA Regulations § 56/57. 5001 Exposure Limits § 56/57. 5002 Monitoring § 56/57. 5005 Controls § 56/57. 14213(b) Ventilation § 56/57. 20011 Barricades, Warnings Part 46 and Part 48 Training
MSHA Regulations § 56/57. 5001 Establishes Exposure Limits For Airborne Contaminants l TWA 8 And Ceiling Limits Listed In 1973 ACGIH Booklet of Threshold Limit Values (TLV’s) u. TWA 8 Time Weighted Average For 8 Hrs u. Ceiling Limits Cannot Be Exceeded For Any Length Of Time l ACGIH 1973 TLV Booklet References 1968 “PA Rules” For Short Term Limits
MSHA Regulations § 56/57. 5002 Dust, Gas, Mist, And Fume Surveys Shall Be Conducted As Frequently As Necessary To Determine The Adequacy Of Control Measures § 56/57. 5005 Control of Harmful Airborne Contaminants Shall Be, Insofar As Feasible, By Engineering Controls l Respirators Permitted Under Certain Circumstances
MSHA Regulations § 56/57. 14213(b) All Welding Operations Shall Be Well Ventilated § 56/57. 20011 Areas Where Health or Safety Hazards Exist That Are Not Immediately Obvious Shall Be Barricaded Or Warning Signs Posted Part 46 and Part 48 Training

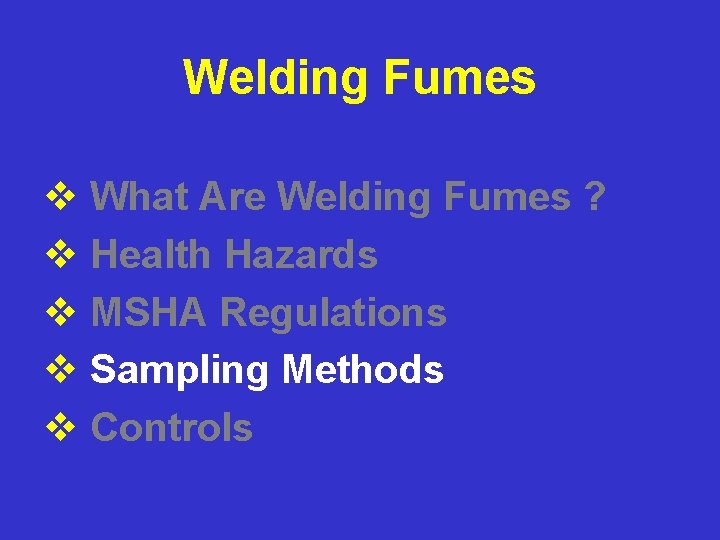

Welding Fumes v What Are Welding Fumes ? v Health Hazards v MSHA Regulations v Sampling Methods v Controls
Sampling Methods v. For Compliance With § 56/57. 5001 And § 56/57. 5002 v. Full Shift Or Short Term
Sampling Methods v. For Compliance With § 56/57. 5001 And § 56/57. 5002 v. Full Shift Or Short Term v. Sample Pump, Pump Calibrator, Filters
Sampling Methods v. For Compliance With § 56/57. 5001 And § 56/57. 5002 v. Full Shift Or Short Term v. Sample Pump, Pump Calibrator, Filters v. Place Filter In Breathing Zone Under Hood
Sampling Methods v. For Compliance With § 56/57. 5001 And § 56/57. 5002 v. Full Shift Or Short Term v. Sample Pump, Pump Calibrator, Filters v. Place Filter In Breathing Zone Under Hood v. Pump Draws Air Over Filter; Contaminants Captured On Filter
Sampling Methods v. Analytic Lab Determines Weights Of Individual Contaminants On Filter v. Weights Converted To Concentrations
Sampling Methods v. Analytic Lab Determines Weights Of Individual Contaminants On Filter v. Weights Converted To Concentrations v. Measured Concentration Compared To Established Exposure Limit Measured Less Than Limit - - No Action Req’d l Measured Over Limit - - Implement Controls l
Welding Fumes v What Are Welding Fumes ? v Health Hazards v MSHA Regulations v Sampling Methods v Controls
Controls (§ 56/57. 5005) v. Feasible Engineering Controls v. Personal Protective Equipment (PPE) l PPE Allowed As Means Of Compliance Only In Limited Situations u. Where Feasible Engineering Controls Do Not Exist u. While Installing Engr. Controls u. Occasional Entry Into Hazardous Atmosphere For Maintenance
Engineering Controls v. General Ventilation l Natural or Mechanically Induced (Fans) Airflow pushed Or Pulled Over Work Area That Dilutes and Carries Away Contaminants
General Ventilation v. Outdoors - Wind v. Indoors Open Shop Doors/Windows l Fans: Fixed - Roof, Walls, Windows l Fans: Portable l Blow Fresh Air Into Work Area, But Don’t Blow Fumes Into Welder’s Breathing Zone l Need Provision For “Make Up” Air l

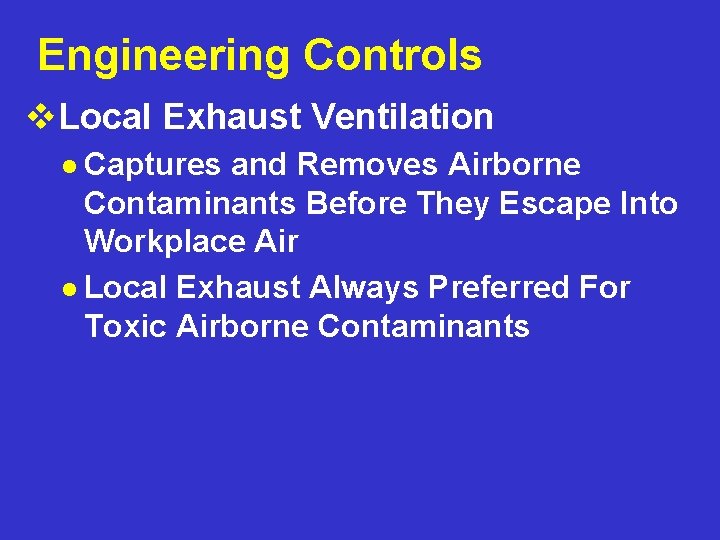

Engineering Controls v. Local Exhaust Ventilation l Captures and Removes Airborne Contaminants Before They Escape Into Workplace Air l Local Exhaust Always Preferred For Toxic Airborne Contaminants

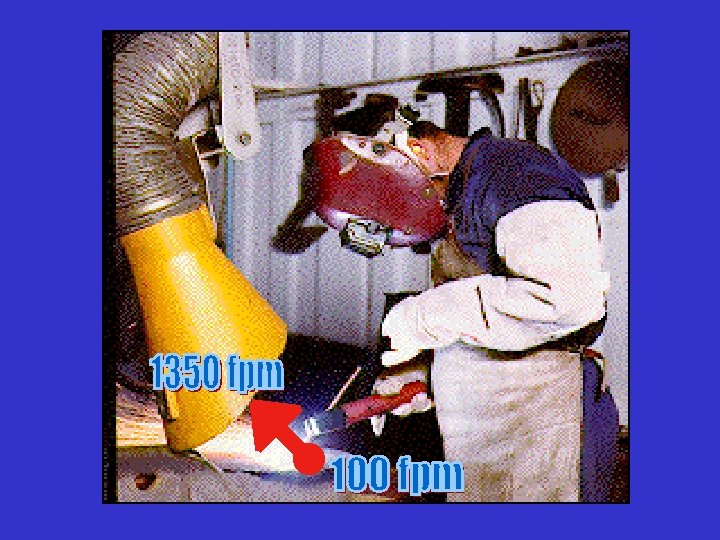

Local Exhaust Ventilation v. Capture Hood & Fixed Duct System
Local Exhaust Ventilation v. Portable “Fume Eliminator”
Local Exhaust Ventilation v. Down Draft Table
Respiratory Protection v. Air Purifying Or Supplied Air l May Be Integral With Welding Hood v. NIOSH Part 84 Approved For Fumes

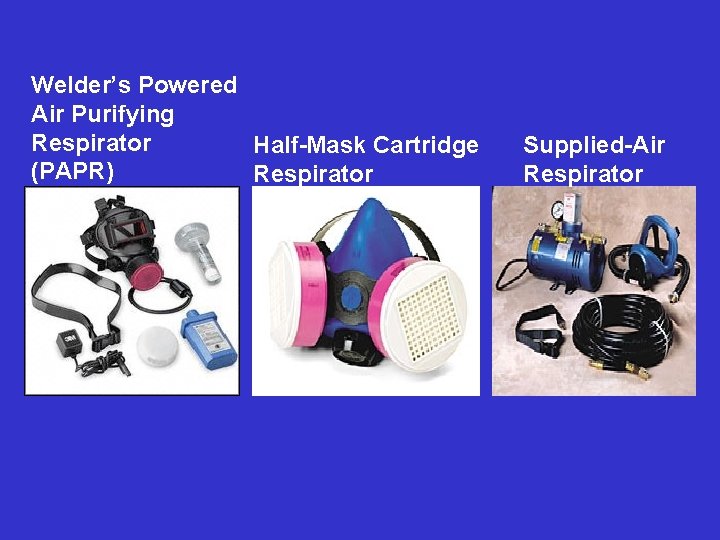

Welder’s Powered Air Purifying Respirator Half-Mask Cartridge (PAPR) Respirator Supplied-Air Respirator
Respiratory Protection v. Air Purifying Or Supplied Air l May Be Integral With Welding Hood v. NIOSH Part 84 Approved For Fumes v. Respirator Use Must Include Implementation of Respiratory Protection Program (See ANSI Z 88. 2 -1969) Written Procedures on Selection and Use l Respirator Training and Fit Testing l Respirator Inspection, Cleaning, Storage l Workplace Surveillance l Medical Evaluation Recommended l
Thank You
