Tuna for Lunch A Case Study Examining Mercury

Tuna for Lunch? A Case Study Examining Mercury Bioaccumulation and Biomagnification By Caralyn B. Zehnder Department of Biological and Environmental Sciences Georgia College and State University, Milledgeville, GA

Coal-burning power plants are the most common source of mercury pollution. Coal contains mercury naturally, and when it is burned, the mercury travels up the smokestack and is released into the air.

Mercury Methylation Bacteria convert inorganic mercury (Hg) to the organic form methylmercury (Me. Hg) Hg – in emissions (smoke) Hg - Deposited on land into water 50 -75% from anthropogenic (human) sources Bacteria Methyl-mercury (Me. Hg)

Methylmercury (Me. Hg) • Highly toxic • Gets into the food web Snail Largemouth bass Herbivorous fish Phytoplankton (algae) Zooplankton Small fish

Hg – in emissions (smoke) Hg - Deposited on land into water 50 -75% from anthropogenic (human) sources Bacteria Me. Hg Methyl-mercury (Me. Hg) Zooplankton Large fish Me. Hg Small fish Me. Hg Phytoplankton (algae)

Report Objectives: Describe the nationwide occurrence and distribution of mercury in fish tissue. Evaluate mercury in streambed (bed) sediment and stream water. Scudder, B. C. , Chasar, L. C. , Wentz, D. A. , Bauch, N. J. , Brigham, M. E. , Moran, P. W. , and Krabbenhoft, D. P. , 2009, Mercury in fish, bed sediment, and water from streams across the United States, 1998– 2005: U. S. Geological Survey Scientific Investigations Report 2009– 5109, 74 p.

Methods Fish Sediment A plastic scoop was used to remove the upper 2 to 4 cm of bed sediment from 5 to 10 depositional areas; samples Largemouth bass were composited into a single targeted for collection; but sample for each site. 34 different fish species were collected. Each sample was homogenized and mercury Fish caught by levels were measured. electrofishing, rod & reel, and gill nets. 291 fish from streams nationwide. Fish fillet analyzed for mercury Water Stream-water samples were collected by dipping Teflon® or PETG (Nalgene) bottles in the centrer of streamflow by use of trace-metal clean techniques. Samples analyzed for mercury.

Figure 1: Mercury concentrations (ug/g) found in fish tissues of commonly sampled fish species. US EPA criterion for human health. Concern level for piscivorous mammals

Each and every fish tested from nearly 300 water streams in the U. S. was found to contain mercury.

Hg concentrations in fish were several orders of magnitude higher than in stream water. Bioaccumulation: the buildup of substances, such as pesticides or heavy metals, in an organism. Bioaccumulation occurs when an organism absorbs a substance faster than it excretes it. Bioaccumulation results in the organism having a higher concentration than the surrounding environment. Mercury out Mercury in

Where in the U. S. were the highest concentrations of mercury in fish found? http: //www. usgs. gov/corecast/details. asp? ep=102 EPA Fish Advisories http: //www. epa. gov/waterscience/fish/states. htm

The relationship between trophic position and mercury in the food web of Lake Washington

Methods – collect fish, crustaceans, & zooplankton and measure methylmercury levels. Mysid Daphnia (zooplankton) Crayfish Stickleback Trout Pikeminnow Caddisfly Sockeye salmon (fry) Smallmouth bass

Table 3 *Arthropods are organisms with segmented bodies, hard exoskeletons and multiple pairs of jointed legs. Aquatic examples include shrimp, crayfish, crabs, and insect larvae including caddisflies.

Trout Pikeminnow Smallmouth bass Stickleback Mysid Sockeye salmon (fry) Crayfish Daphnia (zooplankton) Caddisfly Algae (phytoplankton)

Trout Hg Pikeminnow Smallmouth bass Stickleback Hg Mysid Hg Sockeye salmon (fry) Crayfish Daphnia (zooplankton) Caddisfly Algae (phytoplankton)

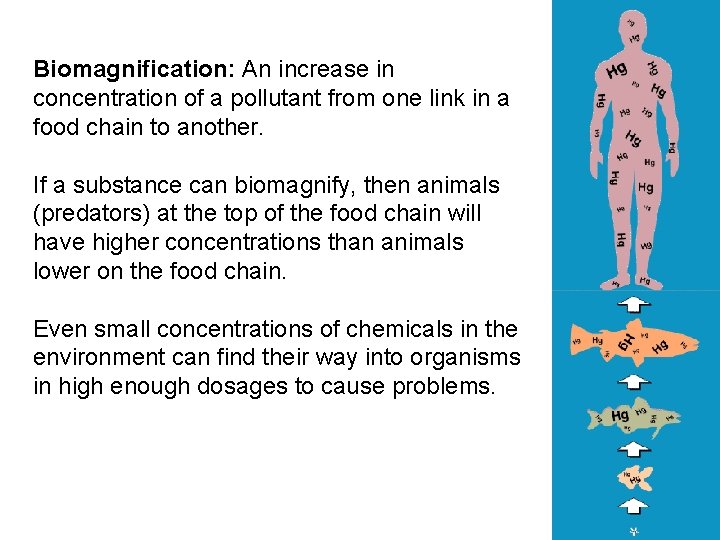

Biomagnification: An increase in concentration of a pollutant from one link in a food chain to another. If a substance can biomagnify, then animals (predators) at the top of the food chain will have higher concentrations than animals lower on the food chain. Even small concentrations of chemicals in the environment can find their way into organisms in high enough dosages to cause problems.
