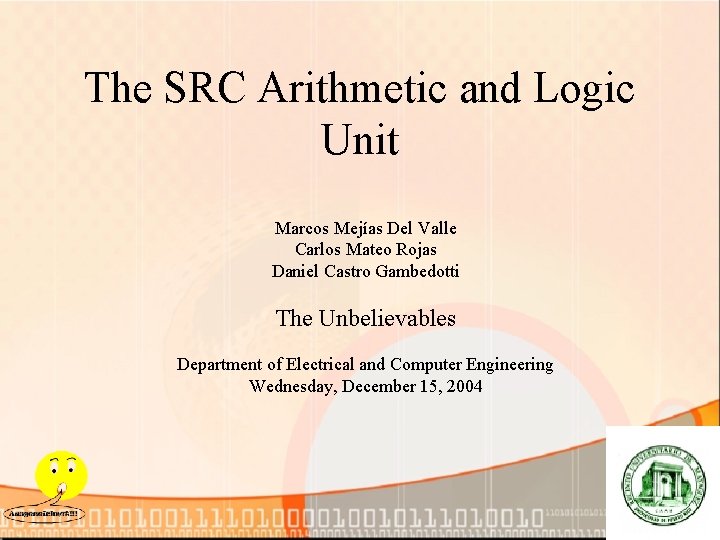

The SRC Arithmetic and Logic Unit Marcos Mejías Del Valle Carlos Mateo Rojas Daniel Castro Gambedotti The Unbelievables Department of Electrical and Computer Engineering Wednesday, December 15, 2004

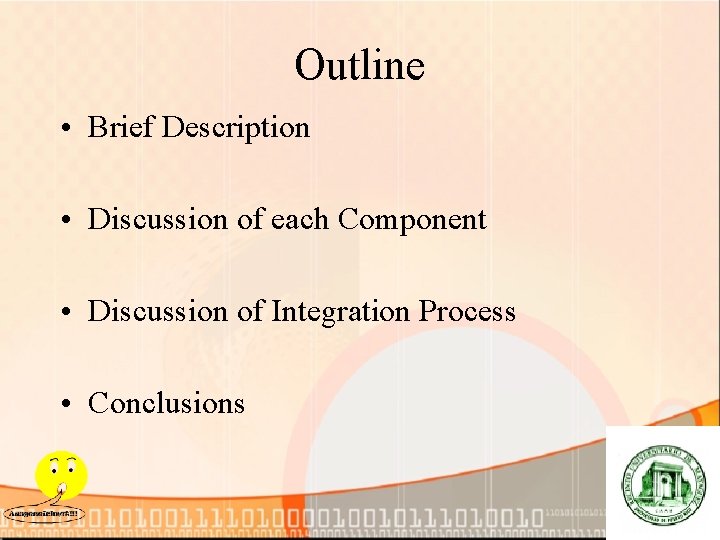

Outline • Brief Description • Discussion of each Component • Discussion of Integration Process • Conclusions
What is an ALU? • The component of the CPU that performs all arithmetic computations and all comparison and logic operations. • It has direct input and output access to the main memory, the processor controller, and I/O devices in order to operate on data obtained from them.
Shift Unit • In essence, a Universal Parallel-load Shift Register. • It is in charge of all shifting operations within the ALU (SHL, SHRA and SHC).
Shift Unit (Cont. ) • Originally implemented separately by their behavior. • All shift operations were put together into a single unit, controlled by signals from the controller.
Shift Unit (SHC Waveform)

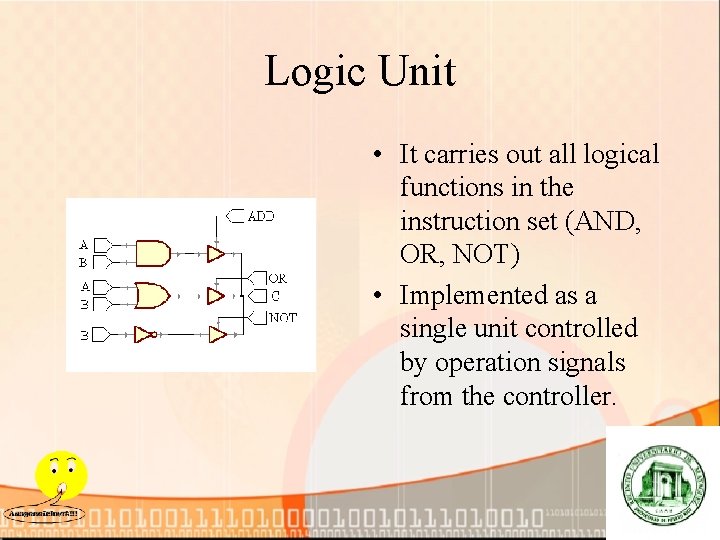

Logic Unit • It carries out all logical functions in the instruction set (AND, OR, NOT) • Implemented as a single unit controlled by operation signals from the controller.
Logic Unit (AND Waveform)
Arithmetic Unit • Component that carries out all general arithmetic calculations (ADD, ADDI, SUB, NEG, ADC) as well as location calculations (INC_3, branches, load and store). • Composed of three main blocks: Adder/Subtractor, PC Incrementation Block and Negation Block.
Arithmetic Unit (Adder Subtractor)
Arithmetic Unit (Adder/Subtractor) • Implemented using the Block Diagram Editor tool in Active HDL. • Carries out ADD, ADDI, ADC and SUB operations from the instruction set.

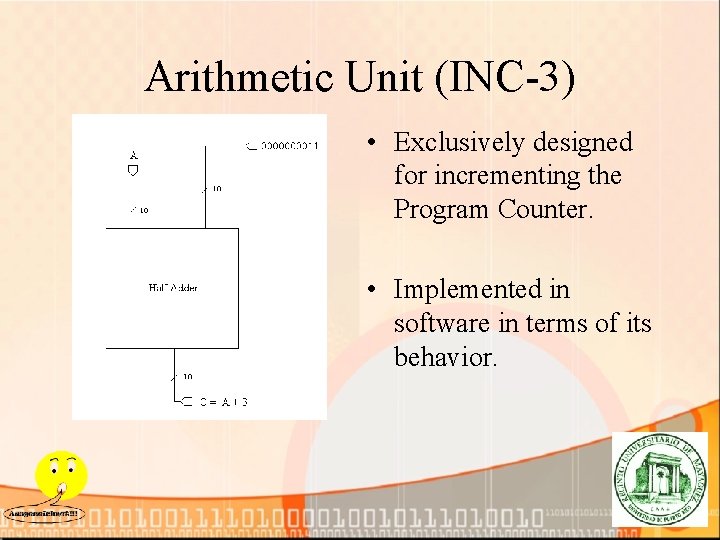

Arithmetic Unit (INC-3) • Exclusively designed for incrementing the Program Counter. • Implemented in software in terms of its behavior.
Arithmetic Unit (Negation) • Created exclusively for the NEG function; negates the value placed in “A”. • Implemented in software in terms of its behavior.

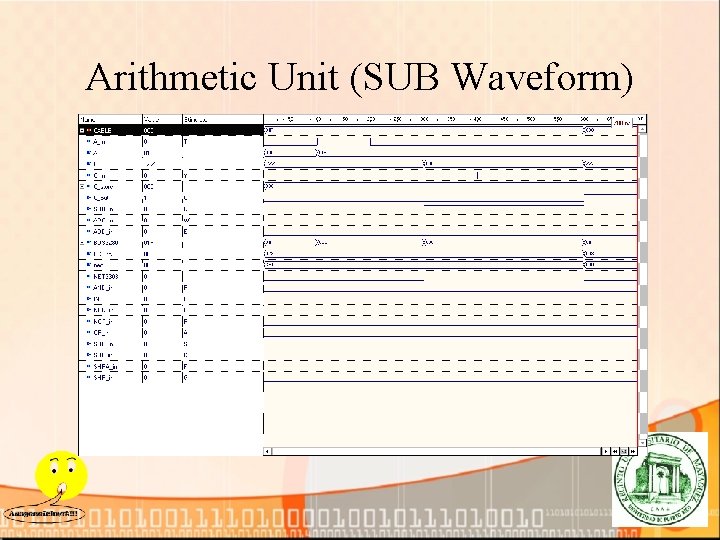

Arithmetic Unit (SUB Waveform)

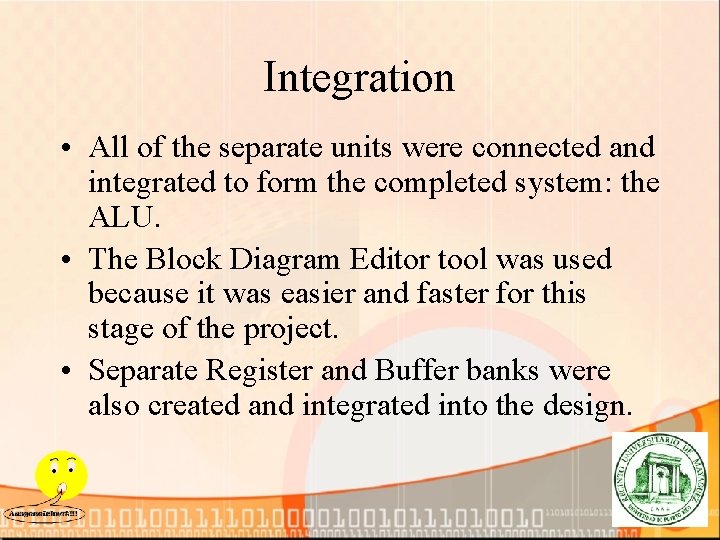

Integration • All of the separate units were connected and integrated to form the completed system: the ALU. • The Block Diagram Editor tool was used because it was easier and faster for this stage of the project. • Separate Register and Buffer banks were also created and integrated into the design.
Integration (cont. )
Conclusion • The SRC ALU was successfully implemented using VHDL, using a variety of methods. • The ALU is capable of carrying out all logical, comparison and arithmetic operations from the Instruction set, as well as calculating directions for branches, load and store functions. • The ADC function was not implemented internally in the ALU due to unknown problems and inconsistencies in Active HDL.
References • Computer Systems Design and Architecture, 2 nd edition, Vincent P. Heuring and Harry F. Jordan, Pearson Prentice Hall, Inc. • Writing Formal Reports: An Approach for Engineering Students in 21 st Century, 3 rd edition, Nayda G. Santiago and Manuel A. Jimenez • http: //www. ece. uprm. edu/~nayda/Courses/arq/Lec tures. htm
Acknowledgements We’d like to thank • The Buhos, for their emotional support and excellent crisis management plan. • The ADASEL lab, for providing us with support and a home away from home • ADASEL’s chairs for doubling as portable beds • The Internet, for providing us all the information (and entertainment) we could ever need • MSN Messenger, for bringing us closer even if we are in the same room • Domino’s Pizza, for providing catering services • Manuelito and Diana, for not driving their mother crazy • Jump drives, for giving us space in our account
Questions
