SPMS Smart Patient Monitoring System Group 13 Computer
- Slides: 36
SPMS: Smart Patient Monitoring System Group 13 Computer Engineers: Jonathon Bell, Stephen Bennett Electrical Engineers: Hassan Hariri, Dallas Marcone The University of Central Florida Department of Electrical and Computer Engineering Summer 2020
Motivation • Hospital alarms prove a noisy misery for patients: ‘I feel like I’m in jail. ’ – Washington Post • Grandmother dies in Indiana after nursing home bed rails removed – NBC • ‘Fear Of Falling’: How Hospitals Do Even More Harm By Keeping Patients Dallas Marcone

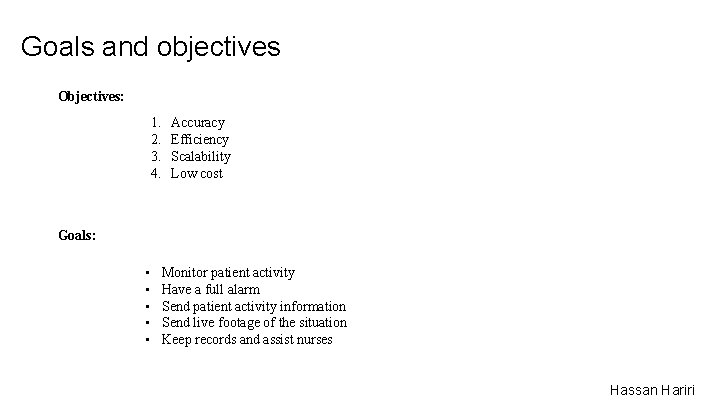

Goals and objectives Objectives: 1. 2. 3. 4. Accuracy Efficiency Scalability Low cost Goals: • • • Monitor patient activity Have a full alarm Send patient activity information Send live footage of the situation Keep records and assist nurses Hassan Hariri
Engineering Requirements Jonathon Bell
Overall Block Diagram Stephen Bennett
Power design Components Voltage required rated Current Power consumed Raspberry Pi 4 5 V 600 m. A 3 W Infra-red camera 3. 3 V 23 m. A 0. 0759 W Pi camera module 1. 5 V 250 m. A 0. 375 W MSP 432 3. 3 V 300 m. A 0. 99 W 2 Ultrasonic sensors 5 V 2 * 2 m. A 0. 02 W Piezo buzzer alarm 3. 3 V 3 m. A 0. 0099 W 0. 955 A 4. 4708 W Rated Total Estimated power consumption Hassan Hariri
Power design Power supply outputs to be designed Voltage Total current +50% current Output 1 3. 3 V . 303 A 0. 46 A Output 2 5 V . 877 A 1. 32 A Power supply outputs to be designed Hassan Hariri
Power design SWITCHING POWER SUPPLY DESIGN TYPES Type Conversion Output Voltage (Vout) Approximated Power Level (W) Buck DC/DC < Vin 0 - 1 k Boost DC/DC > Vin 0 - 5 k Buck-Boost DC/DC ≤ 0 0 - 150 Forward DC/DC Vin < Vin > 100 - 200 Flyback AC/DC DC/DC Vin < Vin > 0 - 250 Push-Pull DC/DC < Vin 100 - 1 k Half Bridge DC/DC < Vin 0 - 2 k Full Bridge DC/DC > Vin 400 - 5 k Most common types of SPMSs Hassan Hariri
Power design Overall Power Supply Hassan Hariri
Power design 120 V 5 V Design Schematic for the UCC 28634 flyback regulator Hassan Hariri
Power design Duty Cycle and Efficiency vs Output Current for UCC 28634 flyback regulator Hassan Hariri
Power design Design Schematic for the TPS 62808 Efficiency vs Output Current for TPS 62808 buck regulator Hassan Hariri
PCB schematics Voltage regulator Camera buzzer MCU 2 Raspb. Pi 4 Ultrasonic sensors MCU 1: MSP 432 Overall Project Schematic Hassan Hariri
Ultrasonic Dallas Marcone
LV Max Sonar EZ Dallas Marcone
Two Sensor System Dallas Marcone
MSP 432 Dallas Marcone
Sensor-MSP 432 Compatibility Dallas Marcone
Dallas Marcone
Dallas Marcone
Sensor Implementation Dallas Marcone
Computer Vision Solution - Infrared Stephen Bennett
Sensor Hardware Stephen Bennett
Pi Camera Module V 2 ELP USB Camera SONY SPRESENSE Connection Custom Connector USB I 2 C Megapixels 8 MP 2 MP 5 MP Fastest Frame Rate 640 x 480 p @ 90 fps 640 x 480 p @ 100 fps 720 p @ 60 fps Standard Camera 720 p @ 60 fps Highest Quality Frame Rate 1080 p @ 30 fps 1080 p @ 6 fps 1080 p @ 30 fps Weight 0. 11 oz 0. 32 oz 0. 56 oz Cost $25 $45. 99 $35 Stephen Bennett
Thermographic Camera PIM 365 Spark. Fun KIT-15948 Adafruit 3538 Connection I 2 C I 2 C, SPI I 2 C Operating Temp -40 to 85°C -10 to 80°C Operating Supply Voltage 3. 3 V/5 V 3 V/5. 5 V Weight 0. 353 oz N/A 0. 226 oz Cost $53. 50 $299. 99 $39. 95 Stephen Bennett
Single Board Computer - Raspberry Pi 4 Stephen Bennett
Raspberry Pi / PCB Communication - Serial COM Stephen Bennett
Test Bench Stephen Bennett

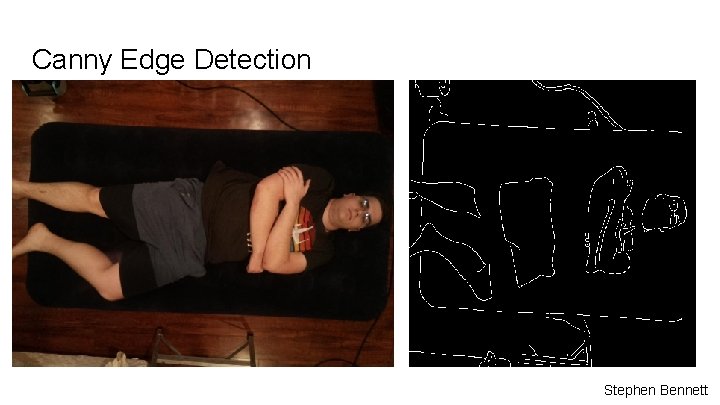

Canny Edge Detection Stephen Bennett
Overlaying the Thermal Image Stephen Bennett
Desktop/Pi Connection ● Multiple Options, still determining which one is best suited for the project. ● Options include: ○ Using VLC Media Player and the HTTP protocol to transfer video ○ Direct SSH connection ○ Utilizing Python Sockets within the Raspberry Pi code ● Python Sockets is the currently targeted method, since Python is to be used extensively already. ● In addition, C# Sockets and Python Sockets can be used together. Jonathon Bell
Desktop Application Features ● Monitoring ○ ○ Live video feed of each Raspberry Pi unit Status of each Pi Unit Warning labels Ability to expand/minimize groups ● Alarms/Warnings ○ Dismiss Warnings ○ Automatically maximize groups upon Alarm ● Customization ○ Create/Delete Unit Groups ○ Move units between groups ○ Add/Remove Units based on static IP ● Debugging ○ Restart Unit remotely ○ Get unit information Jonathon Bell
Use Case Diagram Jonathon Bell
Work Distribution Name Power Ultrasonic Imaging Application Dallas Marcone Jonathon Bell Hassan Hariri Stephen Bennett Jonathon Bell
Budget Product Subsystem Quantity Unit Cost Total Cost Raspberry Pi 4 (B) – 2 GB RAM SBC 1 $35. 00 32 GB Micro SD Card (Samsung) SBC 1 $7. 49 Thermal Camera (PIM 356) SBC 1 $55. 39 8 Megapixel Standard Camera SBC 1 $25. 00 Micro HDMI cable to HDMI SBC 1 $9. 99 Vilros Raspberry Pi 4 Case Development 1 $2. 99 Raspberry Pi 4 Power Supply Development 1 $8. 00 Ultrasonic Sensor PCB 1 $34. 83 MSP 432 Development Board PCB 1 $23. 95 Other PCB Costs (components, dev costs, etc. ) PCB 1 $50. 00 Total $202. 64 Jonathon Bell
Jonathon Bell
