![Rotational Inertia Kinetic Energy Rotational Inertia & Kinetic Energy](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-1.jpg)
Rotational Inertia & Kinetic Energy
![Linear Angular Linear Angular Displacement x θ Velocity v Acceleration a Inertia m Linear & Angular Linear Angular Displacement x θ Velocity v Acceleration a Inertia m](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-2.jpg)
Linear & Angular Linear Angular Displacement x θ Velocity v Acceleration a Inertia m I KE ½ mv 2 ½ I 2 N 2 F = ma = I Momentum P = mv L = I
![Rolling Motion If a round object rolls without slipping there is a fixed relationship Rolling Motion If a round object rolls without slipping, there is a fixed relationship](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-3.jpg)
Rolling Motion If a round object rolls without slipping, there is a fixed relationship between the translational and rotational speeds:
![Rolling Motion We may also consider rolling motion to be a combination of pure Rolling Motion We may also consider rolling motion to be a combination of pure](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-4.jpg)
Rolling Motion We may also consider rolling motion to be a combination of pure rotational and pure translational motion:
![Rolling Motion We may also consider rolling motion at any given instant to be Rolling Motion We may also consider rolling motion at any given instant to be](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-5.jpg)

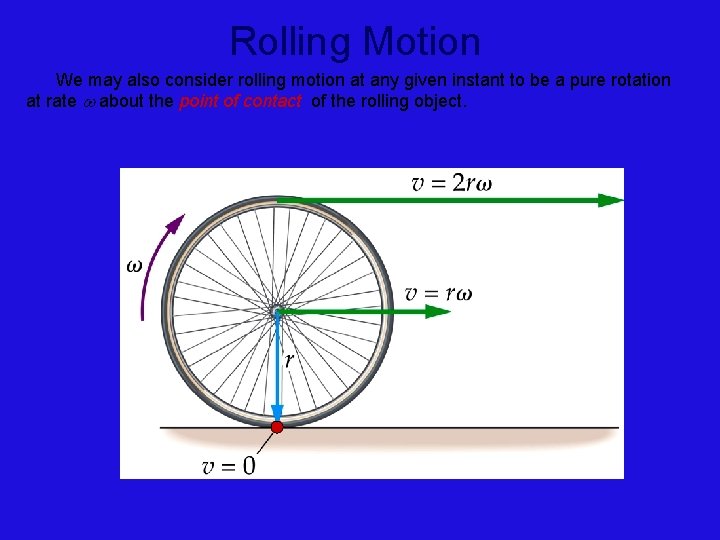

Rolling Motion We may also consider rolling motion at any given instant to be a pure rotation at rate w about the point of contact of the rolling object.
![A Rolling Tire A car with tires of radius 32 cm drives on a A Rolling Tire A car with tires of radius 32 cm drives on a](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-6.jpg)

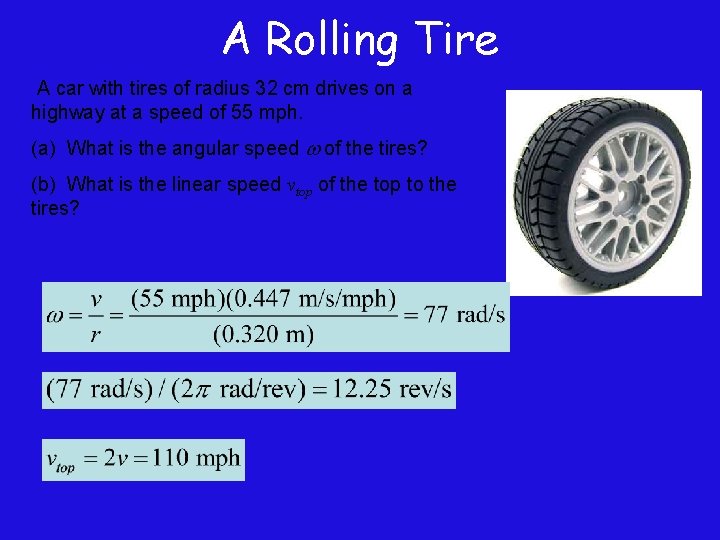

A Rolling Tire A car with tires of radius 32 cm drives on a highway at a speed of 55 mph. (a) What is the angular speed w of the tires? (b) What is the linear speed vtop of the top to the tires?
![Rotational Kinetic Energy Consider a mass M on the end of a string Rotational Kinetic Energy • Consider a mass M on the end of a string](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-7.jpg)
Rotational Kinetic Energy • Consider a mass M on the end of a string being spun around in a circle with radius r and angular frequency w – Mass has speed v = w r – Mass has kinetic energy M • K = ½ M v 2 • K = ½ M w 2 r 2 • Rotational Kinetic Energy is energy due to circular motion of object. 24
![Rotational Inertia I Tells how much work is required to get object spinning Rotational Inertia I • Tells how much “work” is required to get object spinning.](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-8.jpg)

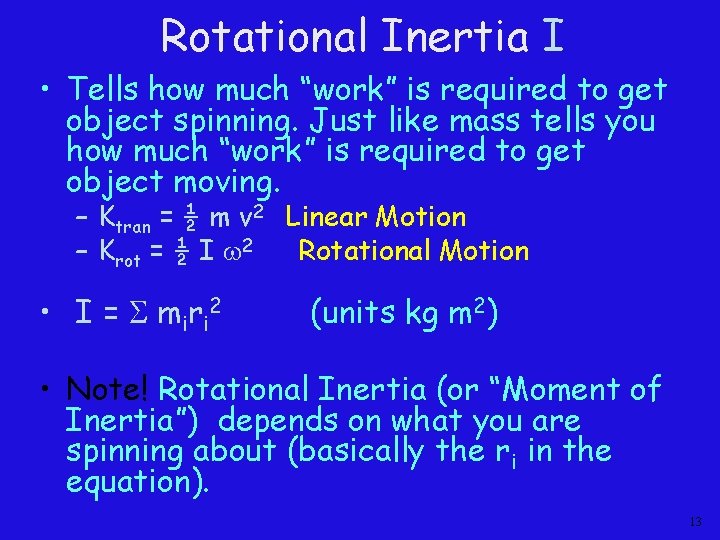

Rotational Inertia I • Tells how much “work” is required to get object spinning. Just like mass tells you how much “work” is required to get object moving. – Ktran = ½ m v 2 Linear Motion – Krot = ½ I w 2 Rotational Motion • I = S m ir i 2 (units kg m 2) • Note! Rotational Inertia (or “Moment of Inertia”) depends on what you are spinning about (basically the ri in the equation). 13
![Inertia Rods Two batons have equal mass and length Which will be easier to Inertia Rods Two batons have equal mass and length. Which will be “easier” to](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-9.jpg)

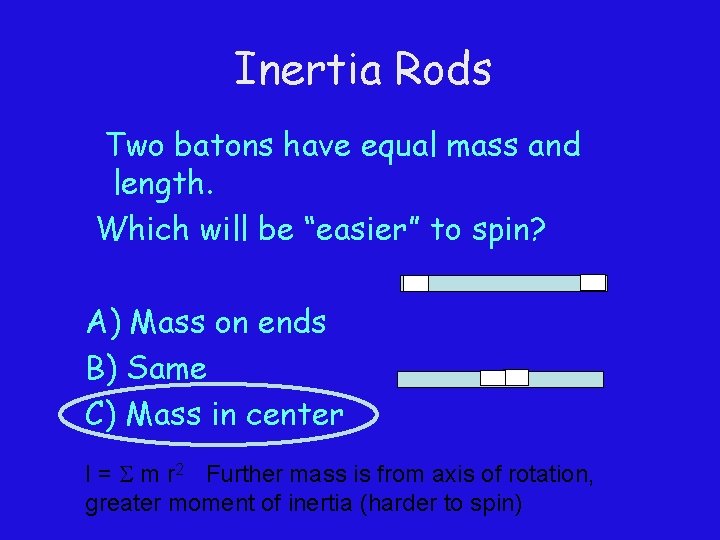

Inertia Rods Two batons have equal mass and length. Which will be “easier” to spin? A) Mass on ends B) Same C) Mass in center I = S m r 2 Further mass is from axis of rotation, greater moment of inertia (harder to spin)
![A Dumbbell Use the definition of moment of inertia to calculate that of a A Dumbbell Use the definition of moment of inertia to calculate that of a](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-10.jpg)

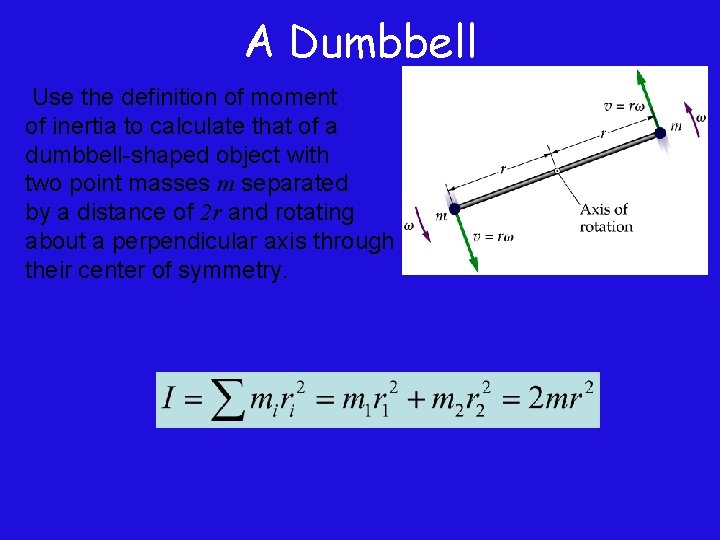

A Dumbbell Use the definition of moment of inertia to calculate that of a dumbbell-shaped object with two point masses m separated by a distance of 2 r and rotating about a perpendicular axis through their center of symmetry.
![Nose to the Grindstone A grindstone of radius r 0 610 m is Nose to the Grindstone A grindstone of radius r = 0. 610 m is](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-11.jpg)

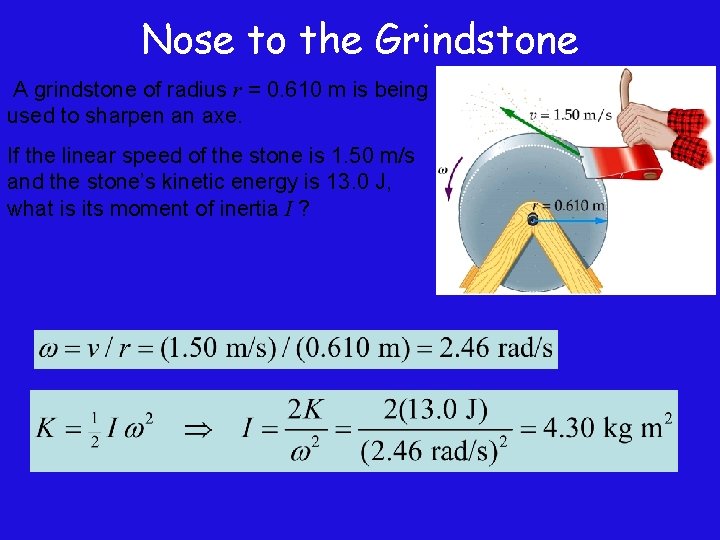

Nose to the Grindstone A grindstone of radius r = 0. 610 m is being used to sharpen an axe. If the linear speed of the stone is 1. 50 m/s and the stone’s kinetic energy is 13. 0 J, what is its moment of inertia I ?
![Moment of Inertia of a Hoop All of the mass of a hoop is Moment of Inertia of a Hoop All of the mass of a hoop is](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-12.jpg)
Moment of Inertia of a Hoop All of the mass of a hoop is at the same distance R from the center of rotation, so its moment of inertia is the same as that of a point mass rotated at the same distance.
![Moments of Inertia Moments of Inertia](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-13.jpg)

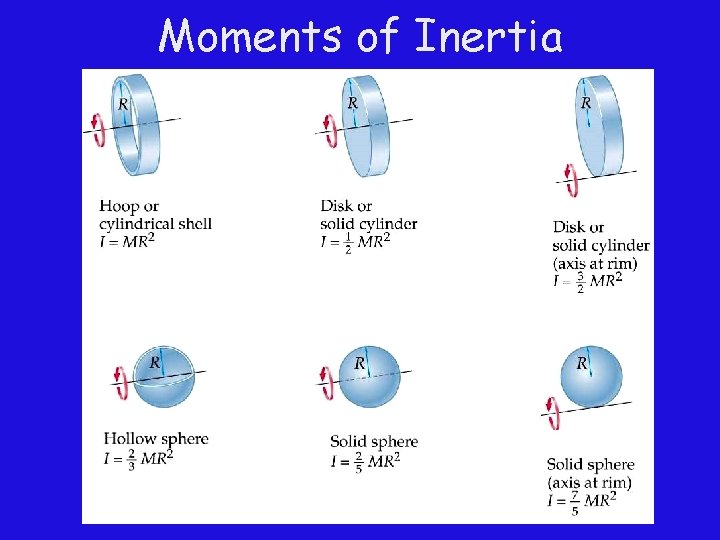

Moments of Inertia
![More Moments More Moments](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-14.jpg)

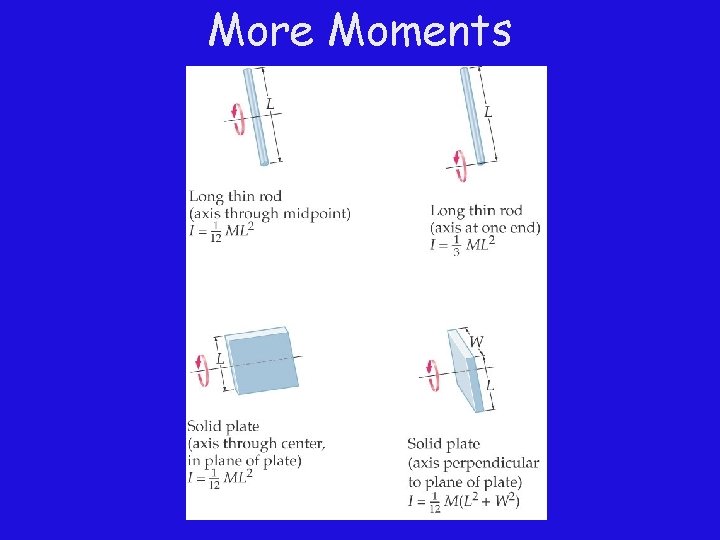

More Moments
![I is Axis Dependent I is Axis Dependent](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-15.jpg)

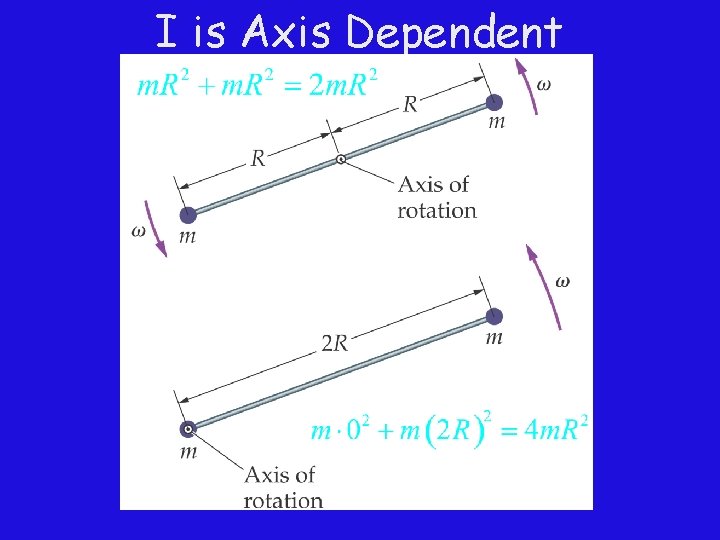

I is Axis Dependent
![Rotation Plus Translation Rotation Plus Translation](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-16.jpg)
Rotation Plus Translation
![Rolling Objects Rolling Objects](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-17.jpg)
Rolling Objects
![Like a Rolling Disk A 1 20 kg disk with a radius 0 f Like a Rolling Disk A 1. 20 kg disk with a radius 0 f](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-18.jpg)

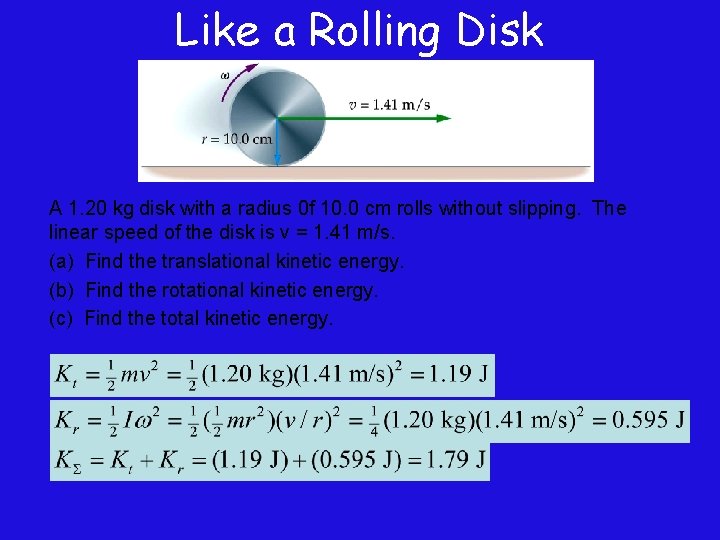

Like a Rolling Disk A 1. 20 kg disk with a radius 0 f 10. 0 cm rolls without slipping. The linear speed of the disk is v = 1. 41 m/s. (a) Find the translational kinetic energy. (b) Find the rotational kinetic energy. (c) Find the total kinetic energy.
![Preflight Rolling Race Hoop vs Cylinder A hoop and a cylinder of equal mass Preflight: Rolling Race (Hoop vs Cylinder) A hoop and a cylinder of equal mass](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-19.jpg)

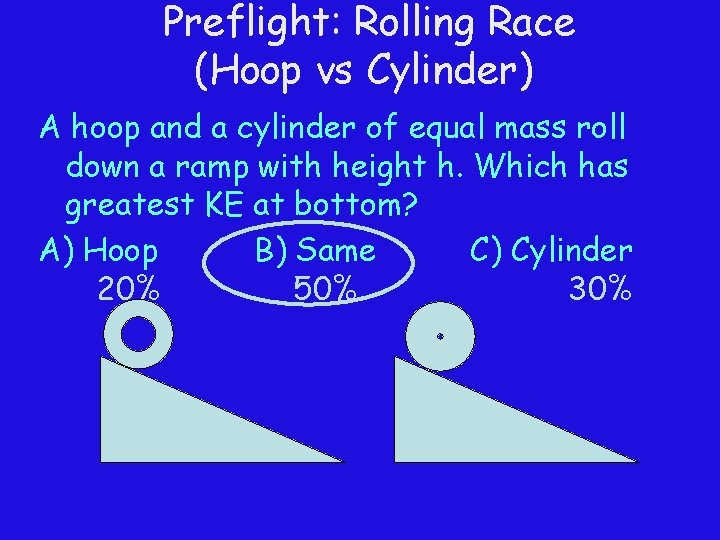

Preflight: Rolling Race (Hoop vs Cylinder) A hoop and a cylinder of equal mass roll down a ramp with height h. Which has greatest KE at bottom? A) Hoop B) Same C) Cylinder 20% 50% 30%
![Preflight Rolling Race Hoop vs Cylinder A hoop and a cylinder of equal mass Preflight: Rolling Race (Hoop vs Cylinder) A hoop and a cylinder of equal mass](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-20.jpg)

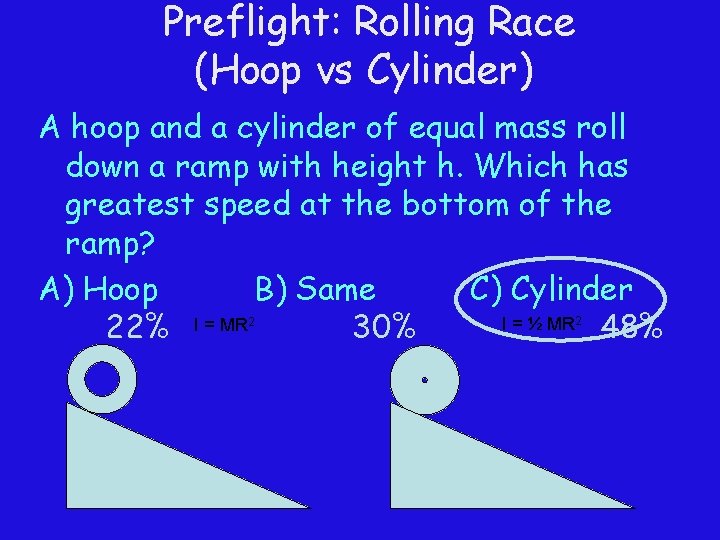

Preflight: Rolling Race (Hoop vs Cylinder) A hoop and a cylinder of equal mass roll down a ramp with height h. Which has greatest speed at the bottom of the ramp? A) Hoop B) Same C) Cylinder I = ½ MR 48% 22% I = MR 30% 2 2
![Rolling Down an Incline 0 0 Rolling Down an Incline 0 0](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-21.jpg)

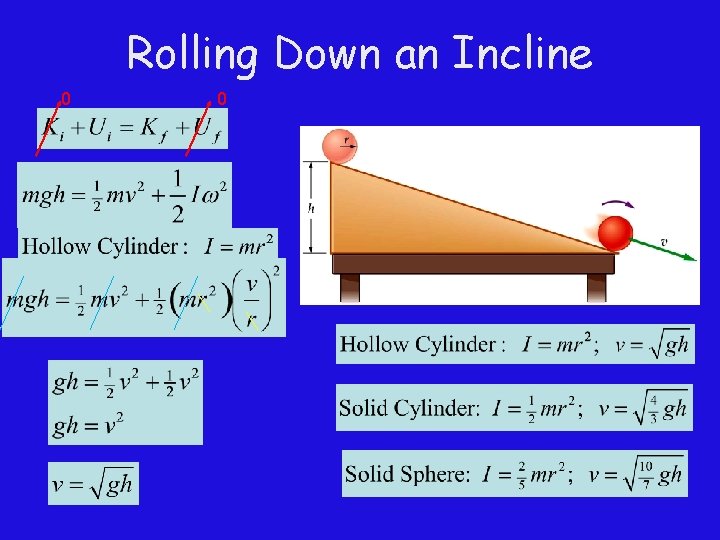

Rolling Down an Incline 0 0
![Compare Heights A ball is released from rest on a noslip surface as shown Compare Heights A ball is released from rest on a noslip surface, as shown.](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-22.jpg)

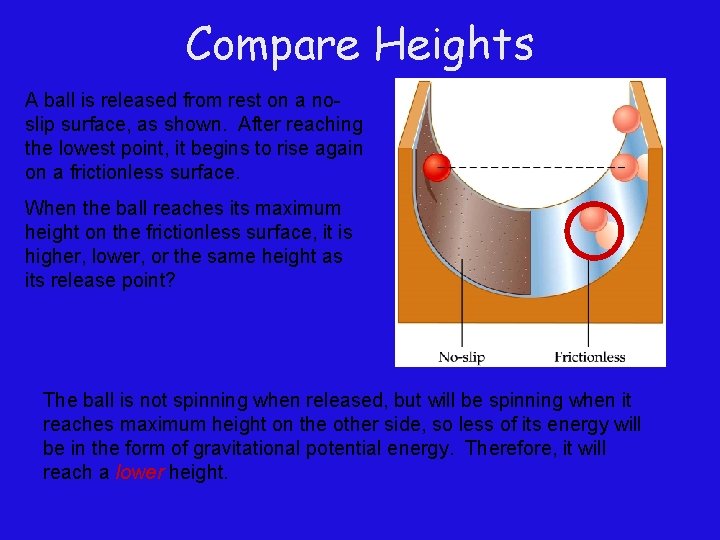

Compare Heights A ball is released from rest on a noslip surface, as shown. After reaching the lowest point, it begins to rise again on a frictionless surface. When the ball reaches its maximum height on the frictionless surface, it is higher, lower, or the same height as its release point? The ball is not spinning when released, but will be spinning when it reaches maximum height on the other side, so less of its energy will be in the form of gravitational potential energy. Therefore, it will reach a lower height.
![Spinning Wheel A block of mass m is attached to a string that is Spinning Wheel A block of mass m is attached to a string that is](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-23.jpg)
Spinning Wheel A block of mass m is attached to a string that is wrapped around the circumference of a wheel of radius R and moment of inertia I, initially rotating with angular velocity w that causes the block to rise with speed v. The wheel rotates freely about its axis and the string does not slip. To what height h does the block rise?
![A Bowling Ball A bowling ball that has an 11 cm radius and a A Bowling Ball A bowling ball that has an 11 cm radius and a](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-24.jpg)
A Bowling Ball A bowling ball that has an 11 cm radius and a 7. 2 kg mass is rolling without slipping at 2. 0 m/s on a horizontal ball return. It continues to roll without slipping up a hill to a height h before momentarily coming to rest and then rolling back down the hill. Model the bowling ball as a uniform sphere and calculate h.
![Insert Title Here medium Insert Title Here • medium](https://slidetodoc.com/presentation_image_h/dc5bcdc143fdd56bf6ab66dec73eac4c/image-25.jpg)
Insert Title Here • medium
