Racing Engine Technology Ethanol as a Performance Racing

  • Slides: 50
Download presentation
Racing Engine Technology & Ethanol as a Performance Racing Fuel Robert L. Colesworthy 12/3/07

Racing Engine Technology & Ethanol as a Performance Racing Fuel Robert L. Colesworthy 12/3/07 12/3/2020 Advanced Engineering & Technology Conference, 2007 1

Racing Engine Technology 12/3/2020 Speaker, Robert L. Colesworthy Does rod length really affect engine

Racing Engine Technology 12/3/2020 Speaker, Robert L. Colesworthy Does rod length really affect engine torque? Are aluminum blocks better than cast iron? Are aluminum heads better than cast iron? Are gear camshaft drives better than chain or belt drives? Is fuel injection better than carburetion? What makes horsepower? Where to spend your money 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 2

Does rod length really affect engine torque? 12/3/2020 800 -597 -9747 Advanced Engineering &

Does rod length really affect engine torque? 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 3

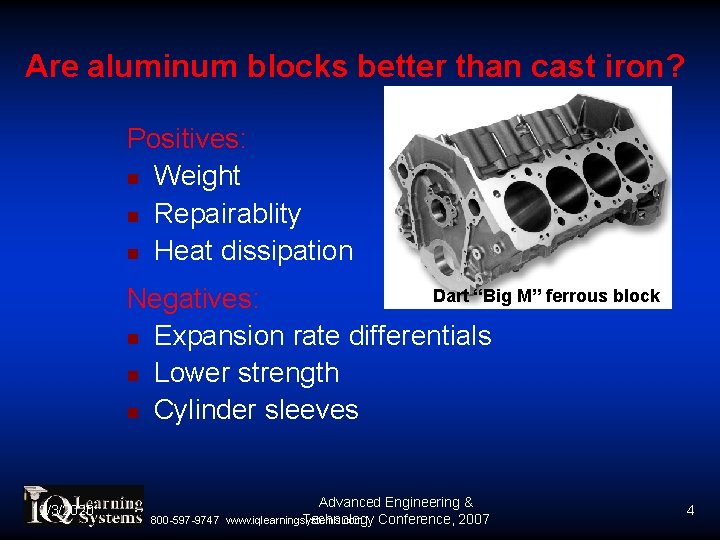

Are aluminum blocks better than cast iron? Positives: Weight Repairablity Heat dissipation Dart “Big

Are aluminum blocks better than cast iron? Positives: Weight Repairablity Heat dissipation Dart “Big M” ferrous block Negatives: Expansion rate differentials Lower strength Cylinder sleeves 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 4

Are aluminum heads better than cast iron? Positives: Weight Ease of porting Repairablity Reher-Morrison

Are aluminum heads better than cast iron? Positives: Weight Ease of porting Repairablity Reher-Morrison “Raptor” BBC Head Negatives: Expansion rate differentials Lower strength Heat dissipation 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 5

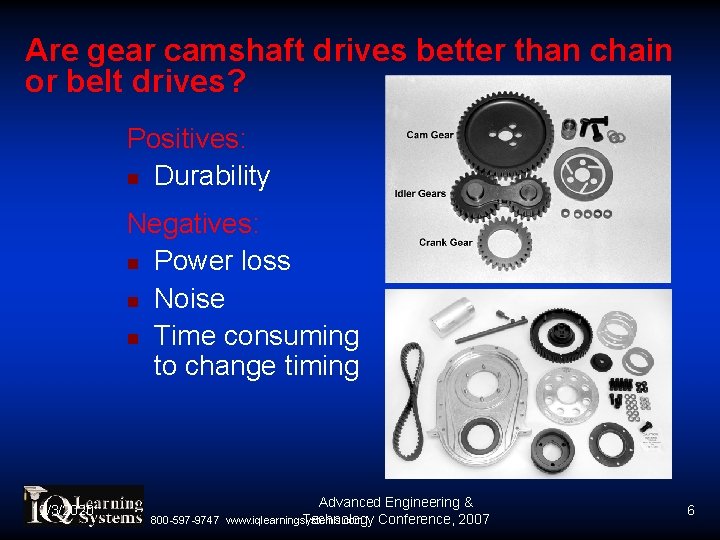

Are gear camshaft drives better than chain or belt drives? Positives: Durability Negatives: Power

Are gear camshaft drives better than chain or belt drives? Positives: Durability Negatives: Power loss Noise Time consuming to change timing 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 6

Is fuel injection better than carburetion? Fuel Injection Advantages: Fuel Mileage Lower Emissions Cold

Is fuel injection better than carburetion? Fuel Injection Advantages: Fuel Mileage Lower Emissions Cold Startup/Driveablity Carburetor Advantages: More Horsepower (nat. asp. ) Lower Cost Easier to Adjust & Service 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 7

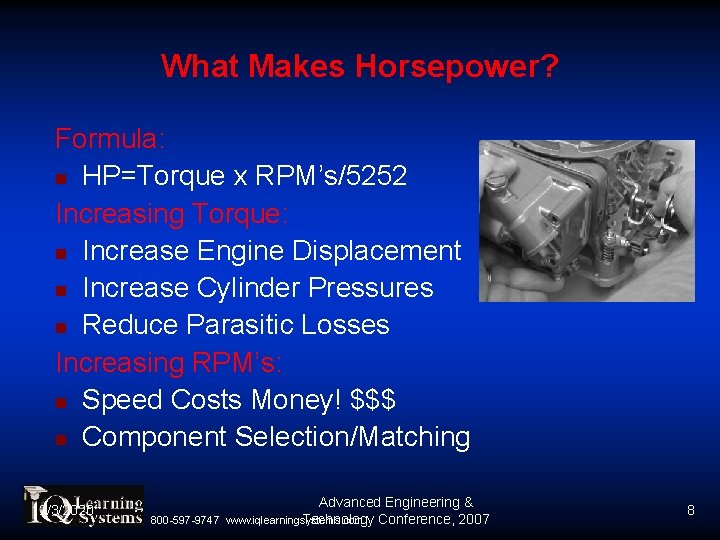

What Makes Horsepower? Formula: HP=Torque x RPM’s/5252 Increasing Torque: Increase Engine Displacement Increase Cylinder

What Makes Horsepower? Formula: HP=Torque x RPM’s/5252 Increasing Torque: Increase Engine Displacement Increase Cylinder Pressures Reduce Parasitic Losses Increasing RPM’s: Speed Costs Money! $$$ Component Selection/Matching 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 8

Where to Spend Your Money Buy: Quality matched components Great cylinder heads Titanium valves

Where to Spend Your Money Buy: Quality matched components Great cylinder heads Titanium valves Stiff valve springs Avoid: Titanium Rods Extrusion Hone or “Home Porting” of heads & manifolds “Bigger is Better” syndrome 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 9

Cool New Stuff! “Beehive” Valve Springs Oval Port`“Raptor” Heads 12/3/2020 Heart-Shaped Combustion Chamber Advanced

Cool New Stuff! “Beehive” Valve Springs Oval Port`“Raptor” Heads 12/3/2020 Heart-Shaped Combustion Chamber Advanced Engineering & Technology 800 -597 -9747 www. iqlearningsystems. com Conference, 2007 10

Ethanol as a Racing Fuel 12/3/2020 Winning on Ethanol - Why it works and

Ethanol as a Racing Fuel 12/3/2020 Winning on Ethanol - Why it works and what is driving racing to go to it Different blends, availability, and how E 85 will fit the future Application specifics, a review of compatibility of parts, corrosion, etc. How to optimize for effective use of ethanol as a performance fuel 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 11

Winning on Ethanol - What is Driving Racing to Go to It? 12/3/2020 Environmentally-friendly

Winning on Ethanol - What is Driving Racing to Go to It? 12/3/2020 Environmentally-friendly fuel Favorable political climate Safety Low cost and increasing availability Power-making potential 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 12

12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 13

12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 13

“Ethanol Blends Significantly Reduce Greenhouse Gas Emissions” Argonne National Labs. 12/3/2020 800 -597 -9747

“Ethanol Blends Significantly Reduce Greenhouse Gas Emissions” Argonne National Labs. 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 14

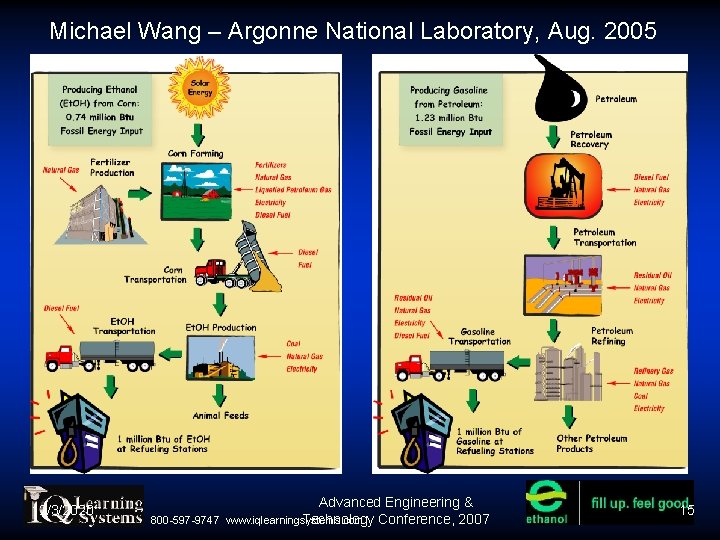

Michael Wang – Argonne National Laboratory, Aug. 2005 12/3/2020 800 -597 -9747 Advanced Engineering

Michael Wang – Argonne National Laboratory, Aug. 2005 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 15

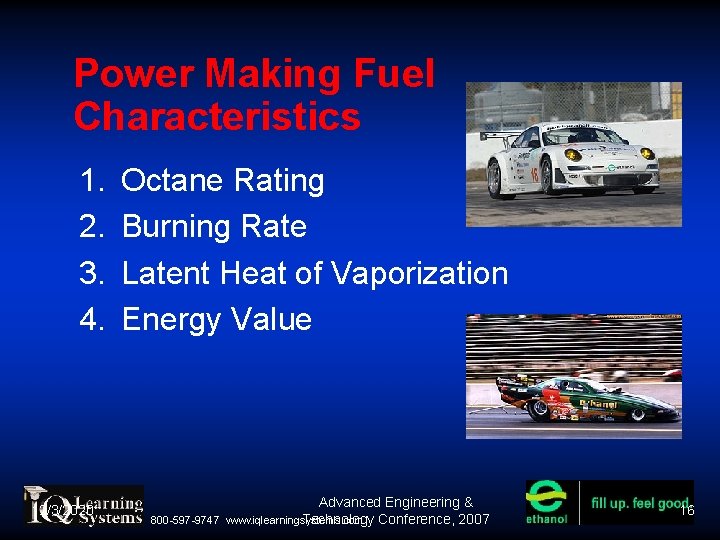

Power Making Fuel Characteristics 1. 2. 3. 4. 12/3/2020 Octane Rating Burning Rate Latent

Power Making Fuel Characteristics 1. 2. 3. 4. 12/3/2020 Octane Rating Burning Rate Latent Heat of Vaporization Energy Value 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 16

1. Octane Measures fuel’s resistance to preignition and detonation, commonly called “knocking” Three common

1. Octane Measures fuel’s resistance to preignition and detonation, commonly called “knocking” Three common octane ratings for motor fuels: Research Octane Number (RON) Motor Octane Number (MON) (R+M/2) method 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 17

1. Octane 12/3/2020 MON rating is most useful to racers because it is measured

1. Octane 12/3/2020 MON rating is most useful to racers because it is measured under high loads and at high RPM’s High MON rated fuels allow the use of higher compression and advanced spark timing 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 18

1. Octane 12/3/2020 E 85 delivers MON octane ratings equal to, or better than,

1. Octane 12/3/2020 E 85 delivers MON octane ratings equal to, or better than, most gasolines 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 19

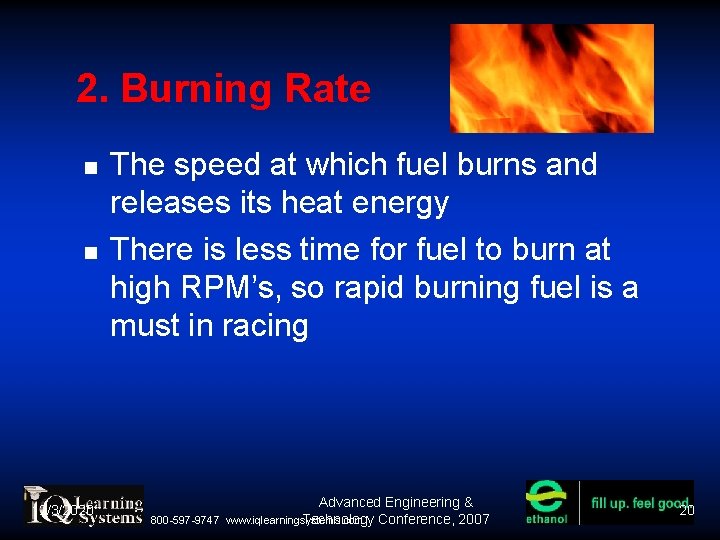

2. Burning Rate 12/3/2020 The speed at which fuel burns and releases its heat

2. Burning Rate 12/3/2020 The speed at which fuel burns and releases its heat energy There is less time for fuel to burn at high RPM’s, so rapid burning fuel is a must in racing 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 20

2. Burning Rate 12/3/2020 Peak horsepower and engine efficiency are realized if fuel is

2. Burning Rate 12/3/2020 Peak horsepower and engine efficiency are realized if fuel is almost completely burned by 20 degrees after Top Dead Center (TDC) 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 21

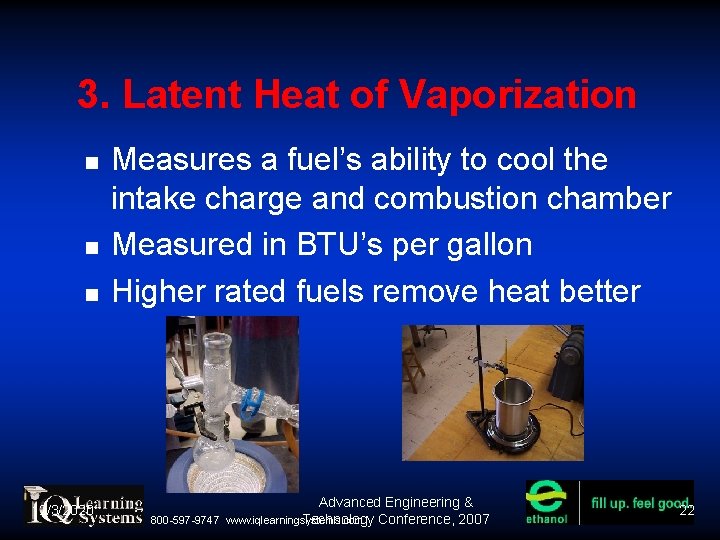

3. Latent Heat of Vaporization 12/3/2020 Measures a fuel’s ability to cool the intake

3. Latent Heat of Vaporization 12/3/2020 Measures a fuel’s ability to cool the intake charge and combustion chamber Measured in BTU’s per gallon Higher rated fuels remove heat better 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 22

3. Latent Heat of Vaporization E 85 promotes better cooling: Making the intake charge

3. Latent Heat of Vaporization E 85 promotes better cooling: Making the intake charge more dense, thereby packing more energy (per volume) into the engine Helping to control detonation Reducing temperatures in the engine and oiling system components 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 23

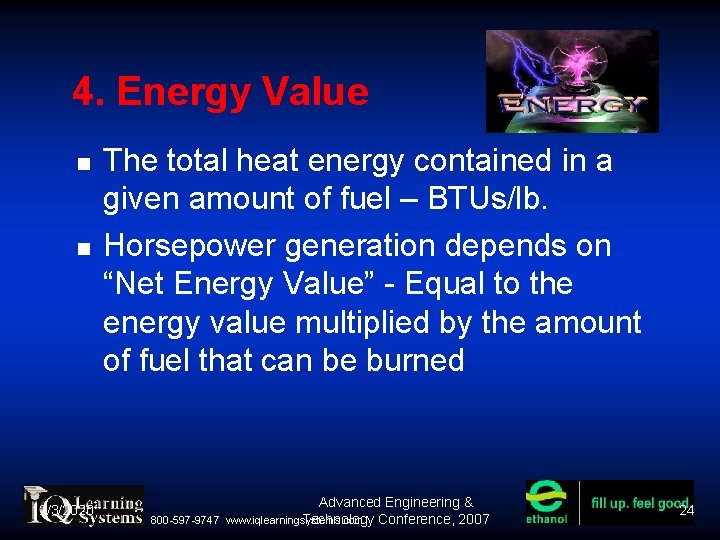

4. Energy Value 12/3/2020 The total heat energy contained in a given amount of

4. Energy Value 12/3/2020 The total heat energy contained in a given amount of fuel – BTUs/lb. Horsepower generation depends on “Net Energy Value” - Equal to the energy value multiplied by the amount of fuel that can be burned 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 24

4. Energy Value 12/3/2020 A fuel’s “stoichiometric” defines its ideal air/fuel ratio Lower stoichiometric

4. Energy Value 12/3/2020 A fuel’s “stoichiometric” defines its ideal air/fuel ratio Lower stoichiometric fuels allow more fuel to be burned which, in turn, increases the Net Energy Value of the fuel 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 25

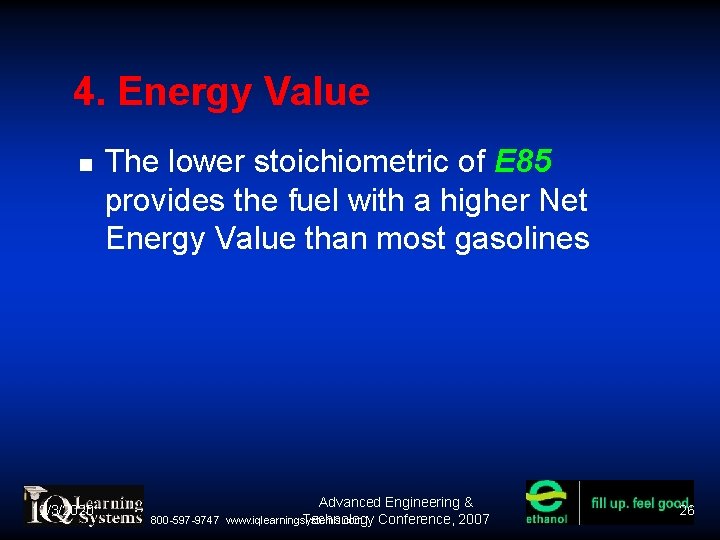

4. Energy Value 12/3/2020 The lower stoichiometric of E 85 provides the fuel with

4. Energy Value 12/3/2020 The lower stoichiometric of E 85 provides the fuel with a higher Net Energy Value than most gasolines 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 26

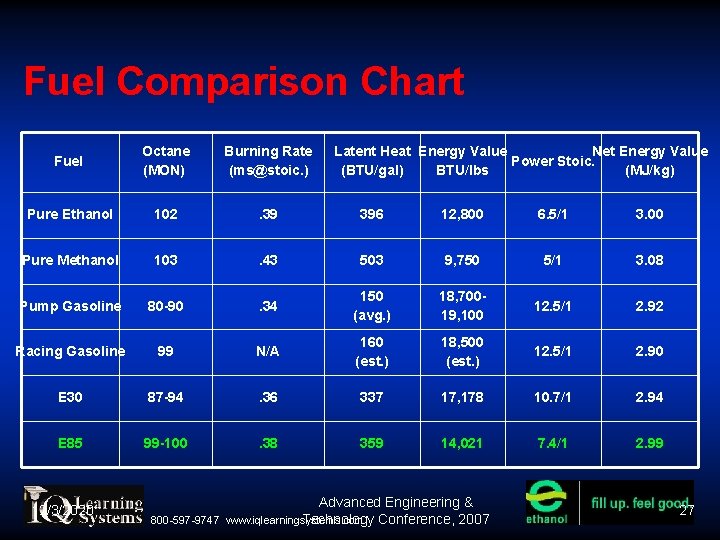

Fuel Comparison Chart Fuel Octane (MON) Burning Rate (ms@stoic. ) Pure Ethanol 102 .

Fuel Comparison Chart Fuel Octane (MON) Burning Rate (ms@stoic. ) Pure Ethanol 102 . 39 396 12, 800 6. 5/1 3. 00 Pure Methanol 103 . 43 503 9, 750 5/1 3. 08 Pump Gasoline 80 -90 . 34 150 (avg. ) 18, 70019, 100 12. 5/1 2. 92 Racing Gasoline 99 N/A 160 (est. ) 18, 500 (est. ) 12. 5/1 2. 90 E 30 87 -94 . 36 337 17, 178 10. 7/1 2. 94 E 85 99 -100 . 38 359 14, 021 7. 4/1 2. 99 12/3/2020 800 -597 -9747 Latent Heat Energy Value Net Energy Value Power Stoic. (BTU/gal) BTU/lbs (MJ/kg) Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 27

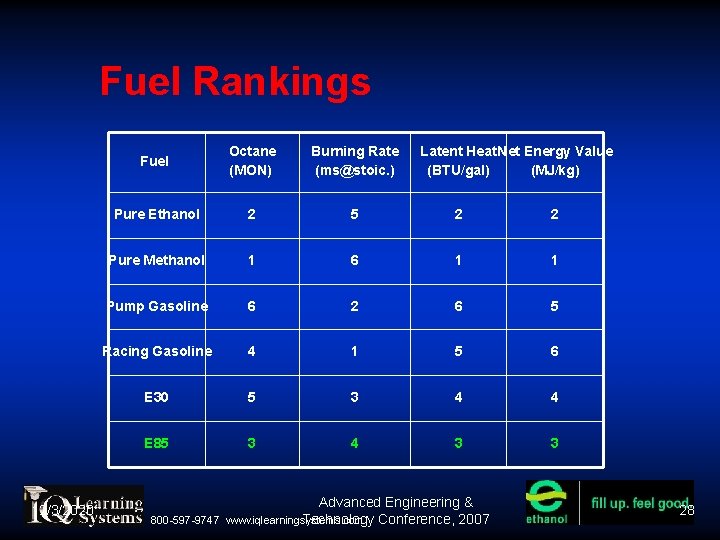

Fuel Rankings 12/3/2020 Fuel Octane (MON) Burning Rate (ms@stoic. ) Pure Ethanol 2 5

Fuel Rankings 12/3/2020 Fuel Octane (MON) Burning Rate (ms@stoic. ) Pure Ethanol 2 5 2 2 Pure Methanol 1 6 1 1 Pump Gasoline 6 2 6 5 Racing Gasoline 4 1 5 6 E 30 5 3 4 4 E 85 3 4 3 3 800 -597 -9747 Latent Heat Net Energy Value (BTU/gal) (MJ/kg) Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 28

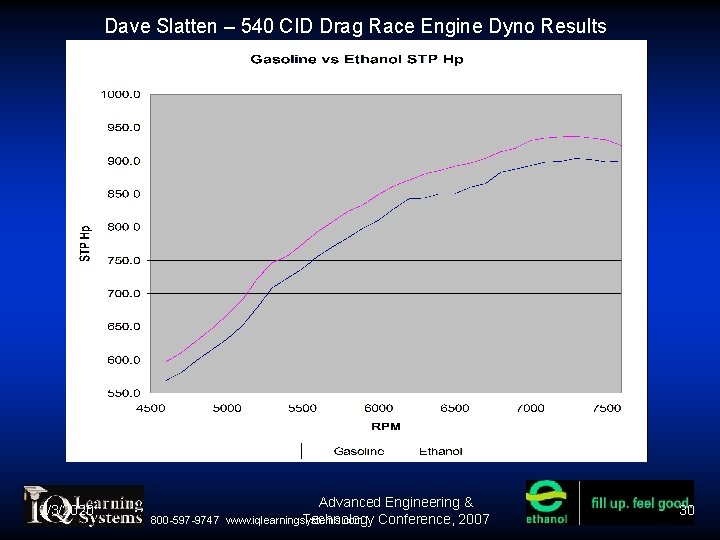

Dave Slatten – 540 CID Drag Race Engine Dyno Results 12/3/2020 800 -597 -9747

Dave Slatten – 540 CID Drag Race Engine Dyno Results 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 29

Dave Slatten – 540 CID Drag Race Engine Dyno Results 12/3/2020 800 -597 -9747

Dave Slatten – 540 CID Drag Race Engine Dyno Results 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 30

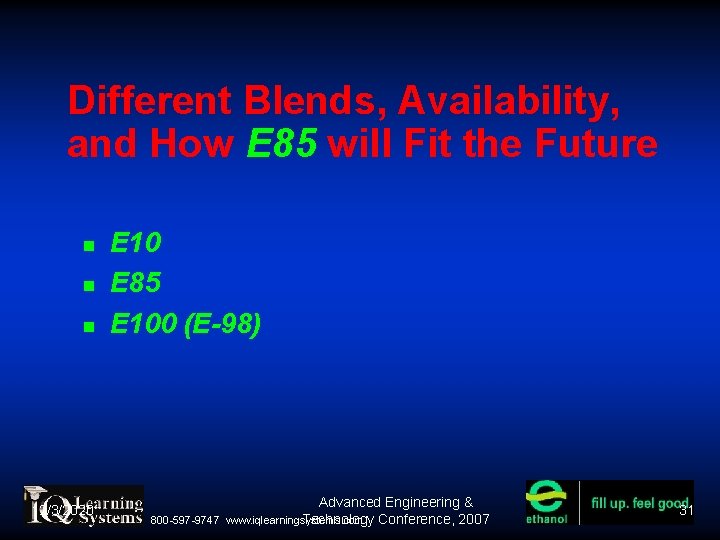

Different Blends, Availability, and How E 85 will Fit the Future 12/3/2020 E 10

Different Blends, Availability, and How E 85 will Fit the Future 12/3/2020 E 10 E 85 E 100 (E-98) 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 31

Application Specifics, a Review of Compatibility of Parts, Corrosion, etc. E 10: 1. Passenger

Application Specifics, a Review of Compatibility of Parts, Corrosion, etc. E 10: 1. Passenger car-compliant for decades. A simple replacement fuel 2. Reduced emissions/oxygenate 3. MTBE replacement 4. Promotes clean fuel injectors 5. Octane booster 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 32

 E 85: 1. Requires vehicle modifications 2. “Flex Fuel” vehicle (FFV) – identified

E 85: 1. Requires vehicle modifications 2. “Flex Fuel” vehicle (FFV) – identified by a gas cap insignia 3. Ethanol-compatible fuel tank, pump, lines, etc. 4. Modified air/fuel ratio: enriched air/fuel ratio (approx. 25 -28%) or specialized sensors and computer programming 5. Additional changes and race car handling considerations 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 33

 E 100 (E 98): 1. Contains 98% ethanol and 2% denaturing chemical 2.

E 100 (E 98): 1. Contains 98% ethanol and 2% denaturing chemical 2. Race-only fuel (IRL series) 3. Extremely hygroscopic 4. May require “top oil” and post-race “pickling” procedures. 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 34

How to Optimize for Effective Use of Ethanol as a Performance Fuel 12/3/2020 Know

How to Optimize for Effective Use of Ethanol as a Performance Fuel 12/3/2020 Know Your Fuel – Determine Actual Ethanol Content Fuel System Modifications Engine Modifications Handling and Storage Racing E 85 Fuel 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 35

 Know Your Fuel – Determine Actual Ethanol Content The actual ethanol content of

Know Your Fuel – Determine Actual Ethanol Content The actual ethanol content of E 85 varies widely by the time of year and pump-to-pump. For our easy Four. Step Titration Method, you will need: 1. 100 ml. graduated cylinder & stopper 2. Sample of test E 85 fuel 3. Distilled water 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 36

Six-Step Water Titration Method, for E 85 Step 1: Fill the cylinder to the

Six-Step Water Titration Method, for E 85 Step 1: Fill the cylinder to the 50 ml. mark with the test fuel. 800 -597 -9747 www. iqlearningsystems. com

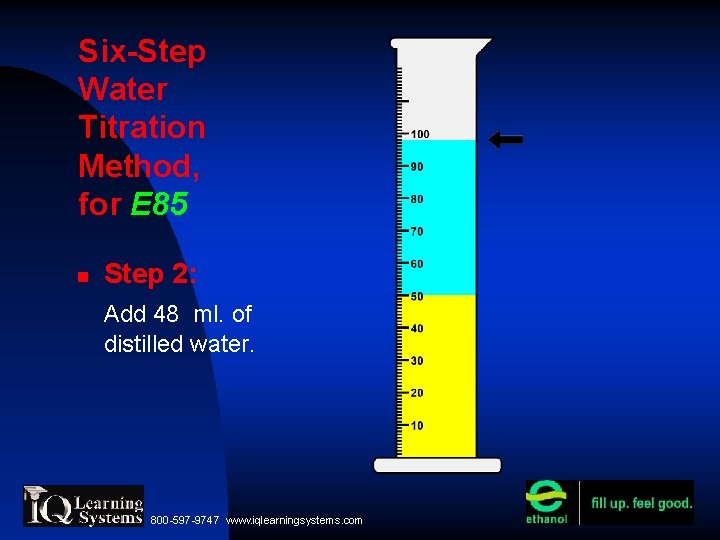

Six-Step Water Titration Method, for E 85 Step 2: Add 48 ml. of distilled

Six-Step Water Titration Method, for E 85 Step 2: Add 48 ml. of distilled water. 800 -597 -9747 www. iqlearningsystems. com

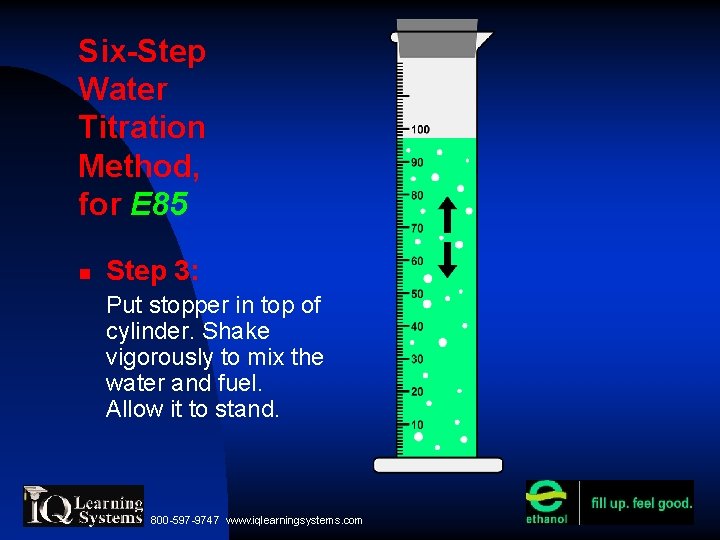

Six-Step Water Titration Method, for E 85 Step 3: Put stopper in top of

Six-Step Water Titration Method, for E 85 Step 3: Put stopper in top of cylinder. Shake vigorously to mix the water and fuel. Allow it to stand. 800 -597 -9747 www. iqlearningsystems. com

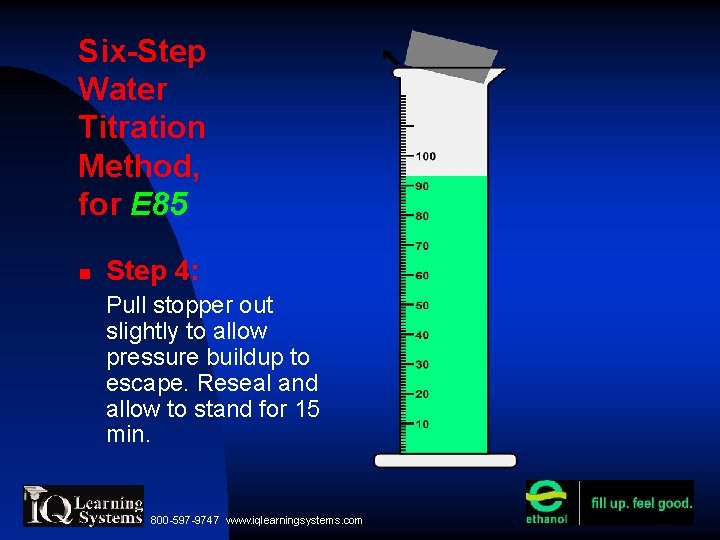

Six-Step Water Titration Method, for E 85 Step 4: Pull stopper out slightly to

Six-Step Water Titration Method, for E 85 Step 4: Pull stopper out slightly to allow pressure buildup to escape. Reseal and allow to stand for 15 min. 800 -597 -9747 www. iqlearningsystems. com

Six-Step Water Titration Method, for E 85 Step 5: Write down the overall Volume

Six-Step Water Titration Method, for E 85 Step 5: Write down the overall Volume A and the separation line Volume B. 800 -597 -9747 www. iqlearningsystems. com

 Step 6: Apply this formula to determine gasoline content: Percent Gasoline = 2.

Step 6: Apply this formula to determine gasoline content: Percent Gasoline = 2. 1 + 1. 94 (Volume A – Volume B) 2. 1 + 1. 94 (93 -86) 2. 1 + 1. 94 (7) 2. 1 + 13. 58 Percent Gasoline = 15. 68% To find the ethanol content, subtract the percentage gasoline content (15. 68) from 100: 100 – 15. 68 = 84. 32% or approx. E 85 800 -597 -9747 www. iqlearningsystems. com

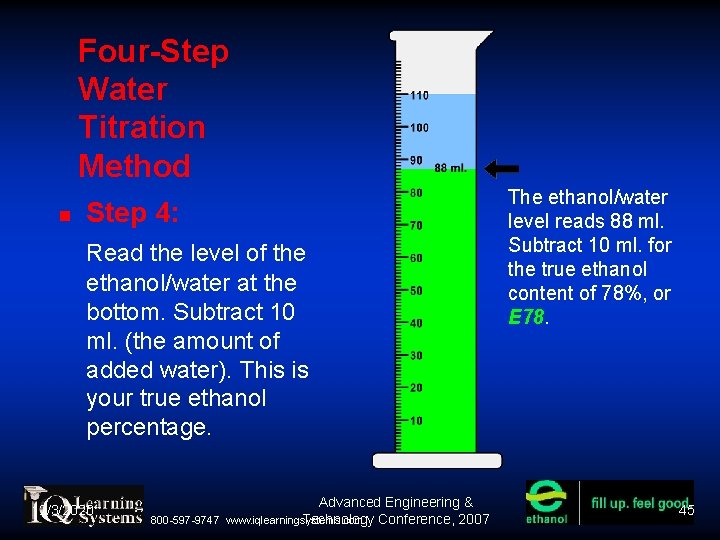

Four-Step Water Titration Method Step 4: Read the level of the ethanol/water at the

Four-Step Water Titration Method Step 4: Read the level of the ethanol/water at the bottom. Subtract 10 ml. (the amount of added water). This is your true ethanol percentage. 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com The ethanol/water level reads 88 ml. Subtract 10 ml. for the true ethanol content of 78%, or E 78. 43

Four-Step Water Titration Method Step 3: Put stopper in top of cylinder. Shake vigorously

Four-Step Water Titration Method Step 3: Put stopper in top of cylinder. Shake vigorously to mix the water and fuel. Allow it to stand. The ethanol/water mix will fall to the bottom of the cylinder. 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 44

Four-Step Water Titration Method Step 4: Read the level of the ethanol/water at the

Four-Step Water Titration Method Step 4: Read the level of the ethanol/water at the bottom. Subtract 10 ml. (the amount of added water). This is your true ethanol percentage. 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com The ethanol/water level reads 88 ml. Subtract 10 ml. for the true ethanol content of 78%, or E 78. 45

 Fuel System Modifications To make your race vehicle E 85 compatible, you must

Fuel System Modifications To make your race vehicle E 85 compatible, you must inspect the following and make any needed changes: 1. Correct fuel tank type & size 2. Vented gas cap 3. Compatible fuel pump – correct type and capacity 4. Compatible carburetor/injectors 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 46

 Engine Modifications Protect your engine and take full advantage of the power-making capability

Engine Modifications Protect your engine and take full advantage of the power-making capability of E 85 fuel: 1. Utilize ethanol-compatible motor oil 2. Increase engine static compression ratio 3. Increase engine dynamic compression 4. Adjust air/fuel ratio 5. Adjust spark timing 6. Experiment with spark timing correction 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 47

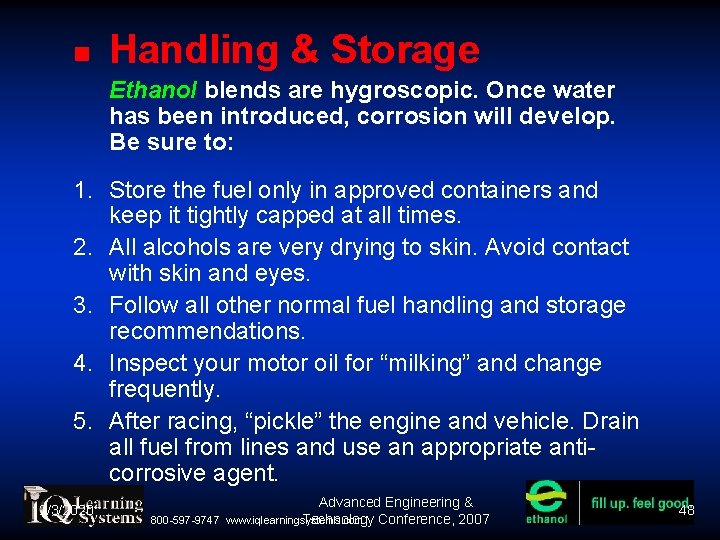

 Handling & Storage Ethanol blends are hygroscopic. Once water has been introduced, corrosion

Handling & Storage Ethanol blends are hygroscopic. Once water has been introduced, corrosion will develop. Be sure to: 1. Store the fuel only in approved containers and keep it tightly capped at all times. 2. All alcohols are very drying to skin. Avoid contact with skin and eyes. 3. Follow all other normal fuel handling and storage recommendations. 4. Inspect your motor oil for “milking” and change frequently. 5. After racing, “pickle” the engine and vehicle. Drain all fuel from lines and use an appropriate anticorrosive agent. 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 48

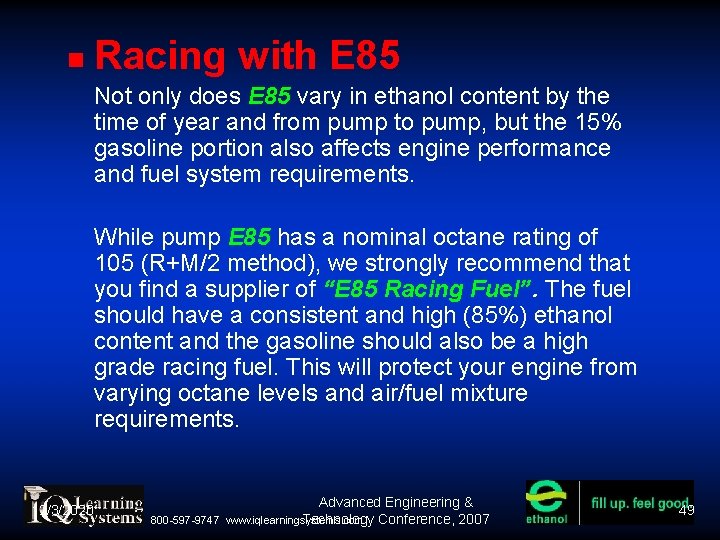

 Racing with E 85 Not only does E 85 vary in ethanol content

Racing with E 85 Not only does E 85 vary in ethanol content by the time of year and from pump to pump, but the 15% gasoline portion also affects engine performance and fuel system requirements. While pump E 85 has a nominal octane rating of 105 (R+M/2 method), we strongly recommend that you find a supplier of “E 85 Racing Fuel”. The fuel should have a consistent and high (85%) ethanol content and the gasoline should also be a high grade racing fuel. This will protect your engine from varying octane levels and air/fuel mixture requirements. 12/3/2020 800 -597 -9747 Advanced Engineering & Technology Conference, 2007 www. iqlearningsystems. com 49
