Proses defect testing Blackbox testing Pendekatan pengujian dimana
Proses defect testing
Black-box testing • Pendekatan pengujian dimana program dianggap sebagai suatu ‘black-box’ (‘kotak hitam’) • Program test case berbasiskan spesifikasi • Test planning dapat dimulai sejak awal proses pengembangan sistem

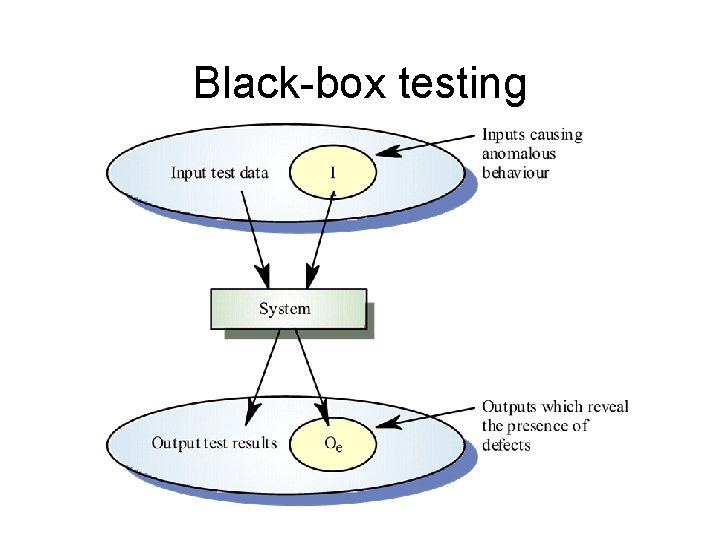

Black-box testing
Equivalence partitioning • Input data dan output hasil terdapat di klas yang berbeda yang sesuai dengan klas inputnya • Masing-masing klas equivalensi partition diprosres dimana program akan memproses anggota klas-klas tersebut secara equivale. • Test cases dipilih dari masing-masing partisi
Equivalence partitioning
Equivalence partitioning • Partition system inputs and outputs into ‘equivalence sets’ – If input is a 5 -digit integer between 10000 and 99999, equivalence partitions are <10000, 10000 -99999 and > 100000 • Choose test cases at the boundary of these sets – 00000, 9999, 10000, 99999, 100001
Equivalence partitions
Search routine specification procedure Search (Key : ELEM ; T: ELEM_ARRAY; Found : in out BOOLEAN; L: in out ELEM_INDEX) ; Pre-condition -- the array has at least one element T’FIRST <= T’LAST Post-condition -- the element is found and is referenced by L ( Found and T (L) = Key) or -- the element is not in the array ( not Found and not (exists i, T’FIRST >= i <= T’LAST, T (i) = Key ))
Search routine - input partitions • Inputs yang sesuai dg pre-conditions • Inputs yang tidak sesuai pre-condition • Inputs dimana key element ada di dalam array • Inputs dimana key element tidak terdapat di dalam array

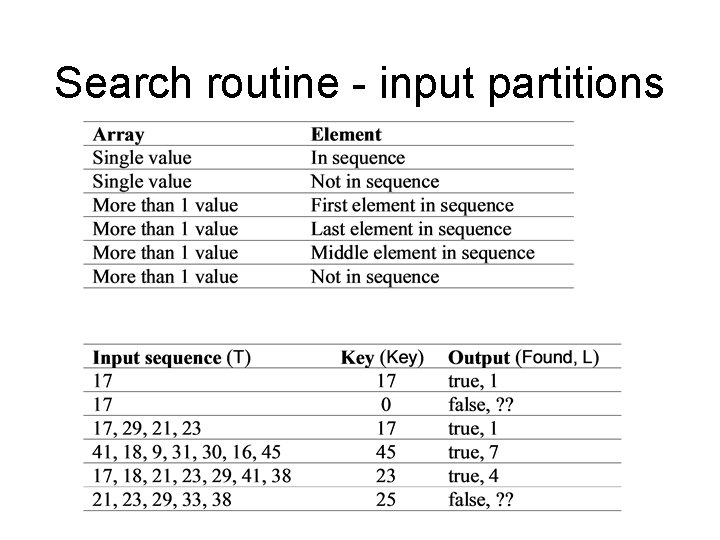

Search routine - input partitions
Structural testing • Disebut juga white-box testing • Penentuan test case disesuaikan dengan struktur sistem. Knowledge program digunakan untuk mengidentifikasi test case tambahan. • Tujuannya untuk menguji semua statement program (debug).
White-box testing
Path testing • Tujuannya meyakinkan bahwa himpunan test case akan menguji setiap path pada suatu program paling sedikit satu kali. • Titik awal untuk path testing adalah suatu program flow graph yang menunjukkan node yang menyatakan program decisions (mis. : if-then-else condition) dan busur menyatakan alur kontrol • Statements dengan conditions adalah node dalam flow graf.

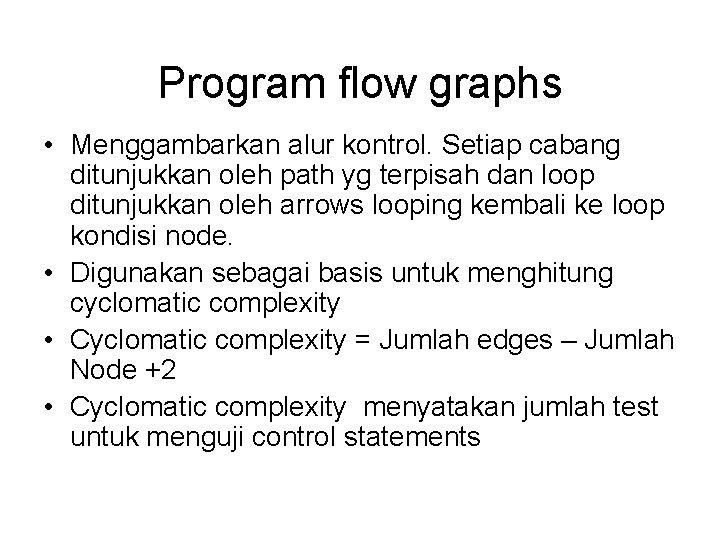

Program flow graphs • Menggambarkan alur kontrol. Setiap cabang ditunjukkan oleh path yg terpisah dan loop ditunjukkan oleh arrows looping kembali ke loop kondisi node. • Digunakan sebagai basis untuk menghitung cyclomatic complexity • Cyclomatic complexity = Jumlah edges – Jumlah Node +2 • Cyclomatic complexity menyatakan jumlah test untuk menguji control statements
Binary search flow graph
Independent paths • • • 1, 2, 3, 8, 9 1, 2, 3, 4, 6, 7, 2 1, 2, 3, 4, 5, 7, 2 1, 2, 3, 4, 6, 7, 2, 8, 9 Test cases harus ditentukan sehingga semua path tsb tereksekusi.
