Phoenix Controls Corporation—Proprietary and Confidential

Phoenix Controls Corporation—Proprietary and Confidential

Update ® Review of Laboratory Airflow Control System - The Phoenix Controls SYSTEM §

Update ® Review of Laboratory Airflow Control System - The Phoenix Controls SYSTEM § Innovations in critical environmental control § Energy savings applications § Saving Energy at The Ohio State University ® A working laboratory? Phoenix Controls Corporation—Proprietary and Confidential

Laboratory Ventilation Phoenix Controls Corporation—Proprietary and Confidential

Laboratory Ventilation Phoenix Controls Corporation—Proprietary and Confidential

Laboratory Ventilation Key Issues ® ® ® Safety ! Fume hood containment Room pressurization

Laboratory Ventilation Key Issues ® ® ® Safety ! Fume hood containment Room pressurization Speed of response to changes in airflow demand or static pressure Air Change Rates Temperature Control Energy Conservation Phoenix Controls Corporation—Proprietary and Confidential

Accel® II Venturi Valve ® ® ® ® ® Integrates over 30 years of

Accel® II Venturi Valve ® ® ® ® ® Integrates over 30 years of development and experience and with over 200 improvements Specially-designed conical diffuser Inlet/Outlet insensitivity Reduced low frequency noise Wide turndown range (up to 20: 1) Precise repeatable positioning No routine maintenance Made in the USA Pneumatic and electric actuators available - High speed for critical applications - “Normal” speed for health care and flow tracking applications Phoenix Controls Corporation—Proprietary and Confidential

The Phoenix Controls Legacy “We Don’t Measure Flow” ® Flow Metering vs. Flow Measuring

The Phoenix Controls Legacy “We Don’t Measure Flow” ® Flow Metering vs. Flow Measuring - Flow measuring has a limited range of - operation. Flow measuring requires long, straight duct runs (not available in most applications). Flow measuring is prone to inaccuracies due to the caustic nature of laboratory exhaust air Flow measuring has inherent time lags due to airflow dynamics Flow measuring requires periodic maintenance Phoenix Controls Corporation—Proprietary and Confidential

Factory Calibration ® Drastically Reduces Commissioning Time - Can be pre-commissioned before supply and

Factory Calibration ® Drastically Reduces Commissioning Time - Can be pre-commissioned before supply and exhaust air is connected - No sensors to set up or flows to adjust - No routine maintenance requirements Phoenix Controls Corporation—Proprietary and Confidential

Factory Calibration Phoenix Controls Corporation—Proprietary and Confidential

Factory Calibration Phoenix Controls Corporation—Proprietary and Confidential

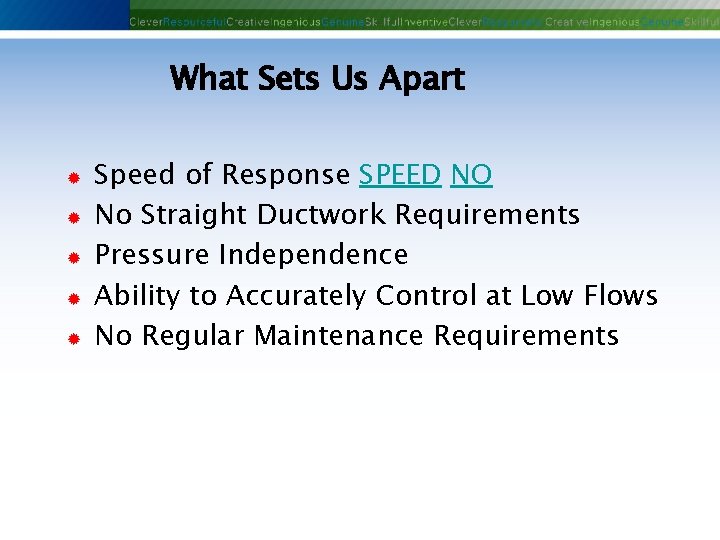

What Sets Us Apart ® ® ® Speed of Response SPEED NO No Straight

What Sets Us Apart ® ® ® Speed of Response SPEED NO No Straight Ductwork Requirements Pressure Independence Ability to Accurately Control at Low Flows No Regular Maintenance Requirements Phoenix Controls Corporation—Proprietary and Confidential

Speed of Response Phoenix Controls Corporation—Proprietary and Confidential

Speed of Response Phoenix Controls Corporation—Proprietary and Confidential

No Straight Duct Runs Phoenix Controls Corporation—Proprietary and Confidential

No Straight Duct Runs Phoenix Controls Corporation—Proprietary and Confidential

Intersystem Stability Phoenix Controls Corporation—Proprietary and Confidential

Intersystem Stability Phoenix Controls Corporation—Proprietary and Confidential

What Sets Us Apart ® No Routine Maintenance Requirements - System continues safe operation

What Sets Us Apart ® No Routine Maintenance Requirements - System continues safe operation - System continues to save energy - Drastically reduces maintenance cost - Saves Money § Energy Costs § Maintenance Costs Phoenix Controls Corporation—Proprietary and Confidential

Traditional Applications ® Laboratories - One second speed of response - Accuracy and turndown

Traditional Applications ® Laboratories - One second speed of response - Accuracy and turndown § Dynamic fume hood face velocity control § Accurate room pressurization - No routine maintenance requirements - Interface to building management system ® Vivariums Phoenix Controls Corporation—Proprietary and Confidential

Valve Enhancements Shutoff Valve Phoenix Controls Corporation—Proprietary and Confidential

Valve Enhancements Shutoff Valve Phoenix Controls Corporation—Proprietary and Confidential

Applications ® ® Developed for VHP gaseous decontamination Other opportunities - HVAC isolation -

Applications ® ® Developed for VHP gaseous decontamination Other opportunities - HVAC isolation - Canopies - Biosafety cabinet shut‐down while unoccupied - Teaching hoods Phoenix Controls Corporation—Proprietary and Confidential

Shut‐off Leakage (L) Static Pressure (Pascal) < 0. 005 CFM— 10‐inch valve! Static Pressure

Shut‐off Leakage (L) Static Pressure (Pascal) < 0. 005 CFM— 10‐inch valve! Static Pressure (in WC) Phoenix Controls Corporation—Proprietary and Confidential

System Enhancements Traccel/Theris System Phoenix Controls Corporation—Proprietary and Confidential

System Enhancements Traccel/Theris System Phoenix Controls Corporation—Proprietary and Confidential

Airflow Why traditional VAV controls don’t work: Phoenix Controls Corporation—Proprietary and Confidential

Airflow Why traditional VAV controls don’t work: Phoenix Controls Corporation—Proprietary and Confidential

Overview ® ® One valve controller with surplus I/O Standard actuator for VAV temperature

Overview ® ® One valve controller with surplus I/O Standard actuator for VAV temperature control Flow tracking with volumetric offset Superior room pressurization and directional airflow control Phoenix Controls Corporation—Proprietary and Confidential

Traccel/Theris Room Controller‐TP Phoenix Controls Corporation—Proprietary and Confidential

Traccel/Theris Room Controller‐TP Phoenix Controls Corporation—Proprietary and Confidential

Traccel‐TP Multiple Temp Zones Client Benefits ® ® ® ® Tracking pair VAV ensures

Traccel‐TP Multiple Temp Zones Client Benefits ® ® ® ® Tracking pair VAV ensures directional airflow Occupancy control Room temperature control HVAC emergency modes Additional TRIAC for floating‐point reheat Flexible I/O— 14 per I/O Humidity control (UI 4) Shut‐off capability Traccel controllers working together to maintain accurate pressure control Phoenix Controls Corporation—Proprietary and Confidential

Traccel‐TX BSC Alcove Benefits ® Tracking pair VAV ensures directional airflow ® Occupancy control

Traccel‐TX BSC Alcove Benefits ® Tracking pair VAV ensures directional airflow ® Occupancy control ® Room temperature control ® HVAC emergency modes ® Additional TRIAC for floating‐point reheat ® Flexible I/O– 14 per I/O ® Humidity control (UI 4) ® Shut‐off capability Flexibility to accommodate decontamination in the future or shut‐down when not in use Phoenix Controls Corporation—Proprietary and Confidential

Energy Saving Products and Applications What does One (1) CFM of “Single Pass” Air

Energy Saving Products and Applications What does One (1) CFM of “Single Pass” Air cost to heat and cool at The Ohio State University? Phoenix Controls Corporation—Proprietary and Confidential

What Can Be Done? ® 6 energy saving trends in Laboratory Airflow Controls -

What Can Be Done? ® 6 energy saving trends in Laboratory Airflow Controls - Usage Based Controls® - Fume hood decommissioning - Energy waste alert - Unoccupied settings - IAQ control ventilation Phoenix Controls Corporation—Proprietary and Confidential

Proven Energy Saving Concepts Phoenix Controls Corporation—Proprietary and Confidential

Proven Energy Saving Concepts Phoenix Controls Corporation—Proprietary and Confidential

Usage Based Controls® Phoenix Controls Corporation—Proprietary and Confidential

Usage Based Controls® Phoenix Controls Corporation—Proprietary and Confidential

Lab Usage Patterns Usage Based Controls ® ® ® 24‐hour operation 100% outside air

Lab Usage Patterns Usage Based Controls ® ® ® 24‐hour operation 100% outside air (no recirculation) Hood occupancy in short segments Total hood usage typically one hour per day and independent Sash management varies widely Phoenix Controls Corporation—Proprietary and Confidential

Zone Presence Sensor® Usage Based Controls ® ® Available since the mid‐ 1990’s One

Zone Presence Sensor® Usage Based Controls ® ® Available since the mid‐ 1990’s One ZPS® per 8' hood - Can be used in series for wider hoods ® Field programmable via a USB port - Detection zone - Setback times and values - Lighting adjustments - Motion sensitivity Phoenix Controls Corporation—Proprietary and Confidential

Usage Based Controls Phoenix Controls Corporation—Proprietary and Confidential

Usage Based Controls Phoenix Controls Corporation—Proprietary and Confidential

Sample Building Energy Costs UBC

Sample Building Energy Costs UBC

Fume Hood Decommissioning Phoenix Controls Corporation—Proprietary and Confidential

Fume Hood Decommissioning Phoenix Controls Corporation—Proprietary and Confidential

Concept Fume Hood Decommissioning ® ® Ability to reduce or turn off fume hood

Concept Fume Hood Decommissioning ® ® Ability to reduce or turn off fume hood exhaust when not in use Potential for huge energy savings - Teaching labs or hoods rarely used - Buildings not occupied - Understaffed research facilities ® Valve options - Valve minimum (i. e. , 90 CFM) - Shut‐off Valves (i. e. , 0‐ 5 CFM) Phoenix Controls Corporation—Proprietary and Confidential

Function and Operation Fume Hood Decommissioning ® Can be initiated by: - Fume Hood

Function and Operation Fume Hood Decommissioning ® Can be initiated by: - Fume Hood Monitor § Button sequence - External key switch - BMS command ® Ensures safety - Sash must be fully closed to initiate mode - Mode is automatically exited if sash is opened Phoenix Controls Corporation—Proprietary and Confidential

Energy Waste Alert Phoenix Controls Corporation—Proprietary and Confidential

Energy Waste Alert Phoenix Controls Corporation—Proprietary and Confidential

Concept and Operation Energy Waste Alert ® Notification when sash is left open and

Concept and Operation Energy Waste Alert ® Notification when sash is left open and lab lights are off ® Features - Light sensor incorporated in monitor - Provides audible alarm - Displays "Enr. G" on monitor ® Reminder to close the sashes at night Phoenix Controls Corporation—Proprietary and Confidential

Unoccupied Settings Phoenix Controls Corporation—Proprietary and Confidential

Unoccupied Settings Phoenix Controls Corporation—Proprietary and Confidential

Unoccupied Settings ® Celeris®, Theris™ and Traccel® digital platforms - Lower ACH - Relaxed

Unoccupied Settings ® Celeris®, Theris™ and Traccel® digital platforms - Lower ACH - Relaxed temperature control - Triggered locally or via BMS schedule ® Retrofit existing analog systems - Lower ACH Phoenix Controls Corporation—Proprietary and Confidential

IAQ Control Phoenix Controls Corporation—Proprietary and Confidential

IAQ Control Phoenix Controls Corporation—Proprietary and Confidential

Two Ventilation Concepts IAQ Control ® Air change rates - Reduce minimum ACH when

Two Ventilation Concepts IAQ Control ® Air change rates - Reduce minimum ACH when air is "clean" - Drive to higher ACH when contamination is detected Phoenix Controls Corporation—Proprietary and Confidential

Lab Application: Next Generation VAV Control ® Lab Multi-parameter DCV: Dynamic control of min.

Lab Application: Next Generation VAV Control ® Lab Multi-parameter DCV: Dynamic control of min. ACH - Now all three factors affecting lab airflow can be varied - Significantly cuts energy & first cost, while enhancing Ventilation rate (cfm) safety Constant Significant energy waste VAV Hoods VAV 6 -12 ACH 10 -20 ACH* VAV 2 - 4 ACH 68 ACH* *vivariums Thermal Load Phoenix Controls Corporation—Proprietary and Confidential ACH / Dilution Requirement

Function and Operation IAQ Control ® ® ® Input from Opti. Net® system to

Function and Operation IAQ Control ® ® ® Input from Opti. Net® system to Laboratory Airflow Control System. Applications in laboratories, vivariums, classroom buildings throughout campus Significant Retrofit Opportunities Phoenix Controls Corporation—Proprietary and Confidential

A New Approach: Opti. Net Multiplexed Facility Monitoring ® Opti. Net routes multiplexed air

A New Approach: Opti. Net Multiplexed Facility Monitoring ® Opti. Net routes multiplexed air samples to central sensors - Integrated into BMS for monitoring & control Web Based User Interface Sensor Suite BMS Room 101 Room 102 AHU 2 -1 Phoenix Controls Corporation—Proprietary and Confidential

Opti. Net: A Facility Wide Sensing Infrastructure Customer Analysis 3 rd Party Analysis Space

Opti. Net: A Facility Wide Sensing Infrastructure Customer Analysis 3 rd Party Analysis Space Airflow Controller BMS Monitoring Phoenix Controls Corporation—Proprietary and Confidential High Quality Sensors

Sensed Parameters ® Air Cleanliness - Total Volatile Organic Compounds § Includes ammonia -

Sensed Parameters ® Air Cleanliness - Total Volatile Organic Compounds § Includes ammonia - Particles – laser based particle counter - Carbon Monoxide (CO) ® Comfort &Ventilation - Temperature - Humidity or Dewpoint - Carbon Dioxide (CO 2) Phoenix Controls Corporation—Proprietary and Confidential

Lab Monitoring Also Helps Ensure Lab Safety ® Validates the safe operation of a

Lab Monitoring Also Helps Ensure Lab Safety ® Validates the safe operation of a lab - Detect improper bench use of chemicals - Detect poorly containing fume hoods - Spills & rogue reactions rapidly sensed - Check lab pressurization, T & RH - Validates safe IEQ room conditions for animals ® Allows for safer lab airflow control - Increased hood capture from reduced drafts § Drops room flows when dilution not needed - Greater dilution provided for spills, leaks, etc. § 12 to 15 ACH’s can be provided automatically ® Sources of leaks & emissions can be found - With fact based data, source controls can be used Phoenix Controls Corporation—Proprietary and Confidential

Opti. Net Architecture Opti. Net Structured Cable Room Sensor Outdoor Air Probe Air Data

Opti. Net Architecture Opti. Net Structured Cable Room Sensor Outdoor Air Probe Air Data Router True Differential Air Sensing Packets are Routed then Sensed ØCarbon Dioxide ØChemicals/Odors ØParticulates ØHumidity/Dewpoint ØCarbon Monoxide ØTemperature (Local) Sensor Suite Server Vacuum Pump Connectivity Phoenix Controls Corporation—Proprietary and Confidential Web Based User Interface

Cost Effective LEED NC Points ® Energy & Atmosphere: up to 4 pts. -

Cost Effective LEED NC Points ® Energy & Atmosphere: up to 4 pts. - EA - 1: Optimize energy: up to ~ 4+ pts. ® IEQ potential: 3 pts. - EQ - 1 : Permanent CO 2 / O. A. Monitoring - EQ - 3. 2: Construction IAQ Mgmt Plan - EQ - 7. 2: Permanent Comfort Monitoring ® Innovation in Design potential: 2 pts. - IEQ monitoring point: § Exceeds EQ 1 - CO 2 Monitoring - Real time commissioning point: § Exceeds EA 3 – Additional Commissioning Controls and Confidential Potential of up to 9 Phoenix LEED NCCorporation—Proprietary points

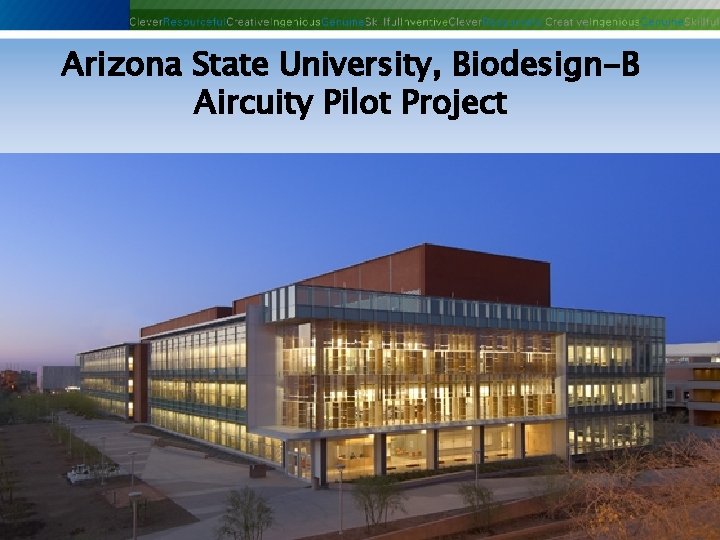

Arizona State University, Biodesign-B Aircuity Pilot Project Phoenix Controls Corporation—Proprietary and Confidential

Arizona State University, Biodesign-B Aircuity Pilot Project Phoenix Controls Corporation—Proprietary and Confidential

ASU Biodesign-B Energy Savings w/ Aircuity Phoenix Controls Corporation—Proprietary and Confidential

ASU Biodesign-B Energy Savings w/ Aircuity Phoenix Controls Corporation—Proprietary and Confidential

ASU Biodesign-B Energy Savings w/ Aircuity Phoenix Controls Corporation—Proprietary and Confidential

ASU Biodesign-B Energy Savings w/ Aircuity Phoenix Controls Corporation—Proprietary and Confidential

What it all means… ® ® ® Like most life-sciences labs, the airflows in

What it all means… ® ® ® Like most life-sciences labs, the airflows in Biodesign-B are primarily ventilation driven. Most labs in Biodesign-B are over-ventilated Average ventilation flows can be safely reduced by >50% when monitoring air cleanliness and responding to spills, etc. There are HUGE energy savings with FAST payback! Several other soft benefits too! - Safer hood operation - Quieter labs - Documented performance Phoenix Controls Corporation—Proprietary and Confidential

OSU Energy Initiative? 20% Energy Savings? Phoenix Controls Corporation—Proprietary and Confidential

OSU Energy Initiative? 20% Energy Savings? Phoenix Controls Corporation—Proprietary and Confidential

Constant Volume Design What Can Be Done? • Nothing • Constant Volume Fume Hood

Constant Volume Design What Can Be Done? • Nothing • Constant Volume Fume Hood • Tracking Exhaust/Supply • Occupied/Unoccupied CVV Tracking T Exhaust Valve • Reset on Air Quality • Two Position fume Hood Control • Sash Switch Constant Volume Fume Hood Supply Valve • Usage Based Controls • Variable Volume Fume Hood Control Phoenix Controls Corporation—Proprietary and Confidential

New “Smart Fan” Control ® ® Assures safe dilution and plume height Reduces exhaust

New “Smart Fan” Control ® ® Assures safe dilution and plume height Reduces exhaust system horsepower - Significant Energy Savings Phoenix Controls Corporation—Proprietary and Confidential

Integration Options Phoenix Controls Corporation—Proprietary and Confidential

Integration Options Phoenix Controls Corporation—Proprietary and Confidential

A “Working” Laboratory How Do you Define a “Working Lab? ” Phoenix Controls Corporation—Proprietary

A “Working” Laboratory How Do you Define a “Working Lab? ” Phoenix Controls Corporation—Proprietary and Confidential

A “Working” Laboratory ® ® What checkpoints are in place to assure that labs

A “Working” Laboratory ® ® What checkpoints are in place to assure that labs are working? Are specifications being met? - What are the consequences? - What documentation of performance is required? - Who suffers if the specification is not met? Phoenix Controls Corporation—Proprietary and Confidential

Laboratory Recommissioning ® Documents laboratory performance - Fume hood face velocities - Lab pressurization

Laboratory Recommissioning ® Documents laboratory performance - Fume hood face velocities - Lab pressurization - Energy Usage ® Identifies Energy Savings Opportunities - Airflow reduction - Static pressure reduction - Other opportunities Phoenix Controls Corporation—Proprietary and Confidential

Our Commitment ® ® ® Superior system performance Local, factory certified technicians starting up

Our Commitment ® ® ® Superior system performance Local, factory certified technicians starting up each project Full commissioning of each system - Airflow checked for each laboratory condition - We strive to make system “fail” instead of the easy route to pass. ® ® ® Contractor Support Three year warranty on all equipment Project budget is maintained Phoenix Controls Corporation—Proprietary and Confidential

Our Next Step? Thank You Phoenix Controls Corporation—Proprietary and Confidential

Our Next Step? Thank You Phoenix Controls Corporation—Proprietary and Confidential
