Oracle. AS 10 G SSO: A “Fan-Out” Configuration Overview for Decentralized Implementation Presented By: Tony Macedo "This work was performed under the auspices of the U. S. Department of Energy by Lawrence Livermore National Laboratory under contract no. W 7405 -Eng-48" or "This work was performed under the auspices of the U. S. DOE by LLNL under contract no. W-7405 -Eng-48. "

Agenda ¨ Business Problem Definition ¨ “Fan-Out” Configuration Definition ¨ “Fan-Out” Componentry ¨ Centralized v. “Fan-Out” SSO Models ¨ “Fan-Out” SSO Design Benefits ¨ “Fan-Out” SSO Implementation Options ¨ LLNL Implementation Overview ¨ Implementation Details ¨ Lessons Learned

Business Problem Definition ¨ Business Problems: – How can you implement a centralized Single Sign-on (SSO) scheme when your IT organizations are structured in a highly decentralized manner? – How can you provide infrastructure management autonomy while supporting a centralized SSO scheme?

“Fan-Out” Configuration Definition ¨ Definition: – A “Fan-Out” SSO configuration is a particular scheme for implementing Oracle. AS 10 G Infrastructure instance installations. This configuration scheme supports the following: • Central repository of user information • Automatic replication to “Fan-Out” instances • Centralized or decentralized SSO, DAS and Repository Services implementations

“Fan-Out” Componentry ¨ Infrastructure Instance(s) ¨ Single Sign-on (SSO via MOD_OSSO as a Partner Application) ¨ Delegated Administration Services (DAS) ¨ Oracle Internet Directory (OID - including OIDMON, OIDLDAPD, and OIDREPLD) ¨ Metadata Repository (Oracle. ASDB)

Centralized v. “Fan-Out” SSO Models ¨ Centralized – Centrally managed set of OID, SSO, DAS, and Metadata Repository services – All centralized & decentralized Oracle. AS instances install into the Central/Master Infrastructure Repository – Authentication & Authorization are centrally managed – Centralized SSO administrator(s) must coordinate maintenance activities with the Decentralized Oracle. AS administrators – Repository and OID maintenance must be conducted by centralized SSO, OID and Repository administrators when required by decentralized application server administrators ¨ Fan-out – Decentralized set of OID, SSO, DAS, and Metadata Repository services that are coupled to a Master via LDAP replication – Decentralized Oracle. AS instances install into a “local” Infrastructure Repository – Authentication & Authorization can be centrally or de-centrally managed depending upon requirements – Centralized SSO administrator(s) are still required to coordinate maintenance activities with the Decentralized Oracle. AS administrators; but to a lesser extent than centralized – “Local” repository and OID maintenance can be conducted by the “decentralized” application server administrators when required

Centralized SSO

“Fan-Out” SSO

“Fan-Out” SSO Design Benefits ¨ Provides autonomous application server and metadata repository management capabilities to decentralized application server administrators (upgrades, local directory pruning, application server instance installations) ¨ Allows for centralized or decentralized SSO and Delegated Administration Service (DAS) configurations ¨ Provides a failure recovery configuration to help guard against the central failure point (NOTE: Requires partner application re-registration)

“Fan-Out” SSO Design Benefits (#2) ¨ Provides bi-directional password management to ensure locally managed accounts update the Central/Master repository ¨ Enables decentralized authorization and Resource Access Descriptor (RAD) management ¨ Enables geographically separated entities to maintain a central authentication and authorization scheme that can be implemented in a decentralized manner (NOTE: Multi-login may be required)

“Fan-Out” SSO Implementation Options ¨ Completely Autonomous “Fan-Out” ¨ Hybrid “Fan-Out” ¨ Metadata Repository Services “Fan-Out”

Completely Autonomous “Fan-Out” ¨ SSO, OID, DAS, & Metadata Repository services run on “Fan-Out” infrastructure instance(s) ¨ No centralized SSO (NOTE: multi-login) ¨ LDAP replicate accounts from Master, and password changes back to master from “Fan -Out” DAS ¨ Application server partner applications only registered with “Fan-Out”

Completely Autonomous “Fan-Out”

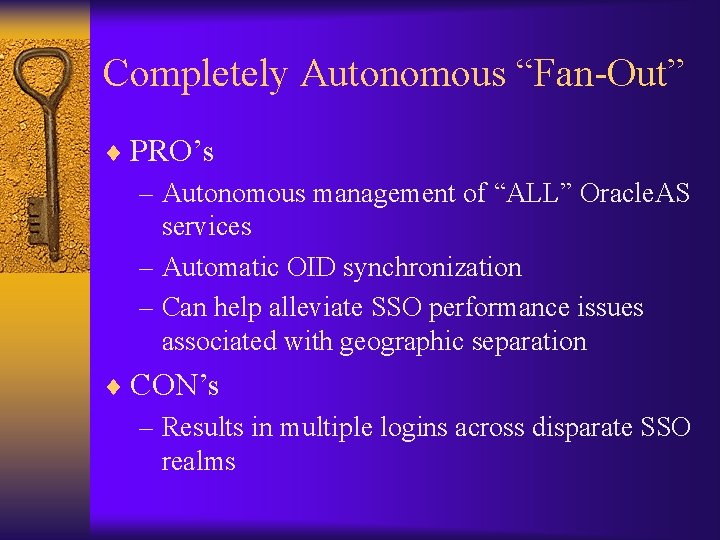

Completely Autonomous “Fan-Out” ¨ PRO’s – Autonomous management of “ALL” Oracle. AS services – Automatic OID synchronization – Can help alleviate SSO performance issues associated with geographic separation ¨ CON’s – Results in multiple logins across disparate SSO realms

Hybrid “Fan-Out” ¨ DAS, OID, & Metadata Repository services run on “Fan-Out” infrastructure instance(s) ¨ SSO runs on Centralized/Master infrastructure instance(s) ¨ LDAP replicate accounts from Master, and password changes back to master from “Fan-Out” DAS ¨ Application server partner applications registered with Centralized/Master infrastructure instance(s)

Hybrid “Fan-Out”

Hybrid “Fan-Out” ¨ PRO’s – Autonomous management of “MOST” Oracle. AS services – Automatic OID synchronization – Supports a true SSO without multi-login – Authorization and RAD management can be conducted in the local repository ¨ CON’s – Centralized SSO service failures will render your decentralized application server instances useless until SSO services are restored

Metadata Repository Services “Fan-Out” ¨ OID & Metadata Repository services run on “Fan-Out” infrastructure instance(s) ¨ SSO & DAS run on Centralized/Master infrastructure instance(s) ¨ LDAP replicate accounts and authorization from Master (i. e. no local DAS) ¨ Application server partner applications registered with Centralized/Master infrastructure instance(s)

Metadata Repository Services “Fan-Out”

Metadata Repository Services “Fan-Out” ¨ PRO’s – Autonomous management of Oracle. AS metadata repository registry information – Automatic OID synchronization – Supports a true SSO without multi-login ¨ CON’s – Centralized SSO service failures will render your decentralized application server instances useless until SSO services are restored – All authorization and RAD management must be conducted in the central repository

LLNL Implementation Overview

Implementation Details ¨ Install Centralized/Master Oracle. AS Infrastructure instance with the “Identity Management with Metadata Repository” option – Select required options

Implementation Details (#2) ¨ Install “Fan-Out” Oracle. AS Infrastructure instance with the “Identity Management with Metadata Repository” option – De-select “ALL” options – Provide OID details of Master when prompted

Implementation Details (#3) ¨ Manually start “Fan-Out” OID after installation completes – NOTE: You should now use OPMNCTL in place of OIDCTL to manage OID processes ¨ Use the Replication Environment Management Tool (REMTOOL) to add the “Fan-Out” node to a replication agreement with the Master node as a “Partial” replica – Make sure to specify the “Master” OID and Port – Specify “*” as the naming context if you want the entire directory replicated, or create another naming context if necessary to reduce the replication scope

Implementation Details (#4) ¨ Perform LDIF dump of Master OID using the LDIFWRITE command – Dump the “cn=oraclecontext”, “cn=oracleschemaversion”, and “cn=[DEFAULT SUBSCRIBER]” entries – NOTE: You can also utilize the “Automatic Bootstrapping” option with the orcl. Included. Namingcontexts and orcl. Excluded. Namingcontexts attributes set to alleviate the need for manual LDAP intervention, and to explicitly limit what Master directory entries are replicated to the “Fan-Out”

Implementation Details (#5) ¨ Load the “Fan-Out” OID with the Master dump using the $ORACLE_HOME/ldap/bin/bulkload. sh script and LDIF files created previously ¨ Start the LDAP Replication daemon on the “Fan. Out” instance ¨ Synchronize the Master and Fan-Out orcl. Last. Applied. Change. Number attributes ¨ Query and apply the Master ACL’s to the Fan-Out instance using the orcl. Entry. Level. ACI attribute ¨ Configure Password Modification Plug-in on “Fan -Out” (NOTE: only if required)

Implementation Details (#6) ¨ Install SSO and/or DAS Oracle. AS Infrastructure instance with the “Identity Management” option – Select SSO and/or DAS options as required

Implementation Details (#7) ¨ Install Oracle. AS instances – Make note of the Centralized/Master & “Fan-Out” OID port numbers, server names and repository names so that the correct values can be supplied when requested

Lessons Learned ¨ Oracle will work with you to mature their products to better meet your business needs when requested ¨ Make sure to select the Oracle. AS Infrastructure design that is consistent with your IT organizational structure ¨ Make sure to analyze “ALL” Oracle. AS Infrastructure instance configuration options before you finalize your design ¨ A “Fan-Out” SSO configuration does successfully enable decentralized IT organizations to participate in a centrally managed SSO scheme

Contact Information ¨ Tony Macedo – Macedo 3@llnl. gov
