ONONDAGA CREEK NEAR SYRACUSE NY SITE 5 D

ONONDAGA CREEK, NEAR SYRACUSE, NY. SITE 5 -D & OTHER REACHES {Engineered Rocked Riffles (with all stones in compression), Traffic Control Stones, LPSTP, transplanted Vegetation, a Boil-Up Pool, & a Viffle} PPT by dave derrick

THE NATURAL, THEN CONSTRUCTED BOIL-UP POOL ON UPPER ONONDAGA CREEK, NEAR SYRACUSE, NEW YORK Constructed May 2006 The go-to guy, Mark Schaub with the Onondaga County Soil and Water Conservation District, Lafayette, NY.

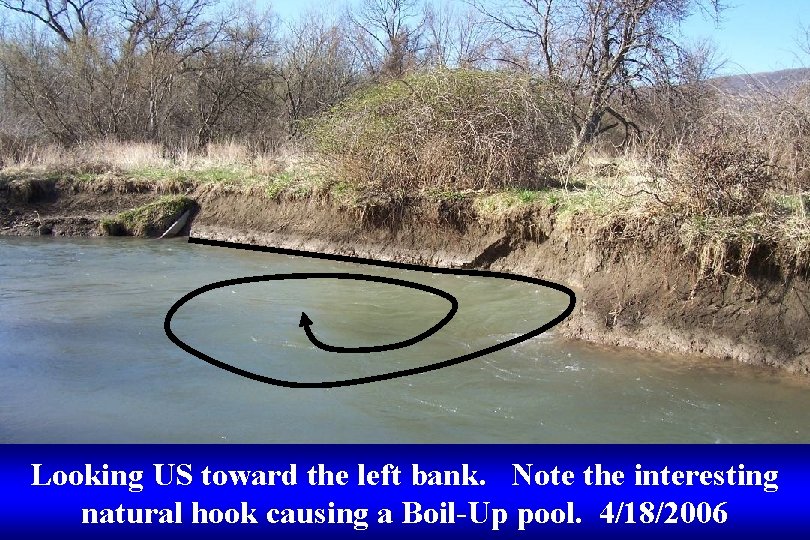

Looking US toward the left bank. Note the interesting natural hook causing a Boil-Up pool. 4/18/2006

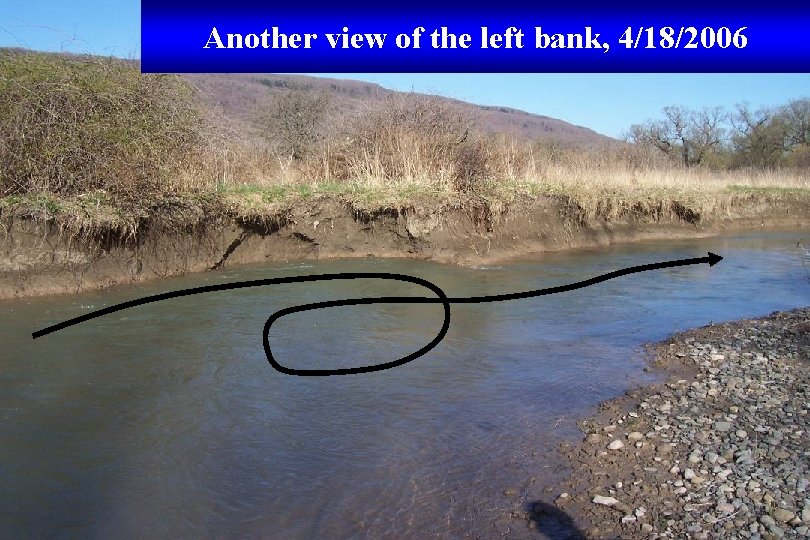

Another view of the left bank, 4/18/2006

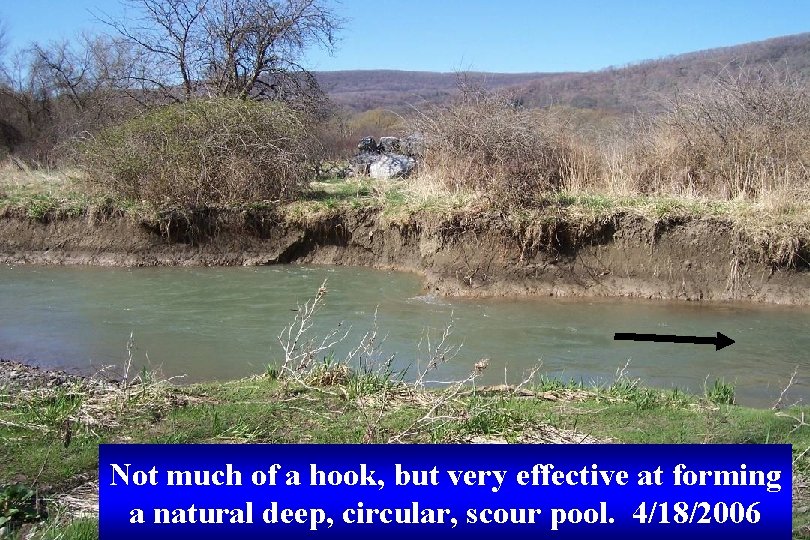

Not much of a hook, but very effective at forming a natural deep, circular, scour pool. 4/18/2006

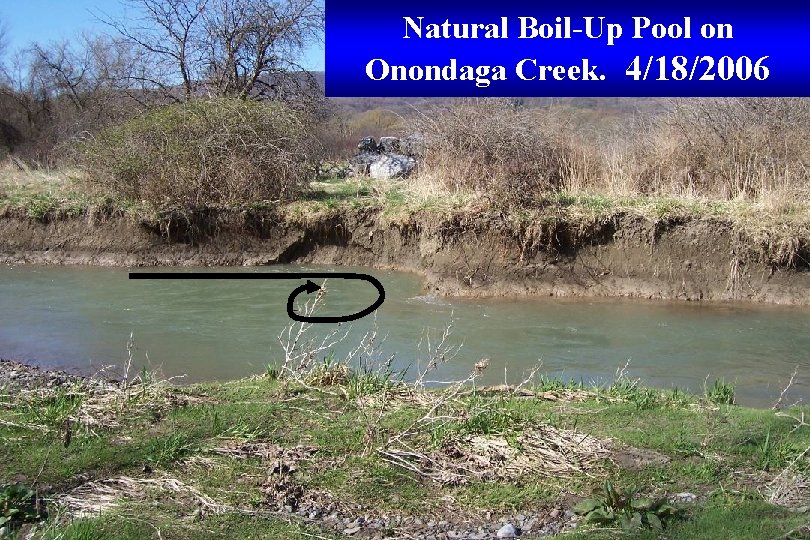

Natural Boil-Up Pool on Onondaga Creek. 4/18/2006

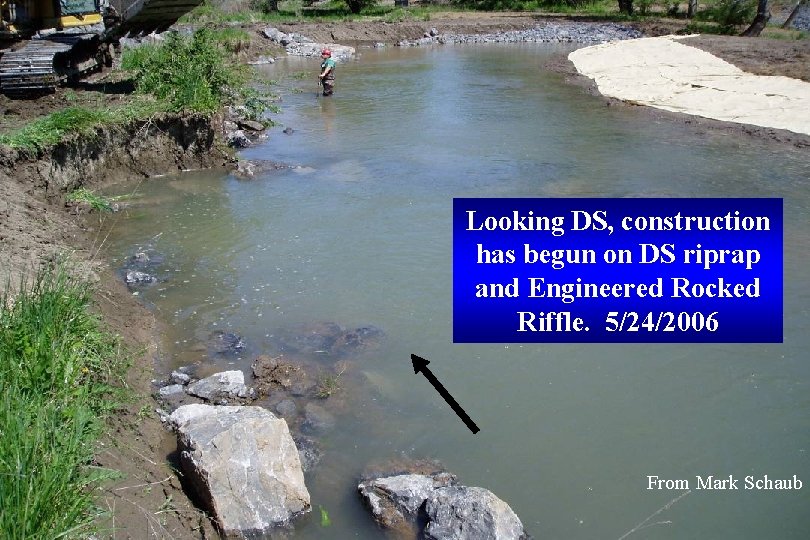

Looking DS, construction has begun on DS riprap and Engineered Rocked Riffle. 5/24/2006 From Mark Schaub

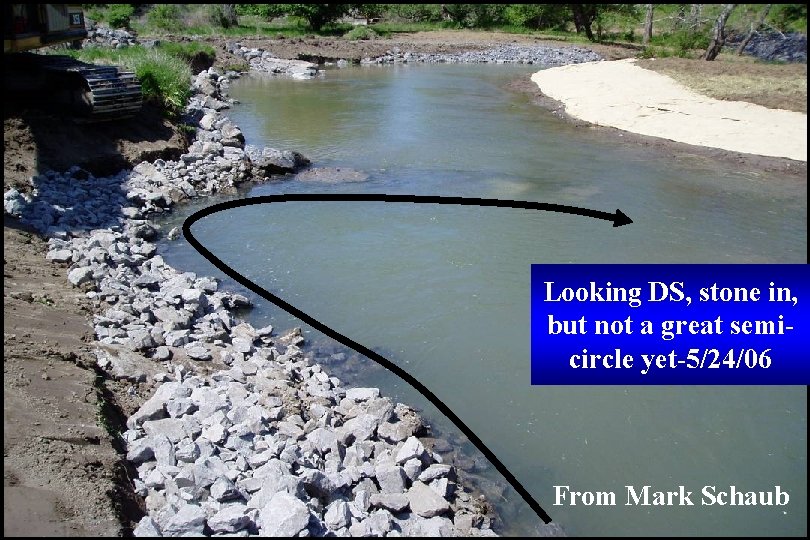

Looking DS, stone in, but not a great semicircle yet-5/24/06 From Mark Schaub

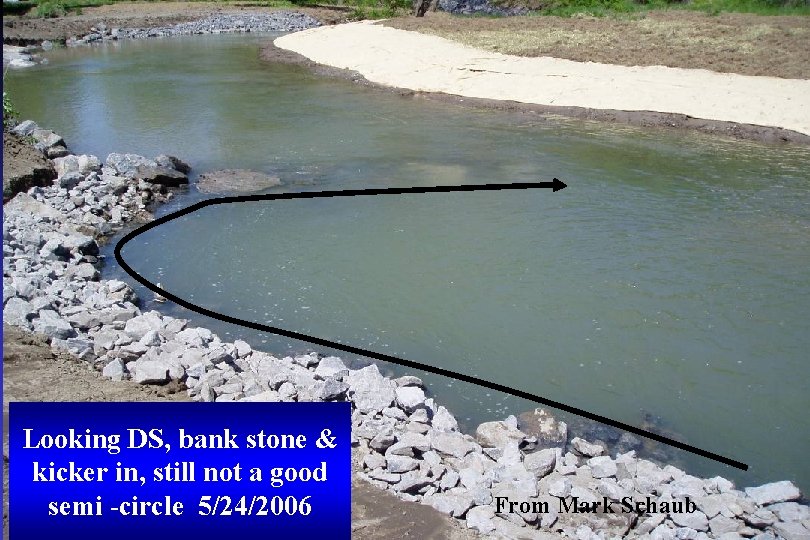

Looking DS, bank stone & kicker in, still not a good semi -circle 5/24/2006 From Mark Schaub

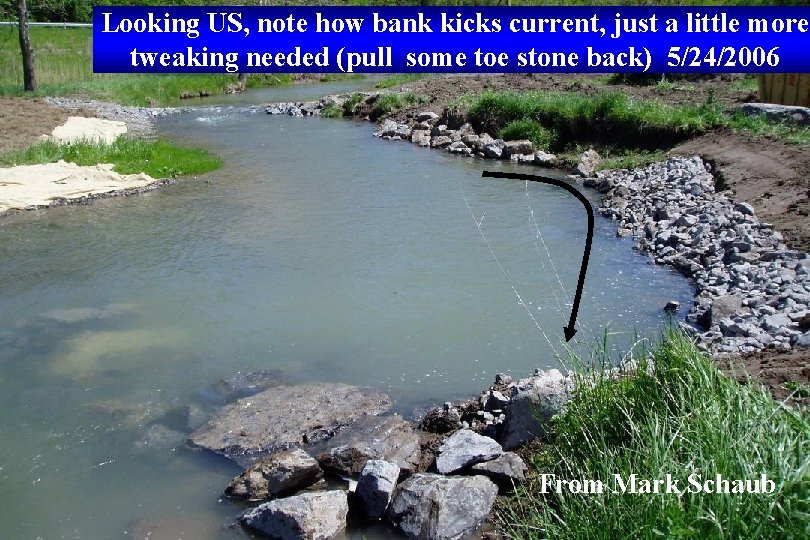

Looking US, note how bank kicks current, just a little more tweaking needed (pull some toe stone back) 5/24/2006 From Mark Schaub

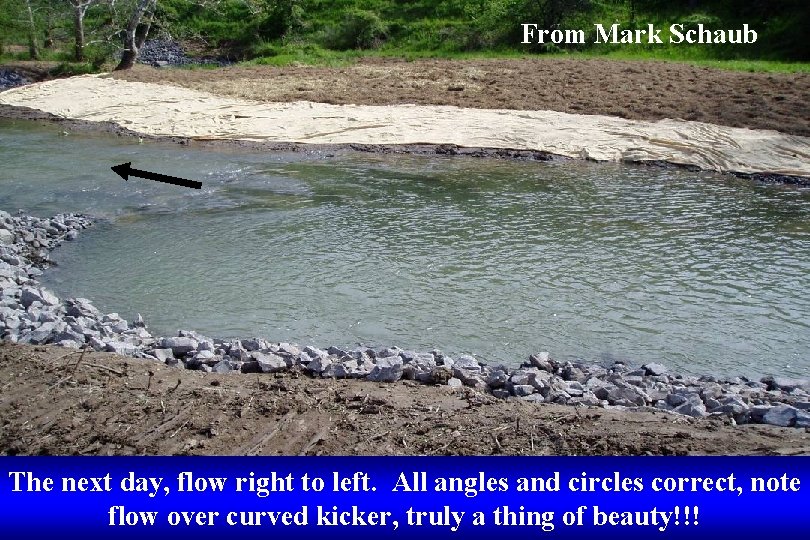

From Mark Schaub The next day, flow right to left. All angles and circles correct, note flow over curved kicker, truly a thing of beauty!!!

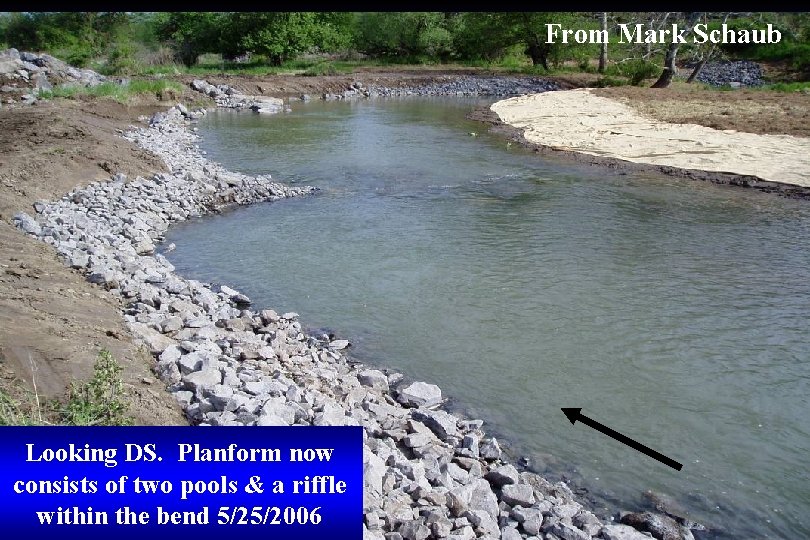

From Mark Schaub Looking DS. Planform now consists of two pools & a riffle within the bend 5/25/2006

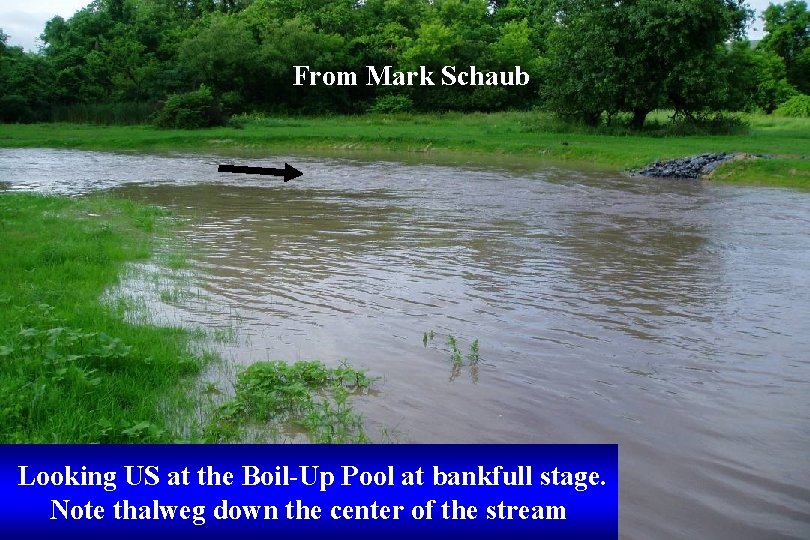

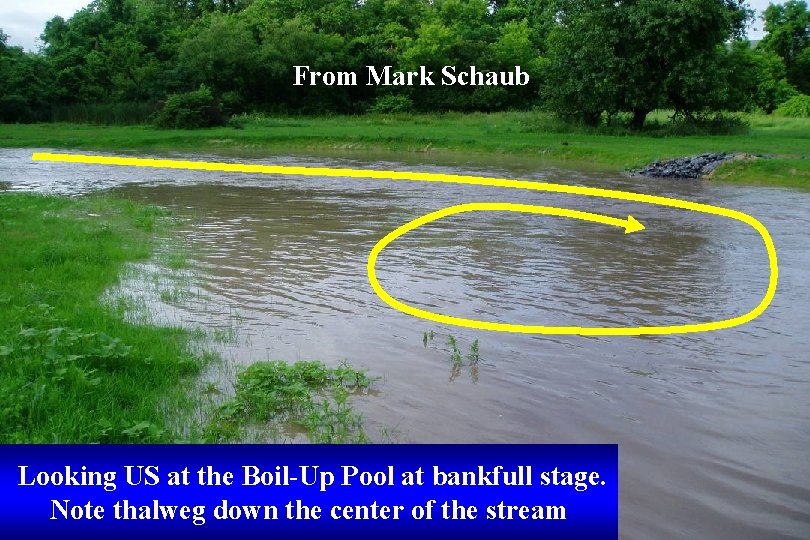

From Mark Schaub Looking US at the Boil-Up Pool at bankfull stage. Note thalweg down the center of the stream

From Mark Schaub Looking US at the Boil-Up Pool at bankfull stage. Note thalweg down the center of the stream

3 YEARS AFTER PROJECT COMPLETION Photos by Derrick JUNE 18, 2009

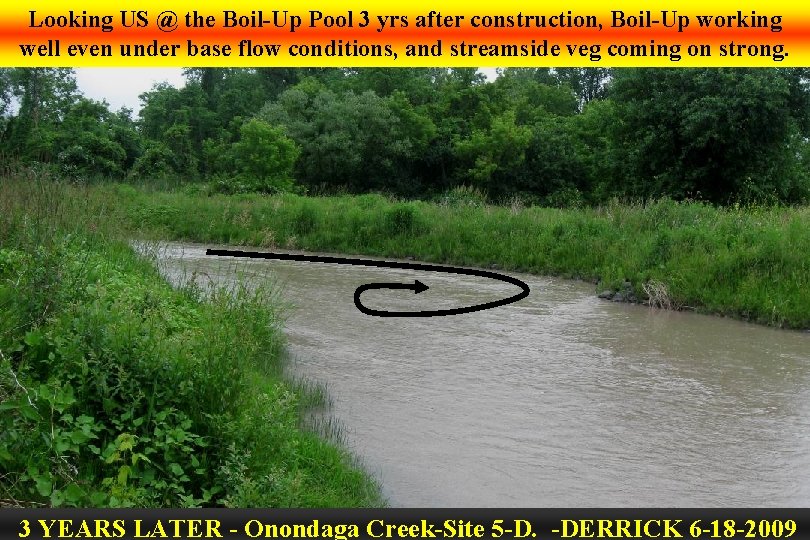

Looking US @ the Boil-Up Pool 3 yrs after construction, Boil-Up working well even under base flow conditions, and streamside veg coming on strong. 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

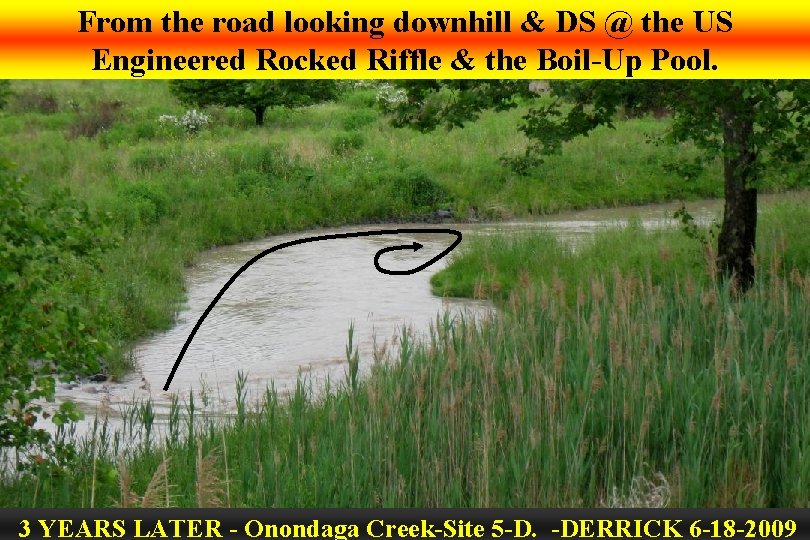

From the road looking downhill & DS @ the US Engineered Rocked Riffle & the Boil-Up Pool. 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

UPPER ONONDAGA CREEK: SITE 5 -D CONSTRUCTED JULY 2006

THE UPPERMOST ENGINEERED ROCKED RIFFLE IN REACH 5 -D {ALL STONES IN COMPRESSION}

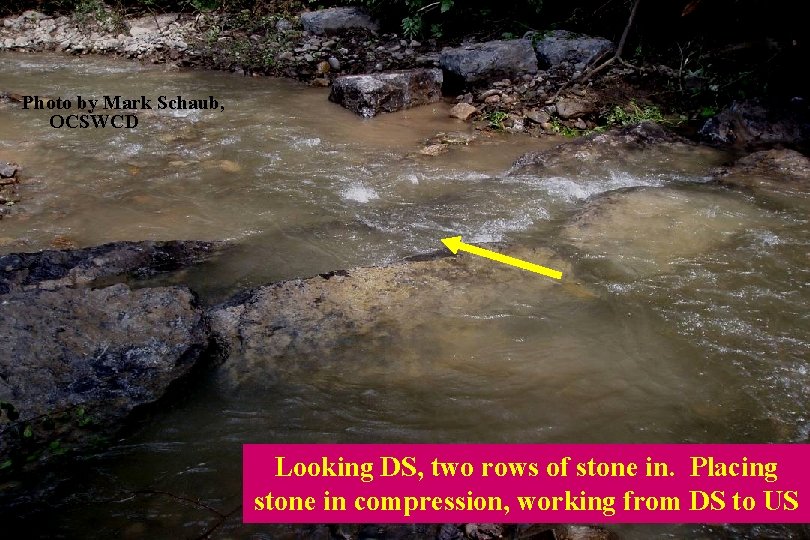

Photo by Mark Schaub, OCSWCD Looking DS, two rows of stone in. Placing stone in compression, working from DS to US

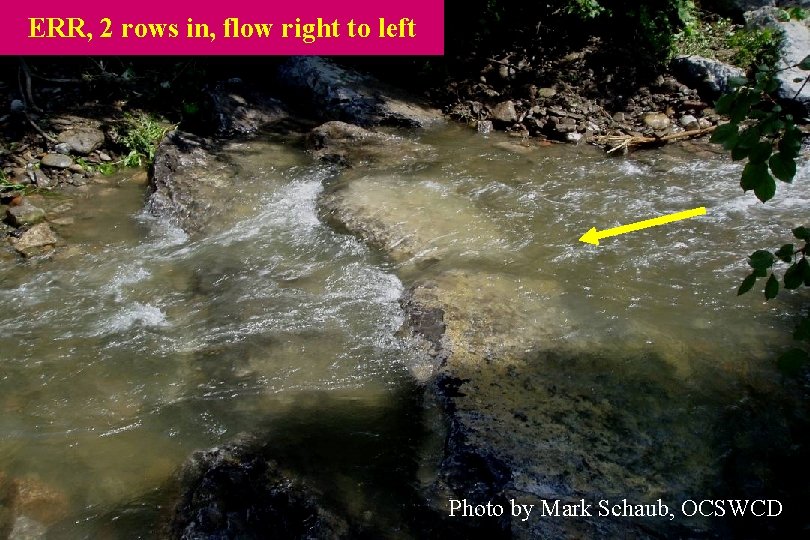

ERR, 2 rows in, flow right to left Photo by Mark Schaub, OCSWCD

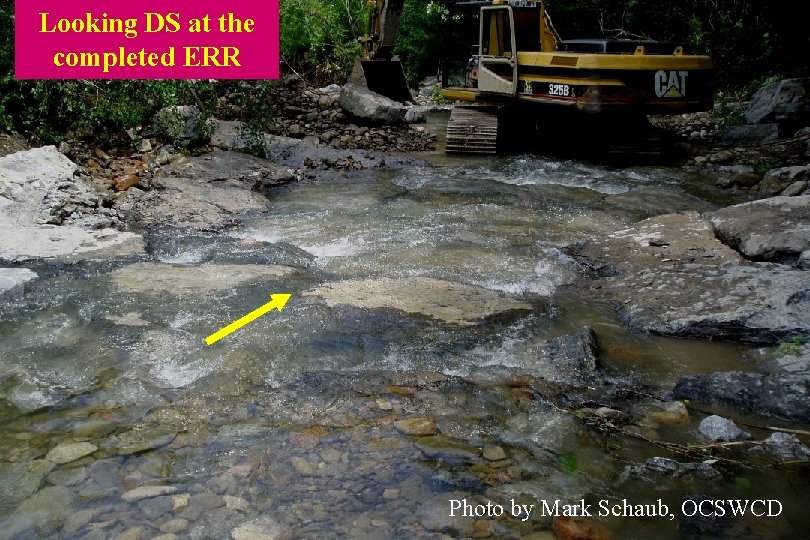

Looking DS at the completed ERR Photo by Mark Schaub, OCSWCD

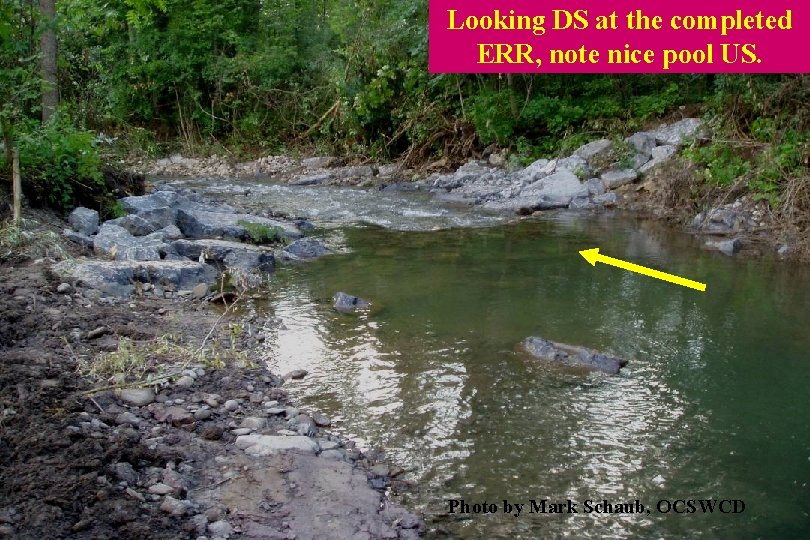

Looking DS at the completed ERR, note nice pool US. Photo by Mark Schaub, OCSWCD

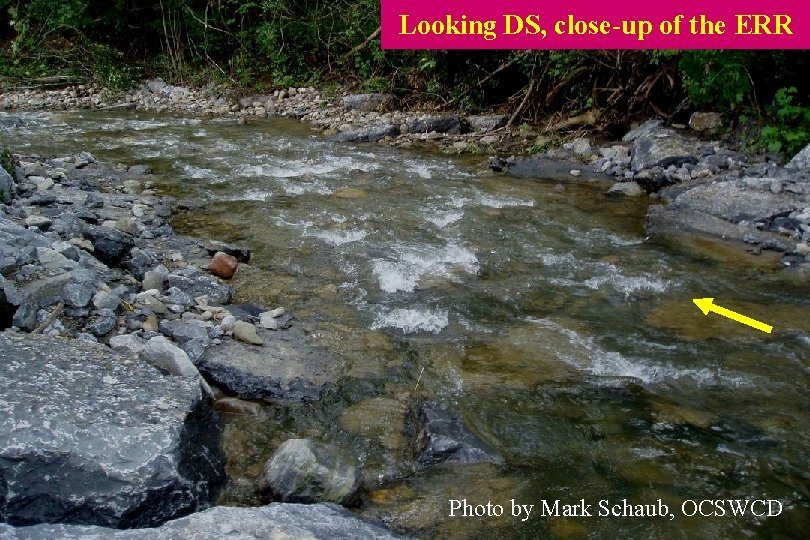

Looking DS, close-up of the ERR Photo by Mark Schaub, OCSWCD

TRANSPLANTING EXISTING VEG AND/OR ROOT MATS WITH THE TRACKHOE {2 MINI CASE STUDIES}

DIAMOND -ORIENTED TRAFFIC CONTROL STONES {TCS} WITH BEDLOAD BENCH IN BETWEEN, WITH TRANSPLANTED VEGETATION ON TOP OF TCS & BEDLOAD BENCH WITH SINGLE-STONE BENDWAY WEIRS ON EVERY 4 th TCS.

TCS were typically 3 ft by 3 ft, spaced 6 to 8 ft apart, with bedload material choked in between forming a continuous bench. Vegetation was pulled down from top bank & placed th on the bench. Every 4 TCS was keyed into the bank & had a singlestone Bendway Weir added to the stream end.

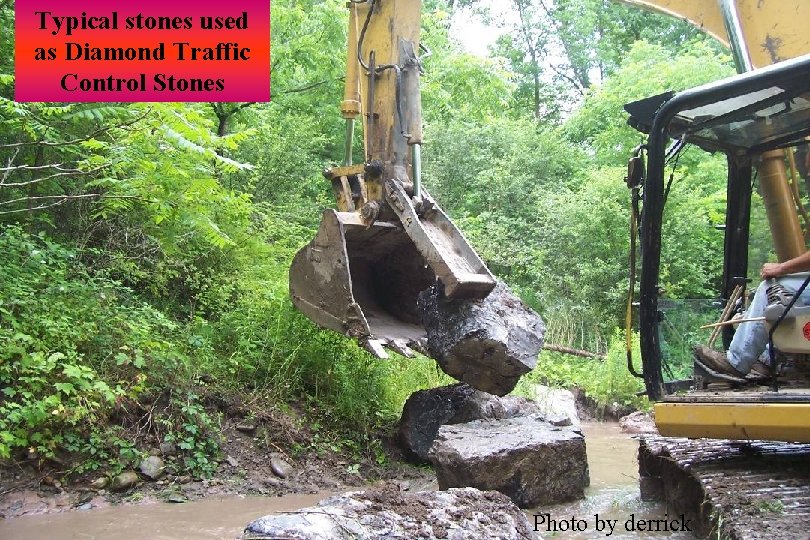

Typical stones used as Diamond Traffic Control Stones Photo by derrick

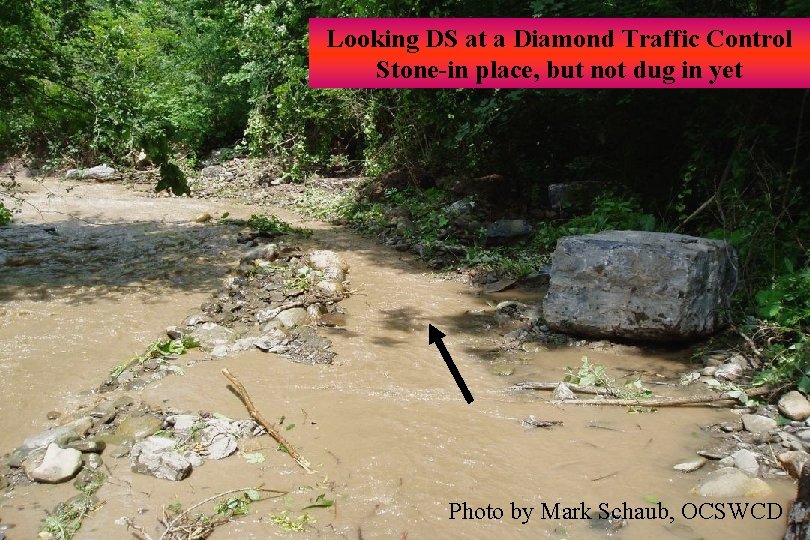

Looking DS at a Diamond Traffic Control Stone-in place, but not dug in yet Photo by Mark Schaub, OCSWCD

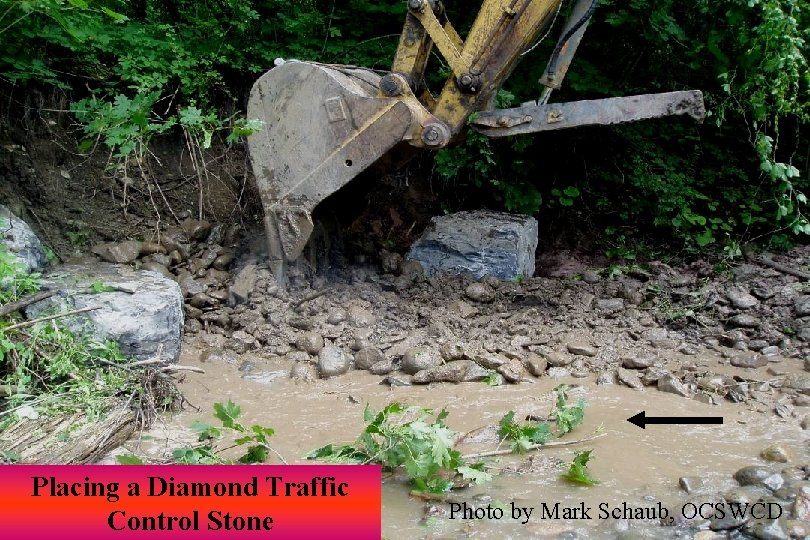

Placing a Diamond Traffic Control Stone Photo by Mark Schaub, OCSWCD

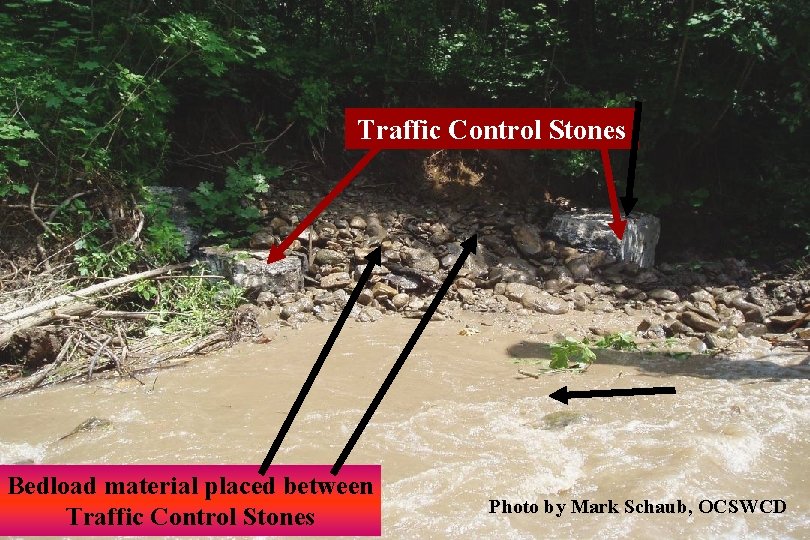

Traffic Control Stones Bedload material placed between Traffic Control Stones Photo by Mark Schaub, OCSWCD

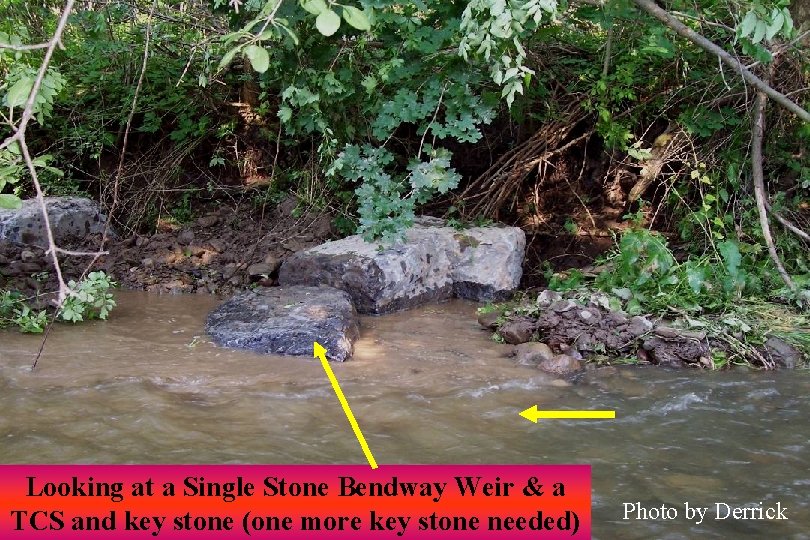

Looking at a Single Stone Bendway Weir & a TCS and key stone (one more key stone needed) Photo by Derrick

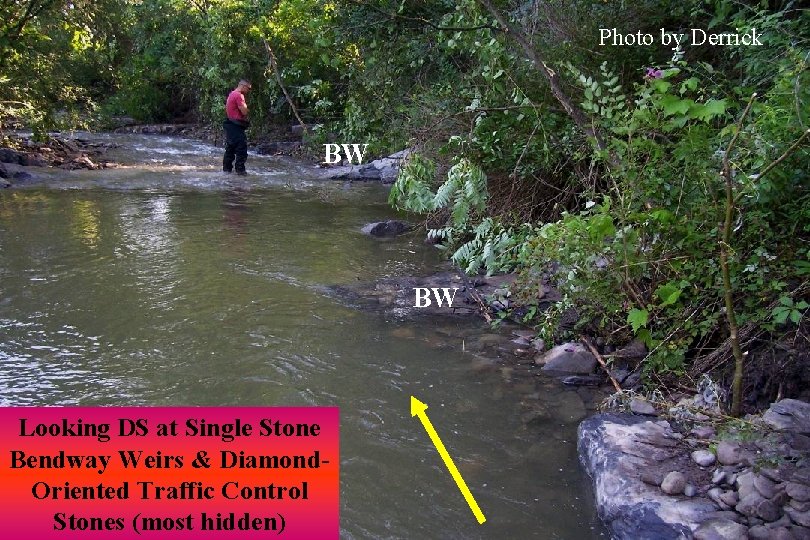

Photo by Derrick BW BW Looking DS at Single Stone Bendway Weirs & Diamond. Oriented Traffic Control Stones (most hidden)

3 YEARS AFTER PROJECT COMPLETION Photos by Derrick JUNE 18, 2009

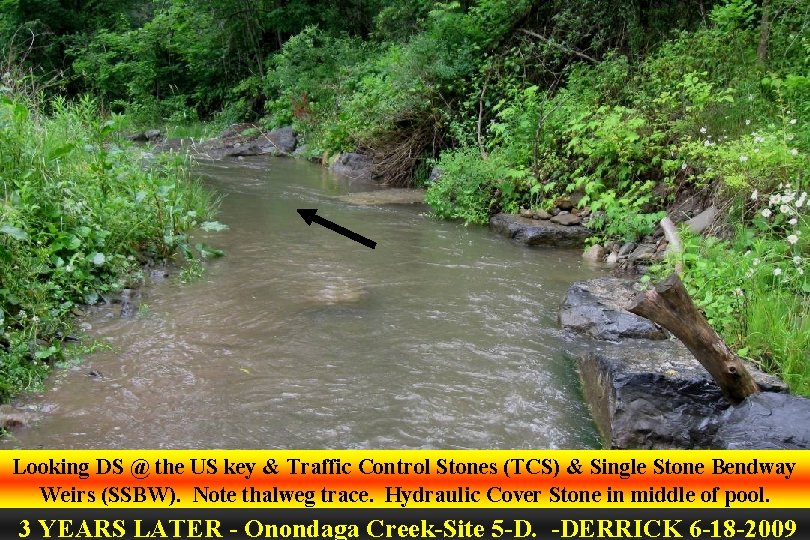

Looking DS @ the US key & Traffic Control Stones (TCS) & Single Stone Bendway Weirs (SSBW). Note thalweg trace. Hydraulic Cover Stone in middle of pool. 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

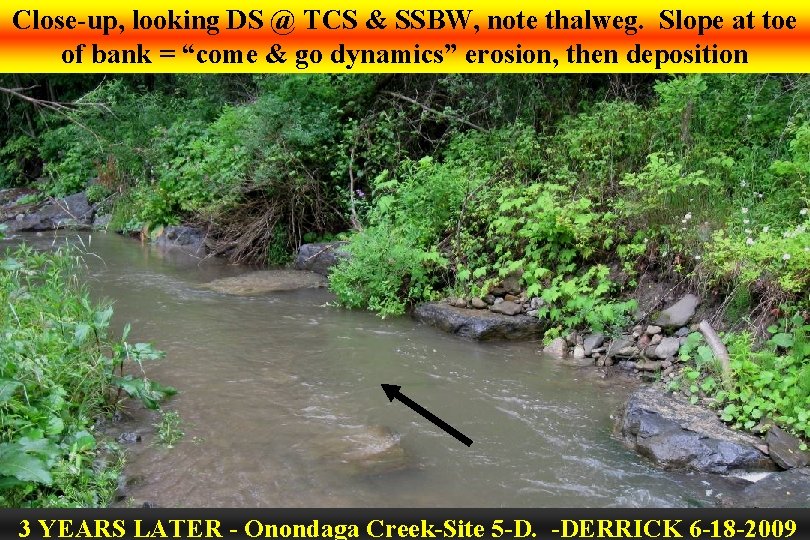

Close-up, looking DS @ TCS & SSBW, note thalweg. Slope at toe of bank = “come & go dynamics” erosion, then deposition 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

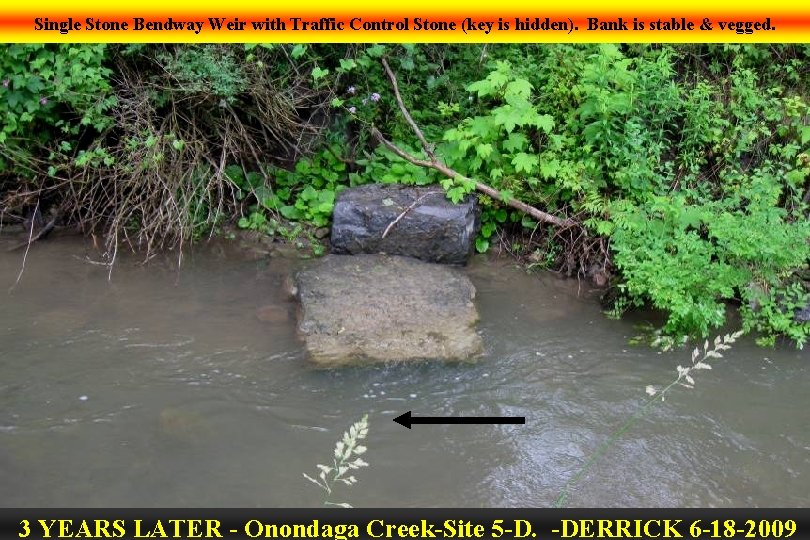

Single Stone Bendway Weir with Traffic Control Stone (key is hidden). Bank is stable & vegged. 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

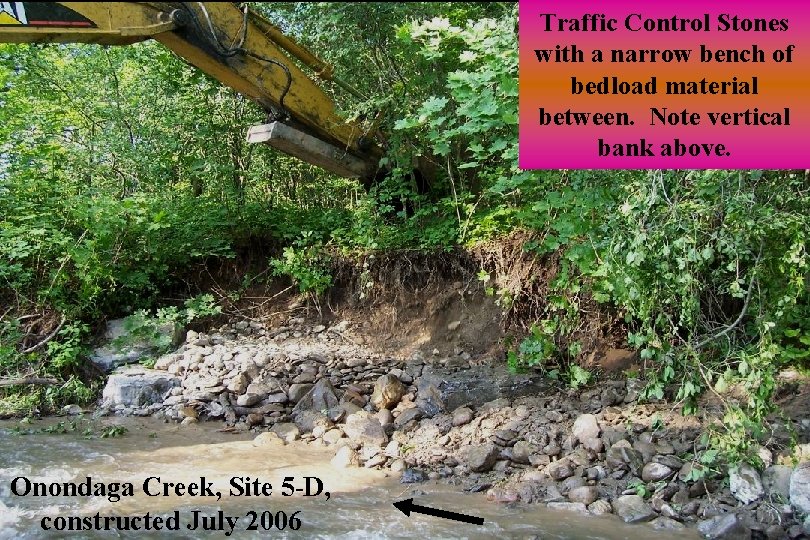

Traffic Control Stones with a narrow bench of bedload material between. Note vertical bank above. Onondaga Creek, Site 5 -D, constructed July 2006

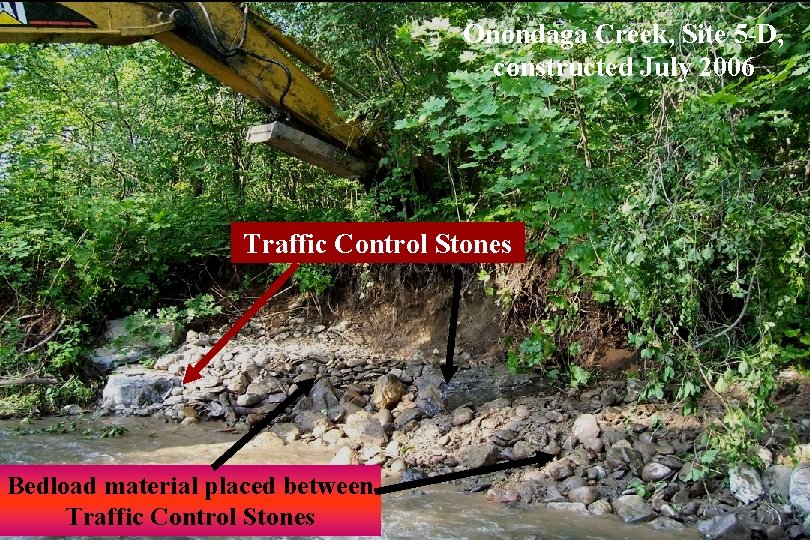

Onondaga Creek, Site 5 -D, constructed July 2006 Traffic Control Stones Bedload material placed between Traffic Control Stones

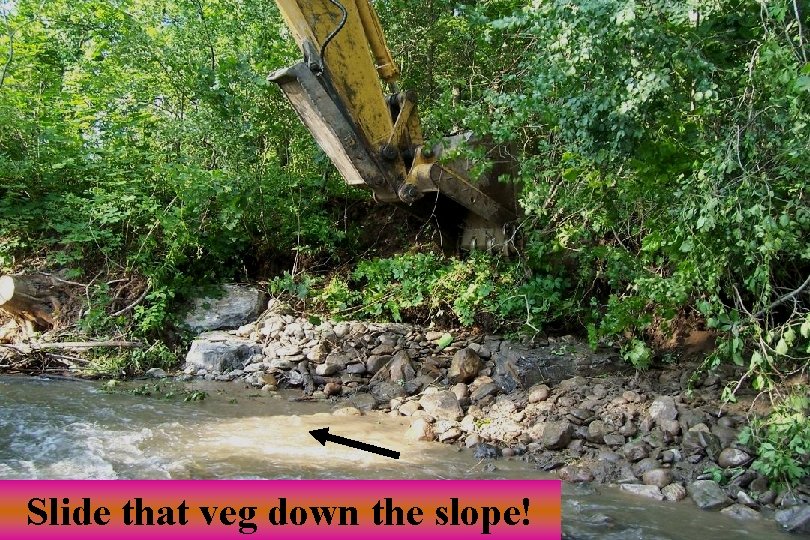

Slide that veg down the slope!

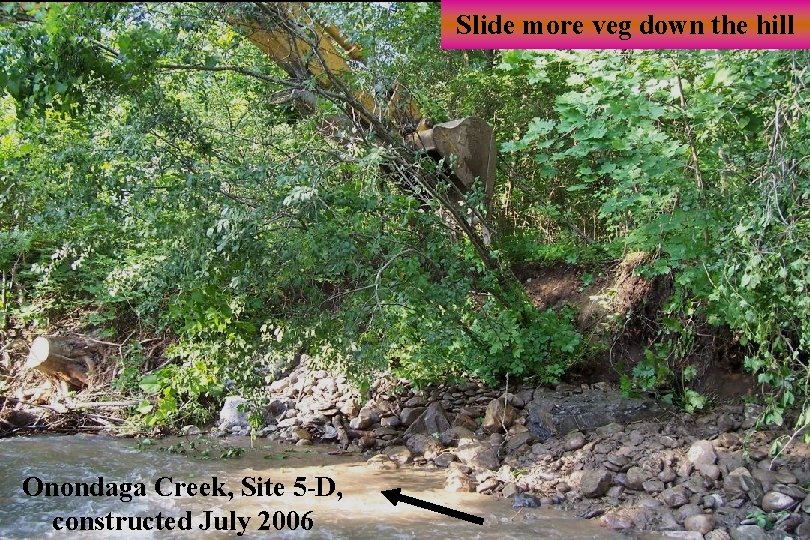

Slide more veg down the hill Onondaga Creek, Site 5 -D, constructed July 2006

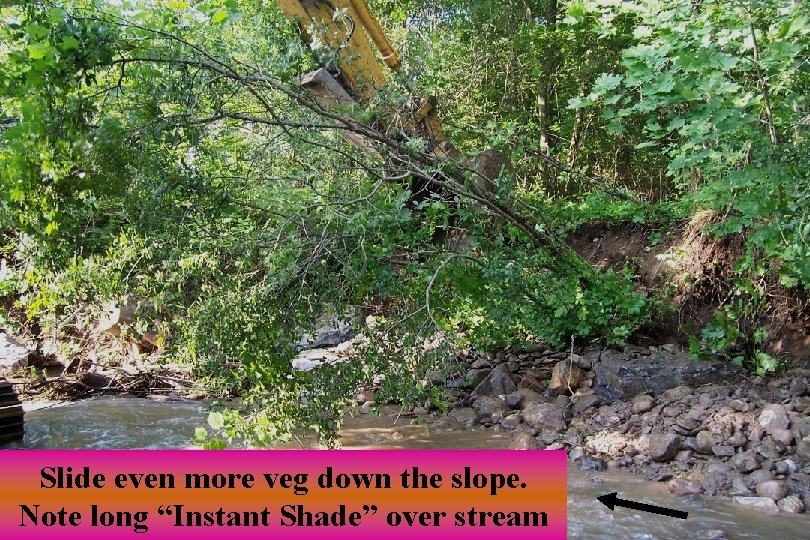

Slide even more veg down the slope. Note long “Instant Shade” over stream

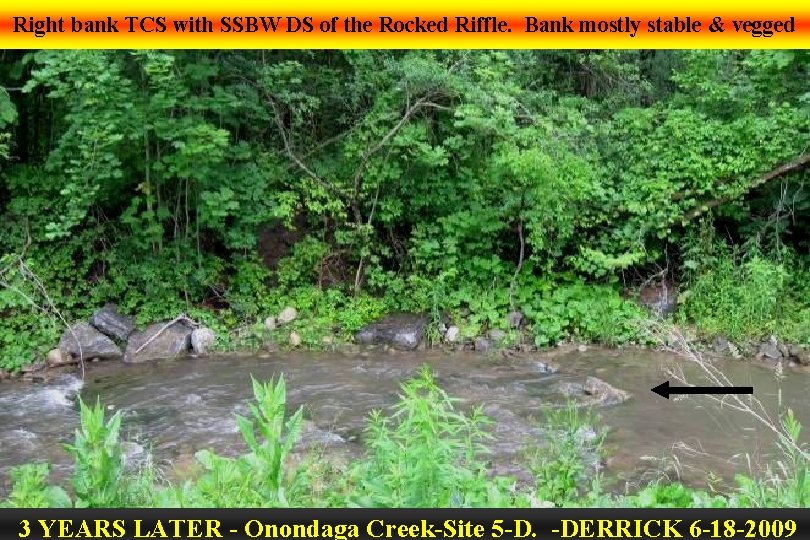

Right bank TCS with SSBW DS of the Rocked Riffle. Bank mostly stable & vegged 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

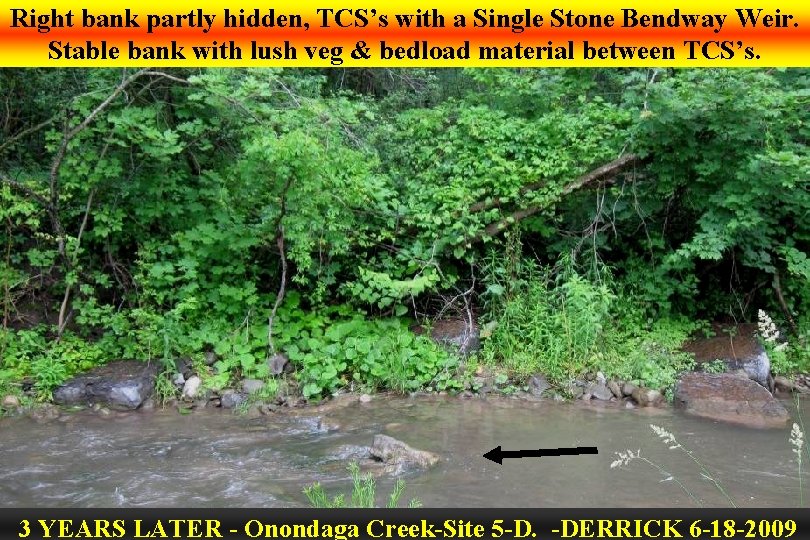

Right bank partly hidden, TCS’s with a Single Stone Bendway Weir. Stable bank with lush veg & bedload material between TCS’s. 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

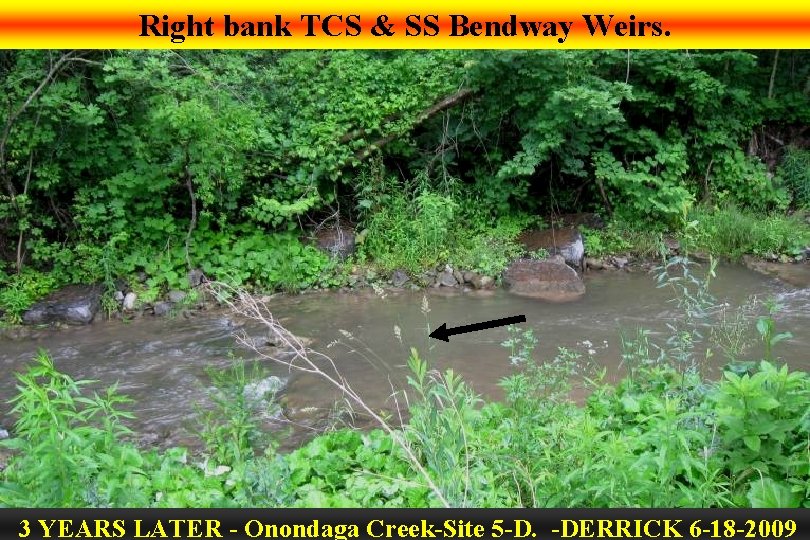

Right bank TCS & SS Bendway Weirs. 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

KEYED LPSTP WITH TRANSPLANTED VEGETATION ON TOP PLUS 2 SINGLE-STONE BENDWAY WEIRS.

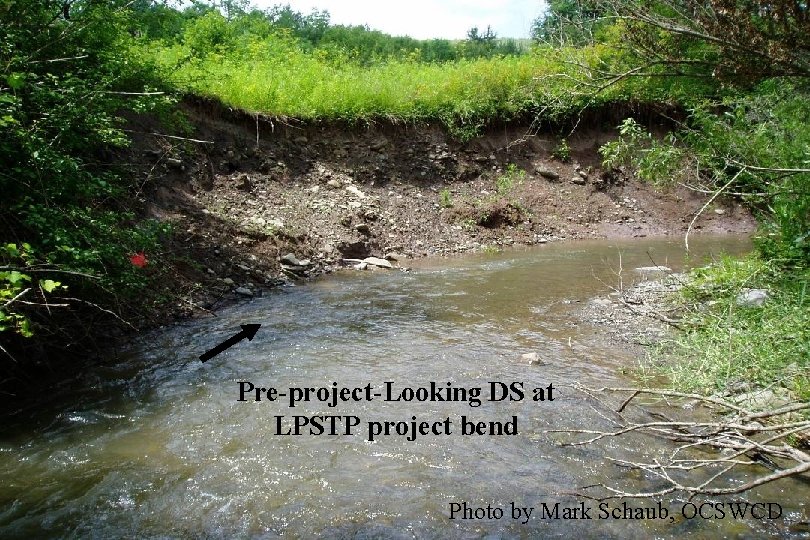

Pre-project-Looking DS at LPSTP project bend Photo by Mark Schaub, OCSWCD

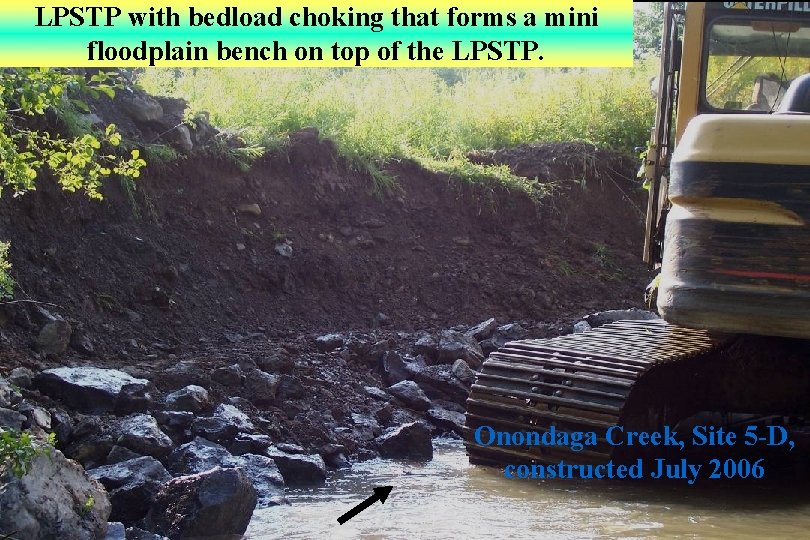

LPSTP with bedload choking that forms a mini floodplain bench on top of the LPSTP. Onondaga Creek, Site 5 -D, constructed July 2006

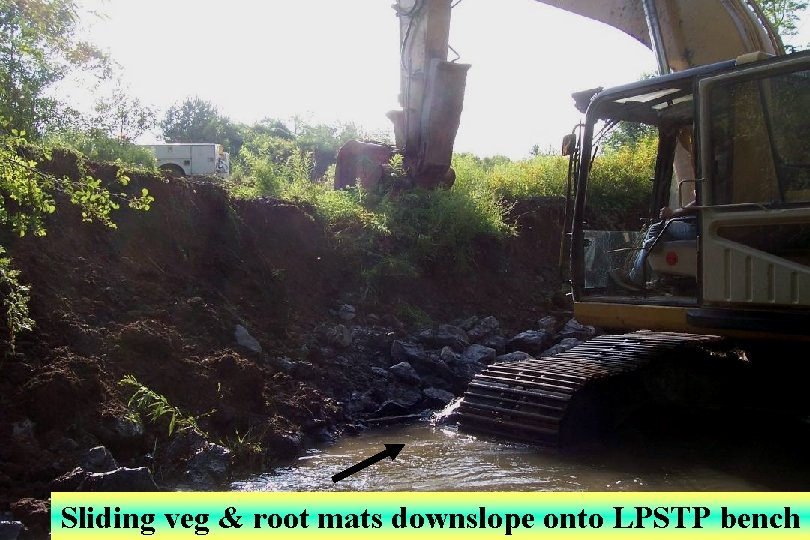

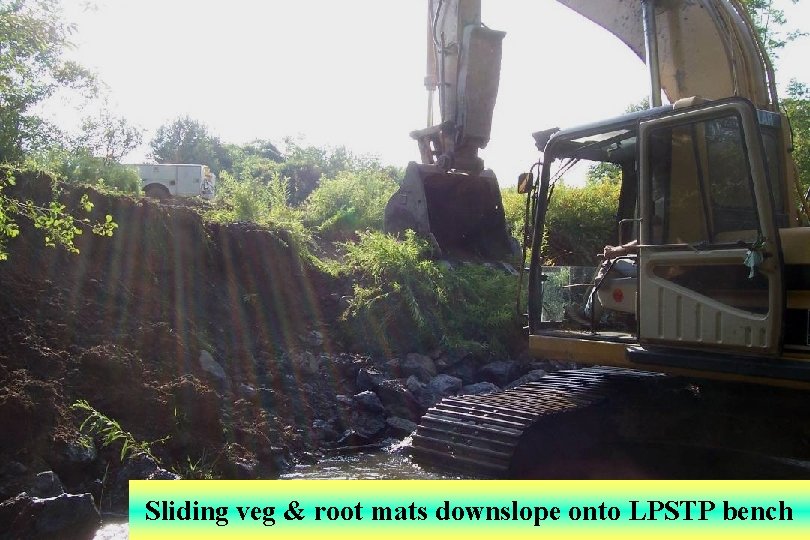

Sliding veg & root mats downslope onto LPSTP bench

Sliding veg & root mats downslope onto LPSTP bench

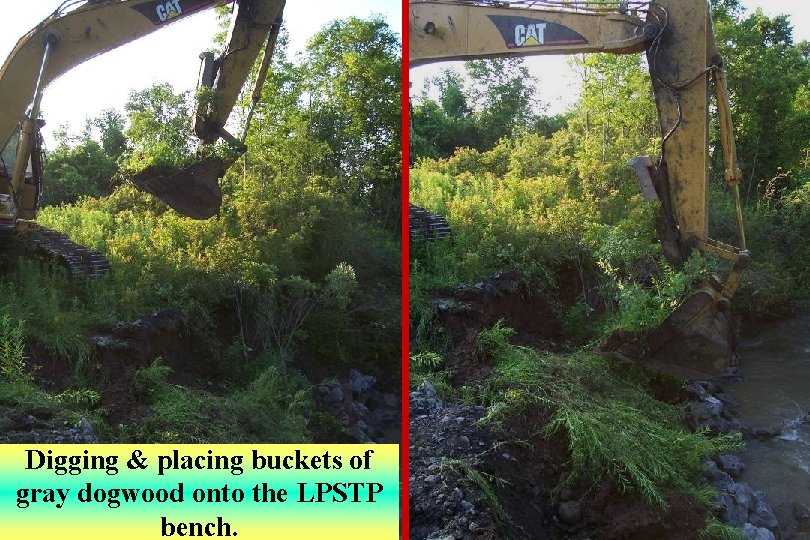

Digging & placing buckets of gray dogwood onto the LPSTP bench.

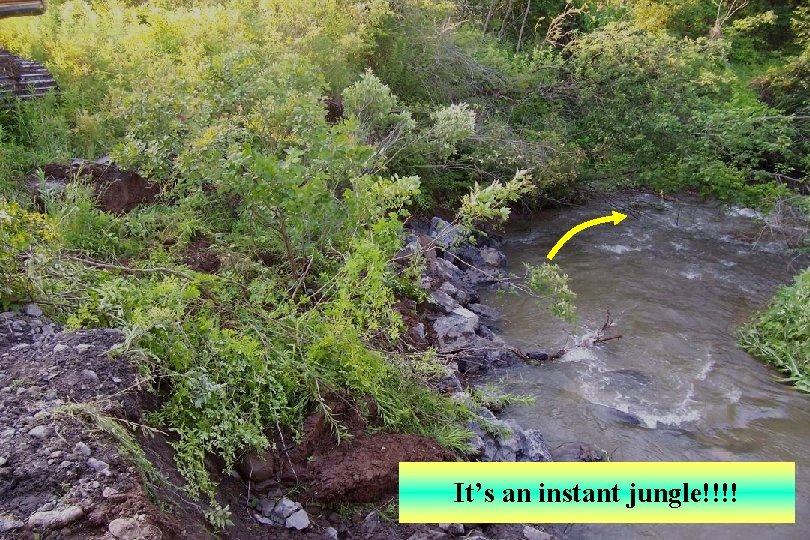

It’s an instant jungle!!!!

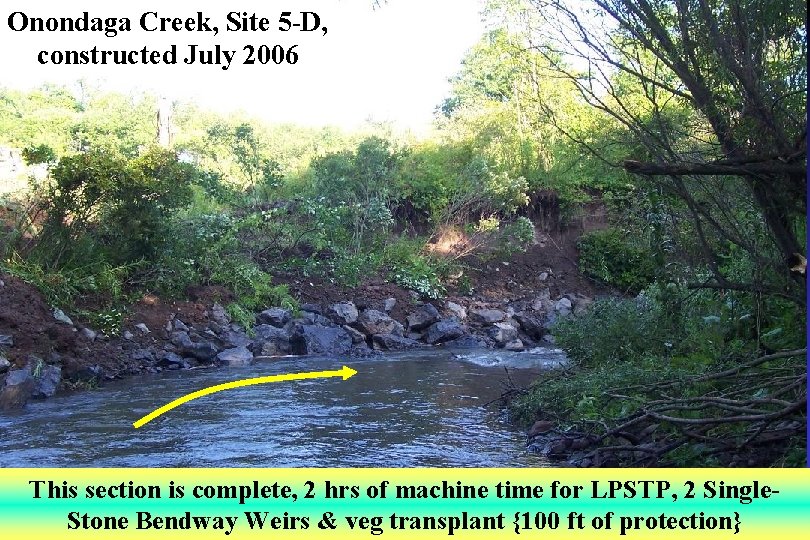

Onondaga Creek, Site 5 -D, constructed July 2006 This section is complete, 2 hrs of machine time for LPSTP, 2 Single. Stone Bendway Weirs & veg transplant {100 ft of protection}

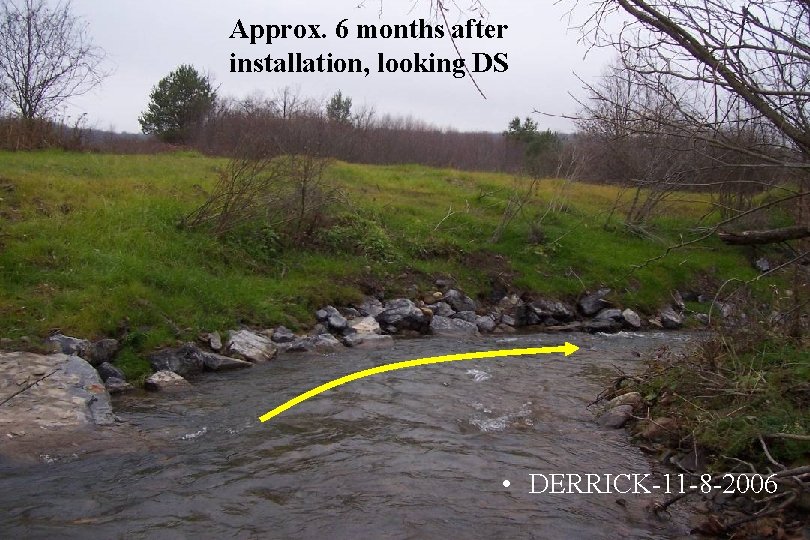

Approx. 6 months after installation, looking DS • DERRICK-11 -8 -2006

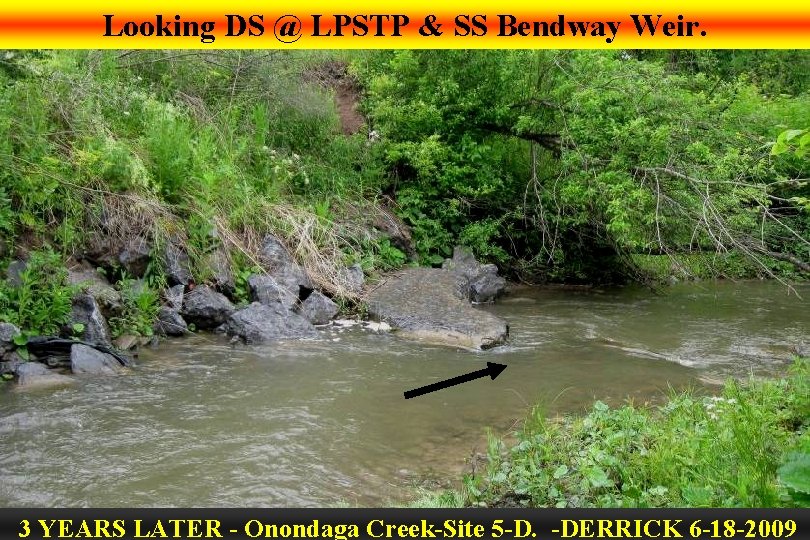

Looking DS @ LPSTP & SS Bendway Weir. 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

THE VIFFLE A Derrick-Mc. Cullah idea hatched late at night in the Seattle airport while headed to Alaska Combining the best attributes of the Cross-Vane and the Engineered Rocked Riffle (rock vanes slowing currents near banks and riffle improving fish passage and creating a properly proportioned scour pool with flat sloped tail-out) Build the two Rock Vane arms of the Cross-Vane Downstream instead of a vertical drop build the rocked riffle. At DS end of riffle the stones are keyed into the bed & all stones are placed in compression

THE FOLLOWING VIFFLE IS NEW CONSTRUCTION, NOT A REPAIR OF AN EXISTING CROSSVANE

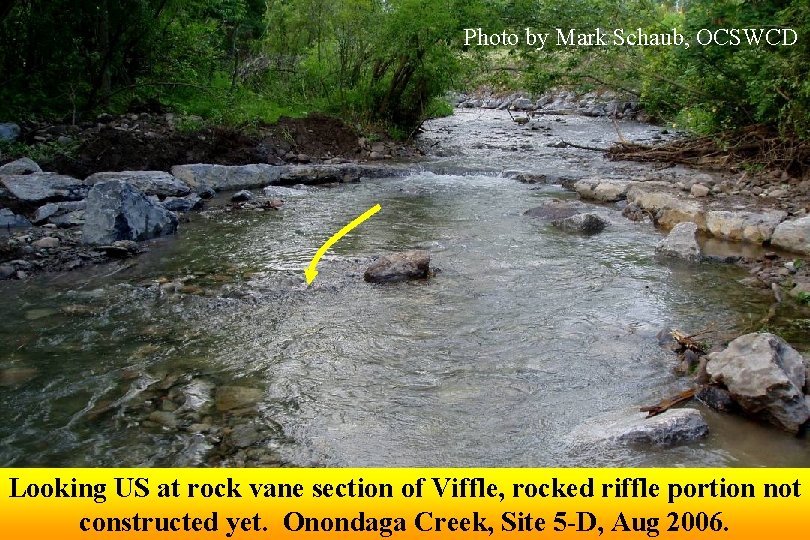

Photo by Mark Schaub, OCSWCD Looking US at rock vane section of Viffle, rocked riffle portion not constructed yet. Onondaga Creek, Site 5 -D, Aug 2006.

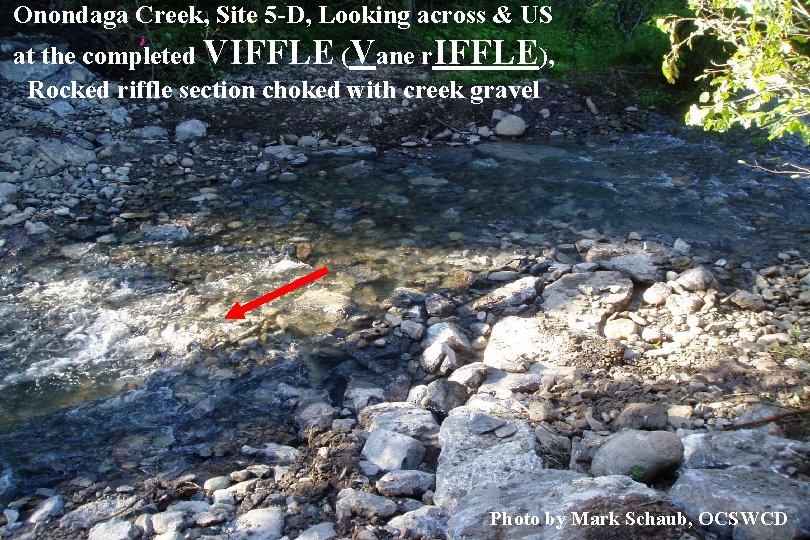

Onondaga Creek, Site 5 -D, Looking across & US at the completed VIFFLE (Vane r. IFFLE), Rocked riffle section choked with creek gravel Photo by Mark Schaub, OCSWCD

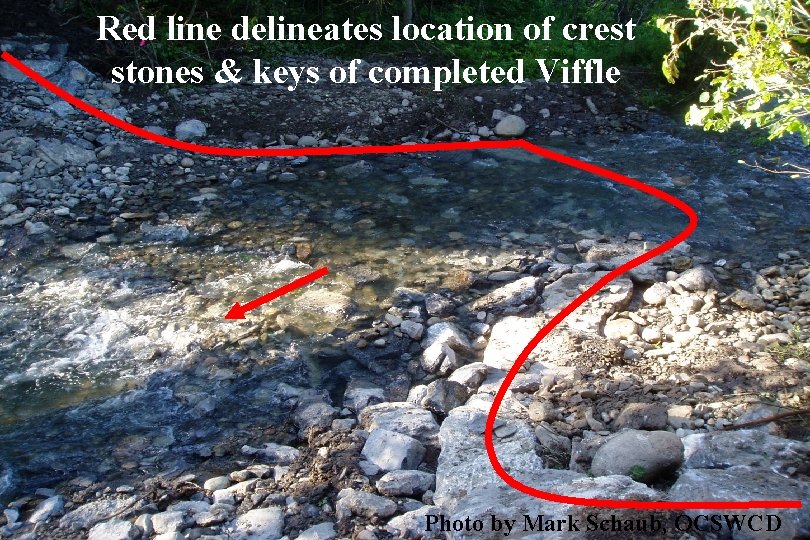

Red line delineates location of crest stones & keys of completed Viffle Photo by Mark Schaub, OCSWCD

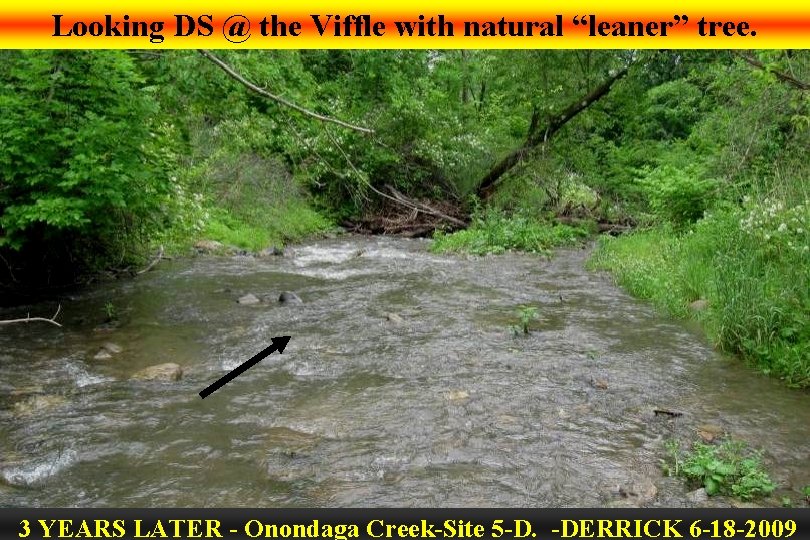

Looking DS @ the Viffle with natural “leaner” tree. 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

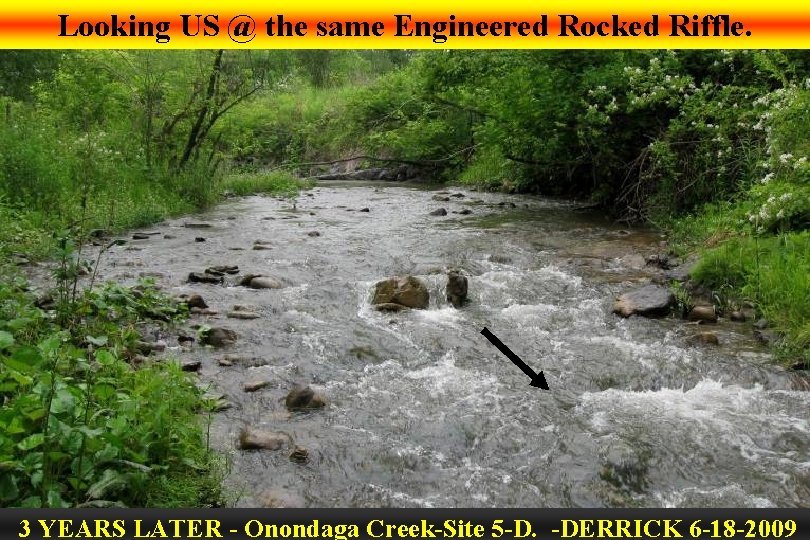

Looking US @ the same Engineered Rocked Riffle. 3 YEARS LATER - Onondaga Creek-Site 5 -D. -DERRICK 6 -18 -2009

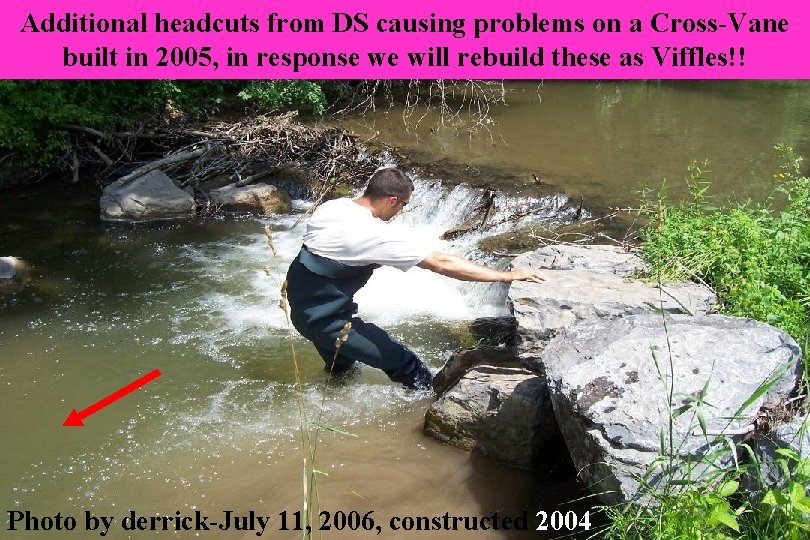

Additional headcuts from DS causing problems on a Cross-Vane built in 2005, in response we will rebuild these as Viffles!! Photo by derrick-July 11, 2006, constructed 2004

Onondaga Creek-Site 5 -D. 14 months later 10 -16 -2007. We will start upstream and flow downstream. All photos by Mark Schaub, Onondaga County Soil & Water Conservation District

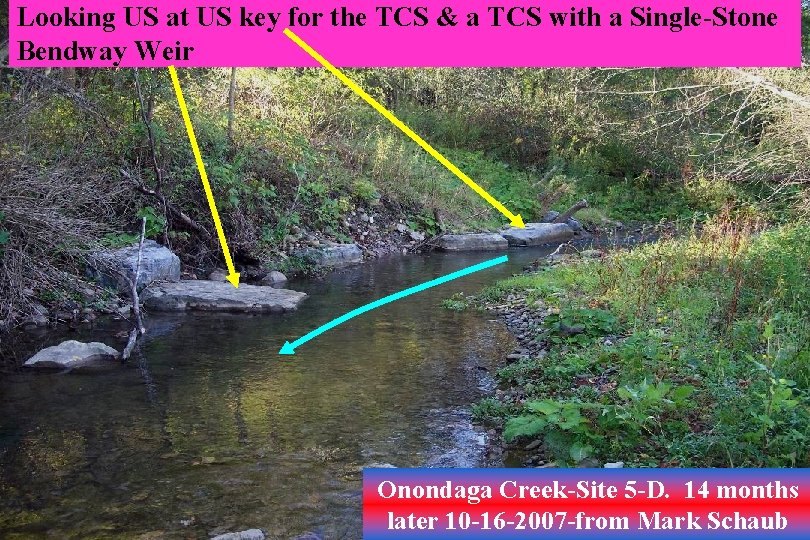

Looking US at US key for the TCS & a TCS with a Single-Stone Bendway Weir Onondaga Creek-Site 5 -D. 14 months later 10 -16 -2007 -from Mark Schaub

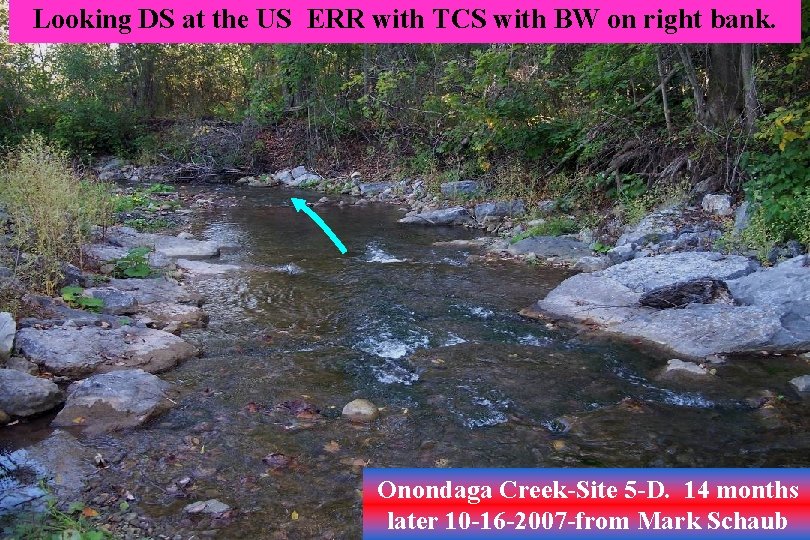

Looking DS at the US ERR with TCS with BW on right bank. Onondaga Creek-Site 5 -D. 14 months later 10 -16 -2007 -from Mark Schaub

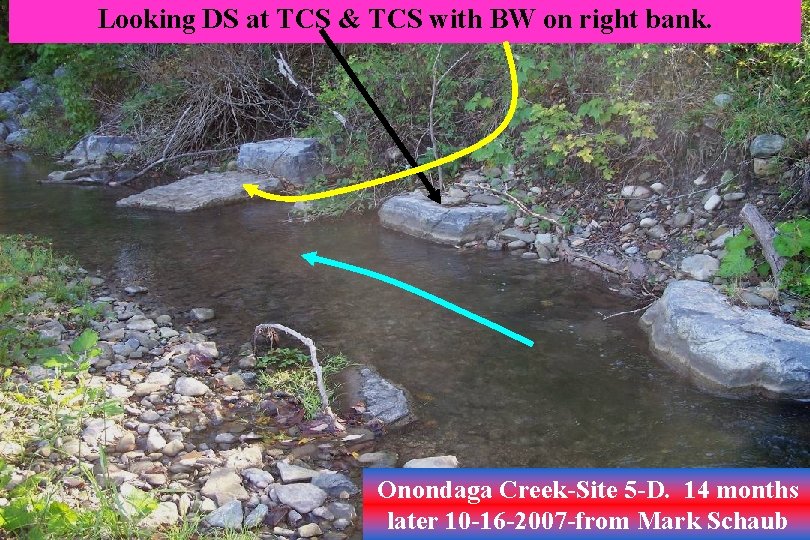

Looking DS at TCS & TCS with BW on right bank. Onondaga Creek-Site 5 -D. 14 months later 10 -16 -2007 -from Mark Schaub

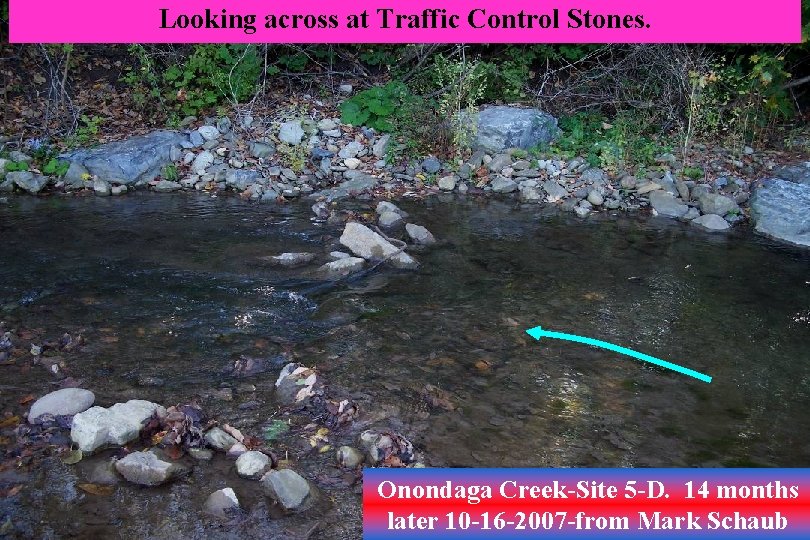

Looking across at Traffic Control Stones. Onondaga Creek-Site 5 -D. 14 months later 10 -16 -2007 -from Mark Schaub

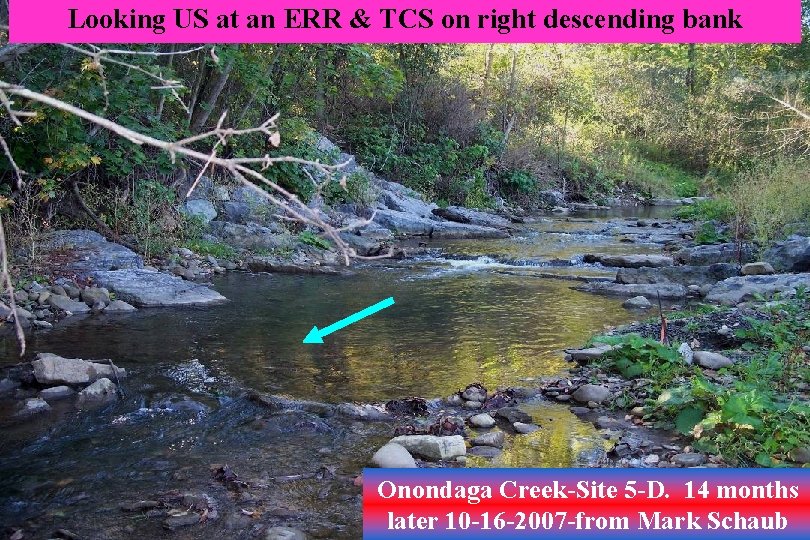

Looking US at an ERR & TCS on right descending bank Onondaga Creek-Site 5 -D. 14 months later 10 -16 -2007 -from Mark Schaub

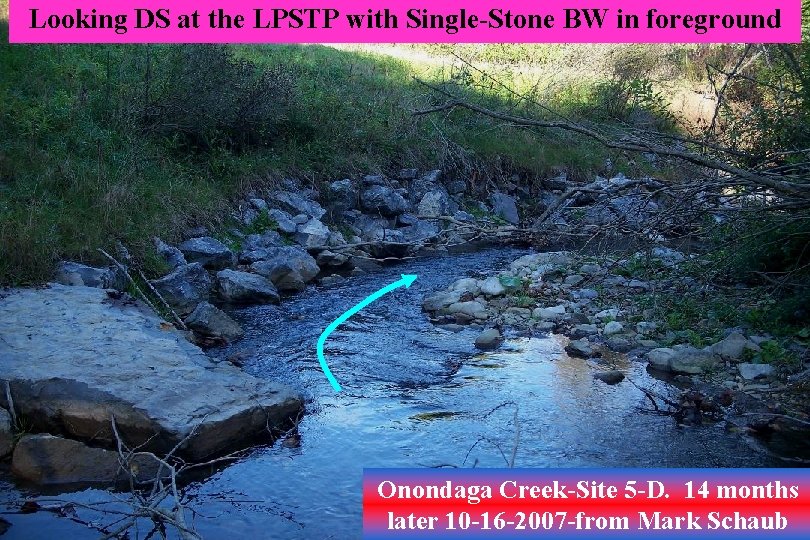

Looking DS at the LPSTP with Single-Stone BW in foreground Onondaga Creek-Site 5 -D. 14 months later 10 -16 -2007 -from Mark Schaub

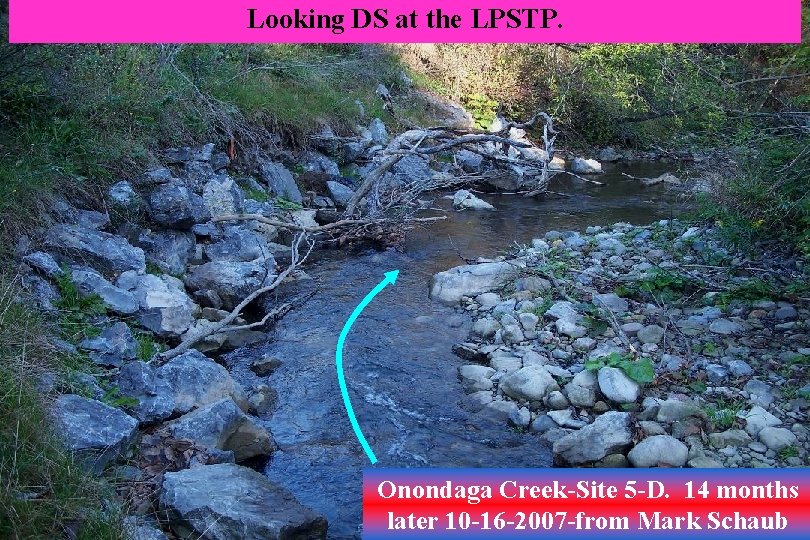

Looking DS at the LPSTP. Onondaga Creek-Site 5 -D. 14 months later 10 -16 -2007 -from Mark Schaub

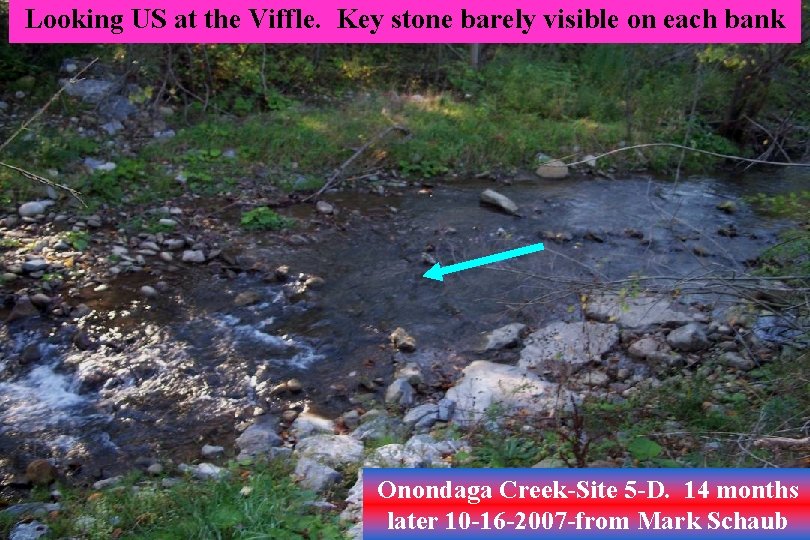

Looking US at the Viffle. Key stone barely visible on each bank Onondaga Creek-Site 5 -D. 14 months later 10 -16 -2007 -from Mark Schaub

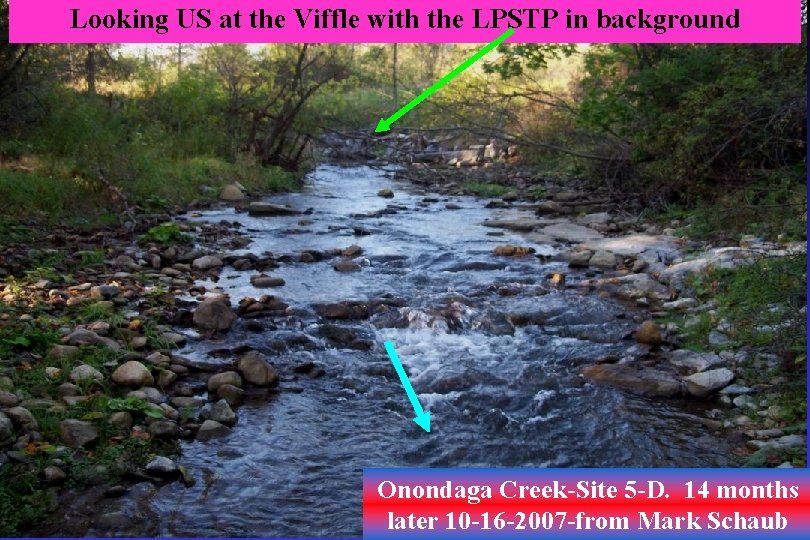

Looking US at the Viffle with the LPSTP in background Onondaga Creek-Site 5 -D. 14 months later 10 -16 -2007 -from Mark Schaub

Nov 8, 2006 a big tour for 60+ fellow professionals, show off cool innovative stuff to folks, give everyone good ideas to use!! DERRICK-11 -8 -2006
