Ngram Models CMSC 25000 Artificial Intelligence March 1

N-gram Models CMSC 25000 Artificial Intelligence March 1, 2005

Markov Assumptions • Exact computation requires too much data • Approximate probability given all prior wds – Assume finite history – Bigram: Probability of word given 1 previous • First-order Markov – Trigram: Probability of word given 2 previous • N-gram approximation Bigram sequence

Evaluating n-gram models • Entropy & Perplexity – Information theoretic measures – Measures information in grammar or fit to data – Conceptually, lower bound on # bits to encode • Entropy: H(X): X is a random var, p: prob fn • Perplexity: – Weighted average of number of choices

Perplexity Model Comparison • Compare models with different history • Train models – 38 million words – Wall Street Journal • Compute perplexity on held-out test set – 1. 5 million words (~20 K unique, smoothed) • N-gram Order | Perplexity – Unigram – Bigram – Trigram | | | 962 170 109

Does the model improve? • Compute probability of data under model – Compute perplexity • Relative measure – Decrease toward optimum? – Lower than competing model? Iter P(data) Perplex 0 1 2 3 4 5 6 9 10 9^-19 1^-16 2^-16 3^-16 4^-16 5^-16 3. 393 2. 95 2. 88 2. 85 2. 84 2. 83 2. 8272 2. 8271

Entropy of English • Shannon’s experiment – Subjects guess strings of letters, count guesses – Entropy of guess seq = Entropy of letter seq – 1. 3 bits; Restricted text • Build stochastic model on text & compute – Brown computed trigram model on varied corpus – Compute (per-char) entropy of model – 1. 75 bits

Using N-grams • Language Identification – Take text samples • English, French, Spanish, German – Build character tri-gram models – Test Sample: Compute maximum likelihood • Best match is chosen language • Authorship attribution

Sequence Models in Modern AI • Probabilistic sequence models: – HMMs, N-grams – Train from available data • Classification with contextual influence – Robust to noise/variability • E. g. Sentences vary in degrees of acceptability – Provides ranking of sequence quality – Exploits large scale data, storage, memory, CPU

Computer Vision CMSC 25000 Artificial Intelligence March 1, 2005

Roadmap • Motivation – Computer vision applications • Is a Picture worth a thousand words? – Low level features • Feature extraction: intensity, color – High level features • Top-down constraint: shape from stereo, motion, . . • Case Study: Vision as Modern AI – Fast, robust face detection (Viola & Jones 2002)

Perception • From observation to facts about world – Analogous to speech recognition – Stimulus (Percept) S, World W • S = g(W) – Recognition: Derive world from percept • W=g’(S) • Is this possible?

Key Perception Problem • Massive ambiguity – Optical illusions • • Occlusion Depth perception “Objects are closer than they appear” Is it full-sized or a miniature model?

Image Ambiguity

Handling Uncertainty • Identify single perfect correct solution – Impossible! • Noise, ambiguity, complexity • Solution: – Probabilistic model – P(W|S) = αP(S|W) P(W) • Maximize image probability and model probability

Handling Complexity • Don’t solve the whole problem – Don’t recover every object/position/color… • Solve restricted problem – Find all the faces – Recognize a person – Align two images

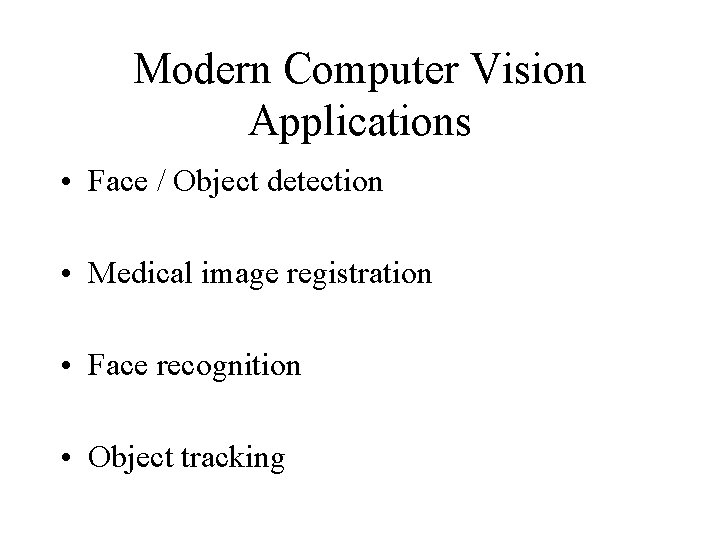

Modern Computer Vision Applications • Face / Object detection • Medical image registration • Face recognition • Object tracking

Vision Subsystems

Image Formation

Images and Representations • Initially pixel images – Image as Nx. M matrix of pixel values – Alternate image codings • Grey-scale intensity values • Color encoding: intensities of RGB values

Images

Grey-scale Images

Color Images

Image Features • Grey-scale and color intensities – Directly access image signal values – Large number of measures • Possibly noisy • Only care about intensities as cues to world • Image Features: – Mid-level representation – Extract from raw intensities – Capture elements of interest for image understanding

Edge Detection

Edge Detection • Find sharp demarcations in intensity • 1) Apply spatially oriented filters • E. g. vertical, horizontal, diagonal • 2) Label above-threshold pixels with edge orientation • 3) Combine edge segments with same orientation: line

Top-down Constraints • Goal: Extract objects from images – Approach: apply knowledge about how the world works to identify coherent objects; reconstruct 3 D

Motion: Optical Flow • Find correspondences in sequential images – Units which move together represent objects

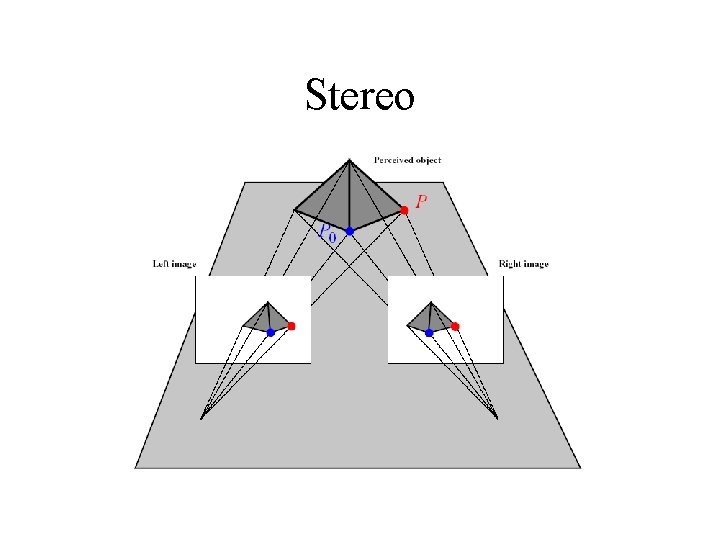

Stereo

Texture and Shading

Edge-Based 2 -3 D Reconstruction Assume world of solid polyhedra with 3 -edge vertices Apply Waltz line labeling – via Constration Satisfaction

Summary • Vision is hard: – Noise, ambiguity, complexity • Prior knowledge is essential to constrain problem – Cohesion of objects, optics, object features • Combine multiple cues – Motion, stereo, shading, texture, • Image/object matching: – Library: features, lines, edges, etc • Apply domain knowledge: Optics • Apply machine learning: NN, CSP, etc

Computer Vision Case Study • “Rapid Object Detection using a Boosted Cascade of Simple Features”, Viola/Jones ’ 01 • Challenge: – Object detection: • Find all faces in an arbitrary images – Real-time execution • 15 frames per second – Need simple features, classifiers

Rapid Object Detection Overview • Fast detection with simple local features – Simple fast feature extraction • Small number of computations per pixel • Rectangular features – Feature selection with Adaboost • Sequential feature refinement – Cascade of classifiers • Increasingly complex classifiers • Repeatedly rule out non-object areas

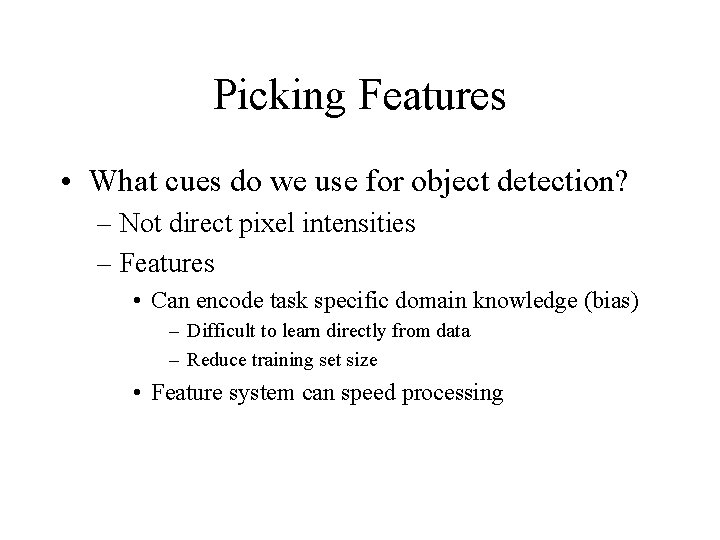

Picking Features • What cues do we use for object detection? – Not direct pixel intensities – Features • Can encode task specific domain knowledge (bias) – Difficult to learn directly from data – Reduce training set size • Feature system can speed processing

Rectangle Features • Treat rectangles as units – Derive statistics • Two-rectangle features – Two similar rectangular regions • Vertically or horizontally adjacent – Sum pixels in each region • Compute difference between regions

Rectangle Features II • Three-rectangle features – 3 similar rectangles: horizontally/vertically • Sum outside rectangles • Subtract from center region • Four-rectangle features – Compute difference between diagonal pairs • HUGE feature set: ~180, 000

Rectangle Features

Computing Features Efficiently • Fast detection requires fast feature calculation • Rapidly compute intermediate representation – – “Integral image” Value for point (x, y) is sum of pixels above, left ii(x, y) = Σx’<=x, y’<=y i(x, y) Computed by recurrence • s(x, y) = s(x, y-1) + i(x, y) , where s(x, y) cumulative row • ii(x, y) = ii(x-1, y) + s(x, y) • Compute rectangle sum with 4 array references

Rectangle Feature Summary • Rectangle features – Relatively simple – Sensitive to bars, edges, simple structure • Coarse – Rich enough for effective learning – Efficiently computable

Learning an Image Classifier • Supervised training: +/- examples • Many learning approaches possible • Adaboost: – Selects features AND trains classifier – Improves performance of simple classifiers • Guaranteed to converge exponentially rapidly – Basic idea: Simple classifier • Boosts performance by focusing on previous errors

Feature Selection and Training • Goal: Pick only useful features from 180000 – Idea: Small number of features effective • Learner selects single feature that best separates +/- ve examples – Learner selects optimal threshold for each feature – Classifier h(x) = 1 if pf(x)<pθ, 0 otherwise

Basic Learning Results • Initial classification: Frontal faces – 200 features – Finds 95%, 1/14000 false positive – Very fast • Adding features adds to computation time • Features interpretable – Darker region around eyes that nose/cheeks – Eyes are darker than bridge of nose

Primary Features

“Attentional Cascade” • Goal: Improved classification, reduced time – Insight: Small – fast – classifiers can reject • But have very few false negatives – Reject majority of uninteresting regions quickly – Focus computation on interesting regions • Approach: “Degenerate” decision tree • Aka “cascade” • Positive results passed to high detection classifiers – Negative results rejected immediately

Cascade Schematic All Sub-window Features CL 1 F T CL 2 T F Reject Sub-Window CL 3 F T More Classifiers

Cascade Construction • Each stage is a trained classifier – Tune threshold to minimize false negatives – Good first stage classifier • Two feature strong classifier – eye/check + eye/nose • Tuned: Detect 100%; 40% false positives – Very computationally efficient • 60 microprocessor instructions

Cascading • Goal: Reject bad features quickly – Most features are bad • Reject early in processing, little effort – Good regions will trigger full cascade • Relatively rare • Classification is progressively more difficult – Rejected the most obvious cases already • Deeper classifiers more complex, more error-prone

Cascade Training • Tradeoffs: Accuracy vs Cost – More accurate classifiers: more features, complex – More features, more complex: Slower – Difficult optimization • Practical approach – – Each stage reduces false positive rate Bound reduction in false pos, increase in miss Add features to each stage until meet target Add stages until overall effectiveness targets met

Results • Task: Detect frontal upright faces – Face/non-face training images • Face: ~5000 hand-labeled instances • Non-face: ~9500 random web-crawl, hand-checked – Classifier characteristics: • 38 layer cascade • Increasing number of features: 1, 10, 25, … : 6061 – Classification: Average 10 features per window • Most rejected in first 2 layers • Process 384 x 288 image in 0. 067 secs

Detection Tuning • Multiple detections: – Many subwindows around face will alert – Create disjoint subsets • For overlapping boundaries, only report one – Return average of corners • Voting: – 3 similarly trained detectors • Majority rules – Improves overall

Conclusions • Fast, robust facial detection – Simple, easily computable features – Simple trained classifiers – Classification cascade allows early rejection • Early classifiers also simple, fast – Good overall classification in real-time

Some Results

Vision in Modern Ai • Goals: – Robustness – Multidomain applicability – Automatic acquisition – Speed: Real time • Approach: – Simple mechanisms, feature selection – Machine learning: Tune features, classification
