![Lecture 2 3 TRUCKS HAULING EQUIPMENT 1 TSP308 MPK Ferdinand Fassa Lecture 2 &3 TRUCKS & HAULING EQUIPMENT 1 TSP-308 MPK Ferdinand Fassa](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-1.jpg)
Lecture 2 &3 TRUCKS & HAULING EQUIPMENT 1 TSP-308 MPK Ferdinand Fassa
![OUTLINE 1 Introduction 2 Classification of Trucks 3 Factors Affecting Haulers Productivity 4 Calculating OUTLINE 1. Introduction 2. Classification of Trucks 3. Factors Affecting Haulers’ Productivity 4. Calculating](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-2.jpg)
OUTLINE 1. Introduction 2. Classification of Trucks 3. Factors Affecting Haulers’ Productivity 4. Calculating Truck Productivity 2
![1 Introduction HAULING To HaulTransport Dirt onoff road over a Long Distance n n 1. Introduction HAULING: To Haul/Transport Dirt (on/off road) over a Long Distance n n](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-3.jpg)
1. Introduction HAULING: To Haul/Transport Dirt (on/off road) over a Long Distance n n n Trucks are hauling units that provide relativity low hauling cost. The productive capacity of a truck depends on size of load an the number of trips it can make in an hour Truck function: in transporting excavated material, processed, aggregates and construction material 3
![2 Classification of Trucks n Method of dumping the load q q q n 2. Classification of Trucks n Method of dumping the load q q q n](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-4.jpg)
2. Classification of Trucks n Method of dumping the load q q q n Rear-dump Bottom-dump Side-dump Capacity q q Gravimetric: carried load expressed as weight in tons Volumetric/struck volume: carried load expressed as volumetric amount in cubic meter/cubic yard 4
![Method of dumping the load Type of Dump Truck 5 Method of dumping the load Type of Dump Truck 5](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-5.jpg)
Method of dumping the load Type of Dump Truck 5
![n Bottom Dump Truck n Dump Trucks 6 n Bottom Dump Truck n Dump Trucks 6](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-6.jpg)
n Bottom Dump Truck n Dump Trucks 6
![n Side Dump Truck 7 n Side Dump Truck 7](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-7.jpg)
n Side Dump Truck 7
![Volvo Truck Family 8 Volvo Truck Family 8](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-8.jpg)

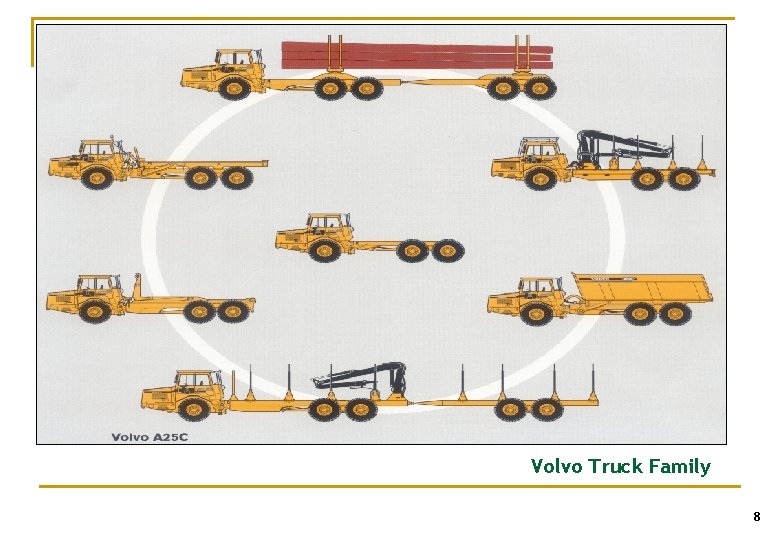

Volvo Truck Family 8
![n 930 E Komatsu n Empty 200 tons n Loaded 500 tons 211 M n 930 E Komatsu n Empty 200 tons n Loaded 500 tons (211 M](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-9.jpg)
n 930 E Komatsu n Empty 200 tons n Loaded 500 tons (211 M 3) 9
![n n 3 Factors Affecting Haulers Productivity Types and characteristics of soils Payload q n n 3. Factors Affecting Haulers’ Productivity Types and characteristics of soils Payload q](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-10.jpg)
n n 3. Factors Affecting Haulers’ Productivity Types and characteristics of soils Payload q q n (volume / weight) Empty vs. Loaded Roads q q q Haul – Return Grades Distance n Efficiency and condition of equipment n Efficiency and condition of work n Loader’s Capacity / Productivity 10
![Loading and Hauling Cycle hauling spreading Loading Cycle excavation loading Loosening swelling Hauling and Loading and Hauling Cycle hauling spreading Loading Cycle excavation loading Loosening (swelling) Hauling and](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-11.jpg)

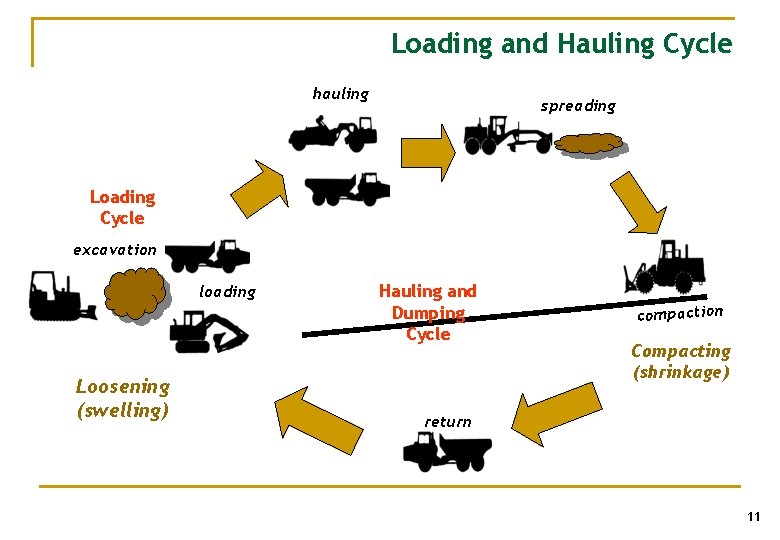

Loading and Hauling Cycle hauling spreading Loading Cycle excavation loading Loosening (swelling) Hauling and Dumping Cycle compaction Compacting (shrinkage) return 11
![4 Calculating Truck Productivity 1 Analyzes the performance of 22 ton rear dump trucks 4. Calculating Truck Productivity (1) Analyzes the performance of 22 ton rear dump trucks](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-12.jpg)
4. Calculating Truck Productivity (1) Analyzes the performance of 22 ton rear dump trucks being loaded by hydraulic hoe having 3 cy bucket and the hoe should be able to cycle in 20 sec. Rear dump trucks with specification as follow are used to haul sandy clay material. Struck, 14. 7 cy Heaped 18. 3 cy Net weight empty =36. 860 lb ; speed 22 mph Max Payload/muatan = 44. 000 lb Max Gross vehicle weight = 80. 860 lb Truck speed at gross v. weight 72000 -73000 = 16 mph Truck speed at gross v. weight 73000 -74000 = 15 mph Truck speed at gross v. weight 74000 -75000 = 14 mph Truck speed at gross v. weight 75000 -76500 = 13 mph The haul route from loading point to the waste site is 3 mile Dump time 2 min, the sandy clay has a loose unit weight of 2, 150 lb/cy Efficiency estimate for this work is a 50 min hour 12
![n 13 n 13](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-13.jpg)
n 13
![n 18 3 14 n 18. 3 14](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-14.jpg)

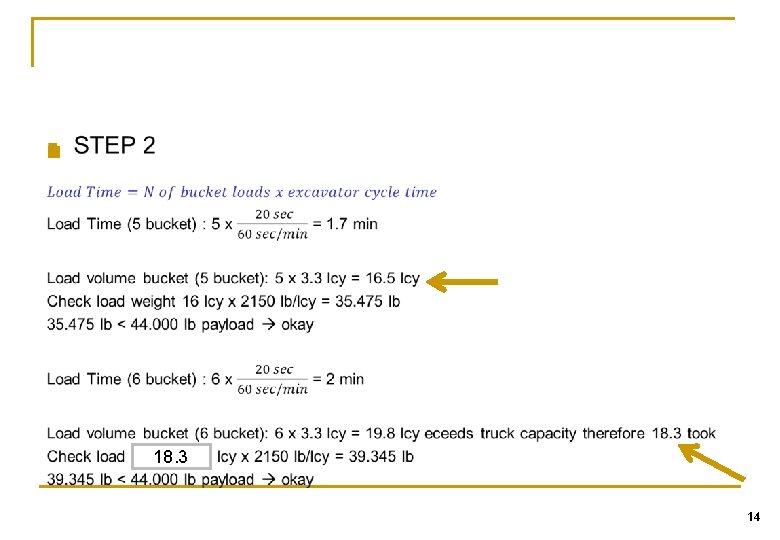

n 18. 3 14
![n gross v weight empty truck net weight weight of load 5 bucket n gross v. weight= empty truck net weight + weight of load 5 bucket](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-15.jpg)
n gross v. weight= empty truck net weight + weight of load 5 bucket gross v. weight= 36860 + 35475 72335 lb 6 bucket gross v. Weight = 36860 + 39345 76205 Truck speed at gross v. weight 72000 -73000 = 16 mph Truck speed at gross v. weight 73000 -74000 = 15 mph Truck speed at gross v. weight 74000 -75000 = 14 mph Truck speed at gross v. weight 75000 -76500 = 13 mph 15
![n 16 n 16](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-16.jpg)

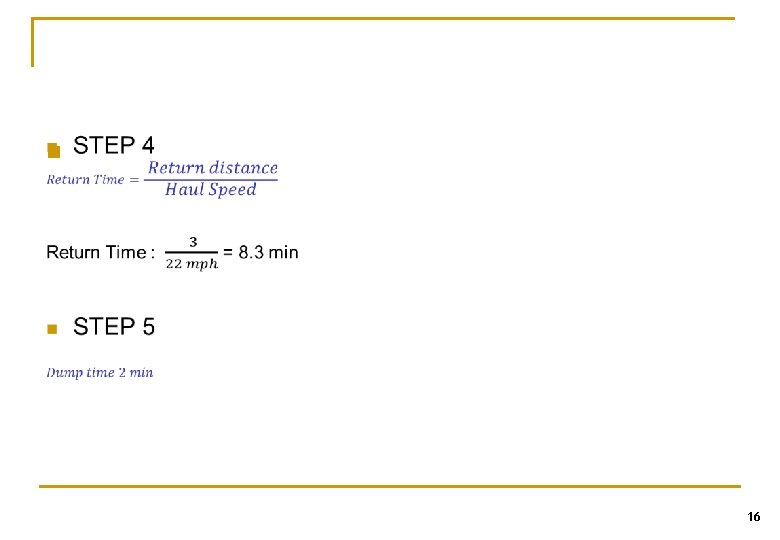

n 16
![n STEP 6 Truck Cycle Time TCT LT HT DMT n STEP 6 Truck Cycle Time TCT = (LT + HT + DMT +](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-17.jpg)
n STEP 6 Truck Cycle Time TCT = (LT + HT + DMT + RT) 5 Bucket = 1. 7 + 11. 3 + 2. 0 + 8. 2 = 23. 2 6 Bucket = 2. 0 + 13. 9 + 2. 0 + 8. 2 = 26. 1 17
![n 18 n 18](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-18.jpg)
n 18
![n 19 n 19](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-19.jpg)
n 19
![n 20 n 20](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-20.jpg)

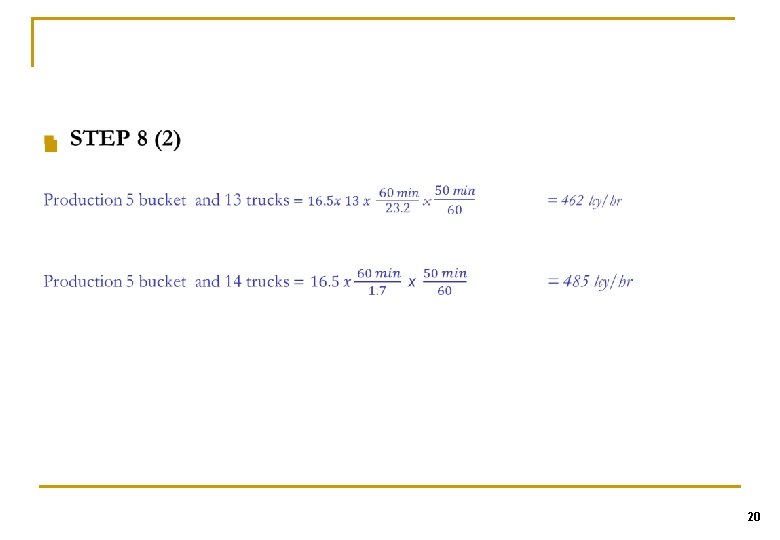

n 20
![n 21 n 21](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-21.jpg)
n 21
![Safety First Safety First!!!!](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-22.jpg)
Safety First!!!!
![THANK YOU 23 THANK YOU 23](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-23.jpg)
THANK YOU 23
![TUGAS n Cari Proyek di wilayah Tangerang Selatan q q q Ukuran Truk Hitung TUGAS n Cari Proyek di wilayah Tangerang Selatan: q q q Ukuran Truk Hitung](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-24.jpg)
TUGAS n Cari Proyek di wilayah Tangerang Selatan: q q q Ukuran Truk Hitung Cycle Time (loading, hauling, Dumping and Return) Berapa Produktifitas dalam Sehari denga efektifitas sesuai kondisi/informasi Apa Kendala yang ada Buat video 24
![4 Calculating Truck Productivity 2 n 25 4. Calculating Truck Productivity (2) n 25](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-25.jpg)

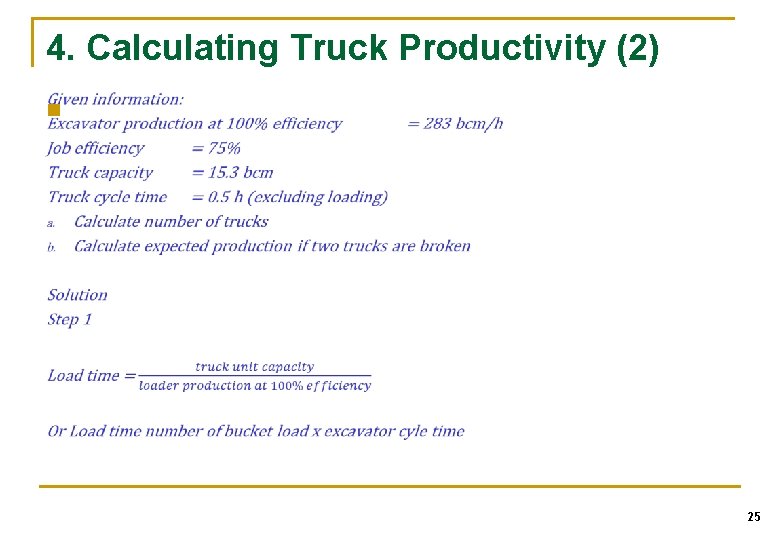

4. Calculating Truck Productivity (2) n 25
![4 Calculating Truck Productivity 2 n 26 4. Calculating Truck Productivity (2) n 26](https://slidetodoc.com/presentation_image_h/09f5c608b94a795ec098153160582f0b/image-26.jpg)
4. Calculating Truck Productivity (2) n 26
