Introduction to Microprocessors AGENDA Architecture Microprocessor Communication and

Introduction to Microprocessors

AGENDA • Architecture • Microprocessor Communication and Bus Timings • Demultiplexing Address and Data Lines

Architecture of 8085 • Reveals the internal logic of a Microprocessor • 8085 Architecture consists of following blocks: – – – ALU logic Register Logic Timing and Execution Logic Interrupt Logic Serial I/O Logic

Flag Register S Z X AC X P X C Carry Sign Zero Parity Auxiliary Carry X - Unspecified

Register Section • General Purpose Registers • A, B, C, D, E, H, and L • BC, DE, and HL • Special Function Registers • Program Counter • Stack Pointer

Timing and Execution Logic Instruction Register Instruction Decoder Timing and Control Unit Control Signals

Interrupt Logic • Consists of 5 interrupts with following properties: • Priority • Maskable and Non Maskable • Vectored and Non – Vectored • INTA is an output signal

Serial I/O Logic • Supports serial I/O using 2 lines • SID – Serial Input Data • SOD – Serial Output Data

Mp communication and Bus Timings - 1 ´ The instruction code 0100 1111 (4 FH – MOV C, A) is stored in memory location 2005 H. Illustrate the steps and the timing of data flow when it is being fetched

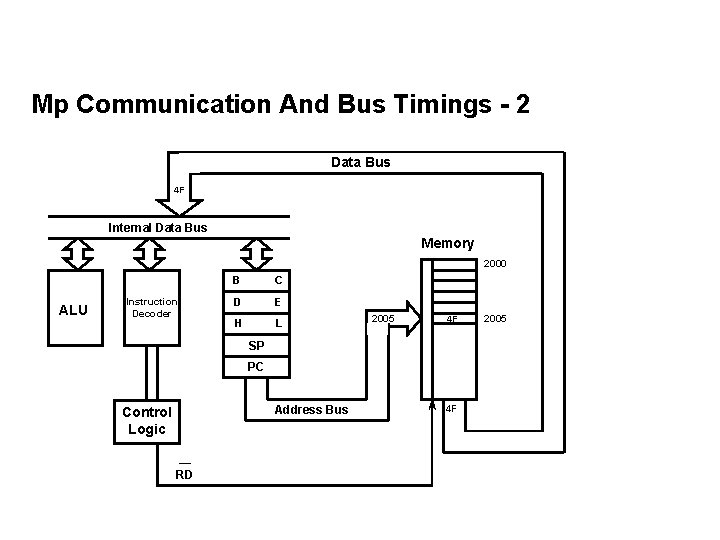

Mp Communication And Bus Timings - 2 Data Bus 4 F Internal Data Bus Memory 2000 ALU Instruction Decoder B C D E H L 2005 4 F SP PC Address Bus Control Logic RD 4 F 2005

Timing Diagram

Demultiplexing Address & Data Lines

Probable Questions. . ´ Explain with a neat diagram, the architecture of 8085 microprocessor ´ Explain the flag register of 8085. ´ With a neat diagram, explain how to separate multiplexed address and data lines in 8085. ´ Explain opcode fetch machine cycle. ´ What Signals are activated when I/O port at address ABCD H is read by 8085 ?
