ESE 532: System-on-a-Chip Architecture Day 22: November 15, 2017 Real Time Penn ESE 532 Fall 2017 -- De. Hon 1

Today Real Time • Demands • Challenges – Algorithms – Architecture • Approaches Penn ESE 532 Fall 2017 -- De. Hon 2

Message • Real-Time applications demand different discipline from best-effort tasks • Look more like synchronous circuits • Can sequentialize, like processor – But must avoid/rethink typical generalpurpose processor common-case optimizations Penn ESE 532 Fall 2017 -- De. Hon 3

Real-Time Tasks • What applications demand real-time computing tasks? Penn ESE 532 Fall 2017 -- De. Hon 4

Real-Time Tasks • Human consumed media: – video, audio, games, UI, graphics • Control – Anti-lock brakes, cruise-control, auto-pilot, UAV, self-driving car, industrial automation • Stock trading • Network traffic handling • Crypto (avoid information leak) Penn ESE 532 Fall 2017 -- De. Hon 5

Real-Time Guarantees • What guarantees might we want for real -time tasks? Penn ESE 532 Fall 2017 -- De. Hon 6

Real-Time Guarantees • Attention/processing within fixed interval – Sample new value every XX ms – Produce new frame every 30 ms – Both: schedule to act and complete action • Bounded response time – Respond to keypress within 20 ms – Detect object within 100 ms – Return search results within 200 ms Penn ESE 532 Fall 2017 -- De. Hon 7

Synchronous Circuit Model • A simple synchronous circuit is a good “model” for real-time task – Run at fixed clock rate – Take input every cycle – Produce output every cycle – Complete computation between input and output – Designed to run at fixed-frequency • Critical path meets frequency requirement Penn ESE 532 Fall 2017 -- De. Hon 8

Preclass 1 • How implement spatial pipeline? Penn ESE 532 Fall 2017 -- De. Hon 9

Historically • Real-Time concerns grew up in EE – Because an analog circuit was the only way could meet frequency demands – …later a dedicated digital circuit… • Where worried about – Signal processing, video, control, … Penn ESE 532 Fall 2017 -- De. Hon 10

Technological Change • Why not be satisfied with this answer today? – For real-time task need dedicated synchronous circuit? Penn ESE 532 Fall 2017 -- De. Hon 11

Performance Scaling • As circuit speeds increased – Can meet real-time performance demands with heavy sequentialization • Circuit and processor clocks – from MHz to GHz • Many real-time task rates unchanged – 44 KHz audio, 33 frames/second video • Even 100 MHz processor – Can implement audio in a small fraction of its computational throughput capacity Penn ESE 532 Fall 2017 -- De. Hon 12

HW/SW Co-Design • Computer Engineers – know can implement anything as hardware or software • Want freedom to move between hardware and software to meet requirements – Performance, costs, energy Penn ESE 532 Fall 2017 -- De. Hon 13

Real-Time Challenge • Meet real-time demands / guarantees – Economically using programmable architectures • Sequentialize and share resources with deterministic, guaranteed timing Penn ESE 532 Fall 2017 -- De. Hon 14

Preclass 2 • Time for loop iteration case (a)? Penn ESE 532 Fall 2017 -- De. Hon 15

Preclass 2 Processor • With data hazard stalls, bypassing Penn ESE 532 Fall 2017 -- De. Hon 16

Preclass 2 • Time for loop iteration case (a)? Penn ESE 532 Fall 2017 -- De. Hon 17

Preclass 2 • Time for loop iteration case (b)? Penn ESE 532 Fall 2017 -- De. Hon 18

Data-dependent hazard • Stalls instruction pipeline – Only when data needed before computed Penn ESE 532 Fall 2017 -- De. Hon 19

Observe • Instructions on “General Purpose” processors take variable number of cycles Penn ESE 532 Fall 2017 -- De. Hon 20

Preclass 3 • How many cycles? Penn ESE 532 Fall 2017 -- De. Hon 21

Preclass 3 • How many cycles? Penn ESE 532 Fall 2017 -- De. Hon 22

Observe • Data-dependent branching, looping – Means variable time for operations Penn ESE 532 Fall 2017 -- De. Hon 23

Two Challenges 1. Architecture – Hardware have variable (data-dependent) delay – Esp. for General-Purpose processors • Instructions take different number of cycles 2. Algorithm – computational specification have variable (data-dependent) operations – Different number of instructions Penn ESE 532 Fall 2017 -- De. Hon 24

Algorithm • What programming constructs are datadependent (variable delay)? Penn ESE 532 Fall 2017 -- De. Hon 25

Programming Constructs • Conditionals: if/then/else • Loops without compile-time determined bounds – While with termination expressions – For with data-dependent bounds • • Recursion Hash tables with variable-sized buckets Memoization Interrupts – I/O events, time-slice Penn ESE 532 Fall 2017 -- De. Hon 26

Programming Constructs • Dynamic Dataflow – Variable rates – Switch/select operators Penn ESE 532 Fall 2017 -- De. Hon 27

…like Hardware • Many problematic constructs similar to C/Programming-Language constructs need to avoid for hardware – Dynamic allocation (malloc) – Recursive functions – Loops without determined bounds – Mux-conversion/predications for if/then/else Penn ESE 532 Fall 2017 -- De. Hon 28

Architecture • What processor constructs are variable delay? Penn ESE 532 Fall 2017 -- De. Hon 29

Processor Variable Delay • Data hazards • Caches • Data-dependent branching / branch delays • Speculative issue – Out-of-Order, branch prediction • Dynamic arbitration for shared resources – Bus, I/O, Crossbar output, memory, … Penn ESE 532 Fall 2017 -- De. Hon 30

Cache Predictable? • Is an element in or out of cache? – Accessed before? – Had an address conflict? – Depend on access pattern • If shared – Did someone else write it? – Depends on everything else sharing Penn ESE 532 Fall 2017 -- De. Hon 31

Hardware Architecture • Some “optimizations” can cause variable delay even in dedicated hardware data path – Caches – Common-case optimizations – Pipeline stalls Penn ESE 532 Fall 2017 -- De. Hon 32

What can we do to make architecture more deterministic? • Explicitly managed memory • Fixed-delay pipelines – Scheduled – Multi-threaded • Deadlines • Offline-scheduled resource sharing Penn ESE 532 Fall 2017 -- De. Hon 33

Explicitly Managed Memory • Make memory hierarchy visible – Use Scratchpad memories instead of caches • Explicitly move data between memories – E. g. DMA into OCM, movement into local memory • Already do for Register File in Processor – Load/store between memory and RF slot – …but don’t do for memory hierarchy Penn ESE 532 Fall 2017 -- De. Hon 34

Explicitly Managed Memory Penn ESE 532 Fall 2017 -- De. Hon 35

Fixed Delays (1) • Drop dynamic data hazards, branch speculation • Data becomes available after a predictable time • Branches take effect at a fixed time – Likely delayed • Schedule to delays to get correct data Penn ESE 532 Fall 2017 -- De. Hon 36

Fixed Delay Example • Branches occur – 1 cycle later (uncond) – 3 cycles later • Non-FP data – Available on 2 nd instr • FP data – Available on 6 th instr Penn ESE 532 Fall 2017 -- De. Hon 37

Preclass 4 a • Where code not work? Penn ESE 532 Fall 2017 -- De. Hon 38

Preclass 4 a • Where code not work? Penn ESE 532 Fall 2017 -- De. Hon 39

Preclass 4 b • How fix? Penn ESE 532 Fall 2017 -- De. Hon 40

Preclass 4 b: Quick Fix Penn ESE 532 Fall 2017 -- De. Hon 41

Preclass 4 b: Avoid noop Penn ESE 532 Fall 2017 -- De. Hon 42

Fixed-Delay (2) • Drop dynamic data hazards, branch speculation • Pipeline processor • But only feed one instruction per thread through processor at time – Each instruction completes before next issues (no dependencies) • Use pipeline to issue from multiple threads – For throughput, not latency Penn ESE 532 Fall 2017 -- De. Hon 43

Multithreaded Pipeline • Only one instruction per thread in pipeline • C-slow (Day 7) – looks like PIPEDEPTH slower processors • No interlock/bypass – Smaller control – Faster cycle? Penn ESE 532 Fall 2017 -- De. Hon 44

Multithreaded Pipeline • • Can run multiple threads Non-real-time threads can share Timing of threads not impact each other Non-real-time threads take variable time – Not interfere with real-time thread slots Penn ESE 532 Fall 2017 -- De. Hon 45

Deadline Instruction • Set a hardware counter for thread • Demand counter reach 0 before allowed to continue • Orderly way to tolerate variable instructions in algorithm • Model: fixed rate of attention – Stall if get there early – Similar to flip-flop on a logic path • Wait for clock edge to change value • Model: fixed-time Penn ESE 532 Fall 2017 -- De. Hon 46

Offline Schedule Resource Sharing • Don’t arbitrate • Decide up-front when each shared resource can be used by each thread or processor – Simple fixed schedule – Detailed Schedule • What – Memory bank, bus, I/O, network link, … Penn ESE 532 Fall 2017 -- De. Hon 47

Time-Multiplexed Bus Fixed by hardware master • 4 masters share a bus • Each master gets to make a request on the bus every 4 th cycle – If doesn’t use it, goes idle Penn ESE 532 Fall 2017 -- De. Hon 48

Time-Multiplexed Bus • Regular schedule • Fixed bus slot schedule of length N > masters – (probably a multiple) • Assign owner for each slot – Can assign more slots to one • E. g. N=8, for 4 masters – Schedule (1 2 1 3 1 2 1 4) Penn ESE 532 Fall 2017 -- De. Hon 49

Fully Scheduled • At extreme, fully schedule which tasks gets resource on each cycle Penn ESE 532 Fall 2017 -- De. Hon 50

Fully Scheduled • At extreme, fully schedule which tasks gets resource on each cycle • Sensible if all master’s sharing resource are also fully scheduled, running in lockstep • Think of instruction field for bus Penn ESE 532 Fall 2017 -- De. Hon 51

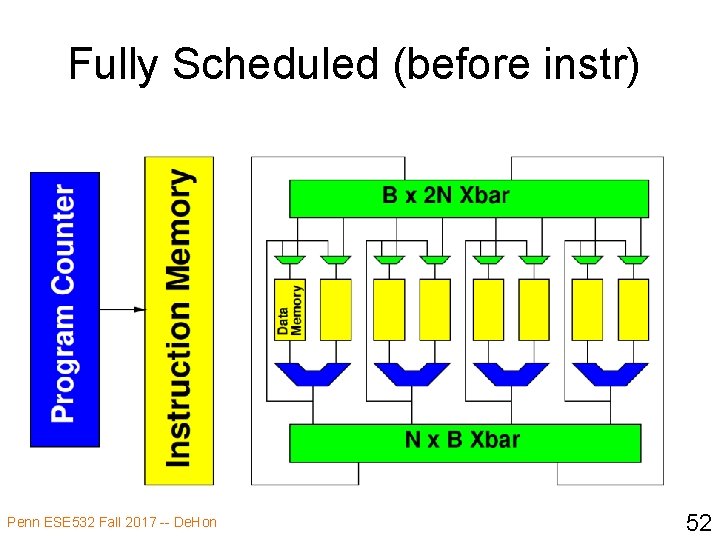

Fully Scheduled (before instr) Penn ESE 532 Fall 2017 -- De. Hon 52

Fully Scheduled Penn ESE 532 Fall 2017 -- De. Hon 53

So. C Opportunity • Can choose which resources are shared • Can dedicate resources to tasks • Isolate real-time tasks/portions of tasks from best-effort – Separate hardware/processors – Separate memories, network Penn ESE 532 Fall 2017 -- De. Hon 54

Different Goals Real-Time • Willing to recompile to new hardware • Want time on hardware predictable • Willing to schedule for delays in particular hardware Penn ESE 532 Fall 2017 -- De. Hon General Purpose/Best Effort • ISA fixed • Want to run same assembly on different implementations • Tolerate different delays for different hardware • Run faster on newer, larger implementations 55

WCET • WCET – Worst-Case Execution Time • Analysis when working with algorithms and architectures with data-dependent delay – Need to meet real time – Calculate the worst-case runtime of a task • • Like calculating the critical path (but harder) Worst-case delay of instructions Worst-case path through code Worst-case # loop iterations Penn ESE 532 Fall 2017 -- De. Hon 56

Big Ideas: • Real-Time applications demand different discipline from best-effort tasks • Look more like synchronous circuits and hardware discipline • Can sequentialize, like processor – But must avoid/rethink typical processor common-case optimizations – Offline calculate static schedule for computation and sharing • Instead of dynamic arbitration, interlocks Penn ESE 532 Fall 2017 -- De. Hon 57

Admin • Function+Energy milestone due Friday • P 4 (area, 1 Gb/s) milestone – Out now – Due Friday 12/1 – (nothing due the Friday of Thanksgiving) • Next week – Meet on Monday, but not Wednesday • Because Wednesday is a logical Friday… Penn ESE 532 Fall 2017 -- De. Hon 58
