ELLWOOD ENGINEERED CASTINGS A DIVISION OF THE ELLWOOD
- Slides: 26
ELLWOOD ENGINEERED CASTINGS A DIVISION OF THE ELLWOOD GROUP INC. Hubbard, Ohio 1

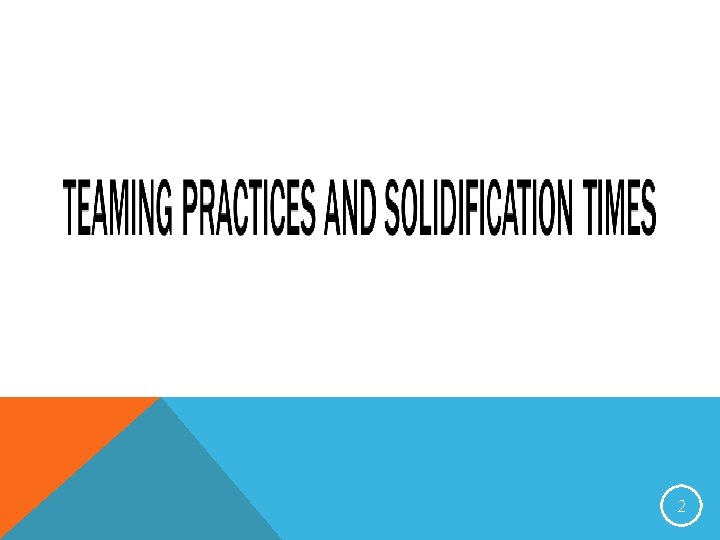

2
INCREASE MOLD TEMPERATURE 100 DEGREES TO 800 DEGREES 3
100 DEGREE MOLD 2825 DEGREE STEEL 166 MIN 4
300 DEGREE MOLD 2825 DEGREE STEEL 173 MIN 5
500 DEGREE MOLD 2825 DEGREE STEEL 180 MIN 6
800 DEGREE MOLD 2825 DEGREE STEEL 191 MIN 7
RAISING THE MOLD TEMPERATURE INCREASED SOLIDIFICATION TIME BY 24 MINUTES 8
INCREASE TEAMING TEMPERATURE 2825 TO 2900 DEGREES 9
100 DEGREE MOLD 2825 DEGREE STEEL 166 MIN 10
100 DEGREE MOLD 2850 DEGREE STEEL 169 MIN 11
100 DEGREE MOLD 2875 DEGREE STEEL 172 MIN 12

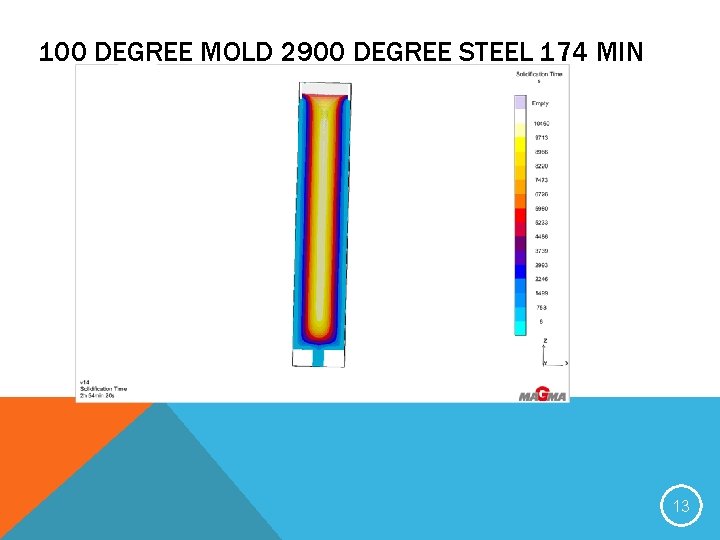

100 DEGREE MOLD 2900 DEGREE STEEL 174 MIN 13
RAISING THE POUR TEMPERATURE INCREASED THE SOLIDIFICATION TIME BY OVER 7 MINUTES 14
INCREASE BOTH MOLD TEMPERATURE AND TEAMING TEMPERATURE 15
500 DEGREE MOLD 2850 DEGREE STEEL 183 MIN 16
500 DEGREE MOLD 2875 DEGREE STEEL 185 MIN 17
500 DEGREE MOLD 2900 DEGREE STEEL 188 MIN 18

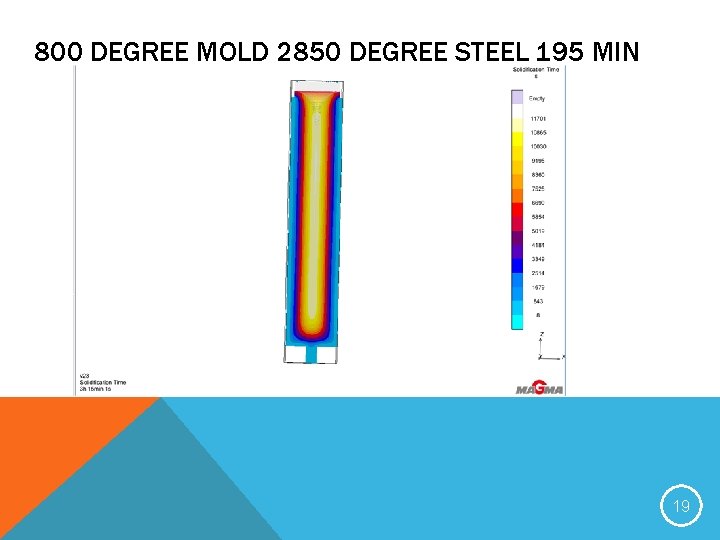

800 DEGREE MOLD 2850 DEGREE STEEL 195 MIN 19
800 DEGREE MOLD 2875 DEGREE STEEL 197 MIN 20
800 DEGREE 2900 DEGREE STEEL 200 MIN 21

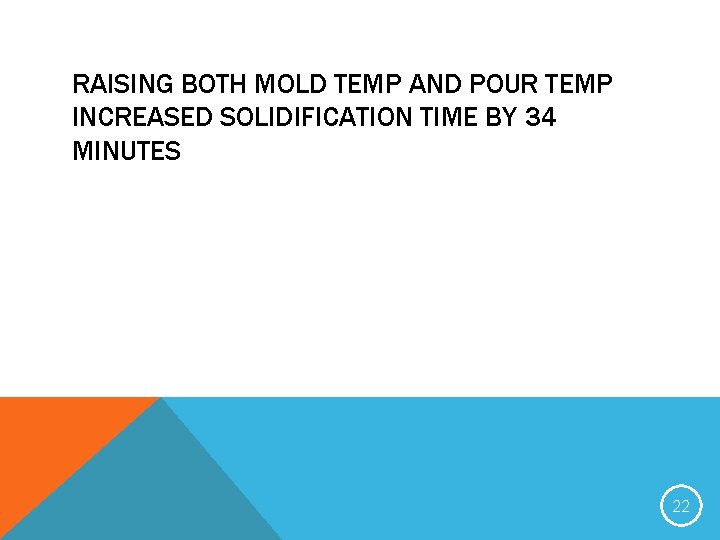

RAISING BOTH MOLD TEMP AND POUR TEMP INCREASED SOLIDIFICATION TIME BY 34 MINUTES 22
MULTIPLE MOLDS 800 DEGREE MOLDS 2900 DEGREE STEEL 212 MIN 23
RAISING MOLD TEMP, STEEL TEMP AND TEAMING THREE AT A TIME ADDED 45 MINUTES TO THE SOLIDIFICATION TIME 24
A financially secure, reliable quality source for Ingot Molds is a priority for Steel producers. EEC is a financially sound foundry with the technical support and quality systems that meet customer requirements. EEC is committed to long term growth through Human Resources and Continued Capital Investments. 25
ELLWOOD ENGINEERED CASTINGS A DIVISION OF THE ELLWOOD GROUP INC. HUBBARD, OHIO U. S. A. §Pat Callihan - President pcallihan@elwd. com 330. 568. 3034 §Adam Scarmack- Operations Manager Ascarmack@elwd. com 330. 568. 3047 §Bill Johnston - Quality Manager Wjohnston@elwd. com 330. 568. 3018 §Rich Deutsch – Ingot Mold Sales Mgr. Rdeutsch@elwd. com 832 -477 -7101 § Bob Scarmack - Ingot Mold Sales Mgr. rscarmack@elwd. com 330 -5069234 §Bill Zaben – Ingot Mold Eng. bzaben@elwd. com 330 -568 -3023 §Jim Hendrickson – Controller jhendrickson@elwd. com 330 -568 -3025 Address: 7158 Hubbard Masury Road - Hubbard, Ohio 44425 Ph: 330. 534. 8668 - Fax: 330. 534. 0069 Web Site: www. ellwoodgroup. com 26
