ECE 697 B (667) Spring 2006 Synthesis and Verification of Digital Circuits Boolean Functions and their Representations Slides adopted (with permission) from A. Kuehlmann, UC Berkeley 2003 1
n The Boolean Space B B = { 0, 1}, B 2 = {0, 1} X {0, 1} = {00, 01, 10, 11} Karnaugh Maps: Boolean Cubes: B 0 B 1 B 2 B 3 B 4 ECE 667 - Synthesis & Verification - Lecture 9 a 2
Boolean Functions x 2 x 1 ECE 667 - Synthesis & Verification - Lecture 9 a 3
Boolean Functions Literal x 1 represents the logic function f, where f = {x| x 1 = 1} Literal x 1 represents the logic function g where g = {x| x 1 = 0} Notation: x’ = x f = x 1 x 3 ECE 667 - Synthesis & Verification - Lecture 9 a x 2 x 1 4
Set of Boolean Functions • Truth Table or Function Table: x 3 x 2 x 1 x 2 x 3 000 1 001 0 010 1 011 0 100 1 101 0 110 1 111 0 • There are 2 n vertices in input space Bn n 2 • There are 2 distinct logic functions. – Each subset of vertices is a distinct logic function: f Bn ECE 667 - Synthesis & Verification - Lecture 9 a 5
Boolean Operations - AND, OR, COMPLEMENT Given two Boolean functions: f : Bn B g : Bn B • AND operation f × g = {x | f(x)=1 Ù g(x)=1} • The OR operation f + g = {x | f(x)=1 Ú g(x)=1} • The COMPLEMENT operation (^f or f’ ) f’ = {x | f(x) = 0} ECE 667 - Synthesis & Verification - Lecture 9 a 6
Cofactor and Quantification Given a Boolean function: f : Bn B, with the input variables (x 1, x 2, …, xi, …, xn) • Positive Cofactor of function f w. r. t variable xi fxi = {x | f(x 1, x 2, …, 1, …, xn)=1} • Negative Cofactor of f w. r. t variable xi fxi’ = {x | f(x 1, x 2, …, 0, …, xn)=1} • Existential Quantification of function f w. r. t variable xi, $xi f = {x | f(x 1, x 2, …, 0, …, xn)=1 Ú f(x 1, x 2, …, 1, …, xn)=1} • Universal Quantification of function f w. r. t variable xi, "xi f = {x | f(x 1, x 2, …, 0, …, xn)=1 Ù f(x 1, x 2, …, 1, …, xn)=1} ECE 667 - Synthesis & Verification - Lecture 9 a 7
Representations of Boolean Functions • We need representations for Boolean Functions for two reasons: – to represent and manipulate the actual circuit we are “synthesizing” – as mechanism to do efficient Boolean reasoning • Forms to represent Boolean Functions – – – Truth table List of cubes: Sum of Products, Disjunctive Normal Form (DNF) List of conjuncts: Product of Sums, Conjunctive Normal Form (CNF) Boolean formula Binary Decision Tree, Binary Decision Diagram Circuit (network of Boolean primitives) • Canonicity – which forms are canonical? ECE 667 - Synthesis & Verification - Lecture 9 a 8
Truth Table • Truth table (Function Table): The truth table of a function f : Bn B is a tabulation of abcd f its values at each of the 2 n vertices of Bn. (all mintems) 0 0000 0 Example: f = a’b’c’d + a’b’cd + a’bc’d + ab’cd + abc’d + abcd’ + abcd (Notation for complement: a’ = a ) The truth table representation is - intractable for large n - canonical Canonical means that if two functions are the same, then the canonical representations of each are isomorphic (identical). ECE 667 - Synthesis & Verification - Lecture 9 a 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111 1 0 1 0 0 0 1 0 1 1 1 9
Boolean Formula • A Boolean formula is defined as an expression with the following syntax: formula : : = | | ‘(‘ formula ‘)’ <variable> formula “+” formula “×” formula ^ formula (OR operator) (AND operator) (complement) Example: f = (x 1×x 2) + (x 3) + ^^(x 4 × (^x 1)) typically the “×” is omitted and the ‘(‘ and ‘^’ are simply reduced by priority, e. g. f = x 1 x 2 + x 3 + x 4^x 1 ECE 667 - Synthesis & Verification - Lecture 9 a 10

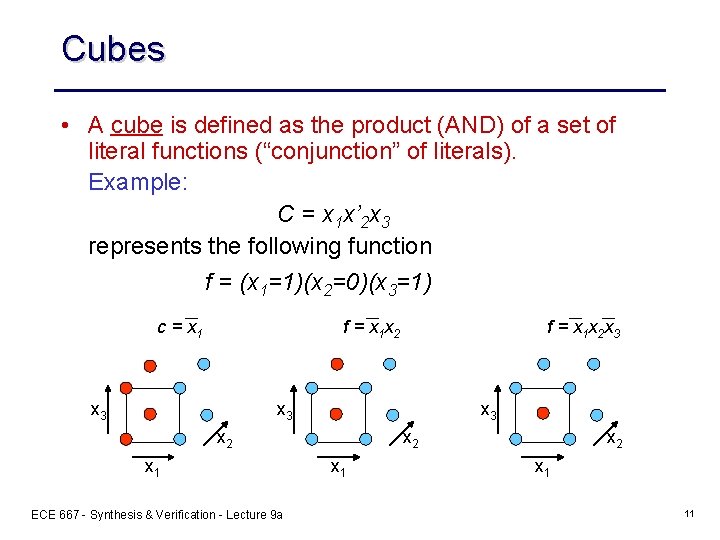

Cubes • A cube is defined as the product (AND) of a set of literal functions (“conjunction” of literals). Example: C = x 1 x’ 2 x 3 represents the following function f = (x 1=1)(x 2=0)(x 3=1) c = x 1 f = x 1 x 2 x 3 f = x 1 x 2 x 3 x 3 x 2 x 1 ECE 667 - Synthesis & Verification - Lecture 9 a x 2 x 1 11
Cubes • If C f, C a cube, then C is an implicant of f. • If C Bn, and C has k literals, then |C| covers 2 n-k vertices. Example: C = xy B 3 k = 2 , n = 3 => C = {100, 101} |C| = 23 -2. • In an n-dimensional Boolean space Bn, an implicant with n literals is a minterm. ECE 667 - Synthesis & Verification - Lecture 9 a 12
List of Cubes Sum of Products (SOP) • A function can be represented by a sum of cubes (products): f = ab + ac + bc Since each cube is a product of literals, this is a “sum of products” (SOP) representation • A SOP can be thought of as a set of cubes F F = {ab, ac, bc} • A set of cubes that represents f is called a cover of f. F 1={ab, ac, bc} and F 2={abc, abc} are covers of f = ab + ac + bc. ECE 667 - Synthesis & Verification - Lecture 9 a 13
Binary Decision Diagram (BDD) f = ab+a’c+a’bd Graph representation of a Boolean function - vertices represent decision nodes for variables root - two children represent the two subfunctions node f(x = 0) and f(x = 1) (cofactors) - restrictions on ordering and reduction rules c+bd can make a BDD representation canonical b c c+d c 1 0 b b c d d 0 ECE 667 - Synthesis & Verification - Lecture 9 a a 1 14
Boolean Networks • • • Used for two main purposes – as representation for Boolean reasoning engine – as target structure for logic implementation which gets restructured in a series of logic synthesis steps until result is acceptable Efficient representation for most Boolean problems – memory complexity is same as the size of circuits we are actually building Close to input representation and output representation in logic synthesis ECE 667 - Synthesis & Verification - Lecture 9 a 15
Definitions – fanin, fanout, support Definition: A Boolean circuit is a directed graph C(G, N) where G are the gates and N G´G is the set of directed edges (nets) connecting the gates. Some of the vertices are designated: Inputs: I G Outputs: O G, I Ç O = Æ Each gate g is assigned a Boolean function fg which computes the output of the gate in terms of its inputs. ECE 667 - Synthesis & Verification - Lecture 9 a 16
Definitions – fanin, fanout, support The fanin FI(g) of a gate g are all predecessor vertices of g: FI(g) = {g’ | (g’, g) Î N} The fanout FO(g) of a gate g are all successor vertices of g: FO(g) = {g’ | (g, g’) Î N} The cone CONE(g) of a gate g is the transitive fanin of g and g itself. The support SUPPORT(g) of a gate g are all inputs in its cone: SUPPORT(g) = CONE(g) Ç I ECE 667 - Synthesis & Verification - Lecture 9 a 17
Example – Boolean Network 7 1 8 4 6 2 I 5 9 O 3 Nodes = logic functions of arbitrary complexity ECE 667 - Synthesis & Verification - Lecture 9 a FI(6) = {2, 4} FO(6) = {7, 9} CONE(6) = {1, 2, 4, 6} SUPPORT(6) = {1, 2} 18
Boolean Network Representations • Vertices can have arbitrary number of inputs and outputs – typically single-output functions are used • Vertices can represent any Boolean function stored in different ways, such as: – other circuits (hierarchical representation) – truth tables or cube representation – Boolean expressions read from a library description – BDDs, AIGs, etc. • Data structure allow very general mechanisms for insertion and deletion of vertices, pins (connections to vertices), and nets ECE 667 - Synthesis & Verification - Lecture 9 a 19
AND-INVERTER Circuits • Base data structure uses two-input AND function for vertices and INVERTER attributes at the edges (individual bit) – use De’Morgan’s law to convert OR operation etc. • Hash table to identify and reuse structurally isomorphic circuits f f g g Means complement ECE 667 - Synthesis & Verification - Lecture 9 a 20
Data Representation • Vertex: – pointers (integer indices) to left and right child and fanout vertices – collision chain pointer – other data • Edge: – pointer or index into array – one bit to represent inversion • Global hash table holds each vertex to identify isomorphic structures • Garbage collection to regularly free un-referenced vertices ECE 667 - Synthesis & Verification - Lecture 9 a 21
Data Representation Hash Table one Constant One Vertex 6423 …. 8456 …. zero 1345 …. 0456 0 left 1 right next fanout . . . 0455 0456 0457. . . 7463 …. hash value complement bits left pointer right pointer next in collision chain array of fanout pointers ECE 667 - Synthesis & Verification - Lecture 9 a 0456 0 left 0 right next fanout 22
