D 10 2 SUPER Showcase Showcase presentation outline

D 10. 2 SUPER Showcase

Showcase presentation outline 1. Introduction to the project 2. General business introduction: today problems, challenges and opportunities for improvement 3. Brief introduction to SUPER methodology and, at a very high level, architecture and ontology stack 4. Business (Telco) scenarios for each of the methodology step, in which to underline: ► Business view ► Technological challenge ► SUPER solution 5. Business impact 6. Next steps/objectives of the project © SUPER 2

1. Introduction to the project

SUPER Research Project ■ EU funded research project (FP 6 – 026850) ■ started April 2006 ■ 3 years duration ■ part of the European Semantic Systems Initiative (ESSI) cluster ■ based on several past projects like SEKT, DIP, SWWS, and IBROW ■ 19 educational and industrial partners © SUPER 4

SUPER Consortium © SUPER 5

SUPER’s objectives ■ Framework for semantic Business Process Management ■ Bring BPM to the utter business experts, away from the pure technical view ■ Intelligent and flexible reaction to change ■ Integration of heterogeneous Business Processes ■ Mediation inside and between organisations © SUPER 6

2. General business introduction

Global Business Context and Problems (1/3) ■ Imaginable growth of information and automation ■ New business opportunities that the information society offers, e. g. service world, e-Commerce ■ Increase of competitiveness, many new market entrants and a challenging regulatory environment ■ Increase of B 2 B relationships between companies to bundle more elaborated services ■ Customers demand higher service integration and adaptation to their needs ■ Fusions and alliances, country specific regulatory aspects, company internal re-organizations ■ Shorter time-to-market for new products ► Demand for agile, dynamic processes © SUPER 8

Global Business Context and Problems (2/3) ■ Emergence of a global knowledge-networked innovation economy: The emergence of a global knowledge-networked innovation economy tremendously changes the way in which business is conducted, resulting in rapid technological changes, shrinking product life cycles and enforcing a strong global competition. ■ Increasing global competition and customer demand: Due to the increasing competition as well as an increase in customer independence and demand, companies of every size are shifting from being suppliers of products to suppliers of complex system solutions solving customer problems and needs by providing complete customer solutions through tightly integrated innovation value chains. © SUPER 9

Global Business Context and Problems (3/3) ■ Optimization of Cost-performance ratio: Companies are facing an increasing financial pressure and are required to optimize their cost-performance ratio. As a result, they focus on their core competences and serve their customer demand through tightly-integrated networks of partners and suppliers, leveraging the specialized core competencies of each member within a demand-driven global supply chain. ■ Demand for: - Modularity, reuse and agility of business processes (enabled by service oriented architectures) - Any application supporting “Speed to market” - as the main driver today’s business - Effective alignment of business and IT strategies © SUPER 10

Major Business Requirements ■ Global process automation ■ Team process automation ■ Fast and flexible new product innovation processes ■ Customer intimacy ■ Predictive business actions and processes ■ Risk-safe compliance systems ■ Modularity, reuse and agility of business processes ■ Effectively aligning business and IT strategies ■ Speed to market as the main driver of today’s business ■ Transition to SOA and SOA-compatibility of new technologies © SUPER 11

Main Target Market ■ The Enterprise Application software market – a giant with high global revenues [Forrester Research] The Future Of Enterprise Software, June 2006 © SUPER 12

Business Process Management Systems (BPMS) Categories ■ Integration-centric BPMS ■ Human-centric BPMS [Forrester Research] The Future Of Enterprise Software, June 2006 © SUPER 13

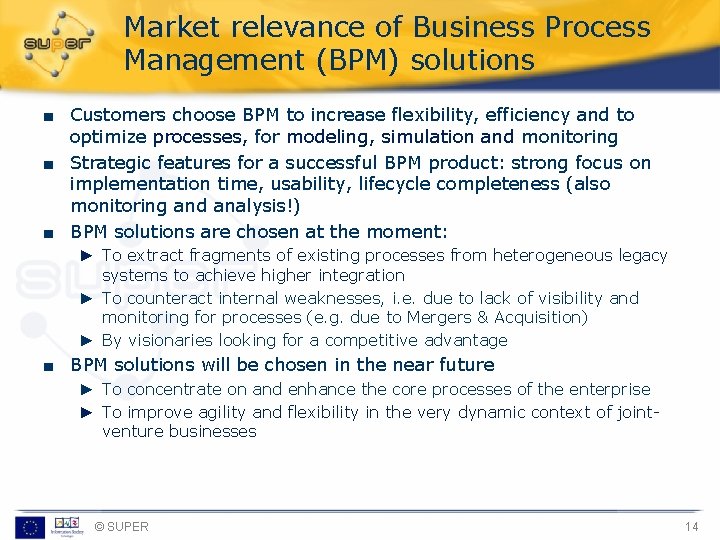

Market relevance of Business Process Management (BPM) solutions ■ Customers choose BPM to increase flexibility, efficiency and to optimize processes, for modeling, simulation and monitoring ■ Strategic features for a successful BPM product: strong focus on implementation time, usability, lifecycle completeness (also monitoring and analysis!) ■ BPM solutions are chosen at the moment: ► To extract fragments of existing processes from heterogeneous legacy systems to achieve higher integration ► To counteract internal weaknesses, i. e. due to lack of visibility and monitoring for processes (e. g. due to Mergers & Acquisition) ► By visionaries looking for a competitive advantage ■ BPM solutions will be chosen in the near future ► To concentrate on and enhance the core processes of the enterprise ► To improve agility and flexibility in the very dynamic context of jointventure businesses © SUPER 14

3. Brief introduction to SUPER methodology, architecture and ontology stack

SUPER Methodology Framework The SUPER methodology is a set of phases, methods and techniques to perform activities using SUPER technologies. Like a traditional BPM methodology, the SUPER methodology owns a proper business process “life cycle”, that is enriched with the semantic connotation of the overall SUPER framework. © SUPER 16

SUPER Methodology MULTI-DOMAIN SOLUTIONS MAPS Others The SUPER Methodology can be applied to a specific domain (like in telco companies) as well as to generic or multiple domains (like any business described in SAP Solution Maps) SPECIFIC DOMAIN YATOSP-e. TOM Others The top and bottom layers in the SUPER methodology are: ■ Strategic Semantic Business Process Management, which deals with all the elements related to a company from a strictly strategic and organizational point of view ■ Ontological Foundation layer, which describes how SUPER artifacts are transformed and "lifted" to semantic elements: it is the SUPER Set of Ontologies for Business Process Management © SUPER 17

SUPER Methodology lifecycle Semantic Business Process Modelling, strictly linked to the Ontological Foundation, permits the ontological representation of business processes, which in turn enables advanced functionalities (specifications mapping automation, process querying, process fragment reuse, etc. ) Semantic Business Process Configuration enables the semi- automated mapping between highlevel BP specifications and executable BPEL 4 SWS specifications and the integration of BPEL with Semantic Web Services © SUPER Semantic Business Process Execution, is the execution of the BPs modeled and configured in the previous phases and, by the use of semantic technologies, enables the run-time resolution of semantic goals, as well runtime service discovery and composition Semantic Business Process Analysis, by the use of semantic information about BPs, enables a better understanding of context and concepts, allowing for automated matching and inference functionality in process discovery, conformance checking, process extension and in business question answering 18

WSMO – Semantics for SUPER ■ Aims: ■ The Web Service Modelling Ontology WSMO ■ Use of WSMO technologies in SUPER ► „ontologize“ the BPM Life Cycle ► enable BPM technologies to deal with Semantic Web Services ► increase flexibility by lifting BPM technologies to the level of goal patterns ► a comprehensive framework for semantically enabled SOA ► 4 top level notions: ontologies, Web Services, goals, mediators ► provides axiomatization, specification language, and a reference implementation 1. describe process data on the basis of ontologies 2. flexible Web Services invocation via Goals – process activity realized as WSMO Goal – dynamic discovery / composition / execution of necessary Web Services at runtime 3. use WSMO mediators to resolve heterogeneities © SUPER 19

WSMO Top-level Elements (http: //www. wsmo. org) Objectives that a client may have when consulting a Web Service Provide the formally specified terminology of the information used by all other elements Semantic description of Web Services: - Capability (functional) - Interfaces (usage) Connectors between components with mediation facilities for handling heterogeneities © SUPER 20

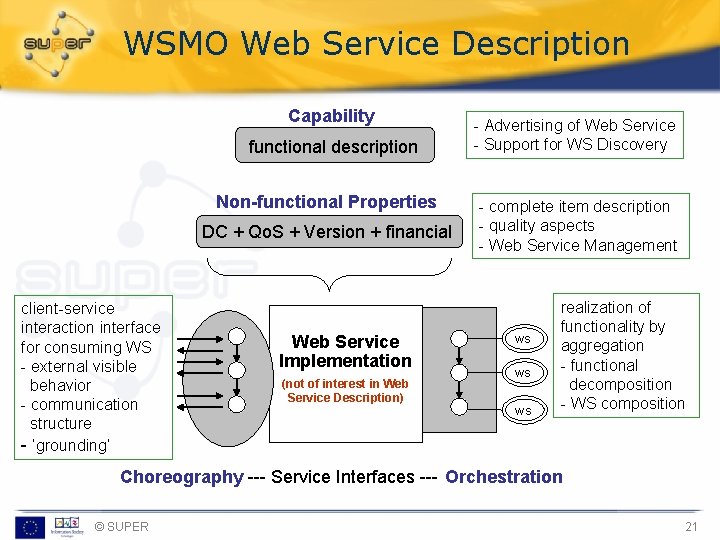

WSMO Web Service Description Capability functional description Non-functional Properties DC + Qo. S + Version + financial client-service interaction interface for consuming WS - external visible behavior - communication structure - ‘grounding’ Web Service Implementation (not of interest in Web Service Description) - Advertising of Web Service - Support for WS Discovery - complete item description - quality aspects - Web Service Management WS WS WS realization of functionality by aggregation - functional decomposition - WS composition Choreography --- Service Interfaces --- Orchestration © SUPER 21

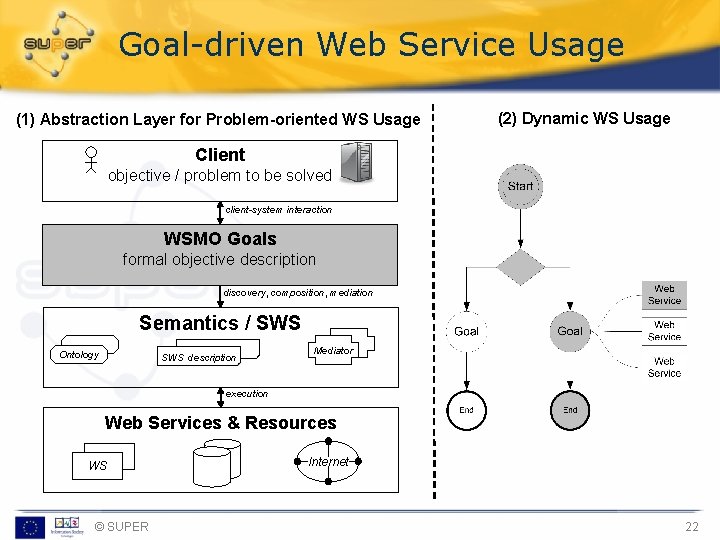

Goal-driven Web Service Usage (1) Abstraction Layer for Problem-oriented WS Usage (2) Dynamic WS Usage Client objective / problem to be solved client-system interaction WSMO Goals formal objective description discovery, composition, mediation Semantics / SWS Ontology SWS description Mediator execution Web Services & Resources WS © SUPER Internet 22

SWS Usage Process GOAL if: successful submission else: try other WS uses Data Mediator Process Mediator matchmaking R with all WS Discoverer if: usable Selection & Ranking Behavioral Conformance uses else: not solvable if: composition possible uses Composer composition (executable) Service Repository if: compatible information lookup for particular service Executor if: execution error © SUPER 23

From Syntactic to Semantic BPEL b) Semantic BPEL Process a) BPEL Process s. BPEL Process WSMO Goal WS WS Goal SWS Environment discovery composition mediation execution WS WS WS dynamic detection at runtim XML Ontology © SUPER Mediator 24

SUPER Architecture Structural Perspective © SUPER 25

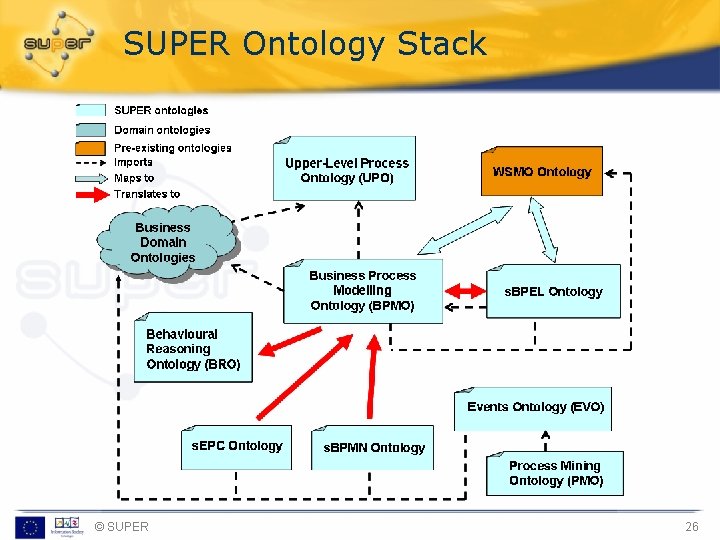

SUPER Ontology Stack © SUPER 26

Benefits ■ Explicate Semantic Meaning of Data & Models ■ Semantic Coherency of Information among several levels of BPM ■ Higher Flexibility for Web Service usage ■ Automated Handling of Potential Heterogeneities ■ Make process definitions better understandable © SUPER 27

4. Business scenarios (focused on Telco) for each of the methodology step

Telco Business Scenarios Context Telco business scenarios (Use Cases) provide through each step of SUPER life cycle give usage example of SUPER Qo. S in DSL (Vo. IP) (Nexcom) Starting point DAM Searching & Downloading (TID) DSL (Vo. IP) Fulfilment (TP) CRM & Fulfilment (e. Tel) Qo. S: Quality of Service; DAM: Digital Asset Management; Vo. IP: Voice over IP; CRM: Customer Relationship Management © SUPER 29

4 a. Modelling

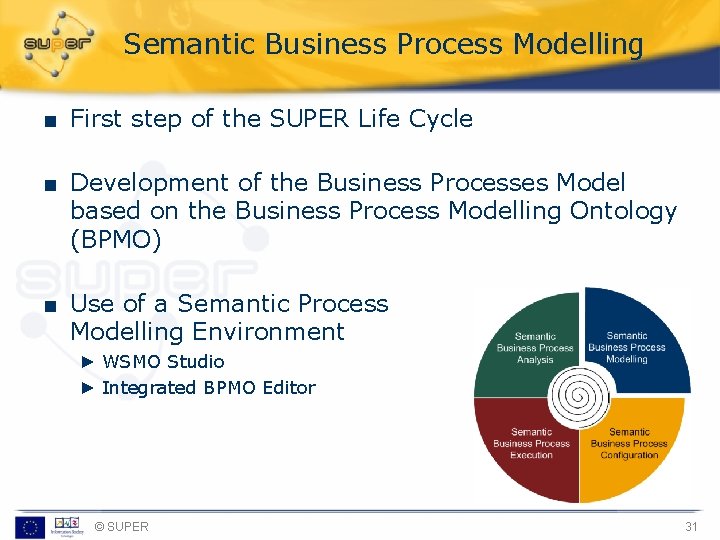

Semantic Business Process Modelling ■ First step of the SUPER Life Cycle ■ Development of the Business Processes Model based on the Business Process Modelling Ontology (BPMO) ■ Use of a Semantic Process Modelling Environment ► WSMO Studio ► Integrated BPMO Editor © SUPER 31

Modelling Requirements and Methodology ■ Business Process Model based on: ► Company specific Business Function and Domain Ontologies ► Semantic Web Services and Goals ■ Business Process Model sources are: ► Business Analyst implicit knowledge and studies (business questions, Key Performance Indicators (KPIs), business outcomes, etc. ) ► Analysis reports created in an eventual previous Semantic Business Process (SBP) Analysis phase ■ Several modelling methodology are possible: ► Start business process modelling from scratch ► Modify existing semantic business processes ► Annotating non-semantic business processes ► Re-use process patterns previously modeled © SUPER 32

Example: TID Prototype © SUPER 33

Benefits of SUPER Modelling ■ Business Process Modelling Notation (BPMN) independence (BPMO representation) ■ Discovery of existing Business Processes exploiting the semantic information ► Search on specified Business Function, Business Domain and Business Patterns ► Search on specified Business Goals, KPIs and Business Rules ■ Automatic validation and simulation of the BPM ■ Better readibility of models through a clear semantic Screencast: http: //www. wsmostudio. org/demo/BPMO-editor. htm © SUPER 34

4 b. Configuration

Semantic Business Process Configuration ■ Modelled Business Processes are configured ■ Functions supported ► Mapping of semantic BPEL processes (BPEL 4 SWS) ► Integration of BPEL with SWS ■ SUPER functionalities used ► Task and process composition (SBP Composition) ► SWS and process fragment discovery (SBP Discovery) ► Semantic Business Process Repository © SUPER 36

Example: SBP Configuration Scenarios CRM & Fulfilment (e. Tel) DSL Fulfilment (TP) Customer Order Request © SUPER 37

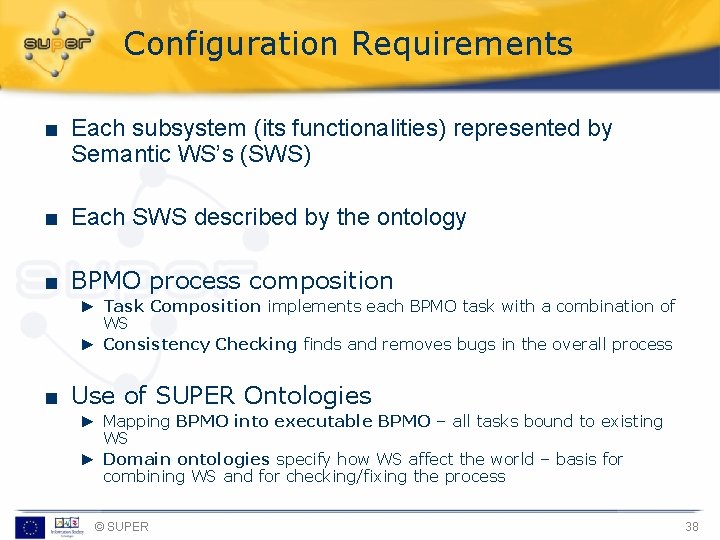

Configuration Requirements ■ Each subsystem (its functionalities) represented by Semantic WS’s (SWS) ■ Each SWS described by the ontology ■ BPMO process composition ► Task Composition implements each BPMO task with a combination of WS ► Consistency Checking finds and removes bugs in the overall process ■ Use of SUPER Ontologies ► Mapping BPMO into executable BPMO – all tasks bound to existing WS ► Domain ontologies specify how WS affect the world – basis for combining WS and for checking/fixing the process © SUPER 38

Benefits of SUPER Configuration ■ Binding process to company IT infrastructure ■ Coming from general process model to its concrete realisation ■ Bridging the gap between business process analyst and IT professional © SUPER 39

4 c. Execution

Semantic Business Process Execution ■ Modeled and configured Semantic Business Processes are executed ■ Execution history for SBP Analysis is produced ■ Automates business activities ■ Minimizes time-to-offer ■ Supports ► Execution of semantic BPEL processes (BPEL 4 SWS) ► Discovery and execution of Semantic Web Services (SWS) © SUPER 41

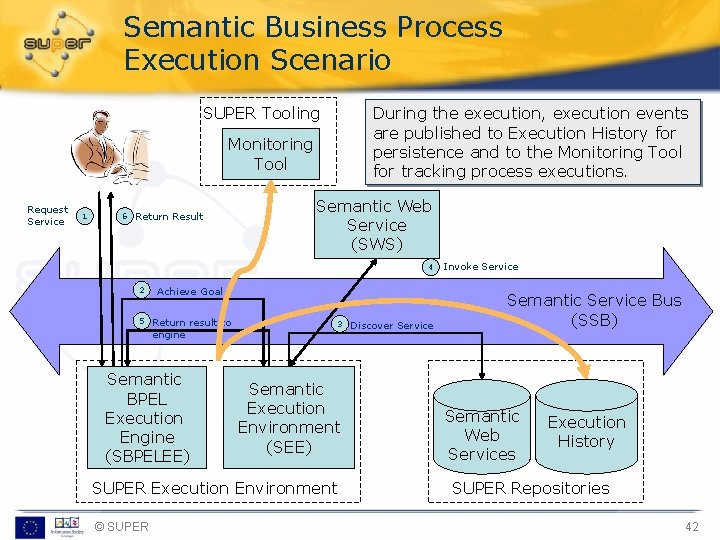

Semantic Business Process Execution Scenario SUPER Tooling During theinitiates execution, the execution semantic BPEL events 1 A user SBPELEE the process delegates execution the invocation has 6 2 After process are published by sending tothe Execution a service request for returns queries result SWS repository of. History “Achieve 3 SEE 5 SEE invokes thepassing selected SWS. been of finished, to SEE the by result isthe returned WSMO 4 SWS through persistence and Semantic to the Service Monitoring to to Goal” discover to the SBPELEE. the desired SWS. Bus Tool to thetouser. Goal it. SBPELEE. for tracking process executions. Monitoring Tool Request Service 1 6 Return Result Semantic Web Service (SWS) 4 2 Achieve Goal 5 Return result to engine Semantic BPEL Execution Engine (SBPELEE) 3 Semantic Execution Environment (SEE) SUPER Execution Environment © SUPER Discover Service Invoke Service Semantic Service Bus (SSB) Semantic Web Services Execution History SUPER Repositories 42

Example: Nexcom Customer Order Management Process Customer uses a client application to start the Nexcom process 1 6 Nexcom process is deployed as a semantic BPEL process 2 5 Supplier exposes its process as SWS. © SUPER Supplier 43

Benefits from SUPER SBP Execution ■ Nexcom Use case requirements addressed by the SUPER SBP Execution phase ► Supplier matching supported by Semantic Web Service discovery and invocation from within semantic business processes ► Allows for more flexible traffic routing ► Automates supplier matching and traffic routing process taking into account all existing suppliers ► Minimizes time-to-offer Screencast: http: //www. iaas. uni-stuttgart. de/forschung/projects/super/nexcom-usecase. avi © SUPER 44

4 d. Analysis

Semantic Business Process Analysis ■ Analysis of executed processes ■ Support of various analysis goals ► Overview over process usage ► Detect business exceptions ► Detect technical exceptions ► Compare As-Is with To-Be Semantic Business Process Analysis Semantic Business Process Modelling ■ Analysis Methods ► Semantic Process Mining ► Semantic Reverse Business Engineering Semantic Business Process Execution Semantic Business Process Configuration n Prerequisite for continuous improvement © SUPER 46

Semantic Process Mining Process Perspective Case Perspective Organizational 1. Semantic auditing ■ Use semantic information to check for properties in logs Perspective When? How? 2. Semantic control-flow mining Who? ■ Use semantic information to support different levels of abstraction in the mined models 3. Semantic organizational mining ■ Automatically derive the teams and groups in the organization based on task similarity 4. Semantic performance analysis ■ Use semantic information to check for Service Level Agreements (SLAs), throughput times, bottlenecks etc. © SUPER 47

Semantic Reverse Business Engineering (RBE) How do I get the relevant information to redesign and improve my business processes? © SUPER ■ Scenario based analysis with predefined content to ensure continuous business improvement ► As-Is-Analysis Provide Details and statistics about executed processes ► Exception analysis Focus on business exceptions (deviation from the standard processes) ► Standardisation & Harmonisation Check compliance of processes between organisational units or with predefined guidelines ► User & Role analysis Check user and role behaviour and authorizations 48

Scenario Based Analysis RBE Ontology I am interested in all exceptions of the sales process Business Function Ontology Exception Analysis Sales Process How many sales orders were cancelled? Business Only business questions are executed semantically The query results are assigned on the Execution to Exception History Analysis Repository formatted and aggregated for and file) (log to the either Sales directly Process or the business user are to be. Process through selected. Mining Analysis Results © SUPER 22. 02. 2021 Which sales orders are locked for further processing? Business Question Repository How many sales orders are delayed? Where are the bottlenecks in the sales process? Execution History Repository Process Mining 49

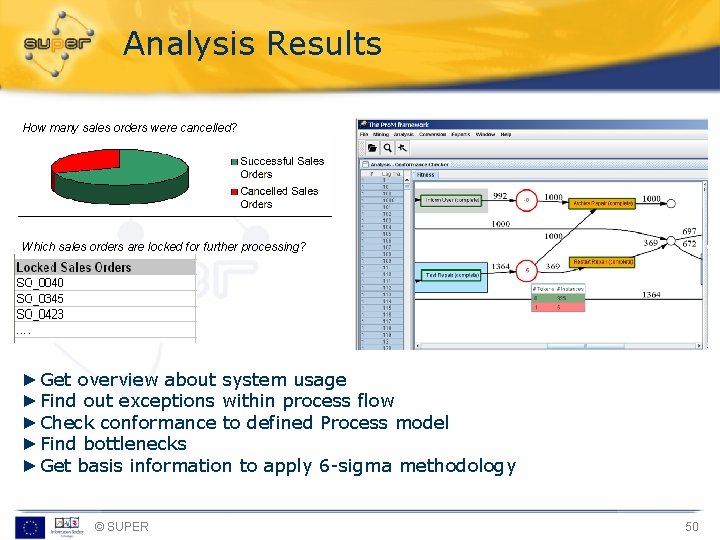

Analysis Results How many sales orders were cancelled? Which sales orders are locked for further processing? ►Get overview about system usage ►Find out exceptions within process flow ►Check conformance to defined Process model ►Find bottlenecks ►Get basis information to apply 6 -sigma methodology © SUPER 50

5. Business impact

SUPER Unique Selling Proposition Semantically enriched Business Process Mgmt: ■ SUPER bridges the gap between Business experts and IT experts in setting up new products and processes ■ SUPER provides a new set of integrated BPM tools for ► Modelling ► Automated Composition of Processes ■ SUPER uses Semantics to gain a new level of automation for the modelling and configuration of business processes ■ SUPER tools are based on open standards to guarantee independence from particular vendors © SUPER 52

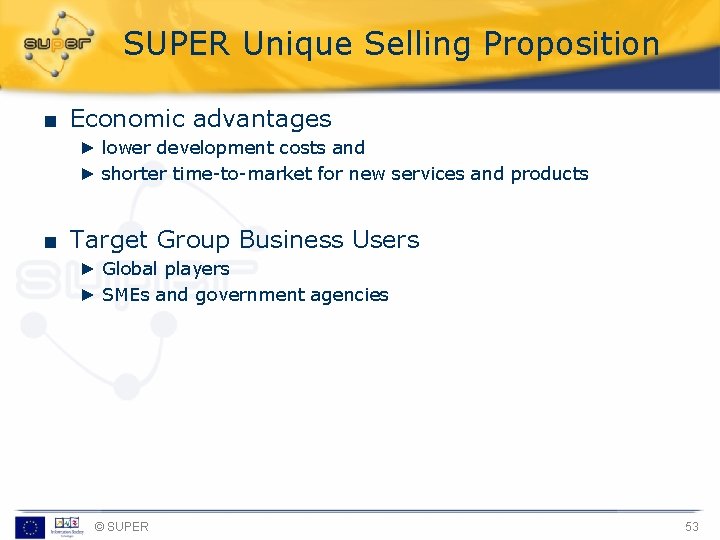

SUPER Unique Selling Proposition ■ Economic advantages ► lower development costs and ► shorter time-to-market for new services and products ■ Target Group Business Users ► Global players ► SMEs and government agencies © SUPER 53

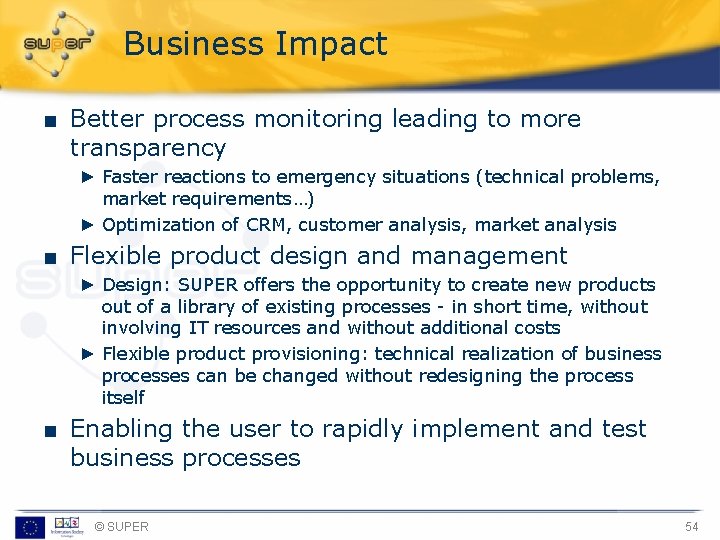

Business Impact ■ Better process monitoring leading to more transparency ► Faster reactions to emergency situations (technical problems, market requirements…) ► Optimization of CRM, customer analysis, market analysis ■ Flexible product design and management ► Design: SUPER offers the opportunity to create new products out of a library of existing processes - in short time, without involving IT resources and without additional costs ► Flexible product provisioning: technical realization of business processes can be changed without redesigning the process itself ■ Enabling the user to rapidly implement and test business processes © SUPER 54

Competitive Impact ■ Shorter Time to Market ■ Agile Enterprises ■ Clear cost savings in terms of ROI (Return of Invest), DCF (Discounted Cash Flow) and FTE (Full times Equivalent) © SUPER 55

Business Opportunities ■ Improved service discovery & matching in existing products ■ Ontology modelling support and semantic search for existing BPM products ■ R&D and consultancy services for early adopters ■ Creation of custom components for the alignment of existing products with recent SWS and BPM standards ■ Introduction of semantic BPM solutions to heterogeneous service landscapes © SUPER 56

6. Next steps/objectives of the project

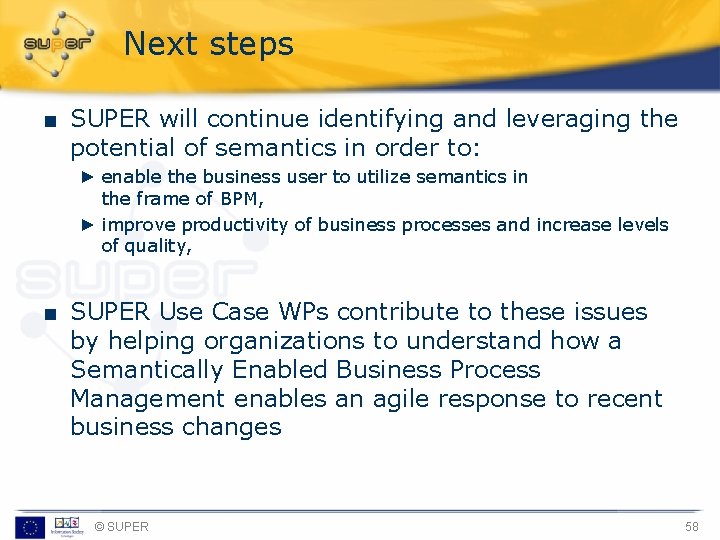

Next steps ■ SUPER will continue identifying and leveraging the potential of semantics in order to: ► enable the business user to utilize semantics in the frame of BPM, ► improve productivity of business processes and increase levels of quality, ■ SUPER Use Case WPs contribute to these issues by helping organizations to understand how a Semantically Enabled Business Process Management enables an agile response to recent business changes © SUPER 58
