CS 430 INFO 430 Information Retrieval Lecture 5

CS 430 / INFO 430 Information Retrieval Lecture 5 Searching Full Text 5 1

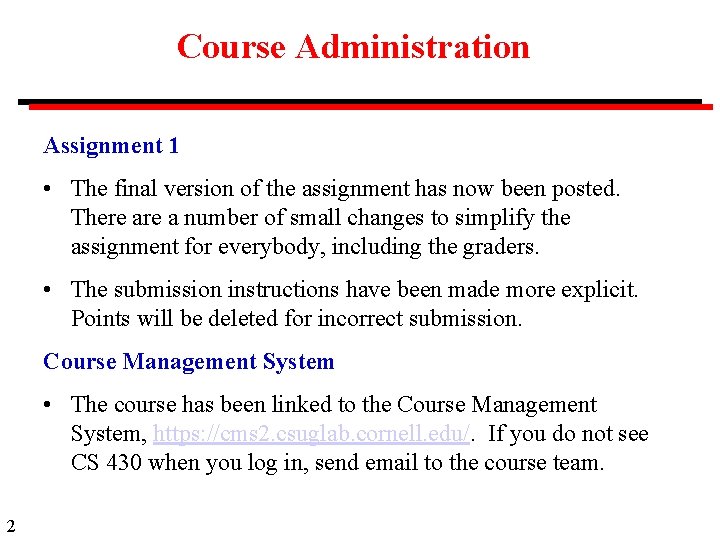

Course Administration Assignment 1 • The final version of the assignment has now been posted. There a number of small changes to simplify the assignment for everybody, including the graders. • The submission instructions have been made more explicit. Points will be deleted for incorrect submission. Course Management System • The course has been linked to the Course Management System, https: //cms 2. csuglab. cornell. edu/. If you do not see CS 430 when you log in, send email to the course team. 2

CS 430 / INFO 430 Information Retrieval Completion of Lecture 4 3

File Structures for Inverted Files: Binary Tree Input: elk, hog, bee, fox, cat, gnu, ant, dog elk bee ant hog cat fox dog 4 gnu

File Structures for Inverted Files: Binary Tree Advantages Can be searched quickly Convenient for batch updating Easy to add an extra term Economical use of storage Disadvantages Less good for lexicographic processing, e. g. , comp* Tree tends to become unbalanced If the index is held on disk, important to optimize the number of disk accesses 5

File Structures for Inverted Files: Binary Tree Calculation of maximum depth of tree. Worst case: depth = n O(n) Ideal case: depth = log(n + 1)/log 2 O(log n) Illustrates importance of balanced trees. One possible variant is a red-black tree, which is a reasonable compromise between update performance and balance. 6

File Structures for Inverted Files: Right Threaded Binary Tree Threaded tree: A binary search tree in which each node uses an otherwise-empty left child link to refer to the node's inorder predecessor and an empty right child link to refer to its in-order successor. Right-threaded tree: A variant of a threaded tree in which only the right thread, i. e. link to the successor, of each node is maintained. Can be used for lexicographic processing. A good data structure when held in memory Knuth vol 1, 2. 3. 1, page 325. 7

File Structures for Inverted Files: Right Threaded Binary Tree dog gnu bee ant cat hog elk fox 8 NULL

File Structures for Inverted Files: B-trees B-tree of order m: A balanced, multiway search tree: • Each node stores many keys • Root has between 2 and 2 m keys. All other internal nodes have between m and 2 m keys. • If ki is the ith key in a given internal node -> all keys in the (i-1)th child are smaller than ki -> all keys in the ith child are bigger than ki • All leaves are at the same depth 9

File Structures for Inverted Files: Btrees B-tree example (order 2) 50 65 55 59 10 19 35 36 47 1 5 8 9 12 14 18 10 21 24 28 70 90 98 66 68 91 95 97 72 73 Every arrow points to a node containing between 2 and 4 keys. A node with k keys has k + 1 pointers.

File Structures for Inverted Files: B+ -tree Example: B+-tree of order 2, bucket size 4 • A B-tree is used as an index • Data is stored in the leaves of the tree, known as buckets 50 65 10 25 . . . D 9 55 59 D 51. . . D 54 70 81 90 D 66. . . (Implementation of B+-trees is covered in CS 432. ) 11 D 81. . .

CS 430 / INFO 430 Information Retrieval Lecture 5 Searching Full Text 5 12

SMART System An experimental system for automatic information retrieval • automatic indexing to assign terms to documents and queries • collect related documents into common subject classes • identify documents to be retrieved by calculating similarities between documents and queries • procedures for producing an improved search query based on information obtained from earlier searches Gerald Salton and colleagues Harvard 1964 -1968 Cornell 1968 -1988 13

Indexing Subsystem Documents text assign document IDs break into tokens *Indicates optional operation. documents stop list* non-stoplist stemming* tokens stemmed terms term weighting* terms with weights 14 document numbers and *field numbers Inverted file system

Search Subsystem query parse query ranked document set query tokens stop list* non-stoplist tokens ranking* stemming* *Indicates optional operation. 15 Boolean retrieved operations* document set relevant document set stemmed terms Inverted file system

Decisions in Building the Word List: What is a Term? 16 • Underlying character set, e. g. , printable ASCII, Unicode, UTF 8. • Is there a controlled vocabulary? If so, what words are included? • List of stopwords. • Rules to decide the beginning and end of words, e. g. , spaces or punctuation. • Character sequences not to be indexed, e. g. , sequences of numbers.

Lexical Analysis: Term What is a term? Free text indexing A term is a group of characters, extracted from the input string, that has some collective significance, e. g. , a complete word. Usually, terms are strings of letters, digits or other specified characters, separated by punctuation, spaces, etc. 17

Oxford English Dictionary 18

Lexical Analysis: Choices Punctuation: In technical contexts, punctuation may be used as a character within a term, e. g. , wordlist. txt. Case: Case of letters is usually not significant. Hyphens: (a) Treat as separators: state-of-art is treated as state of art. (b) Ignore: on-line is treated as online. (c) Retain: Knuth-Morris-Pratt Algorithm is unchanged. Digits: Most numbers do not make good terms, but some are parts of proper nouns or technical terms: CS 430, Opus 22. 19

Lexical Analysis: Choices The modern tendency, for free text searching, is to map upper and lower case letters together in index terms, but otherwise to minimize the changes made at the lexical analysis stage. With controlled vocabulary, the lexical decisions are made in creating the vocabulary. 20

Lexical Analysis Example: Query Analyzer A term is a letter followed by a sequence of letters and digits. Upper case letters are mapped into the lower case equivalents. The following characters have significance as operators: ( 21 ) & |

Lexical Analysis: Transition Diagram letter, digit 1 space letter ( 2 3 ) & 0 | other end-of-string 22 4 7 5 6

Lexical Analysis: Transition Table State space letter 1 0 1 1 1 ( ) & | other end-of string digit 2 1 3 1 4 1 5 1 6 States in red are final states. 23 6 1 7 1

Changing the Lexical Analyzer This use of a transition table allows the system administrator to establish differ lexical choices for different collections of documents. Example: To change the lexical analyzer to accept tokens that begin with a digit, change the top right element of the table to 1. 24

Stop Lists Very common words, such as of, and, the, are rarely of use in information retrieval. A stop list is a list of such words that are removed during lexical analysis. A long stop list saves space in indexes, speeds processing, and eliminates many false hits. However, common words are sometimes significant in information retrieval, which is an argument for a short stop list. (Consider the query, "To be or not to be? ") 25

Example: Stop List for Assignment 1 a are but has in more one that this which 26 about as by have is new or the to will an at for he it of said their was with and be from his its on say they who you

Example: the WAIS stop list (first 84 of 363 multi-letter words) 27 about after alone among anyone at becoming behind beyond can't did down either etc above afterwards along amongst anything be been being billion cannot didn't during else even according again already an anywhere became before below both caption do each elsewhere ever across actually against all also although another any aren't because become beforehand begin besides but by co could doesn't eg eight ending everyone adj almost always anyhow around becomes beginning between can couldn't don't eighty enough everything

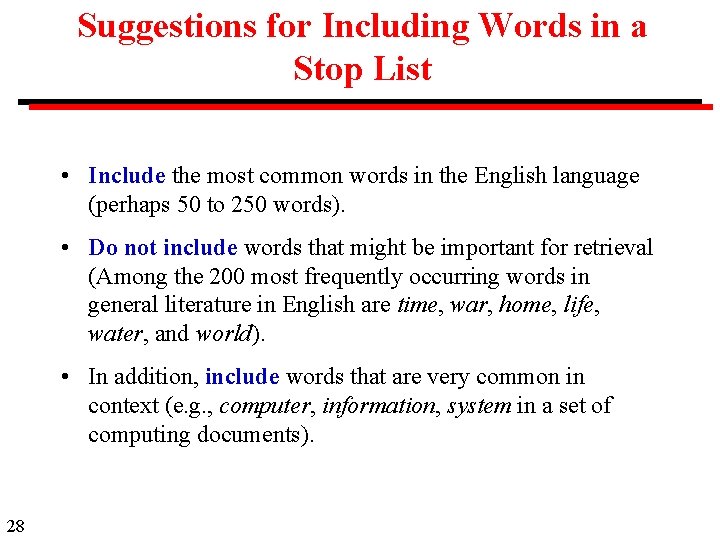

Suggestions for Including Words in a Stop List • Include the most common words in the English language (perhaps 50 to 250 words). • Do not include words that might be important for retrieval (Among the 200 most frequently occurring words in general literature in English are time, war, home, life, water, and world). • In addition, include words that are very common in context (e. g. , computer, information, system in a set of computing documents). 28

Stop list policies How many words should be in the stop list? • Long list lowers recall Multi-lingual document collections have special problems, e. g. , die is a very common word in German but less common in English. There is very little systematic evidence to use in selecting a stop list. 29

Stop Lists in Practice The modern tendency is: (a) have very short stop lists for broad-ranging or multi-lingual document collections, especially when the users are not trained. (b) have longer stop lists for document collections in well-defined fields, especially when the users are trained professional. 30

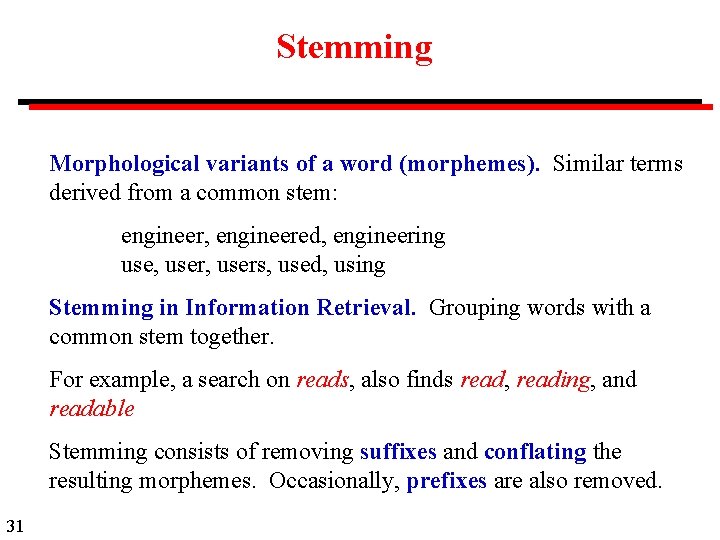

Stemming Morphological variants of a word (morphemes). Similar terms derived from a common stem: engineer, engineered, engineering use, users, used, using Stemming in Information Retrieval. Grouping words with a common stem together. For example, a search on reads, also finds read, reading, and readable Stemming consists of removing suffixes and conflating the resulting morphemes. Occasionally, prefixes are also removed. 31

Categories of Stemmer The following diagram illustrate the various categories of stemmer. Porter's algorithm (which will be discussed in Lecture 6) is shown by the red path. Conflation methods Manual Automatic (stemmers) Affix removal Longest match 32 Successor variety Simple removal Table lookup n-gram

Stemming in Practice Evaluation studies have found that stemming can affect retrieval performance, usually for the better, but the results are mixed. • Effectiveness is dependent on the vocabulary. Fine distinctions may be lost through stemming. • Automatic stemming is as effective as manual conflation. • Performance of various algorithms is similar. Porter's Algorithm is entirely empirical, but has proved to be an effective algorithm for stemming English text with trained users. 33

Selection of tokens, weights, stop lists and stemming Special purpose collections (e. g. , law, medicine, monographs) Best results are obtained by tuning the search engine for the characteristics of the collections and the expected queries. It is valuable to use a training set of queries, with lists of relevant documents, to tune the system for each application. General purpose collections (e. g. , news articles) The modern practice is to use a basic weighting scheme (e. g. , tf. idf), a simple definition of token, a short stop list and little stemming except for plurals, with minimal conflation. 34 Web searching combine similarity ranking with ranking based on document importance.
