Chapter 2 The OSI Model and TCPIP Protocol
- Slides: 46
Chapter 2 The OSI Model and TCP/IP Protocol Suite Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 1
CONTENTS • THE OSI MODEL • LAYERS IN THE OSI MODEL • TCP/IP PROTOCOL SUITE • ADDRESSING • TCP/IP VERSIONS Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 2
2. 1 THE OSI MODEL Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 3
2. 1 OSI 모델 Ü Open System Interconnection Ü ISO 7498 OSI Basic Reference Model Ü 모든 종류의 컴퓨터 시스템간 통신을 가능하게 하 는 네트워크 설계를 위한 계층 구조 Ü 서로 연관된 7 계층으로 구성 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 4
ISO is the organization. OSI is the model. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 5
2. 1 OSI 모델(계속) <OSI 모델 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 6
2. 1 OSI 모델(계속) <OSI 계층 구조 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 7
Headers are added to the data at layers 6, 5, 4, 3, and 2. Trailers are usually added only at layer 2. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 8
2. 1 OSI 모델(계속) <OSI 모델을 이용한 교환 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 9
2. 2 Http: //netwk. hannam. ac. kr LAYERS IN THE OSI MODEL HANNAM UNIVERSITY 10

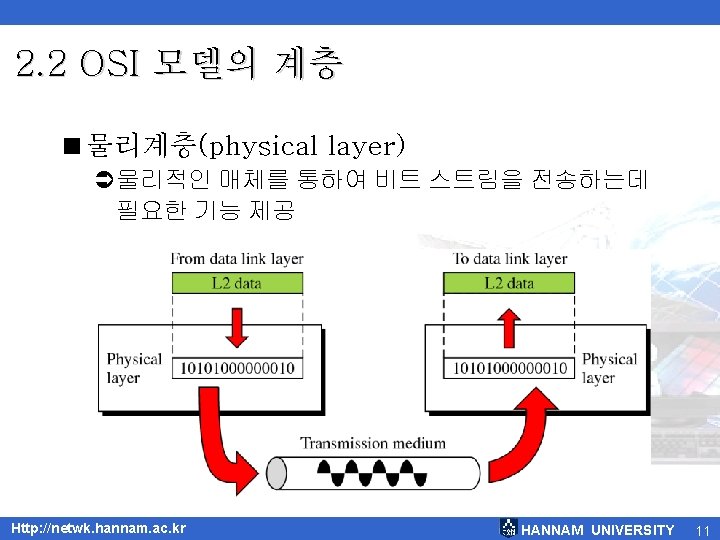

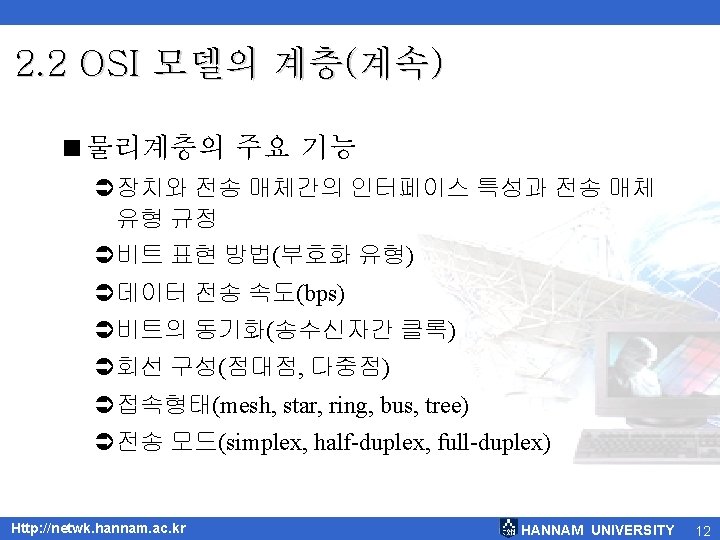

2. 2 OSI 모델의 계층(계속) <데이터링크계층(data link layer) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 13
2. 2 OSI 모델의 계층(계속) <노드-대-노드 전달 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 15

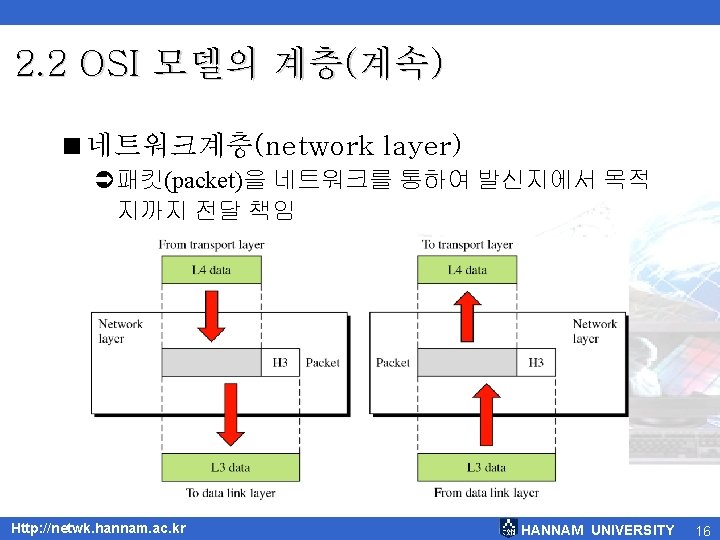

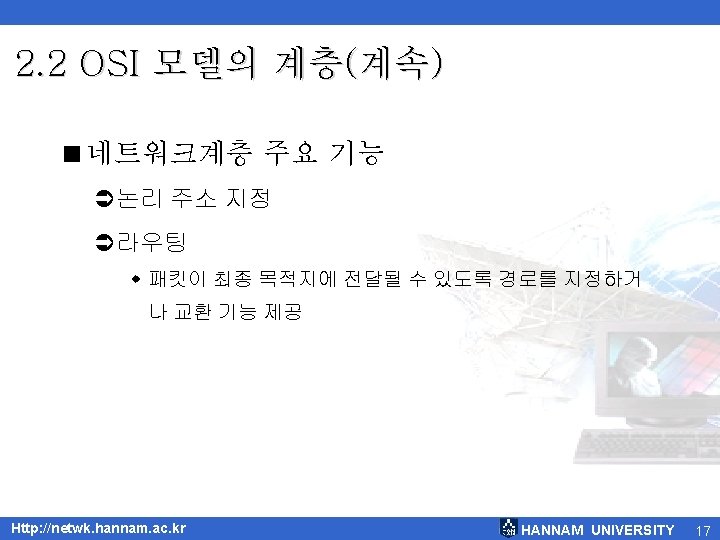

2. 2 OSI 모델의 계층(계속) <종단-대-종단 전송 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 18

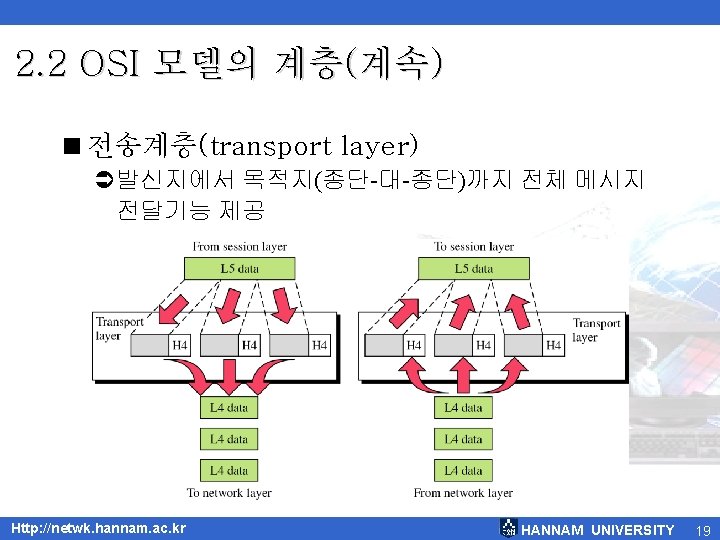

2. 2 OSI 모델의 계층(계속) <전송계층 주요 기능 Ü서비스 지점 주소지정(포트 주소) Ü분할과 재조립(Segmentation and reassembly) Ü연결 제어(Connection Control) Ü흐름 제어(Flow Control) Ü오류 제어(Error Control) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 20

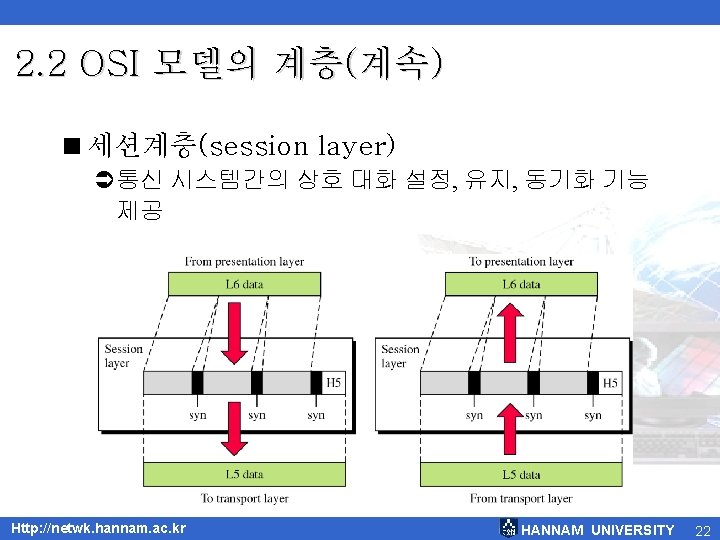

2. 2 OSI 모델의 계층(계속) <표현계층(presentation layer) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 24
2. 2 OSI 모델의 계층(계속) <표현계층의 주요 기능 Ü변환(Translation) Ü암호화(Encryption) Ü압축(Compression) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 25

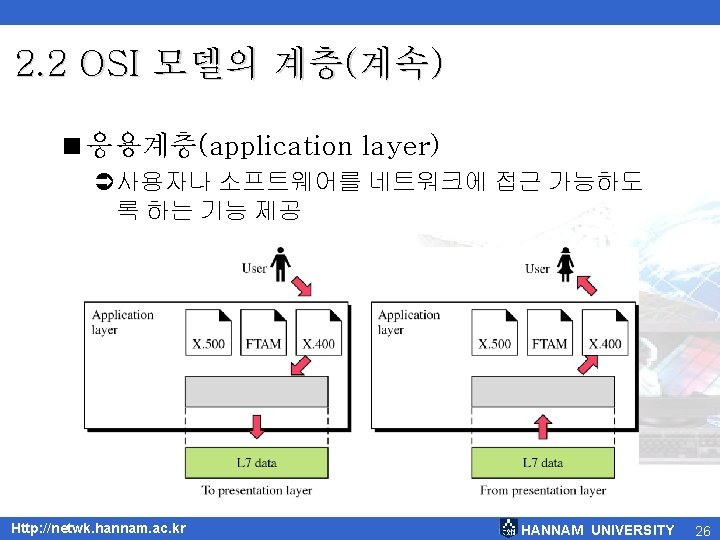

2. 2 OSI 모델의 계층(계속) <응용계층 주요 기능 Ü네트워크 가상 터미널(Network Virtual Terminal) Ü파일 접근, 전송 및 관리(File Transfer, Access, and Management) Ü우편 서비스(Mail Service) Ü디렉토리 서비스(Directory Service) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 27
2. 2 OSI 모델의 계층(계속) <계층별 요약 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 28
2. 3 Http: //netwk. hannam. ac. kr TCP/IP PROTOCOL SUITE HANNAM UNIVERSITY 29
2. 3 TCP/IP 프로토콜 <TCP/IP와 OSI 모델 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 30

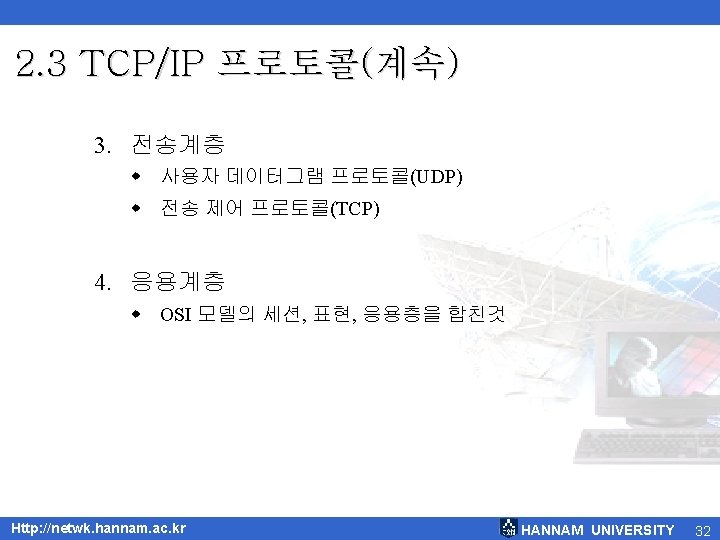

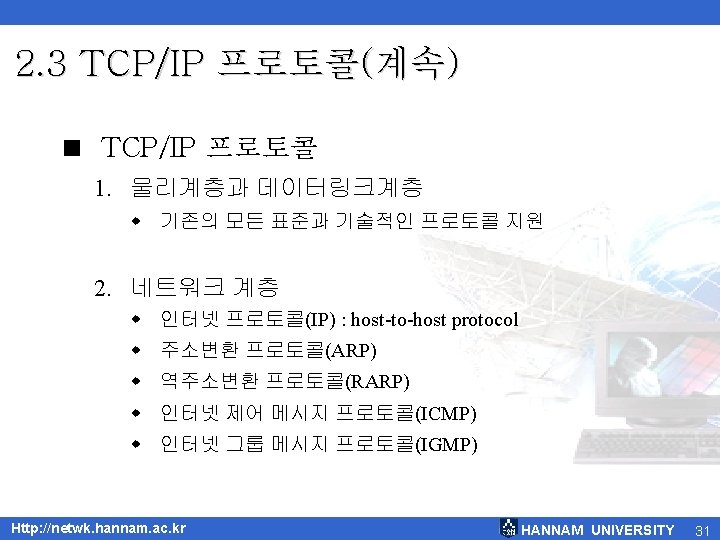

2. 4 ADDRESSING Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 33
2. 4 주소지정 <TCP/IP에서 사용하는 주소 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 34
2. 4 주소지정(계속) <TCP/IP에서 주소와 계층간의 관계 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 35
2. 4 주소지정(계속) <물리 주소 Ü링크 주소 ÜWAN이나 LAN에서 정의된 노드의 주소 Ü이더넷 네트워크 인터페이스 카드(NIC) 6바이트(48 비트) 주소 Ü유니캐스트(unicast), 멀티캐스트(multicast), 브로드 캐스트(broadcast) Example 1 Figure 2. 18 shows an example of physical addresses. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 36
2. 4 주소지정(계속) <물리 주소 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 37
2. 4 주소지정(계속) Example 2 Most local area networks use a 48 -bit (6 bytes) physical address written as 12 hexadecimal digits, with every 2 bytes separated by a hyphen as shown below: 07 -01 -02 -01 -2 C-4 B A 6 -byte (12 hexadecimal digits) physical address Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 38

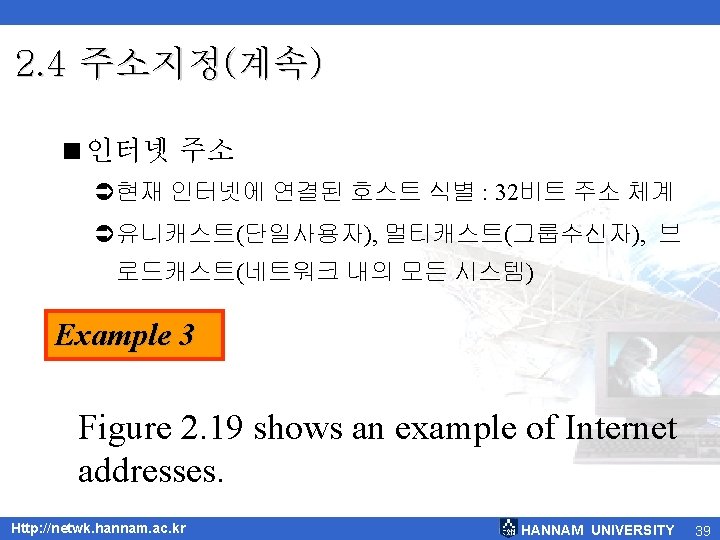

2. 4 주소지정(계속) <IP 주소 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 40
2. 4 주소지정(계속) Example 4 As we will see in Chapter 4, an Internet address (in IPv 4) is 32 bits in length, normally written as four decimal numbers, with each number representing 1 byte. The numbers are separated by a dot. Below is an example of such an address. 132. 24. 75. 9 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 41
2. 4 주소지정(계속) <포트 주소 Ü프로세스를 식별하는 주소 Example 5 Figure 2. 20 shows an example of transport layer communication. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 42
2. 4 주소지정(계속) <포트 주소 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 43
2. 4 주소지정(계속) Example 6 As we will see in Chapters 11 and 12, a port address is a 16 -bit address represented by one decimal number as shown below. 753 Http: //netwk. hannam. ac. kr A 16 -bit port address HANNAM UNIVERSITY 44
2. 5 TCP/IP VERSIONS Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 45
2. 5 TCP/IP 버전 Versions: • Version 4 (current) • Version 5 • Version 6 (future) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 46
