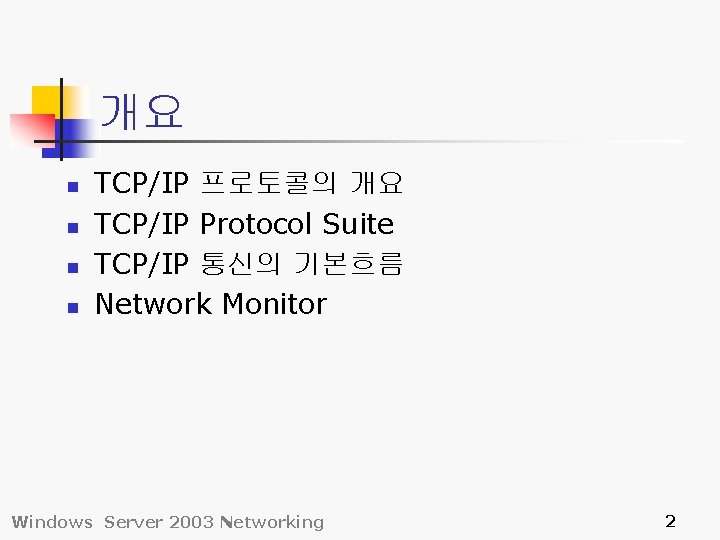

개요 n n TCP/IP 프로토콜의 개요 TCP/IP Protocol Suite TCP/IP 통신의 기본흐름 Network Monitor Windows Server 2003 Networking 2
01. TCP/IP 프로토콜의 개요 n OSI 7 Layer n n n n Layer Layer 7 6 5 4 3 2 1 – – – – Application Layer Presentation Layer Session Layer Transport Layer Network Layer Data Link Layer Physical Layer Windows Server 2003 Networking 3
OSI 7 Layer 모델 Windows Server 2003 Networking 4

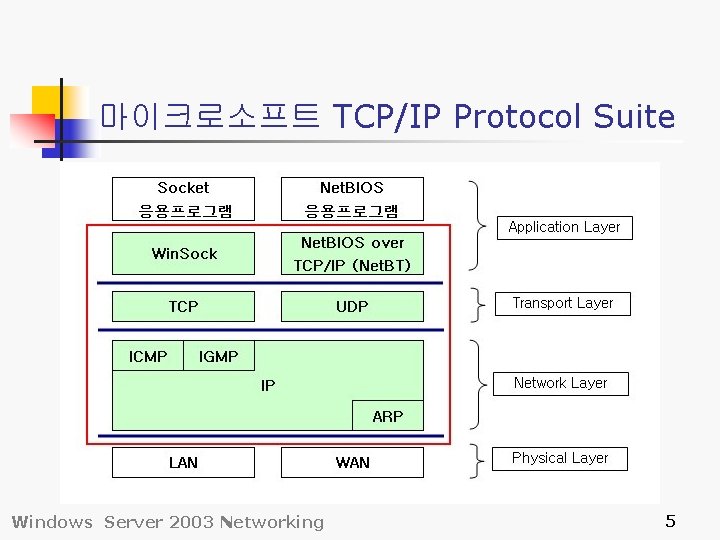

마이크로소프트 TCP/IP Protocol Suite Windows Server 2003 Networking 5
02. TCP/IP Protocol Suite Windows Server 2003 Networking 6
Application Layer n n 응용프로그램이 동작하는 계층 Socket 응용프로그램 n n n Socket Address = Protocol + 포트번호 Win. SOCK 인터페이스 제공 Net. BIOS 응용프로그램 n n 마이크로소프트의 네트워크 프로그램 Net. BIOS over TCP/IP (Net. BT) 제공 Windows Server 2003 Networking 7
Transport Layer n n n 통신하는 두 컴퓨터간의 연결성을 보장 TCP UDP Windows Server 2003 Networking 8
TCP(Transmission Control Protocol) n Connection-oriented Protocol n n n 신뢰성 있는 전송 보장 n n n 실제 데이터 전송 전 TCP Session 필요 TCP 3 way handshake Sequence Number (일련번호) Acknowledgement Number (확인번호) Byte-stream 통신 Windows Server 2003 Networking 9
TCP 패킷 헤더 Windows Server 2003 Networking 10

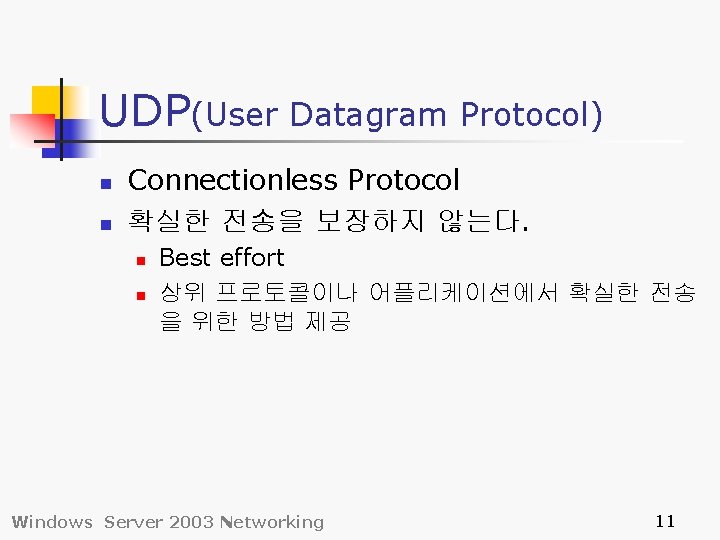

UDP(User Datagram Protocol) n n Connectionless Protocol 확실한 전송을 보장하지 않는다. n n Best effort 상위 프로토콜이나 어플리케이션에서 확실한 전송 을 위한 방법 제공 Windows Server 2003 Networking 11
UDP 패킷 헤더 Windows Server 2003 Networking 12
TCP 3 Way Handshake Windows Server 2003 Networking 13
TCP 3 Way Handshake 과정 Windows Server 2003 Networking 14
TCP 3 Way Handshake 패킷 Windows Server 2003 Networking 15

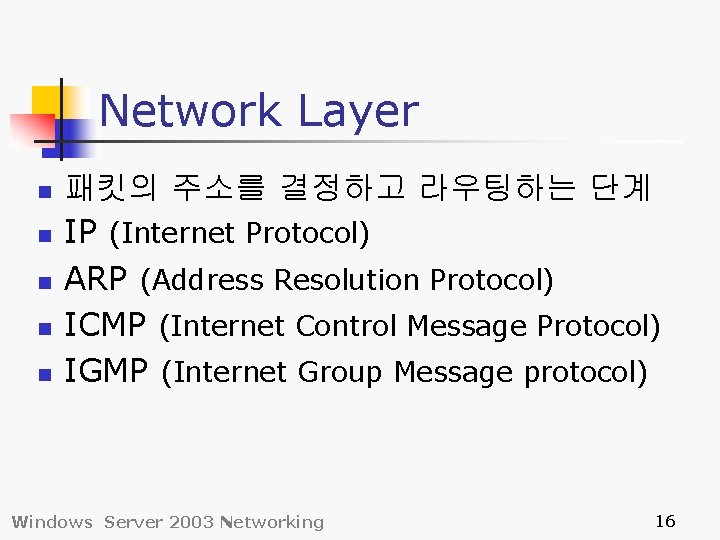

Network Layer n n n 패킷의 주소를 결정하고 라우팅하는 단계 IP (Internet Protocol) ARP (Address Resolution Protocol) ICMP (Internet Control Message Protocol) IGMP (Internet Group Message protocol) Windows Server 2003 Networking 16
IP - 패킷 전송 담당자 Windows Server 2003 Networking 17

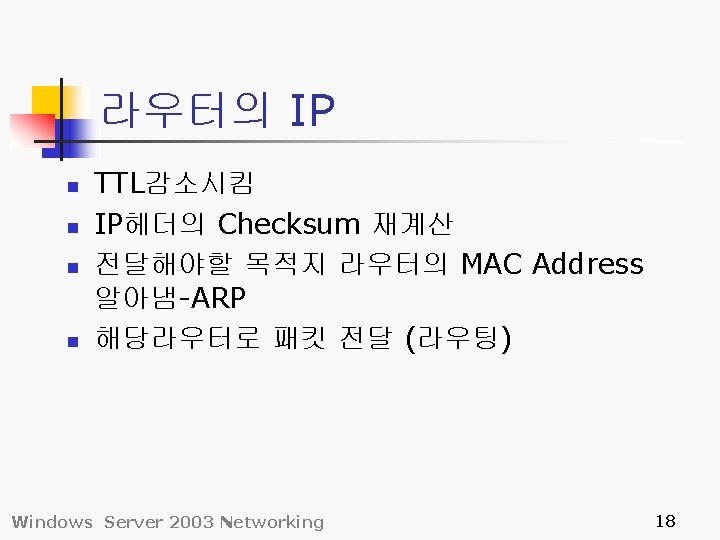

ARP(Address Resolution Protocol) n n 논리적인 Address -> 물리적인 Address IP Address -> MAC Address ARP 브로드캐스트 이용 ARP. exe 명령어를 이용해서 조회 n arp –a, arp –d, arp -s Windows Server 2003 Networking 19
ARP 패킷 Windows Server 2003 Networking 20
ICMP(Internet Control Message Protocol) n n 에러를 보고하는 역할 대표적인 유틸리티인 Ping이 사용 Source Quench Message Destination Host Unreachable Windows Server 2003 Networking 21
ICMP 패킷 Windows Server 2003 Networking 22
Physical Layer n n 네트워크 어댑터 카드간의 통신 MAC Address = 6 Byte Windows Server 2003 Networking 23
03. TCP/IP통신의 기본흐름 Windows Server 2003 Networking 24
IP Packet의 기본흐름 이해 Windows Server 2003 Networking 25
Network Monitor 설치, 데모 Windows Server 2003 Networking 27
