Cardio Vision Cardio Vision Hospital Monitoring Holter ECG
- Slides: 23
Cardio. Vision
Cardio. Vision = Hospital Monitoring + Holter ECG…. . .
At The Same Time Hospital Monitoring + Holter ECG……….
300 -2 W Wi-Fi Transmitter • Wi. Fi for compatibility with all hospitals. • Battery life in excess of 90 -hours. Standard Alkaline AA batteries. • Single Wi. Fi device simultaneously performs both tasks of Hospital Patient Monitoring and Holter ECG. • Standard AP units allow unlimited ECG range in the hospital.
One (1) PC Computer with Two (2) Monitor Displays

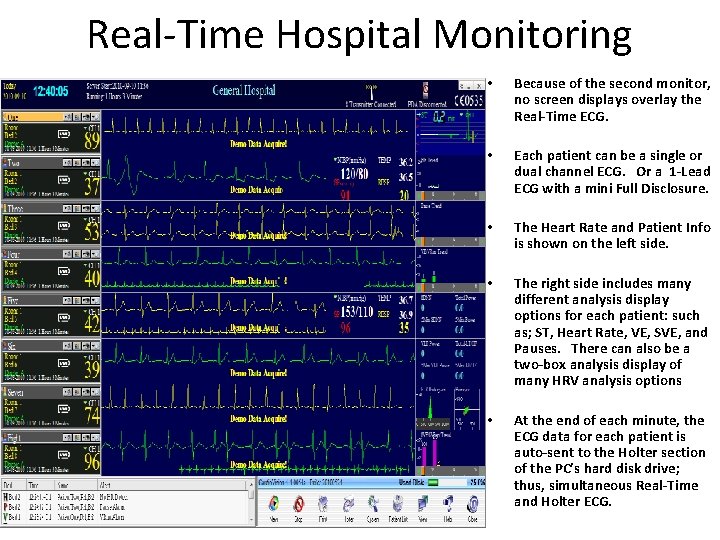

Real-Time Hospital Monitoring • Because of the second monitor, no screen displays overlay the Real-Time ECG. • Each patient can be a single or dual channel ECG. Or a 1 -Lead ECG with a mini Full Disclosure. • The Heart Rate and Patient Info is shown on the left side. • The right side includes many different analysis display options for each patient: such as; ST, Heart Rate, VE, SVE, and Pauses. There can also be a two-box analysis display of many HRV analysis options • At the end of each minute, the ECG data for each patient is auto-sent to the Holter section of the PC’s hard disk drive; thus, simultaneous Real-Time and Holter ECG.

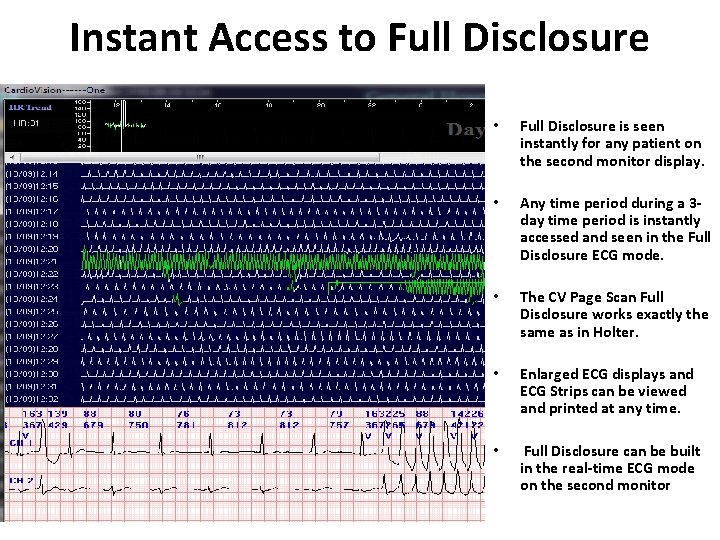

Instant Access to Full Disclosure • Full Disclosure is seen instantly for any patient on the second monitor display. • Any time period during a 3 day time period is instantly accessed and seen in the Full Disclosure ECG mode. • The CV Page Scan Full Disclosure works exactly the same as in Holter. • Enlarged ECG displays and ECG Strips can be viewed and printed at any time. • Full Disclosure can be built in the real-time ECG mode on the second monitor

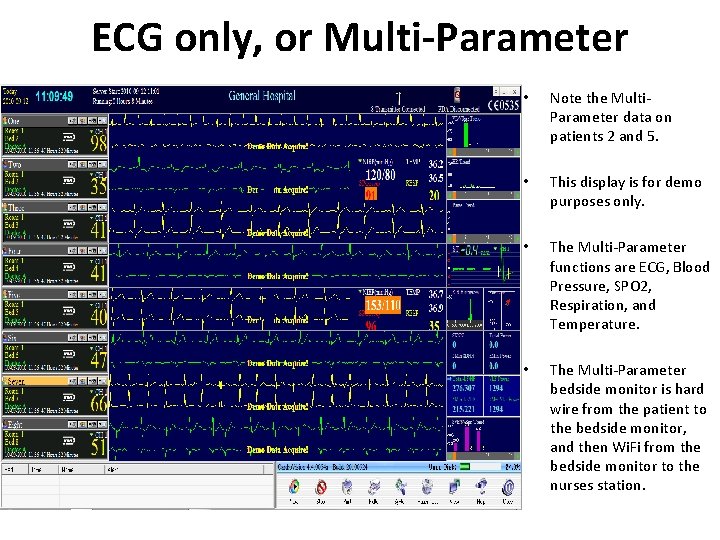

ECG only, or Multi-Parameter • Note the Multi. Parameter data on patients 2 and 5. • This display is for demo purposes only. • The Multi-Parameter functions are ECG, Blood Pressure, SPO 2, Respiration, and Temperature. • The Multi-Parameter bedside monitor is hard wire from the patient to the bedside monitor, and then Wi. Fi from the bedside monitor to the nurses station.

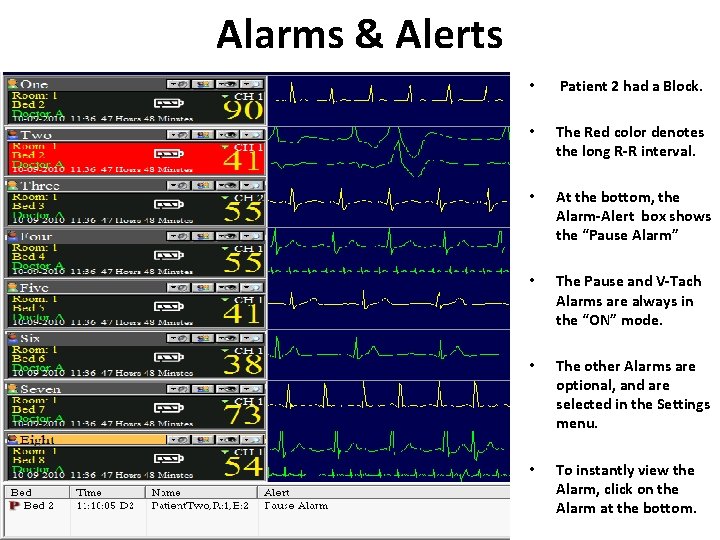

Alarms & Alerts • Patient 2 had a Block. • The Red color denotes the long R-R interval. • At the bottom, the Alarm-Alert box shows the “Pause Alarm” • The Pause and V-Tach Alarms are always in the “ON” mode. • The other Alarms are optional, and are selected in the Settings menu. • To instantly view the Alarm, click on the Alarm at the bottom.

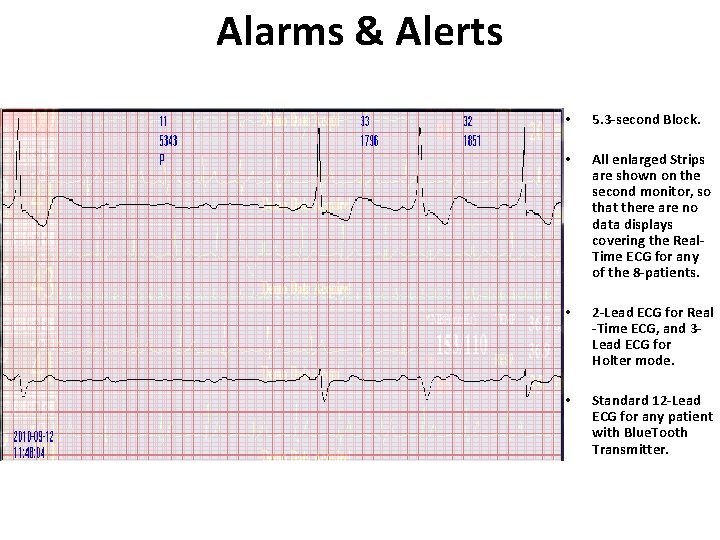

Alarms & Alerts • 5. 3 -second Block. • All enlarged Strips are shown on the second monitor, so that there are no data displays covering the Real. Time ECG for any of the 8 -patients. • 2 -Lead ECG for Real -Time ECG, and 3 Lead ECG for Holter mode. • Standard 12 -Lead ECG for any patient with Blue. Tooth Transmitter.

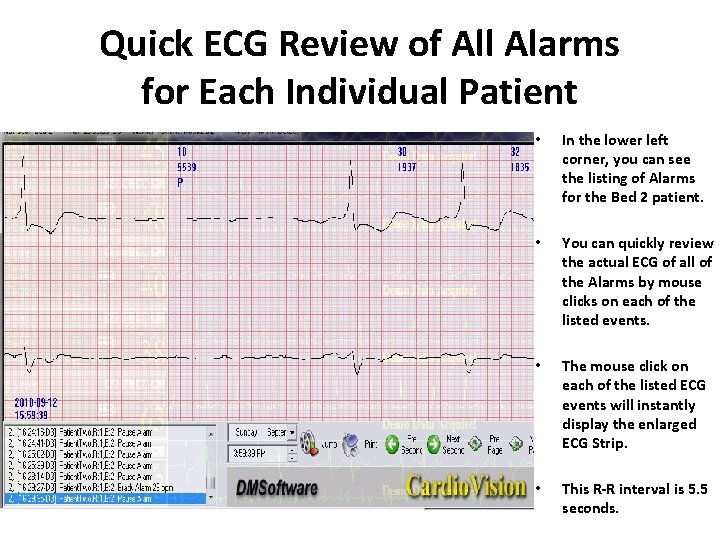

Quick ECG Review of All Alarms for Each Individual Patient • In the lower left corner, you can see the listing of Alarms for the Bed 2 patient. • You can quickly review the actual ECG of all of the Alarms by mouse clicks on each of the listed events. • The mouse click on each of the listed ECG events will instantly display the enlarged ECG Strip. • This R-R interval is 5. 5 seconds.

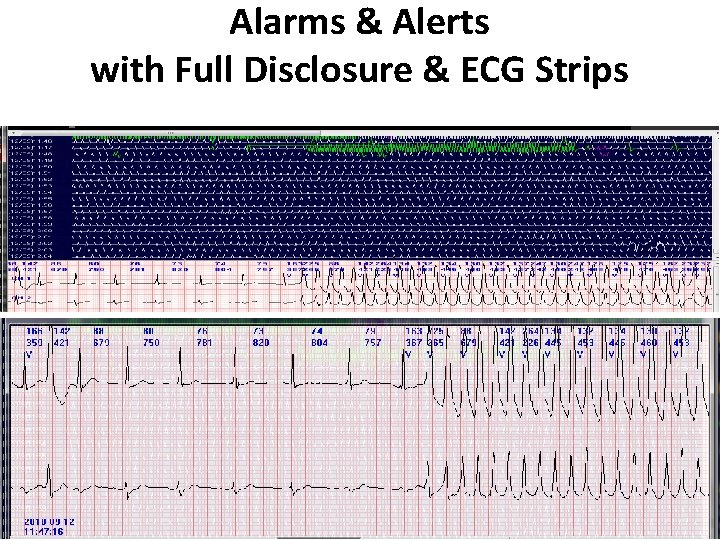

Alarms & Alerts with Full Disclosure & ECG Strips
Holter view of same ECG • The single Wi. Fi transmitter acquires the ECG data for both the Real. Time ECG and Holter ECG. • Holter ECG is in the same format as the Cardio. Scan 12. • Holter ECG is updated at the end of each minute of Real. Time ECG.
PDA or Smart Phone for Remote Alarms and/or Bedside Monitor • All Alarms and Alerts are auto-sent to the nurse’s or doctor’s PDA/Smart Phone. • For example; at 3: 00 AM in the morning the nurse is not at the central nurses station when an Alarm occurs. • The remote located nurse is instantly alerted by the PDA/Smart Phone, and the actual ECG alarm is shown to the remote located nurse. • When the nurse or doctor is at the patient’s bedside, simply press number 1 thru 8 to see the real-time ECG for the patient.
3 -Day Trends for Instant Access for All Patients • Trends of: • Heart Rate • A-Fib • V-Tach • VE beats • ST • Pauses (Blocks)
3 -Day Trends for Instant Access for All Patients • Each patient display on first monitor shows the 3 day Trends on the second monitor at the same visual level. • Use the bar slide to see all trends in 10 -seconds. • Color bars show the location of Pauses, -Tachs, & VE beats. • A-Fib shows on the Heart Rate trend. ST Events in excess of 1. 0 mm are shown in the red color. • Mouse click at any location in 3 -day trend and instantly see the Full Disclosure and large ECG Strip. V

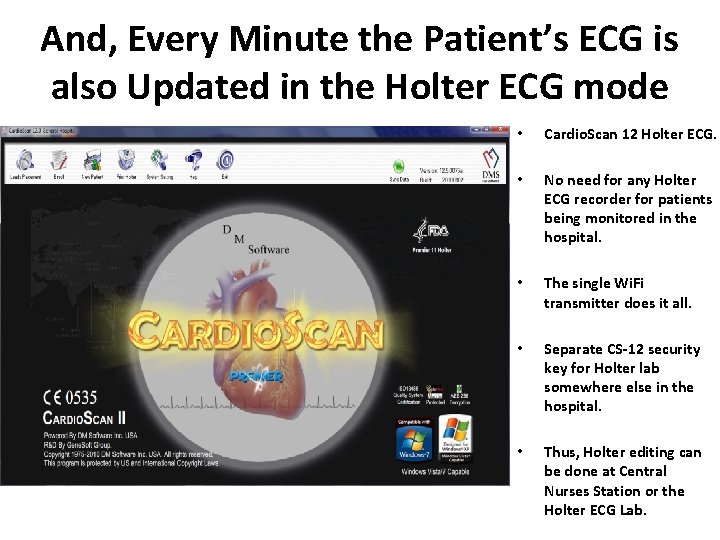

And, Every Minute the Patient’s ECG is also Updated in the Holter ECG mode • Cardio. Scan 12 Holter ECG. • No need for any Holter ECG recorder for patients being monitored in the hospital. • The single Wi. Fi transmitter does it all. • Separate CS-12 security key for Holter lab somewhere else in the hospital. • Thus, Holter editing can be done at Central Nurses Station or the Holter ECG Lab.
All Hospital Holter ECG Systems are now Truly OBSOLETE • Why wait 1 or 2 days for the Holter editing to know the true ECG status of the patient ? ? • If the patient has a VTach after 5 -hours of monitoring, the combo Real-Time/Holter ECG (Cardio. Vision) will instantly give the doctor this vital information. • Also, why would any hospital want to do Real. Time ECG monitoring without all the diagnostic advantages of the Holter ECG function being performed each and every minute ? ?
Cardio. Vision OBSOLETES all Hospital ECG Patient Monitoring and Hospital Holter ECG Monitoring • The Cardio. Vision includes a CS-12 key for the hospital’s Holter lab. • When patient’s leave the hospital, the physician has no knowledge of any adverse patient reaction to the prescribed medication. • Using the 300 -4 B, the patient can internet-send the 24 Holter ECG each day to the CS -12 PC in the hospital’s Holter Lab. • Thus, for the first time the physician receives the complete Home Holter ECG each day.
Home Internet Holter ECG = Continuing The Same High Quality Daily ECG Monitoring from Hospital to Home • The Home Internet Satellite Holter ECG technology solves the traditional weakness of Holter ECG. • The physician has never known how long (how many days) to record the Holter ECG. • Now the doctor can know every day what the ECG activity was, and each day the doctor can make a good decision to continue or terminate the ECG monitoring.
When the Hospital Wants Additional Beds of ECG Monitoring… the Cardio. Vision Specs cannot be matched for PDA and Holter • Unique Features: • Wi. Fi battery life of up to 48 -hours. • PDA/Smart Phone is unique for remote displays of Alarms, and is the cost efficient mode for bedside monitors. • The real Holter ECG capability updated each minute is unique. • The competitors cannot match your specs for Tenders; thus, sell the hospital on listing the Cardio. Vision specs.

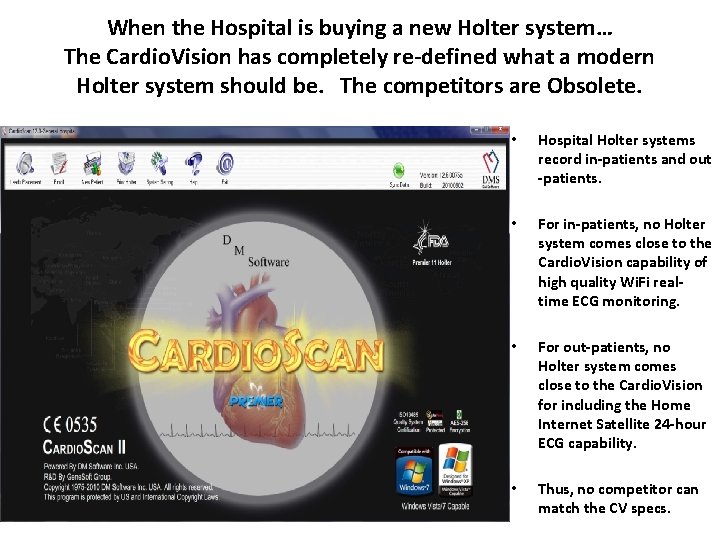

When the Hospital is buying a new Holter system… The Cardio. Vision has completely re-defined what a modern Holter system should be. The competitors are Obsolete. • Hospital Holter systems record in-patients and out -patients. • For in-patients, no Holter system comes close to the Cardio. Vision capability of high quality Wi. Fi realtime ECG monitoring. • For out-patients, no Holter system comes close to the Cardio. Vision for including the Home Internet Satellite 24 -hour ECG capability. • Thus, no competitor can match the CV specs.
