Periodic table of elements Inert gasses Elements in vertical rows have similar chemical properties
Schroedinger’s Equation for multielectron Atoms + - -
Allowed energy levels are clustered in “shells” - - + - - n # of states - - 1 2 2 8 3 a 8 3 b 10 4 a 8 4 b 10 4 c 14
Pauli exclusion principle Wolfgang Pauli Only one electron per quantum state Once a quantum state is occupied additional electrons are excluded

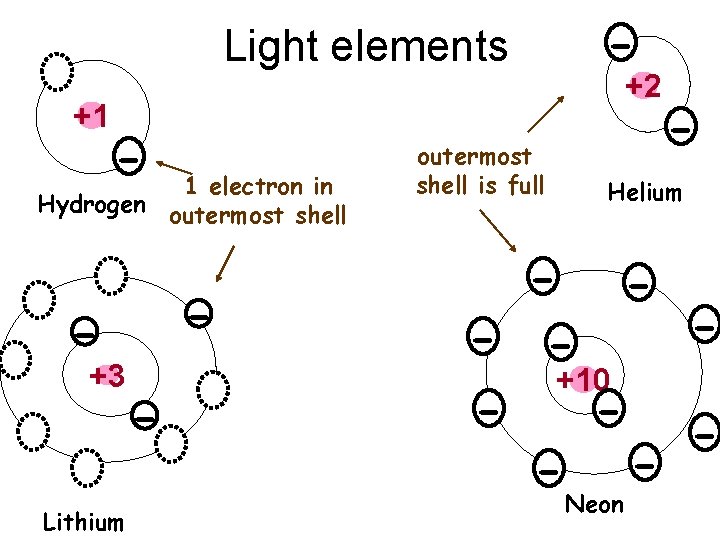

Light elements +1 - 1 electron in Hydrogen outermost shell - - +3 Lithium - outermost shell is full - +2 - Helium - - +10 - - Neon
Periodic table of elements Filled outer shell 1 e- in outer shell Elements in vertical rows have similar chemical properties
Chemical properties depend upon the outermost shell configuration - - - +8 - - Oxygen Outermost shells Have 2 vacancies - - - +16 - - Sulfur -
2 vacancies in outer shell Periodic table of elements
Atoms combine to form molecules by filling outer shells Hydrogen Water=H 2 O Hydrogen +1 - - +8 - - +1 Oxygen
Atoms combine to form molecules by filling outer shells Hydrogen +1 Methane=CH 4 Hydrogen - - +1 - +6 - - - +1 +1 Carbon Hydrogen
Elements with full outer shells don’t form molecules - - - +2 - Helium - - -+10 +18 - - - Neon - - Noble gasses Argon
Periodic table revisited Outer shell is full 2 vacancies in outer shell 4 e- in outer shell 1 elec in outer shell Elements in vertical rows have same outer shell configurations
