32 -bit Pipelined RISC Processor Group 1 aka “Go Us” CS m 152 b Lab section 1 Alice Wang Ann Ho Jason Fong

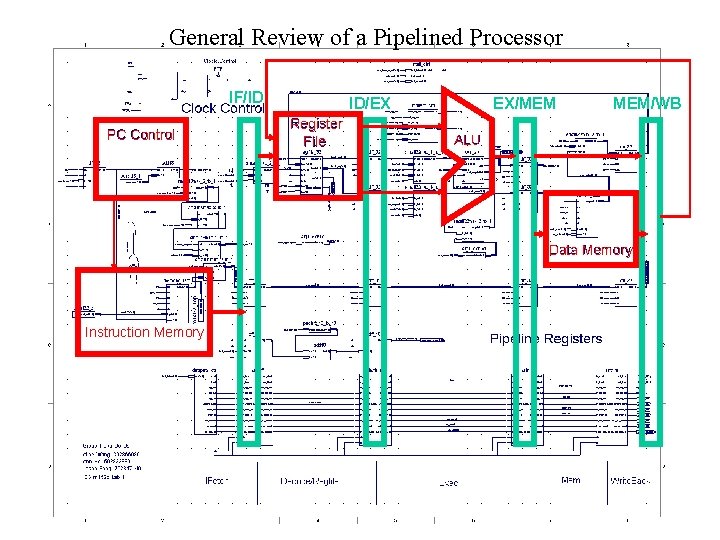

General Review of a Pipelined Processor IF/ID PC Control ID/EX Register File EX/MEM MEM/WB ALU Data Memory Instruction Memory

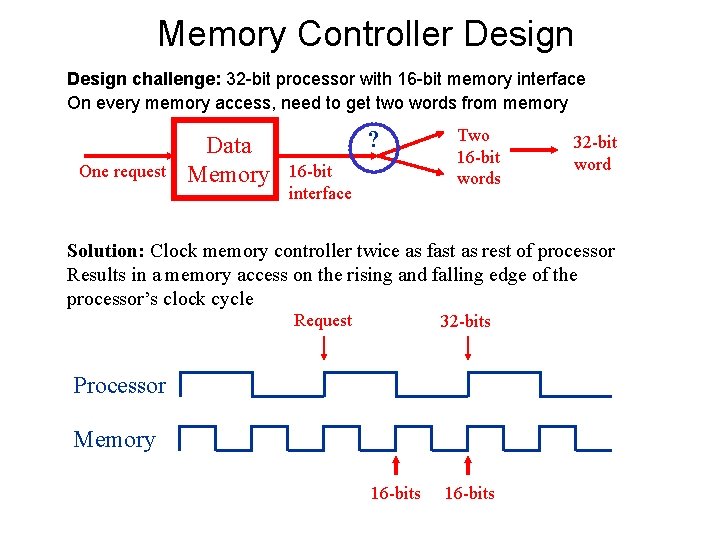

Memory Controller Design challenge: 32 -bit processor with 16 -bit memory interface On every memory access, need to get two words from memory One request Data Memory ? 16 -bit interface Two 16 -bit words 32 -bit word Solution: Clock memory controller twice as fast as rest of processor Results in a memory access on the rising and falling edge of the processor’s clock cycle Request 32 -bits 32 -bit Processor Memory 16 -bits
Instruction Format General instruction format 4 bits remaining 28 bits vary according to instruction type R-type instruction opcode 31 28 rs rs 27 rt rt 25 24 rd rd 22 21 funct unused 19 33 00 I-type instruction rs rs opcode 31 28 27 rt rt 25 24 imm 16 22 unused 15 0 J-type instruction imm 16 opcode 31 28 unused 15 0

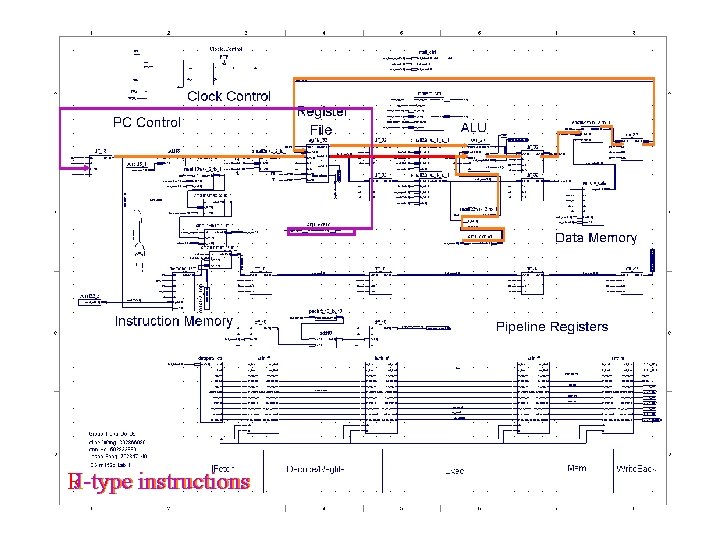

R-type J-type I-type instructions

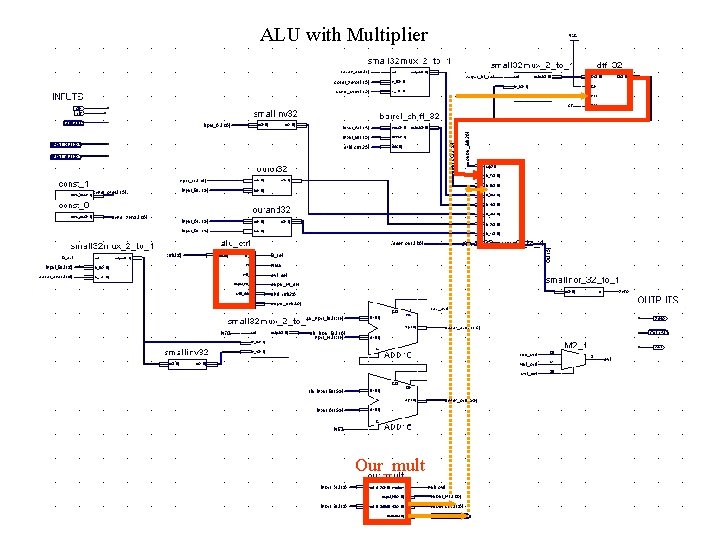

ALU with Multiplier Our_mult

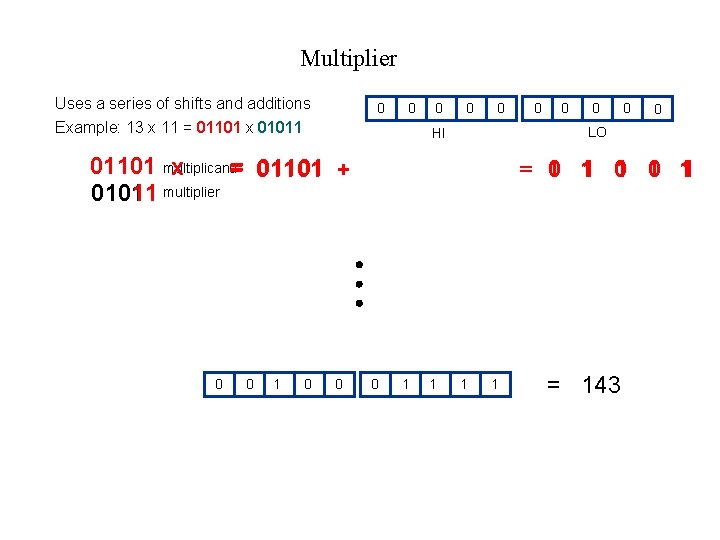

Multiplier Uses a series of shifts and additions 0 0 Example: 13 x 11 = 01101 x 01011 0 0 0 = 1 0 11 0 1 0 0 0 LO HI 01101 multiplicand x = 01101 + 01011 11 multiplier 0 0 0 1 1 = 143

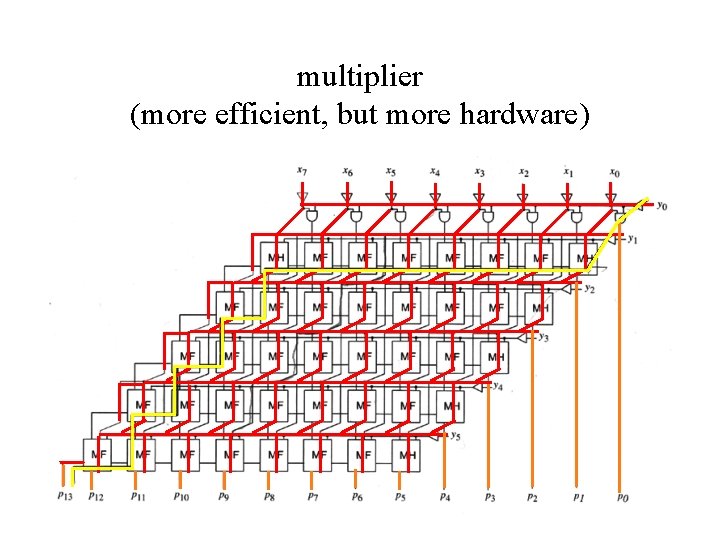

multiplier (more efficient, but more hardware)
Data Forwarding Forward From ALU output Forward From memory output ID/EX EX/MEM MEM/WB
Hardware NOP Insertion PC Adder 1 Hold PC value Insert NOP IF/ID

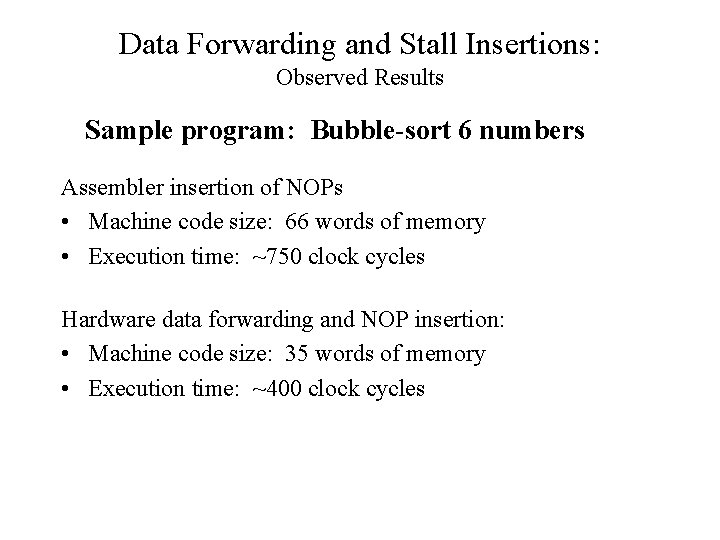

Data Forwarding and Stall Insertions: Observed Results Sample program: Bubble-sort 6 numbers Assembler insertion of NOPs • Machine code size: 66 words of memory • Execution time: ~750 clock cycles Hardware data forwarding and NOP insertion: • Machine code size: 35 words of memory • Execution time: ~400 clock cycles
Data Forwarding and Stall Insertions: Observed Results Benefits: • Savings in memory and execution time • Much simpler assembler Drawbacks: • Hardware is now more complex Tradeoff between hardware complexity and software complexity Also demonstrates benefits of understanding the underlying architecture when designing an assembler
Conclusion Some problems we encountered: • Off by one stage in pipeline • Lack of experience with VHDL • Order of bits from memory In Conclusion. . . • Knowledge from previous courses • Further research • Simple RISC processor • Pipelining • Multiplier • Data Forwarding and Hardware NOP’s

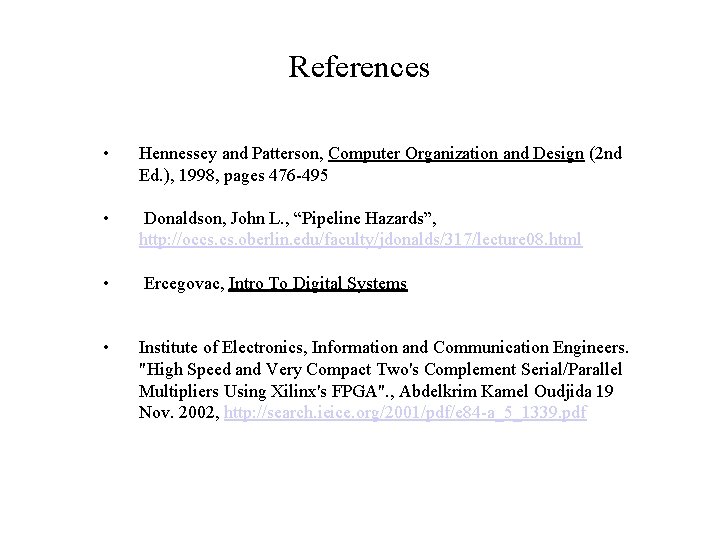

References • Hennessey and Patterson, Computer Organization and Design (2 nd Ed. ), 1998, pages 476 -495 • Donaldson, John L. , “Pipeline Hazards”, http: //occs. oberlin. edu/faculty/jdonalds/317/lecture 08. html • Ercegovac, Intro To Digital Systems • Institute of Electronics, Information and Communication Engineers. "High Speed and Very Compact Two's Complement Serial/Parallel Multipliers Using Xilinx's FPGA". , Abdelkrim Kamel Oudjida 19 Nov. 2002, http: //search. ieice. org/2001/pdf/e 84 -a_5_1339. pdf
