Wind Resource Assessment and Energy Production: From Pre-Construction to Post Construction May 2008 Eric White, Director of Engineering AWS Truewind, LLC 463 New Karner Road Albany, NY 12205 ewhite@awstruewind. com © 2007 AWS Truewind, LLC
AWS Truewind - Overview l Industry Leader & Consultant for 20, 000+ MW l Full spectrum of wind farm development and evaluation services l Wind Assessment, Mapping, Engineering, Performance Assessment, Forecasting • • In business 25 years Project roles in over 50 countries Albany, New York based; 55+ employees • © 2007 AWS Truewind, LLC
Topics • • Wind resource assessment process Energy production modeling Effects on wind farm siting and design Operational plants and actual yields © 2007 AWS Truewind, LLC
Establishing Project Viability Wind Resources Determine: l Project Location & Size l Tower Height l Turbine Selection & Layout l Energy Production » annual, seasonal » on- & off-peak l Cost of Energy/Cash Flow l Warranty Terms l Size of Emissions Credits The wind energy industry is more demanding of wind speed accuracy than any other industry. © 2007 AWS Truewind, LLC
Power in the Wind (Watts) = 1/2 x air density x swept rotor area x (wind speed) 3 Density = P/(Rx. T) P - pressure (Pa) R - specific gas constant (287 J/kg. K) T - air temperature (K) kg/m 3 A V 3 Area = r 2 Instantaneous Speed (not mean speed) m 2 m/s Knowledge of local wind speed is critical to evaluating the available power © 2007 AWS Truewind, LLC

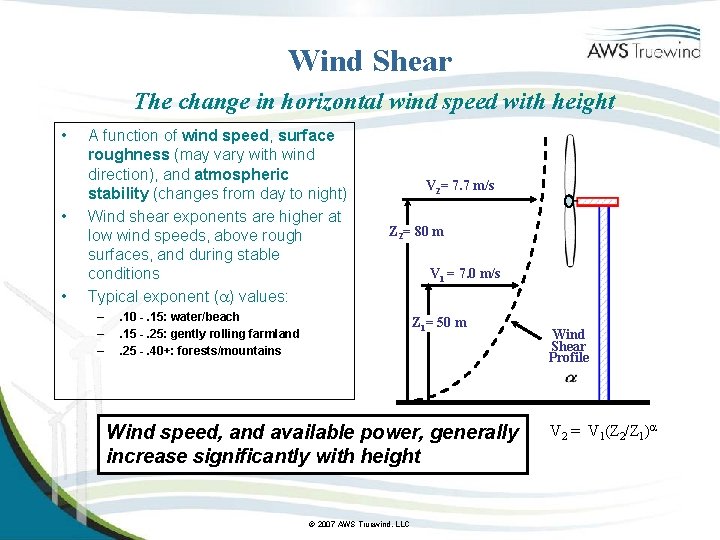

Wind Shear The change in horizontal wind speed with height • • • A function of wind speed, surface roughness (may vary with wind direction), and atmospheric stability (changes from day to night) Wind shear exponents are higher at low wind speeds, above rough surfaces, and during stable conditions Typical exponent ( ) values: – – – V 2= 7. 7 m/s Z 2= 80 m . 10 -. 15: water/beach. 15 -. 25: gently rolling farmland. 25 -. 40+: forests/mountains V 1 = 7. 0 m/s Z 1= 50 m = generally Log 10 [V 2/V 1] Wind speed, and available power, increase significantly with height Log 10 [Z 2/Z 1] © 2007 AWS Truewind, LLC Wind Shear Profile V 2 = V 1(Z 2/Z 1)

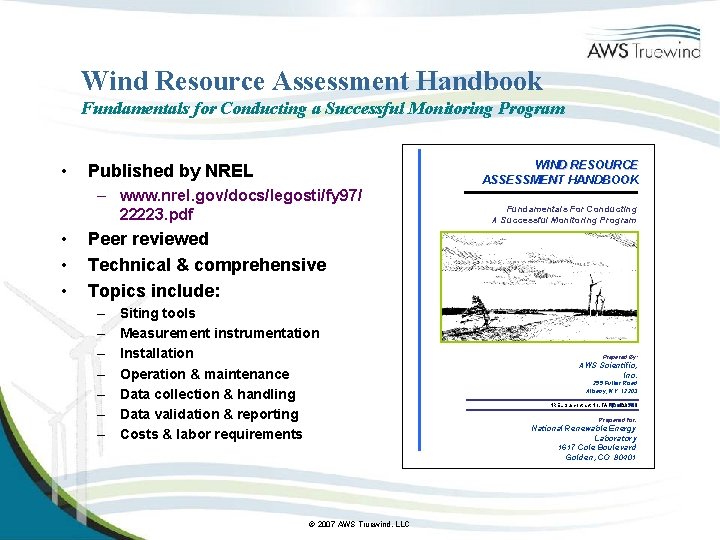

Wind Resource Assessment Handbook Fundamentals for Conducting a Successful Monitoring Program • Published by NREL – www. nrel. gov/docs/legosti/fy 97/ 22223. pdf • • • WIND RESOURCE ASSESSMENT HANDBOOK Fundamentals For Conducting A Successful Monitoring Program Peer reviewed Technical & comprehensive Topics include: – – – – Siting tools Measurement instrumentation Installation Operation & maintenance Data collection & handling Data validation & reporting Costs & labor requirements © 2007 AWS Truewind, LLC Prepared By: AWS Scientific, Inc. 255 Fuller Road Albany, NY 12203 April 1997 NREL Subcontract No. TAT-5 -15283 -01 Prepared for: National Renewable Energy Laboratory 1617 Cole Boulevard Golden, CO 80401
Summary of Wind Resource Assessment Process • Identify Attractive Candidate Sites • Collect >1 yr On Site Wind Data Using Tall Towers • Adjust Data for Height and for Long-Term Climatic Conditions • Use Model to Extrapolate Measurements to All Proposed Wind Turbine Locations • Predict Energy Output From Turbines • Quantify Uncertainties © 2007 AWS Truewind, LLC
Siting Main Objective: Identify viable wind project sites Main Attributes: • Adequate winds – Generally > 7 m/s @ hub height • Access to transmission • Permit approval reasonably attainable • Sufficient land area for target project size – 30 – 50 acres per MW for arrays – 8 – 12 MW per mile for single row on ridgeline © 2007 AWS Truewind, LLC

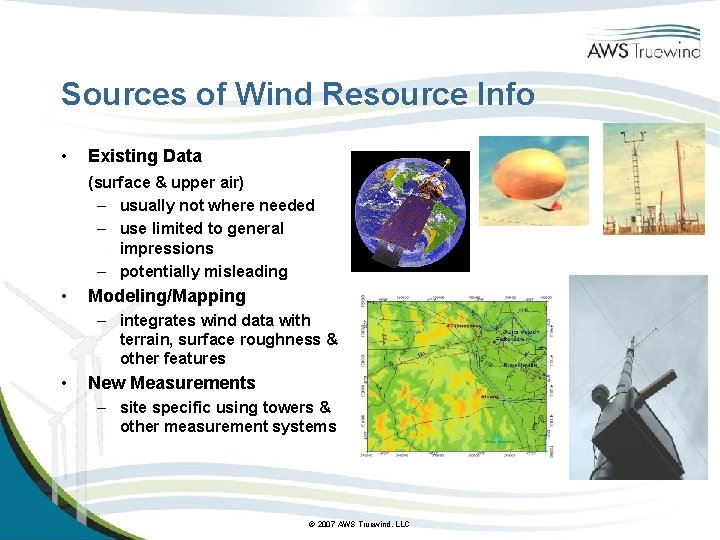

Sources of Wind Resource Info • Existing Data (surface & upper air) – usually not where needed – use limited to general impressions – potentially misleading • Modeling/Mapping – integrates wind data with terrain, surface roughness & other features • New Measurements – site specific using towers & other measurement systems © 2007 AWS Truewind, LLC
Alternative Sources of Wind • Visual Indications and local knowledge Speed Data • Beaufort Scale –Wind Speed Estimated by Visual Effects on Land Features –Accuracy : 15% Without Height Adjustment • National Weather Service (NWS) –Measurements of Wind Speeds for Weather Conditions –Accuracy : +/- 1 m/s up to 10 m/s 10% above 10 m/s • Environmental Protection Agency –Accuracy: 0. 25 m/s < 5 m/s 5% > 2 m/s not to exceed 2. 5 m/s • World Meteorological Organization –Accuracy: 0. 5 m/s < 5 m/s 10% > 5 m/s • Wind Industry expects 1 -2% speed measurement accuracy! Alternative sources and techniques have large uncertainty; the wind industry is more demanding of accuracy than traditional users © 2008 2007 AWS Truewind, LLC
Modern Wind Maps • Utilize mesoscale numerical weather models • High spatial resolution (100 -200 m grid = 3 -10 acre squares) • Simulate land/sea breezes, low level jets, channeling • Give wind speed estimates at multiple heights • Extensively validated • Std error typically 4 -7% • GIS compatible Old and new wind maps of the Dakotas Source: NREL © 2007 AWS Truewind, LLC • Reduce development risks
Wind Mapping © 2007 AWS Truewind, LLC
Typical Monitoring Tower • Heights up to 60 m • Tubular pole supported by guy wires • Installed in ~ 2 days without foundation using 4 -5 people • Solar powered; cellular data communications © 2007 AWS Truewind, LLC
How and What To Measure • • Anemometers, Vanes, Data Loggers, Masts Measured Parameters – wind speed, direction, temperature – 1 -3 second sampling; 10 -min or hourly recording • Derived Parameters – wind shear, turbulence intensity, air density • Multiple measurement heights – best to measure at hub height – can use shorter masts by using wind shear derived from two other heights to extrapolate speeds to hub height • • Multiple tower locations, especially in complex terrain Specialty measurements of growing importance – Sodar, vertical velocity & turbulence in complex terrain © 2007 AWS Truewind, LLC

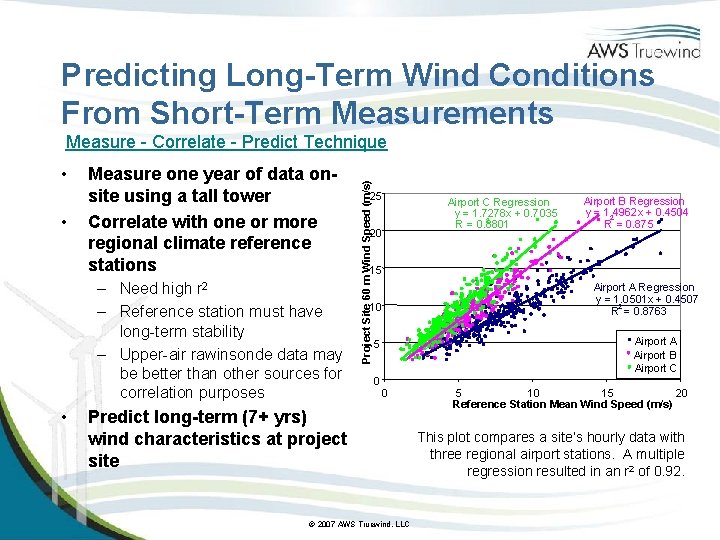

Predicting Long-Term Wind Conditions From Short-Term Measurements • • Measure one year of data onsite using a tall tower Correlate with one or more regional climate reference stations – Need high r 2 – Reference station must have long-term stability – Upper-air rawinsonde data may be better than other sources for correlation purposes • Project Site 60 m Wind Speed (m/s) Measure - Correlate - Predict Technique 25 Airport C Regression y = 1. 7278 x + 0. 7035 2 R = 0. 8801 20 Airport B Regression y = 1. 4962 x + 0. 4504 2 R = 0. 875 15 Airport A Regression y = 1. 0501 x + 0. 4507 2 R = 0. 8763 10 Airport A Airport B Airport C 5 0 0 Predict long-term (7+ yrs) wind characteristics at project site © 2007 AWS Truewind, LLC 5 10 15 20 Reference Station Mean Wind Speed (m/s) This plot compares a site’s hourly data with three regional airport stations. A multiple regression resulted in an r 2 of 0. 92.

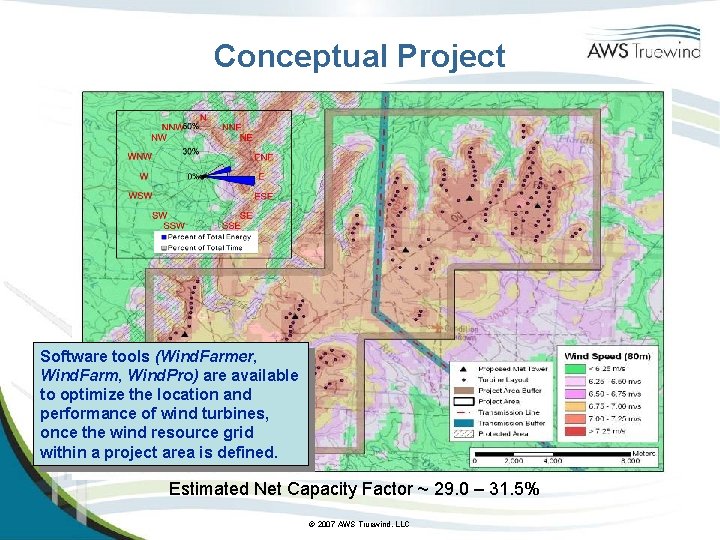

Conceptual Project Software tools (Wind. Farmer, Wind. Farm, Wind. Pro) are available to optimize the location and performance of wind turbines, once the wind resource grid within a project area is defined. Estimated Net Capacity Factor ~ 29. 0 – 31. 5% © 2007 AWS Truewind, LLC

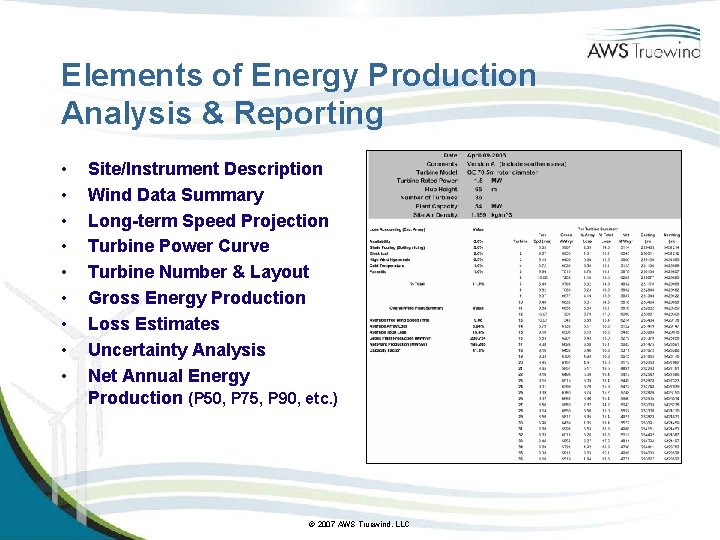

Elements of Energy Production Analysis & Reporting • • • Site/Instrument Description Wind Data Summary Long-term Speed Projection Turbine Power Curve Turbine Number & Layout Gross Energy Production Loss Estimates Uncertainty Analysis Net Annual Energy Production (P 50, P 75, P 90, etc. ) © 2007 AWS Truewind, LLC
Influences on Uncertainty (Typical Range of Impact on Lifetime Energy Production) l Measured Speed (2 -4%) l Shear (1 -3%) l Climate (4 -9%) l Resource Model (5 -10%) l Plant Losses (1 -3%) © 2007 AWS Truewind, LLC Sensor Types, Calibration & Redundancy, Ice-Free, Exposure on Mast, # of Masts Height of Masts, Multiple Data Heights, Sodar, Terrain & Land Cover Variability Measurement Duration, Period of Record @ Reference Station, Quality of Correlation Microscale Model Type, Project Size, Terrain Complexity, # of Masts, Grid Res. Turbine Spacing (wakes), Blade Icing & Soiling, Cold Temp Shutdown, High Wind Hysteresis, etc.
So What’s a P 90? For a function with an assumed normal probability distribution, • P 50 = mean of the distribution • P 90 = the point where 90% of the results are expected to be above Both are important © 2007 AWS Truewind, LLC
Operational Plant Performance: • Understanding operational wind farm performance can be nontrivial Typical Plant Operational Data Project Availability Plant Production Need to separate wind variability from other effects to understand real long term expectations © 2007 AWS Truewind, LLC
Characteristics of an Operational Assessment Information from actual operations improves estimate – Many sources of uncertainty can be removed (measured speed, shear, resource model, plant losses, actual turbine performance) • Monthly farm level numbers help smooth and linearize results (Power vs. wind speed) • Climatological adjustment with reference station data to provide long term trends • Typical Wind Farm Power Curve (After correcting for Availability) 100% Avail Plant Output • Can focus directly on the bottom line data (Revenue Meter) © 2007 AWS Truewind, LLC Nacelle Average Wind Speed
Case Comparison - Reference Wind 12 month Rolling Average Wind Speed (m/s) Nacelle Average • Trends are similar • Annualized Wind Speed shows low period in 04 and 05; should expect low production Ref Station 2 Ref Station 1 © 2007 AWS Truewind, LLC Month
Case Comparison – Operational Performance © 2007 AWS Truewind, LLC

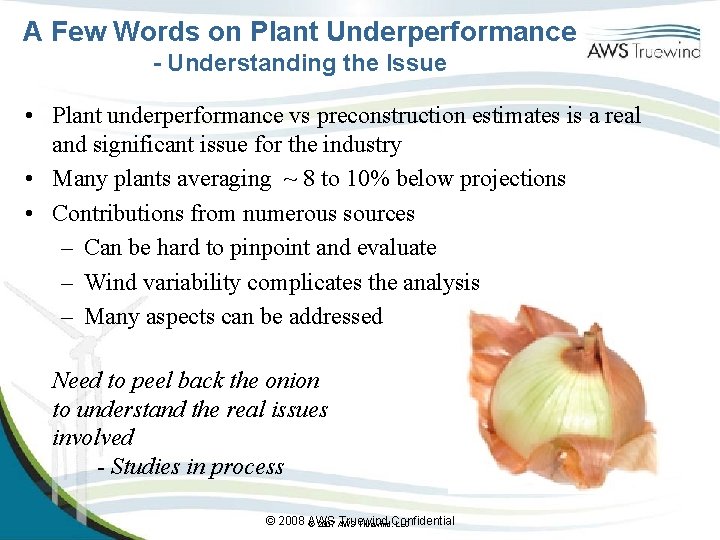

A Few Words on Plant Underperformance - Understanding the Issue • Plant underperformance vs preconstruction estimates is a real and significant issue for the industry • Many plants averaging ~ 8 to 10% below projections • Contributions from numerous sources – Can be hard to pinpoint and evaluate – Wind variability complicates the analysis – Many aspects can be addressed Need to peel back the onion to understand the real issues involved - Studies in process © 2008 AWS Truewind © 2007 AWS Truewind, Confidential LLC
Early Findings – Some Key Contributors Resource Assessment Campaign Biases Regional Climate and Variability Actual Plant Availability As-Built Plant Characteristics Changes from Plan Sub-Optimal Operation Many contributors – across the project development cycle © 2008 AWS Truewind © 2007 AWS Truewind, Confidential LLC
Summary • Wind conditions are site-specific and variable, but predictable over the long term. • Accuracy is important. Wind resource assessment programs must be designed to maximize accuracy. • Combination of measurement and modeling techniques can give projections close to those experienced in actual operations. • Operational plant evaluations can be used to improve projections © 2007 AWS Truewind, LLC
