Veri. STAR-HLC (Hull Life Cycle) overview 2014. 09. 26 Philippe Renard

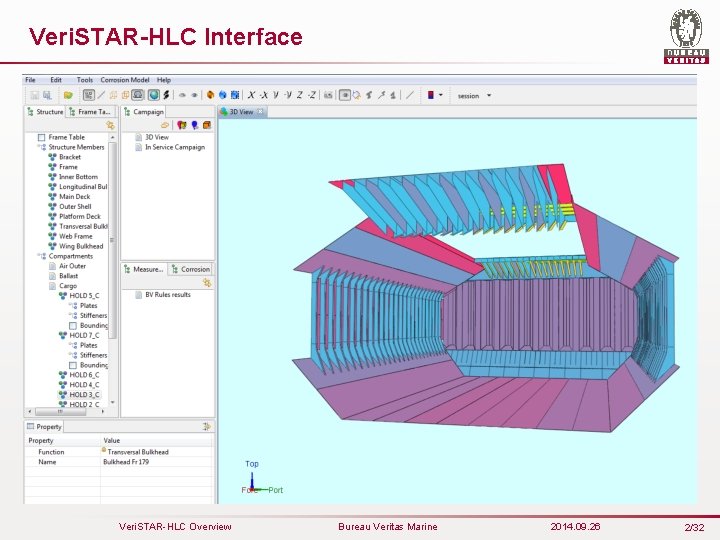

Veri. STAR-HLC Interface Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 2/32

Today's follow-up on "paper"

Manual processing Today, manual processing of : Thickness measurement reports Repairs preparation Structural condition assessment Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 4/32

Tomorrow's 3 D models

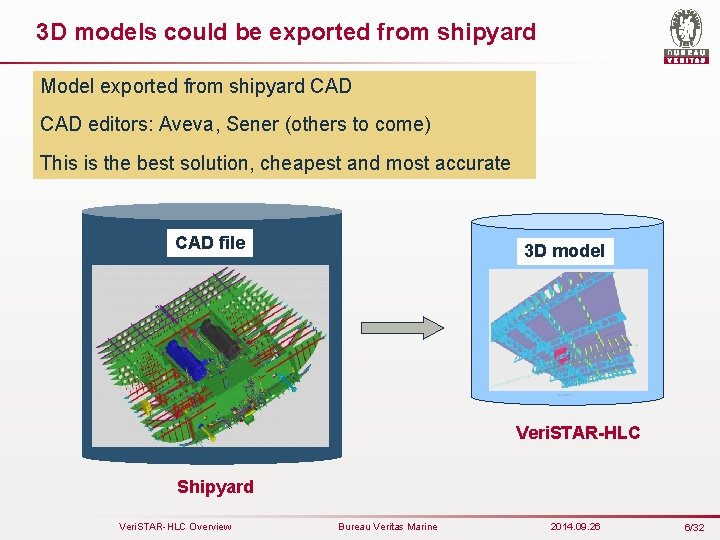

3 D models could be exported from shipyard Model exported from shipyard CAD editors: Aveva, Sener (others to come) This is the best solution, cheapest and most accurate CAD file 3 D model Veri. STAR-HLC Shipyard Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 6/32

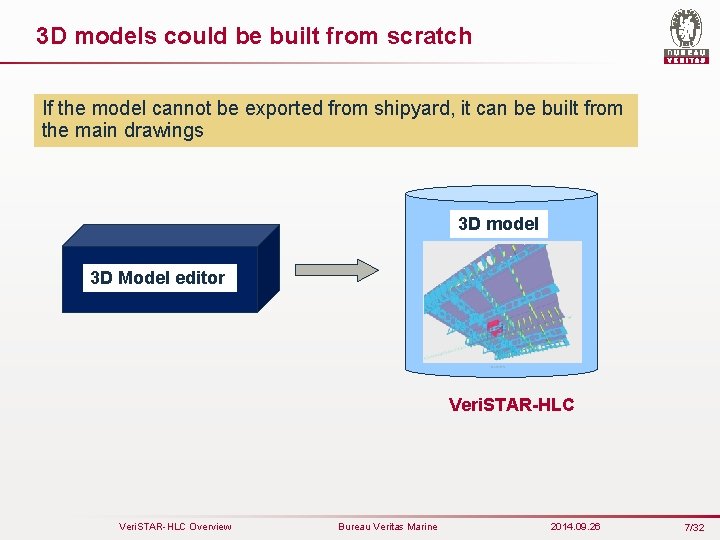

3 D models could be built from scratch If the model cannot be exported from shipyard, it can be built from the main drawings 3 D model 3 D Model editor Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 7/32

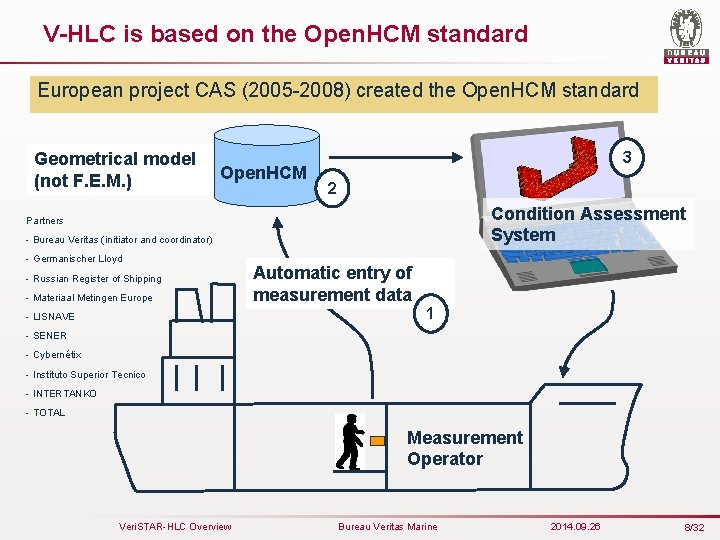

V-HLC is based on the Open. HCM standard European project CAS (2005 -2008) created the Open. HCM standard Geometrical model (not F. E. M. ) Open. HCM 3 2 Condition Assessment System Partners - Bureau Veritas (initiator and coordinator) - Germanischer Lloyd - Russian Register of Shipping - Materiaal Metingen Europe Automatic entry of measurement data 1 - LISNAVE - SENER - Cybernétix - Instituto Superior Tecnico - INTERTANKO - TOTAL Measurement Operator Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 8/32

Open. HCM group ► The Open. HCM group manages the evolution of the standard, taking into account the feed-back from implementations http: //sourceforge. net/projects/openhcmstandard/ Members - Bureau Veritas - DNV GL - Materiaal Metingen Europe - SENER - Russian Maritime Register of Shipping - Cybernétix - Atlantec Enterprise Solutions - Aveva - Lloyd's Register Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 9/32

Veri. STAR-HLC functions

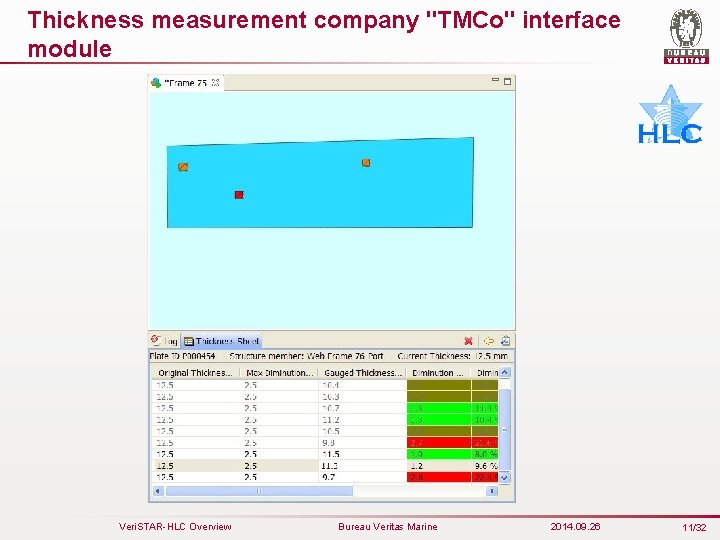

Thickness measurement company "TMCo" interface module Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 11/32

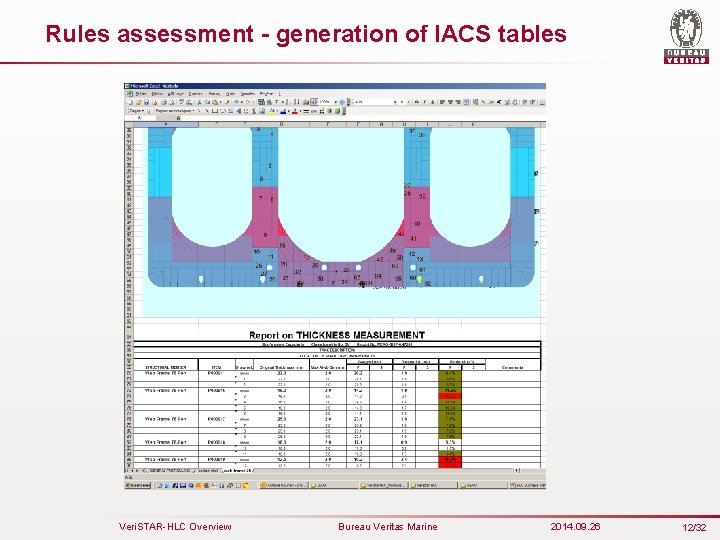

Rules assessment - generation of IACS tables Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 12/32

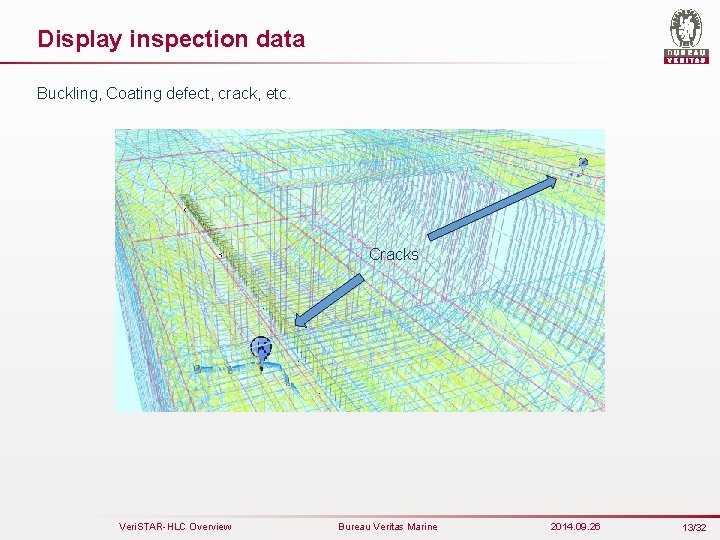

Display inspection data Buckling, Coating defect, crack, etc. Cracks Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 13/32

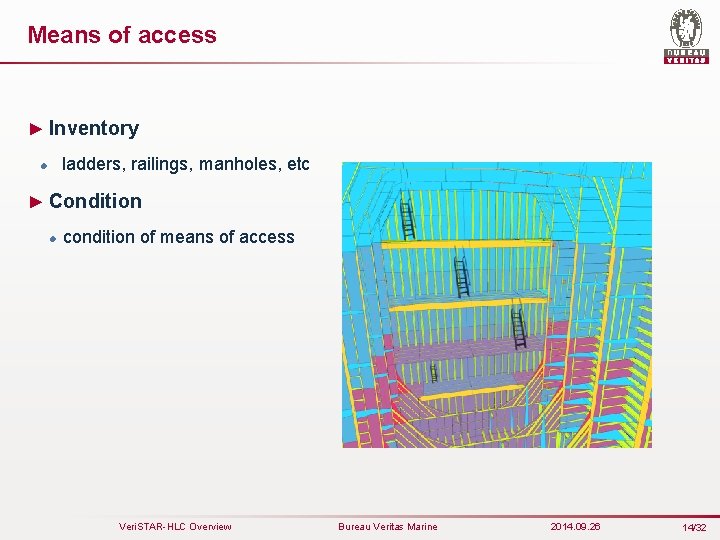

Means of access ► Inventory ladders, railings, manholes, etc l ► Condition l condition of means of access Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 14/32

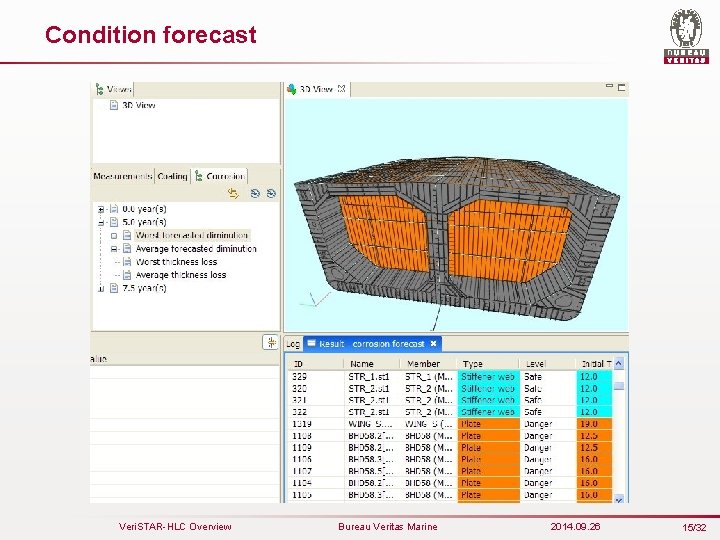

Condition forecast Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 15/32

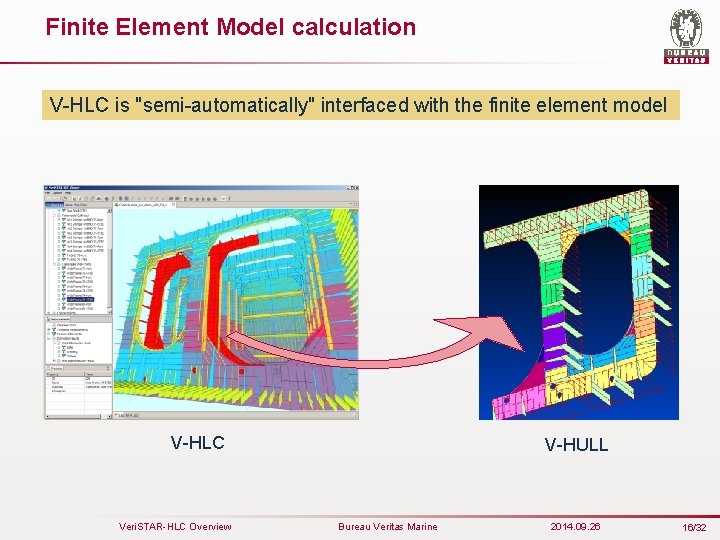

Finite Element Model calculation V-HLC is "semi-automatically" interfaced with the finite element model V-HLC Veri. STAR-HLC Overview V-HULL Bureau Veritas Marine 2014. 09. 26 16/32

References: pilot operations and contracts

Spanish shipyard - Open. HCM export ► Export from SENER Foran CAD - May 2009 ► Bahia Uno 04301 C (BV Class, oil tanker, Loa 71 m) ► Delivered - Sept 2004 at Astilleros de Murueta, Vizcaya Open. HCM of DECK in V-HLC Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 18/32

UTM campaign on board LNG carrier ► Test of software on board ► CAP - February 2010 ► Bachir Chihani 32 Y 705 ► LNG carrier, Loa 281. 7 m ► Delivered 1979 Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 19/32

Ultrasonic thickness measurements "UTM" campaign on board LNG vessel ► Preparation of the 3 D model ► Input of UTM directly into the model using V-HLC ► Feedback from TM company ► Improvements of software Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 20/32

DSME (alias Daewoo, Korea) - Open. HCM export EXMAR LNG vessels Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 21/32

Pilot operation with EXMAR / Excalibur Taking thickness measurements "UTM" on board Entry of UTM into V-HLC model while on board Courtesy from DSME Instant display of thickness measurements results Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 22/32

Other uses

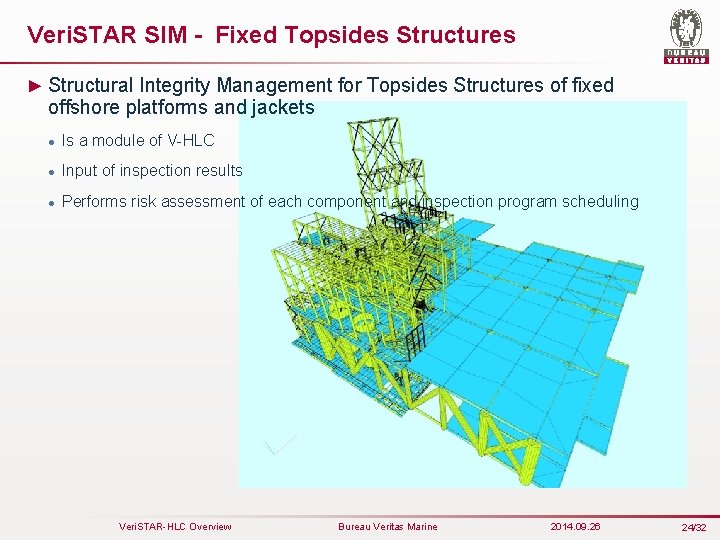

Veri. STAR SIM - Fixed Topsides Structures ► Structural Integrity Management for Topsides Structures of fixed offshore platforms and jackets l Is a module of V-HLC l Input of inspection results l Performs risk assessment of each component and inspection program scheduling Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 24/32

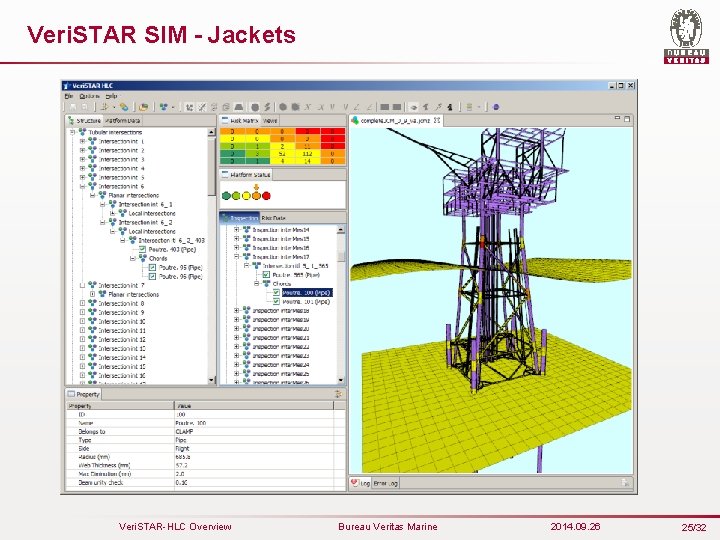

Veri. STAR SIM - Jackets Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 25/32

Related cooperative projects ► European Union projects l FLAGSHIP l RISPECT l HLC-AIMS ► Life Cycle Management JIP (hull of FPSOs) l Participants are Exxon Mobil, oil majors and all main class societies Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 26/32

Owner’s expected benefits

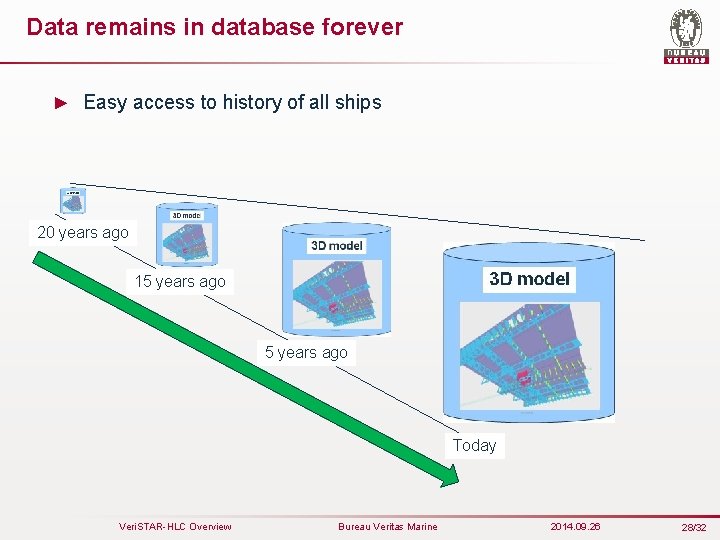

Data remains in database forever ► Easy access to history of all ships 20 years ago 15 years ago Today Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 28/32

Hull monitoring capabilities ► For managers of superintendents office, to check quickly the hull condition of their ships Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 29/32

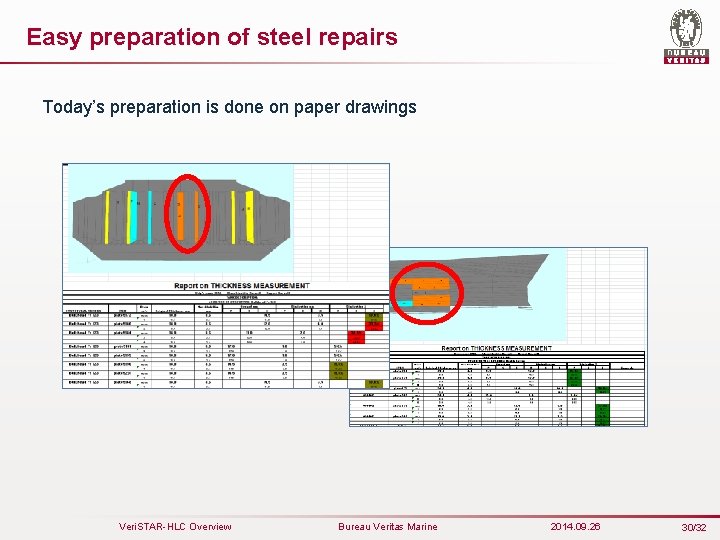

Easy preparation of steel repairs Today’s preparation is done on paper drawings Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 30/32

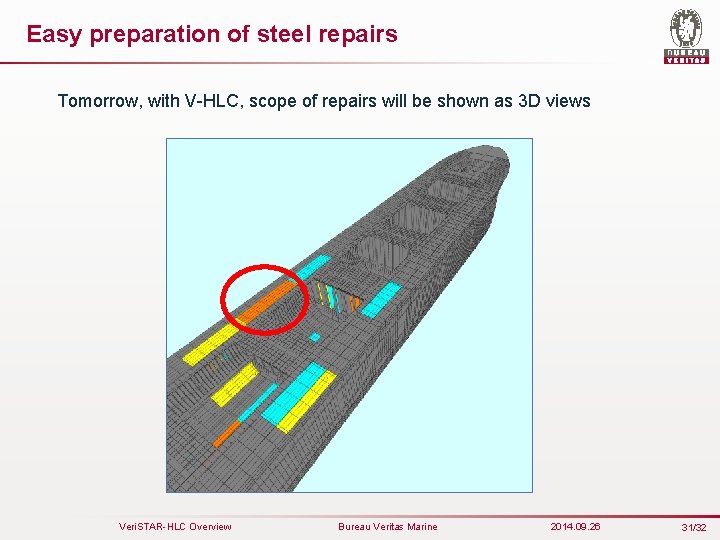

Easy preparation of steel repairs Tomorrow, with V-HLC, scope of repairs will be shown as 3 D views Veri. STAR-HLC Overview Bureau Veritas Marine 2014. 09. 26 31/32
