Scattering from imperfect crystals see Cowley Sect 7

  • Slides: 30
Download presentation

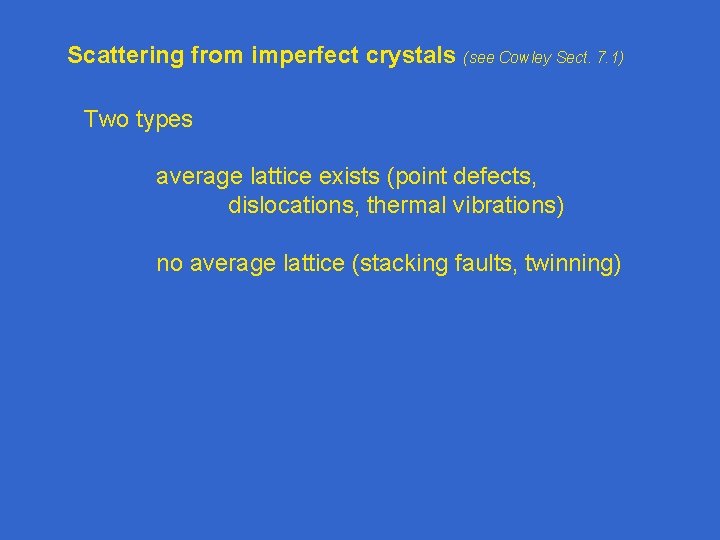

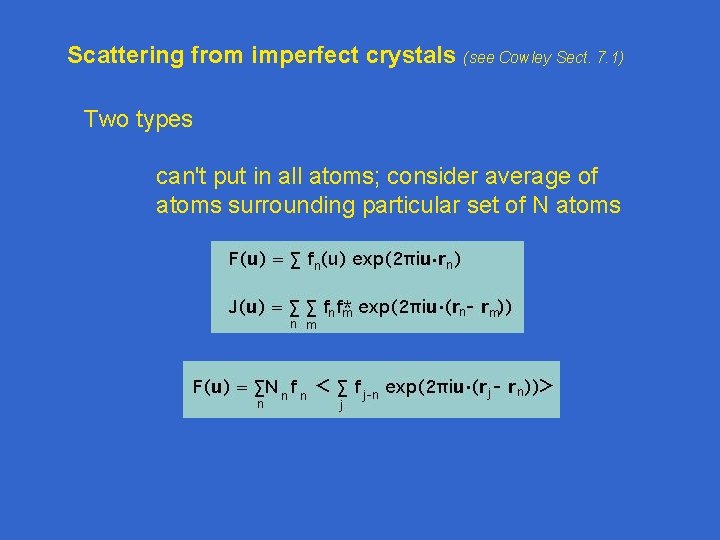

Scattering from imperfect crystals (see Cowley Sect. 7. 1) Two types average lattice exists

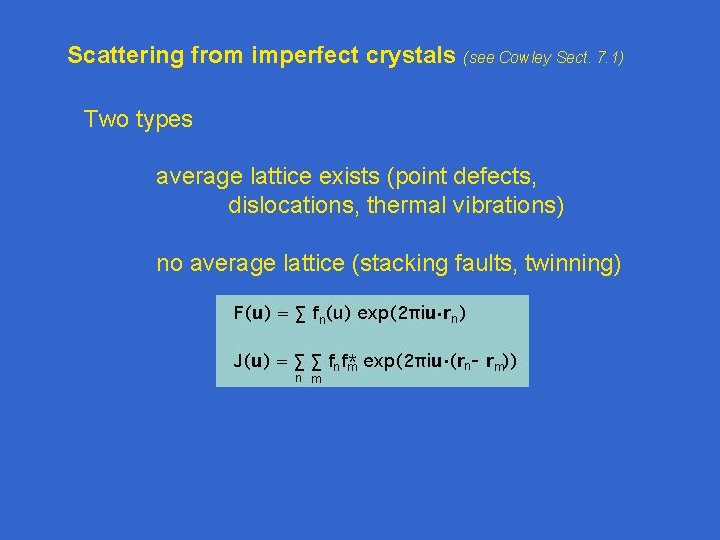

Scattering from imperfect crystals (see Cowley Sect. 7. 1) Two types average lattice exists (point defects, dislocations, thermal vibrations) no average lattice (stacking faults, twinning)

Scattering from imperfect crystals (see Cowley Sect. 7. 1) Two types average lattice exists

Scattering from imperfect crystals (see Cowley Sect. 7. 1) Two types average lattice exists (point defects, dislocations, thermal vibrations) no average lattice (stacking faults, twinning)

Scattering from imperfect crystals (see Cowley Sect. 7. 1) Two types can't put in

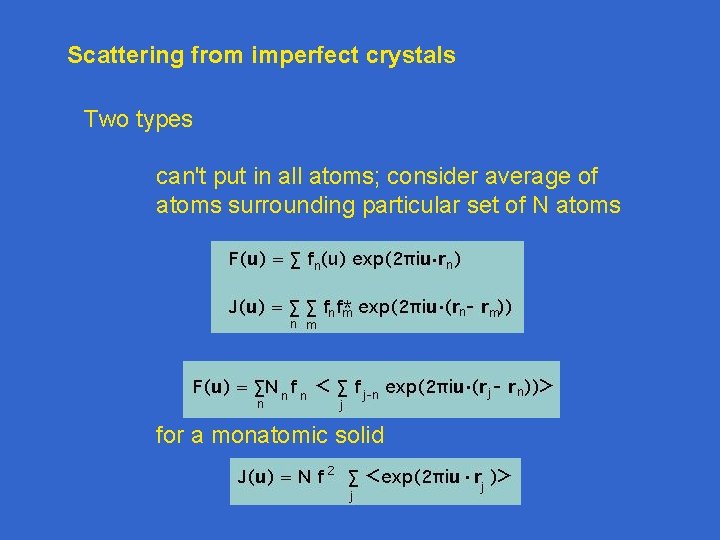

Scattering from imperfect crystals (see Cowley Sect. 7. 1) Two types can't put in all atoms; consider average of atoms surrounding particular set of N atoms

Scattering from imperfect crystals Two types can't put in all atoms; consider average of

Scattering from imperfect crystals Two types can't put in all atoms; consider average of atoms surrounding particular set of N atoms for a monatomic solid

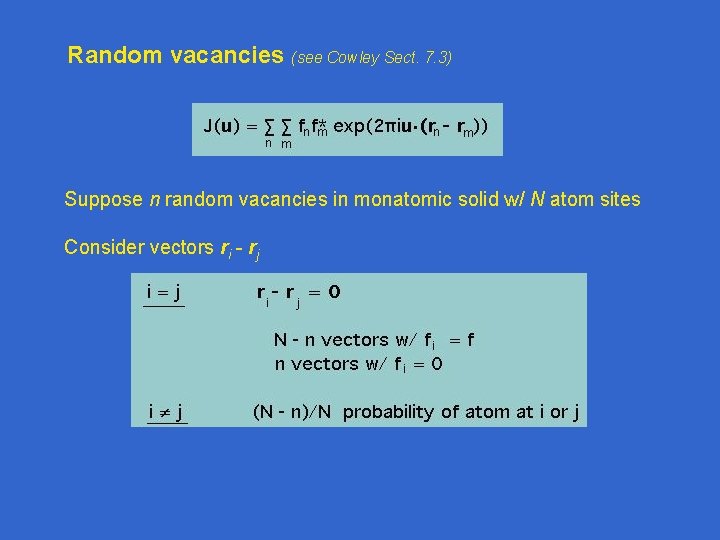

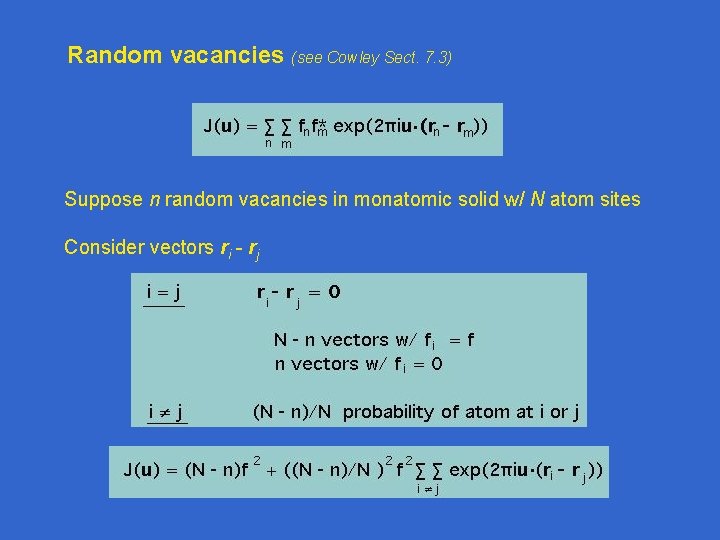

Random vacancies (see Cowley Sect. 7. 3) Suppose n random vacancies in monatomic solid

Random vacancies (see Cowley Sect. 7. 3) Suppose n random vacancies in monatomic solid w/ N atom sites Consider vectors ri - rj

Random vacancies (see Cowley Sect. 7. 3) Suppose n random vacancies in monatomic solid

Random vacancies (see Cowley Sect. 7. 3) Suppose n random vacancies in monatomic solid w/ N atom sites Consider vectors ri - rj

Random vacancies Rearranging:

Random vacancies Rearranging:

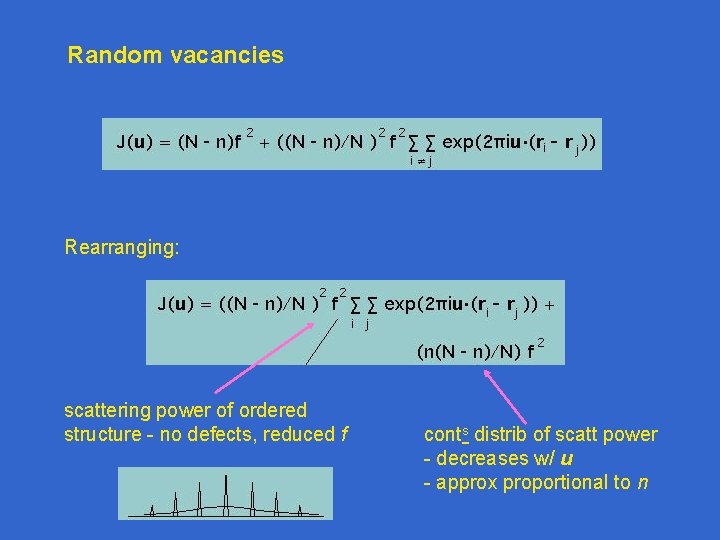

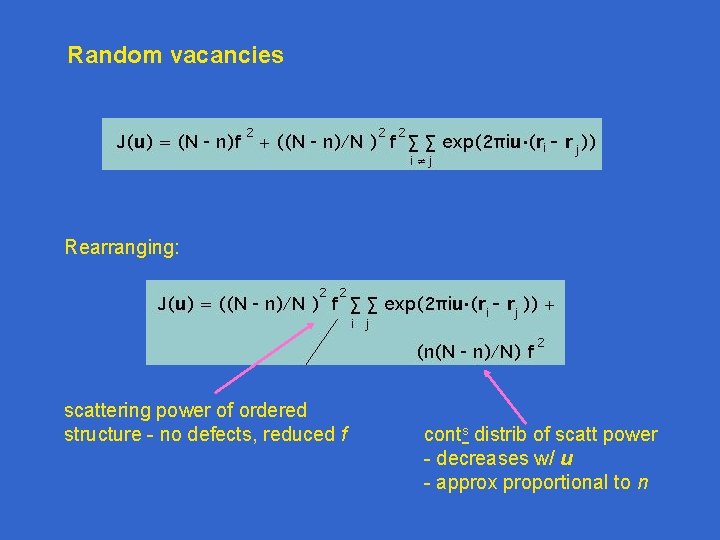

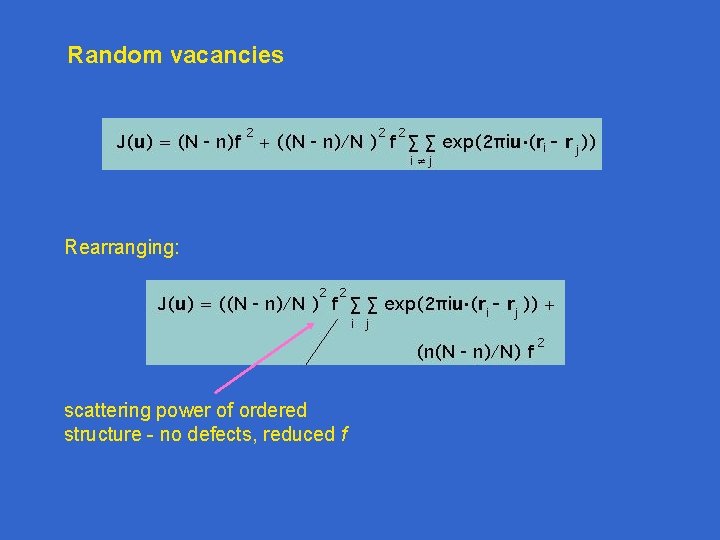

Random vacancies Rearranging: scattering power of ordered structure - no defects, reduced f

Random vacancies Rearranging: scattering power of ordered structure - no defects, reduced f

Random vacancies Rearranging: scattering power of ordered structure - no defects, reduced f conts

Random vacancies Rearranging: scattering power of ordered structure - no defects, reduced f conts distrib of scatt power - decreases w/ u - approx proportional to n

Random vacancies Rearranging: scattering power of ordered structure - no defects, reduced f conts

Random vacancies Rearranging: scattering power of ordered structure - no defects, reduced f conts distrib of scatt power - decreases w/ u - approx proportional to n

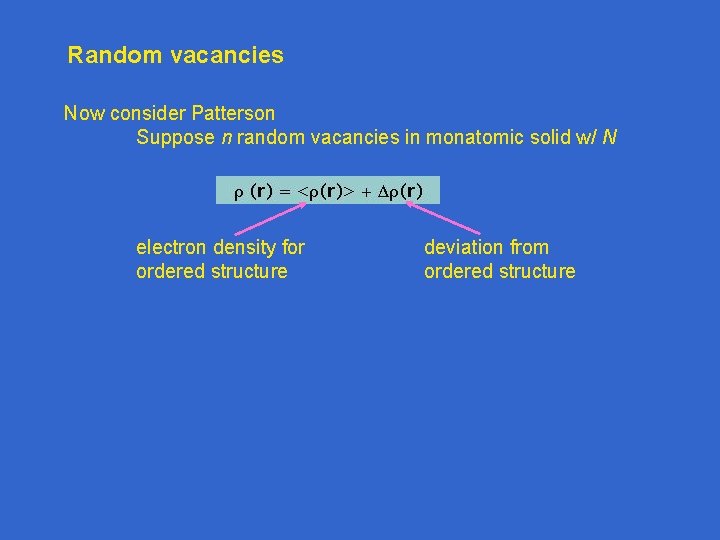

Random vacancies Now consider Patterson Suppose n random vacancies in monatomic solid w/ N

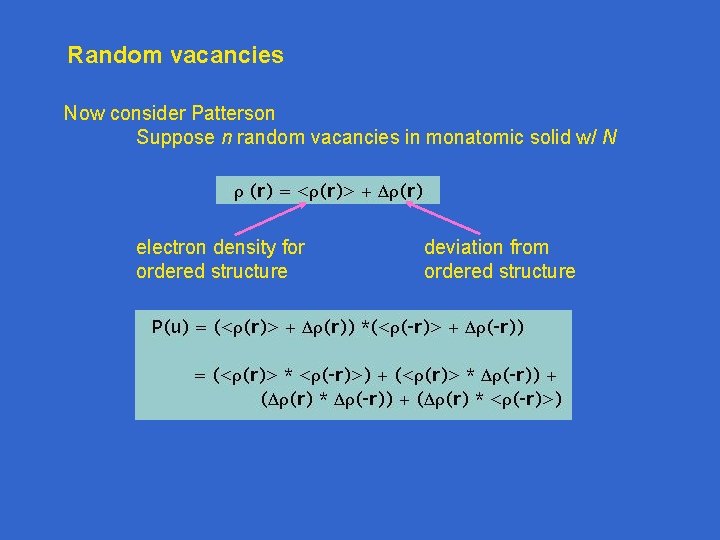

Random vacancies Now consider Patterson Suppose n random vacancies in monatomic solid w/ N electron density for ordered structure deviation from ordered structure

Random vacancies Now consider Patterson Suppose n random vacancies in monatomic solid w/ N

Random vacancies Now consider Patterson Suppose n random vacancies in monatomic solid w/ N electron density for ordered structure deviation from ordered structure

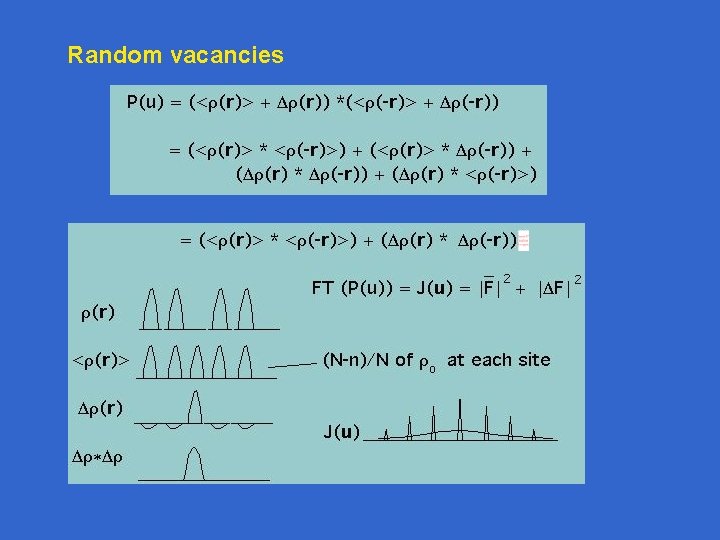

Random vacancies

Random vacancies

Vacancy clusters Use Patterson approach again

Vacancy clusters Use Patterson approach again

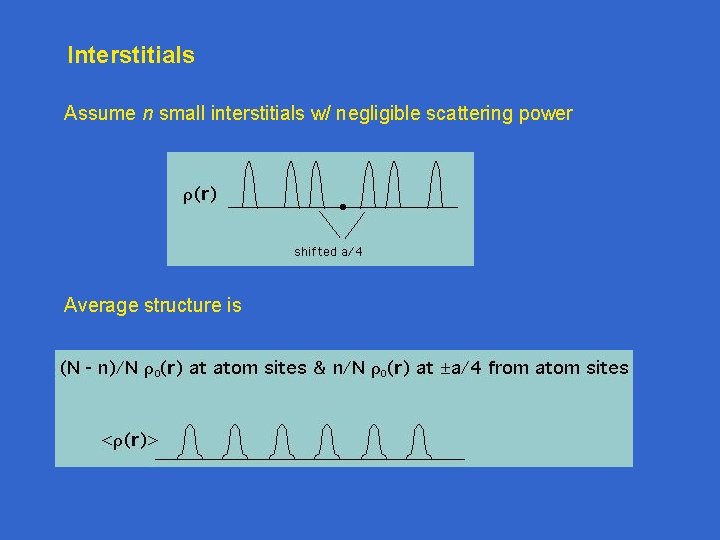

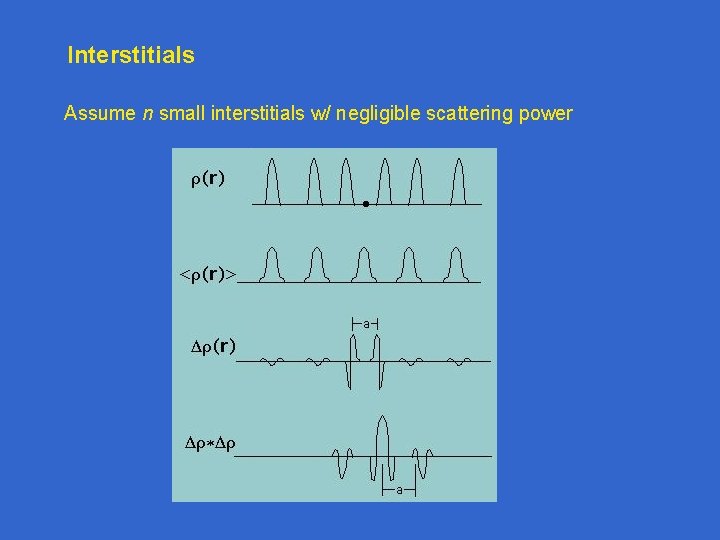

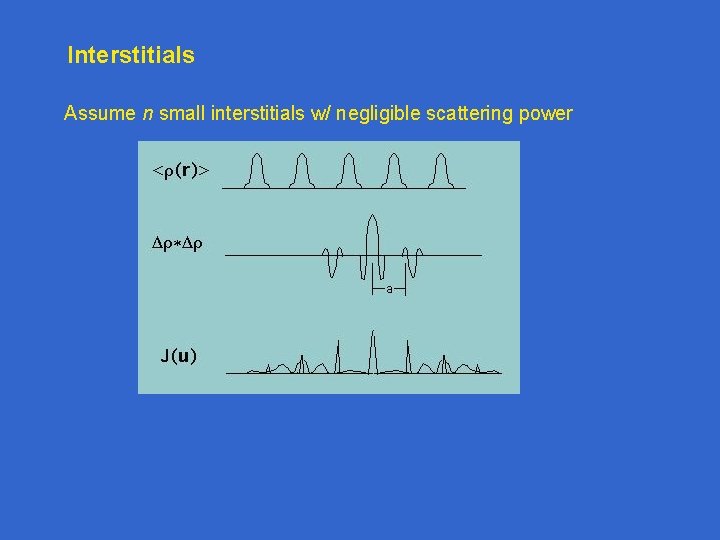

Interstitials Assume n small interstitials w/ negligible scattering power Average structure is

Interstitials Assume n small interstitials w/ negligible scattering power Average structure is

Interstitials Assume n small interstitials w/ negligible scattering power

Interstitials Assume n small interstitials w/ negligible scattering power

Interstitials Assume n small interstitials w/ negligible scattering power

Interstitials Assume n small interstitials w/ negligible scattering power

Thermal vibrations Einstein: monatomic, independent, harmonic, 1 -D Spread electron density by Gaussian

Thermal vibrations Einstein: monatomic, independent, harmonic, 1 -D Spread electron density by Gaussian

Thermal vibrations Except for origin peak, all Patterson peaks spread by

Thermal vibrations Except for origin peak, all Patterson peaks spread by

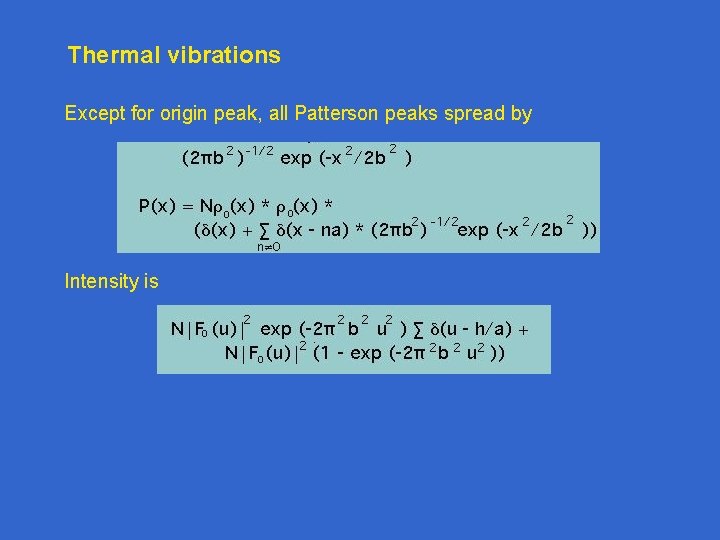

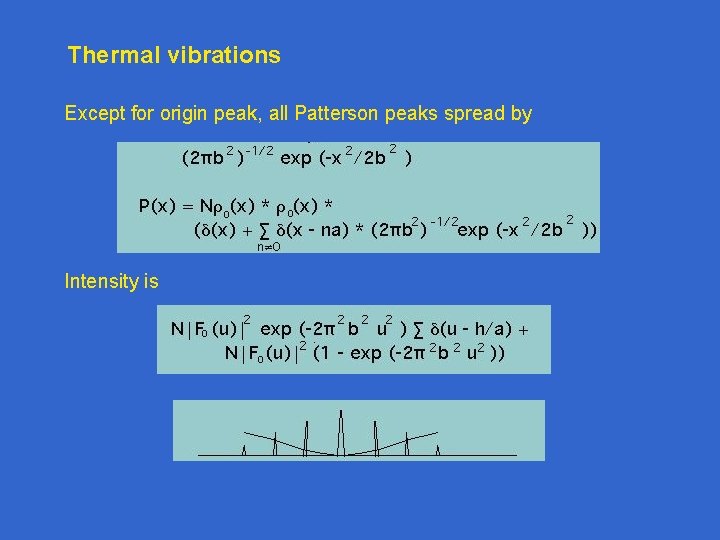

Thermal vibrations Except for origin peak, all Patterson peaks spread by Intensity is

Thermal vibrations Except for origin peak, all Patterson peaks spread by Intensity is

Thermal vibrations Except for origin peak, all Patterson peaks spread by Intensity is

Thermal vibrations Except for origin peak, all Patterson peaks spread by Intensity is

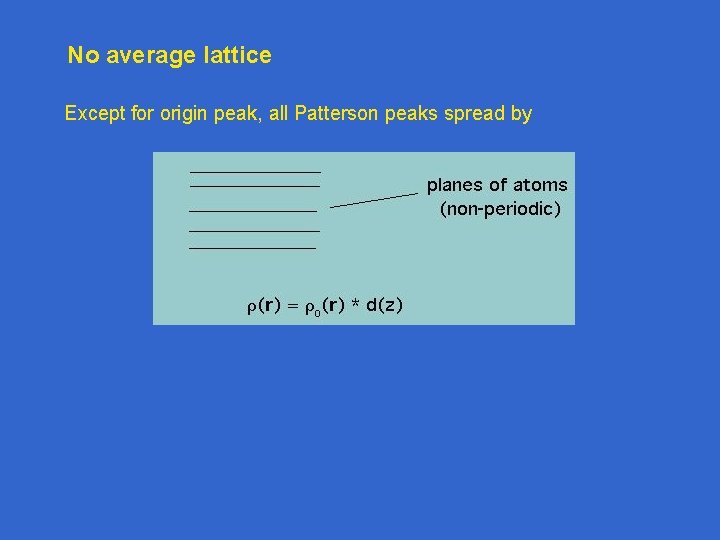

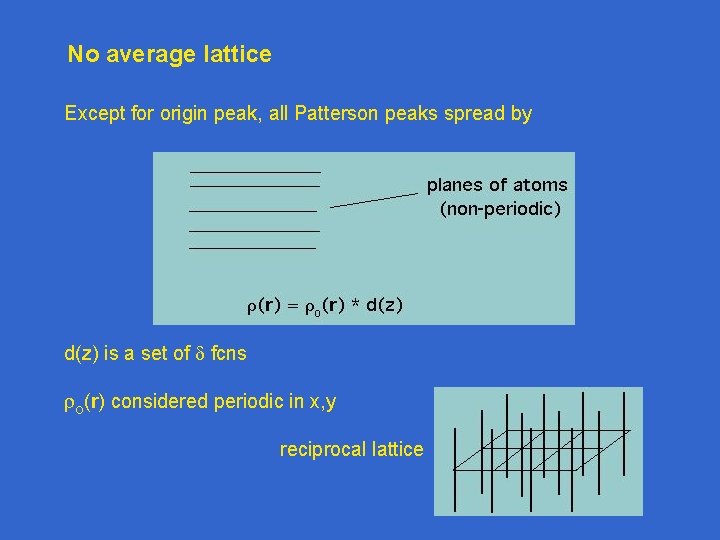

No average lattice Except for origin peak, all Patterson peaks spread by

No average lattice Except for origin peak, all Patterson peaks spread by

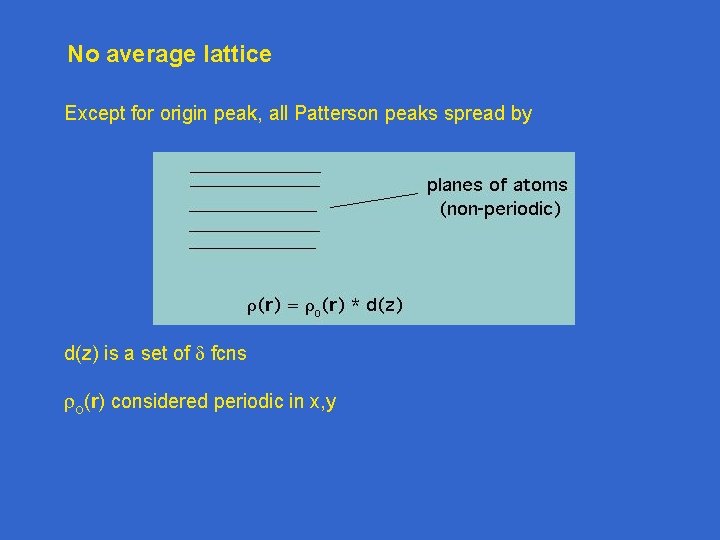

No average lattice Except for origin peak, all Patterson peaks spread by d(z) is

No average lattice Except for origin peak, all Patterson peaks spread by d(z) is a set of fcns (r) considered periodic in x, y

No average lattice Except for origin peak, all Patterson peaks spread by d(z) is

No average lattice Except for origin peak, all Patterson peaks spread by d(z) is a set of fcns (r) considered periodic in x, y reciprocal lattice

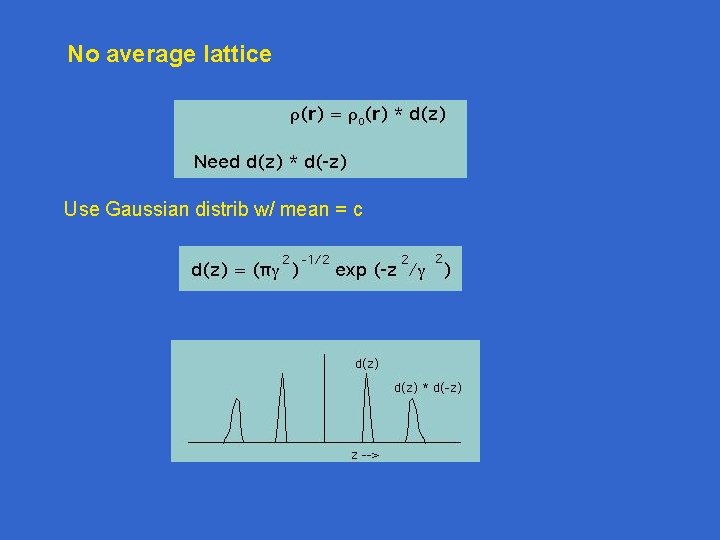

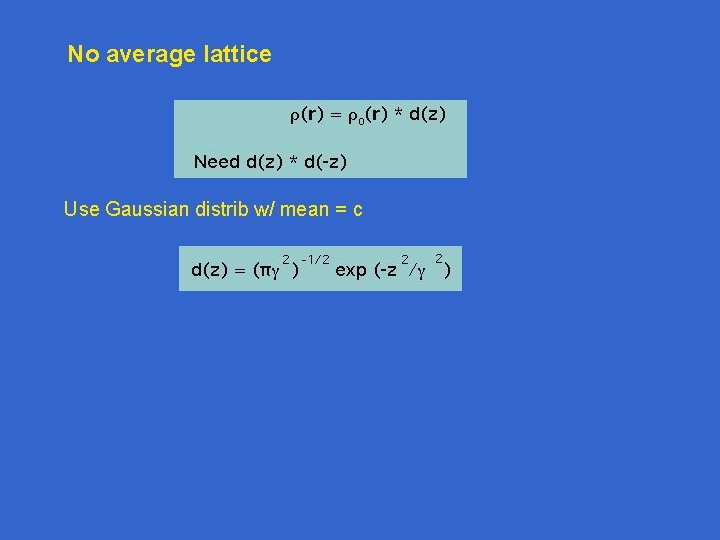

No average lattice Use Gaussian distrib w/ mean = c

No average lattice Use Gaussian distrib w/ mean = c

No average lattice Use Gaussian distrib w/ mean = c

No average lattice Use Gaussian distrib w/ mean = c

No average lattice

No average lattice

No average lattice

No average lattice

No average lattice

No average lattice

No average lattice

No average lattice
