Sanger Sequencing DNA is fragmented Cloned to a
- Slides: 27
Sanger Sequencing • DNA is fragmented • Cloned to a plasmid vector • Cyclic sequencing reaction • Separation by electrophoresis • First generation: S 35 isotope • Second generation: fluorescent tags • Third generation: automation
“Next” generation sequencing • Not Sanger based biochemistry • DNA is fragmented and sequenced directly • Much more chemistry, physics, and computer science • Characterized by – Parallel Sequencing – High Throughput – Cost • Generates billions of sequences per experiment, highly computational
Human Genome Project ENCODE project Hap. Map project SNP consortium Individual human genomes James Watson, Craig Venter, 3 asian gentlemen
General Workflow (Illumina)
Workflow Outcomes
Workflow (Illumina) Input sequence is cleaved in reads of 100 -150 bp, ligated to generic adaptors and annealed to a slide using the adaptors. These nucleotides are fluorescently labeled, with the color corresponding to the base. They also have a terminator, so that only one base is added at a time.
Workflow (Illumina) • • An image is taken of the slide. In each read location, there will be a fluorescent signal indicating the base that has been added. The terminators are removed, allowing the next base to be added, and the fluorescent signal is removed, preventing the signal from contaminating the next image
Data output • • Different technologies, though essentially similar Differences in number, length and quality of the sequences and in format of output Making data handling across platforms and analysis a challenge
Sequencing Workflow 10
Step 4 a. Data Analysis
Step 4 b. Read mapping • Align your sequences onto a reference genome or other region (unless you are de novo sequencing a new species) • Determine the coordinates and annotations if known GAAACACAAAGTG GTCTAGGGAAGAAGG ATCTTGTAGG . . TAGTACCCCATCTTGTAGGTCTGAAACACAAAGTGTGGGGTGTCTAGGGAAGAAGGTGTGTGACCAGGGAGGTCCC. . Genome
Sequence Coverage • • • Deep coverage = more accurate results Deep coverage => detecting variants Deep coverage = more expensive!

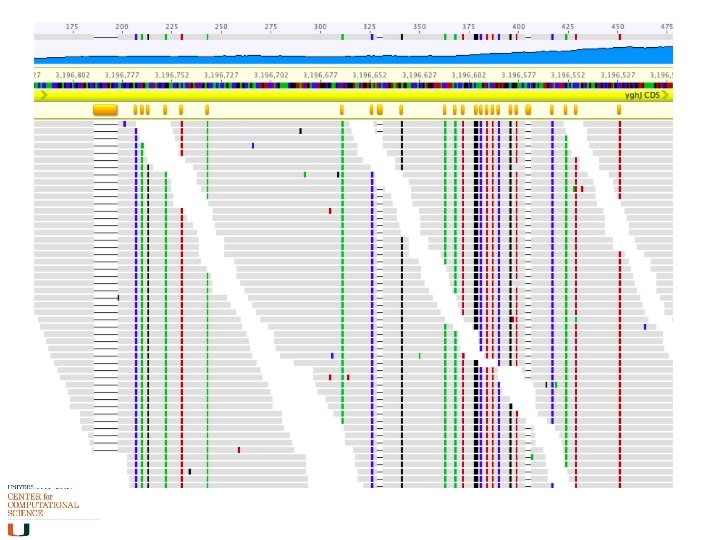

It’s all about the alignment Meyerson et al. Nature Reviews Genetics 11, 685 -696 (October 2010)
NGS pipeline Sequence Alignment/Map Binary Alignment/Map Variant Call Format from Dolled-Filhart et al, 2013
NGS File formats • Raw data from various vendors => various formats (FASTQ) • Different quality metrics (some more stringent than others) • As data analysis proceeds, end up with even more formats: – – Gen. Bank formats (SRA) Alignments are in SAM/BAM Genome Browser formats (wig, bed, gff, etc) Variants in vcf files (SNPs, indels, etc)
FASTQ format: sequence + quality sequence header identifier 1 @SRR 350953. 5 MENDEL_0047_FC 62 MN 8 AAXX: 1: 1: 1646: 938 length=152 NTCTTTTTCCTCTTTTGCCAACTTCAGCTAAATAGGAGCTACACTGATTAGGCAGAAACTTGATTAAC 2 AGGGCTTAAGGTAACCTTGTTGTAGGCCGTTTTGTAGCACTCAAAGCAATTGGTACCTCAACTGCAAAAG TCCTTGGCCC sign 3 +SRR 350953. 5 MENDEL_0047_FC 62 MN 8 AAXX: 1: 1: 1646: 938 length=152 4 raw sequence optional description +50000222 C@@@@@22: : 8888898989: : : <<<: <<<<: : : <<<<<: <: <<<IIIIIGFEEGGGG GGGII@IGDGBGGGGGGDDIIGIIEGIGG>GGGGGGDGGGGGIIHIIBIIIGIIIHIIIIGII quality string c. f. S. Brown NYU
Sequence Alignment Map standard file format for sequences aligned to reference genome BAM is the compressed binary version of the same MCL-SRR 350952. 1 99 chr 13 28330526 29 76 M = 28330636 183 NAAAGACACAGTTACATGAAGAACATACTCCTCTCTCAGACTGCCCAGGTTCAGTGATTCAACAAACT TTAT #, ())*3 -. @@@@@<<<: : 87999<<<<<@@@@@@@: @@<: <<<<<8<<: : 7: : : : @@@22: : @ XT: A: U NM: i: 1 SM: i: 29 AM: i: 29 X 0: i: 1 X 1: i: 0 XM: i: 1 XO: i: 0 XG: i: 0 MD: Z: 0 T 75 XA: Z: chr 13, +28330526, 76 M, 1; MCL-SRR 350952. 1 147 chr 13 28330636 29 73 M 3 S = 28330526 -183 TATAGGATTCAACTGTGAGAAAGACATATTAATCTCTTCCATTGTGCAGACTACATTCTTTTTTTTG AG ###########B 7: ? 2, ? 8; ; @+=+A@3 DEBB? 2? 5 B 7=A? =? 4<8; ; AIGIDIHFAIIGHIIBII XT: A: M NM: i: 2 SM: i: 29 AM: i: 29 XM: i: 2 XO: i: 0 XG: i: 0 MD: Z: 18 A 18 G 35 MCL-SRR 350952. 2 99 chr 9 16437227 60 76 M = 16437304 153 NGAAATGCAAGGCTGTTTGGGATGTTTTCGAAGTGATGAATGCTGGAAGGATTGCTGTTCTCTAAGTGAGC AAGGA ###################################### XT: A: U NM: i: 1 SM: i: 37 AM: i: 37 X 0: i: 1 X 1: i: 0 XM: i: 1 XO: i: 0 XG: i: 0 MD: Z: 0 A 75 XA: Z: chr 9, +16437227, 76 M, 1; MCL-SRR 350952. 2 147 chr 9 16437304 60 76 M = 16437227 -153 GCTGGGACTCCTGGTGCGATTATTGCTCTCAATGAAAGTCCTTATATCTGAGTCTTTGAAGATGGTAC AGCC DBAEA<>G>GGDGG<DD 3 E<CDCC>E? D? E@DGDDDG 8 BGGGEGEG@E@@BCCFEE, IHIIGEGGEFCCF<F FFFD XT: A: U NM: i: 0 SM: i: 37 AM: i: 37 X 0: i: 1 X 1: i: 0 XM: i: 0 XO: i: 0 c. f. S. Brown NYU XG: i: 0 MD: Z: 76 XA: Z: chr 9, -16437304, 76 M, 0;
Sequence Alignment Map standard file format for sequences aligned to reference genome BAM is the compressed binary version of the same Coor Ref +r 001/1 +r 002 +r 003 +r 004 -r 003 -r 001/2 1234567890123456789012345 AGCATGTTAGATAA **GATAGCTGTGCTAGTAGGCAGTCAGCGCCAT TTAGATAAAGGATA*CTG aaa. AGATAA*GGATA gccta. AGCTAA ATAGCT. . . TCAGC ttagct. TAGGC CAGCGGCAT header seq info @HD VN: 1. 5 SO: coordinate @SQ SN: ref LN: 45 r 001 99 ref 7 30 8 M 2 I 4 M 1 D 3 M r 002 0 ref 9 30 3 S 6 M 1 P 1 I 4 M r 003 0 ref 9 30 5 S 6 M r 004 0 ref 16 30 6 M 14 N 5 M r 003 2064 ref 29 17 6 H 5 M r 001 147 ref 37 30 9 M = 37 39 * 0 0 = 7 -39 TTAGATAAAGGATACTG AAAAGATAAGGATA GCCTAAGCTAA ATAGCTTCAGC TAGGC CAGCGGCAT * * * SA: Z: ref, 29, -, 6 H 5 M, 17, 0; * * SA: Z: ref, 9, +, 5 S 6 M, 30, 1; * NM: i: 1 c. f. S. Brown NYU
Sequence Alignment Map standard file format for sequences aligned to reference genome BAM is the compressed binary version of the same Coor Ref +r 001/1 +r 002 +r 003 +r 004 -r 003 -r 001/2 1234567890123456789012345 AGCATGTTAGATAA **GATAGCTGTGCTAGTAGGCAGTCAGCGCCAT TTAGATAAAGGATA*CTG aaa. AGATAA*GGATA gccta. AGCTAA ATAGCT. . . TCAGC ttagct. TAGGC CAGCGGCAT @HD VN: 1. 5 SO: coordinate @SQ SN: ref LN: 45 r 001 99 ref 7 30 8 M 2 I 4 M 1 D 3 M r 002 0 ref 9 30 3 S 6 M 1 P 1 I 4 M r 003 0 ref 9 30 5 S 6 M r 004 0 ref 16 30 6 M 14 N 5 M r 003 2064 ref 29 17 6 H 5 M r 001 147 ref 37 30 9 M Query bitwise template FLAG NAME POSition Reference seq. NAME MAPing quality CIGAR = 37 39 * 0 0 = 7 -39 Mate. Reference Na. Me TTAGATAAAGGATACTG AAAAGATAAGGATA GCCTAAGCTAA ATAGCTTCAGC TAGGC CAGCGGCAT QUERY Sequence * * * SA: Z: ref, 29, -, 6 H 5 M, 17, 0; * * SA: Z: ref, 9, +, 5 S 6 M, 30, 1; * NM: i: 1 query QUAL Inferred Insert SIZE c. f. S. Brown NYU
Sequence Alignment Map standard file format for sequences aligned to reference genome BAM is the compressed binary version of the same @HD VN: 1. 5 SO: coordinate @SQ SN: ref LN: 45 r 001 99 ref 7 30 8 M 2 I 4 M 1 D 3 M r 002 0 ref 9 30 3 S 6 M 1 P 1 I 4 M r 003 0 ref 9 30 5 S 6 M r 004 0 ref 16 30 6 M 14 N 5 M r 003 2064 ref 29 17 6 H 5 M r 001 147 ref 37 30 9 M bitwise FLAG = 37 39 * 0 0 = 7 -39 TTAGATAAAGGATACTG AAAAGATAAGGATA GCCTAAGCTAA ATAGCTTCAGC TAGGC CAGCGGCAT * * * SA: Z: ref, 29, -, 6 H 5 M, 17, 0; * * SA: Z: ref, 9, +, 5 S 6 M, 30, 1; * NM: i: 1 CIGAR c. f. S. Brown NYU
VCF format: variants chr 1 : GQ chr 1 27 chr 1 : GQ chr 1 45 chr 1 : GQ chr 1 99 chr 1 901559. G A 23. DP=3; VDB=0. 0298; AF 1=1; AC 1=2; DP 4=0, 0, 3, 0; MQ=60; FQ=-36 GT: PL: GQ 905974. C T 187. DP=22; VDB=0. 0249; AF 1=0. 5; AC 1=1; DP 4=5, 4, 9, 3; MQ=59; FQ=170; PV 4=0. 4, 0. 2, 0. 49 0/1: 217, 0, 197: 99 907622. G C 82. 3. DP=8; VDB=0. 0474; AF 1=1; AC 1=2; DP 4=0, 0, 2, 3; MQ=54; FQ=-42 GT: PL: GQ 1/1: 55, 9, 0: 15 GT: PL 1/1: 115, 0: 909073. C T 39. DP=16; VDB=0. 0504; AF 1=0. 5; AC 1=1; DP 4=0, 9, 0, 7; MQ=59; FQ=42; PV 4=1, 7. 5 e-09, 0. 14, 0. 49 GT: PL 0/1: 69, 0, 156: 72 909238. G C 115. DP=10; VDB=0. 0503; AF 1=1; AC 1=2; DP 4=0, 0, 4, 4; MQ=60; FQ=-51 GT: PL: GQ 1/1: 148, 24, 0: 909309. T C 3. 01. DP=6; VDB=0. 0018; AF 1=0. 4998; AC 1=1; DP 4=0, 2, 0, 3; MQ=60; FQ=4. 72; PV 4=1, 0. 02, 1, 0. 0071 GT: PL 0/1: 30, 0, 47: 28 909768. A G 137. DP=21; VDB=0. 0530; AF 1=1; AC 1=2; DP 4=0, 0, 11, 9; MQ=60; FQ=-87 GT: PL: GQ 1/1: 170, 60, 0: 935222. C A 4. 61 DP=4; VDB=0. 0216; AF 1=1; AC 1=2; DP 4=0, 0, 0, 2; MQ=60; FQ=-33 . GT: PL: GQ 1/1: 34, 6, 0: 5 c. f. S. Brown NYU
VCF format: variants #CHROM chr 1 POS 901559 ID REF ALT QUAL . G A 23 QUAL . DP=3; VDB=0. 0298; AF 1=1; AC 1=2; DP 4=0, 0, 3, 0; MQ=60; FQ=-36 GT: PL: GQ 1/1: 55, 9, 0: 15 INFO AA ancestral allele AC allele count in genotypes, for each ALT allele, in the same order as listed AF allele frequency for each ALT allele in the same order as listed: use this when estimated from primary data, not called genotypes AN total number of alleles in called genotypes BQ RMS base quality at this position CIGAR cigar string describing how to align an alternate allele to the reference allele DB db. SNP membership DP combined depth across samples, e. g. DP=154 END end position of the variant described in this record (esp. for CNVs) H 2 membership in hapmap 2 MQ RMS mapping quality, e. g. MQ=52 MQ 0 Number of MAPQ == 0 reads covering this record NS Number of samples with data SB strand bias at this position SOMATIC indicates that the record is a somatic mutation, for cancer genomics VALIDATED validated by follow-up experiment c. f. S. Brown NYU
Alignment or NGS What are the challenges? c. f. S. Brown NYU
NGS alignment algorithms Smith Waterman BLAST Enter BWT BLAT is precomputed BLAST
