Презентация оборудования Raisecom ООО “Дилер” Raisecom Technology Co. , Ltd 25 -02 -2012

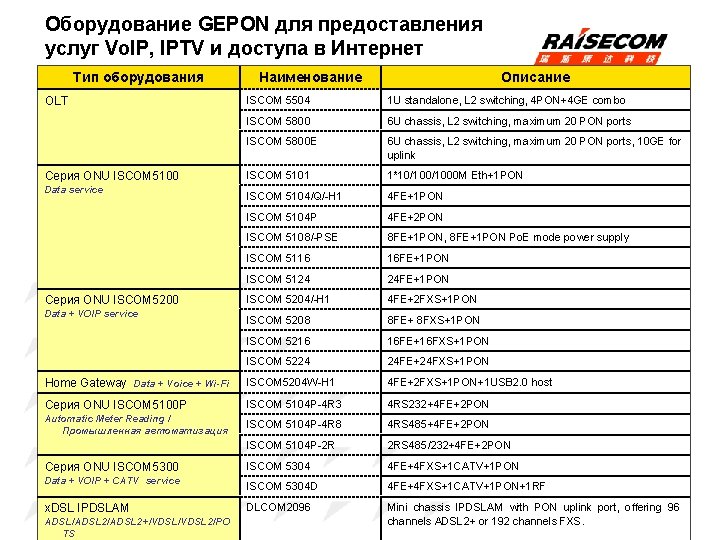

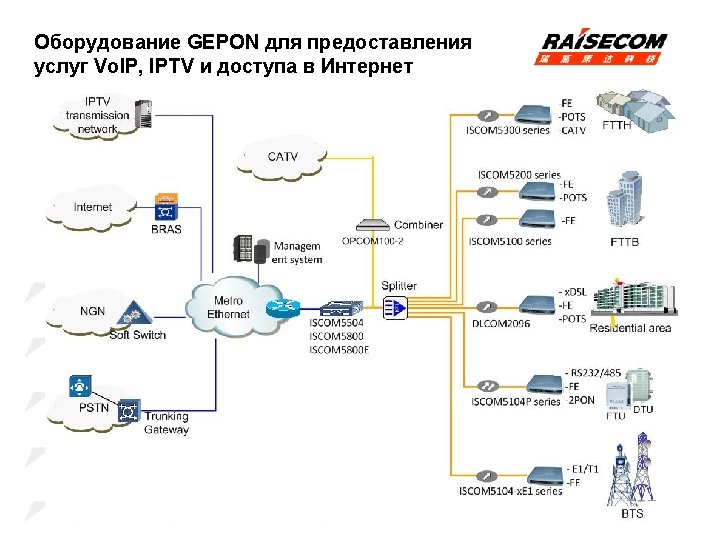

Оборудование GEPON для предоставления услуг Vo. IP, IPTV и доступа в Интернет Тип оборудования Наименование Описание ISCOM 5504 1 U standalone, L 2 switching, 4 PON+4 GE combo ISCOM 5800 6 U chassis, L 2 switching, maximum 20 PON ports ISCOM 5800 E 6 U chassis, L 2 switching, maximum 20 PON ports, 10 GE for uplink ISCOM 5101 1*10/1000 M Eth+1 PON ISCOM 5104/Q/-H 1 4 FE+1 PON ISCOM 5104 P 4 FE+2 PON ISCOM 5108/-PSE 8 FE+1 PON, 8 FE+1 PON Po. E mode power supply ISCOM 5116 16 FE+1 PON ISCOM 5124 24 FE+1 PON ISCOM 5204/-H 1 4 FE+2 FXS+1 PON ISCOM 5208 8 FE+ 8 FXS+1 PON ISCOM 5216 16 FE+16 FXS+1 PON ISCOM 5224 24 FE+24 FXS+1 PON Home Gateway Data + Voice + Wi-Fi ISCOM 5204 W-H 1 4 FE+2 FXS+1 PON+1 USB 2. 0 host Серия ONU ISCOM 5100 P ISCOM 5104 P-4 R 3 4 RS 232+4 FE+2 PON Automatic Meter Reading / Промышленная автоматизация ISCOM 5104 P-4 R 8 4 RS 485+4 FE+2 PON ISCOM 5104 P-2 R 2 RS 485/232+4 FE+2 PON ISCOM 5304 4 FE+4 FXS+1 CATV+1 PON ISCOM 5304 D 4 FE+4 FXS+1 CATV+1 PON+1 RF DLCOM 2096 Mini chassis IPDSLAM with PON uplink port, offering 96 channels ADSL 2+ or 192 channels FXS. OLT Серия ONU ISCOM 5100 Data service Серия ONU ISCOM 5200 Data + VOIP service Серия ONU ISCOM 5300 Data + VOIP + CATV service x. DSL IPDSLAM ADSL/ADSL 2+/VDSL 2/PO TS

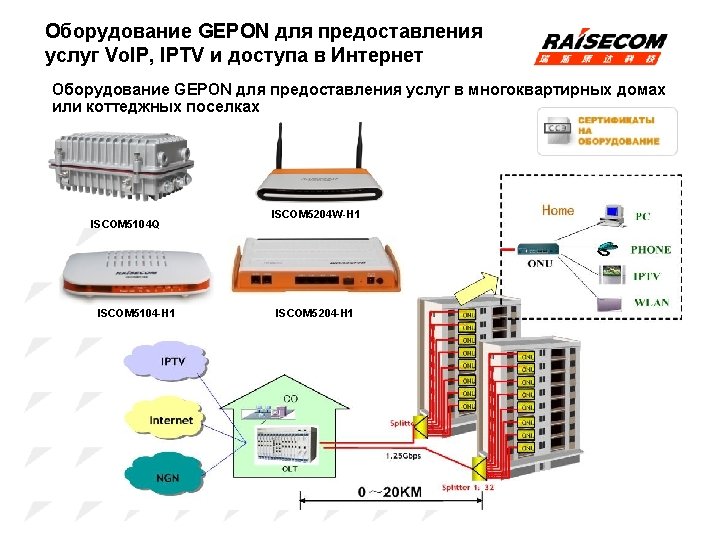

Оборудование GEPON для предоставления услуг Vo. IP, IPTV и доступа в Интернет Data ISCOM 5101 ISCOM 5104 Пластиковый корпус ISCOM 6800 Data+Voice+CATV ISCOM 5104 Q Data+Voice Auto Meter Reading ISCOM 5104 P ISCOM 5204 W-H 1 ISCOM 5204 ISCOM 5104 P-4 R 3 ISCOM 5116 ISCOM 5216 ISCOM 5104 P-4 R 8 ISCOM 5124 ISCOM 5224 ISCOM 5104 P-2 R ISCOM 5108/5108 -PSE ISCOM 5504 OLT ONU ISCOM 5304 D ISCOM 5304 IPDSLAM с uplink портами GEPON DLCOM 2096 Сплиттеры ISCOM 5204 -H 1 ISCOM 5104 -H 1

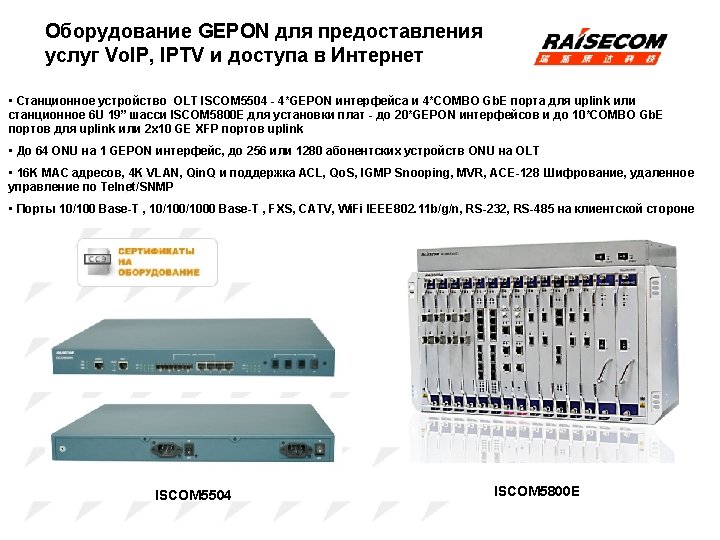

Оборудование GEPON для предоставления услуг Vo. IP, IPTV и доступа в Интернет OLT ISCOM 5504 ISCOM 5800/E PON Feature Single mode fiber Maximum split ratio 1: 64 Maximum distance 20 Km Maximum 256 ONUs Wave length: 1310/1490/ 1550 nm DBA IEEE 802. 3 ah 1+1 PON protection Single mode fiber Maximum split ratio 1: 64 Maximum distance 20 Km Maximum 2560 ONUs Wave length: 1310/1490/1550 nm DBA IEEE 802. 3 ah 1+1 PON protection Control board redundancy Standalone/Chassi s Standalone & 1 U Chassis & 6 U S/W mode S&F, 1 Mb buffer S&F, 3 Mb buffer Switch Fabric 24 G 48 G(upgrade 96 G)/256 G Traffic control 802. 3 x & back pressure, Storm control Multicast GMP Snooping V 1/V 2/V 3, MVR, IGMP Proxy IGMP Snooping V 1/V 2/V 3, MVR, IGMP Proxy VLAN Q-IN-Q, 4 k active VLAN, VLAN conversion, VLAN aggregation Spanning Tree 802. 1 d STP, 802. 1 w RSTP, MSTP 802. 1 D 16 K MAC address, 100 static MAC address 16 K MAC address / 32 K MAC address, 100 static MAC address Table

OLT Roadmap ISCOM 6800 （168/224 PON） High capability Tbit level backbone ISCOM 5800 E (10 GE uplink) Medium capability Small capability ISCOM 5504 （4 PON） The Existing Device ISCOM 5800 E (B version, backbone bandwidth ) ISCOM 5508 (1 U chassis) 11. Q 3 11. Q 4 12. Q 1 12. Q 2

ONU Roadmap ISCOM 5104 -GE 10 GEPON ONU ISCOM HT 821 ISCOM 5204 -H 1 ISCOM 5104 -H 1 11. Q 2 11. Q 3 12. Q 1 12. Q 2
