R 12 Lot and Serial Control Copyright 2007

R 12 Lot and Serial Control 批次及序次控制 Copyright © 2007, Oracle. All rights reserved.

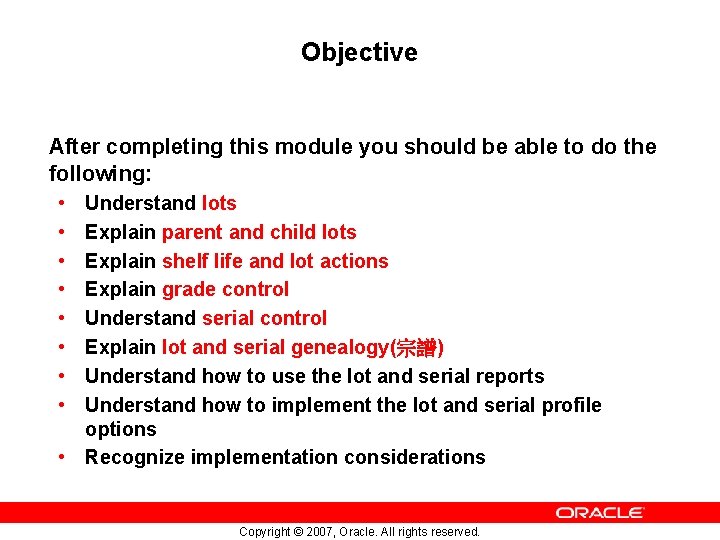

Objective After completing this module you should be able to do the following: • • • Understand lots Explain parent and child lots Explain shelf life and lot actions Explain grade control Understand serial control Explain lot and serial genealogy(宗譜) Understand how to use the lot and serial reports Understand how to implement the lot and serial profile options Recognize implementation considerations Copyright © 2007, Oracle. All rights reserved.

Application of Lot Control (批次控管) OPM Automatic Lot Allocations Configurable Rules Ensure the Right Inventory OPM (Oracle Process Manufacturing) selects lots based on FIFO or FEFO methods Production batch Creation Date 2/5/2007 Lot A Expiration Date 2/1/2007 1/1/2007 Lot B 3/5/2007 2/10/2007 FIFO Lot C 2/15/2007 FEFO Additionally, for customer shipments: • Preferred Grade • Match on Quality Specification • Remaining Shelf Life Copyright © 2007, Oracle. All rights reserved. Shipment

Lot Expiration Management Validate and Manage Date-Sensitive Goods (管理具時效性的商品) • Automatically notify when lots are approaching expiration or require retesting • Disallow shipment of expired inventory • Control expiration tolerances by customer • Manage retesting (覆檢管理) Lot Creation Day 0 Lot Retest Day 7 WF Shippable to Customer A Shippable to Customers B, C Shippable to Other Customers WF = Workflow Notification Copyright © 2007, Oracle. All rights reserved. Lot Expiration WF Day 14 X Unshippable

Lot Control Overview • • A lot can represent a quantity of an item that shares the same specifications, one or more receipts from the same vendor, or whatever you choose. (將料件依照某些特性分成批次) You can divide each lot into child lots that can reflect whatever characteristics you choose for items within the lot (一個批次可再細為子批) Lot controlled item Item AS 3339 Lot# C 1498 Item without lot control Item AS 1129 Copyright © 2007, Oracle. All rights reserved.

Child Lots • A child lot is a subdivision of a lot that you can use if you produce a lot over a period of time, but still want to group the material as a single lot. • The system also maintains a genealogy relationship between the parent lot and the child lot. (系統會維護父批及子批間的宗譜(genealogy)關係) Parent lot Child lot Copyright © 2007, Oracle. All rights reserved.

批次控管的設定 Copyright © 2007, Oracle. All rights reserved.

Setting up Lot Control (批次控管設定) • 批量控制的設定分為二個層次，一個為組織層級 (Organization Level)，另一個為料件層級(Item Level)。 • 存貨組織層級的批量控制設定: • 職責: Inventory • 路徑: (N)Setup > Organizations > Parameters >(T)Revision, Lot, Serial and LPN • 視窗: Organization Parameters • 料件層級的批量控制設定: • 職責: Inventory • 路徑: (N)Item > Master Items > (T)Inventory • 視窗: Organization Parameters Copyright © 2007, Oracle. All rights reserved.

Set up Lot Control at Organization Level (存貨組織下的批號產生規則) Copyright © 2007, Oracle. All rights reserved.

Set up Lot Control at Item Level (1) (料件的批號產生規則) Copyright © 2007, Oracle. All rights reserved.

Set up Lot Control at Item Level (2) (料件的子批號產生規則) Copyright © 2007, Oracle. All rights reserved.

Setting up Lot Control (Organization Parameters) Organization parameters • Lot Number uniqueness (批號的唯一性管理) • Lot generation (Coding Rule) (批號產生方式) • Child lot generation control (子批號產生設定) – Format validation – Copy lot attributes • Auto create lot UOM conversion (自動建立批次的單位轉 換) • Allow different lot status (允許不同的批次狀態) Copyright © 2007, Oracle. All rights reserved.

Lot Number Uniqueness (1) (批號唯一性 ) • If you do not establish lot number uniqueness, you can assign the same lot number to multiple items in the same organization and across organizations. (如果不設定批號的唯一性，則在同一個存貨組織 及不同組織下，同個批次號碼可以對應到多個料件) • Uniqueness 選項值: • • Across Items: 在存貨組織內或組織間，一個批號只能指派給一個料件。 (批號不能重覆使用) None: 一個批號可重覆指派給相同組織下的多個料件，或者不同組織 下的多個料件。 Copyright © 2007, Oracle. All rights reserved.

Lot Number Uniqueness (2) 允許一對多 Not Set to Across Items Within Organization Item AS 100 Lot LN 100 Item AS 101 Lot LN 100 Across Organizations Set to Across Items Within Organization Item AS 100 Lot LN 100 Item AS 100 Lot LN 200 Item AS 101 Lot LN 100 Item AS 101 Lot LN 300 Copyright © 2007, Oracle. All rights reserved. 限制一對一 Across Organizations Item AS 100 Lot LN 400 Item AS 101 Lot LN 600

Lot generation (Coding Rule) 批號產生編碼方式 批號產生的規則由 Organization Parameter 表 單中的3個欄位決定: Prefix， Zero Pad Suffix，及 Total Length。 Copyright © 2007, Oracle. All rights reserved.

Lot Attributes (1) (批次屬性) Lot attributes are fields in addition to the lot number that provide additional information about a lot. 1. Date Attributes: • Expires on date, Expiration Action Date, Origination Date, Retest date, Maturity date, Hold Date 2. Character Attributes: • Grade Code, 3. Lot Attributes DFF Resp: Inventory Path: (N) On hand, Availability > Lots Copyright © 2007, Oracle. All rights reserved.

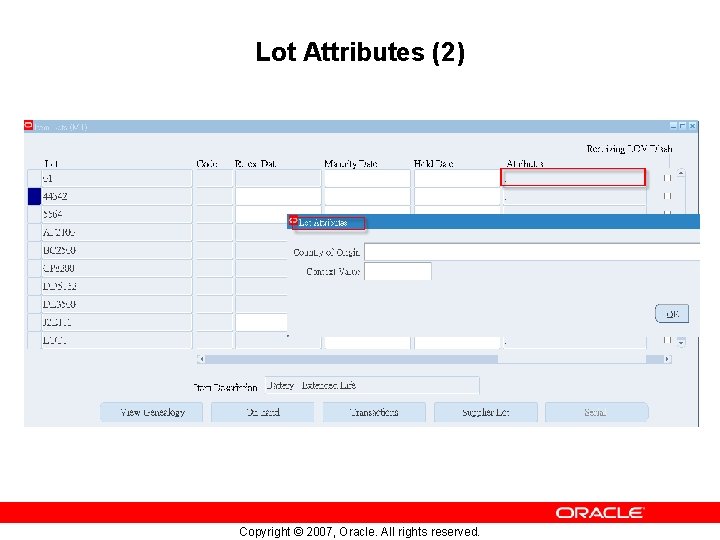

Lot Attributes (2) Copyright © 2007, Oracle. All rights reserved.

The definition of the Lot Attribute DFF Res: System Adminisrator Path: (N) Application > Flexfield > Descriptive > Segments Copyright © 2007, Oracle. All rights reserved.

Setting up Lot Control (Item Attributes) 設定料件批號控制參數 • Lot control (Full Control) – Starting prefix and number – Maturity and hold days • Lot Expiration (Shelf Life) 批量的有效期限管控 – Shelf life days – Retest interval (重新測試間 隔) – Expiration action interval and action (到期作業) • Child lot enabled (子批次的 管控) – Format validation – Copy lot attributes • Grade control (批次等級) – Grade Copyright © 2007, Oracle. All rights reserved.

Set up Lot Control at Item Level (1) Copyright © 2007, Oracle. All rights reserved.

Set up Lot Control at Item Level (2) (子批次設定) Copyright © 2007, Oracle. All rights reserved.

批次的效期管控設定 Copyright © 2007, Oracle. All rights reserved.

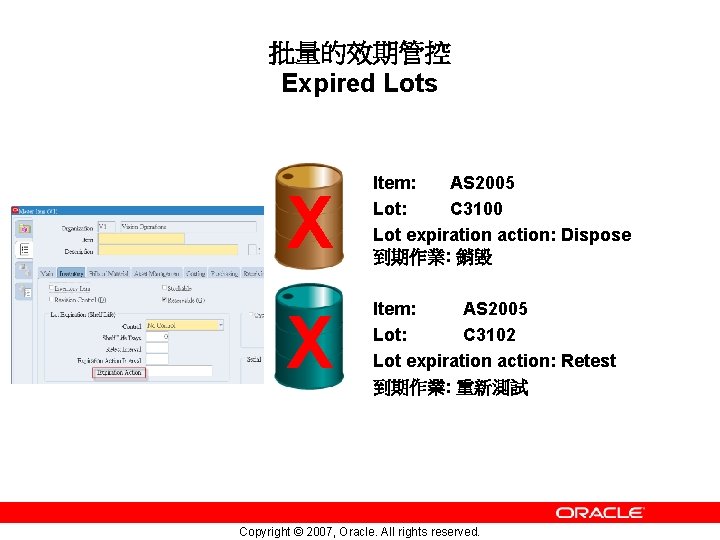

批量的效期管控 Expired Lots X Item: AS 2005 Lot: C 3100 Lot expiration action: Dispose 到期作業: 銷毀 X Item: AS 2005 Lot: C 3102 Lot expiration action: Retest 到期作業: 重新測試 Copyright © 2007, Oracle. All rights reserved.

Lot Control- Lot Expiration (Shelf Life)(2) (Item Attributes) Retest Interval 欄位: 用來設定在批量建立後，對該批量進行測試是否過期的間隔時間。 系統計算預計的批量的重測日期 = 批量建立日期 + Retest Interval。 Copyright © 2007, Oracle. All rights reserved.

Lot Control- Lot Expiration (Shelf Life)(3) (Item Attributes) • 當儲存的批量過期後，系統可以通知對於過期批量應採取的動作及進 行動作的日期。 • Expiration Action Interval: 系統計算採取處理動作的日期 = 批量到 期日 + Expiration Action Interval。 • Expiration Action: 使用欄位 Expiration Action 來設定預設的到期 後處理動作代碼。 Copyright © 2007, Oracle. All rights reserved.

The transactions of the expired lots (到期的批次的使用管理) • • The expiration date controls the availability of the lot for transacting and planning purposes. An expired lot: – For Replenishment (對於補貨的使用) : — Is not considered as on-hand supply when you are performing minmax, reorder point, or MRP planning calculations. – For Reservation (對於預留的使用): — Cannot be reserved for a date beyond the expiration date. – For Txn and On-hand quantity (交易及在手數量): — — Can be transacted and is included in on-hand quantities. Is included in all inquiries and reports, including inventory valuation reports – For counting (盤點) — — Is included in a cycle count (週期盤點) and count entry and adjustments are allowed Is included in a physical inventory(全面盤點) and tag entry and adjustments are allowed Copyright © 2007, Oracle. All rights reserved.

批次的管理與維護 Copyright © 2007, Oracle. All rights reserved.

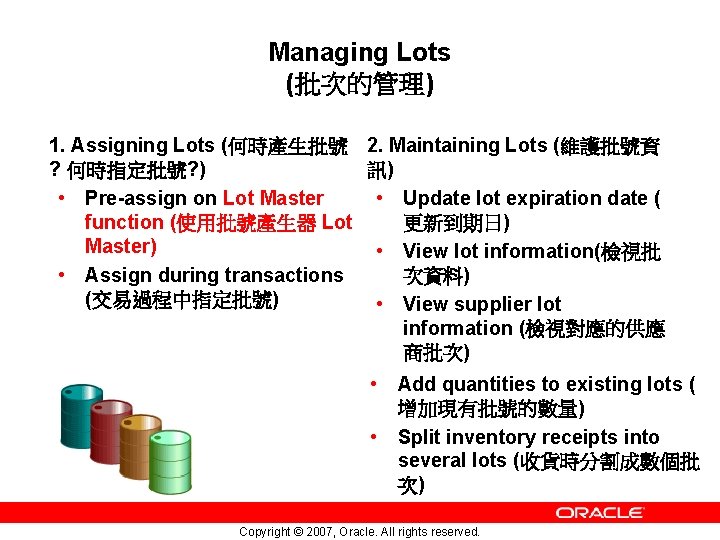

Managing Lots (批次的管理) 1. Assigning Lots (何時產生批號 2. Maintaining Lots (維護批號資 ? 何時指定批號? ) 訊) • Pre-assign on Lot Master • Update lot expiration date ( function (使用批號產生器 Lot 更新到期日) Master) • View lot information(檢視批 次資料) • Assign during transactions (交易過程中指定批號) • View supplier lot information (檢視對應的供應 商批次) • Add quantities to existing lots ( 增加現有批號的數量) • Split inventory receipts into several lots (收貨時分割成數個批 次) Copyright © 2007, Oracle. All rights reserved.

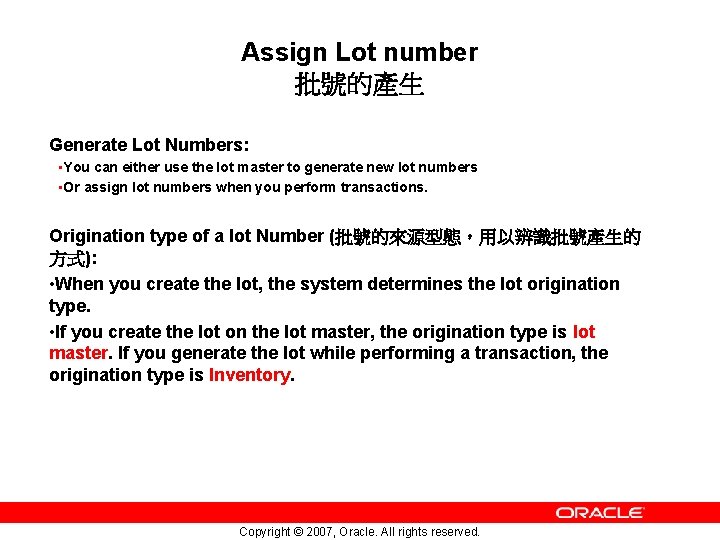

Assign Lot number 批號的產生 Generate Lot Numbers: • You can either use the lot master to generate new lot numbers • Or assign lot numbers when you perform transactions. Origination type of a lot Number (批號的來源型態，用以辨識批號產生的 方式): • When you create the lot, the system determines the lot origination type. • If you create the lot on the lot master, the origination type is lot master. If you generate the lot while performing a transaction, the origination type is Inventory. Copyright © 2007, Oracle. All rights reserved.

Generate Lot Number Using Lot Master window Copyright © 2007, Oracle. All rights reserved.

Setting for Lot control for 00 -Item 04 Copyright © 2007, Oracle. All rights reserved.

Generate Lot Numbers during the Txn Copyright © 2007, Oracle. All rights reserved.

Practice INV 22 - Using the Lot Master (AG Ch 1 -81) Tasks: • Generate lot number for your lot controlled items: ##Item 04 ~ ##-Item 08 • Generate lot number at the Item Level (Not Organization Level) Viewlet Copyright © 2007, Oracle. All rights reserved.

Disabled Lots (停用批號) Disabling a lot only prevents it from appearing in a list of values when you are performing receipt transactions X Item CS 100 Lot S 246 Disabled Item CS 100 Lot S 247 Active Copyright © 2007, Oracle. All rights reserved.

Disabled Lots 被停用的批號的使用管理 • A disabled lot: – Is included in available to transact, available to promise, and available to reserve calculations (可以交易，可以用來 承諾顧客訂單，可以預留) – Is included as on-hand supply when you are performing min-max, reorder point or MRP planning calculations (可 以做為供應的來源) – Is included as on-hand in all inquiries and reports, including inventory valuation report (包含在在手量的計算) – Can be transacted with Inventory functions and the Transaction Open Interface – Can be reserved Copyright © 2007, Oracle. All rights reserved.

Updating Lot control options Notes (其它批號產生的注意事項) • You can update lot control options for an item if it has zero on hand quantity. • In addition, you cannot change lot control when there open internal orders or inter-org intransit shipments exist. • If you generate a lot number in the organization level, then system will not be able to generate other lot numbers using the settings in the item level. • However, you STILL can ENTER you lot number. Copyright © 2007, Oracle. All rights reserved.

Update Lot Generation Level Copyright © 2007, Oracle. All rights reserved.

Guide Demonstrations • INV 19 -Refer to Guided Demonstration – Generating Lots [LAB 40 AAY] • INV 20 -Refer to Guided Demonstration – Maintaining Grades [LAB 40 A 8 Y] • INV 21 -Refer to Guided Demonstration – Maintaining Lot Actions [LAB 40 ACY] • Refer to INV 22 -Practice – Using the Lot Master [LAB 40 ABY] Copyright © 2007, Oracle. All rights reserved.

Lot Transaction Purging (清除批次的交易記錄) • You can purge all lot transaction information from your current organization. The transactions must be in closed accounting periods. • Purging lot transactions eliminates information used in lot reports and inquiries. Copyright © 2007, Oracle. All rights reserved.

Cycle Counts Under Lot Control (在批次管控下週期盤點的影響) • The cycle count listing includes the lot numbers of the items to be cycle counted. (在週期盤點時，會同時將料件 批號顯示在週期盤點清單中) • You must assign lot numbers to all items under lot control for which you enter counts. (在輸入盤點數量時， 必須也輸入所盤點的批號) • If there is a difference between the cycle count quantity and the system on-hand quantity, Oracle Inventory adjusts the item quantity in that lot. (如果盤點數量和系統 數量有不一致，系統會調整該批量下的數量。) Copyright © 2007, Oracle. All rights reserved.

Physical Inventory Under Lot Control (在批次管控下週期盤點的影響) • Oracle Inventory includes the lot numbers of the items to count in your physical inventory when generating tags. (在產生盤點標籤卡時，系統會將批號資訊也顯示在標 籤卡上。) • You must assign lot numbers to all items under lot control for which you enter counts in the Physical Inventory Tag Counts window. (在輸入盤點數量時，必須 也輸入所盤點的批號) • If there is a difference between the count quantity and the system on-hand quantity, Oracle Inventory adjusts the item quantity in that lot. (如果盤點數量和系統數量有 不一致，系統會調整該批量下的數量。) Copyright © 2007, Oracle. All rights reserved.

序次控管 Copyright © 2007, Oracle. All rights reserved.

Serial Number Overview • A serial number is an alphanumeric piece of information you assign to an individual unit of an item. • You use serial numbers to track individual item units. • One serial number is assigned to per unit of an item (一個料件一個序號) • Serial number control is a system technique for enforcing the use of serial numbers during a material transaction. (物料交易時需指定料件的序號) • You can use serial numbers to track items over which you want to maintain very tight control. (可以料件進行追蹤) Serial Controlled Items Item AS 5222 Serial #5847329 Item AS 5222 Serial #3798490 Copyright © 2007, Oracle. All rights reserved.

序號的產生時間點及方式 Copyright © 2007, Oracle. All rights reserved.

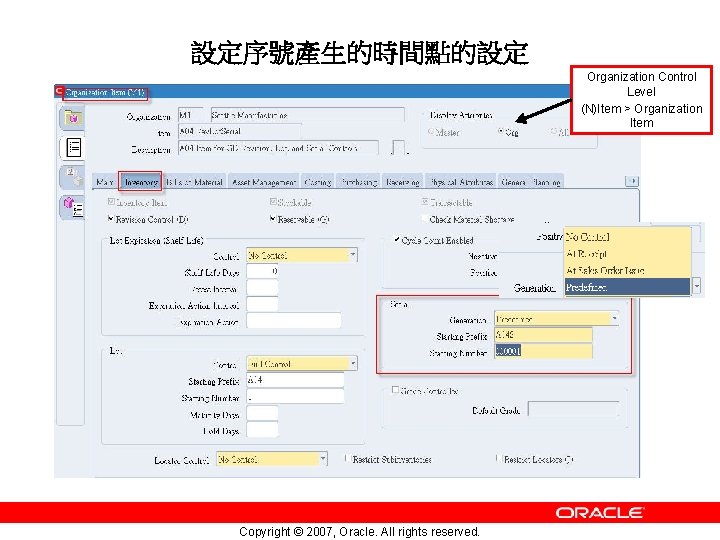

設定序號產生的時間點的設定 Organization Control Level (N)Item > Organization Item Copyright © 2007, Oracle. All rights reserved.

序號的編碼規則設定的使用層級 (Organization Level and Item Level) Copyright © 2007, Oracle. All rights reserved.

序號的產生方式 • The process of generating serial numbers does not assign serial numbers to units in inventory, but reserves specific serial numbers for an item, for later use. (先產生號碼供日使 用) • When you run the serial generation program, if you have the same serial prefix number across organizations, the concurrent program searches across the organizations, and generates serial numbers using the highest start number across the organizations. (以所有存貨組織內最大的序號為主， 產生下一個序號) Copyright © 2007, Oracle. All rights reserved.

Serial Uniqueness (序號的唯一性) Within items 同一料號之序號不能 Within an organization 重覆， 但不同料號 的序號可以重覆 同一存貨組織內的序號不能重覆 (也保證同一料號之序號不能重覆) Across organizations 所有存貨組織中的序號皆不能重覆 如果有一組織使用此選項，其它組織也被 強迫配合 Item AS 100 Serial SN 100 Item AS 101 Serial SN 100 Item: AS 101 Serial: SN 101 Item: AS 100 Serial: SN 100 Item: AS 101 Serial: SN 101 Org: A Copyright © 2007, Oracle. All rights reserved. Item: AS 100 Serial: SN 100 Org: B

序號的唯一性的設定 (Organization Level) Copyright © 2007, Oracle. All rights reserved.

序號的維護 Copyright © 2007, Oracle. All rights reserved.

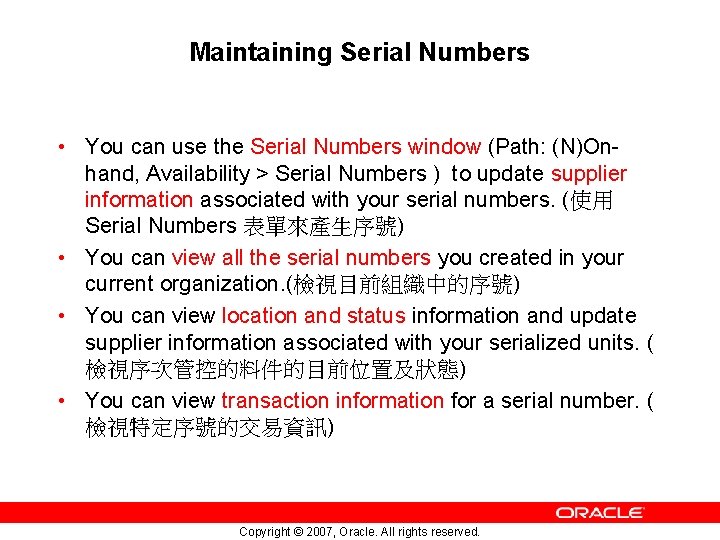

Maintaining Serial Numbers • You can use the Serial Numbers window (Path: (N)Onhand, Availability > Serial Numbers ) to update supplier information associated with your serial numbers. (使用 Serial Numbers 表單來產生序號) • You can view all the serial numbers you created in your current organization. (檢視目前組織中的序號) • You can view location and status information and update supplier information associated with your serialized units. ( 檢視序次管控的料件的目前位置及狀態) • You can view transaction information for a serial number. ( 檢視特定序號的交易資訊) Copyright © 2007, Oracle. All rights reserved.

Serial Numbers window Path: (N)On-hand, Availability > Serial Numbers Copyright © 2007, Oracle. All rights reserved.

Practice – INV 24 Generating and Maintaining Serial Numbers (Ch 1 -92) Overview: In this practice, you will learn: • how to generate serials for your item (##-Item 07) Tasks: • Generate 1000 serial number for ##-Item 07 Viewlet Copyright © 2007, Oracle. All rights reserved.

金蘭醬油生產履歷 http: //60. 251. 239. 164/klrme/rm 0000/klrme. htm Copyright © 2007, Oracle. All rights reserved.

Lot Genealogy 批次家譜 Item: OJ 100 Lot: Juice 100 Item: CM 600 Item: CM 200 Lot: OR 500 Lot: SR 100 Item: CM 300 Lot: WR 100 Copyright © 2007, Oracle. All rights reserved.

Serial Genealogy (序次家譜) Item: AS 100 Serial: SN 100 Item: CM 100 Serial: SN 200 Item: CM 400 Serial: SN 500 Item: CM 300 Serial: SN 400 Item: CM 200 Serial: SN 300 Copyright © 2007, Oracle. All rights reserved.

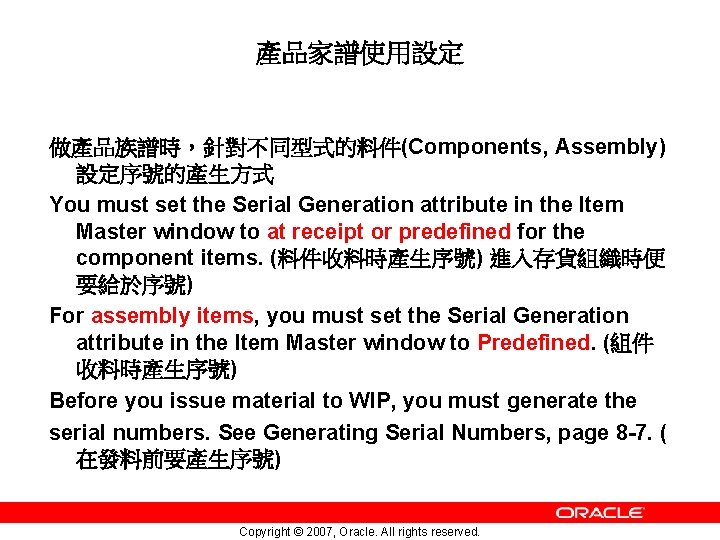

產品家譜使用設定 做產品族譜時，針對不同型式的料件(Components, Assembly) 設定序號的產生方式 You must set the Serial Generation attribute in the Item Master window to at receipt or predefined for the component items. (料件收料時產生序號) 進入存貨組織時便 要給於序號) For assembly items, you must set the Serial Generation attribute in the Item Master window to Predefined. (組件 收料時產生序號) Before you issue material to WIP, you must generate the serial numbers. See Generating Serial Numbers, page 8 -7. ( 在發料前要產生序號) Copyright © 2007, Oracle. All rights reserved.

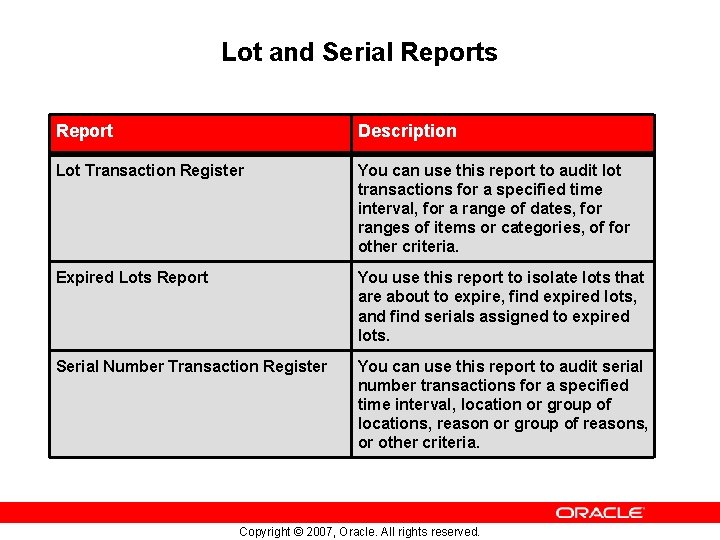

Lot and Serial Reports Report Description Lot Transaction Register You can use this report to audit lot transactions for a specified time interval, for a range of dates, for ranges of items or categories, of for other criteria. Expired Lots Report You use this report to isolate lots that are about to expire, find expired lots, and find serials assigned to expired lots. Serial Number Transaction Register You can use this report to audit serial number transactions for a specified time interval, location or group of locations, reason or group of reasons, or other criteria. Copyright © 2007, Oracle. All rights reserved.

Lot and Serial Reports (Cont) Report Description Lot Inventory Report This reports provides you with an overview of item lots, quantities, and lot statuses in all or the selected subinventories and locators within the organization. Lot Master Report This report provides you with an overview of the information you set up in the lot master. You can run this report for a specific item, or all items in the organization Grade History Change Report This report enables you to view all of the grade changes made during a given time period for a particular item within an organization. 　 Copyright © 2007, Oracle. All rights reserved.

Lot and Serial Reports (Cont) Report Description Serial Number Detail Report Use the Serial Number Detail report to print information about current serialized units of inventory items. Vendor Lot Trace Report The vendor lot trace report enables you to view the lot number, and associated vendor lot number for an item. Copyright © 2007, Oracle. All rights reserved.

Profile Options Profile Option Description INV: Genealogy Prefix or Suffix You use this to determine if and how the item number is displayed on the Object Genealogy form. INV: Target Preferred Grade Determines whether data for picking and reservations must be filtered to match the preferred grade that is defined on the order line. INV: Genealogy Delimited Allows you to pick the character that appears between the item name and lot number in the genealogy tree. INV: Validate Returned Lot This profile option determines whether a component lot that is returned from WIP should be validated against lots that are issued to the same job. Copyright © 2007, Oracle. All rights reserved.

Profile Options (Cont) Profile Option Description INV: Validate Returned Serial This profile option determines whether component serials that are returned from WIP should be validated against serials that are issued to the same job. INV: Restrict Receipt of Serials Indicates whether the system performs two validation checks for serial numbers Oracle Work in Process uses. This profile option also indicates if you can re-receive a serial number via an RMA receipt for an item with serial control set at sales order issue. Copyright © 2007, Oracle. All rights reserved.

Implementation Considerations • • Do you need to implement lot control for an item? Does the lot expire? Do you need to retest the when it expires? Do you need to perform a specific action when the lot expires? • Do you consume an item over time and need to implement child lot control? • Do you need to pre-generate lots or can you generate lots during transactions? • Do your lots have specific grades? Copyright © 2007, Oracle. All rights reserved.

Implementation Considerations (Cont) • Do you need to track individual instances of each item? • Do you want to predefine serial numbers, track them at inventory receipt, or at sales order issue? • Do you want serials to be unique within items, within an organization, or across all organizations? Copyright © 2007, Oracle. All rights reserved.

Summary After completing this module you You should now be able to do the following: • • • Understand lots Explain parent and child lots Explain shelf life and lot actions Explain grade control Understand serial control Explain lot and serial genealogy Understand how to use the lot and serial reports Understand how to implements the lot and serial profile options Recognize Implementation Considerations Copyright © 2007, Oracle. All rights reserved.
