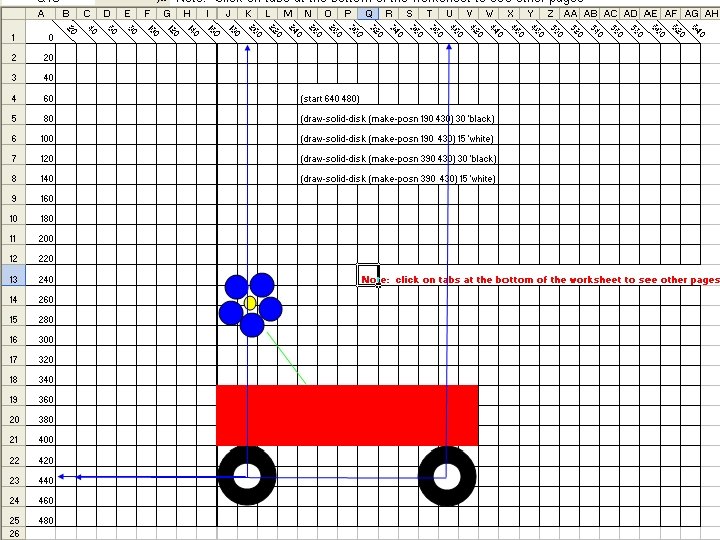

Programming Graphics LESSON OVERVIEW 1. 2. 3. 4. 5. 6. Programming Environment - IDE Use drawing tools of a line, rectangle, and circle Design object on graph paper Plot key positions of the object Study the relationship of one point to another Step-by-step write the code that creates the picture

PROGRAMMING ENVIRONMENT IS EASY AND FREE ¥ Dr. Scheme, like LOGO, is a subset of LISP. ¥ All languages have VERBS (actions. . ) and NOUNS (. . what is used in the action) ¥ Algebra uses variable letters to represent data; Programs are formulated with WORDS. ¥ Commands and error messages set for a BEGINNER. ¥ Limited syntax and rules ¥ PIXEL based - can code exact location.

Programming Graphics FUNCTIONS AND PATTERNS The rectangle uses arguments for 1. 2. 3. 4. position of the corner the horizontal length the height, and the color. The circle uses parameters for 1. the center point 2. the radius, and 3. the color.

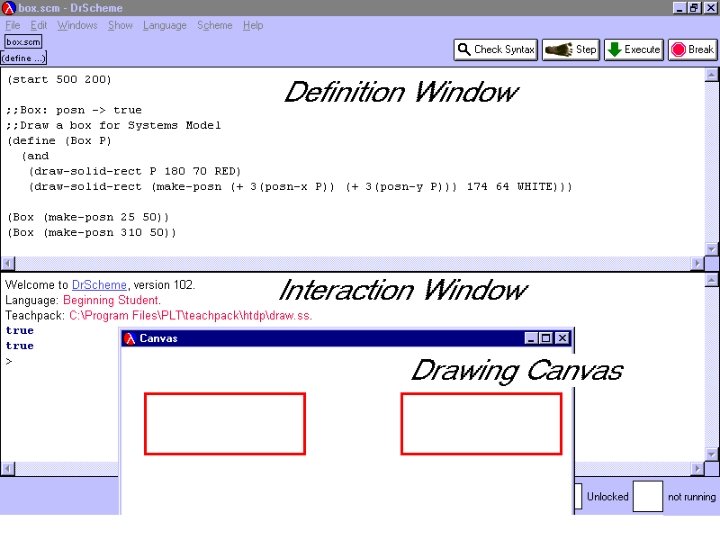

Dr. SCHEME DRAWING TOOLS start : number -> void Parameters, arguments Function name (start 640 480) Data Types draw-solid-disk: posn number color -> true (draw-solid-disk (make-posn 50 50) 40 ‘red) draw-circle: posn number color -> true draw-solid-rect: posn number color -> true draw-solid-line: posn color -> true predefined colors: ‘white ‘yellow ‘red ‘blue ‘green ‘black

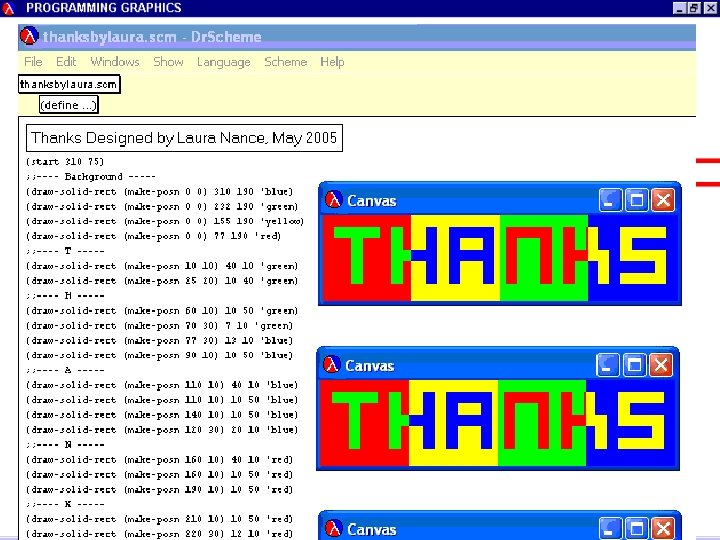

Dr. SCHEME DRAWING LESSONS : Lesson are FREE and online to support “funding” of public education at www. knorth. info: : Graphic Link - Used in Web Mastering : Tech. Sys Link - Used as a module in Technology Systems Magnet Program I. T. Unit. These are the lessons you will see in the video. : Algebra Link - Used in algebra I in a Houston A+ Challenge research project.

Balloon Learning Lesson

Balloon Learning Lesson

Balloon Learning Lesson

Balloon Learning Lesson
