Plan 9 • Worst movie ever made (by Ed Wood) • An operating system and associated utilities (by the people who made Unix and C) • Three design principles: – Resources are represented as file trees – Resources are privately assembled by processes – Resources are accessed by a standard protocol • Inferno is a light version of Plan 9
Outline 1. 2. 3. 4. 5. 6. 7. 8. 9. A typical Plan 9 installation A traditional file server Some unusual file servers Namespace Overview of the 9 P protocol User interface Programming under Plan 9 The Inferno operating system The Limbo programming language
A Typical Plan 9 Installation Fiber Network CPU server File server Ethernet Gateway Terminal
The File System Emelie WORM media SCSI disks
The Backup Service % grep ‘mouse bug fix’ 2000/*/sys/src/cmd/rio/file. c … % bind /n/dump/2000/0416/sys/include … /n /dump /2001 50 60 70 80 90 100 0416 0417 0418 usr usr glenda foo
The File Metaphor • Unix: most things are files ○ /dev/tty ○ /proc × network interfaces × X Windows • Plan 9: everything is a file ○ emelie ○ backup ○ /dev/cons ○ /prog ○ window system ○ text editor ○ ftp ○ tar ○ network interfaces ○…
Console Device: /dev or #c • Keyboard input/output, miscellaneous information • /dev/cons is the equivalent of /dev/tty • /dev/time: current date % echo newtime > /tmp/newtime % bind /tmp/newtime /dev/time • /dev/cputime: process computation time • /dev/pid: process’ id • /dev/user: process’ owner
Environment Device: /env or #e • Environment variables and their values • /env/prompt: user’s prompt % cd ‘#e’ % echo newprompt > prompt
Network Protocols over IP: /net or #I • /net/dns: domain name lookup % echo www. yahoo. co. jp!http > /net/dns • A machine with a Datakit interface can use the TCP interface of another machine % import harp /net % telnet tcp!www. yahoo. co. jp
Network Protocols over IP: /net or #I • /net contains one directory per protocol #I udp tcp clone % cd /net/tcp % cat clone % cd 0 % echo connect ip_address!port_number > ctl 0 ctl status data local remote listen
Running Programs: /prog or #p • /prog is the equivalent of Linux /proc • Remote debugging % import harp /proc % db /prog/0/text /prog/0/mem • A raw ps command % cat /prog/*/status
Graphics Device: /dev or #d • This device serves an interface to – The graphics system % cat /dev/draw/new % cd 0 % lc ctl data refresh colormap – The window system (rio) % echo new –dx 200 –dy 400 –cd /sys/src/cmd sam > /dev/wctl % lp /dev/wsys/0/window
Serial Communication Control: /dev or #t • Command a serial port – of a machine running Linux’s Inferno – from another running Windows’ Inferno % mount tcp!piccolo. is. s. u-tokyo. ac. jp!styx /n/linux % bind /n/linux/dev/eia 0 ctl % echo b 1200 > /dev/eia 0 ctl
A Per-process Namespace • User processes construct namespace using – mount – bind – union – unmount • Most services are conventionally located • Comparison – Unix: a global mount table for all processes – Plan 9: a mount table per process stored in the kernel from_file /bin /n/remote mount table to_file /$cputype/bin, /rc/bin tcp!piccolo. is. s. u-tokyo. ac. jp!9 p
The 9 P Protocol • The (invisible) glue that holds Plan 9 together • Similar to NFS • Composed of 17 messages – 3 for authentication – 14 for object manipulation • 14 pages long description 9 P UDP TCP IP IL URP DK Fiber
9 P Transaction 9 P client user process mount (“tcp!ip_address”) open (“/dev/cons”, OREAD) 9 P server the client’s kernel Tsession Tattach 50 Rattach 100 Tclone 50 70 Twalk 70 “dev” Twalk 70 “cons” Topen 70 Ropen 120 mount table fid qid 50 100 70 120 file tree 100 110 120
9 P Authentication authorization server 9 P client user process 9 P server the client’s kernel challenge_c Tsession () Rsession () challenge_s, id_c key_c{challenge_s, id_c, nonce} challenge_s, id_s Ok, id_c can speak to id_s nonce{challenge_s} key_s{challenge_s, id_c, nonce} Tattach () Ok, id_c is authenticated Ok, id_s is Rattach () authenticated nonce{challenge_c}
Programming • New C compilers – – – – 8 c for Intel, kc for SPARC, … ANSI C + goodies (inheritance, …) Simplified preprocessor (no #if, …) No nested include files Smaller library Slightly difference syntax (nil, void main (…)) Preprocessing, parsing, register allocation, code generation, assembly
Programming • A new make: mk – Simplified • New Linkers – 8 l, kl, … – Perform instruction selection, branch folding, instruction scheduling, executable writing – Don’t require indications on which library to load – Don’t do dynamic linking! • A new debugger: acid • A new shell: rc
The File Hierarchy • • • • /386/bin: Intel binaries /386/include: machine dependent /acme: acme programs /adm: administrative data /dev/drivers: device drivers built into the kernel /lib: databases /lib/keyboard: Unicode shortcuts /lib/ndb: networking data /mnt: user file servers /mnt/plumb: plumbing rules /mnt/acme: acme configuration /mnt/keys: shortcuts /n: archives and remote systems /n/tapefs: archives /n/ftp: ftpfs /n/harp: remote system • /sys/include: machine independent headers • /sys/src/9/fs: file server • /sys/src/9/port: portable part of the kernel • /sys/src/9/pc: Intel specific part of the kernel • /sys/src/9/pc/devxxx. c: device drivers • /sys/src/libc: libc • /sys/src/libdraw: graphics library • /sys/src/libio: buffered io • /usr: users
User Interface • • Commands: Unix-like Text edition: cat, ed, sam, acme Unicode everywhere Mouse centric: – no cursor-addressed programs – 3 buttons unavoidable (chored actions) • Plumbing – text-based inter application mechanism

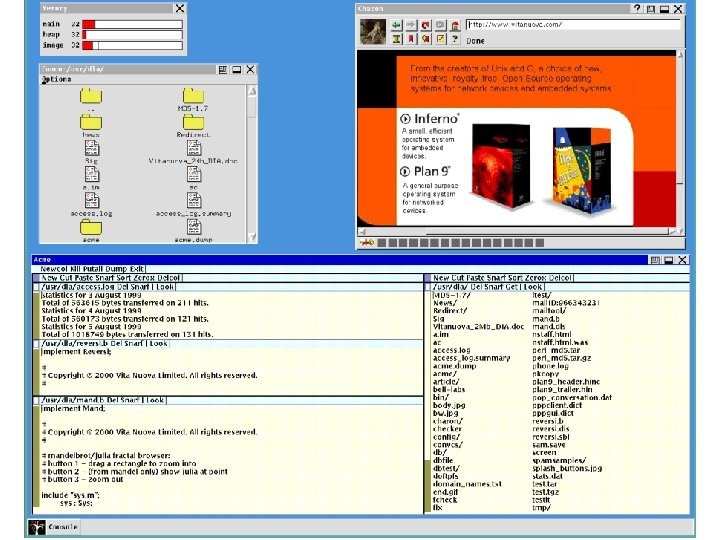

Inferno • A small Plan 9 • Can run – As the native operating system – As a hosted operating system – As a plug-in for Internet Explorer • A different looking: – wm/wm and prefab window managers – Graphics with Tk • Mostly open source
Limbo • User applications run above the DIS virtual machine • A C-like language that compile to bytecodes and that run – Over the VM (30/40 times slower than C) – JIT compilation (2/3 times slower than C)
Limbo • Garbage collection: – References counting – A special keyword for cyclic data structures • Exceptions • Dynamically loaded modules – OS interface in sys (written in C) – Tk 4. 0 in draw (written in Limbo)
Limbo: Syntax • Pascal-like type declaration x: int; x : = 42; • C-like assignments • Constants EOF: con – 1; • Enumeration enum {Red, Blue, … }: con iota; • Strings are not terminated
Limbo: Data Types • Array slices y : = x[1; 3]; • Explicit type cast b : = byte 20; str : = string 99; • Lists, tuples • Abstract data types can contain functions • A ref keyword to build reference out of values
Limbo: Concurrent Programming • Thread – Start spawn function_name – Exit by exit – Communication by send/receive above channels channel <-= value; value =<- channel;
Compatibility Issues • Compatibility is not an issue (sic) • However: – vt: provides vt 100 terminals emulation – APE: ANSI POSIX Environment (ape/psh: POSIX shell, /bin/cpp: an ANSI C preprocessor, cc: an ANSI C compiler…) – vnc: to use remote X application – wm/brutus: emulates emacs under Inferno – drawterm: to use CPU and file servers from Unix or Windows – u 9 fs: runs on NFS machines and understand 9 P – Plan 9 has an implementation of X
Conclusion • My 2円: Small implementations suitable for educational purposes • Systems Software Research is Irrelevant – Rob Pike • “I think Plan 9 was a great idea and it should’ve been released under an open-source license when it was first done, eight years ago (…)” – Brian Kernighan • After all, Unix took 10 years to catch on… (in a world without Windows nor Linux though)
