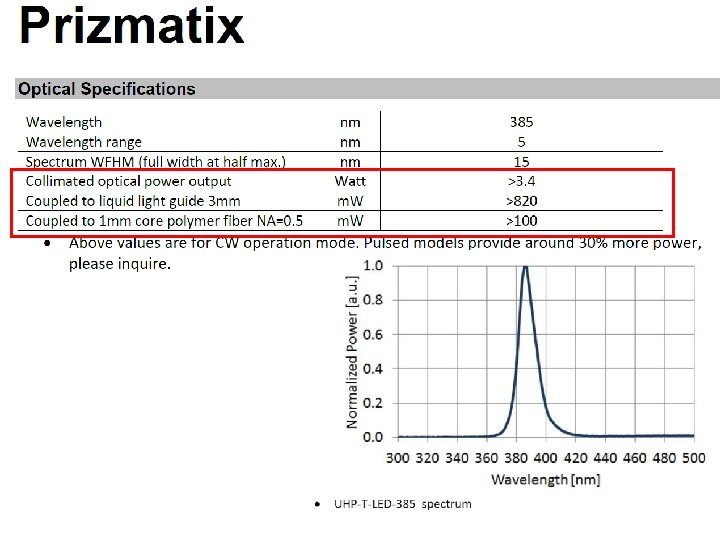

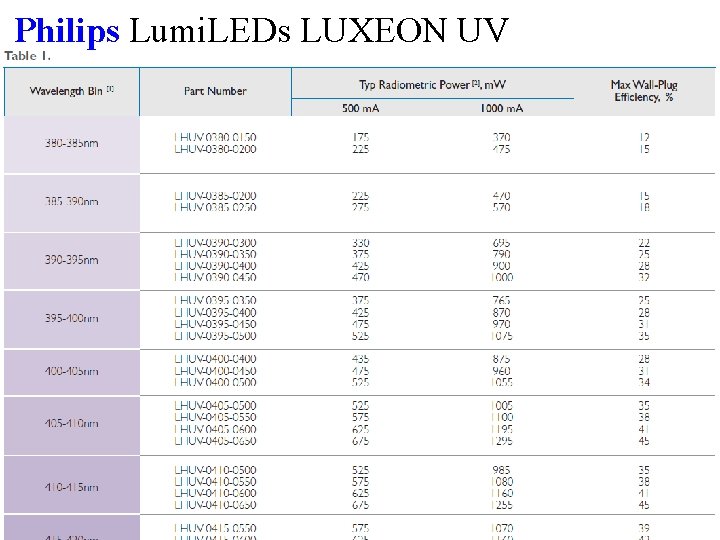

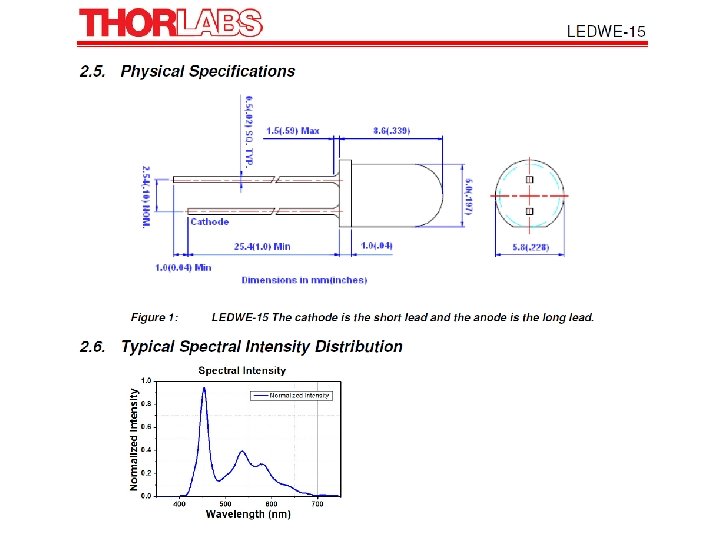

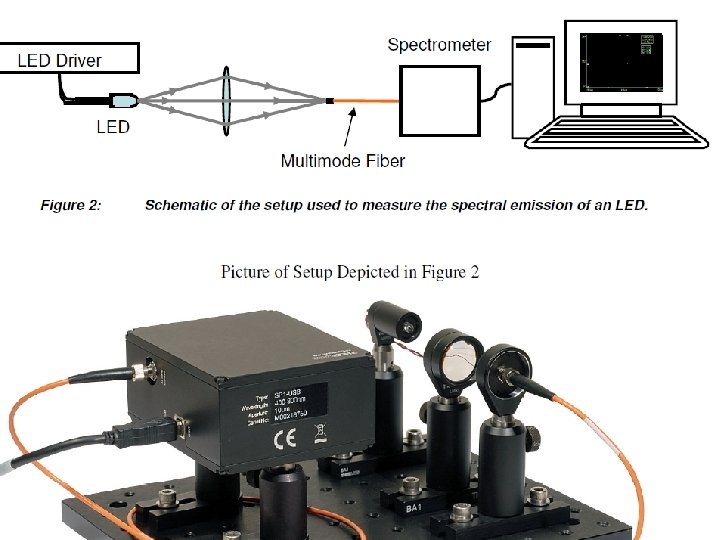

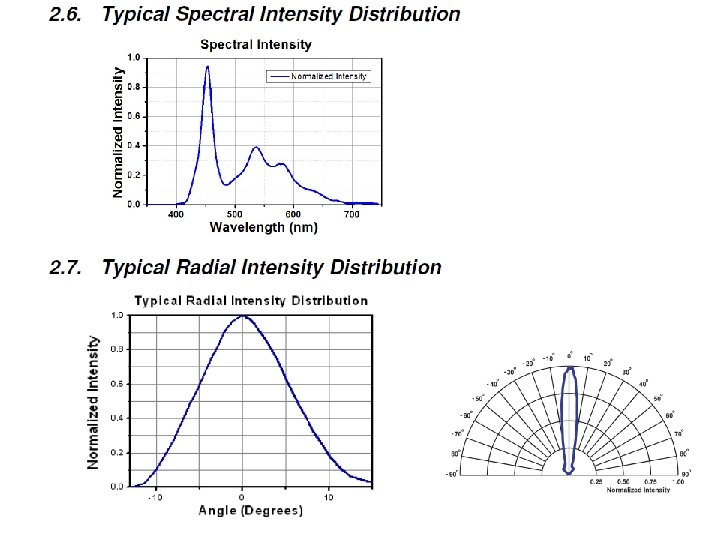

Philips Lumi LEDs LUXEON UV Iq f cosq

Philips Lumi. LEDs LUXEON UV

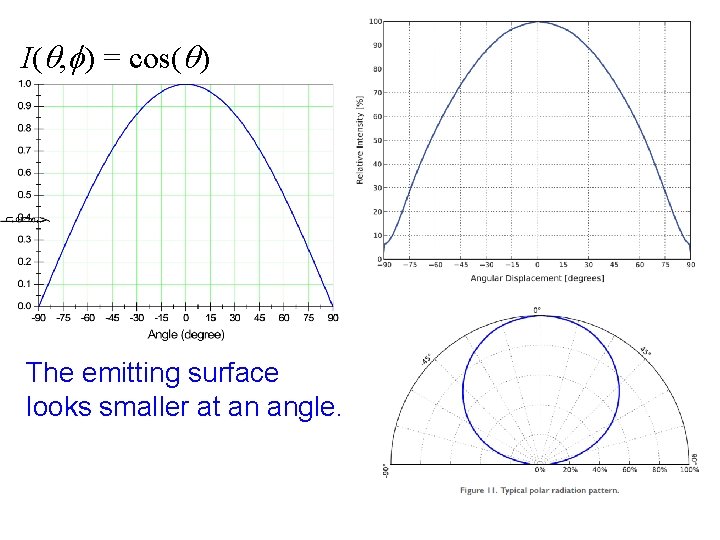

I(q, f) = cos(q) The emitting surface looks smaller at an angle.

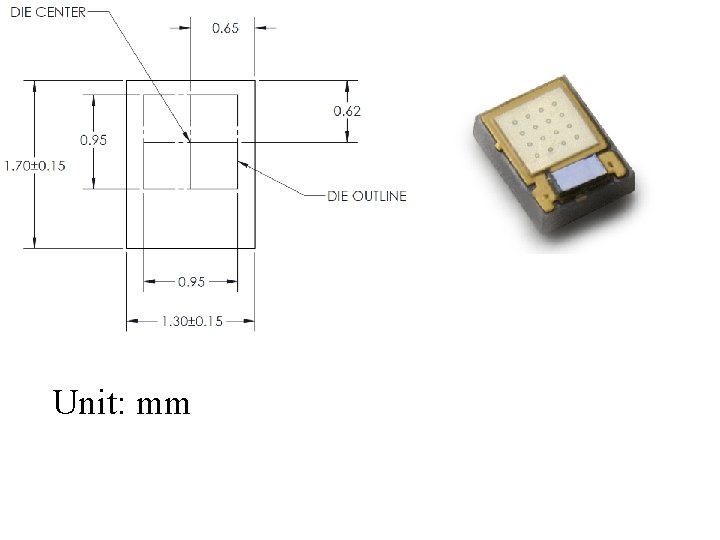

Unit: mm

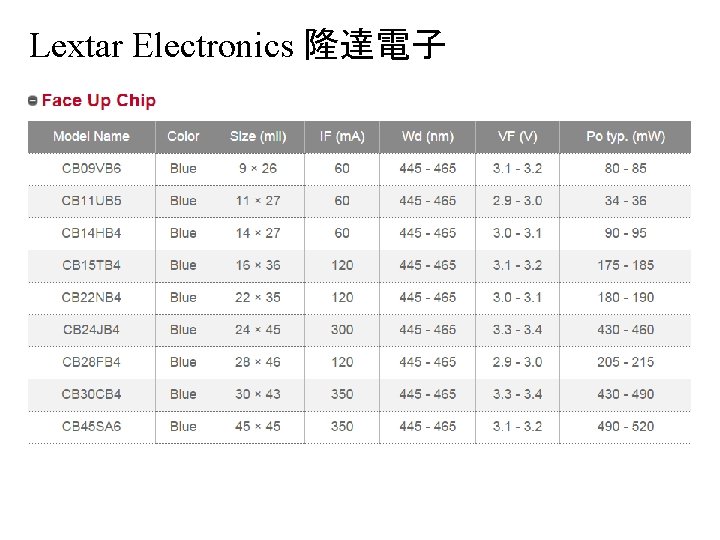

Lextar Electronics 隆達電子

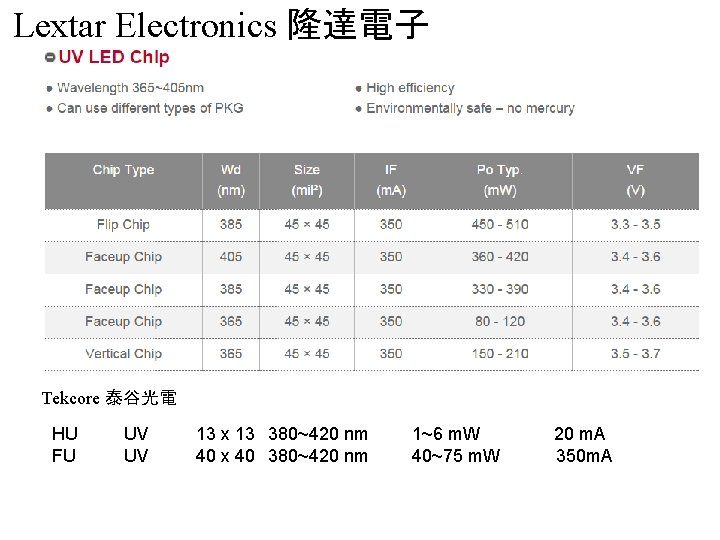

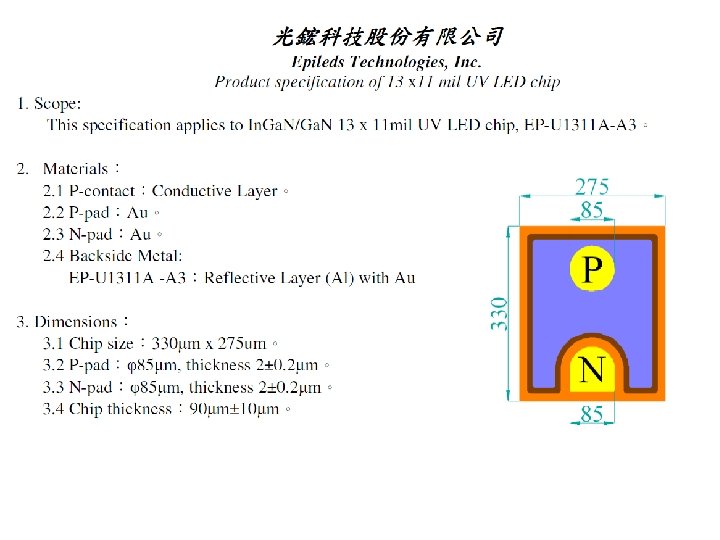

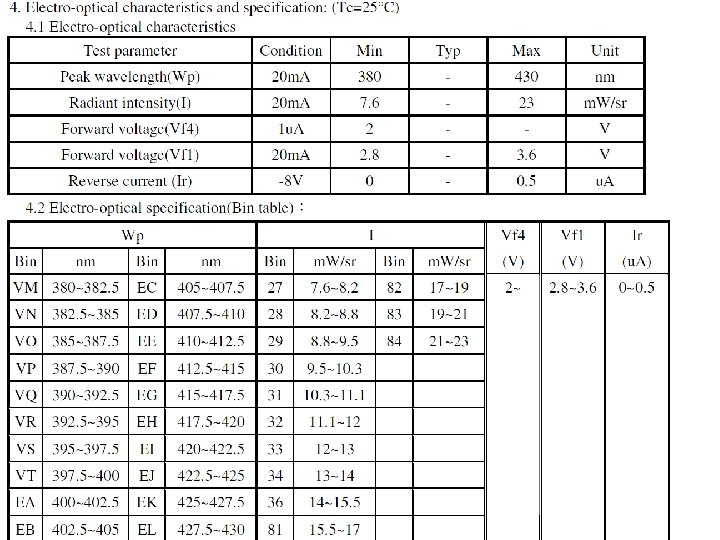

Lextar Electronics 隆達電子 Tekcore 泰谷光電 HU FU UV UV 13 x 13 380~420 nm 40 x 40 380~420 nm 1~6 m. W 40~75 m. W 20 m. A 350 m. A

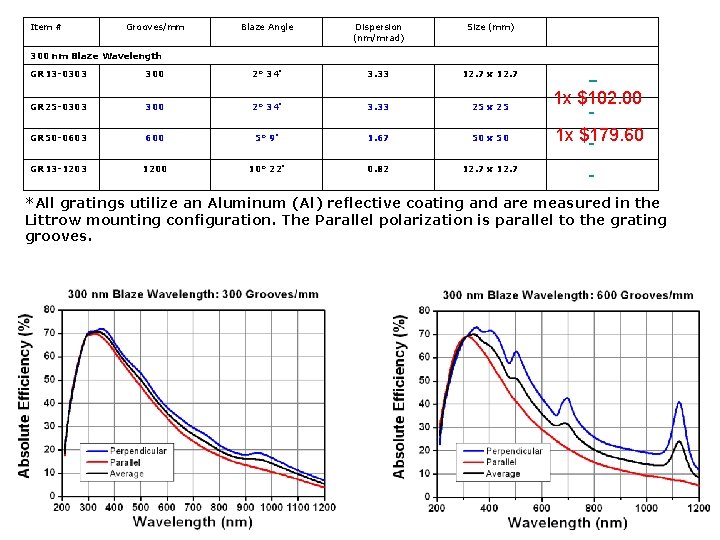

Item # Grooves/mm Blaze Angle Dispersion (nm/mrad) Size (mm) 300 nm Blaze Wavelength GR 13 -0303 300 2° 34' 3. 33 12. 7 x 12. 7 GR 25 -0303 300 2° 34' 3. 33 25 x 25 1 x $102. 00 GR 50 -0603 600 5° 9' 1. 67 50 x 50 1 x $179. 60 GR 13 -1203 1200 10° 22' 0. 82 12. 7 x 12. 7 *All gratings utilize an Aluminum (Al) reflective coating and are measured in the Littrow mounting configuration. The Parallel polarization is parallel to the grating grooves.

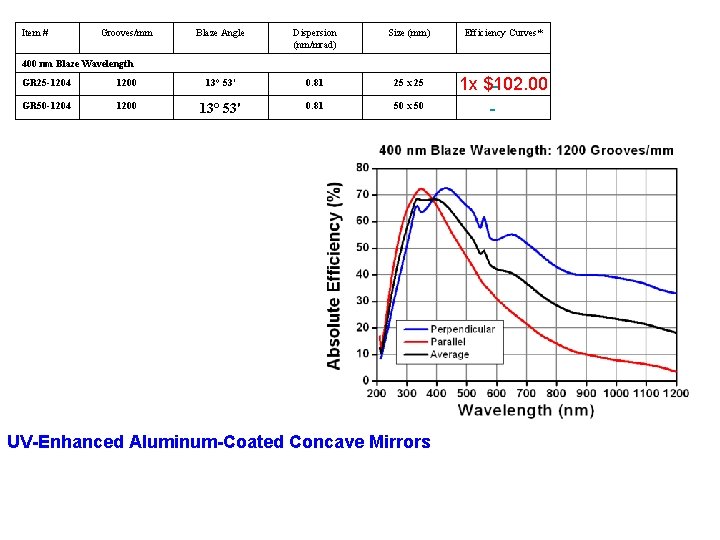

Item # Grooves/mm Blaze Angle Dispersion (nm/mrad) Size (mm) Efficiency Curves* 400 nm Blaze Wavelength GR 25 -1204 1200 13° 53' 0. 81 25 x 25 1 x $102. 00 GR 50 -1204 1200 13° 53' 0. 81 50 x 50 UV-Enhanced Aluminum-Coated Concave Mirrors

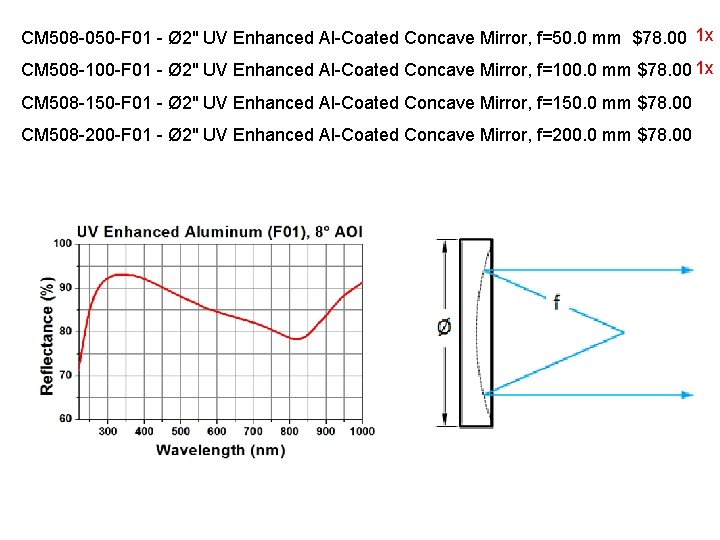

CM 508 -050 -F 01 - Ø 2" UV Enhanced Al-Coated Concave Mirror, f=50. 0 mm $78. 00 1 x CM 508 -100 -F 01 - Ø 2" UV Enhanced Al-Coated Concave Mirror, f=100. 0 mm $78. 00 1 x CM 508 -150 -F 01 - Ø 2" UV Enhanced Al-Coated Concave Mirror, f=150. 0 mm $78. 00 CM 508 -200 -F 01 - Ø 2" UV Enhanced Al-Coated Concave Mirror, f=200. 0 mm $78. 00

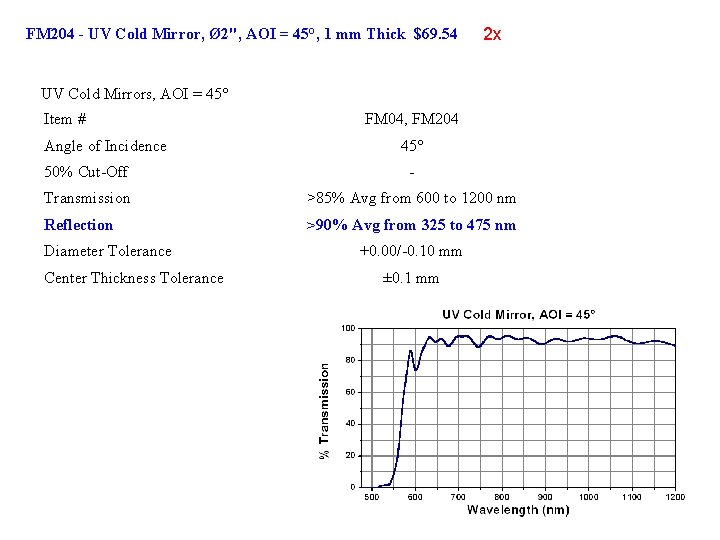

FM 204 - UV Cold Mirror, Ø 2", AOI = 45°, 1 mm Thick $69. 54 2 x UV Cold Mirrors, AOI = 45° Item # Angle of Incidence FM 04, FM 204 45° 50% Cut-Off - Transmission >85% Avg from 600 to 1200 nm Reflection >90% Avg from 325 to 475 nm Diameter Tolerance Center Thickness Tolerance +0. 00/-0. 10 mm ± 0. 1 mm

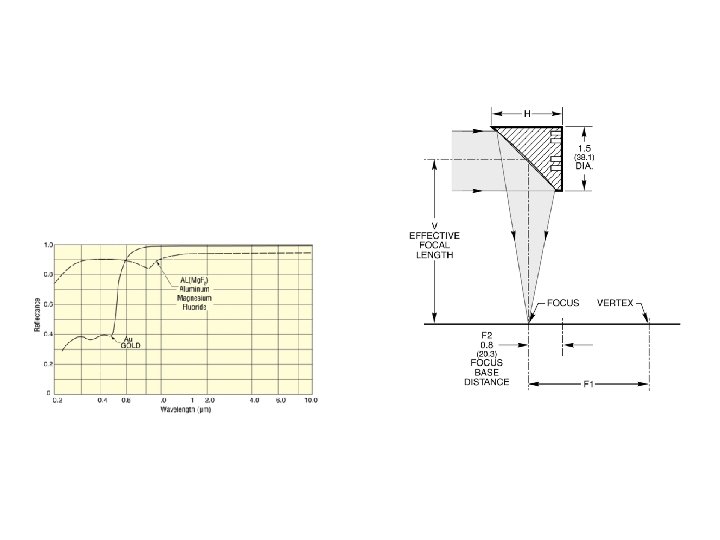

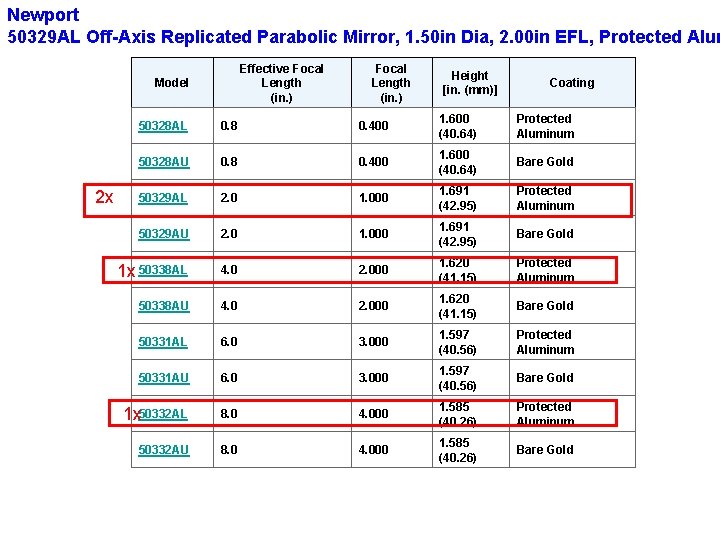

Newport 50329 AL Off-Axis Replicated Parabolic Mirror, 1. 50 in Dia, 2. 00 in EFL, Protected Alum Effective Focal Length (in. ) Model 2 x Focal Length (in. ) Height [in. (mm)] Coating 50328 AL 0. 8 0. 400 1. 600 (40. 64) Protected Aluminum 50328 AU 0. 8 0. 400 1. 600 (40. 64) Bare Gold 50329 AL 2. 0 1. 000 1. 691 (42. 95) Protected Aluminum 50329 AU 2. 0 1. 000 1. 691 (42. 95) Bare Gold 1 x 50338 AL 4. 0 2. 000 1. 620 (41. 15) Protected Aluminum 50338 AU 4. 0 2. 000 1. 620 (41. 15) Bare Gold 50331 AL 6. 0 3. 000 1. 597 (40. 56) Protected Aluminum 50331 AU 6. 0 3. 000 1. 597 (40. 56) Bare Gold 1 x 50332 AL 8. 0 4. 000 1. 585 (40. 26) Protected Aluminum 50332 AU 8. 0 4. 000 1. 585 (40. 26) Bare Gold

286 nm (15 o/-5 o) 452 nm (21 o/-5 o) 600 l/mm Blazed 5. 15 o

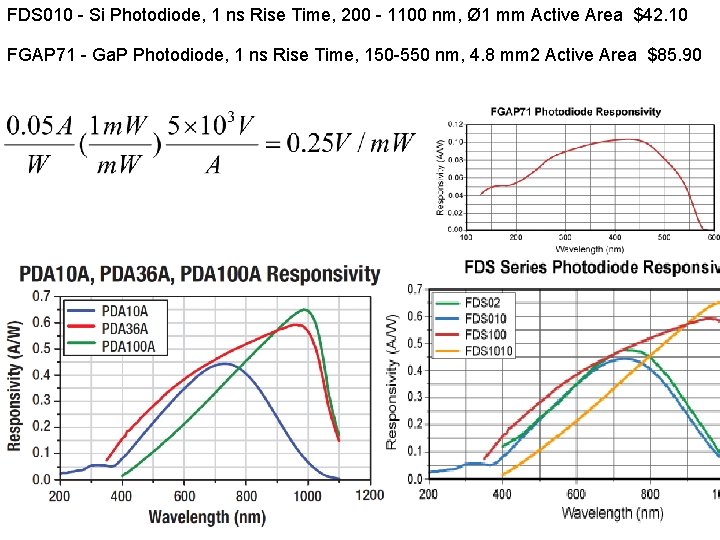

FDS 010 - Si Photodiode, 1 ns Rise Time, 200 - 1100 nm, Ø 1 mm Active Area $42. 10 FGAP 71 - Ga. P Photodiode, 1 ns Rise Time, 150 -550 nm, 4. 8 mm 2 Active Area $85. 90

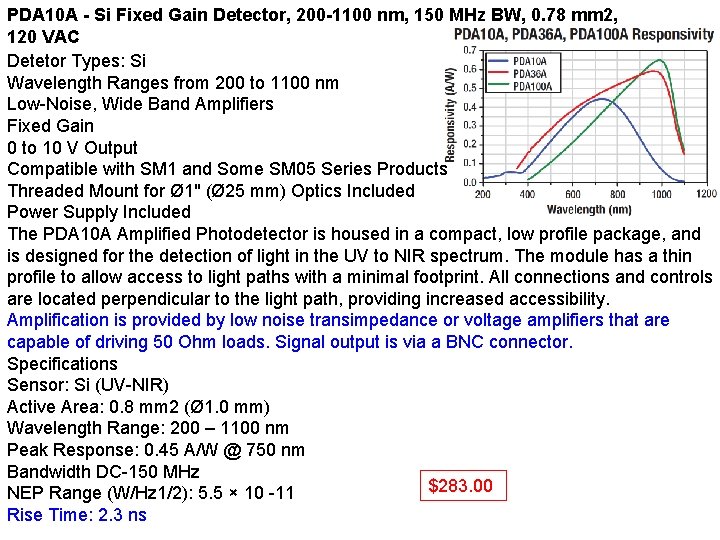

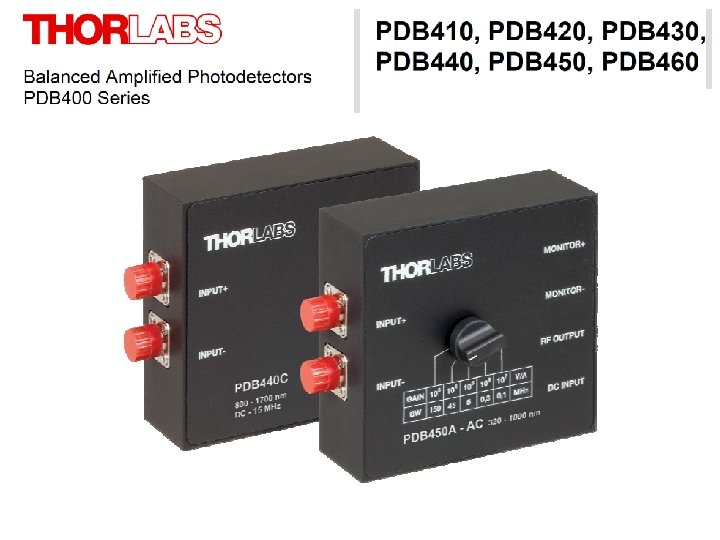

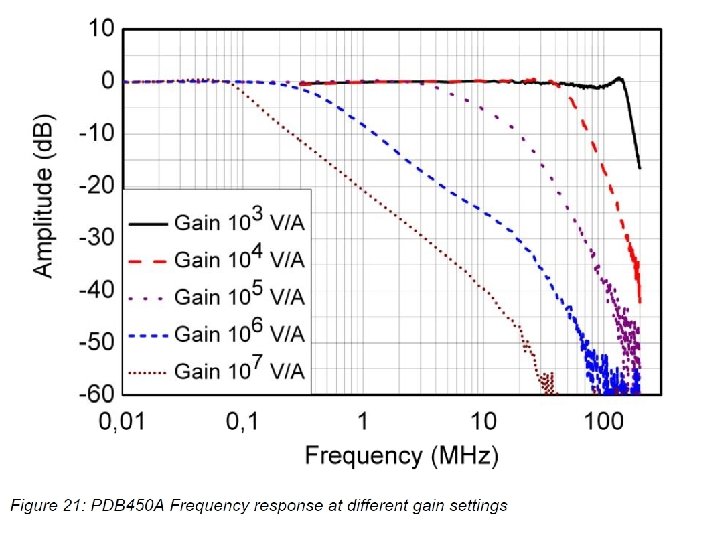

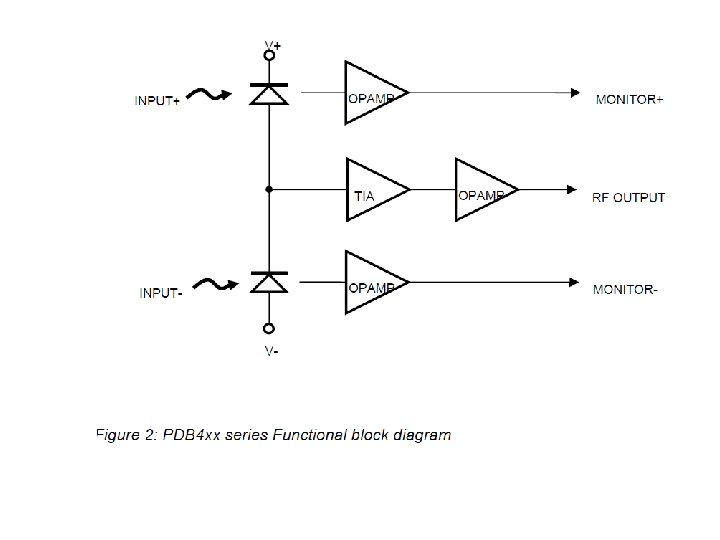

PDA 10 A - Si Fixed Gain Detector, 200 -1100 nm, 150 MHz BW, 0. 78 mm 2, 120 VAC Detetor Types: Si Wavelength Ranges from 200 to 1100 nm Low-Noise, Wide Band Amplifiers Fixed Gain 0 to 10 V Output Compatible with SM 1 and Some SM 05 Series Products Threaded Mount for Ø 1" (Ø 25 mm) Optics Included Power Supply Included The PDA 10 A Amplified Photodetector is housed in a compact, low profile package, and is designed for the detection of light in the UV to NIR spectrum. The module has a thin profile to allow access to light paths with a minimal footprint. All connections and controls are located perpendicular to the light path, providing increased accessibility. Amplification is provided by low noise transimpedance or voltage amplifiers that are capable of driving 50 Ohm loads. Signal output is via a BNC connector. Specifications Sensor: Si (UV-NIR) Active Area: 0. 8 mm 2 (Ø 1. 0 mm) Wavelength Range: 200 – 1100 nm Peak Response: 0. 45 A/W @ 750 nm Bandwidth DC-150 MHz $283. 00 NEP Range (W/Hz 1/2): 5. 5 × 10 -11 Rise Time: 2. 3 ns

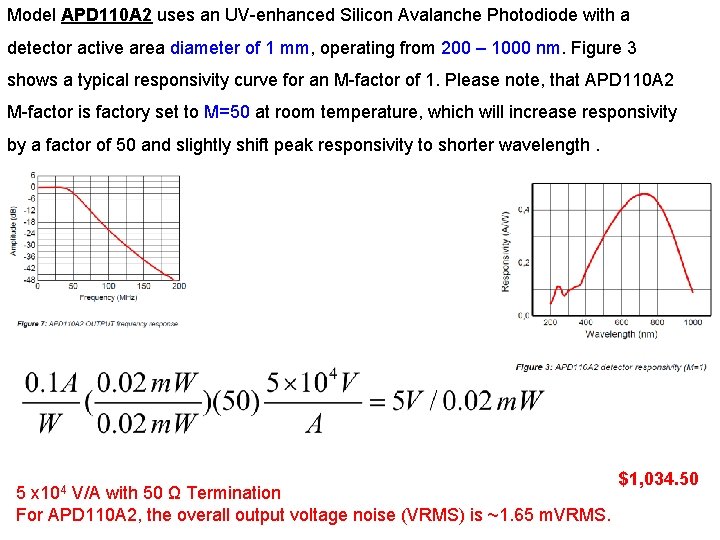

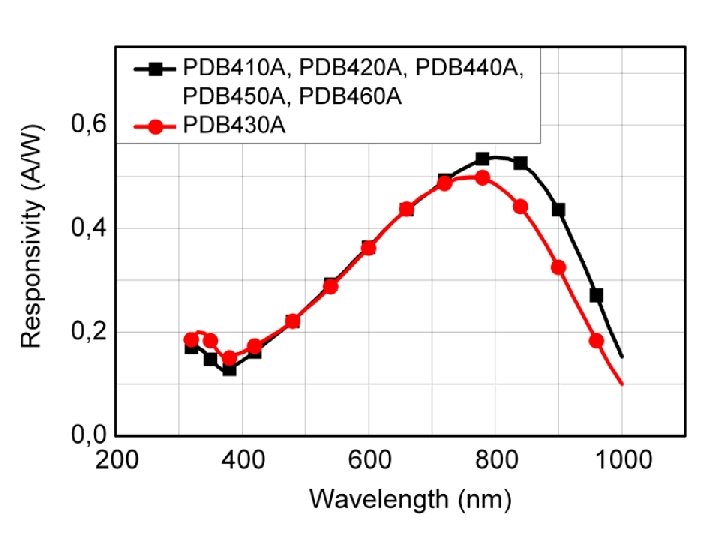

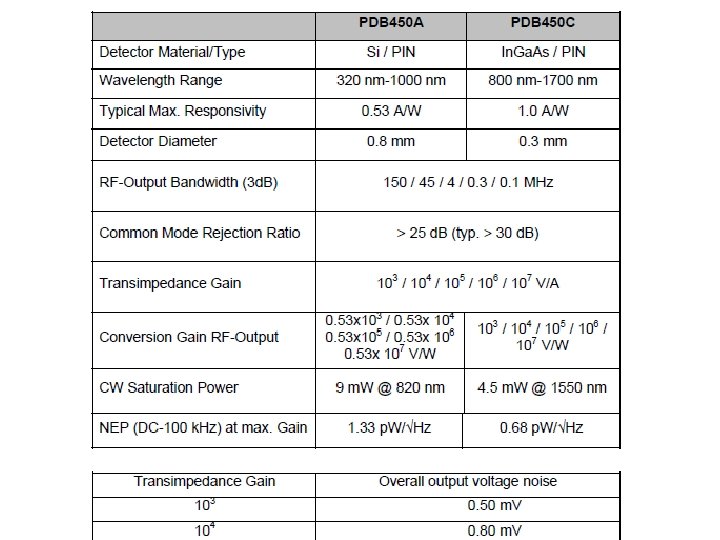

Model APD 110 A 2 uses an UV-enhanced Silicon Avalanche Photodiode with a detector active area diameter of 1 mm, operating from 200 – 1000 nm. Figure 3 shows a typical responsivity curve for an M-factor of 1. Please note, that APD 110 A 2 M-factor is factory set to M=50 at room temperature, which will increase responsivity by a factor of 50 and slightly shift peak responsivity to shorter wavelength. 5 x 104 V/A with 50 Ω Termination For APD 110 A 2, the overall output voltage noise (VRMS) is ~1. 65 m. VRMS. $1, 034. 50
