Philips Ledalite Eye Line Make the room the
- Slides: 25
Philips Ledalite Eye. Line Make the room the view… 1 Philips Ledalite Eye. Line
Why Eye. Line Simply beautiful. Ultra-slim, weightless light. Incredible energy savings. Ideal direct/indirect distribution for maximum row spacing Easy install. Pre-installed endcaps, pre-installed powercords and aircraft cables. 2 Philips Ledalite Eye. Line
Meso. Optics: Purify. Control. Sustain. ü Edge-lit light guide panel ü Microstructures + light extraction – homogenous distribution ü Purification of light = wide and low glare distribution. 3 Philips Ledalite Eye. Line
Stylishly sophisticated, boldly dramatic. 0. 5” 12” 4 Philips Ledalite Eye. Line
Incredible energy savings. True Ledalite performance: o Lower power densities o Maximum visual comfort o Wider fixture spacing o Unparalleled uniformity o No direct view of light source 5 Philips Ledalite Eye. Line Peak candela angle is 110° and 3. 13: 1 Peakto-zenith. 55° brightness control meets RP 1 for intensive spaces for most configurations 27. 5° peak angle minimizes veiling reflections. 65% up/35% down
Applications – Open Office T-Grid/Finished Ceiling Open Office 65% up/ 35% down • 56’x 32’x 9’ 6” • 3500 K 6 Philips Ledalite Eye. Line 3400 lm 12 ft o. c. 4800 lm 15 ft o. c. 6800 lm 20 ft o. c. Light Level 31 fc 35 fc 39 fc Ceiling Uniformity 2. 8: 1 4. 7: 1 9. 4: 1 Energy Density 0. 42 W/ft 2 0. 48 W/ft 2 0. 54 W/ft 2 Luminaire Efficacy 130 LPW 126 LPW Peak Angle 110 degrees Peak to Zenith 3. 13

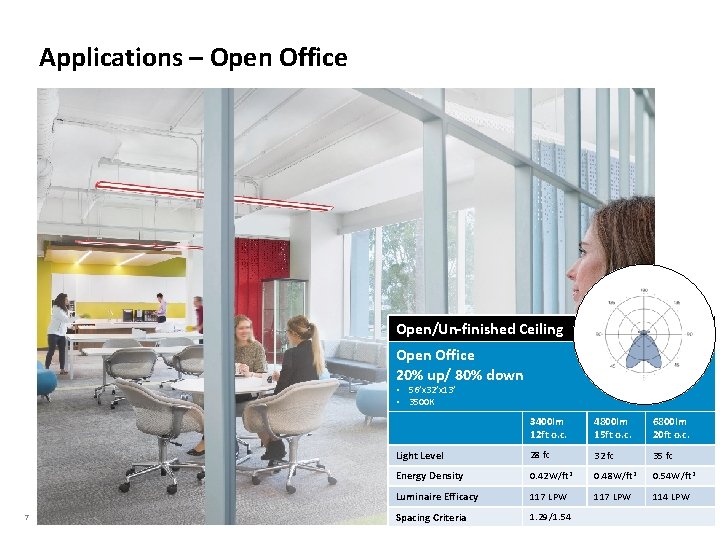

Applications – Open Office Open/Un-finished Ceiling Open Office 20% up/ 80% down • 56’x 32’x 13’ • 3500 K 7 Philips Ledalite Eye. Line 3400 lm 12 ft o. c. 4800 lm 15 ft o. c. 6800 lm 20 ft o. c. Light Level 28 fc 32 fc 35 fc Energy Density 0. 42 W/ft 2 0. 48 W/ft 2 0. 54 W/ft 2 Luminaire Efficacy 117 LPW 114 LPW Spacing Criteria 1. 29/1. 54
Product Options Complementary wall mount 8 Philips Ledalite Eye. Line
Product Options Distributions Suspended 65% up / 35% down Wall 9 Philips Ledalite Eye. Line 20% up / 80% down 100% down
Product Options Design Lights Consortium® www. designlights. org WWWBXZ Search this code for all Eye. Line listings Premium: 130 lm/W Standard: 105 lm/W 10 Philips Ledalite Eye. Line Driver meets 50, 000 h
Product Options Continuous Row Eye. Line can be specified in any row length, in 4 ft increments. The luminaire has been uniquely engineered so continuous row mounting is an easy plug and play installation with 4 ft modules. All individual modules are joined together onsite using the simple joining connections outlined in the installation instructions. 11 Philips Ledalite Eye. Line
Product Options Space. Wise DT Easy. Sense Ceiling Mount Sensor: SNS 200 CMP 12 Philips Ledalite Eye. Line
Product Options Standard Finish Options 13 Philips Ledalite Eye. Line
Color & Consistency / Longevity & Lifetime Fixture to fixture color accuracy for Eye. Line is within 2 Mac. Adam ellipse (2 SDCM) CRI >80 CRI >90 R 9 >50 LEDs have been tested by the manufacturer in accordance with IESNA LM-80 -08. IES TM-21 -11: L 90 (10 k) >60, 000 hrs L 80 (10 k) 122, 000 hrs 14 Philips Ledalite Eye. Line
Unified Glare Rating (UGR) a measure of the glare in a given environment “Within an office setting, for the luminaire to be classified as “low glare” it must have a UGR below 19 at desk level” Eye. Line UGR values as low as 11. 1 15 Philips Ledalite Eye. Line
Order Guide - Suspended Modules 16 Philips Ledalite Eye. Line
Order Guide - Wall Modules 17 Philips Ledalite Eye. Line
Technical Specification Docs New! ü 2 spec sheets ü Embedded links to: brochure, install docs, Revit files, DLC, photometric reports, IES files ü Combined photometric reports 18 Philips Ledalite Eye. Line
Eye. Line Landing Page: www. Philips. com/Eye. Line 19 Philips Ledalite Eye. Line
Revit Files New LED option feature upgrade Simplifying the complex Type Cataloging üAdded ü Ability to chooses any variable from drop down menu screens ü Reduced file size Row Algorithm üAdded ü No requirement to create row lengths using individual units 20 Philips Ledalite Eye. Line
Eye. Line 45 sec Commercial https: //youtu. be/CCKev 4 Es. Amo Viewable on You. Tube & Eye. Line vanity page 21 Philips Ledalite Eye. Line
Available for download online Sleek Product Photography 22 Philips Ledalite Eye. Line
Available for download online Inspiring Application Images 23 Philips Ledalite Eye. Line
Who to contact for help? For more information • Sales & Technical Support – quotes. ledalite@philips. com – 604. 888. 6811 • Product Marketing US – Meghan Marrer – Meghan. marrer@signify. com • Product Marketing Canada – Chad Mitchell – Chad. Mitchell@signify. com • Product Management – Jody Sikham – Jody. Sikham@signify. com 24 Philips Ledalite Eye. Line
25 Philips Ledalite Eye. Line
