Petrolink USA Advantage Founded in 1989 Experienced vendor

Petrolink. USA Advantage Founded in 1989 Experienced vendor for Fortune 500 Companies Continuous staff training and certification (CLS, MLA II, MLA I) Safety is our PRIORITY o 2014 EMR. 93 o 2015 EMR. 94 o 2016 EMR. 96 • Complete vertical integration of Product and Services o Decrease the number of vendors o Operational expertise provides best practice implementation o Products and Services ROI maximized using our experience and scale o Easy monthly billing over the agreement period o Guaranteed lubricant life extension decreasing downtime and costs • •

Partners

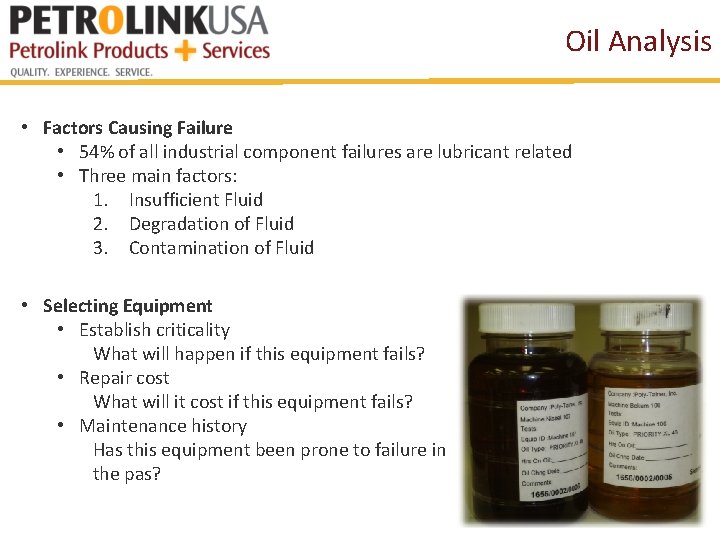

Oil Analysis • Factors Causing Failure • 54% of all industrial component failures are lubricant related • Three main factors: 1. Insufficient Fluid 2. Degradation of Fluid 3. Contamination of Fluid • Selecting Equipment • Establish criticality What will happen if this equipment fails? • Repair cost What will it cost if this equipment fails? • Maintenance history Has this equipment been prone to failure in the pas?

Oil Analysis • What To Sample • Critical production equipment • Equipment with expensive repair history • Larger reservoirs • Equipment prone to failure • Unspared equipment • Equipment where failure could cause a safety or environmental concern • Type of Tests • Spec • Particle Count • Viscosity • • • TAN Crackle Karl Fisher Varnish Turbine

Particle Count Analysis ISO 4406: 1999 Code Chart Range Code 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 Particles Per Milliliter More Than 80000 40000 20000 10000 5000 2500 1300 640 320 160 80 40 20 10 5 2. 5 1. 3 0. 64 0. 32 Up To/Including 160000 80000 40000 20000 10000 5000 2500 1300 640 320 160 80 40 20 10 5 2. 5 1. 3 0. 64 How do you interpret the particle count reading? Particle Size Particles/m. L ISO 4406 Code Range ISO Code 4 um 77, 452 40, 000 -80, 000 23 6 um 18, 236 10, 000 -20, 000 21 14 um 2, 101 1, 300 -2, 500 18 Particle Size Particles/m. L ISO 4406 Code Range ISO Code 4 um 110 80 -160 14 6 um 15 10 -20 11 14 um 1 . 64 -1. 3 7 • Each code (Scale Number) has a range of values that it represents • 4 micron and larger • 6 micron and larger • 14 micron and larger

Benefits of ISO Code Analysis

Product & Services • Reservoir & Tank Cleaning • Confined Space Certified • Full inspection (gaskets, suction strainers, breathers, etc. ) • Filter cart after tank cleaning in order to clean all system lines • Documentation provided at conclusion of job • Fluid Handling Solutions • Seal all tanks and lubricant transfer equipment – standard filter in and out with quick connects and disconnects • Decrease lubricant usage and spills • Fast and consistent sampling ports for oil analysis • Filters and Breathers • 10% - 20% savings on Beta 1000 Micro-glass filters • 5% savings on Des-Case Breathers • We can stock store and replace or drop ship • Customized labeling on all filters and boxes

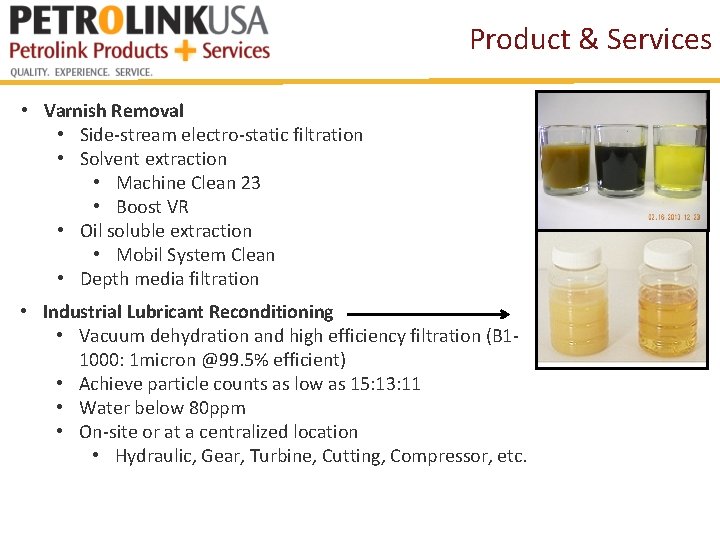

Product & Services • Varnish Removal • Side-stream electro-static filtration • Solvent extraction • Machine Clean 23 • Boost VR • Oil soluble extraction • Mobil System Clean • Depth media filtration • Industrial Lubricant Reconditioning • Vacuum dehydration and high efficiency filtration (B 11000: 1 micron @99. 5% efficient) • Achieve particle counts as low as 15: 13: 11 • Water below 80 ppm • On-site or at a centralized location • Hydraulic, Gear, Turbine, Cutting, Compressor, etc.

Product & Services • Chemical Cleaning • Degreasing agent with filtration and proper flow rates • Neutralize degreasing agent • Line drying with plant nitrogen • Chemical cleaning (non-hazardous) • Passivation • Drying (plant specification) • High Velocity Hot Oil Flush • Decontamination of system piping, coolers, filter housings and reservoirs with turbulent flow and mechanical cleaning • Generally, most hydraulic lubrication oil systems are designed for “laminar” flow. This calls for a constant operation without cavitation or vibration. • Efficient flushing, requires turbulent flow to dislodge contaminants deposited on the inside of piping, coolers, housings and reservoirs. • Turn-key solution including service / equipment (flanges, filters, jumpers, etc. ) • Experience to safely and efficiently complete jobs of all sizes that meet API 614 standards

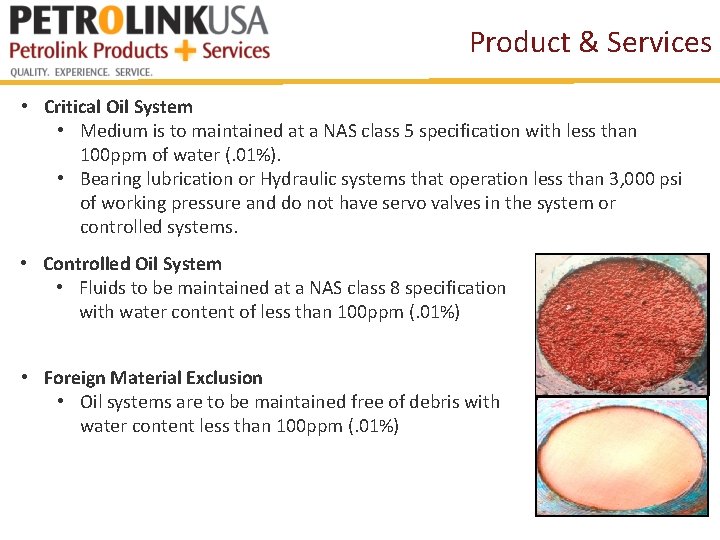

Product & Services • Critical Oil System • Medium is to maintained at a NAS class 5 specification with less than 100 ppm of water (. 01%). • Bearing lubrication or Hydraulic systems that operation less than 3, 000 psi of working pressure and do not have servo valves in the system or controlled systems. • Controlled Oil System • Fluids to be maintained at a NAS class 8 specification with water content of less than 100 ppm (. 01%) • Foreign Material Exclusion • Oil systems are to be maintained free of debris with water content less than 100 ppm (. 01%)

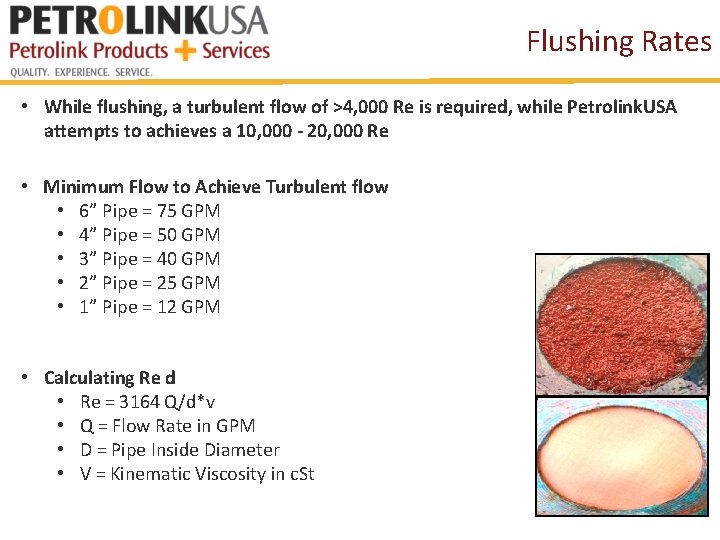

Flushing Rates • While flushing, a turbulent flow of >4, 000 Re is required, while Petrolink. USA attempts to achieves a 10, 000 - 20, 000 Re • Minimum Flow to Achieve Turbulent flow • 6” Pipe = 75 GPM • 4” Pipe = 50 GPM • 3” Pipe = 40 GPM • 2” Pipe = 25 GPM • 1” Pipe = 12 GPM • Calculating Re d • Re = 3164 Q/d*v • Q = Flow Rate in GPM • D = Pipe Inside Diameter • V = Kinematic Viscosity in c. St

API 614 Standards

Our Partners Petrolink has become my “Go. To” contractor in regards to Industrial Chemical Cleaning and lube Oil Flushing. Throughout many projects, Petrolink provided the proper equipment and skilled safe labor to fully execute the scope of work, to our clients specific expectations. Not only did Petrolink achieve the final goals set, but also maintained, in depth, proper communication throughout the process. I would not hesitate to recommend Petrolink to anyone in need of a Chemical Cleaning or Lube Oil Flushing contractor. Regional Engineering Firm I wanted to thank your technicians, they were on time and up to speed on the work that needed to be done after cleaning the tanks they left the areas around the job cleaner then when they arrived. I have, in the past, used your services for tank cleaning and I will continue in the future. The side stream filtering you did on one of the our gearboxes did a very good job of cleaning the lubricant. Global Tire Manufacturer

Our Partners My interaction with Petrolink has been very professional from the very first phone conversation through project completion. Petrolink spent a good deal of time answering my questions and explaining their process to me without ever pressuring me into purchasing services that I did not require. The Petrolink employees performing our EHC System flush and cleanup were very friendly and professional in action and appearance. They arrived fully prepared and performed their service with minimal support required. I will not hesitate to use Petrolink again in the future, and would recommend them to anyone requiring oil services Regional Power Generation This was my first Outage with Petrolink and I found them to be professional, prompt, hardworking and knowledgably. I really appreciate the hard work and speed to which they completed the cleaning of our lube oil tanks. I look forward to working with them in the near future. Regional Power Generation

Our Partners I have worked with Petorlink on at least 3 occasions in the refinery. Each job has been a major machinery oil system cleanup. • In my experience, Petrolink has been professional in their communication and timeliness of response • The Petrolink employees that I worked with in the refinery are self motivated and easy to work with. They are quick to respond and provide input based on experience where applicable. • Petrolink has the equipment necessary to complete oil system cleanups with little or no assistance from Refinery Maintenance. • They come prepared with all necessary personal protective equipment I appreciate Petrolink’s past performance and will continue to recommend them for future oil system cleanup jobs. I look forward to working with Petrolink in the future. Global Refinery

Our Partners Recently, we completed a job in the Midwest which called for the replacement of several bulk tanks and associated piping at a large compressor station. The tanks held lube oil and coolant for several big engines each of which have capital costs in the tens of millions. Client had their most knowledgeable and experienced engineers on the job. We installed the pipe and tanks and contracted Petrolink. USA to pickle and oil them, cleaning them before commissioning. Everyone had a lot on the line. This is not something we or client does every day. The client contact had a liquidated damages clause so time was of the essence. Petorlink. USA mobilized equipment from three states, arrives on the day agreed, hooked up, worked day and night and where finished before the time agreed. They charged exactly the price they quoted us a month before the job. Their technical and lab protocols fully documented the work and we got a clean approval from client. Jason was my contact at Petrolink. USA. He was always up to speed on the project and knew the details of the work when I had questions. We could not be happier. This was the fourth time we have used Petrolink. USA as our subcontractor on this type of work and I recommend them without reservation. National Engineer Firm

Our Partners I have found working with Petrolink to be very professional. We have worked together to develop a hydraulic oil recycling program that will continue to benefit us for years to come. They are responsive to our needs and have worked within our company framework both making and taking suggestions to improve our shared process of recycling our hydraulic oil. I would recommend Petrolink to anyone trying to develop a fluid reconditioning process. Global Rubber Manufacture For the duration of working with Petrolink they have been very professional and have gone above and beyond when something is requested of them. They have a very knowledgeable staff that is more than happy to assist with any questions you may have. Petrolink has proven their worth to us and is in the process of increasing our oil reconditioning program Global Tire Manufacturer

Our Partners I have found working with Petrolink very professional. They have helped us set up system to recycle our Power Steering Fluid. They fill the void if I do not have the manpower to ensure the job gets done. They have made wonderful recommendations to our company to ensure the system flow goes smoothly. They call in advance or contact hose member prior to arriving so that items are prepared and completed very timely. Global Automotive Parts Supplier

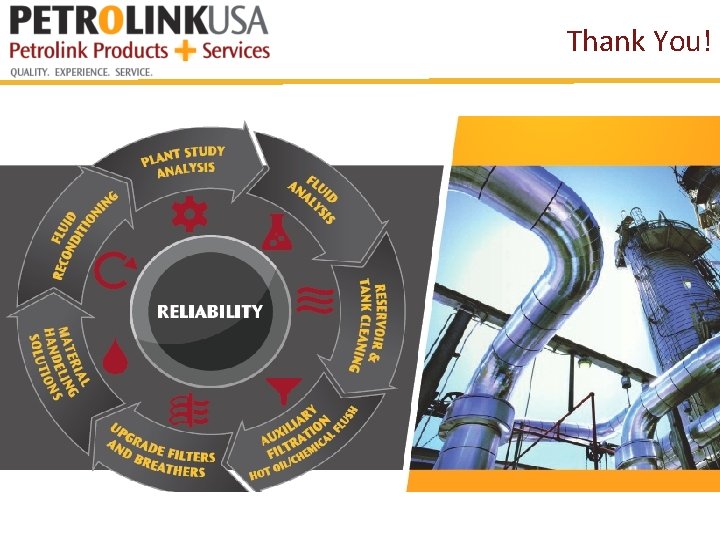

Thank You!
