Percutaneous Transhepatic Cholangiography and Drainage Anatomy Diameter of
- Slides: 38
經皮穿肝膽道引流術 Percutaneous Transhepatic Cholangiography and Drainage

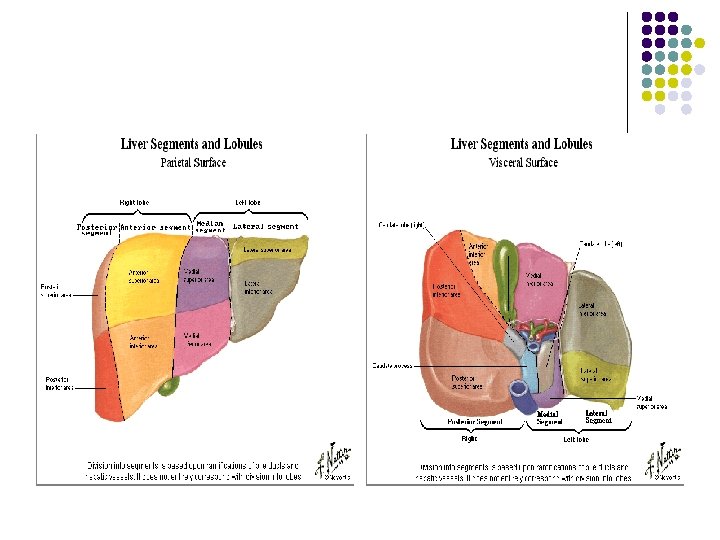

Anatomy
Diameter of common bile duct l l Normal patient ---- less than 4 mm. Obstructive jaundice --- greater than 11 mm. Highly suspicious --- between 7 to 11 mm. But if C/P greater than 1 --- significant of obstructive jaundice
Gallbladder l 底部(fundus) l 體部(body) l 頸部(neck)
Gallbladder wall thickness l Normal distended GB-----1 -2 mm a single echogenic layer l Physiologically contracted GB 3 -4 mm
Pathology 阻塞性黃疸 原因: 良性 l 結石 l 膽管炎或術後造成的 狹窄 l 膽道出血 惡性 l CBD tumor l Pancreatic head ca l Ampular vater ca l HCC (tumor thrombus)
Chief complain l l Yellowish skin Tea color urine Clay color stool Skin itching Lab data l l l Total bilirubin Alkaline-P WBC
Preparation l l l Visiting patient and check lab. Data. Review previous radiological examination. Antibiotic prophylaxis (IV). permit Analgesic / sedative premedication NPO 4~6 hours

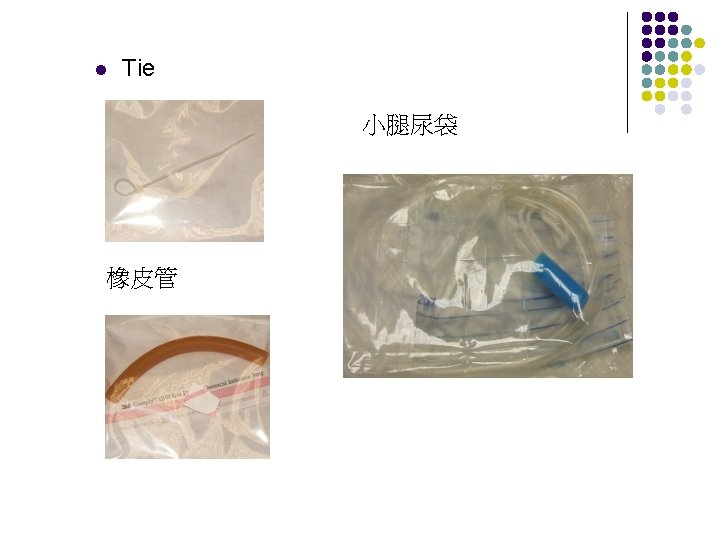

Materials l N/S • AIC • 對比劑 • Xylocaine
l chiba needle • Telfon-needle/sheath • 6#cruiser
Guilde Wire l PTCD包 Connecting tube
l Dilator Pig-tail PTCS
Pre-PTCD imaging study l l l Chest film Plain KUB Sonography Computed tomography ERCP MRCP

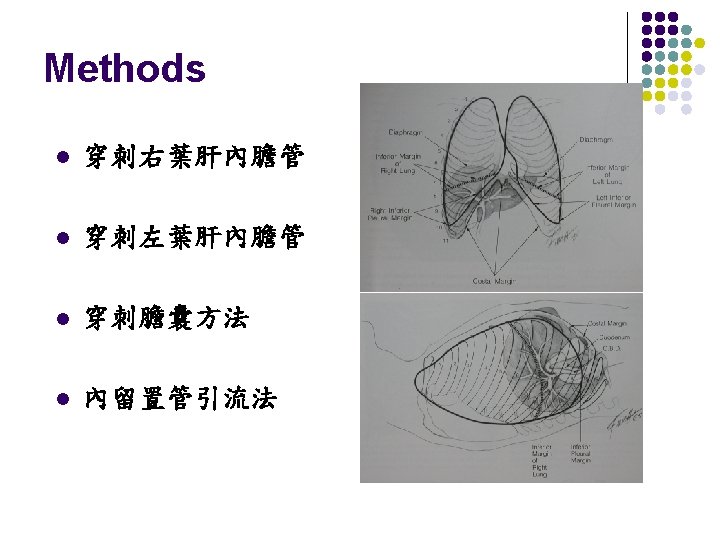

l l l Skin Pleura Peritoneum Liver capsule Bile duct

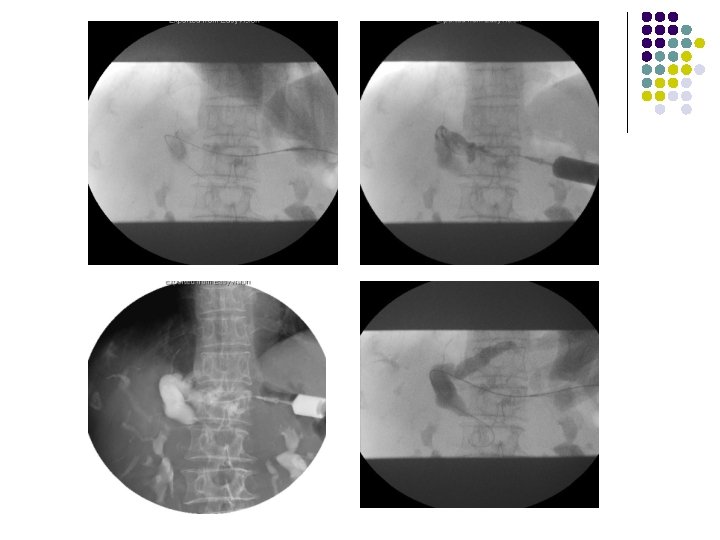

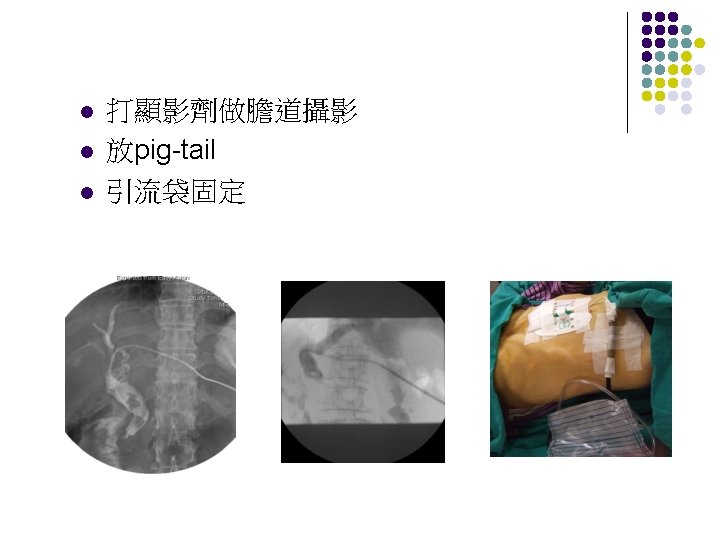

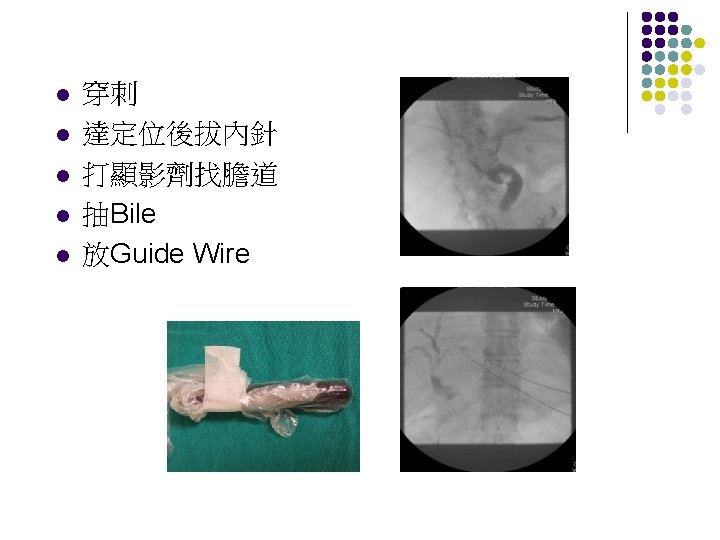

Procedure l 超音波定位 l plain film l 消毒 l 局部麻醉
Post procedure care l Bed rest Check Bp and vital sign Wound care Record bile drained amount Record bile color change l Check serum bilirubin l l
Complications l l l Bleeding Sepsis Bile leakage, bile peritonitis Hepatic arterial injury Pneumothorax, biliary pleural fistula Death

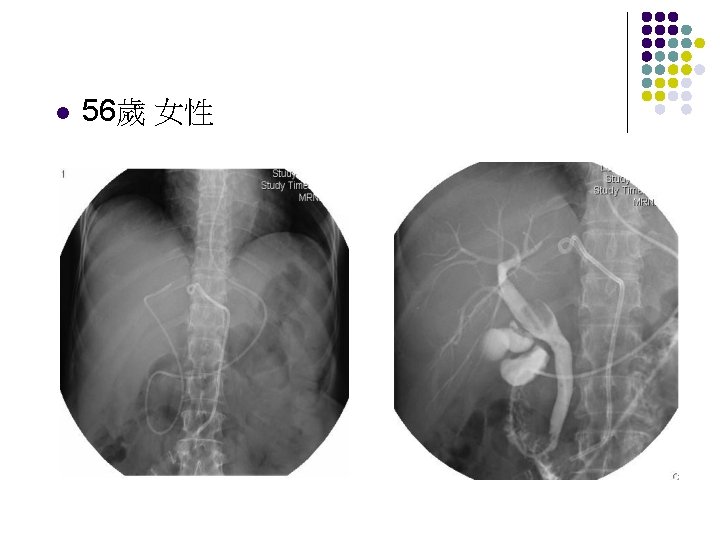

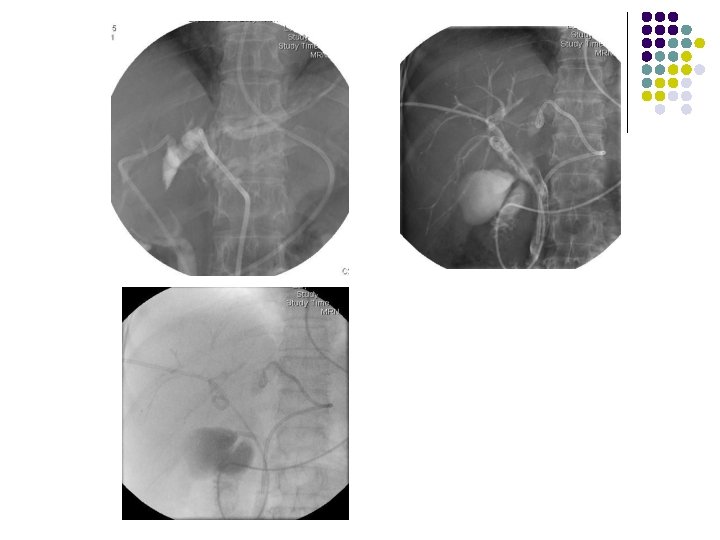

Case l 69歲 女性 Pancreatic ca.
l 79歲 女性 PTGBD
Thank You for Your Attention!
