WATER CYCLE 2 drainage basin systems Inputs Precipitation

WATER CYCLE 2: drainage basin systems Inputs Precipitation Flows Throughfall Infiltration Stemflow Throughflow Stores Outputs We are grateful to Hodder for their permission to use the diagrams in this resource. Interception Vegetation store Surface store Channel Evaporation Overland flow(s) Percolation Channel flow Groundwater flow Soil moisture store Groundwater store Transpiration Channel discharge to oceans WJEC Focus Box 3. 1. 2 Eduqas Focus Box 2. 1. 2

Water Cycle 2 The drainage basin system • The drainage basin is a subset of the global hydrological cycle • It is defined as a catchment area forming part of the Earth's surface area which is drained by a particular stream or river • It is an open system which allows energy and matter to be transferred across its boundary (the watershed or drainage divide) from external areas Class activity Why is a river drainage basin an open system, whereas the global water cycle is a closed system?

Water Cycle 2 Drainage basin inputs • There is only one physical input into a drainage basin: precipitation • Precipitation types are varied: they includes rain, snow, sleet hail Class activity and frost Why do drainage basin inputs vary from (c) Hodder Education [Edexcel A place to place or from time to time? -level Geography Book 2 (Dunn)]

Water Cycle 2 Precipitation variations • The duration and intensity of precipitation both affect how a drainage basin system responds • Very high-intensity rainfall of 50 -100 millimetres per hour is rare; it can result in flash flooding • In Boscastle, 185 mm rainfall fell in just five hours in 2004 (equivalent to two months of normal rainfall) • Low intensity but relatively long duration rainfall is far more common in the UK Class activity What processes could explain the link between highintensity rainfall and flash flooding?

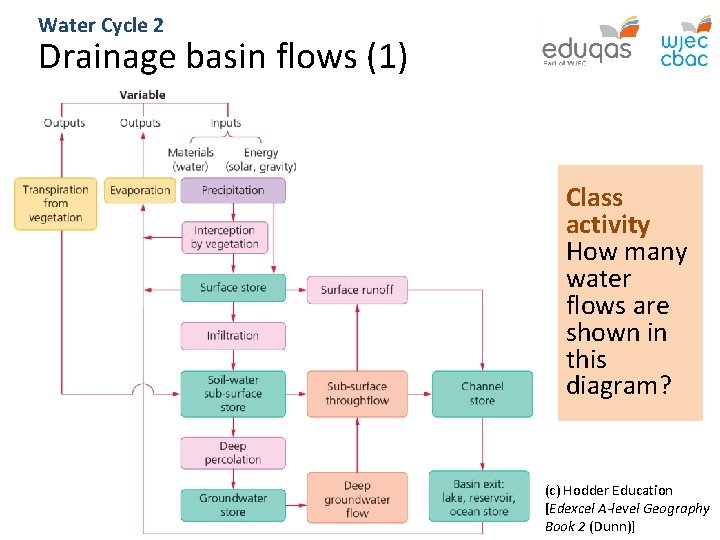

Water Cycle 2 Drainage basin flows (1) Class activity How many water flows are shown in this diagram? (c) Hodder Education [Edexcel A-level Geography Book 2 (Dunn)]

Water Cycle 2 Drainage basin flows (2) • Rainwater dripping from leaves and branches towards the ground is called throughfall • Water which flows to the ground via vegetation stems and trunks is stemflow • Infiltration is the movement of water from the ground surface into the soil • Throughflow is the movement of water laterally (sideways) through the soil, via (1) a matrix of pore spaces, fissures and (2) pipes (animal burrows) Class activity Why might drainage basin water flows vary from place to place or from time to time?

Water Cycle 2 Drainage basin flows (3) • Percolation is the transfer of water from the soil into the underlying bedrock • Groundwater flow is the vertical and lateral movement of water through a drainage basin’s underlying rock due to gravity and pressure • Coarse-grained sedimentary rocks show high permeability and permit high groundwater flow; fine -grained igneous rocks are relatively impermeable Class activity What are the implications of the varying geology of different drainage basins for river flow in dry seasons?

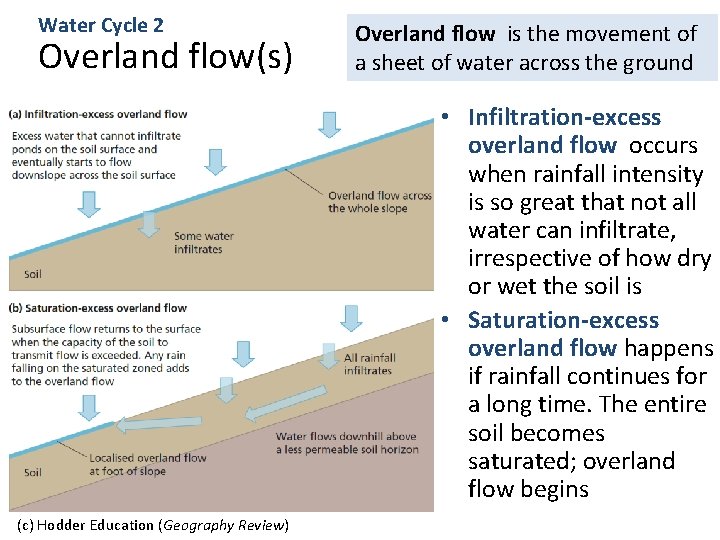

Water Cycle 2 Overland flow(s) Overland flow is the movement of a sheet of water across the ground • Infiltration-excess overland flow occurs when rainfall intensity is so great that not all water can infiltrate, irrespective of how dry or wet the soil is • Saturation-excess overland flow happens if rainfall continues for a long time. The entire soil becomes saturated; overland flow begins (c) Hodder Education (Geography Review)

Water Cycle 2 Overland flow(s) Class activity Why would different types of overland flow result in differing lag times shown on storm hydrographs? (c) Hodder Education (Geography Review)

Water Cycle 2 Drainage basin stores 1. interception store - leaf and plant surfaces 2. vegetation store - water held in the biomass itself 3. surface store - water collected on the ground in depressions and hollows, and also snow cover 4. soil moisture store - water held in soil pores space 5. channel store - water held in the river channel itself 6. groundwater store - water stored in solid rock and in any superficial deposits e. g. gravels below the soil Class activity Why might drainage basin water storage vary from place to place or from time to time?

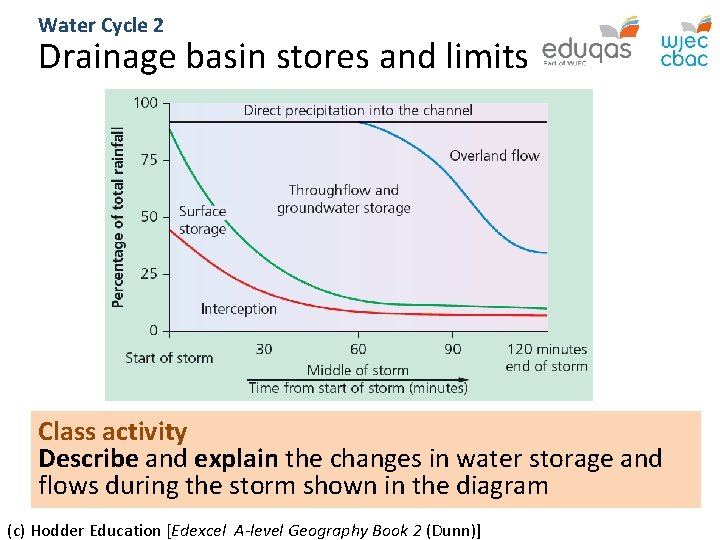

Water Cycle 2 Drainage basin stores and limits Class activity Describe and explain the changes in water storage and flows during the storm shown in the diagram (c) Hodder Education [Edexcel A-level Geography Book 2 (Dunn)]

Water Cycle 2 Drainage basin outputs • Channel discharge is the water leaving a drainage basin via its main river during a unit of time • Evaporation is the change in state of water from a liquid to a gas. Meteorological factors influence the rate of evaporation (temperature and wind speed) • Transpiration is the diffusion of water from vegetation into the atmosphere. Water vapour is lost through the stomata (pores) of leaves Class activity Why might drainage basin water outputs vary from place to place or from time to time?

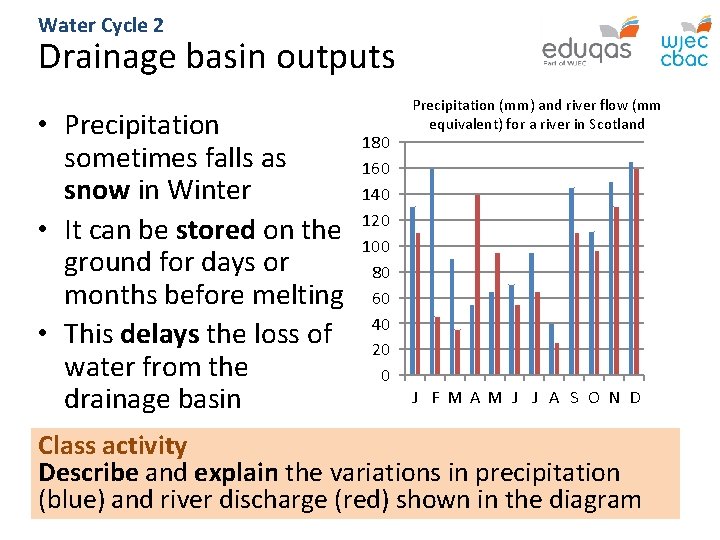

Water Cycle 2 Drainage basin outputs • Precipitation sometimes falls as snow in Winter • It can be stored on the ground for days or months before melting • This delays the loss of water from the drainage basin 180 160 140 120 100 80 60 40 20 0 Precipitation (mm) and river flow (mm equivalent) for a river in Scotland J F MAM J J A S O N D Class activity Describe and explain the variations in precipitation (blue) and river discharge (red) shown in the diagram

Water Cycle 2 Plenary • Precipitation varies according to type, amount, duration and intensity • Flows include different types of overland flow, in addition to stemflow, throughflow, percolation, groundwater flow and other water transfers • Interception plays an important role in preventing or allowing rainwater to move to other stores • Local variations in soil and rock type play an important role in river catchment hydrology • Water leaves the drainage basin as evaporation, transpiration and channel discharge
