Nuclear Physics in Storage Rings Yuri A Litvinov
- Slides: 32
Nuclear Physics in Storage Rings Yuri A. Litvinov 1. Broad band mass measurements 2. Beta decay of highly-charged ions 3. Nuclear magnetic moments 4. Nuclear reactions on thin targets 5. Capture reactions at low energies [(p, g), (a, g)…] 6. Reactions in inverse kinematics [15 O(a, g)19 Ne] 7. Experiments with isomeric beams 8. Experiments with polarized beams Institute of Theoretical Physics (ITP), CAS, Beijing 10. 06. 2010 Max-Planck-Institut für Kernphysik, Heidelberg
Beta-decay on the Chart of Nuclides p-process rp-process ν p-process Astrophysical scenarios: high temperature = high degree of ionization fussion
Half-life modifications Fundamental question: “Can we change the nuclear decay rate or it is a basic property ? !“ Pressure, Temperature, Electromagnetic fields, Chemistry. . . G. T. Emery, Annu. Rev. Nucl. Sci. 22 (1972) 165: Effects of less than 1% Modification of the electron density at the nucleus
Highly-Charged Ions W. R. Phillips, et al. , Phys. Rev. Lett. 62 (1989) 1025 W. R. Phillips, et al. , Phys. Rev. A 47 (1993) 3682 Internal conversion in few-electron 57 Fe ions F. Attallah, et al. , Phys. Rev. C 55 (1997) 1665 Internal conversion in few-electron 125 Te ions Half-life prolongations ranging from a few 10% up to 670% F. F. Karpeshin, et al. , Phys. Rev. C 53 (1996) 1640 M. R. Harston, et al. , Nucl. Phys. A 676 (2000) 143 New decay mode: Bound Internal Conversion (BIC)
Two-body beta decay of stored and cooled highlycharged ions
Production, storage and cooling of HCI at GSI Storage Ring ESR Fragment Separator FRS Production target Linear Accelerator UNILAC Heavy-Ion Synchrotron SIS
ESR : Emax = 420 Me. V/u, 10 Tm; e-, stochastic cooling ESR: B. Franzke, NIM B 24/25 (1987) 18 Stochastic cooling: F. Nolden et al. , NIM B 532 (2004) 329 Electron cooling: M. Steck et al. , NIM B 532 (2004) 357
Electron Cooling momentum exchange with 'cold', collinear e- beam. The ions get the sharp velocity of the electrons, small size and divergence
SMS 4 particles with different m/q time
SMS Sin(w 1) Sin(w 2) Fast Fourier Transform time Sin(w 3) w 4 Sin(w 4) w 3 w 2 w 1
SMS: Broad Band Frequency Spectra

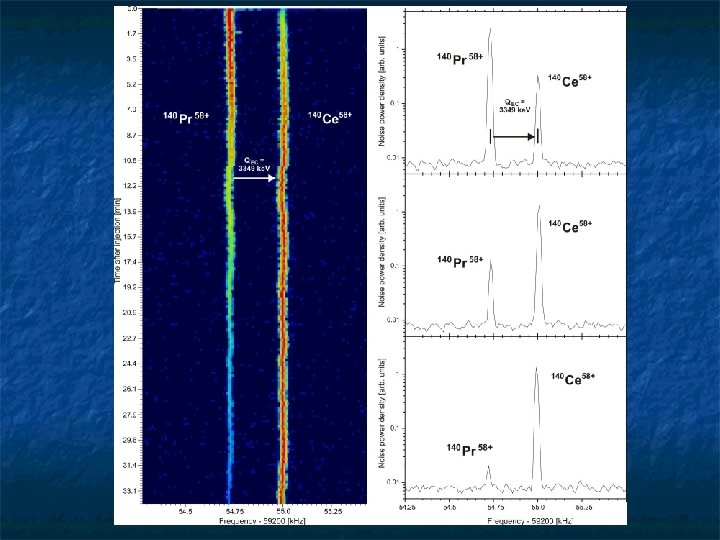

Nuclear Decays of Stored Single Atoms Time-resolved SMS is a perfect tool to study dynamical processes in the ESR Nuclear electron capture, β+, β- and bound-β decays were observed
Fully-Ionized Atoms John N. Bahcall, “Theory of Bound-State Beta Decay”, Phys. Rev. 124 (1961) 495 John N. Bahcall, “Beta Decay in Stellar Interiors”, Phys. Rev. 126 (1962) 1143 Koji Takahashi, Koichi Yokoi, “Nuclear Beta-Decays of Highly-Ionized Heavy Atoms in Stellar Interiors”, Nucl. Phys. A 404 (1983) 578 Koji Takahashi, Koichi Yokoi, “Beta-Decay Rates of Highly-Ionized Heavy Atoms in Stellar Interiors”, Atomic Data Nucl. Data Tables 36 (1987) 375
Half-Lives of Nuclear Isomers laboratory frame Neutral atom is 0. 49(2) s Fully ionized atom is 11(1) s T 1/2 (fully ionized) T 1/2 (neutral) = 22(2) Yu. A. Litvinov, et al. , PLB 573 (2003) 80 -85
Observation of 133 m. Sb isomeric state 17 s isomeric state in neutral 133 Sb RIMS=200 000 Expected half-live of bare isomer: ~ 17 ms, t~991 A new half-live domain for storage-ring experiments B. Sun et al. , PLB 688 (2010) 294
Bound-State b-decay
Bound-State b-decay of 187 Re E The 7 Nuclear Clocks for the Age of the Earth, the Solar System, the Galaxy, and the Universe 187 Re 75+ clock T½ = 33 y Q = 62 ke. V 40 K/40 Ar βb T 1/2[109 y] ( b) 238 U…Th… 206 Pb ( , b) 4. 5 ( , b) 14 232 Th…Ra… 208 Pb 9. 8 ke. V g. s. 187 Re 0 5/2+ β- 3/21/2 - 9. 8 ke. V g. s. T½ = 42 Gy; Q = 2. 7 ke. V 1. 3 176 Lu/176 Hf ( b) 30 187 Re/187 Os ( b) 42 87 Rb/87 Sr ( b) 147 Sm/143 Nd ( ) 50 100 Clayton (1964): a mother-daughter couple (187 Re/187 Os) is the “best” radioactive clock F. Bosch et al. , Phys. Rev. Lett. 77 (1996) 5190
Bound-State b-decay of 163 Dy s process: slow neutron capture and β- decay near valley of β stability at k. T = 30 ke. V; → high atomic charge state → bound-state β decay p process Er Ho Dy 162 164 166 165 163 160 161 162 163 164 s process T 1/2 = 48 days r process branchings caused by bound-state β decay M. Jung et al. , Phys. Rev. Lett. 69 (1992) 2164
Bound-State b-decay in 206, 207 Tl λ = λb+λc+λR λb bound/continuum branching ratio T. Ohtsubo et al. , Phys. Rev. Lett. 95 (2005) 052501
Next Step: Bound-State b-decay of 205 Tl F. Bosch et al. , GSI Proposal
Hydrogen-Like Ions I. Iben et al. , “The Effect of Be 7 K-Capture on the Solar Neutrino Flux”, Ap. J. 150 (1967) 1001 L. M. Folan, V. I. Tsifrinovich, “Effects of the Hyperfine Interaction on Orbital Electron Capture”, Phys. Rev. Lett. 74 (1995) 499
Decay schemes H-like ions; g. s. → g. s. ; no third particle
EC in Hydrogen-like Ions Expectations: l. EC(H-like)/l. EC(He-like) ≈ 0. 5 140 Pr l. EC(H-like)/l. EC(He-like) = 1. 49(8) Yu. A. Litvinov et al. , Phys. Rev. Lett. 99 (2007) 262501 142 Pm l. EC(H-like)/l. EC(He-like) = 1. 44(6) N. Winckler et al. , Phys. Lett. B 579 (2009) 36
Electron Capture in Helium-like Ions Gamow-Teller transition 1+ → 0+ s = 1/2 I=0 I=1 EC S=0 s = 1/2 F=1
Electron Capture in Hydrogen-like Ions Gamow-Teller transition 1+ → 0+ I=0 I=1 EC s = 1/2 3/2 F=I+s 1/2 F = 1/2 Z. Patyk et al. , Phys. Rev. C 77 (2008) 014306
Electron Capture in Hydrogen-like Ions Gamow-Teller transition 1+ → 0+ S. Typel and L. Grigorenko µ = +2. 7812µN Z. Patyk Probability of EC Decay Neutral 140 Pr: P = 2. 381 He-like 140 Pr: P=2 H-like 140 Pr: P=3 Theory: The H-Like ion should really decay 20% faster than neutral atom! (2 I+1)/(2 F+1) Z. Patyk et al. , Phys. Rev. C 77 (2008) 014306
Next Step B. M. Dodsworth et al. , Phys. Rev. 142 (1966) 638. µ (64 Cu) = − 0. 217(2) N
Some speculations on the EC-decay of 7 Be A. V. Gruzinov, J. N. Bahcall, Astroph. J. 490 (1997) 437 Ionization of 7 Be in the Sun can be ~ 20 -30 % Transition (F=1 F=1) is accelerated by (2 I+1)/(2 F 1+1) i. e. by 8/3 However, there are only (2 F 1+1)/((2 F 1+1)+(2 F 2+1)) = 3/8 of 7 Be in this state
Electron Capture in Hydrogen-like Ions 4 F=I+s 3 5 F=I+s Possibility to address the electron screening in beta decay under very clean conditions ! 4
Single-Particle Decay Spectroscopy
Decay schemes H-like ions; g. s. → g. s. ; no third particle
