Electronics for Nuclear Physics Why Electronics Detector Electronics
- Slides: 27
Electronics for Nuclear Physics 김상열 노티스
Why Electronics? Detector + Electronics + Analysis = Physics Detector + Electronics + = Development + Electronics + Analysis = Simulation Detector + * 매우 개인적인 의견임!! + Analysis = ? ?
Some examples
Electronics for Nuclear physics experiment Detector Bias Voltage Preamp + other Analog circuits Digitizer Data Acquisition Trigger + DSP Power Supply
Frequently used example 50 ohm input impedance Oscilloscope level trigger
Signal from detector PMT, Si. PM… : gain ~ 10^6 -> ~ 10^10 electrons/Me. V = ~n. C/Me. V Wire chamber, GEM… : gain ~ 10^2~3 -> ~ 10^6~7 electrons/Me. V = ~p. C/Me. V Photodiode, Ion chamber… : gain ~ 1 -> ~ 10^3~5 electrons/Me. V = ~f. C/Me. V

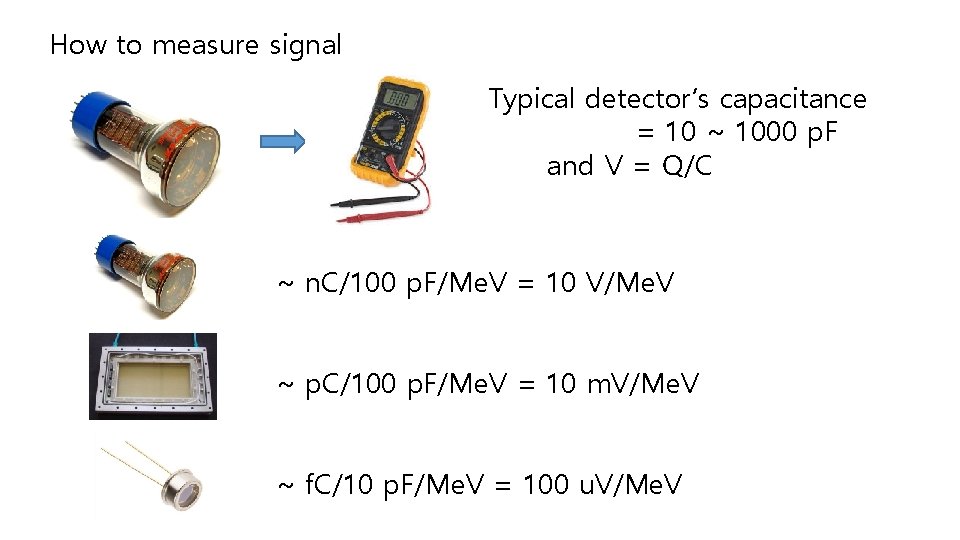

How to measure signal Typical detector’s capacitance = 10 ~ 1000 p. F and V = Q/C ~ n. C/100 p. F/Me. V = 10 V/Me. V ~ p. C/100 p. F/Me. V = 10 m. V/Me. V ~ f. C/10 p. F/Me. V = 100 u. V/Me. V
What we measure actually? When Idet(detector current) is very fast, Isig = Qdet x exp(-t/T) where T = Cd x Rm = 100 p. F x 10 Mohm = ~ ms -> very long!
Where it comes from?
Bias voltage supplier should supply If detector response time = ~ 10 ns and count rate = ~ 100 kcps PMT, Si. PM… : n. C/10 ns x 100 kcps/s = 10 u. A @ a few k. V -> 1 m. A @ k. V Wire chamber, GEM… : p. C/10 ns x 100 kcps/s = 1 u. A @ k. V(? ) Photodiode, Ion chamber… : f. C/10 ns x 100 kcps/s = ~1 n. A @ a few ~ 100 V
Preamplifier converts Idet to Voltage signal.
Take a look at PMT oscilloscope shot again

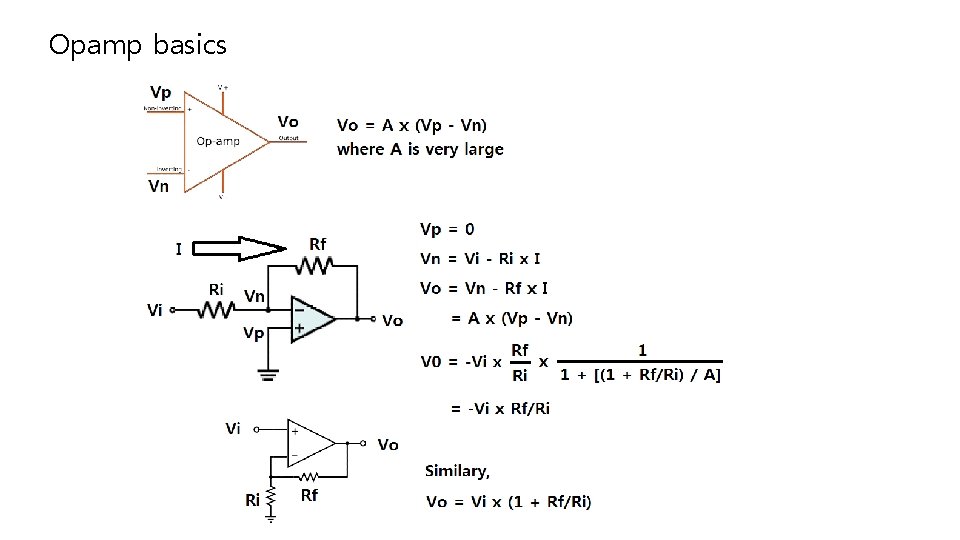

Opamp basics
Current Sensitive Preamp
Charge Sensitive Preamp
Shaping Amplifier
Discriminator Leading edge discriminator Constant fraction discriminator

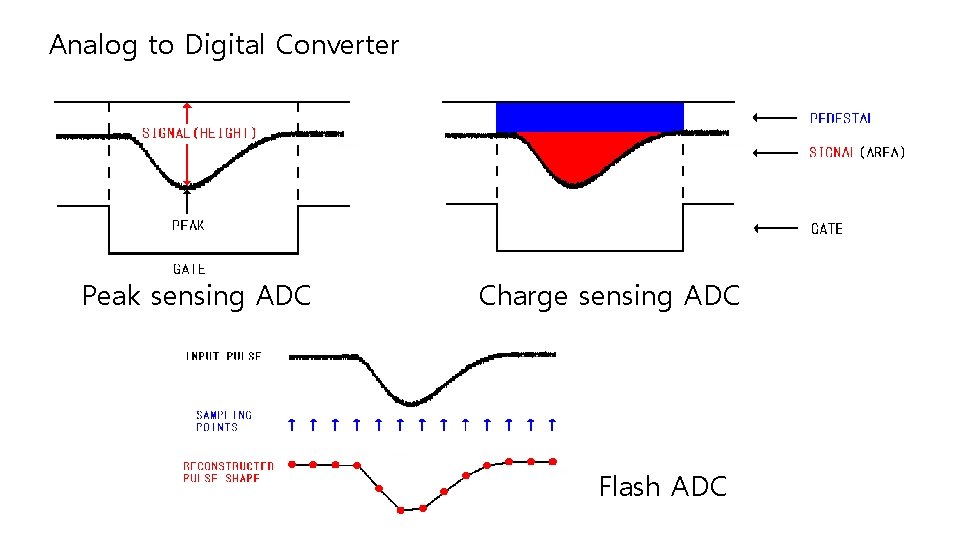

Analog to Digital Converter Peak sensing ADC Charge sensing ADC Flash ADC
ADC sampling
Time to Digital Converter Direct counting Resolution ~ 1 ns Time stretching Resolution ~ 10 ps
Time to Digital Converter Time interpolation Resolution ~ 10 ps Multi-hit TDC Pulse shaping TDC : resolution ~ 10 ps, multi-hit
Trigger

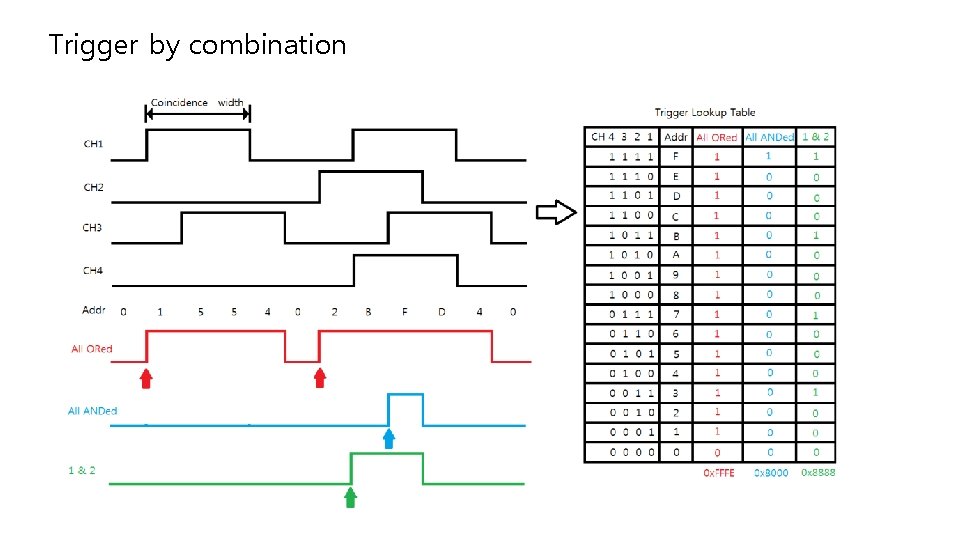

Trigger by combination
Data Acquisition Standard DAQ
Data Acquisition Ethernet : 125 MB/s max, ~30 MB/s typically USB : 500 MB/s max, ~100 MB/s typically PCI : 63 GB/s max, ~? ? ? typically

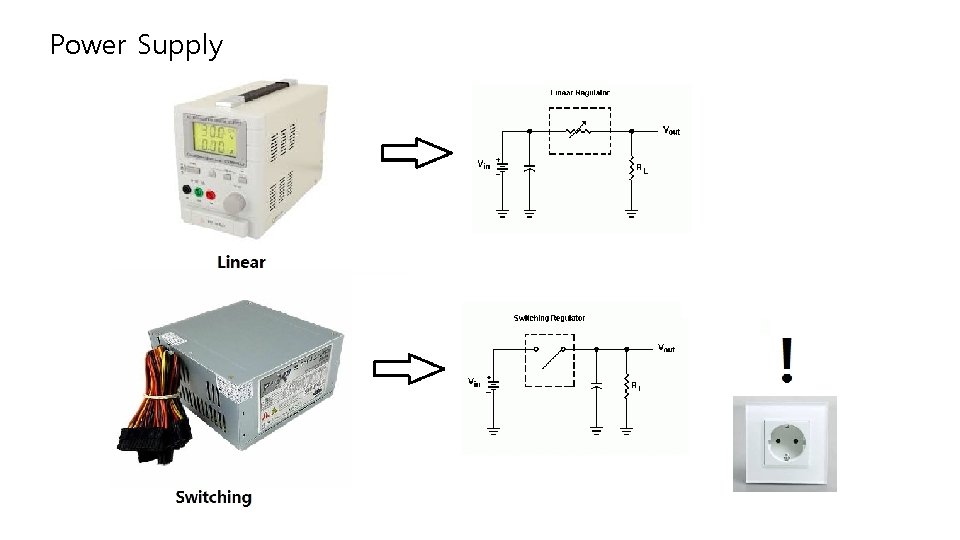

Power Supply
Example of electronics board
